Drilling Rigs and Drawworks Accessories
Eaton Airflex WCB Water-Cooled Auxiliary Brake
Drilling Rigs and Drawworks Accessories. Eaton Airflex WCB Water-Cooled Auxiliary Brake for oilfield equipment maintenance and replacement projects. Buyers can send part number, equipment model, product photo or technical drawing for quotation.
Application
Eaton Airflex WCB Water-Cooled Auxiliary Brake for oilfield equipment maintenance and replacement projects. Buyers can send part number, equipment model, product photo or technical drawing for quotation.
Supply Support
Specification matching, export packaging, WhatsApp and email communication support for oilfield buyers.
Description

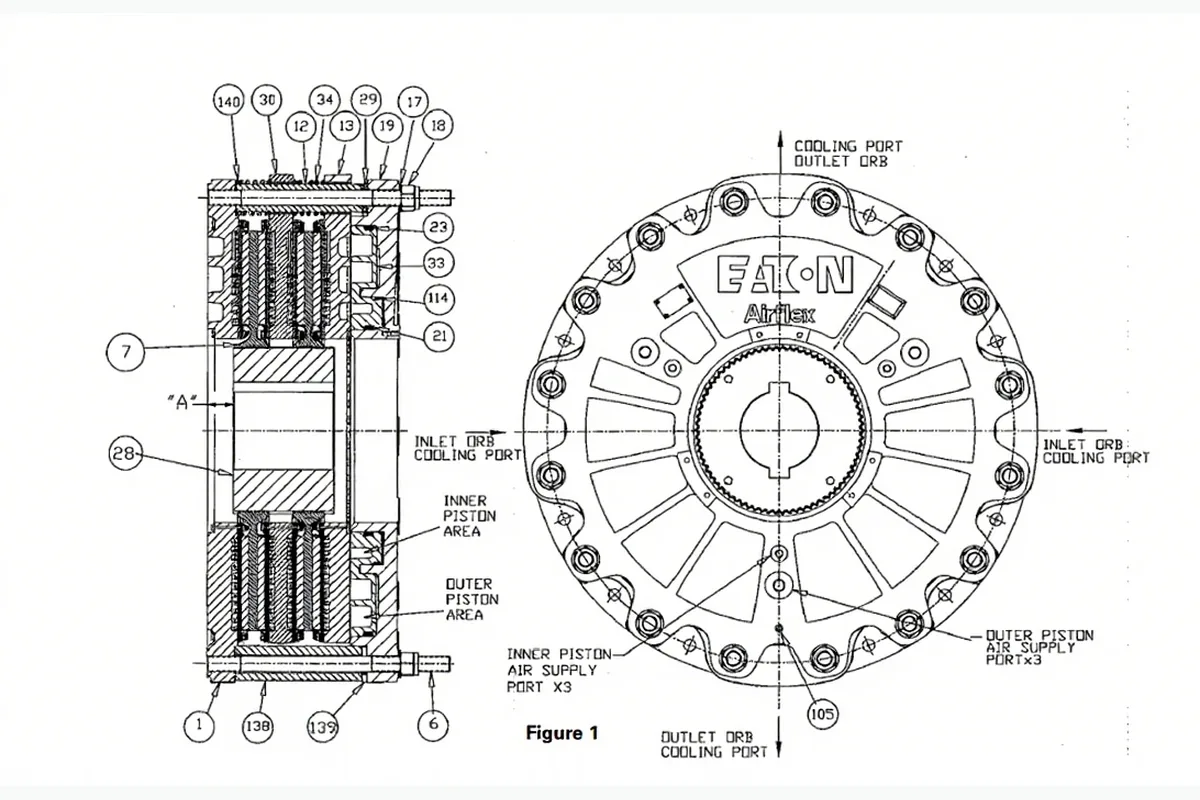

Description Photos and Product Materials
Images marked as description materials are placed here and are not used as the product card thumbnail.
Specifications
WCB Models and Spare Part Numbers
This table is updated from the product parameters you provided. It covers 124WCB2, 224WCB2, 324WCB2, 424WCB2, 136WCB2, 236WCB2, 336WCB2 and 436WCB2.
Common models for oil drilling rigs, workover rigs and mobile drilling rigs: 124WCB2, 224WCB2, 324WCB2, 424WCB2, 136WCB2, 236WCB2, 336WCB2, 436WCB2
124WCB2 / 224WCB2 / 324WCB2 / 424WCB2
| No. | Part Name | 124WCB2 146465A(514825) Part No. | 224WCB2 146466A(514826) Part No. | 324WCB2 146467A(514827) Part No. | 424WCB2 146468A(514828) Part No. |
|---|---|---|---|---|---|
| 1 | Mounting Flange Half Assembly | 513348-01 | 513348-01 | 513348-01 | 513348-01 |
| 2 | Mounting Flange | 513337 | 513337 | 513337 | 513337 |
| 3 | Wear Plate | 508459 | 508459 | 508459 | 508459 |
| 4 | Pin | 000245*0069 | 000245*0069 | 000245*0069 | 000245*0069 |
| 5 | Friction Disc | 508725 | 508725 | 508725 | 508725 |
| 6 | Friction Disc Core | 510745 | 510745 | 510745 | 510745 |
| 7 | Pipe Clamp | 306542-05 | 306542-20 | 306542-23 | 306542-24 |
| 8 | Pressure Plate Half Assembly | 513348-03 | 513348-03 | 513348-03 | 513348-03 |
| 9 | Pressure Plate | 513345 | 513345 | 513345 | 513345 |
| 10 | Flat Washer | 000153*0641 | 000153*0641 | 000153*0641 | 000153*0641 |
| 11 | Lock Nut | 000110*0073 | 000110*0073 | 000110*0073 | 000110*0073 |
| 12 | Cylinder | 513264 | 513264 | 513264 | 513264 |
| 13 | Edge Seal (Inner) | 000402*0023 | 000402*0023 | 000402*0023 | 000402*0023 |
| 14 | Edge Seal (Outer) | 000402*0024 | 000402*0024 | 000402*0024 | 000402*0024 |
| 15 | — | 411672 | 410970 | 412433 | 413195 |
| 16 | Wear Washer | N/A | 308396 | 308396 | 308396 |
| 17 | Reaction Plate Half Assembly | N/A | 513348-02 | 513348-02 | 513348-02 |
| 18 | Reaction Plate | N/A | 513343 | 513343 | 513343 |
| 19 | Piston | 513317 | 513317 | 513317 | 513317 |
| 20 | Return Spring | 416751-02 | 416751-02 | 416751-02 | 416751-02 |
| 21 | Inner Support Ring | 413107 | 413107 | 413107 | 413107 |
| 22 | Outer Support Ring | 413108 | 413108 | 413108 | 413108 |
| 23 | Countersunk Screw | 000294*407 | 000294*407 | 000294*407 | 000294*407 |
| 24 | Pipe Plug | 000077*0021 | 000077*0021 | 000077*0021 | 000077*0021 |
136WCB2 / 236WCB2 / 336WCB2 / 436WCB2
| No. | Part Name | 136WCB2 Part No. | 236WCB2 Part No. | 336WCB2 Part No. | 436WCB2 Part No. |
|---|---|---|---|---|---|
| 1 | Mounting Flange Half Assembly | 513985-01 | 513985-01 | 513985-01 | 513985-01 |
| 2 | Mounting Flange | 513986 | 513986 | 513986 | 513986 |
| 3 | Wear Plate | 416527 | 416527 | 416527 | 416527 |
| 4 | Pin | 307111-04 | 307111-10 | 307111-05 | 307111-07 |
| 5 | Half Friction Disc Assembly | 513990 | 513990 | 513990 | 513990 |
| 6 | Friction Disc | 513658 | 513658 | 513658 | 513658 |
| 7 | Friction Disc Core | 513667 | 513667 | 513667 | 513667 |
| 8 | Pipe Clamp | 308204-07 | 513985-03 | 308204-04 | 308204-05 |
| 9 | Pressure Plate Half Assembly | 513985-03 | 513985-03 | 513985-03 | 513985-03 |
| 10 | Pressure Plate | 512860 | 512860 | 512860 | 512860 |
| 11 | Flat Washer | 000067*0042 | 000067*0042 | 000067*0042 | 000067*0042 |
| 12 | Lock Nut | 000110*0075 | 000110*0075 | 000110*0075 | 000110*0075 |
| 13 | Cylinder | 513988 | 513988 | 513988 | 513988 |
| 14 | Edge Seal (Inner) | 000402*0005 | 000402*0005 | 000402*0005 | 000402*0005 |
| 15 | Edge Seal (Outer) | 000402*0006 | 000402*0006 | 000402*0006 | 000402*0006 |
| 16 | — | 416538 | 416538 | 416538 | 416538 |
| 17 | Wear Washer | N/A | 308397 | 308397 | 308397 |
| 18 | Reaction Plate Half Assembly | N/A | 513985-02 | 513985-02 | 513985-02 |
| 19 | Reaction Plate | N/A | 513989 | 513989 | 513989 |
| 20 | Piston | 512858 | 512858 | 512858 | 512858 |
| 21 | Return Spring | 416751-01 | 416751-01 | 416751-01 | 416751-01 |
| 22 | Inner Support Ring | 414032-01 | 414032-01 | 414032-01 | 414032-01 |
| 23 | Outer Support Ring | 414033-01 | 414033-01 | 414033-01 | 414033-01 |
| 24 | Countersunk Screw | 000294*407 | 000294*407 | 000294*407 | 000294*407 |
| 25 | Pipe Plug | 000077*0021 | 000077*0021 | 000077*0021 | 000077*0021 |
