ZQ203-100 / ZQ203-125ZQ Series Drill Pipe Power Tongs
The ZQ series combines spinning and torque functions in an open-throat hydraulic tong for making up and breaking out drill-pipe and tool-joint connections during drilling and workover operations.
Product Overview
Integrated Spinning and Torque Control
The open-throat head can disengage from the pipe string after the connection is made up or broken out. Combining spinning and final torque in one powered assembly reduces manual handling and helps limit thread damage when the correct jaws, rollers and operating settings are used.
Operating function
The hydraulic motor and transmission rotate the pipe connection, while the tong body applies controlled make-up or break-out torque. The backup arrangement reacts the torque during operation.
Typical service
Suitable for drill-pipe and tool-joint handling in land drilling, offshore drilling and workover service when the selected model and jaw/roller set match the connection outside diameter.
Model confirmation required
ZQ203 is a series designation, not a complete ordering code. Confirm ZQ203-100 versus ZQ203-125, standard versus Type II lifting configuration, manufacturer, nameplate, serial number, jaw/roller set and hydraulic/pneumatic supply before ordering.
Technical Specifications
ZQ Series Model Comparison
The Russian listing names four ZQ configurations. Manufacturer reference values are shown separately so model ratings are not mixed. Dimensions and weight apply to standard configurations; Type II lifting arrangements must be confirmed independently.
ZQ127-25
25 kN·m standard configuration
- Manufacturer-listed nominal range
- 65–127 mm* 2⅜-in tool joint to 3½-in pipe body
- Maximum torque
- 25 kN·m 18,440 ft·lbf
- High- / low-gear speed
- 65 / 10.5 rpm
- Hydraulic rated pressure
- 12 MPa 1,740 psi
- Rated hydraulic flow
- 120 L/min 31.7 gpm
- Pneumatic supply pressure
- 0.5–0.9 MPa 72–130 psi
- Shifting-cylinder stroke
- 1,000 mm 39.4 in
- Overall dimensions (L×W×H)
- 1,110×735×815 mm
- Weight
- 620 kg 1,370 lb
ZQ162-50
50 kN·m standard configuration
- Manufacturer-listed nominal range
- 85–162 mm* 2⅜-in tool joint to 5-in pipe body
- Maximum torque
- 50 kN·m 36,880 ft·lbf
- High- / low-gear speed
- 60 / 4.1 rpm
- Hydraulic rated pressure
- 16 MPa 2,320 psi
- Rated hydraulic flow
- 120 L/min 31.7 gpm
- Pneumatic supply pressure
- 0.5–0.9 MPa 72–130 psi
- Shifting-cylinder stroke
- 1,000 mm 39.4 in
- Overall dimensions (L×W×H)
- 1,570×800×1,190 mm
- Weight
- 1,500 kg 3,310 lb
ZQ203-100
100 kN·m standard configuration
- Manufacturer-listed nominal range
- 114–203 mm* Manufacturer page also states 2⅞–8 in
- Maximum torque
- 100 kN·m 73,750 ft·lbf
- High- / low-gear speed
- 40 / 2.7 rpm
- Hydraulic rated pressure
- 16.6 MPa 2,400 psi
- Rated hydraulic flow
- 114 L/min 30 gpm
- Pneumatic supply pressure
- 0.5–0.9 MPa 72–130 psi
- Shifting-cylinder stroke
- 1,500 mm 59 in
- Overall dimensions (L×W×H)
- 1,760×1,000×1,360 mm
- Weight
- 2,400 kg 5,290 lb
ZQ203-125
125 kN·m standard configuration
- Manufacturer-listed nominal range
- 114–203 mm* Manufacturer page also states 2⅞–8 in
- Maximum torque
- 125 kN·m 92,200 ft·lbf
- High- / low-gear speed
- 40 / 2.7 rpm
- Hydraulic rated pressure
- 20.7 MPa 3,000 psi
- Rated hydraulic flow
- 114 L/min 30 gpm
- Pneumatic supply pressure
- 0.5–0.9 MPa 72–130 psi
- Shifting-cylinder stroke
- 1,500 mm 59 in
- Overall dimensions (L×W×H)
- 1,760×1,080×1,360 mm
- Weight
- 2,650 kg 5,840 lb
* Manufacturer-listed nominal range. The published metric and imperial statements are not strict equivalents, and the actual gripping range is determined by the installed jaw and roller set. Confirm the tool-joint outside diameter before quotation.
Source-backed model family
The Russian listing names ZQ127-25, ZQ162-50, ZQ203-100 and ZQ203-125. Its images do not show a readable nameplate for a single exact variant.
View the Russian source pageManufacturer reference
The ratings above follow the RUTONG manufacturer product page. Product-specific certification and the supplied configuration must be confirmed with the quotation.
View manufacturer data152-item parts reference
The Russian source BOM does not identify the exact ZQ variant. Use it only as a visual/part-number reference and verify the complete model, serial number and assembly drawing.
Open the detailed parts referenceSource Images

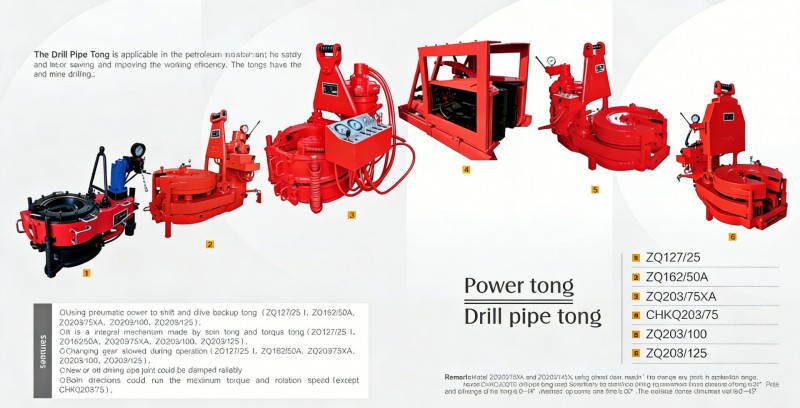

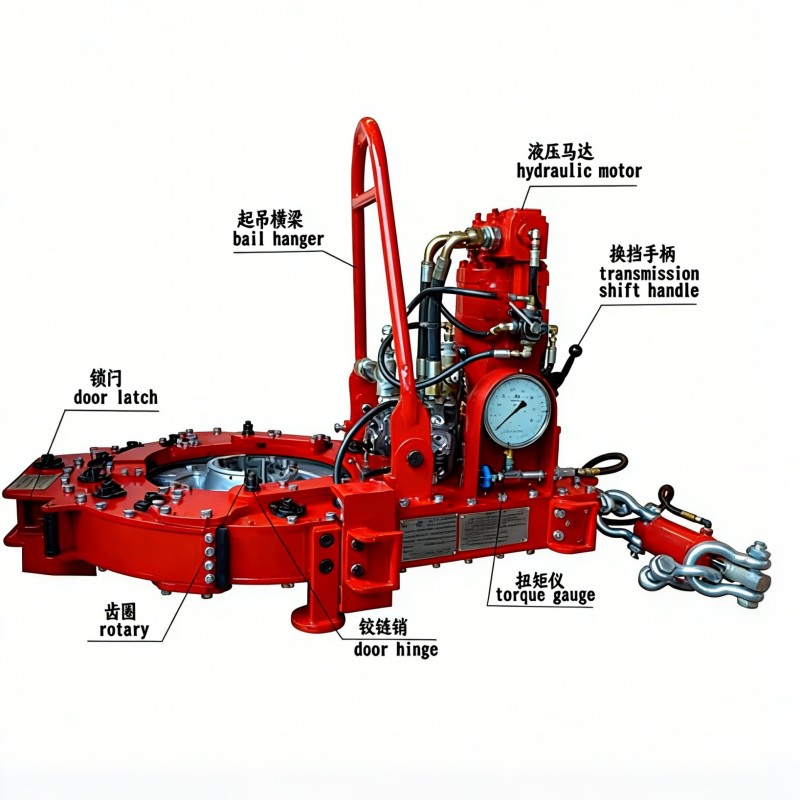

ZQ203 Component and Series References
These photographs come from the Russian listing. They illustrate the product family but do not replace nameplate and assembly-drawing verification.
