Drilling drawworks brake band

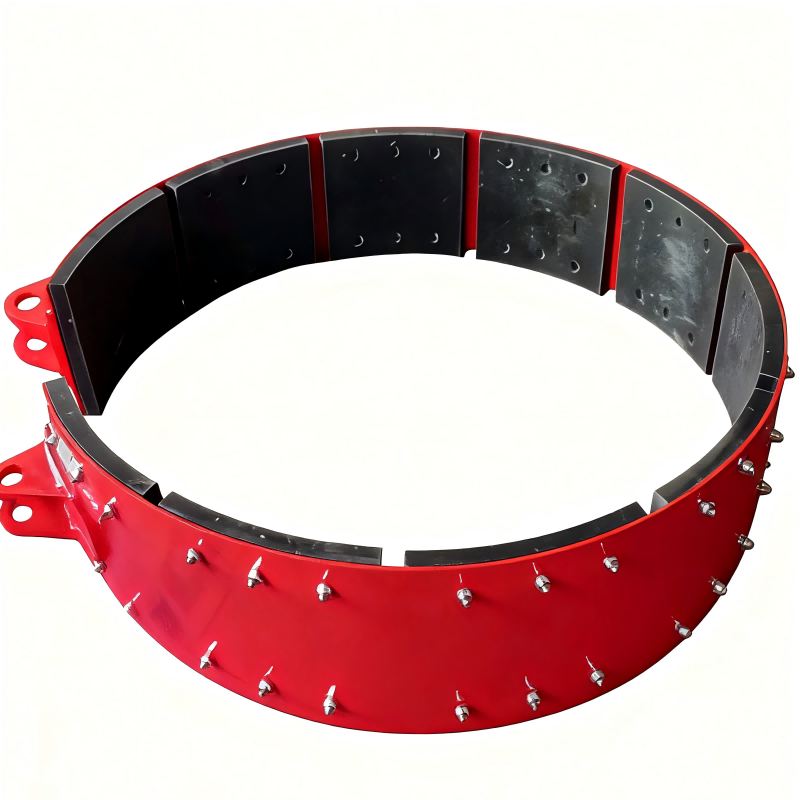

Drilling Drawworks Brake - Brake Band

The brake band assembly includes brake band, brake blocks, copper bolts, copper nuts and fastening hardware. Drawing numbers and sizes cover JC14-03-07-00, JC18A-03-01-00, JC21A-03-01-00, JC28A-02-01-00 and related drawworks brake systems.

Email: 2000@pratt-oil.comWhatsApp: +86 159 0808 0040
Send Inquiry

Product Overview

The drawworks brake band is a key braking component for drilling rig drawworks. It is used on the main brake drum and sand drum brake systems, and is supplied with matching brake blocks, copper bolts, copper nuts and installation hardware. For quotation, send the drawing number, drawworks model, product photo or technical drawing so the brake band size can be confirmed.

  • JC14-03-07-00 - JC14 drawworks; JC14/11 main brake drum and sand drum brake system
  • JC18A-03-01-00 - JC18A and JC18B drawworks
  • JC21A-03-01-00 - JC21A / JC21/11 drawworks and JC main drum
  • JC21/11-03-23-00 - JC21/11 drawworks sand drum
  • JC28A-02-01-00 - JC28K drawworks
  • JC32B-02-02-00 - JC28N drawworks
  • JC28/11-03-05-00 - JC28/11 main drum brake system
  • JC28/11-07-01-00 - JC28/11 sand drum brake system
  • JC28/11F-03-07-00 - JC28/11F sand drum brake system

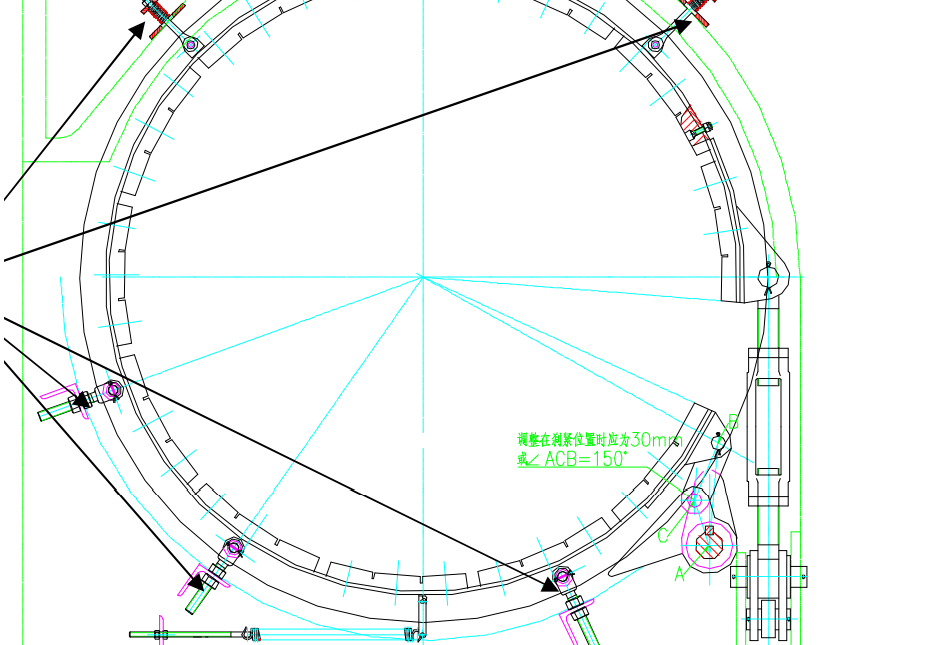

Drawworks brake band drawing

Product Parameters

NameDrawing No.NameDrawing No.NameDrawing No.
Water-cooled brake5402650011Hydraulic brake discP0000463AADisc clutch5402650177
Brake drumZ03030200004AAPush-type clutchZ16160100004AADisc clutchZ16160100002AA
Disc clutchZ16160100001AAPush-type clutchZ16160000003AAWater-cooled brake system5402650014
Brake padE301.2.3.3APush-type clutchZ16160100017AAFriction discP0000089AA
Cast brake padE301.2.3.35Friction discP1000337AAFriction disc5401700004
Air bagZ16160101004AAAir bag5401900004Pressure plate5401800002
Pressure plateP6003856AAAir bag assemblyZ16160101003AADisc clutchZ16160100004AA
Brake drumE650-04010002Pressure plateP0000091AABrake hubE5302010002
Brake drumZ03030200003AABrake hubZ03010300011AADisc clutchG301.51.0D
Disc clutchZ16160100009AAHydraulic brake5402650012Finger plateG301.51.6
Adjusting blockG301.51.8Friction discG301.51.4Air bagG301.51.5
Pressure plateG301.51.7SpringG301.51.2Brake rod assemblyZ03020400001AA
Intermediate shaftG301.51.3Connecting plateG301.51.1CSteel band assemblyZ03021200003AA
Brake padP4300011AAPush-type clutchG301.52.00Disc clutchZ16160100003AA
Disc clutchZ16160100002AAAir bag assembly5401900007Friction disc5402600283
Spring setP9000006AAPressure plate5402600282Spring5499950014
Brake padP6000551AAAir bag assemblyZ16160101003AAFriction discP0000089AA
Brake drumE790-04010002Pressure plateP0000091AASpringP0000041AA
Brake drumZ03030200004AABrake shoeP6000551AASteel band assemblyZ03021200002AA
Disc clutchZ16160100004AADisc clutchE4004030002Disc clutchZ16160100002AA
Disc clutchE720-11050002Push-type clutchZ16160100001AADisc clutchE620-11000102
Brake discP0000296AAPush-type clutchZ16160100005AASteel band assemblyZ03021200011A
Steel band assemblyZ03021200001AABrake drumZ03030200003AADisc clutchZ03040600002AA
Brake padP6000102AAPush-type clutchZ16160100004AABrake shoeP6400706AA
Gear boxP0000182AAPush-type clutchZ16160100005AAPressure plateP6003856AA
Spring setP9000091AAGear boxP0000226AAAir bagP1700346AA
Intermediate gearP3100016AASpringP9000091AABrake shoeP1100282AA
Friction discP1000337AAIntermediate shaftP3100016AABrake drumZ03010300030AA
Air bagZ16160101004AAFriction discP1000337AABrake drumZ03010300031AA
Pressure plateP6003856AAAir bag sealP0000183AABrake shoeP6042918AA
