A National 7-P-50 parts request is easier to review when the pump model is followed by an assembly drawing and an item reference. The supplied EPL-1219 catalog separates the complete pump, power end, piston and liner spray system, crankshaft, connecting rod and pinion shaft. These references provide a useful starting point for an existing pump inspection or maintenance parts list.
Model and source-reference facts
| Field | Reference shown in supplied material |
|---|---|
| Model printed on source | 7-P-50 |
| Pump arrangement | Triplex slush pump |
| Parts-list reference | EPL-1219 |
| Issue date | September 1998 |

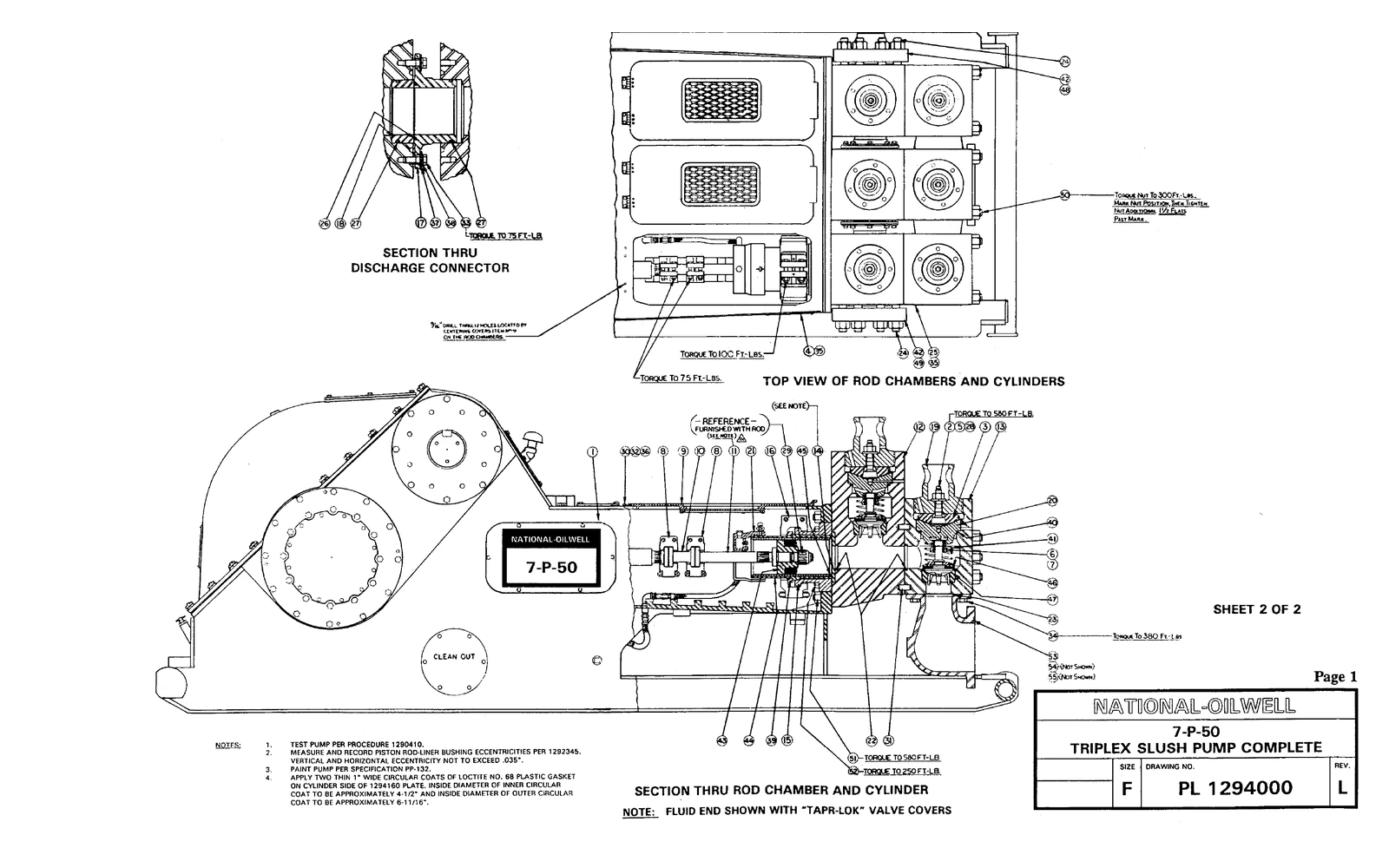

| Complete-pump drawing | PL 1294000, Rev. L |
Start with the assembly, then identify the component
The September 1998 parts list identifies the complete pump drawing as PL 1294000. Its bill of material distinguishes the studded discharge module from the suction module and lists the liner bushing, liner clamp, valve cover and seal retainer separately. A description such as "fluid-end kit" therefore needs a breakdown: the required module, installed fittings and individual wear components should each be named in the request.
Piston rods also need attention. The same source lists 1294147 for pistons of 4 inches and larger, while 1294149 is described for 3-inch and 3-1/2-inch pistons. This is a reason to record the installed piston size and rod arrangement rather than select a rod from the pump model alone. An assembly number and an individual component number should remain separate lines in the purchasing list.
The examples below are selected reference entries, not a complete bill of material or a confirmation of interchangeability.
Details to include with the parts request
For a quotation review, send the nameplate, pump serial number, catalog edition, drawing number, item number and required quantity. Include clear photographs of the removed component and any stamped or cast markings. For liners and pistons, add the installed size and sealing arrangement. Mark whether the requirement is an individual part or a complete assembly; this helps avoid an incomplete comparison between quotations.
For related purchasing information, see mud pump spare parts matching and liner, piston, valve and seat identification. You can contact Pratt Oil with your parts request for review of the model, reference and component details.
Brand and model names identify the equipment described in the source material. Final parts matching depends on the complete pump and assembly information.
Mud King catalogue references for this model
The reference list also includes entries from the Mud King Products expendables catalogue. MK and MKG prefixes identify that supplier catalogue’s numbering. Keep those prefixes and the stated size, valve series, liner outside diameter and source table together. They are not presented as original pump-manufacturer numbers or as a confirmation of fit.
National 7-P-50 part and drawing references
This selected list contains 545 checked reference entries. It is not a complete bill of materials. Keep the exact number, source edition and installed configuration together when requesting a quotation.
545 reference entries
| Part / drawing number | Component | Configuration / reference scope | Source / PDF page |
|---|---|---|---|
1294001 | POWER END COMPLETE | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1292140 | HOLDER, INSERT | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1292141 | INSERT, VALVE GUIDE | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1294147 | ROD, PISTON (FOR 4" AND LARGER PISTONS) | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1294149 | ROD, PISTON (FOR 3" AND 3-1/2" PISTONS) | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1294150 | MODULE STUDDED, DISCHARGE | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1294156 | MODULE, SUCTION | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1294160 | PLATE, WEAR | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1294165 | BUSHING | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1294166 | CLAMP COMPLETE, LINER | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1294170 | CONNECTOR, DISCHARGE | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1294172 | COVER, VALVE | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1294174 | RETAINER, SEAL | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1560701 | SPRING, VALVE | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1294189 | MANIFOLD COMPLETE, SPRAY SYSTEM | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
MK-0257-40 | Liner, nominal size 4'' | Liners and liner packing; source row 4''; Mud King supplier catalogue number | S2, PDF p. 31 |
MKG-0272 | Liner Packing, nominal size 4'' | Liners and liner packing; source row 4''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-0257-44 | Liner, nominal size 4½'' | Liners and liner packing; source row 4½''; Mud King supplier catalogue number | S2, PDF p. 31 |
MKG-0274 | Liner Packing, nominal size 4½'' | Liners and liner packing; source row 4½''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-0257-50 | Liner, nominal size 5'' | Liners and liner packing; source row 5''; Mud King supplier catalogue number | S2, PDF p. 31 |
MKG-0276 | Liner Packing, nominal size 5'' | Liners and liner packing; source row 5''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-0257-54 | Liner, nominal size 5½'' | Liners and liner packing; source row 5½''; Mud King supplier catalogue number | S2, PDF p. 31 |
MKG-0278 | Liner Packing, nominal size 5½'' | Liners and liner packing; source row 5½''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-0257-60 | Liner, nominal size 6'' | Liners and liner packing; source row 6''; Mud King supplier catalogue number | S2, PDF p. 31 |
MKG-0280 | Liner Packing, nominal size 6'' | Liners and liner packing; source row 6''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-0257-62 | Liner, nominal size 6¼'' | Liners and liner packing; source row 6¼''; Mud King supplier catalogue number | S2, PDF p. 31 |
MKG-0268 | Liner Packing, nominal size 6¼'' | Liners and liner packing; source row 6¼''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-61-0253 | Valve Cover Gasket | Gaskets; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-U5B-05 | Valve; catalogue valve family MKP-4 WEB | Valve family MKP-4 WEB; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-5DD-B3 | Seat; catalogue valve family MKP-4 WEB | Valve family MKP-4 WEB; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-5710-111 | Spring; catalogue valve family MKP-4 WEB | Valve family MKP-4 WEB; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-UDD-5B | Urethane Insert; catalogue valve family MKP-4 WEB | Valve family MKP-4 WEB; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-1700-5 | Puller Head; catalogue valve family MKP-4 WEB | Valve family MKP-4 WEB; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-5DFO-V1 | Valve; catalogue valve family MKP-FULL OPEN | Valve family MKP-FULL OPEN; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-5DFO-S3 | Seat; catalogue valve family MKP-FULL OPEN | Valve family MKP-FULL OPEN; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-5710-030 | Spring; catalogue valve family MKP-FULL OPEN | Valve family MKP-FULL OPEN; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-5DFO-SI | Urethane Insert; catalogue valve family MKP-FULL OPEN | Valve family MKP-FULL OPEN; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-1700-5FO | Puller Head; catalogue valve family MKP-FULL OPEN | Valve family MKP-FULL OPEN; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-0500117 | Valve; catalogue valve family MKP-DOUBLE ANGLE | Valve family MKP-DOUBLE ANGLE; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-0515745 | Seat; catalogue valve family MKP-DOUBLE ANGLE | Valve family MKP-DOUBLE ANGLE; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-05147900 | Spring; catalogue valve family MKP-DOUBLE ANGLE | Valve family MKP-DOUBLE ANGLE; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-0515844 | Urethane Insert; catalogue valve family MKP-DOUBLE ANGLE | Valve family MKP-DOUBLE ANGLE; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-1700-5BA | Puller Head; catalogue valve family MKP-DOUBLE ANGLE | Valve family MKP-DOUBLE ANGLE; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-0504991 | Valve; catalogue valve family MKP-PLATE TYPE | Valve family MKP-PLATE TYPE; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-0515745 | Seat; catalogue valve family MKP-PLATE TYPE | Valve family MKP-PLATE TYPE; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-05144230 | Spring; catalogue valve family MKP-PLATE TYPE | Valve family MKP-PLATE TYPE; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-0504888 | Urethane Insert; catalogue valve family MKP-PLATE TYPE | Valve family MKP-PLATE TYPE; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-1700-5BA | Puller Head; catalogue valve family MKP-PLATE TYPE | Valve family MKP-PLATE TYPE; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-RT-400 | Red Thunder Bonded Pistons; nominal piston size 4'' | Piston family Red Thunder Bonded Pistons; size 4''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-I40HK14/15 | Imperial Piston; nominal piston size 4'' | Piston family Imperial Piston; size 4''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-I40HK | Imperial Rubber Kits; nominal piston size 4'' | Piston family Imperial Rubber Kits; size 4''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-RB-400 | Rubber Bonded; nominal piston size 4'' | Piston family Rubber Bonded; size 4''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-LL-400 | Long Life (Urethane); nominal piston size 4'' | Piston family Long Life (Urethane); size 4''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-RT-440 | Red Thunder Bonded Pistons; nominal piston size 4½'' | Piston family Red Thunder Bonded Pistons; size 4½''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-I44HK14/15 | Imperial Piston; nominal piston size 4½'' | Piston family Imperial Piston; size 4½''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-I44HK | Imperial Rubber Kits; nominal piston size 4½'' | Piston family Imperial Rubber Kits; size 4½''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-RB-440 | Rubber Bonded; nominal piston size 4½'' | Piston family Rubber Bonded; size 4½''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-LL-440 | Long Life (Urethane); nominal piston size 4½'' | Piston family Long Life (Urethane); size 4½''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-RT-500 | Red Thunder Bonded Pistons; nominal piston size 5'' | Piston family Red Thunder Bonded Pistons; size 5''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-I50HB14/15 | Imperial Piston; nominal piston size 5'' | Piston family Imperial Piston; size 5''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-I50HB | Imperial Rubber Kits; nominal piston size 5'' | Piston family Imperial Rubber Kits; size 5''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-RB-500 | Rubber Bonded; nominal piston size 5'' | Piston family Rubber Bonded; size 5''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-LL-500 | Long Life (Urethane); nominal piston size 5'' | Piston family Long Life (Urethane); size 5''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-RT-540 | Red Thunder Bonded Pistons; nominal piston size 5½'' | Piston family Red Thunder Bonded Pistons; size 5½''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-I54HB14/15 | Imperial Piston; nominal piston size 5½'' | Piston family Imperial Piston; size 5½''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-I54HB | Imperial Rubber Kits; nominal piston size 5½'' | Piston family Imperial Rubber Kits; size 5½''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-RB-540 | Rubber Bonded; nominal piston size 5½'' | Piston family Rubber Bonded; size 5½''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-LL-540 | Long Life (Urethane); nominal piston size 5½'' | Piston family Long Life (Urethane); size 5½''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-RT-600 | Red Thunder Bonded Pistons; nominal piston size 6'' | Piston family Red Thunder Bonded Pistons; size 6''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-I60HB14/15 | Imperial Piston; nominal piston size 6'' | Piston family Imperial Piston; size 6''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-I60HB | Imperial Rubber Kits; nominal piston size 6'' | Piston family Imperial Rubber Kits; size 6''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-RB-600 | Rubber Bonded; nominal piston size 6'' | Piston family Rubber Bonded; size 6''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-LL-600 | Long Life (Urethane); nominal piston size 6'' | Piston family Long Life (Urethane); size 6''; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-0257-A | Piston Rod; part no. | Rod arrangement PART NO.; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-0257-B | Sub Rod; part no. | Rod arrangement PART NO.; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-16-0257 | Extension Rod; part no. | Rod arrangement PART NO.; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-24-0257 | Rod Clamp; part no. | Rod arrangement PART NO.; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-7403364 | Piston Rod Nut; part no. | Rod arrangement PART NO.; Mud King supplier catalogue number | S2, PDF p. 31 |
MK-1294150 | Discharge Module, Studded (Included Items 2 – 7) | Fluid-end module; catalogue joint header: National 7-P-50; item 1; catalogue quantity (3) per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-1294151 | Discharge Module, Only | Fluid-end module; catalogue joint header: National 7-P-50; item 2; catalogue quantity 3 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-6300160 | Nut – Wedge Adjusting | Fluid-end module; catalogue joint header: National 7-P-50; item 3; catalogue quantity 24 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-2408042 | Stud w/Nut – Frame | Fluid-end module; catalogue joint header: National 7-P-50; item 4; catalogue quantity 24 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-2408043 | Stud w/Nut – Liner Bushing | Fluid-end module; catalogue joint header: National 7-P-50; item 5; catalogue quantity 18 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-2408041 | Stud w/Nut – Discharge to Suction | Fluid-end module; catalogue joint header: National 7-P-50; item 7; catalogue quantity 18 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-1294156 | Suction Module | Fluid-end module; catalogue joint header: National 7-P-50; item 9; catalogue quantity 3 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-1294165 | Bushing – Liner | Fluid-end module; catalogue joint header: National 7-P-50; item 10; catalogue quantity 3 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-1294174 | Seal Retainer | Fluid-end module; catalogue joint header: National 7-P-50; item 11; catalogue quantity 6 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-1294172 | Valve Cover | Fluid-end module; catalogue joint header: National 7-P-50; item 12; catalogue quantity 6 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-1290178 | Screw – Wedge Adjusting | Fluid-end module; catalogue joint header: National 7-P-50; item 13; catalogue quantity 6 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-1290315 | Washer – Wedge Adjusting | Fluid-end module; catalogue joint header: National 7-P-50; item 15; catalogue quantity 6 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-1290181 | Spring – Wedge Assembly | Fluid-end module; catalogue joint header: National 7-P-50; item 16; catalogue quantity 6 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-1290376 | Wedge Assembly | Fluid-end module; catalogue joint header: National 7-P-50; item 17; catalogue quantity 6 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-1540126 | Gasket – Valve Cover | Fluid-end module; catalogue joint header: National 7-P-50; item 18; catalogue quantity 6 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-1292140 | Holder – Valve Guide | Fluid-end module; catalogue joint header: National 7-P-50; item 19; catalogue quantity 6 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-1292141 | Insert – Valve Guide | Fluid-end module; catalogue joint header: National 7-P-50; item 20; catalogue quantity 6 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-6511416 | Pin, ⅞" × 2" Dowell | Fluid-end module; catalogue joint header: National 7-P-50; item 21; catalogue quantity 6 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-1294160 | Plate – Wear | Fluid-end module; catalogue joint header: National 7-P-50; item 22; catalogue quantity 3 per pump (not quotation quantity); source footnote: offered in plain carbon or stainless steel; installed material must be confirmed; Mud King supplier catalogue number | S2, PDF p. 54 |
MK-1294170 | Connector – Discharge | Fluid-end module; catalogue joint header: National 7-P-50; item 23; catalogue quantity 2 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-7000305-10 | Screw, ½" × 1½" Hex Head | Fluid-end module; catalogue joint header: National 7-P-50; item 24; catalogue quantity 16 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-7602050 | Washer, Spring Lock | Fluid-end module; catalogue joint header: National 7-P-50; item 25; catalogue quantity 16 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-1294171 | Adapter – Discharge Connector | Fluid-end module; catalogue joint header: National 7-P-50; item 26; catalogue quantity 2 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-2410031-348 | Packing, Rectangular | Fluid-end module; catalogue joint header: National 7-P-50; item 27; catalogue quantity 2 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-2410031-427 | Packing, Rectangular | Fluid-end module; catalogue joint header: National 7-P-50; item 28; catalogue quantity 4 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-1294166 | Clamp – Liner | Fluid-end module; catalogue joint header: National 7-P-50; item 29; catalogue quantity 3 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-2402560 | Stud, 1¼" × 6¼" | Fluid-end module; catalogue joint header: National 7-P-50; item 34; catalogue quantity 16 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-6300200 | Nut 1¼" Hvy. Hex | Fluid-end module; catalogue joint header: National 7-P-50; item 35; catalogue quantity 16 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-1 | Seal – Suction Manifold | Fluid-end module; catalogue joint header: National 7-P-50; item 41; catalogue quantity 3 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-1294168 | Collar – Liner | Fluid-end module; catalogue joint header: National 7-P-50; item 42; catalogue quantity 3 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
MK-1294192 | Seal – Module, Wear Plate | Fluid-end module; catalogue joint header: National 7-P-50; item 43; catalogue quantity 6 per pump (not quotation quantity); Mud King supplier catalogue number | S2, PDF p. 54 |
1294000 | Pump | National 7-P-50; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294001 | Power end | National 7-P-50; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1290178 | Screw | National 7-P-50; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
G-1290376 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
G-2407274 | Plate | National 7-P-50; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1290315 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1292140 | Holder | National 7-P-50; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1292141 | Insert | National 7-P-50; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294085 | Clamp | National 7-P-50; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294130 | Cover | National 7-P-50; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294146 | Piston | National 7-P-50; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294147 | Rod | National 7-P-50; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294149 | Rod | National 7-P-50; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294150 | Module | National 7-P-50; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294156 | Module | National 7-P-50; source table column1, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294160 | Plate | National 7-P-50; source table column1, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294165 | Bushing | National 7-P-50; source table column1, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294166 | Clamp | National 7-P-50; source table column1, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294170 | Connector | National 7-P-50; source table column1, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294171 | Adapter | National 7-P-50; source table column1, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294172 | Cover | National 7-P-50; source table column1, row21; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294174 | Retainer | National 7-P-50; source table column1, row22; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294190 | Spray system | National 7-P-50; source table column1, row23; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294192 | Seal | National 7-P-50; source table column1, row24; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1540142 | Packing | National 7-P-50; source table column2, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
2402560 | Stud | National 7-P-50; source table column1, row26; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
2407142 | Plate | National 7-P-50; source table column1, row27; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
2410031-348 | Packing | National 7-P-50; source table column1, row28; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
2410031-427 | Packing | National 7-P-50; source table column1, row29; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
6300160 | Nut | National 7-P-50; source table column1, row30; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
6308241 | Nut | National 7-P-50; source table column1, row31; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
6308160 | Nut | National 7-P-50; source table column1, row32; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
6310040 | Nut | National 7-P-50; source table column1, row33; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
6511416 | Pin | National 7-P-50; source table column1, row34; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
7000108-10 | Capscrew | National 7-P-50; source table column1, row35; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
7000305-10 | Capscrew | National 7-P-50; source table column1, row36; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
7000481-10 | Capscrew | National 7-P-50; source table column1, row37; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
7178025 | Screw | National 7-P-50; source table column1, row38; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
7600016 | Washer | National 7-P-50; source table column1, row39; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
7600034 | Washer | National 7-P-50; source table column1, row40; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
7602050 | Washer | National 7-P-50; source table column1, row41; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294168 | Collar | National 7-P-50; source table column1, row42; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1540128 | Seal | National 7-P-50; source table column1, row43; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1560701 | Spring | National 7-P-50; source table column1, row44; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
6908033 | Ring | National 7-P-50; source table column1, row45; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
X12-2553 | Cap | National 7-P-50; source table column1, row46; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
K-1134 | Piston | National 7-P-50; source table column1, row47; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
20-021-500 | Piston | National 7-P-50; source table column1, row48; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
K-1034 | Piston | National 7-P-50; source table column1, row49; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
20-021-501 | Piston | National 7-P-50; source table column1, row50; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
K-1032 | Piston | National 7-P-50; source table column1, row51; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
20-021-502 | Piston | National 7-P-50; source table column1, row52; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
K-1021 | Piston | National 7-P-50; source table column1, row53; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
20-021-503 | Piston | National 7-P-50; source table column1, row54; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
012-180-333 | Piston | National 7-P-50; source table column1, row55; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
K-1022 | Piston | National 7-P-50; source table column1, row56; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
20-021-505 | Piston | National 7-P-50; source table column1, row57; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
K-1064 | Piston | National 7-P-50; source table column1, row58; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
P-9610 | Piston | National 7-P-50; source table column1, row59; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
20-021-506 | Piston | National 7-P-50; source table column1, row60; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
L-4627 | Liner | National 7-P-50; source table column1, row61; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
05-466-040 | Liner | National 7-P-50; source table column1, row62; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
L-4647 | Liner | National 7-P-50; source table column1, row63; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
05-466-045 | Liner | National 7-P-50; source table column1, row64; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
L-4667 | Liner | National 7-P-50; source table column1, row65; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
05-466-050 | Liner | National 7-P-50; source table column1, row66; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
L-4687 | Liner | National 7-P-50; source table column1, row67; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
05-466-055 | Liner | National 7-P-50; source table column1, row68; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
L-4700 | Liner | National 7-P-50; source table column1, row69; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
05-466-060 | Liner | National 7-P-50; source table column1, row70; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
L-4710 | Liner | National 7-P-50; source table column1, row71; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
05-466-062 | Liner | National 7-P-50; source table column1, row72; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1540140 | Packing | National 7-P-50; source table column2, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1540144 | Packing | National 7-P-50; source table column2, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1540146 | Packing | National 7-P-50; source table column2, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1540148 | Packing | National 7-P-50; source table column2, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1540161 | Packing | National 7-P-50; source table column2, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1561524 | Valve | National 7-P-50; source table column2, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1561525 | Valve | National 7-P-50; source table column2, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1561530 | Seat | National 7-P-50; source table column2, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
5912370 | Flange | National 7-P-50; source table column2, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
5912373 | Flange | National 7-P-50; source table column2, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
2408041 | Stud | National 7-P-50; source table column2, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
2408042 | Stud | National 7-P-50; source table column2, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
2408043 | Stud | National 7-P-50; source table column2, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294173 | Manifold | National 7-P-50; source table column2, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294193 | Manifold | National 7-P-50; source table column2, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294289 | Manifold | National 7-P-50; source table column2, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294288 | Stabilizer | National 7-P-50; source table column2, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1290203 | Dampener | National 7-P-50; source table column2, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1290208 | Dampener | National 7-P-50; source table column2, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1290210 | Dampener | National 7-P-50; source table column2, row21; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1290212 | Dampener | National 7-P-50; source table column2, row22; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1290277 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column2, row23; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1290278 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column2, row24; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
6874012 | Plug | National 7-P-50; source table column2, row26; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
G-1294132 | Lube system | National 7-P-50; source table column2, row27; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294215 | Lube system | National 7-P-50; source table column2, row28; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294290 | Lube system | National 7-P-50; source table column2, row29; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294216 | Lube system | National 7-P-50; source table column2, row30; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294189 | Spray system | National 7-P-50; source table column2, row31; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
M-1023 | Wrench | National 7-P-50; source table column3, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1290183 | Puller | National 7-P-50; source table column3, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1290206 | Bolt | National 7-P-50; source table column3, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1290207 | Bolt | National 7-P-50; source table column3, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1292278 | Holder | National 7-P-50; source table column3, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294140 | Adapter | National 7-P-50; source table column3, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294153 | Driver | National 7-P-50; source table column3, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
M-1060 | Puller | National 7-P-50; source table column3, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
M-1093 | Head | National 7-P-50; source table column3, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294164 | Plate | National 7-P-50; source table column3, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1710270 | Bar | National 7-P-50; source table column3, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
2402290 | Wrench | National 7-P-50; source table column3, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
2409010 | Wrench | National 7-P-50; source table column3, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
2409011 | Wrench | National 7-P-50; source table column3, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
2404085 | Key | National 7-P-50; source table column3, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
7500065 | Key | National 7-P-50; source table column3, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294125 | Hoist | National 7-P-50; source table column3, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294186 | Cross | National 7-P-50; source table column3, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294187 | Cross | National 7-P-50; source table column3, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
G-1294225 | Pump | National 7-P-50; source table column3, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
G-1294223 | Pump | National 7-P-50; source table column3, row21; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
G-1294239 | Pump | National 7-P-50; source table column3, row22; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
G-1294227 | Pump | National 7-P-50; source table column3, row23; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294220 | Switch | National 7-P-50; source table column3, row24; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1294001 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1283191 | Gasket | National 7-P-50; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1284106 | Gasket | National 7-P-50; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1290077 | Cover | National 7-P-50; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1290078 | Gasket | National 7-P-50; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1290110 | Cover | National 7-P-50; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1290251 | Screw | National 7-P-50; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1291074 | Bolt | National 7-P-50; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
G-1294180 | Cover | National 7-P-50; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
G-1294181 | Gasket | National 7-P-50; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294009 | Retainer | National 7-P-50; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294016 | Shield | National 7-P-50; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294023 | Plate | National 7-P-50; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294029 | Frame | National 7-P-50; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294062 | Strainer | National 7-P-50; source table column1, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294063 | Sump | National 7-P-50; source table column1, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294069 | Brace | National 7-P-50; source table column1, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294070 | Trough | National 7-P-50; source table column1, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294071 | Trough | National 7-P-50; source table column1, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294072 | Wiper | National 7-P-50; source table column1, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294073 | Wiper | National 7-P-50; source table column1, row21; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294076 | Plate | National 7-P-50; source table column1, row22; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294078 | Gasket | National 7-P-50; source table column1, row23; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294079 | Gasket | National 7-P-50; source table column1, row24; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294080 | Rail | National 7-P-50; source table column1, row25; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294082 | Wiper | National 7-P-50; source table column1, row26; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294083 | Rod | National 7-P-50; source table column1, row27; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294087 | Wiper | National 7-P-50; source table column1, row28; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294093 | Cover | National 7-P-50; source table column1, row29; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294094 | Gasket | National 7-P-50; source table column1, row30; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294095 | Gasket | National 7-P-50; source table column1, row31; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294114 | Plate | National 7-P-50; source table column1, row32; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294179 | Trough | National 7-P-50; source table column1, row33; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294182 | Wiper | National 7-P-50; source table column1, row34; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
2400029 | Dipstick | National 7-P-50; source table column1, row35; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
2400040 | Screw | National 7-P-50; source table column1, row36; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
2407100 | Plate | National 7-P-50; source table column1, row37; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
6300081 | Nut | National 7-P-50; source table column1, row38; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
6300103 | Nut | National 7-P-50; source table column1, row39; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
6310040 | Nut | National 7-P-50; source table column1, row40; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
6310060 | Nut | National 7-P-50; source table column1, row41; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
6320060 | Nut | National 7-P-50; source table column1, row42; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
6541612 | Pin | National 7-P-50; source table column1, row43; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
6800163 | Bushing | National 7-P-50; source table column1, row44; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
6829016 | Gasket | National 7-P-50; source table column1, row45; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
7000113-11 | Capscrew | National 7-P-50; source table column1, row46; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
7000208-11 | Capscrew | National 7-P-50; source table column1, row47; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
7000209-11 | Capscrew | National 7-P-50; source table column2, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
7000210-11 | Capscrew | National 7-P-50; source table column1, row49; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
7000301-11 | Capscrew | National 7-P-50; source table column1, row50; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
7000303-11 | Capscrew | National 7-P-50; source table column1, row51; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
2400930 | Screw | National 7-P-50; source table column2, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
5506710 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column2, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
6910054 | Ring | National 7-P-50; source table column2, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
2401310 | Capscrew | National 7-P-50; source table column2, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
7600040 | Washer | National 7-P-50; source table column2, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
7621032 | Washer | National 7-P-50; source table column2, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
7611036 | Washer | National 7-P-50; source table column2, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
7618014 | Washer | National 7-P-50; source table column2, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1294190 | Piston | National 7-P-50; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
G-2400075 | Hose | National 7-P-50; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
1294189 | Spray | National 7-P-50; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
6829004 | Elbow | National 7-P-50; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
7818282 | Socket | National 7-P-50; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
7815094 | Plug | National 7-P-50; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
1294159 | Rod | National 7-P-50; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
ZB-5620 | Bearing | National 7-P-50; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
ZB-22000 | Bearing | National 7-P-50; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1291114 | Shim | National 7-P-50; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1294007 | Rod | National 7-P-50; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1294015 | Crosshead | National 7-P-50; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1294026 | Plate | National 7-P-50; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1294028 | Pin | National 7-P-50; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1294061 | Retainer | National 7-P-50; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1294089 | Conductor | National 7-P-50; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1294100 | Shim | National 7-P-50; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1294101 | Shim | National 7-P-50; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1294102 | Shim | National 7-P-50; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1294107 | Shim | National 7-P-50; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1294108 | Shim | National 7-P-50; source table column1, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1294109 | Shim | National 7-P-50; source table column1, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1294110 | Ring | National 7-P-50; source table column1, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1294112 | Retainer | National 7-P-50; source table column1, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1294136 | Crankshaft | National 7-P-50; source table column1, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
2400930 | Screw | National 7-P-50; source table column1, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
5506710 | Bolt | National 7-P-50; source table column1, row21; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
6310101 | Nut | National 7-P-50; source table column1, row22; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
6875003 | Plug | National 7-P-50; source table column1, row23; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
6910054 | Ring | National 7-P-50; source table column1, row24; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
7000409-11 | Capscrew | National 7-P-50; source table column1, row25; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
2401310 | Capscrew | National 7-P-50; source table column1, row26; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
7600040 | Washer | National 7-P-50; source table column1, row27; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
7611036 | Washer | National 7-P-50; source table column1, row28; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1294136 | Crankshaft | National 7-P-50; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
1294005 | Crankshaft | National 7-P-50; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
1294006 | Bolt | National 7-P-50; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
1294008 | Gear | National 7-P-50; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
6310101 | Nut | National 7-P-50; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
1294158 | Pinion | National 7-P-50; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
ZB-6292 | Bearing | National 7-P-50; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
1294010 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
1294018 | Cage | National 7-P-50; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
1294019 | Cage | National 7-P-50; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
1294027 | Plate | National 7-P-50; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
2400930 | Screw | National 7-P-50; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
7600040 | Washer | National 7-P-50; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
1294140 | Adapter | National 7-P-50; source table column3, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
2402290 | Wrench | National 7-P-50; source table column3, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
1290183 | Puller | National 7-P-50; source table column3, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
1290207 | Tee | National 7-P-50; source table column3, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
1290206 | Tee | National 7-P-50; source table column3, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
M1060 | Puller | National 7-P-50; source table column3, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
2404085 | Key | National 7-P-50; source table column3, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
1294153 | Driver | National 7-P-50; source table column3, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
1292278 | Holder | National 7-P-50; source table column3, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
1717270 | Bar | National 7-P-50; source table column3, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
2409010 | Wrench | National 7-P-50; source table column3, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
2409011 | Wrench | National 7-P-50; source table column3, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
1294164 | Puller | National 7-P-50; source table column3, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
7500065 | Valve | National 7-P-50; source table column3, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
M-1023 | Wrench | National 7-P-50; source table column3, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
1294290 | Lube system | National 7-P-50; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
1289248 | Hose | National 7-P-50; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
1292284 | Support | National 7-P-50; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
X12-2989 | Pump | National 7-P-50; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
6106001 | Hose | National 7-P-50; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
6310120 | Nut | National 7-P-50; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
6800081 | Bushing | National 7-P-50; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
6817076 | Nipple | National 7-P-50; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
6829008 | Elbow | National 7-P-50; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
6839008 | Elbow | National 7-P-50; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
6859008 | Cross | National 7-P-50; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
6873008 | Plug | National 7-P-50; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
7000439-11 | Capscrew | National 7-P-50; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
7621044 | Washer | National 7-P-50; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
7800070 | Adapter | National 7-P-50; source table column1, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
7806002 | Gauge | National 7-P-50; source table column1, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
1294190 | Spray system | National 7-P-50; source table column1, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
1270113 | Hose | National 7-P-50; source table column1, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
6829004 | Elbow | National 7-P-50; source table column1, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
1294062 | Strainer | National 7-P-50; source table column1, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
1294063 | Sump | National 7-P-50; source table column1, row21; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
1294080 | Rail | National 7-P-50; source table column1, row22; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
6300081 | Nut | National 7-P-50; source table column1, row23; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
7035305-01 | Screw | National 7-P-50; source table column1, row24; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
7619050 | Washer | National 7-P-50; source table column1, row25; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
7621032 | Washer | National 7-P-50; source table column1, row26; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
X12-2989 | Liner | National 7-P-50; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
1292285 | Base | National 7-P-50; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
1292286 | Shaft | National 7-P-50; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
1292283 | Shim | National 7-P-50; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
2401860 | Key | National 7-P-50; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
5902091 | Flange | National 7-P-50; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
5902172 | Flange | National 7-P-50; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
6010036 | Gasket | National 7-P-50; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
6010037 | Gasket | National 7-P-50; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
6300067 | Nut | National 7-P-50; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
6300081 | Nut | National 7-P-50; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
7000207-11 | Capscrew | National 7-P-50; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
7000211-11 | Capscrew | National 7-P-50; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
7000307-11 | Capscrew | National 7-P-50; source table column1, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
7000309-11 | Capscrew | National 7-P-50; source table column1, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
7000396-11 | Capscrew | National 7-P-50; source table column1, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
7600026 | Washer | National 7-P-50; source table column1, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
7600042 | Washer | National 7-P-50; source table column1, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
1292293 | Washer | National 7-P-50; source table column1, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
7619041 | Washer | National 7-P-50; source table column1, row21; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
7619050 | Washer | National 7-P-50; source table column1, row22; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
7802327 | Coupling | National 7-P-50; source table column1, row23; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
7812650 | Motor | National 7-P-50; source table column1, row24; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
7815147 | Pump | National 7-P-50; source table column1, row25; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
G1294132-LH | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
G1294132-RH | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
G1291157 | Pump | National 7-P-50; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
G1291252 | Bracket | National 7-P-50; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
G1291258 | Cover | National 7-P-50; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
G-1294129 | Guard | National 7-P-50; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
G-1294128 | Guard | National 7-P-50; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
G1294133 | Guard | National 7-P-50; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
G1294134 | Guard | National 7-P-50; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
G7200046 | Sheave | National 7-P-50; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
1290293 | Block | National 7-P-50; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
1293064 | Block | National 7-P-50; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
1294077 | Sheave | National 7-P-50; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
1294098 | Cap | National 7-P-50; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
2401860 | Key | National 7-P-50; source table column1, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
4701112 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
6100036 | Hose | National 7-P-50; source table column1, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
6100037 | Hose | National 7-P-50; source table column1, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
6300103 | Nut | National 7-P-50; source table column1, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
6800081 | Bushing | National 7-P-50; source table column1, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
6817076 | Nipple | National 7-P-50; source table column1, row21; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
6817080 | Nipple | National 7-P-50; source table column1, row22; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
6817114 | Nipple | National 7-P-50; source table column1, row23; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
6826008 | Elbow | National 7-P-50; source table column1, row24; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
6828012 | Elbow | National 7-P-50; source table column1, row25; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
6829008 | Elbow | National 7-P-50; source table column1, row26; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
6839008 | Elbow | National 7-P-50; source table column1, row27; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
6888008 | Tee | National 7-P-50; source table column1, row28; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
7000301-11 | Capscrew | National 7-P-50; source table column1, row29; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
7000397-11 | Capscrew | National 7-P-50; source table column1, row30; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
7016421 | Screw | National 7-P-50; source table column1, row31; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
7027210-12 | Screw | National 7-P-50; source table column1, row32; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
7619045 | Washer | National 7-P-50; source table column1, row33; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
7619058 | Washer | National 7-P-50; source table column1, row34; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
7621032 | Washer | National 7-P-50; source table column1, row51; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
7621042 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row36; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
7800076 | Adapter | National 7-P-50; source table column1, row37; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
7802358 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row38; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
7805072 | Fitting | National 7-P-50; source table column1, row39; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
7805083 | Hose | National 7-P-50; source table column1, row40; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
7806002 | Gauge | National 7-P-50; source table column1, row41; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
1294190 | Spray system | National 7-P-50; source table column1, row42; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
1270113 | Hose | National 7-P-50; source table column1, row43; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
6829004 | Elbow | National 7-P-50; source table column1, row44; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
1294080 | Rail | National 7-P-50; source table column1, row45; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
1294062 | Strainer | National 7-P-50; source table column1, row46; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
1294063 | Sump | National 7-P-50; source table column1, row47; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
6300081 | Nut | National 7-P-50; source table column1, row48; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
7035305-01 | Screw | National 7-P-50; source table column1, row49; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
7619050 | Washer | National 7-P-50; source table column1, row50; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
G7000254-11 | Capscrew | National 7-P-50; source table column1, row52; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
6320100 | Nut | National 7-P-50; source table column1, row53; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
G1291158 | Pump | National 7-P-50; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
G1291159 | Gear | National 7-P-50; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
G1292283 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
1292286 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
2401860 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
5902091 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
5902172 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
6010036 | Flange | National 7-P-50; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
6010037 | Flange | National 7-P-50; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
6300081 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
6300103 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
7000206-11 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
7000211-11 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
7000306-11 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
7000307-11 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
7000309-11 | Capscrew | National 7-P-50; source table column1, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
7000398-11 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
7619041 | Washer | National 7-P-50; source table column1, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
7619050 | Spring | National 7-P-50; source table column1, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
7619058 | Spring | National 7-P-50; source table column1, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
7621024 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row21; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
G7624021 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row22; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
G7802332 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row23; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
7806091 | Gear | National 7-P-50; source table column1, row24; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
7815147 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row25; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
7801121 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row26; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 16 |
1294288 | Stabilizer | National 7-P-50; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 17 |
5902443 | Flange | National 7-P-50; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 17 |
98-016-230 | Elbow | National 7-P-50; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 17 |
98-052-101 | Catalogue component reference; confirm description against source page | National 7-P-50; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 17 |
6709658B | Pipe | National 7-P-50; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 17 |
98-012-034 | Cap | National 7-P-50; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 17 |
78-105-206 | Coupling | National 7-P-50; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 17 |
78-105-204 | Coupling | National 7-P-50; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 17 |
86-424-001 | Nipple | National 7-P-50; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 17 |
78-179-004 | Elbow | National 7-P-50; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 17 |
78-101-081 | Valve | National 7-P-50; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 17 |
86-425-013 | Nipple | National 7-P-50; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 17 |
78-101-082 | Valve | National 7-P-50; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 17 |
1294186 | Strainer | National 7-P-50; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 19 |
1291208 | Cross | National 7-P-50; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 19 |
1291212 | Strainer | National 7-P-50; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 19 |
2402560 | Stud | National 7-P-50; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 19 |
6300200 | Nut | National 7-P-50; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 19 |
1291180 | Shim | National 7-P-50; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 19 |
1291184 | Shim | National 7-P-50; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 19 |
1294188 | Support | National 7-P-50; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 19 |
1291221 | Plate | National 7-P-50; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 19 |
7000439-11 | Capscrew | National 7-P-50; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 19 |
7000440-11 | Capscrew | National 7-P-50; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 19 |
7619066 | Washer | National 7-P-50; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 19 |
2407004 | Tag | National 7-P-50; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 19 |
7178088 | Screw | National 7-P-50; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 19 |
5912370 | Flange | National 7-P-50; source table column1, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 19 |
1290305 | Flange | National 7-P-50; source table column1, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 19 |
6908033 | Ring | National 7-P-50; source table column1, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 19 |
1294187 | Strainer | National 7-P-50; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 20 |
1291210 | Cross | National 7-P-50; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 20 |
1291212 | Strainer | National 7-P-50; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 20 |
2402560 | Stud | National 7-P-50; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 20 |
6300200 | Nut | National 7-P-50; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 20 |
1291180 | Shim | National 7-P-50; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 20 |
1291184 | Shim | National 7-P-50; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 20 |
1294188 | Support | National 7-P-50; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 20 |
1291221 | Plate | National 7-P-50; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 20 |
7000439-11 | Capscrew | National 7-P-50; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 20 |
7000440-11 | Capscrew | National 7-P-50; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 20 |
7619066 | Washer | National 7-P-50; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 20 |
2407004 | Tag | National 7-P-50; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 20 |
7178088 | Screw | National 7-P-50; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 20 |
5912370 | Flange | National 7-P-50; source table column1, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 20 |
1290305 | Flange | National 7-P-50; source table column1, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 20 |
6908033 | Ring | National 7-P-50; source table column1, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 20 |
6908030 | Ring | National 7-P-50; source table column1, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 20 |
1294125 | Hoist | National 7-P-50; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 21 |
1291126 | Boom | National 7-P-50; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 21 |
1290127 | Bracket | National 7-P-50; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 21 |
1294126 | Mast | National 7-P-50; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 21 |
1294127 | Rod | National 7-P-50; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 21 |
7804019 | End | National 7-P-50; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 21 |
7800044 | Pin | National 7-P-50; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 21 |
7805052 | Fitting | National 7-P-50; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 21 |
6320120 | Nut | National 7-P-50; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 21 |
7000395-10 | Capscrew | National 7-P-50; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 21 |
7000439-10 | Capscrew | National 7-P-50; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 21 |
7602058 | Washer | National 7-P-50; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 21 |
7602066 | Washer | National 7-P-50; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 21 |
7819040 | Trolley | National 7-P-50; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 21 |
Reference documents and scope
- S1 — National 7-P-50 parts catalogue / manual. Reference file: 7P50泥浆泵.pdf.
- S2 — Mud King Products — Mud Pump Expendables / Triplex Fluid End Parts catalogue. Reference file: EMSCO-MK-美国泥浆泵.pdf.
PDF page numbers count from the first page of each reference file. Brand names identify the equipment or catalogue source. A listed number does not establish interchangeability, original-manufacturer authorisation, stock or a delivery commitment. Send the nameplate, complete reference, quantity and drawing revision for a parts review.
Send a National 7-P-50 parts request
Include the full part number, quantity, nameplate photograph and drawing revision. Matching and availability require review of your actual equipment.
