BOMCO F-1300 Mud Pump Spare Parts

Published by Pratt Oil ·

Pratt OilParts identification

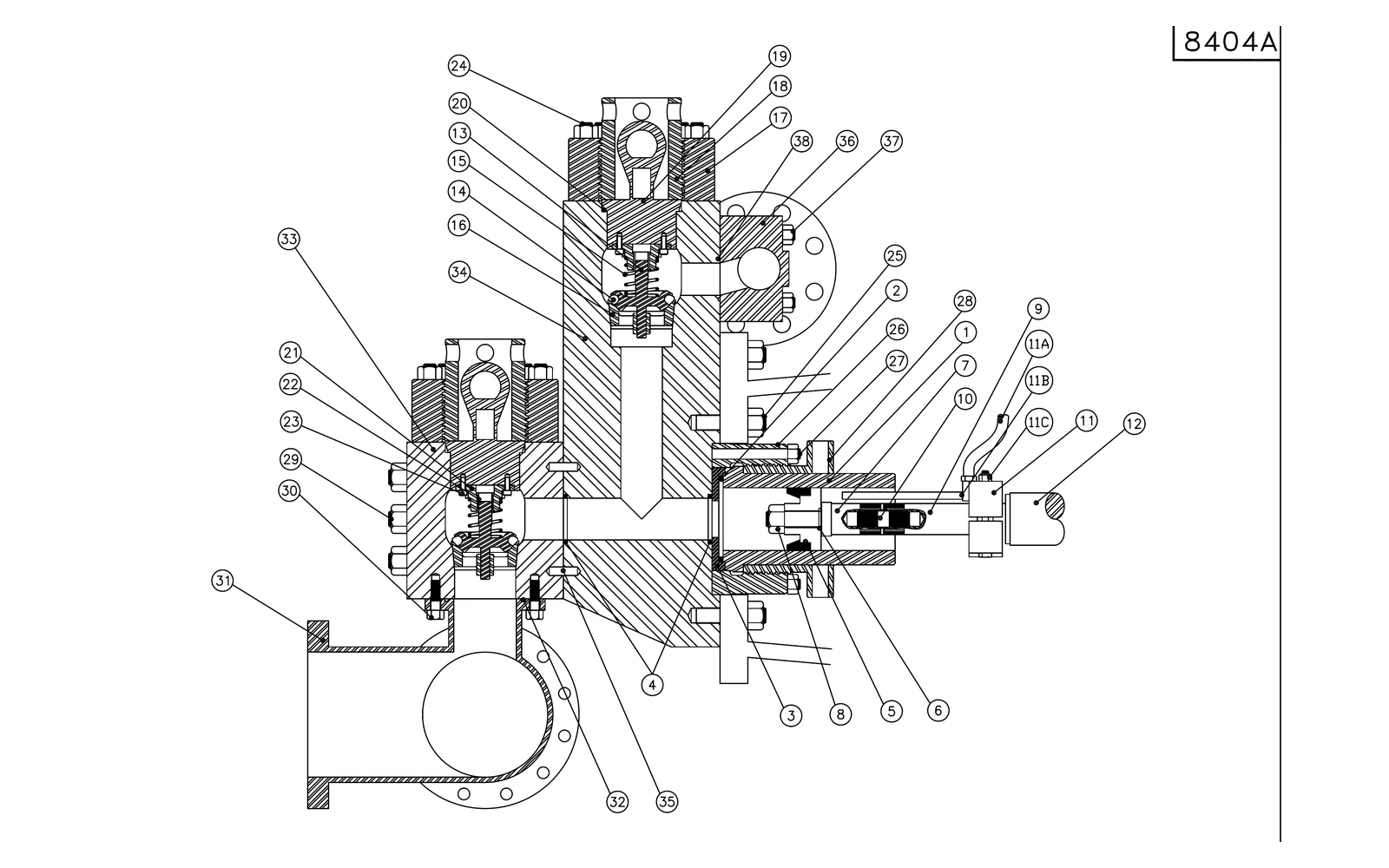

Southwest 8404A fluid-end sectional reference from the F-1300 and F-1600 parts catalog

The BOMCO F-1300 list covers the Southwest 8404A fluid-end configuration, with piston rods, liners and sealing components listed individually. Confirm this fluid-end arrangement before selecting a listed reference. For a quotation, send the part or drawing number, quantity, pump model and nameplate photo.

Parts List

Download parts list (CSV)

123 parts

P/PPart / Drawing No.NamePart / Drawing No.Name
18404AFLUID END ASSEMBLY76BDDDual-Duro piston
28404-3WEARPLATE76BBCBlack Cat piston
32988WEARPLATE & MODULE SEAL6390G06Grayloy liner
4568-225PISTON SEAL77BFSFail-Safe piston
56278-25PISTON ROD (WITH ELASTIC STOP NUT)77BDDDual-Duro piston
66284-1SUB ROD77BBCBlack Cat piston
71290-2CONNECTING STUD6390G07Grayloy liner
84475VALVE COVER FLANGE78BFSFail-Safe piston
94575SCREW GLAND78BDDDual-Duro piston
104675-1PLUG (COMPLETE WITH PLUG SEAL, VALVE GUIDE; BUSHING; AND SCREWS)78BBCBlack Cat piston
116404LINER RETAINER FLANGE6390G08Grayloy liner
126504LINER RETAINER NUT79BFSFail-Safe piston
138404-2SSUCTION MODULE79BDDDual-Duro piston
148404-1DDISCHARGE MODULE79BBCBlack Cat piston
158590-6SUCTION MANIFOLD6390G09Grayloy liner
16568-442SUCTION MANIFOLD SEAL81BFSFail-Safe piston
178390-50DISCHARGE MANIFOLD81BDDDual-Duro piston
18568-343DISCHARGE MANIFOLD SEAL81BBCBlack Cat piston
196284-25A2-PIECE STUDDED PISTON ROD ASSEMBLY6390G1Grayloy liner
206390G15-inch GRAYLOY liner6390ZIR1Zirconia liner
216390ZIR15-inch zirconia liner82BFSFail-Safe piston
226390G56-inch GRAYLOY liner82BDDDual-Duro piston
236390ZIR56-inch zirconia liner82BBCBlack Cat piston
246390G97-inch GRAYLOY liner6390G2Grayloy liner
256390ZIR97-inch zirconia liner83BFSFail-Safe piston
268404AFLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,26,28,33,34,35)83BDDDual-Duro piston
276390Y-XXLINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX)83BBCBlack Cat piston
288404-3WEARPLATE6390G3Grayloy liner
292988WEARPLATE & MODULE SEAL6390ZIR3Zirconia liner
30568-225PISTON SEAL84BFSFail-Safe piston
316278-25PISTON ROD (WITH ELASTIC STOP NUT)(FOR 2-PIECE STUDDED PISTON ROD ASSEMBLY PART NO. 6284-25A)84BDDDual-Duro piston
326284-1SUB ROD84BBCBlack Cat piston
331290-2CONNECTING STUD6390G4Grayloy liner
346274CWYROD CLAMP (WITH WATER JACKET)85BFSFail-Safe piston
351200H30HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS)85BDDDual-Duro piston
361286-CWYFPROD CLAMP WATER MANIFOLD ASSEMBLY WITH PIPE85BBCBlack Cat piston
374020-29BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER)6390G5Grayloy liner
38SWTM1700HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION)6390ZIR5Zirconia liner
394475VALVE COVER FLANGE86BFSFail-Safe piston
404575SCREW GLAND86BDDDual-Duro piston
414675-1PLUG (COMPLETE WITH PLUG SEAL, VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, & 2386BBCBlack Cat piston
42P129HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE)6390G6Grayloy liner
434775RVALVE GUIDE (COMPLETE WITH BUSHING #4700I)87BFSFail-Safe piston
444700IVALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE)87BDDDual-Duro piston
454018-88VALVE GUIDE SCREW87BBCBlack Cat piston
464015-2VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT)6390G7Grayloy liner
474017-33POWER END STUD (WITH SW PART# HHN1500-8 1 1/2-8 HEAVY HEX NUT)6390ZIR7Zirconia liner
486404LINER RETAINER FLANGE88BFSFail-Safe piston
494019-94LINER RETAINER STUD88BDDDual-Duro piston
506504LINER RETAINER NUT88BBCBlack Cat piston
514017-1SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1 1/2-8 HEAVY HEX NUT)6390G8Grayloy liner
524018-19SUCTION MANIFOLD CAP SCREW89BFSFail-Safe piston
538590-6SUCTION MANIFOLD89BDDDual-Duro piston
54568-442SUCTION MANIFOLD SEAL89BBCBlack Cat piston
558404-2SSUCTION MODULE6390G9Grayloy liner
568404-1DDISCHARGE MODULE6390ZIR9Zirconia liner
578488-5DOWEL PIN6278-25Black Cat piston
588390-50DISCHARGE MANIFOLD1290-2Zirconia liner
594020-60DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-8 1 1/4-8 HEAVY HEX NUT)6284-1Rubber liner seal
60568-343DISCHARGE MANIFOLD SEAL8590-6BFSUCTION MANIFOLD BLIND FLANGE
618590-6BFABLIND FLANGE IS AVAILABLE FOR CAPPING UNUSED FLANGES ON 8590-6 SUCTION MANIFOLD – (8590-6BFA INCLUDES 8590-6BF BLIND FLANGE AND 568-456 O-RING) SEE SEPARATE PG. FOR DETAILS568-456O-RING
6276BFSFail-Safe piston
Technical details and source references

Confirm the installed model, drawing revision and dimensions before ordering. Catalogue quantities do not indicate current stock.

Reference documents and scope

  • S1 — BOMCO F-1300 parts catalogue / manual. Reference file: Southwest Bomco _F1600_F1300_5000PSI.pdf.

PDF page numbers count from the first page of each reference file. Brand names identify the equipment or catalogue source. A listed number does not establish interchangeability, original-manufacturer authorisation, stock or a delivery commitment. Send the nameplate, complete reference, quantity and drawing revision for a parts review.

A BOMCO F-1300 fluid-end parts request should identify the installed configuration before using a catalog number. The supplied Southwest document covers its 8404A fluid end for the listed F-1300 and F-1600 applications. This guide focuses on replacement components for that configuration; it does not turn the source list into a universal bill of material for every F-1300 pump.

Source-specific model facts

FieldValue in the cited source
Scope of supplied sourceSouthwest 8404A fluid end for BOMCO F-1600 / F-1300
F-1300 maximum input horsepower in chart1,300 I.H.P.
F-1300 maximum stroke rate in chart120 S.P.M.
F-1300 stroke length in chart12 in.
F-1300 pressure examples in this chart5-in. liner: 5,000 psi; 5.25-in.: 4,952 psi; 7-in.: 2,789 psi
Source page dateJuly 18, 2016

These historical source values identify the illustrated configuration. Confirm the installed unit and its current equipment specification before selecting replacement parts.

Define the module and retainer scope

In this reference, the suction module is 8404-2S and the discharge module is 8404-1D. The wearplate, module seal, liner-retainer flange and liner-retainer nut have separate numbers. The catalog also defines which item references are included in fluid-end assembly 8404A. A buyer should specify whether the request is for an individual module, a set of fitted components or the defined complete assembly.

The performance chart is equally specific. Its F-1300 row shows 5,000 psi with a 5-inch liner, 4,952 psi with a 5-1/4-inch liner and 2,789 psi with a 7-inch liner. The "5000 PSI" fluid-end heading therefore does not assign that pressure to every liner size. These are values from the supplied configuration chart, whose efficiency assumptions and equipment limits must remain part of any engineering review.

What to send with the parts enquiry

For an F-1300 parts quotation, provide the pump serial number, fluid-end identification, current drawing or catalog revision, part number, quantity and installed liner size. Photographs should show module markings and mating connections. List studs, nuts and seals separately when they are required, and state which items should be included in an assembly quote. Brand and source-part references help identify the requested component; they do not establish a manufacturing or authorization relationship with Pratt Oil.

For related purchasing information, see mud pump spare parts matching and liners, pistons, valves and seats. You can send your model and part references to Pratt Oil for component and document matching.

The listed numbers are selected source references, not a complete bill of material or a confirmation of stock, origin or interchangeability.

  1. 8404A — S1 , PDF p. 4 — Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM
  2. 8404-3 — S1 , PDF p. 4 — Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM
  3. 2988 — S1 , PDF p. 4 — Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM
  4. 568-225 — S1 , PDF p. 4 — Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM
  5. 6278-25 — S1 , PDF p. 4 — Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM
  6. 6284-1 — S1 , PDF p. 4 — Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM
  7. 1290-2 — S1 , PDF p. 4 — Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM
  8. 4475 — S1 , PDF p. 4 — Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM
  9. 4575 — S1 , PDF p. 4 — Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM
  10. 4675-1 — S1 , PDF p. 4 — Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM
  11. 6404 — S1 , PDF p. 5 — Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM
  12. 6504 — S1 , PDF p. 5 — Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM
  13. 8404-2S — S1 , PDF p. 5 — Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM
  14. 8404-1D — S1 , PDF p. 5 — Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM
  15. 8590-6 — S1 , PDF p. 5 — Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM
  16. 568-442 — S1 , PDF p. 5 — Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM
  17. 8390-50 — S1 , PDF p. 5 — Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM
  18. 568-343 — S1 , PDF p. 5 — Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM
  19. 6284-25A — S1 , PDF p. 6 — Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM
  20. 6390G1 — S1 , PDF p. 6 — Southwest 8404A ordering chart; material and bore-size column retained
  21. 6390ZIR1 — S1 , PDF p. 6 — Southwest 8404A ordering chart; material and bore-size column retained
  22. 6390G5 — S1 , PDF p. 6 — Southwest 8404A ordering chart; material and bore-size column retained
  23. 6390ZIR5 — S1 , PDF p. 6 — Southwest 8404A ordering chart; material and bore-size column retained
  24. 6390G9 — S1 , PDF p. 6 — Southwest 8404A ordering chart; material and bore-size column retained
  25. 6390ZIR9 — S1 , PDF p. 6 — Southwest 8404A ordering chart; material and bore-size column retained
  26. 8404A — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  27. 6390Y-XX — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  28. 8404-3 — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  29. 2988 — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  30. 568-225 — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  31. 6278-25 — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  32. 6284-1 — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  33. 1290-2 — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  34. 6274CWY — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  35. 1200H30 — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  36. 1286-CWYFP — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  37. 4020-29 — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  38. SWTM1700 — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  39. 4475 — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  40. 4575 — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  41. 4675-1 — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  42. P129 — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  43. 4775R — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  44. 4700I — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  45. 4018-88 — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  46. 4015-2 — S1 , PDF p. 4 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  47. 4017-33 — S1 , PDF p. 5 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  48. 6404 — S1 , PDF p. 5 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  49. 4019-94 — S1 , PDF p. 5 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  50. 6504 — S1 , PDF p. 5 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  51. 4017-1 — S1 , PDF p. 5 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  52. 4018-19 — S1 , PDF p. 5 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  53. 8590-6 — S1 , PDF p. 5 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  54. 568-442 — S1 , PDF p. 5 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  55. 8404-2S — S1 , PDF p. 5 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  56. 8404-1D — S1 , PDF p. 5 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  57. 8488-5 — S1 , PDF p. 5 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  58. 8390-50 — S1 , PDF p. 5 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  59. 4020-60 — S1 , PDF p. 5 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  60. 568-343 — S1 , PDF p. 5 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  61. 8590-6BFA — S1 , PDF p. 5 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  62. 76BFS — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4"; Southwest supplier catalogue reference
  63. 76BDD — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4"; Southwest supplier catalogue reference
  64. 76BBC — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4"; Southwest supplier catalogue reference
  65. 6390G06 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4"; Southwest supplier catalogue reference
  66. 77BFS — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 1/4"; Southwest supplier catalogue reference
  67. 77BDD — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 1/4"; Southwest supplier catalogue reference
  68. 77BBC — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 1/4"; Southwest supplier catalogue reference
  69. 6390G07 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 1/4"; Southwest supplier catalogue reference
  70. 78BFS — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 1/2"; Southwest supplier catalogue reference
  71. 78BDD — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 1/2"; Southwest supplier catalogue reference
  72. 78BBC — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 1/2"; Southwest supplier catalogue reference
  73. 6390G08 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 1/2"; Southwest supplier catalogue reference
  74. 79BFS — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 3/4"; Southwest supplier catalogue reference
  75. 79BDD — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 3/4"; Southwest supplier catalogue reference
  76. 79BBC — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 3/4"; Southwest supplier catalogue reference
  77. 6390G09 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 3/4"; Southwest supplier catalogue reference
  78. 81BFS — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5"; Southwest supplier catalogue reference
  79. 81BDD — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5"; Southwest supplier catalogue reference
  80. 81BBC — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5"; Southwest supplier catalogue reference
  81. 6390G1 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5"; Southwest supplier catalogue reference
  82. 6390ZIR1 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5"; Southwest supplier catalogue reference
  83. 82BFS — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 1/4"; Southwest supplier catalogue reference
  84. 82BDD — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 1/4"; Southwest supplier catalogue reference
  85. 82BBC — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 1/4"; Southwest supplier catalogue reference
  86. 6390G2 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 1/4"; Southwest supplier catalogue reference
  87. 83BFS — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 1/2"; Southwest supplier catalogue reference
  88. 83BDD — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 1/2"; Southwest supplier catalogue reference
  89. 83BBC — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 1/2"; Southwest supplier catalogue reference
  90. 6390G3 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 1/2"; Southwest supplier catalogue reference
  91. 6390ZIR3 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 1/2"; Southwest supplier catalogue reference
  92. 84BFS — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 3/4"; Southwest supplier catalogue reference
  93. 84BDD — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 3/4"; Southwest supplier catalogue reference
  94. 84BBC — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 3/4"; Southwest supplier catalogue reference
  95. 6390G4 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 3/4"; Southwest supplier catalogue reference
  96. 85BFS — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6"; Southwest supplier catalogue reference
  97. 85BDD — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6"; Southwest supplier catalogue reference
  98. 85BBC — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6"; Southwest supplier catalogue reference
  99. 6390G5 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6"; Southwest supplier catalogue reference
  100. 6390ZIR5 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6"; Southwest supplier catalogue reference
  101. 86BFS — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 1/4"; Southwest supplier catalogue reference
  102. 86BDD — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 1/4"; Southwest supplier catalogue reference
  103. 86BBC — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 1/4"; Southwest supplier catalogue reference
  104. 6390G6 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 1/4"; Southwest supplier catalogue reference
  105. 87BFS — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 1/2"; Southwest supplier catalogue reference
  106. 87BDD — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 1/2"; Southwest supplier catalogue reference
  107. 87BBC — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 1/2"; Southwest supplier catalogue reference
  108. 6390G7 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 1/2"; Southwest supplier catalogue reference
  109. 6390ZIR7 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 1/2"; Southwest supplier catalogue reference
  110. 88BFS — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 3/4"; Southwest supplier catalogue reference
  111. 88BDD — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 3/4"; Southwest supplier catalogue reference
  112. 88BBC — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 3/4"; Southwest supplier catalogue reference
  113. 6390G8 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 3/4"; Southwest supplier catalogue reference
  114. 89BFS — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 7"; Southwest supplier catalogue reference
  115. 89BDD — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 7"; Southwest supplier catalogue reference
  116. 89BBC — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 7"; Southwest supplier catalogue reference
  117. 6390G9 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 7"; Southwest supplier catalogue reference
  118. 6390ZIR9 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 7"; Southwest supplier catalogue reference
  119. 6278-25 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6284-25A; Southwest supplier catalogue reference
  120. 1290-2 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6284-25A; Southwest supplier catalogue reference
  121. 6284-1 — S1 , PDF p. 6 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6284-25A; Southwest supplier catalogue reference
  122. 8590-6BF — S1 , PDF p. 8 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference
  123. 568-456 — S1 , PDF p. 8 — Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference

Request a Quotation

Send the part number, quantity and pump model for a quotation.

WhatsApp parts inquiryEmail parts list

Related model guides

Browse all Company News and model guides

WhatsApp
