Weatherford MP-16 Parts: Valve-over-Valve and Two-Piece Fluid Ends

Published by Pratt Oil ·

Keep Weatherford MP-16 Valve-over-Valve and L-style references separate when matching modules, piston rods, wear plates and crankshafts.

Find a part or drawing numberSearch all part references

Weatherford MP-16 spare parts should be identified by fluid-end version as well as the model name. The reference documents include a Valve-over-Valve manual and a separate two-piece, L-style manual. They share the MP-16 designation but list different module, rod and some power-end assembly references. Keeping those configurations and manual editions separate is essential when preparing a repair quotation.

Source-specific model facts

FieldValue in the cited source
Reference pump typeSingle-acting triplex piston pump
Maximum rated power in both cited editions1,600 HP
Stroke length in both cited editions12 in.
VoV source chart examples7-in. liner: 3,400 psi; 5.5-in. liner: 5,000 psi
Two-piece source chart examples7-in. liner: 3,360 psi; 5.5-in. liner: 5,000 psi
Manual editions1842861, VoV, January 2014; 1923778, Two Piece, January 2013

These historical source values identify the illustrated configuration. Confirm the installed unit and its current equipment specification before selecting replacement parts.

Valve-over-Valve references

The January 2014 VoV manual identifies fluid-end assembly 1134282 and module assembly 2088480. It lists bare module 0889428 and studded module 1823019 separately. The VoV piston assembly uses piston rod 0889438. These references belong to the illustrated VoV arrangement; an L-style module should not be selected merely because it is also described as an MP-16 part.

Two-piece / L-style references

The January 2013 two-piece manual identifies fluid-end assembly 1877962, studded suction module 1317027 and discharge module 1316988. Its piston assembly uses two-piece rod 1317519, connecting stud 1323512 and sub rod 1317868. The drawings distinguish each component from the complete rod assembly, which helps define exactly what a supplier is being asked to quote.

What to send with the parts enquiry

The version distinction also reaches the power-end lists: the cited VoV manual lists crankshaft assembly 0908426, while the cited two-piece manual lists 0908406. These are separate source entries, not an approved replacement cross-reference. Keep their leading zeros and obtain a serial-specific match. Send the nameplate, installed fluid-end photographs, manual number and edition, original part number, item position, quantity and liner size with the enquiry.

For related purchasing information, see mud pump spare parts matching and liners, pistons, valves and seats. You can send your model and part references to Pratt Oil for component and document matching.

The listed numbers are selected source references, not a complete bill of material or a confirmation of stock, origin or interchangeability.

Additional Russian manual editions: keep 7500 psi L-style references separate

The Russian legacy reference includes a two-piece L-style 7500 psi fluid end on PDF pages 119–123, with assembly 1830610, suction module 1317028 and discharge module 1317006. This list is separate from the English 5000 psi two-piece manual and its assembly 1877962. The other Russian translated 2013 manual covers the 5000 psi Valve-over-Valve configuration. Its crankshaft assembly is 0908426, whereas the earlier Russian edition lists 0908406. Match the source edition, pressure arrangement and installed nameplate before selecting a replacement. Use the original drawing to confirm liner and piston sizes; nominal dimensions and component references vary between editions.

Weatherford MP-16 part and drawing references

This selected list contains 879 checked reference entries. It is not a complete bill of materials. Keep the exact number, source edition and installed configuration together when requesting a quotation.

Download selected references (CSV)

879 reference entries

Exact source references with component description and document context
Part / drawing numberComponentConfiguration / reference scopeSource / PDF page
1134282Assembly, Fluid EndMP-16 Valve Over Valve; January 2014S1, PDF p. 118
1134290Manifold, DischargeMP-16 Valve Over Valve; January 2014S1, PDF p. 118
1134306Manifold, SuctionMP-16 Valve Over Valve; January 2014S1, PDF p. 118
0767106O-Ring, Discharge ManifoldMP-16 Valve Over Valve; January 2014S1, PDF p. 118
0767109O-Ring, Suction ManifoldMP-16 Valve Over Valve; January 2014S1, PDF p. 118
2088480Assembly, ModuleMP-16 Valve Over Valve module; NOT L-styleS1, PDF p. 119
1134294Cover, Discharge ValveMP-16 Valve Over Valve module; NOT L-styleS1, PDF p. 119
1317791Seal, Cover, Discharge ValveMP-16 Valve Over Valve module; NOT L-styleS1, PDF p. 119
1317805Seal, Liner/Wear Plate NBRMP-16 Valve Over Valve module; NOT L-styleS1, PDF p. 119
0889432Wear PlateMP-16 Valve Over Valve module; NOT L-styleS1, PDF p. 119
0889428Module, BareMP-16 Valve Over Valve module; NOT L-styleS1, PDF p. 119
1823019Module, StuddedMP-16 Valve Over Valve module; NOT L-styleS1, PDF p. 119
0908426Assembly, CrankshaftMP-16 VoV manual; verify serial-specific assemblyS1, PDF p. 114
0889438Piston RodMP-16 VoV piston assemblyS1, PDF p. 121
1877962Assembly, Fluid EndMP-16 Two Piece / L-Style; January 2013S2, PDF p. 114
1134306Manifold, SuctionMP-16 Two Piece / L-Style; January 2013S2, PDF p. 114
0767109Gasket, Suction ManifoldMP-16 Two Piece / L-Style; January 2013S2, PDF p. 114
1134290Manifold, DischargeMP-16 Two Piece / L-Style; January 2013S2, PDF p. 114
1231042Seal, Discharge ManifoldMP-16 Two Piece / L-Style; January 2013S2, PDF p. 114
1317809Seal, ModuleMP-16 Two Piece / L-Style; January 2013S2, PDF p. 114
1317069Flange, Liner RetainerMP-16 Two Piece / L-Style; January 2013S2, PDF p. 114
1317027Module, Suction StuddedMP-16 L-Style suction module / valve plug; table scope retainedS2, PDF p. 115
1317766Seal, Valve Cover (NBR)MP-16 L-Style suction module / valve plug; table scope retainedS2, PDF p. 115
1317949Plug, Valve Cover with Valve GateMP-16 L-Style suction module / valve plug; table scope retainedS2, PDF p. 115
1317926Guide, Valve BushingMP-16 L-Style suction module / valve plug; table scope retainedS2, PDF p. 115
1316988Module, DischargeMP-16 L-Style discharge moduleS2, PDF p. 116
1318086Plate, WearMP-16 L-Style liner assemblyS2, PDF p. 117
1317519Piston Rod (two piece)MP-16 L-Style / two-piece piston assemblyS2, PDF p. 118
1323512Connecting StudMP-16 L-Style / two-piece piston assemblyS2, PDF p. 118
1317868Sub RodMP-16 L-Style / two-piece piston assemblyS2, PDF p. 118
0766945Seal Piston HeadMP-16 L-Style / two-piece piston assemblyS2, PDF p. 118
0908406Assembly, CrankshaftMP-16 2-Piece manual; not automatically equivalent to VoV 0908426S2, PDF p. 110
1815931Assembly, Power FrameMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 113
1134668Cover, Power End RearMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 113
1133853Bolt, Main Bearing HousingMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 113
1128575Cap, BreatherMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 113
1814075Power FrameMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 113
0908884Cover, Main BearingMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 113
1133830Gasket, Main Bearing CoverMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 113
1124677Bolt ⅝” – 11 UNC x 1½”MP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 113
0879134Washer, FlatMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 113
1134280Cover, CrossheadMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 113
1771957Gasket, Crosshead CoverMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 113
1134670ScrewMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 113
0908426Assembly, CrankshaftMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 114
1133837Retainer, Inner RaceMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 114
1124696Bolt, RetainerMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 114
1133843Retainer, Outer RaceMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 114
1133857Bearing, EccentricMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 114
0908427Rod, ConnectingMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 114
0908384CrankshaftMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 114
0908408Gear, MainMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 114
1124662Cap screw, 1½” – 8 UNC X 4½”MP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 114
1133856Nut, Lock, 1½” – 8 UNCMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 114
1133852Retainer, Main Bearing InnerMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 115
1124696Cap screw, DH ⅝” – 11 UNC x 1½”MP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 115
1133851Retainer, Main Bearing OuterMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 115
1133859Bearing, MainMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 115
1133848Carrier, Main Bearing, LeftMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 115
1133825Carrier, Main Bearing, RightMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 115
1133846Spacer, Main BearingMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 115
0908407Assembly, Pinion ShaftMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 116
1124731Cap screw, HH ½” – 13 UNC x 1⅜”MP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 116
1124735Washer, Lock M14MP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 116
1134036Carrier, Oil SealMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 116
1134037Gasket, Oil Seal CarrierMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 116
1134027Ring, Oil Seal WearMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 116
1844173Seal, Oil 9 1/8” x 10 3/8” x 5/8”MP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 116
0908397Bearing, Pinion ShaftMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 116
1124732Cap screw, HH ⅞” – 9 UNC x 2”MP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 116
0885578Washers, Lock M22MP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 116
1134040Carrier, Pinion BearingMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 116
1134039Gasket, Oil Seal CarrierMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 116
1134026Shaft, PinionMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 116
1124713Key, 2” x 2” x 8”MP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 116
1134043Turning ToolMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 116
1124730Bolt, ⅝” – 11 UNC x 2”MP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 116
1134258Assembly, CrossheadMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
1134267Bolt, Retainer Plate to CrossheadMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
1134261Bolt, Retainer Plate to Wrist PinMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
1134277Plate, Wrist Pin RetainerMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
908404Pin, WristMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
908429Bearing, Wrist PinMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
908399CrossheadMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
1134260Guide, Upper CrossheadMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
1134268Guide, Lower CrossheadMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
1134273Bolt, Crosshead GuideMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
908402Rod, Crosshead ExtensionMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
1134267Bolt, Extension RodMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
1134266BaffleMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
1134264Gasket, Wiper BoxMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
1134263Box, WiperMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
1317786Seal, Double-Lip 4½” x 5½” x ½”MP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
1123535Spring, Wiper BoxMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
1124898O-ring, Wiper Box Front PlateMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
1124899Screw, Cap ⅜” – 16 UNC x 1½”MP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
1134271Retainer Ring, Seal, Diaphragm, Wiper BoxMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
1134269Plate, Locking, Crosshead GuideMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
908042Washer M10MP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
1124917Tie-WireMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
509759LocktiteMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 117
1134282Assembly, Fluid EndMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 118
1125015Nut, Discharge ManifoldMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 118
1134315Stud, 1¼” – 8 UNC x 2BMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 118
1134290Manifold, DischargeMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 118
1248435Cap screw, M22 x 65MP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 118
1134306Manifold, SuctionMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 118
0767106O-Ring, Discharge ManifoldMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 118
0767109O-Ring, Suction ManifoldMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 118
1125010Dampener SuctionMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 118
1125009Cover, Suction DampenerMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 118
2088480Assembly, ModuleMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 119
1134294Cover, Discharge ValveMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 119
1134307Guide, UpperMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 119
1134309Retainer, Upper Valve GuideMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 119
1249115Cap screw, HH ⅜” – 16 UNC x 1”MP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 119
1317791Seal, Cover, Discharge ValveMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 119
1317805Seal, Liner/Wear Plate NBRMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 119
1134288Spacer, Cylinder Head PlugMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 119
1134314Nut, Liner Retainer Stud 1” -8UNCMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 119
1134296Flange, Liner RetainerMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 119
0889432Wear PlateMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 119
1134313Stud, Liner Retainer, 1” – 8UNCMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 119
1125012Stud, Power End 1½” – 8 UNCMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 119
1134315Stud, Discharge Manifold 1¼” – 8 UNCMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 4; Source catalogue referenceS1, PDF p. 119
1134312Stud, Cylinder Head 1½” – 8 UNCMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 4; Source catalogue referenceS1, PDF p. 119
0889428Module, BareMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 4; Source catalogue referenceS1, PDF p. 119
1823019Module, StuddedMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 4; Source catalogue referenceS1, PDF p. 119
1134283Ring, ThreadedMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 4; Source catalogue referenceS1, PDF p. 119
1125013Nut, Cylinder Head Stud 1½” – 8 UNCMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 4; Source catalogue referenceS1, PDF p. 119
1134286Guide, Lower Suction ValveMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 4; Source catalogue referenceS1, PDF p. 119
1317656Seal, Plug Cylinder HeadMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 4; Source catalogue referenceS1, PDF p. 119
1134287Plug, Cylinder HeadMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 4; Source catalogue referenceS1, PDF p. 119
1134284Gland, Cylinder HeadMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 4; Source catalogue referenceS1, PDF p. 119
1134285Retainer, Lower Valve GuideMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 4; Source catalogue referenceS1, PDF p. 119
1125015Nut, Discharge Manifold Stud 1¼” – 8 UNCMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 4; Source catalogue referenceS1, PDF p. 119
1125013Nut, Power End Stud 1½” – 8 UNCMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 4; Source catalogue referenceS1, PDF p. 119
1317073Split Ring Gland RetainerMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 120
2285335O-ringMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 120
1134297Lock, LinerMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 120
0889438Piston RodMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 121
1133856NutMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 121
1134301Piston Rod ClampMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 121
1323512Bolt Piston Rod ClampMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 121
0766945Seal Piston HeadMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 121
1878015Liner BaffleMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 4; Source catalogue referenceS1, PDF p. 121
1317542Piston, 4.00 inch; Bonded DD UrethaneMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue referenceS1, PDF p. 121
1317541Piston, 4.00 inch; Bonded DD HT UrethaneMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue referenceS1, PDF p. 121
1317543Piston, 4.00 inch; Bonded NitrileMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue referenceS1, PDF p. 121
1317544Piston, 4.00 inch; Replaceable Nitrile CompleteMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue referenceS1, PDF p. 121
1317520Piston, 4.00 inch; Replaceable Nitrile RubberMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue referenceS1, PDF p. 121
1317550Piston, 4.50 inch; Bonded DD UrethaneMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue referenceS1, PDF p. 121
1317549Piston, 4.50 inch; Bonded DD HT UrethaneMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue referenceS1, PDF p. 121
1317551Piston, 4.50 inch; Bonded NitrileMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue referenceS1, PDF p. 121
1317552Piston, 4.50 inch; Replaceable Nitrile CompleteMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue referenceS1, PDF p. 121
1317522Piston, 4.50 inch; Replaceable Nitrile RubberMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue referenceS1, PDF p. 121
1317558Piston, 5.00 inch; Bonded DD UrethaneMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue referenceS1, PDF p. 121
1317557Piston, 5.00 inch; Bonded DD HT UrethaneMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue referenceS1, PDF p. 121
1317559Piston, 5.00 inch; Bonded NitrileMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue referenceS1, PDF p. 121
1317560Piston, 5.00 inch; Replaceable Nitrile CompleteMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue referenceS1, PDF p. 121
1317524Piston, 5.00 inch; Replaceable Nitrile RubberMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue referenceS1, PDF p. 121
1317566Piston, 5.50 inch; Bonded DD UrethaneMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue referenceS1, PDF p. 121
1317565Piston, 5.50 inch; Bonded DD HT UrethaneMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue referenceS1, PDF p. 121
1317567Piston, 5.50 inch; Bonded NitrileMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue referenceS1, PDF p. 121
1317568Piston, 5.50 inch; Replaceable Nitrile CompleteMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue referenceS1, PDF p. 121
1317526Piston, 5.50 inch; Replaceable Nitrile RubberMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue referenceS1, PDF p. 121
1317574Piston, 6.00 inch; Bonded DD UrethaneMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue referenceS1, PDF p. 121
1317573Piston, 6.00 inch; Bonded DD HT UrethaneMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue referenceS1, PDF p. 121
1317575Piston, 6.00 inch; Bonded NitrileMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue referenceS1, PDF p. 121
1317576Piston, 6.00 inch; Replaceable Nitrile CompleteMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue referenceS1, PDF p. 121
1317528Piston, 6.00 inch; Replaceable Nitrile RubberMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue referenceS1, PDF p. 121
1317582Piston, 6.50 inch; Bonded DD UrethaneMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue referenceS1, PDF p. 121
1317581Piston, 6.50 inch; Bonded DD HT UrethaneMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue referenceS1, PDF p. 121
1317584Piston, 6.50 inch; Bonded NitrileMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue referenceS1, PDF p. 121
1317585Piston, 6.50 inch; Replaceable Nitrile CompleteMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue referenceS1, PDF p. 121
1317530Piston, 6.50 inch; Replaceable Nitrile RubberMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue referenceS1, PDF p. 121
1317591Piston, 7.00 inch; Bonded DD UrethaneMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue referenceS1, PDF p. 121
1317590Piston, 7.00 inch; Bonded DD HT UrethaneMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue referenceS1, PDF p. 121
1317592Piston, 7.00 inch; Bonded NitrileMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue referenceS1, PDF p. 121
1317593Piston, 7.00 inch; Replaceable Nitrile CompleteMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue referenceS1, PDF p. 121
1317532Piston, 7.00 inch; Replaceable Nitrile RubberMP-16; Valve-over-Valve; January 2014 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue referenceS1, PDF p. 121
1318059Valve with Bonded Insert; Full OpenMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue referenceS1, PDF p. 122
1318060Valve with Bonded Insert; Full Open HTMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 10; exact source matrix type/material: Full Open HT; Source catalogue referenceS1, PDF p. 122
1318061Valve with Insert; Full OpenMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue referenceS1, PDF p. 122
1318056Valve with Insert; 3 Web CGMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 13; exact source matrix type/material: 3 Web CG; Source catalogue referenceS1, PDF p. 122
1318055Valve with Insert; 3 Web CG HTMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 16; exact source matrix type/material: 3 Web CG HT; Source catalogue referenceS1, PDF p. 122
1318058Valve with Insert; 4 Web CGMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 19; exact source matrix type/material: 4 Web CG; Source catalogue referenceS1, PDF p. 122
1318057Valve with Insert; 4 Web CG HTMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 22; exact source matrix type/material: 4 Web CG HT; Source catalogue referenceS1, PDF p. 122
1317998Replaceable Insert; Full OpenMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue referenceS1, PDF p. 122
1317994Replaceable Insert; 3 Web CGMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 13; exact source matrix type/material: 3 Web CG; Source catalogue referenceS1, PDF p. 122
1317995Replaceable Insert; 3 Web CG HTMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 16; exact source matrix type/material: 3 Web CG HT; Source catalogue referenceS1, PDF p. 122
1317996Replaceable Insert; 4 Web CGMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 19; exact source matrix type/material: 4 Web CG; Source catalogue referenceS1, PDF p. 122
1317997Replaceable Insert; 4 Web CG HTMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 22; exact source matrix type/material: 4 Web CG HT; Source catalogue referenceS1, PDF p. 122
1318029Valve Spring CS; Full OpenMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue referenceS1, PDF p. 122
1318029Valve Spring CS; Full Open HTMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 10; exact source matrix type/material: Full Open HT; Source catalogue referenceS1, PDF p. 122
1318027Valve Spring CS; 4 Web CGMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 19; exact source matrix type/material: 4 Web CG; Source catalogue referenceS1, PDF p. 122
1318027Valve Spring CS; 4 Web CG HTMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 22; exact source matrix type/material: 4 Web CG HT; Source catalogue referenceS1, PDF p. 122
1318037Valve Spring SS; Full OpenMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue referenceS1, PDF p. 122
1318037Valve Spring SS; Full Open HTMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 10; exact source matrix type/material: Full Open HT; Source catalogue referenceS1, PDF p. 122
1318031Valve Spring SS; 3 Web CGMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 13; exact source matrix type/material: 3 Web CG; Source catalogue referenceS1, PDF p. 122
1318031Valve Spring SS; 3 Web CG HTMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 16; exact source matrix type/material: 3 Web CG HT; Source catalogue referenceS1, PDF p. 122
1318035Valve Spring SS; 4 Web CGMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 19; exact source matrix type/material: 4 Web CG; Source catalogue referenceS1, PDF p. 122
1318035Valve Spring SS; 4 Web CG HTMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 22; exact source matrix type/material: 4 Web CG HT; Source catalogue referenceS1, PDF p. 122
1318014Valve Seat; Full OpenMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue referenceS1, PDF p. 122
1318014Valve Seat; Full Open HTMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 10; exact source matrix type/material: Full Open HT; Source catalogue referenceS1, PDF p. 122
1318012Valve Seat; 3 Web CGMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 13; exact source matrix type/material: 3 Web CG; Source catalogue referenceS1, PDF p. 122
1318012Valve Seat; 3 Web CG HTMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 16; exact source matrix type/material: 3 Web CG HT; Source catalogue referenceS1, PDF p. 122
1318013Valve Seat; 4 Web CGMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 19; exact source matrix type/material: 4 Web CG; Source catalogue referenceS1, PDF p. 122
1318013Valve Seat; 4 Web CG HTMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 22; exact source matrix type/material: 4 Web CG HT; Source catalogue referenceS1, PDF p. 122
1317878Puller Head; Full OpenMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue referenceS1, PDF p. 122
1317878Puller Head; Full Open HTMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 10; exact source matrix type/material: Full Open HT; Source catalogue referenceS1, PDF p. 122
1317876Puller Head; 3 Web CGMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 13; exact source matrix type/material: 3 Web CG; Source catalogue referenceS1, PDF p. 122
1317876Puller Head; 3 Web CG HTMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 16; exact source matrix type/material: 3 Web CG HT; Source catalogue referenceS1, PDF p. 122
1317877Puller Head; 4 Web CGMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 19; exact source matrix type/material: 4 Web CG; Source catalogue referenceS1, PDF p. 122
1317877Puller Head; 4 Web CG HTMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 22; exact source matrix type/material: 4 Web CG HT; Source catalogue referenceS1, PDF p. 122
1241141Valve Seat Puller Kit*; Full OpenMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue referenceS1, PDF p. 122
1241141Valve Seat Puller Kit*; Full Open HTMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 10; exact source matrix type/material: Full Open HT; Source catalogue referenceS1, PDF p. 122
1241141Valve Seat Puller Kit*; 3 Web CGMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 13; exact source matrix type/material: 3 Web CG; Source catalogue referenceS1, PDF p. 122
1241141Valve Seat Puller Kit*; 3 Web CG HTMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 16; exact source matrix type/material: 3 Web CG HT; Source catalogue referenceS1, PDF p. 122
1241141Valve Seat Puller Kit*; 4 Web CGMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 19; exact source matrix type/material: 4 Web CG; Source catalogue referenceS1, PDF p. 122
1241141Valve Seat Puller Kit*; 4 Web CG HTMP-16; Valve-over-Valve; January 2014 manual; source table 1, column 22; exact source matrix type/material: 4 Web CG HT; Source catalogue referenceS1, PDF p. 122
1815931Assembly, Power FrameMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 109
1134668Cover, Power End RearMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 109
1133853Bolt, Main Bearing HousingMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 109
1128575Cap, BreatherMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 109
1814075Machining, Power FrameMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 109
0908884Cover, Main BearingMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 109
1133830Gasket, Main Bearing CoverMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 109
1124677Bolt ⅝” – 11 UNC x 1½”MP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 109
0879134Washer, FlatMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 109
1134280Cover, CrossheadMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 109
1771957Gasket, Crosshead CoverMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 109
1134670ScrewMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 109
0908406Assembly, CrankshaftMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 110
1133837Retainer, Inner RaceMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 110
1124696Bolt, RetainerMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 110
1134816Retainer, Outer RaceMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 110
1133857Bearing, CrankpinMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 110
0908427Strap, EccentricMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 110
0908384CrankshaftMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 110
0908408Gear, MainMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 110
1124662Cap screw, 1½” – 8 UNC X 4½”MP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 110
1133856Nut, Lock, 1½” – 8 UNCMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 110
1133852Retainer, Main Bearing InnerMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 111
1124696Cap screw, DH ⅝” – 11 UNC x 1½”MP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 111
1134820Retainer, Main Bearing OuterMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 111
1133859Bearing, MainMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 111
1134819Carrier, Main Bearing, LeftMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 111
1133825Carrier, Main Bearing, RightMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 111
1133846Spacer, Main BearingMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 111
0908407Assembly, Pinion ShaftMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 112
1124731Cap screw, HH ½” – 13 UNC x 1⅜”MP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 112
1124735Washer, Lock M14MP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 112
1134036Carrier, Oil SealMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 112
1134037Gasket, Oil Seal CarrierMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 112
1134027Ring, Oil Seal WearMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 112
1124733Seal, Oil 8½” x 10½” x ⅝”MP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 112
0908359Bearing, Pinion ShaftMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 112
1124732Cap screw, HH ⅞” – 9 UNC x 2”MP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 112
0885578Washers, Lock M22MP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 112
1134040Carrier, Pinion BearingMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 112
1134039Gasket, Oil Seal CarrierMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 112
1134026Shaft, PinionMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 112
1124713Key, 2” x 2” x 8”MP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 112
1134043Turning ToolMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 112
1124730Bolt, ⅝” – 11 UNC x 2”MP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 112
1134258Assembly, CrossheadMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
1134277Retainer, Crosshead PinMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
1134267Cap screw, Drilled Socket head 1” – 8 UNC x 2½”MP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
0908404Pin, WristMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
0908399CrossheadMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
1134267Bolt, Extension RodMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
0908402Rod, Crosshead ExtensionMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
1134266Baffle, Fluid DiscMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
1134264Gasket, Wiper BoxMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
1134263Box, WiperMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
1124899Cap screw, HH ⅜” – 16 UNC x 1”MP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
0908042Washer, LockMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
1317769Seal, Single-LipMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
1123535Spring, Wiper BoxMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
1317786Seal, Double LipMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
1124898O-Ring, 140 x 7MP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
1134271Retainer Ring, Wiper Box SealMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
1134260Guide, Upper CrossheadMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
1134268Guide, Lower CrossheadMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
1134273Bolt, Crosshead GuideMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
0509759LocktiteMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113
1124930Tie-WireMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 113

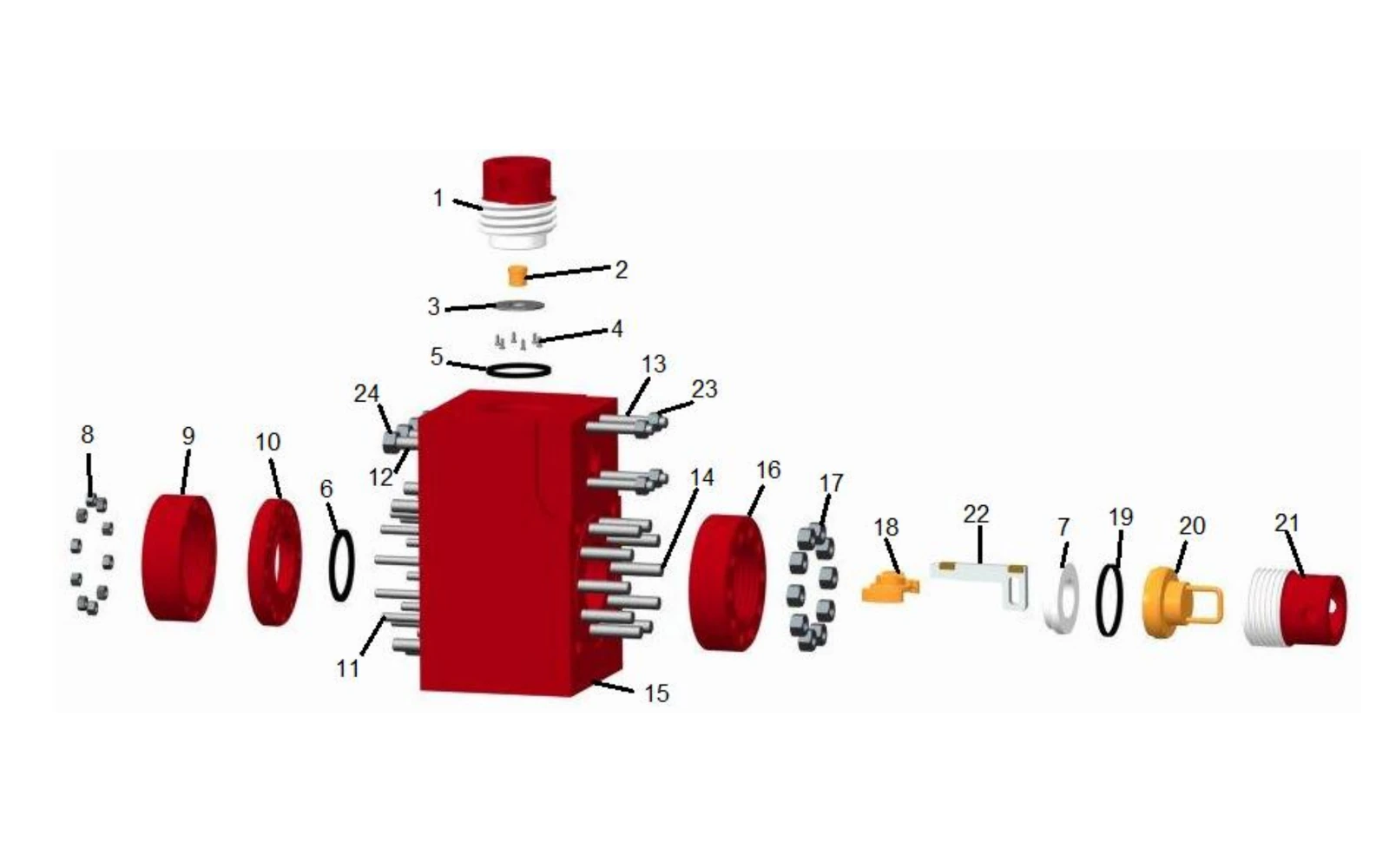

1877962Assembly, Fluid EndMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 114
1134306Manifold, SuctionMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 114
0767109Gasket, Suction ManifoldMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 114
1257196Bolt, Suction Manifold MountingMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 114
1134290Manifold, DischargeMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 114
1231042Seal, Discharge ManifoldMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 114
1738845Stud & Nut, Discharge Manifold MountingMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 114
1903638Stud & Nut, Fluid End MountingMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 114
1317809Seal, ModuleMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 114
1317069Flange, Liner RetainerMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 114
1383132Screws, Cap, Liner Plate RetainerMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 114
1317027Module, Suction StuddedMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 115
1317854Stud, Tapered with NutMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 115
1317966Gland, Valve Cover ScrewMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 115
1317905Flange, Valve CoverMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 115
1317766Seal, Valve Cover (NBR)MP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 115
1317949Plug, Valve Cover with Valve GateMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 4; Source catalogue referenceS2, PDF p. 115
1317926Guide, Valve BushingMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 4; Source catalogue referenceS2, PDF p. 115
1738844Stud, Valve Guide with Lock NutMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 4; Source catalogue referenceS2, PDF p. 115
1317889Bushing, Valve GuideMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 4; Source catalogue referenceS2, PDF p. 115
1012724Nut, LockMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 4; Source catalogue referenceS2, PDF p. 115
1316988Module, DischargeMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 116
1738845Stud, Discharge Manifold Mounting with NutMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 116
1903638Stud, Power End Mounting with NutMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 116
1317854Stud, , Flange Mounting with NutMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 116
1418005Stud, Suction Module Mounting with NutMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 116
1317966Gland, Valve Cover ScrewMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 116
1317905Flange, Valve CoverMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 116
1317766Seal, Valve CoverMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 116
1418004Locating PinsMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 116
1383132Bolt, liner mounting plateMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 116
1317069Flange, Liner Mounting MP-16MP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 116
1318086Plate, WearMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 117
1317085Nut, Liner RetainerMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 117
1878015Plate, Liner Wash BaffleMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 117
1317809Seal, Wear PlateMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 117
1317089Ring, Liner Retainer PilotMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 117
1317519Piston Rod (two piece)MP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 118
1133856NutMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 118
1323512Connecting StudMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 118
1317868Sub RodMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 118
1134301Piston Rod ClampMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 118
1149771Bolt Piston Rod ClampMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 118
0766945Seal Piston HeadMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 118
1878015Liner BaffleMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 4; Source catalogue referenceS2, PDF p. 118
1317542Piston, 4.00 inch; Bonded DD UrethaneMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue referenceS2, PDF p. 118
1317541Piston, 4.00 inch; Bonded DD HT UrethaneMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue referenceS2, PDF p. 118
1317543Piston, 4.00 inch; Bonded NitrileMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue referenceS2, PDF p. 118
1317544Piston, 4.00 inch; Replaceable Nitrile CompleteMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue referenceS2, PDF p. 118
1317520Piston, 4.00 inch; Replaceable Nitrile RubberMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue referenceS2, PDF p. 118
1317550Piston, 4.50 inch; Bonded DD UrethaneMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue referenceS2, PDF p. 118
1317549Piston, 4.50 inch; Bonded DD HT UrethaneMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue referenceS2, PDF p. 118
1317551Piston, 4.50 inch; Bonded NitrileMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue referenceS2, PDF p. 118
1317552Piston, 4.50 inch; Replaceable Nitrile CompleteMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue referenceS2, PDF p. 118
1317522Piston, 4.50 inch; Replaceable Nitrile RubberMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue referenceS2, PDF p. 118
1317558Piston, 5.00 inch; Bonded DD UrethaneMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue referenceS2, PDF p. 118
1317557Piston, 5.00 inch; Bonded DD HT UrethaneMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue referenceS2, PDF p. 118
1317559Piston, 5.00 inch; Bonded NitrileMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue referenceS2, PDF p. 118
1317560Piston, 5.00 inch; Replaceable Nitrile CompleteMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue referenceS2, PDF p. 118
1317524Piston, 5.00 inch; Replaceable Nitrile RubberMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue referenceS2, PDF p. 118
1317566Piston, 5.50 inch; Bonded DD UrethaneMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue referenceS2, PDF p. 118
1317565Piston, 5.50 inch; Bonded DD HT UrethaneMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue referenceS2, PDF p. 118
1317567Piston, 5.50 inch; Bonded NitrileMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue referenceS2, PDF p. 118
1317568Piston, 5.50 inch; Replaceable Nitrile CompleteMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue referenceS2, PDF p. 118
1317526Piston, 5.50 inch; Replaceable Nitrile RubberMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue referenceS2, PDF p. 118
1317574Piston, 6.00 inch; Bonded DD UrethaneMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue referenceS2, PDF p. 118
1317573Piston, 6.00 inch; Bonded DD HT UrethaneMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue referenceS2, PDF p. 118
1317575Piston, 6.00 inch; Bonded NitrileMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue referenceS2, PDF p. 118
1317576Piston, 6.00 inch; Replaceable Nitrile CompleteMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue referenceS2, PDF p. 118
1317528Piston, 6.00 inch; Replaceable Nitrile RubberMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue referenceS2, PDF p. 118
1317582Piston, 6.50 inch; Bonded DD UrethaneMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue referenceS2, PDF p. 118
1317581Piston, 6.50 inch; Bonded DD HT UrethaneMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue referenceS2, PDF p. 118
1317584Piston, 6.50 inch; Bonded NitrileMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue referenceS2, PDF p. 118
1317585Piston, 6.50 inch; Replaceable Nitrile CompleteMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue referenceS2, PDF p. 118
1317530Piston, 6.50 inch; Replaceable Nitrile RubberMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue referenceS2, PDF p. 118
1317591Piston, 7.00 inch; Bonded DD UrethaneMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 7; exact source matrix type/material: Bonded DD Urethane; Source catalogue referenceS2, PDF p. 118
1317590Piston, 7.00 inch; Bonded DD HT UrethaneMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 10; exact source matrix type/material: Bonded DD HT Urethane; Source catalogue referenceS2, PDF p. 118
1317592Piston, 7.00 inch; Bonded NitrileMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 13; exact source matrix type/material: Bonded Nitrile; Source catalogue referenceS2, PDF p. 118
1317593Piston, 7.00 inch; Replaceable Nitrile CompleteMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 16; exact source matrix type/material: Replaceable Nitrile Complete; Source catalogue referenceS2, PDF p. 118
1317532Piston, 7.00 inch; Replaceable Nitrile RubberMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 2, column 19; exact source matrix type/material: Replaceable Nitrile Rubber; Source catalogue referenceS2, PDF p. 118
1318059Valve with Bonded Insert; Full OpenMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue referenceS2, PDF p. 119
1318060Valve with Bonded Insert; Full Open HTMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 10; exact source matrix type/material: Full Open HT; Source catalogue referenceS2, PDF p. 119
1318061Valve with Insert; Full OpenMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue referenceS2, PDF p. 119
1318056Valve with Insert; 3 Web CGMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 13; exact source matrix type/material: 3 Web CG; Source catalogue referenceS2, PDF p. 119
1318055Valve with Insert; 3 Web CG HTMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 16; exact source matrix type/material: 3 Web CG HT; Source catalogue referenceS2, PDF p. 119
1318058Valve with Insert; 4 Web CGMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 19; exact source matrix type/material: 4 Web CG; Source catalogue referenceS2, PDF p. 119
1318057Valve with Insert; 4 Web CG HTMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 22; exact source matrix type/material: 4 Web CG HT; Source catalogue referenceS2, PDF p. 119
1317998Replaceable Insert; Full OpenMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue referenceS2, PDF p. 119
1317994Replaceable Insert; 3 Web CGMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 13; exact source matrix type/material: 3 Web CG; Source catalogue referenceS2, PDF p. 119
1317995Replaceable Insert; 3 Web CG HTMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 16; exact source matrix type/material: 3 Web CG HT; Source catalogue referenceS2, PDF p. 119
1317996Replaceable Insert; 4 Web CGMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 19; exact source matrix type/material: 4 Web CG; Source catalogue referenceS2, PDF p. 119
1317997Replaceable Insert; 4 Web CG HTMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 22; exact source matrix type/material: 4 Web CG HT; Source catalogue referenceS2, PDF p. 119
1318029Valve Spring CS; Full OpenMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue referenceS2, PDF p. 119
1318029Valve Spring CS; Full Open HTMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 10; exact source matrix type/material: Full Open HT; Source catalogue referenceS2, PDF p. 119
1318027Valve Spring CS; 4 Web CGMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 19; exact source matrix type/material: 4 Web CG; Source catalogue referenceS2, PDF p. 119
1318027Valve Spring CS; 4 Web CG HTMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 22; exact source matrix type/material: 4 Web CG HT; Source catalogue referenceS2, PDF p. 119
1318037Valve Spring SS; Full OpenMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue referenceS2, PDF p. 119
1318037Valve Spring SS; Full Open HTMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 10; exact source matrix type/material: Full Open HT; Source catalogue referenceS2, PDF p. 119
1318031Valve Spring SS; 3 Web CGMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 13; exact source matrix type/material: 3 Web CG; Source catalogue referenceS2, PDF p. 119
1318031Valve Spring SS; 3 Web CG HTMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 16; exact source matrix type/material: 3 Web CG HT; Source catalogue referenceS2, PDF p. 119
1318035Valve Spring SS; 4 Web CGMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 19; exact source matrix type/material: 4 Web CG; Source catalogue referenceS2, PDF p. 119
1318035Valve Spring SS; 4 Web CG HTMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 22; exact source matrix type/material: 4 Web CG HT; Source catalogue referenceS2, PDF p. 119
1318014Valve Seat; Full OpenMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue referenceS2, PDF p. 119
1318014Valve Seat; Full Open HTMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 10; exact source matrix type/material: Full Open HT; Source catalogue referenceS2, PDF p. 119
1318012Valve Seat; 3 Web CGMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 13; exact source matrix type/material: 3 Web CG; Source catalogue referenceS2, PDF p. 119
1318012Valve Seat; 3 Web CG HTMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 16; exact source matrix type/material: 3 Web CG HT; Source catalogue referenceS2, PDF p. 119
1318013Valve Seat; 4 Web CGMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 19; exact source matrix type/material: 4 Web CG; Source catalogue referenceS2, PDF p. 119
1318013Valve Seat; 4 Web CG HTMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 22; exact source matrix type/material: 4 Web CG HT; Source catalogue referenceS2, PDF p. 119
1317878Puller Head; Full OpenMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue referenceS2, PDF p. 119
1317878Puller Head; Full Open HTMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 10; exact source matrix type/material: Full Open HT; Source catalogue referenceS2, PDF p. 119
1317876Puller Head; 3 Web CGMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 13; exact source matrix type/material: 3 Web CG; Source catalogue referenceS2, PDF p. 119
1317876Puller Head; 3 Web CG HTMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 16; exact source matrix type/material: 3 Web CG HT; Source catalogue referenceS2, PDF p. 119
1317877Puller Head; 4 Web CGMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 19; exact source matrix type/material: 4 Web CG; Source catalogue referenceS2, PDF p. 119
1317877Puller Head; 4 Web CG HTMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 22; exact source matrix type/material: 4 Web CG HT; Source catalogue referenceS2, PDF p. 119
1241141Valve Seat Puller Kit*; Full OpenMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 7; exact source matrix type/material: Full Open; Source catalogue referenceS2, PDF p. 119
1241141Valve Seat Puller Kit*; Full Open HTMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 10; exact source matrix type/material: Full Open HT; Source catalogue referenceS2, PDF p. 119
1241141Valve Seat Puller Kit*; 3 Web CGMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 13; exact source matrix type/material: 3 Web CG; Source catalogue referenceS2, PDF p. 119
1241141Valve Seat Puller Kit*; 3 Web CG HTMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 16; exact source matrix type/material: 3 Web CG HT; Source catalogue referenceS2, PDF p. 119
1241141Valve Seat Puller Kit*; 4 Web CGMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 19; exact source matrix type/material: 4 Web CG; Source catalogue referenceS2, PDF p. 119
1241141Valve Seat Puller Kit*; 4 Web CG HTMP-16; two-piece 5000 psi reference configuration; January 2013 manual; source table 1, column 22; exact source matrix type/material: 4 Web CG HT; Source catalogue referenceS2, PDF p. 119
1317099Chrome iron liner, 4.000 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 4.000 inch; Chrome iron liner; Source part-number referenceS1, PDF p. 120
1317116Zirconia ceramic liner, 4.000 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 4.000 inch; Zirconia ceramic liner; Source part-number referenceS1, PDF p. 120
1317805Rubber liner gasket, 4.000 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 4.000 inch; Rubber liner gasket; Source part-number referenceS1, PDF p. 120
1317807Urethane liner gasket, 4.000 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 4.000 inch; Urethane liner gasket; Source part-number referenceS1, PDF p. 120
1317159Chrome iron liner, 4.500 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 4.500 inch; Chrome iron liner; Source part-number referenceS1, PDF p. 120
1317175Zirconia ceramic liner, 4.500 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 4.500 inch; Zirconia ceramic liner; Source part-number referenceS1, PDF p. 120
1317805Rubber liner gasket, 4.500 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 4.500 inch; Rubber liner gasket; Source part-number referenceS1, PDF p. 120
1317807Urethane liner gasket, 4.500 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 4.500 inch; Urethane liner gasket; Source part-number referenceS1, PDF p. 120
1317213Chrome iron liner, 5.000 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 5.000 inch; Chrome iron liner; Source part-number referenceS1, PDF p. 120
1317225Zirconia ceramic liner, 5.000 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 5.000 inch; Zirconia ceramic liner; Source part-number referenceS1, PDF p. 120
1317805Rubber liner gasket, 5.000 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 5.000 inch; Rubber liner gasket; Source part-number referenceS1, PDF p. 120
1317807Urethane liner gasket, 5.000 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 5.000 inch; Urethane liner gasket; Source part-number referenceS1, PDF p. 120
1317264Chrome iron liner, 5.500 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 5.500 inch; Chrome iron liner; Source part-number referenceS1, PDF p. 120
1317276Zirconia ceramic liner, 5.500 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 5.500 inch; Zirconia ceramic liner; Source part-number referenceS1, PDF p. 120
1317805Rubber liner gasket, 5.500 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 5.500 inch; Rubber liner gasket; Source part-number referenceS1, PDF p. 120
1317807Urethane liner gasket, 5.500 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 5.500 inch; Urethane liner gasket; Source part-number referenceS1, PDF p. 120
1317313Chrome iron liner, 6.000 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 6.000 inch; Chrome iron liner; Source part-number referenceS1, PDF p. 120
1317324Zirconia ceramic liner, 6.000 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 6.000 inch; Zirconia ceramic liner; Source part-number referenceS1, PDF p. 120
1317805Rubber liner gasket, 6.000 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 6.000 inch; Rubber liner gasket; Source part-number referenceS1, PDF p. 120
1317807Urethane liner gasket, 6.000 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 6.000 inch; Urethane liner gasket; Source part-number referenceS1, PDF p. 120
1317359Chrome iron liner, 6.500 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 6.500 inch; Chrome iron liner; Source part-number referenceS1, PDF p. 120
1317370Zirconia ceramic liner, 6.500 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 6.500 inch; Zirconia ceramic liner; Source part-number referenceS1, PDF p. 120
1317805Rubber liner gasket, 6.500 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 6.500 inch; Rubber liner gasket; Source part-number referenceS1, PDF p. 120
1317807Urethane liner gasket, 6.500 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 6.500 inch; Urethane liner gasket; Source part-number referenceS1, PDF p. 120
1317396Chrome iron liner, 7.000 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 7.000 inch; Chrome iron liner; Source part-number referenceS1, PDF p. 120
1317406Zirconia ceramic liner, 7.000 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 7.000 inch; Zirconia ceramic liner; Source part-number referenceS1, PDF p. 120
1317805Rubber liner gasket, 7.000 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 7.000 inch; Rubber liner gasket; Source part-number referenceS1, PDF p. 120
1317807Urethane liner gasket, 7.000 inchMP-16; Valve-over-Valve; January 2014 manual; liner matrix; bore 7.000 inch; Urethane liner gasket; Source part-number referenceS1, PDF p. 120
1317099Chrome iron liner, 4.000 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 4.000 inch; Chrome iron liner; Source part-number referenceS2, PDF p. 117
1317116Zirconia ceramic liner, 4.000 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 4.000 inch; Zirconia ceramic liner; Source part-number referenceS2, PDF p. 117
1317805Rubber liner gasket, 4.000 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 4.000 inch; Rubber liner gasket; Source part-number referenceS2, PDF p. 117
1317807Urethane liner gasket, 4.000 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 4.000 inch; Urethane liner gasket; Source part-number referenceS2, PDF p. 117
1317159Chrome iron liner, 4.500 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 4.500 inch; Chrome iron liner; Source part-number referenceS2, PDF p. 117
1317175Zirconia ceramic liner, 4.500 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 4.500 inch; Zirconia ceramic liner; Source part-number referenceS2, PDF p. 117
1317805Rubber liner gasket, 4.500 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 4.500 inch; Rubber liner gasket; Source part-number referenceS2, PDF p. 117
1317807Urethane liner gasket, 4.500 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 4.500 inch; Urethane liner gasket; Source part-number referenceS2, PDF p. 117
1317213Chrome iron liner, 5.000 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 5.000 inch; Chrome iron liner; Source part-number referenceS2, PDF p. 117
1317225Zirconia ceramic liner, 5.000 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 5.000 inch; Zirconia ceramic liner; Source part-number referenceS2, PDF p. 117
1317805Rubber liner gasket, 5.000 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 5.000 inch; Rubber liner gasket; Source part-number referenceS2, PDF p. 117
1317807Urethane liner gasket, 5.000 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 5.000 inch; Urethane liner gasket; Source part-number referenceS2, PDF p. 117
1317264Chrome iron liner, 5.500 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 5.500 inch; Chrome iron liner; Source part-number referenceS2, PDF p. 117
1317276Zirconia ceramic liner, 5.500 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 5.500 inch; Zirconia ceramic liner; Source part-number referenceS2, PDF p. 117
1317805Rubber liner gasket, 5.500 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 5.500 inch; Rubber liner gasket; Source part-number referenceS2, PDF p. 117
1317807Urethane liner gasket, 5.500 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 5.500 inch; Urethane liner gasket; Source part-number referenceS2, PDF p. 117
1317313Chrome iron liner, 6.000 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 6.000 inch; Chrome iron liner; Source part-number referenceS2, PDF p. 117
1317324Zirconia ceramic liner, 6.000 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 6.000 inch; Zirconia ceramic liner; Source part-number referenceS2, PDF p. 117
1317805Rubber liner gasket, 6.000 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 6.000 inch; Rubber liner gasket; Source part-number referenceS2, PDF p. 117
1317807Urethane liner gasket, 6.000 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 6.000 inch; Urethane liner gasket; Source part-number referenceS2, PDF p. 117
1317359Chrome iron liner, 6.500 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 6.500 inch; Chrome iron liner; Source part-number referenceS2, PDF p. 117
1317370Zirconia ceramic liner, 6.500 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 6.500 inch; Zirconia ceramic liner; Source part-number referenceS2, PDF p. 117
1317805Rubber liner gasket, 6.500 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 6.500 inch; Rubber liner gasket; Source part-number referenceS2, PDF p. 117
1317807Urethane liner gasket, 6.500 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 6.500 inch; Urethane liner gasket; Source part-number referenceS2, PDF p. 117
1317396Chrome iron liner, 7.000 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 7.000 inch; Chrome iron liner; Source part-number referenceS2, PDF p. 117
1317406Zirconia ceramic liner, 7.000 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 7.000 inch; Zirconia ceramic liner; Source part-number referenceS2, PDF p. 117
1317805Rubber liner gasket, 7.000 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 7.000 inch; Rubber liner gasket; Source part-number referenceS2, PDF p. 117
1317807Urethane liner gasket, 7.000 inchMP-16; two-piece 5000 psi reference configuration; January 2013 manual; liner matrix; bore 7.000 inch; Urethane liner gasket; Source part-number referenceS2, PDF p. 117
1138827Power end assemblyMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 110
0908406Crankshaft assemblyMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 110
0908407Pinion assemblyMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 110
1134258Crosshead assemblyMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 110
1815931Power end frame assemblyMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 110
1815931Power end frame assemblyMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 111
1134668Power end rear coverMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 111
1133853Main bearing housing screwMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 111
1128575Breather capMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 111
1814075Machined power end frame componentMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 111
0908884Main bearing coverMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 111
1133830Main bearing cover gasketMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 111
1124677ScrewMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 111
0879134Flat washerMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 111
1134280Crosshead coverMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 111
0915611Crosshead cover gasketMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 111
1134670ScrewMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 111
0908406Crankshaft assemblyMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 112
1133837Inner race retainerMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 112
1124696Retainer screwMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 112
1134816Outer race retainerMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 112
1133857Crankpin bearingMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 112
0908427Eccentric strapMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 112
0908384CrankshaftMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 112
0908408Main gearMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 112
1124662ScrewMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 112
1133856LocknutMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 112
1133852Inner main bearing retainerMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 113
1124696Socket-head screwMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 113
1134820Outer main bearing retainerMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 113
1133859Main bearingMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 113
1134819Left main bearing carrierMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 113
1133825Right main bearing carrierMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 113
1133846Main bearing gasketMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 113
0908407Pinion shaft assemblyMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 114
1124731Hex-head screwMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 114
1124735M14 lock washerMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 114
1134036Oil seal retainerMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 114
1134037Oil seal retainer gasketMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 114
1134027Oil seal wear ringMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 114
1124733Oil sealMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 114
0908359Pinion shaft bearingMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 114
1124732Hex-head screwMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 114
0885578M22 lock washerMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 114
1134040Pinion bearing carrierMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 114
1134039Oil seal retainer gasketMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 114
1134026Pinion shaftMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 114
1124713KeyMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 114
1134043Pinion turning toolMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 114
1124730BoltMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 114
1134258Crosshead assemblyMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
1134277Crosshead pin retainerMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
1134267Drilled-head socket screwMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
0908404Crosshead pinMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
0908399CrossheadMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
1134267Extension rod screwMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
0908402Crosshead extension rodMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
1134266BaffleMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
1134264Wiper gasketMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
1134263WiperMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
1124899Hex-head screwMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
0908042Lock washerMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
0915611Single-lip sealMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
1123535Wiper springMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
0915605Double-lip sealMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
1124898O-ringMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
1134271Wiper seal retaining ringMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
1134260Upper crosshead guideMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
1134268Lower crosshead guideMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
1134273Crosshead guide screwMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
0509759Thread-locking compoundMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
1124930Lock wireMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 115
1134282Fluid end assemblyMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 116
1125015Hex nutMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 116
1134315StudMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 116
1134290Discharge manifoldMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 116
1134304Socket-head screwMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 116
1134306Suction manifoldMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 116
1134291Discharge manifold O-ringMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 116
1125000Suction manifold O-ringMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 116
1134294Discharge valve coverMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
1134307Upper valve guideMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
1134309Upper valve guide retainerMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
1134310Hex-head screwMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
1134293Discharge valve cover sealMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
1134295Wear plate sealMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
0889432Wear plateMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
1134296Liner threaded retainerMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
889432Liner wear ringMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
1125012StudMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
1125013Hex nutMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
1134315StudMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
1125015Hex nutMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
1134312StudMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
889428Fluid cylinder moduleMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
1134283Threaded ringMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
1134286Lower suction valve guideMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
1134285Lower valve guide retainerMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
1134289Cylinder head plug sealMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
1134287Cylinder head plugMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
1134284Cylinder head plugMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 117
1134299Gland retainer split ring and O-ringMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 118
1134297Liner lockMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 118
1279784Chrome steel linerMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 118
1279787Chrome steel liner; verify nominal size in the source drawingMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 118
1279819Chrome steel linerMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 118
1317356Chrome steel liner; verify nominal size in the source drawingMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 118
1317396Chrome steel linerMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 118
1317220Zirconia linerMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 118
1317271Zirconia liner; verify nominal size in the source drawingMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 118
1317319Zirconia linerMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 118
1317365Zirconia liner; verify nominal size in the source drawingMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 118
1317406Zirconia linerMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 118
1134311Liner sealMP-16; Russian legacy manual, PDF pp. 110–118 power end / 5000 psi VoV; Weatherford legacy manual referenceS3, PDF p. 118
1830610Fluid end assemblyMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 119
1380831Suction manifoldMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 119
0767100Suction manifold gasketMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 119
1257196Suction manifold mounting screwMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 119
1813666Discharge manifoldMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 119
1251010Discharge manifold gasketMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 119
1767710Discharge manifold stud and nutMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 119
1767709Fluid end stud and nutMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 119
1249273Module sealMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 119
1317028Suction moduleMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 120
1317854Tapered stud with nutMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 120
1767708Valve cover screw glandMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 120
1317908Valve cover flangeMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 120
1317803Valve cover sealMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 120
1317953Valve cover plugMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 120
1317930Valve guideMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 120
1257178Countersunk screwMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 120
1317889Valve guide bushingMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 120
1317006Discharge moduleMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 121
1767710Discharge manifold stud and nutMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 121
1767709Fluid end stud and nutMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 121
1317854Flange stud and nutMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 121
1768120Suction module stud and nutMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 121
1767708Threaded valve cover retainerMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 121
1317908Valve cover flangeMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 121
1317803Valve cover sealMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 121
1418004Locating dowelsMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 121
1317086Liner locknutMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 122
1383136Socket-head screwMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 122
1317070Liner mounting flangeMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 122
1318087Carbon steel wear plateMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 122
1318106Stainless steel wear plateMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 122
1318085Carbon steel wear plate sealMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 122
1318104Stainless steel wear plate sealMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 122
1134301Piston rod clamp assemblyMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 123
1134302Piston rod clamp screwMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 123
0889438Piston rodMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 123
0766945Piston head sealMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 123
1280242Piston hub, 5.000 inchMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 123
1280243Piston hub, 5.500 inchMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 123
1280244Piston hub, 6.000 inchMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 123
1317524Replaceable nitrile piston, 5.000 inchMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 123
1317526Replaceable nitrile piston, 5.500 inchMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 123
1317528Replaceable nitrile piston, 6.000 inchMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 123
1317530Replaceable nitrile piston, 6.500 inchMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 123
1317591Replaceable nitrile piston, 7.000 inchMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 123
0889442Piston locknutMP-16; Russian legacy manual, PDF pp. 119–123 two-piece L-style 7500 psi fluid end; Weatherford legacy manual referenceS3, PDF p. 123
1318029Carbon steel valve springMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 3 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1318029Carbon steel valve springMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 4 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1318029Carbon steel valve springMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 7 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1318029Carbon steel valve springMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 8 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1318061ValveMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 3 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1318060ValveMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 4 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1318056ValveMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 5 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1318055ValveMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 6 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1318058ValveMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 7 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1318058ValveMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 8 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1318014Valve seatMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 3 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1318014Valve seatMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 4 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1318012Valve seatMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 5 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1318012Valve seatMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 6 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1318013Valve seatMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 7 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1318013Valve seatMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 8 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1317998Valve insertMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 3 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1317994Valve insertMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 5 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1317995Valve insertMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 6 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1317996Valve insertMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 7 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1317997Valve insertMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 8 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1317878Seat puller headMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 3 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1317878Seat puller headMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 4 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1317876Seat puller headMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 5 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1317876Seat puller headMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 6 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1317877Seat puller headMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 7 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1317877Seat puller headMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 8 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1241141Valve seat puller kitMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 3 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1241141Valve seat puller kitMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 4 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1241141Valve seat puller kitMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 5 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1241141Valve seat puller kitMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 6 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1241141Valve seat puller kitMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 7 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1241141Valve seat puller kitMP-16; Russian legacy manual, shared valve reference page; check installed valve series; valve matrix column 8 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS3, PDF p. 124
1138827Power end assemblyMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 114
0908426Crankshaft assemblyMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 114
0908407Pinion assemblyMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 114
1134258Crosshead assemblyMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 114
1815931Power end frame assemblyMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 114
1815931Power end frame assemblyMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 115
1134668Power end rear coverMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 115
1133853Main bearing housing screwMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 115
1128575Breather capMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 115
1814075Machined power end frame componentMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 115
0908884Main bearing coverMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 115
1133830Main bearing cover gasketMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 115
1124677ScrewMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 115
0879134Flat washerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 115
1134280Crosshead coverMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 115
1771957Crosshead cover gasketMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 115
1134670ScrewMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 115
0908426Crankshaft assemblyMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 116
1133837Inner race retainerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 116
1124696Retainer screwMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 116
1133843Outer race retainerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 116
1133857Crankpin bearingMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 116
0908427Eccentric strapMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 116
0908384CrankshaftMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 116
0908408Main gearMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 116
1124662ScrewMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 116
1133856LocknutMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 116
1133852Inner main bearing retainerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 117
1124696Socket-head screwMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 117
1133851Outer main bearing retainerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 117
1133859Main bearingMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 117
1134847Left main bearing carrierMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 117
1133825Right main bearing carrierMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 117
1133846Main bearing gasketMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 117
0908407Pinion shaft assemblyMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 118
1124731Hex-head screwMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 118
1124735M14 lock washerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 118
1134036Oil seal retainerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 118
1134037Oil seal retainer gasketMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 118
1134027Oil seal wear ringMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 118
1844173Oil sealMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 118
0908397Pinion shaft bearingMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 118
1124732Hex-head screwMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 118
0885578M22 lock washerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 118
1134040Pinion bearing carrierMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 118
1134039Oil seal retainer gasketMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 118
1134026Pinion shaftMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 118
1124713KeyMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 118
1134043Pinion turning toolMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 118
1124730BoltMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 118
1134258Crosshead assemblyMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
1134267Clamp bar boltMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
1134261Pin clamp bar boltMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
1134277Crosshead pin retainer plateMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
908404Crosshead pinMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
908429Crosshead pin bearingMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
908399CrossheadMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
1134260Upper crosshead guideMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
1134268Lower crosshead guideMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
1134273Crosshead guide boltMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
908402Crosshead extension rodMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
1134267Extension rod boltMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
1134266BaffleMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
1134264Wiper gasketMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
1134263WiperMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
1317786Double sealMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
1123535Wiper springMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
1124898Front wiper plate O-ringMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
1124899Cap screwMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
1134271Wiper diaphragm seal retaining ringMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
1134269Crosshead guide retainer plateMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
908042M10 washerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
1124917Lock wireMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
509759Thread-locking compoundMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 119
1134282Fluid end assemblyMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 120
1125015Discharge manifold nutMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 120
1134315StudMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 120
1134290Discharge manifoldMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 120
1248435Socket-head screwMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 120
1134306Suction manifoldMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 120
0767106Discharge manifold O-ringMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 120
0767109Suction manifold O-ringMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 120
1125010Suction dampenerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 120
1125009Suction dampener coverMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 120
2088480Module assemblyMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1134294Discharge valve coverMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1134307Upper valve guideMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1134309Upper valve guide retainerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1249115Hex-head screwMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1317791Discharge valve cover sealMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1317805NBR liner/wear plate sealMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1134288Cylinder head plug spacerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1134314Liner retainer screw nutMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1134296Liner retainer flangeMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
0889432Liner wear ringMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1134313Liner retainer screwMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1125012Power end studMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1134315Discharge manifold studMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1134312Cylinder head studMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
0889428Bare moduleMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1823019Studded moduleMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1134283Threaded ringMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1125013Cylinder head stud nutMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1134286Lower suction valve guideMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1317656Cylinder head plug sealMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1134287Cylinder head plugMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1134284Cylinder head glandMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1134285Lower valve guide retainerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1125015Discharge manifold stud nutMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1125013Power end stud nutMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 121
1317073Gland retainer split ringMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 122
0767183O-ringMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 122
1134297Liner lockMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 122
1317099Chrome steel linerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 4,000 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317116Zirconia ceramic linerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 4,000 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317805Rubber liner sealMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 4,000 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317807Urethane liner sealMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 4,000 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317159Chrome steel linerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 4,500 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317175Zirconia ceramic linerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 4,500 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317805Rubber liner sealMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 4,500 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317807Urethane liner sealMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 4,500 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317213Chrome steel linerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 5,000 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317225Zirconia ceramic linerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 5,000 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317805Rubber liner sealMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 5,000 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317807Urethane liner sealMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 5,000 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317264Chrome steel linerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 5,500 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317276Zirconia ceramic linerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 5,500 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317805Rubber liner sealMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 5,500 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317807Urethane liner sealMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 5,500 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317313Chrome steel linerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 6,000 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317805Rubber liner sealMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 6,000 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317807Urethane liner sealMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 6,000 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317359Chrome steel linerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 6,500 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317370Zirconia ceramic linerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 6,500 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317805Rubber liner sealMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 6,500 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317807Urethane liner sealMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 6,500 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317396Chrome steel linerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 7,000 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317406Zirconia ceramic linerMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 7,000 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317805Rubber liner sealMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 7,000 inch; Weatherford legacy manual referenceS4, PDF p. 122
1317807Urethane liner sealMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; nominal size 7,000 inch; Weatherford legacy manual referenceS4, PDF p. 122
0889438Piston rodMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1133856NutMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1134301Piston rod clampMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1323512Piston rod clamp boltMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
0766945Piston head sealMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1878015Liner baffleMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317542Piston, 4.00 inch; bonded drilling urethaneMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317541Piston, 4.00 inch; bonded high-temperature drilling urethaneMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317543Piston, 4.00 inch; bonded nitrileMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317544Piston, 4.00 inch; replaceable complete nitrile 5AMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317520Piston, 4.00 inch; replaceable nitrile rubber 6BMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317550Piston, 4.50 inch; bonded drilling urethaneMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317549Piston, 4.50 inch; bonded high-temperature drilling urethaneMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317551Piston, 4.50 inch; bonded nitrileMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317552Piston, 4.50 inch; replaceable complete nitrile 5AMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317522Piston, 4.50 inch; replaceable nitrile rubber 6BMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317558Piston, 5.00 inch; bonded drilling urethaneMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317557Piston, 5.00 inch; bonded high-temperature drilling urethaneMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317559Piston, 5.00 inch; bonded nitrileMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317560Piston, 5.00 inch; replaceable complete nitrile 5AMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317524Piston, 5.00 inch; replaceable nitrile rubber 6BMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317566Piston, 5.50 inch; bonded drilling urethaneMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317565Piston, 5.50 inch; bonded high-temperature drilling urethaneMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317567Piston, 5.50 inch; bonded nitrileMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317568Piston, 5.50 inch; replaceable complete nitrile 5AMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317526Piston, 5.50 inch; replaceable nitrile rubber 6BMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317574Piston, 6.00 inch; bonded drilling urethaneMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317573Piston, 6.00 inch; bonded high-temperature drilling urethaneMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317575Piston, 6.00 inch; bonded nitrileMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317576Piston, 6.00 inch; replaceable complete nitrile 5AMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317528Piston, 6.00 inch; replaceable nitrile rubber 6BMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317582Piston, 6.50 inch; bonded drilling urethaneMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317581Piston, 6.50 inch; bonded high-temperature drilling urethaneMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317584Piston, 6.50 inch; bonded nitrileMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317585Piston, 6.50 inch; replaceable complete nitrile 5AMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317530Piston, 6.50 inch; replaceable nitrile rubber 6BMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317591Piston, 7.00 inch; bonded drilling urethaneMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317590Piston, 7.00 inch; bonded high-temperature drilling urethaneMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317592Piston, 7.00 inch; bonded nitrileMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317593Piston, 7.00 inch; replaceable complete nitrile 5AMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1317532Piston, 7.00 inch; replaceable nitrile rubber 6BMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; Weatherford legacy manual referenceS4, PDF p. 123
1318059Valve with installed insertMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 3 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318060Valve with installed insertMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 4 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318061Valve with insertMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 3 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318056Valve with insertMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 5 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318055Valve with insertMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 6 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318058Valve with insertMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 7 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318057Valve with insertMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 8 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1317998Replaceable valve insertMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 3 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1317994Replaceable valve insertMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 5 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1317995Replaceable valve insertMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 6 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1317996Replaceable valve insertMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 7 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1317997Replaceable valve insertMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 8 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318029Carbon steel valve springMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 3 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318029Carbon steel valve springMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 4 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318027Carbon steel valve springMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 7 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318027Carbon steel valve springMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 8 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318037Stainless steel valve springMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 3 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318037Stainless steel valve springMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 4 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318031Stainless steel valve springMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 5 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318031Stainless steel valve springMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 6 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318035Stainless steel valve springMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 7 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318035Stainless steel valve springMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 8 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318014Valve seatMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 3 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318014Valve seatMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 4 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318012Valve seatMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 5 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318012Valve seatMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 6 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318013Valve seatMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 7 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1318013Valve seatMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 8 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1317878Puller headMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 3 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1317878Puller headMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 4 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1317876Puller headMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 5 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1317876Puller headMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 6 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1317877Puller headMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 7 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1317877Puller headMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 8 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1241141Valve seat puller kitMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 3 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1241141Valve seat puller kitMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 4 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1241141Valve seat puller kitMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 5 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1241141Valve seat puller kitMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 6 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1241141Valve seat puller kitMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 7 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124
1241141Valve seat puller kitMP-16 VoV; Russian translated 2013 manual; 5000 psi fluid end; source edition kept separate; valve matrix column 8 (confirm open/3-web/4-web and temperature grade); Weatherford legacy manual referenceS4, PDF p. 124

Reference documents and scope

  • S1 — Weatherford MP-16 parts catalogue / manual. Reference file: MP16(1).pdf.
  • S2 — Weatherford MP-16 parts catalogue / manual. Reference file: MT MP-16.pdf.
  • S3 — Weatherford MP-16 reference document: MP-16 Manual a_rus. Reference file: MP-16 Manual a_rus.pdf.
  • S4 — Weatherford MP-16 reference document: MP-16泥浆泵说明书-俄文用户版. Reference file: MP-16泥浆泵说明书-俄文用户版.pdf.

PDF page numbers count from the first page of each reference file. Brand names identify the equipment or catalogue source. A listed number does not establish interchangeability, original-manufacturer authorisation, stock or a delivery commitment. Send the nameplate, complete reference, quantity and drawing revision for a parts review.

Send a Weatherford MP-16 parts request

Include the full part number, quantity, nameplate photograph and drawing revision. Matching and availability require review of your actual equipment.

WhatsApp parts inquiryEmail parts list

Related model guides

Browse all Company News and model guides

WhatsApp
