F1600 mud pump parts should be matched to the installed fluid end, liner size and rod arrangement. The supplied Southwest 8404A list is one configuration-specific reference for the BOMCO F-1600. It is useful for identifying individual replacement components and asking a precise quotation question. Pratt Oil enquiries for this model concern spare parts; the catalog data does not represent an offer of a complete F1600 pump.
Source-specific model facts
| Field | Value in the cited source |
|---|---|
| Scope of supplied source | Southwest 8404A fluid end for BOMCO F-1600 / F-1300 |
| F-1600 maximum input horsepower in chart | 1,600 I.H.P. |
| F-1600 maximum stroke rate in chart | 120 S.P.M. |
| F-1600 stroke length in chart | 12 in. |
| F-1600 pressure examples in this chart | 5.75-in. liner: 5,000 psi; 6-in.: 4,665 psi; 7-in.: 3,423 psi |
| Source page date | July 18, 2016 |
These historical source values identify the illustrated configuration. Confirm the installed unit and its current equipment specification before selecting replacement parts.
Separate the complete rod assembly from its components
The ordering page lists two-piece studded piston rod assembly 6284-25A separately from piston rod 6278-25, connecting stud 1290-2 and sub rod 6284-1. A request for a "piston rod assembly" should state whether all of those components are required. Photographs and the existing rod markings help distinguish an individual replacement rod from a complete assembly or an alternative fitted arrangement.
Liner references are also tied to both bore and material. The ordering chart lists 6390G1 and 6390ZIR1 for 5-inch GRAYLOY and zirconia liners, and different references for 6-inch and 7-inch entries. Keep the size and material alongside the number. In the source F-1600 pressure chart, 6-inch and 7-inch liners are shown at 4,665 and 3,423 psi respectively; the 5,000-psi heading cannot be applied to every bore.
What to send with the parts enquiry
To prepare an F1600 parts request, send the nameplate, serial number, installed fluid-end identification, source drawing and original part number with quantity. Add liner bore, material, rod configuration and clear photographs of markings and connections. Keep F1600 distinct from FB1600 and F1600HL when describing the equipment. The F1600 spare parts page provides the model-specific enquiry route; any alternative reference still needs confirmation against the installed assembly.
For related purchasing information, see mud pump spare parts matching and liners, pistons, valves and seats. You can send your model and part references to Pratt Oil for component and document matching.
The listed numbers are selected source references, not a complete bill of material or a confirmation of stock, origin or interchangeability.

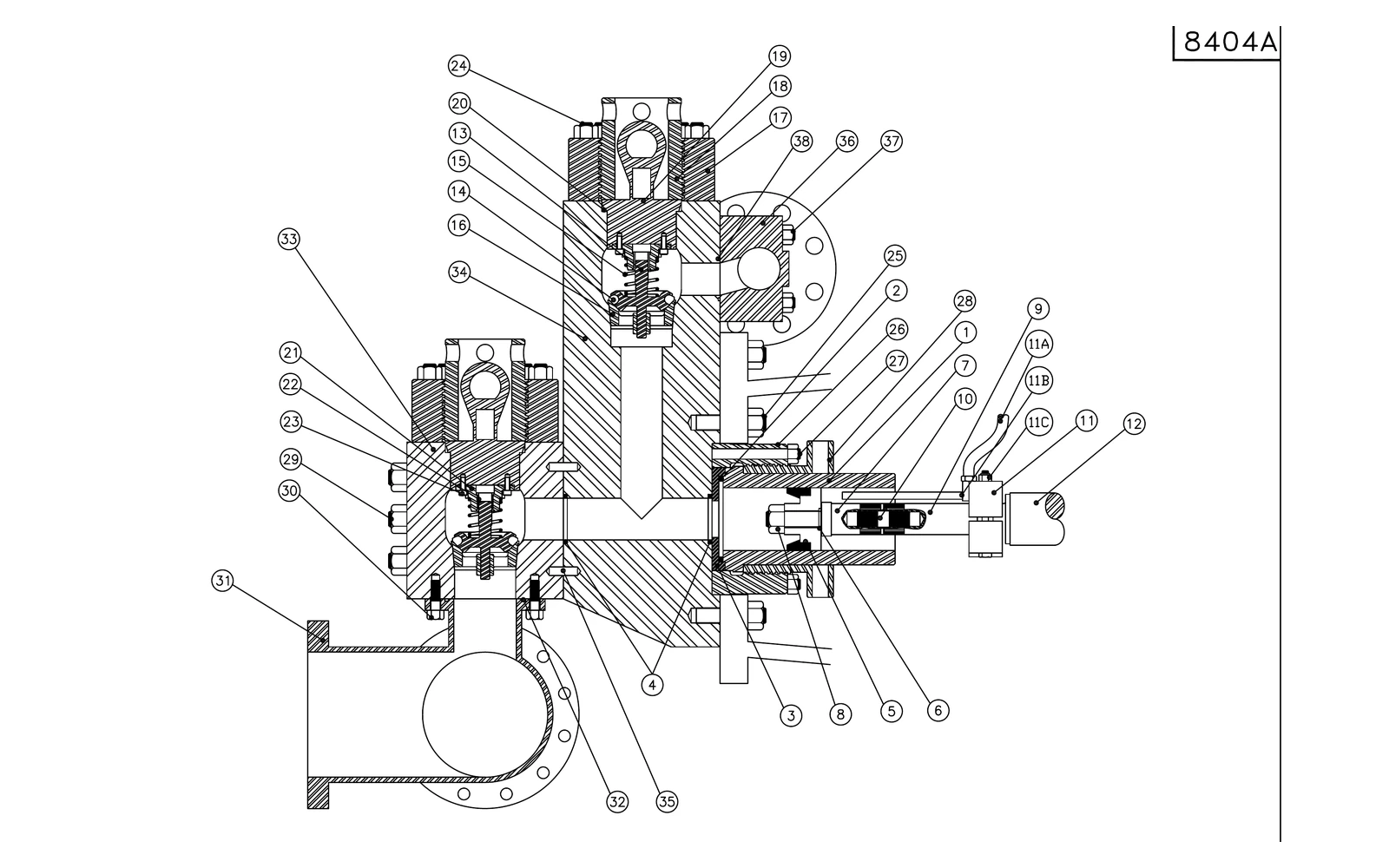

BOMCO F-1600 part and drawing references
This selected list contains 171 checked reference entries. It is not a complete bill of materials. Keep the exact number, source edition and installed configuration together when requesting a quotation.
171 reference entries
| Part / drawing number | Component | Configuration / reference scope | Source / PDF page |
|---|---|---|---|
8404A | FLUID END ASSEMBLY | Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM | S1, PDF p. 4 |
8404-3 | WEARPLATE | Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM | S1, PDF p. 4 |
2988 | WEARPLATE & MODULE SEAL | Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM | S1, PDF p. 4 |
568-225 | PISTON SEAL | Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM | S1, PDF p. 4 |
6278-25 | PISTON ROD (WITH ELASTIC STOP NUT) | Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM | S1, PDF p. 4 |
6284-1 | SUB ROD | Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM | S1, PDF p. 4 |
1290-2 | CONNECTING STUD | Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM | S1, PDF p. 4 |
4475 | VALVE COVER FLANGE | Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM | S1, PDF p. 4 |
4575 | SCREW GLAND | Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM | S1, PDF p. 4 |
4675-1 | PLUG (COMPLETE WITH PLUG SEAL, VALVE GUIDE; BUSHING; AND SCREWS) | Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM | S1, PDF p. 4 |
6404 | LINER RETAINER FLANGE | Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM | S1, PDF p. 5 |
6504 | LINER RETAINER NUT | Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM | S1, PDF p. 5 |
8404-2S | SUCTION MODULE | Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM | S1, PDF p. 5 |
8404-1D | DISCHARGE MODULE | Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM | S1, PDF p. 5 |
8590-6 | SUCTION MANIFOLD | Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM | S1, PDF p. 5 |
568-442 | SUCTION MANIFOLD SEAL | Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM | S1, PDF p. 5 |
8390-50 | DISCHARGE MANIFOLD | Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM | S1, PDF p. 5 |
568-343 | DISCHARGE MANIFOLD SEAL | Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM | S1, PDF p. 5 |
6284-25A | 2-PIECE STUDDED PISTON ROD ASSEMBLY | Southwest 8404A fluid end for the BOMCO F-1600 / F-1300 configuration listed in this catalog; not a universal F-series BOM | S1, PDF p. 6 |
6390G1 | 5-inch GRAYLOY liner | Southwest 8404A ordering chart; material and bore-size column retained | S1, PDF p. 6 |
6390ZIR1 | 5-inch zirconia liner | Southwest 8404A ordering chart; material and bore-size column retained | S1, PDF p. 6 |
6390G5 | 6-inch GRAYLOY liner | Southwest 8404A ordering chart; material and bore-size column retained | S1, PDF p. 6 |
6390ZIR5 | 6-inch zirconia liner | Southwest 8404A ordering chart; material and bore-size column retained | S1, PDF p. 6 |
6390G9 | 7-inch GRAYLOY liner | Southwest 8404A ordering chart; material and bore-size column retained | S1, PDF p. 6 |
6390ZIR9 | 7-inch zirconia liner | Southwest 8404A ordering chart; material and bore-size column retained | S1, PDF p. 6 |
8404A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,17,18,19,20,21,22,23,26,28,33,34,35) | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
6390Y-XX | LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
8404-3 | WEARPLATE | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
2988 | WEARPLATE & MODULE SEAL | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
568-225 | PISTON SEAL | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
6278-25 | PISTON ROD (WITH ELASTIC STOP NUT)(FOR 2-PIECE STUDDED PISTON ROD ASSEMBLY PART NO. 6284-25A) | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
6284-1 | SUB ROD | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
1290-2 | CONNECTING STUD | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
6274CWY | ROD CLAMP (WITH WATER JACKET) | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
1200H30 | HOSE (1/2” X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
1286-CWYFP | ROD CLAMP WATER MANIFOLD ASSEMBLY WITH PIPE | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
4020-29 | BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION) | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
4475 | VALVE COVER FLANGE | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
4575 | SCREW GLAND | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
4675-1 | PLUG (COMPLETE WITH PLUG SEAL, VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, 22, & 23 | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
P129 | HP VALVE COVER PLUG NITRILE SEAL (ALSO AVAILABLE IN URETHANE) | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
4775R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
4700I | VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE) | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
4018-88 | VALVE GUIDE SCREW | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4-7 HEAVY HEX NUT) | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 4 |
4017-33 | POWER END STUD (WITH SW PART# HHN1500-8 1 1/2-8 HEAVY HEX NUT) | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 5 |
6404 | LINER RETAINER FLANGE | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 5 |
4019-94 | LINER RETAINER STUD | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 5 |
6504 | LINER RETAINER NUT | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 5 |
4017-1 | SUCTION MODULE STUD (WITH SW PART# HHN1500-8 1 1/2-8 HEAVY HEX NUT) | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 5 |
4018-19 | SUCTION MANIFOLD CAP SCREW | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 5 |
8590-6 | SUCTION MANIFOLD | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 5 |
568-442 | SUCTION MANIFOLD SEAL | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 5 |
8404-2S | SUCTION MODULE | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 5 |
8404-1D | DISCHARGE MODULE | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 5 |
8488-5 | DOWEL PIN | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 5 |
8390-50 | DISCHARGE MANIFOLD | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 5 |
4020-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-8 1 1/4-8 HEAVY HEX NUT) | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 5 |
568-343 | DISCHARGE MANIFOLD SEAL | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 5 |
8590-6BFA | BLIND FLANGE IS AVAILABLE FOR CAPPING UNUSED FLANGES ON 8590-6 SUCTION MANIFOLD – (8590-6BFA INCLUDES 8590-6BF BLIND FLANGE AND 568-456 O-RING) SEE SEPARATE PG. FOR DETAILS | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 5 |
76BFS | Fail-Safe piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
76BDD | Dual-Duro piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
76BBC | Black Cat piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
6390G06 | Grayloy liner | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
77BFS | Fail-Safe piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 1/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
77BDD | Dual-Duro piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 1/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
77BBC | Black Cat piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 1/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
6390G07 | Grayloy liner | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 1/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
78BFS | Fail-Safe piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 1/2"; Southwest supplier catalogue reference | S1, PDF p. 6 |
78BDD | Dual-Duro piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 1/2"; Southwest supplier catalogue reference | S1, PDF p. 6 |
78BBC | Black Cat piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 1/2"; Southwest supplier catalogue reference | S1, PDF p. 6 |
6390G08 | Grayloy liner | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 1/2"; Southwest supplier catalogue reference | S1, PDF p. 6 |
79BFS | Fail-Safe piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 3/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
79BDD | Dual-Duro piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 3/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
79BBC | Black Cat piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 3/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
6390G09 | Grayloy liner | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 4 3/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
81BFS | Fail-Safe piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5"; Southwest supplier catalogue reference | S1, PDF p. 6 |
81BDD | Dual-Duro piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5"; Southwest supplier catalogue reference | S1, PDF p. 6 |
81BBC | Black Cat piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5"; Southwest supplier catalogue reference | S1, PDF p. 6 |
6390G1 | Grayloy liner | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5"; Southwest supplier catalogue reference | S1, PDF p. 6 |
6390ZIR1 | Zirconia liner | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5"; Southwest supplier catalogue reference | S1, PDF p. 6 |
82BFS | Fail-Safe piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 1/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
82BDD | Dual-Duro piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 1/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
82BBC | Black Cat piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 1/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
6390G2 | Grayloy liner | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 1/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
83BFS | Fail-Safe piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 1/2"; Southwest supplier catalogue reference | S1, PDF p. 6 |
83BDD | Dual-Duro piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 1/2"; Southwest supplier catalogue reference | S1, PDF p. 6 |
83BBC | Black Cat piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 1/2"; Southwest supplier catalogue reference | S1, PDF p. 6 |
6390G3 | Grayloy liner | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 1/2"; Southwest supplier catalogue reference | S1, PDF p. 6 |
6390ZIR3 | Zirconia liner | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 1/2"; Southwest supplier catalogue reference | S1, PDF p. 6 |
84BFS | Fail-Safe piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 3/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
84BDD | Dual-Duro piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 3/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
84BBC | Black Cat piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 3/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
6390G4 | Grayloy liner | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 5 3/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
85BFS | Fail-Safe piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6"; Southwest supplier catalogue reference | S1, PDF p. 6 |
85BDD | Dual-Duro piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6"; Southwest supplier catalogue reference | S1, PDF p. 6 |
85BBC | Black Cat piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6"; Southwest supplier catalogue reference | S1, PDF p. 6 |
6390G5 | Grayloy liner | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6"; Southwest supplier catalogue reference | S1, PDF p. 6 |
6390ZIR5 | Zirconia liner | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6"; Southwest supplier catalogue reference | S1, PDF p. 6 |
86BFS | Fail-Safe piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 1/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
86BDD | Dual-Duro piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 1/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
86BBC | Black Cat piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 1/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
6390G6 | Grayloy liner | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 1/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
87BFS | Fail-Safe piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 1/2"; Southwest supplier catalogue reference | S1, PDF p. 6 |
87BDD | Dual-Duro piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 1/2"; Southwest supplier catalogue reference | S1, PDF p. 6 |
87BBC | Black Cat piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 1/2"; Southwest supplier catalogue reference | S1, PDF p. 6 |
6390G7 | Grayloy liner | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 1/2"; Southwest supplier catalogue reference | S1, PDF p. 6 |
6390ZIR7 | Zirconia liner | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 1/2"; Southwest supplier catalogue reference | S1, PDF p. 6 |
88BFS | Fail-Safe piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 3/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
88BDD | Dual-Duro piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 3/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
88BBC | Black Cat piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 3/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
6390G8 | Grayloy liner | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6 3/4"; Southwest supplier catalogue reference | S1, PDF p. 6 |
89BFS | Fail-Safe piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 7"; Southwest supplier catalogue reference | S1, PDF p. 6 |
89BDD | Dual-Duro piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 7"; Southwest supplier catalogue reference | S1, PDF p. 6 |
89BBC | Black Cat piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 7"; Southwest supplier catalogue reference | S1, PDF p. 6 |
6390G9 | Grayloy liner | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 7"; Southwest supplier catalogue reference | S1, PDF p. 6 |
6390ZIR9 | Zirconia liner | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 7"; Southwest supplier catalogue reference | S1, PDF p. 6 |
6278-25 | Black Cat piston | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6284-25A; Southwest supplier catalogue reference | S1, PDF p. 6 |
1290-2 | Zirconia liner | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6284-25A; Southwest supplier catalogue reference | S1, PDF p. 6 |
6284-1 | Rubber liner seal | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; nominal liner/piston size 6284-25A; Southwest supplier catalogue reference | S1, PDF p. 6 |
777-8B | Valve | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type SOUTHWEST (Full Open); Southwest supplier catalogue reference | S1, PDF p. 7 |
941 | Spring | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type SOUTHWEST (Full Open); Southwest supplier catalogue reference | S1, PDF p. 7 |
877-7 | Seat | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type SOUTHWEST (Full Open); Southwest supplier catalogue reference | S1, PDF p. 7 |
SWTM4250 | Puller head | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type SOUTHWEST (Full Open); Southwest supplier catalogue reference | S1, PDF p. 7 |
SWND-7V2 | Valve | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type FULL OPEN-ROUGHNECK (Cast N Place Insert Valve); Southwest supplier catalogue reference | S1, PDF p. 7 |
SW5710-115L | Spring | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type FULL OPEN-ROUGHNECK (Cast N Place Insert Valve); Southwest supplier catalogue reference | S1, PDF p. 7 |
SWND-7S1 | Seat | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type FULL OPEN-ROUGHNECK (Cast N Place Insert Valve); Southwest supplier catalogue reference | S1, PDF p. 7 |
SWTM40-SN | Puller head, Split jaw | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type FULL OPEN-ROUGHNECK (Cast N Place Insert Valve); puller-head style Split jaw; Southwest F-1600-only puller-head reference | S1, PDF p. 7 |
SWND-7PH | Puller head, Pancake | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type FULL OPEN-ROUGHNECK (Cast N Place Insert Valve); puller-head style Pancake; Southwest F-1600-only puller-head reference | S1, PDF p. 7 |
SWND-7V2HC | Valve | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type FULL OPEN-ROUGHNECK (High Temp); Southwest supplier catalogue reference | S1, PDF p. 7 |
SW5710-115L | Spring | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type FULL OPEN-ROUGHNECK (High Temp); Southwest supplier catalogue reference | S1, PDF p. 7 |
SWND-7S1 | Seat | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type FULL OPEN-ROUGHNECK (High Temp); Southwest supplier catalogue reference | S1, PDF p. 7 |
SWTM40-SN | Puller head, Split jaw | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type FULL OPEN-ROUGHNECK (High Temp); puller-head style Split jaw; Southwest F-1600-only puller-head reference | S1, PDF p. 7 |
SWND-7PH | Puller head, Pancake | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type FULL OPEN-ROUGHNECK (High Temp); puller-head style Pancake; Southwest F-1600-only puller-head reference | S1, PDF p. 7 |
SWND-7V1 | Valve | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type FULL OPEN-ROUGHNECK (w/Replaceable Urethane Insert); Southwest supplier catalogue reference | S1, PDF p. 7 |
SW5710-115L | Spring | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type FULL OPEN-ROUGHNECK (w/Replaceable Urethane Insert); Southwest supplier catalogue reference | S1, PDF p. 7 |
SWND-7S1 | Seat | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type FULL OPEN-ROUGHNECK (w/Replaceable Urethane Insert); Southwest supplier catalogue reference | S1, PDF p. 7 |
SWTM40-SN | Puller head, Split jaw | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type FULL OPEN-ROUGHNECK (w/Replaceable Urethane Insert); puller-head style Split jaw; Southwest F-1600-only puller-head reference | S1, PDF p. 7 |
SWND-7PH | Puller head, Pancake | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type FULL OPEN-ROUGHNECK (w/Replaceable Urethane Insert); puller-head style Pancake; Southwest F-1600-only puller-head reference | S1, PDF p. 7 |
SWR0500110 | Valve | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 3 WEB DOUBLE ANGLE O-RING; Southwest supplier catalogue reference | S1, PDF p. 7 |
SWR0514275 | Insert | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 3 WEB DOUBLE ANGLE O-RING; Southwest supplier catalogue reference | S1, PDF p. 7 |
SWR0513989 | Spring | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 3 WEB DOUBLE ANGLE O-RING; Southwest supplier catalogue reference | S1, PDF p. 7 |
SWR0514785 | Stainless spring | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 3 WEB DOUBLE ANGLE O-RING; Southwest supplier catalogue reference | S1, PDF p. 7 |
SWR0509309 | Seat | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 3 WEB DOUBLE ANGLE O-RING; Southwest supplier catalogue reference | S1, PDF p. 7 |
SWTM3-7T | Puller head | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 3 WEB DOUBLE ANGLE O-RING; Southwest supplier catalogue reference | S1, PDF p. 7 |
SWR0520502 | Valve | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 3 WEB (High Temp); Southwest supplier catalogue reference | S1, PDF p. 7 |
SWR0520501 | Insert | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 3 WEB (High Temp); Southwest supplier catalogue reference | S1, PDF p. 7 |
SWR0513989 | Spring | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 3 WEB (High Temp); Southwest supplier catalogue reference | S1, PDF p. 7 |
SWR0514785 | Stainless spring | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 3 WEB (High Temp); Southwest supplier catalogue reference | S1, PDF p. 7 |
SWR0509309 | Seat | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 3 WEB (High Temp); Southwest supplier catalogue reference | S1, PDF p. 7 |
SWTM3-7T | Puller head | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 3 WEB (High Temp); Southwest supplier catalogue reference | S1, PDF p. 7 |
SWR0505062 | Valve | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 3 WEB STANDARD PLATE; Southwest supplier catalogue reference | S1, PDF p. 7 |
SWR0504893 | Insert | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 3 WEB STANDARD PLATE; Southwest supplier catalogue reference | S1, PDF p. 7 |
SWR0513988 | Spring | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 3 WEB STANDARD PLATE; Southwest supplier catalogue reference | S1, PDF p. 7 |
SWR0514202 | Stainless spring | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 3 WEB STANDARD PLATE; Southwest supplier catalogue reference | S1, PDF p. 7 |
SWR0509309 | Seat | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 3 WEB STANDARD PLATE; Southwest supplier catalogue reference | S1, PDF p. 7 |
SWTM3-7T | Puller head | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 3 WEB STANDARD PLATE; Southwest supplier catalogue reference | S1, PDF p. 7 |
SW5710-112 | Spring | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 4 WEB; Southwest supplier catalogue reference | S1, PDF p. 7 |
SW7DD-B1 | Seat | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 4 WEB; Southwest supplier catalogue reference | S1, PDF p. 7 |
SWTM4-7 | Puller head | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 4 WEB; Southwest supplier catalogue reference | S1, PDF p. 7 |
SW5710-112 | Spring | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 4 WEB (High Temp); Southwest supplier catalogue reference | S1, PDF p. 7 |
SW7DD-B1 | Seat | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 4 WEB (High Temp); Southwest supplier catalogue reference | S1, PDF p. 7 |
SWTM4-7 | Puller head | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; F-1600-only matrix; type 4 WEB (High Temp); Southwest supplier catalogue reference | S1, PDF p. 7 |
8590-6BF | SUCTION MANIFOLD BLIND FLANGE | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 8 |
568-456 | O-RING | Southwest 8404A source catalogue; listed BOMCO F-1600/F-1300 configurations, except F-1600-only valve table; Southwest supplier catalogue reference | S1, PDF p. 8 |
SWND-7I | Insert | Southwest 8404A catalogue; F-1600-only valve matrix; type FULL OPEN-ROUGHNECK (w/Replaceable Urethane Insert); Southwest F-1600-only parts reference | S1, PDF p. 7 |
SWU5C-EEF | Valve | Southwest 8404A catalogue; F-1600-only valve matrix; type 4 WEB; Southwest F-1600-only parts reference | S1, PDF p. 7 |
SWUDD-7B | Insert | Southwest 8404A catalogue; F-1600-only valve matrix; type 4 WEB; Southwest F-1600-only parts reference | S1, PDF p. 7 |
SWU5C-EEFHT | Valve | Southwest 8404A catalogue; F-1600-only valve matrix; type 4 WEB (High Temp); Southwest F-1600-only parts reference | S1, PDF p. 7 |
SWUDD-7BHT | Insert | Southwest 8404A catalogue; F-1600-only valve matrix; type 4 WEB (High Temp); Southwest F-1600-only parts reference | S1, PDF p. 7 |
Reference documents and scope
- S1 — BOMCO F-1600 parts catalogue / manual. Reference file: Southwest Bomco _F1600_F1300_5000PSI.pdf.
PDF page numbers count from the first page of each reference file. Brand names identify the equipment or catalogue source. A listed number does not establish interchangeability, original-manufacturer authorisation, stock or a delivery commitment. Send the nameplate, complete reference, quantity and drawing revision for a parts review.
Send a BOMCO F-1600 parts request
Include the full part number, quantity, nameplate photograph and drawing revision. Matching and availability require review of your actual equipment.
