National 14-P-220 parts information in the reference catalogues covers more than one catalog generation. The legacy EPL-955-1 list and the later recommended-spares document identify different valve-cover and liner-retention arrangements. For procurement, the first task is to identify the equipment configuration and document revision; a newer-looking number is not automatically a replacement for an older part.
Model and source-reference facts
| Field | Reference shown in supplied material |
|---|---|
| Model printed on legacy source | 14-P-220 |
| Pump arrangement | Triplex piston pump |
| Size printed on legacy cover | 9 in. x 14 in. |
| Legacy parts-list reference | EPL-955-1; September 1, 1995 |
| Later recommended-spares reference | 10640418-PAL, Rev. 04 |
Separate catalog generations and assembly variants

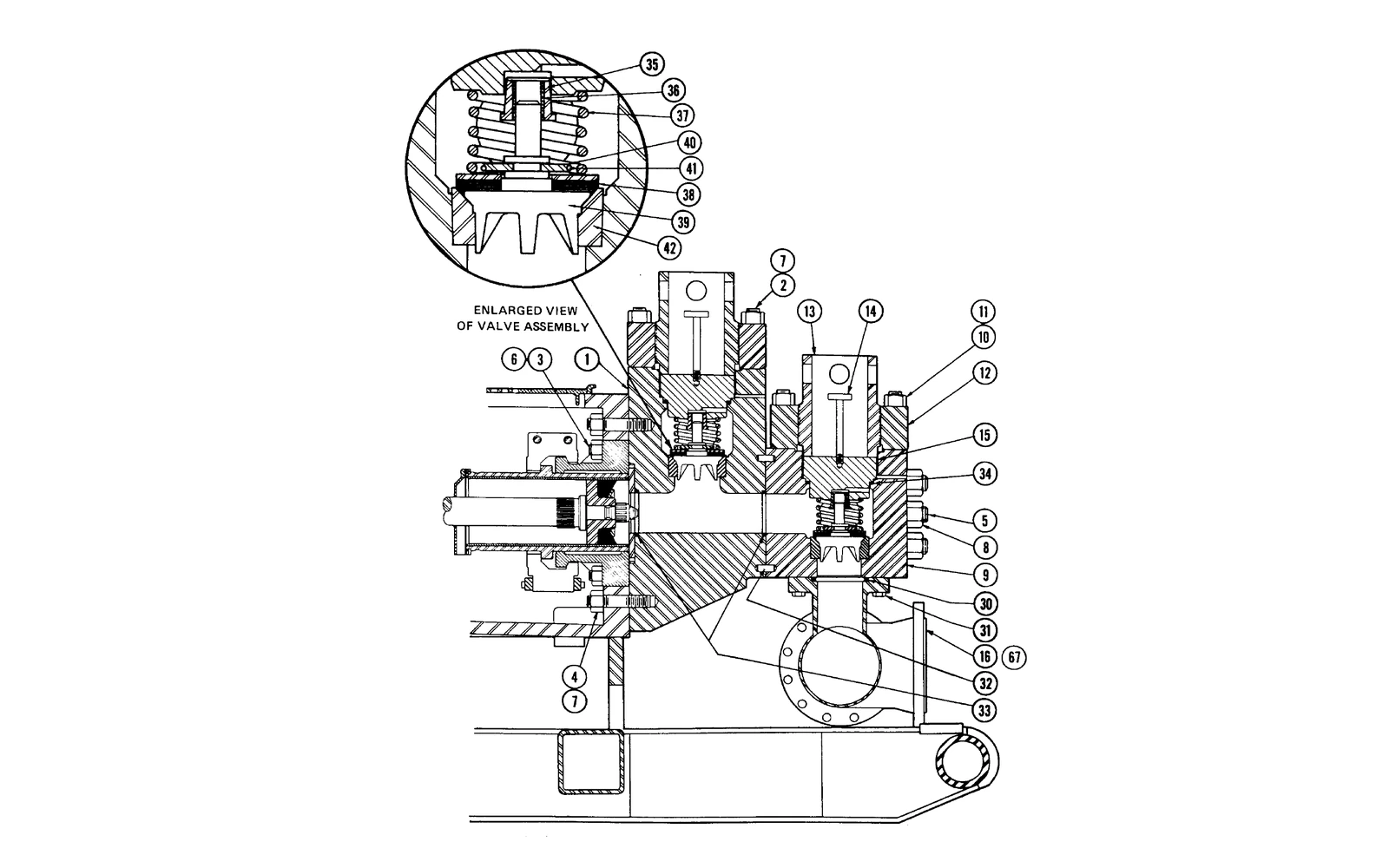

The September 1995 EPL-955-1 catalog identifies studded and bare suction and discharge modules separately. The later 10640418-PAL Rev. 04 reference covers BLAK-JAK and HydraAlign-related components and includes a choice between non-tapered and tapered valve-cover arrangements. Buyers should therefore attach photographs of the installed cover, liner-retention equipment and rod arrangement when sending a 14-P-220 parts list.
A clear example is reference 1295174. The legacy page describes it as a seal retainer, while the later recommended-spares list calls it the non-tapered valve cover and lists its associated components. This difference needs the drawing context, not an automatic correction to either original document. The later tapered cover has its own reference, 80734011, with separately listed guide, insert and seal components.
The examples below are selected reference entries, not a complete bill of material or a confirmation of interchangeability.
Details to include with the parts request
A useful RFQ includes the model and serial number, source document and revision, assembly drawing, original number, description and quantity. Note whether the pump uses the legacy arrangement or the later retention and cover equipment. Keep numeric and alphanumeric references, suffixes and leading zeros unchanged. Use the 14-P-220 product reference for an initial enquiry, and provide the installed details before requesting a proposed alternative.
For related purchasing information, see mud pump spare parts matching and liner, piston, valve and seat identification. You can contact Pratt Oil with your parts request for review of the model, reference and component details.
Brand and model names identify the equipment described in the source material. Final parts matching depends on the complete pump and assembly information.
National 14-P-220 part and drawing references
This selected list contains 841 checked reference entries. It is not a complete bill of materials. Keep the exact number, source edition and installed configuration together when requesting a quotation.
841 reference entries
| Part / drawing number | Component | Configuration / reference scope | Source / PDF page |
|---|---|---|---|
1295240 | MODULE STUDDED, DISCHARGE (INCLUDES ITEMS 1 THRU 8) | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1295601 | MODULE STUDDED, PREMIUM DISCHARGE (INCLUDES ITEMS 1 THRU 8)* | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1295241 | MODULE, DISCHARGE | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1295600 | MODULE, PREMIUM DISCHARGE* | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1295243 | MODULE STUDDED, SUCTION (INCLUDES ITEMS 9 THRU 11) | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1295604 | MODULE STUDDED, PREMIUM SUCTION (INCLUDES ITEMS 9 THRU 11)* | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1295244 | MODULE, SUCTION | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1295603 | MODULE, PREMIUM SUCTION* | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1295176 | RING, THREADED | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1295172 | COVER, VALVE | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1295174 | RETAINER, SEAL | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1540163 | SEAL | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1560702 | SPRING VALVE | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1292140 | HOLDER, VALVE GUIDE INSERT | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1292141 | INSERT, VALVE GUIDE | Selected catalogue reference; check the installed configuration. | S1, PDF p. 3 |
1295095 | Gasket, Main Frame Cover | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 140 |
1295182 | Wiper, Intermediate Rod | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 140 |
80600076 | Rod, Intermediate, Blak-Jak | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 140 |
1295017 | Liner, Crosshead | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 140 |
10659972-001 | Gasket, Pinion Bearing Retention | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 140 |
80600109S | Blak-Jak HydrAlign Rod Assy. | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 141 |
80600061 | Blak-Jak HydrAlign Baffle | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 141 |
80502100 | Blak-Jak Hydra Cell | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 141 |
80501109 | Liner Retention System Complete | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 141 |
80501023 | Body, Lok-Cel | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 141 |
80501024 | Locking Ring | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 141 |
80503109S | Blak-Jak Valve Cover Complete | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 141 |
055413256 | Spring, Valve | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 141 |
9702751 | Seat, Valve | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 141 |
1295252 | Connector, Discharge | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 142 |
1295266 | Plate, Wear | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 142 |
1295257 | Seal, Suction Module | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 142 |
1540021 | Seal, Suction Manifold | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 142 |
1295174 | Valve Cover (Non-tapered) | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 142 |
1292140 | Guide, Valve Insert | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 142 |
1292141 | Insert, Valve Guide | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 142 |
1540163 | Seal, Valve Cover | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 142 |
80734011 | Valve Cover (Tapered) | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 142 |
80734012 | Guide, Valve Insert | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 142 |
80734017 | Insert, Valve Guide | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 142 |
07207113 | Seal, Valve Cover | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 142 |
9700382 | Valve Complete | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 143 |
9705236 | Insert, Polyurethane | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 143 |
05545700HP | Liner, 7" | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 143 |
05545650HP | Liner, 6 1/2" | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 143 |
05545600HP | Liner, 6" | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 143 |
05545550HP | Liner, 5 1/2" | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 143 |
05545500 | Liner, 5" | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 143 |
07923285 | Gasket, Liner 7" | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 143 |
07923284 | Gasket, Liner 6 1/2" | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 143 |
012180618 | Piston Complete 7" | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 143 |
012180535 | Piston Complete 6 1/2" | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 143 |
012180394 | Piston Complete 6" | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 143 |
012180337 | Piston Complete 5 1/2" | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 144 |
012180253 | Piston Complete 5" | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 144 |
015180342 | Rubbers, Pair 7" | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 144 |
015180300 | Rubbers, Pair 6 1/2" | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 144 |
015180227 | Rubbers, Pair 5 1/2" | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 144 |
015180185 | Rubbers, Pair 5" | 10640418-PAL Rev 04; BLAK-JAK / HydraAlign reference configuration; not a replacement-number crosswalk for every legacy 14-P-220. | S2, PDF p. 144 |
1295095 | Gasket, Main Frame Cover | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
7817170 | Rubber, Sponge - Main Cover | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
1295407 | Gasket, Cover | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
1295227 | Gasket, Wiper Retainer | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
1295079 | Gasket, Retainer Plate | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
1283191 | Gasket, Clean Out | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
1295413 | Gasket, Oil Gauge Plate | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
1295096 | Gasket, Main Bearing Cap | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
7817170 | Rubber, Sponge - Crosshead Cover | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
10659972-001 | Gasket, Pinion Bearing Retention | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
YS-10755 | Seal, Oil | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
1295182 | Wiper, Intermediate Rod | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
80600076 | Rod, Intermediate, Blak-Jak | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
1295017 | Liner, Crosshead | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
1295103 | Shim, Crosshead Liner | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
ZT-16125 | Bearing, Main | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
ZB-11028 | Bearing, Pinion | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
ZB-32000 | Bearing, Connecting Rod | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
ZB-9005 | Bearing, Crosshead Pin | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
7815057 | Plug, Magnetic | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
1292064 | Gasket, Wrench Cover | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
1290089 | Conductor, Oil Crosshead | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
10745023-001 | GASKET, OIL RETENTION PLATE | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 140 |
80600109S | Blak-Jak HydrAlign Rod Assy. | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
80600061 | Blak-Jak HydrAlign Baffle | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
80502100 | Blak-Jak Hydra Cell | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
80501109 | Liner Retention System Complete | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
80501023 | Body, Lok-Cel | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
80501024 | Locking Ring | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
80500024 | Lug Adapter (Bushing) | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
80501016 | Locking Pin, Spring Locator S. | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
80502015 | Locking Pin | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
80503109S | Blak-Jak Valve Cover Complete | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
80503012 | Lock Ring | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
80503014 | Lug Adapter | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
80503013C | Lug-Ring Assy | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
80503015C | Stop Locator | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
80503024 | SHCS ½” x 3/8” LG. | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
80503016 | Plate, Retainer | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
80503017 | Snap Ring | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
80503026 | Eye Bolt | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
80503027 | Lanyard Assy | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
80503209 | Manual w/Decals | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
80708020 | Stud | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
6300240 | Nut, Hvy | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
055413256 | Spring, Valve | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
9702751 | Seat, Valve | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 141 |
1295266 | Plate, Wear | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
1295257 | Seal, Suction Module | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
1540021 | Seal, Suction Manifold | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
2400091 | Hose, Liner Flush | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
2410031-438 | Packing, O-Ring | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
2410031-440 | Packing, O-Ring | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
1295258 | Seal, Discharge Spacer | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
1295175 | Ring, Back-Up | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
6907339S | Gasket, Ring Joint BX-169, Carbon Steel | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
6907339SS | Gasket, Ring Joint BX-169, Stainless Steel | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
80600061 | Splash Guard | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
1295174 | Valve Cover (Non-tapered) | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
1292140 | Guide, Valve Insert | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
1292141 | Insert, Valve Guide | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
1540163 | Seal, Valve Cover | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
80734011 | Valve Cover (Tapered) | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
80734012 | Guide, Valve Insert | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
80734017 | Insert, Valve Guide | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
07207113 | Seal, Valve Cover | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
609102009IT40 | Pump, Centrifugal (same as 7815147) | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
7828186 | Coupling (IEC/NEMA – see parts list) | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; source cell lists multiple configuration-specific identifiers, not interchangeable by default; IEC coupling branch; Source catalogue reference | S2, PDF p. 142 |
7802327 | Coupling (IEC/NEMA – see parts list) | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; source cell lists multiple configuration-specific identifiers, not interchangeable by default; NEMA coupling branch; Source catalogue reference | S2, PDF p. 142 |
6010036 | Gasket, 1 1/2" Flange | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
6010037 | Gasket, 1" Flange | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 142 |
7815926 | Oil Pump | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 143 |
7828187 | Coupling (IEC/NEMA – see parts list) | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; source cell lists multiple configuration-specific identifiers, not interchangeable by default; IEC coupling branch; Source catalogue reference | S2, PDF p. 143 |
68-103-991 | Coupling (IEC/NEMA – see parts list) | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; source cell lists multiple configuration-specific identifiers, not interchangeable by default; NEMA coupling branch; Source catalogue reference | S2, PDF p. 143 |
1295219 | Strainer, Discharge (Carbon Steel) | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 143 |
1295444 | Strainer, Discharge (Stainless Steel) | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 143 |
9700382 | Valve Complete | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 143 |
9705236 | Insert, Polyurethane | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 143 |
05545700HP | Liner, 7" | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 143 |
05545650HP | Liner, 6 1/2" | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 143 |
05545600HP | Liner, 6" | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 143 |
05545550HP | Liner, 5 1/2" | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 143 |
05545500 | Liner, 5" | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 143 |
07923285 | Gasket, Liner 7" | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 143 |
07923284 | Gasket, Liner 6 1/2" | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 143 |
07923261 | Gasket, Liner 6" | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 143 |
07923263 | Gasket, Liner 5 1/2" | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 143 |
07923264 | Gasket, Liner 5" | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 143 |
012180618 | Piston Complete 7" | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 143 |
012180535 | Piston Complete 6 1/2" | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 143 |
012180394 | Piston Complete 6" | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 143 |
012180253 | Piston Complete 5" | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 144 |
6308241 | Nut, Piston | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 144 |
015180342 | Rubbers, Pair 7" | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 144 |
015180300 | Rubbers, Pair 6 1/2" | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 144 |
015180227 | Rubbers, Pair 5 1/2" | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 144 |
015180185 | Rubbers, Pair 5" | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 1; Source catalogue reference | S2, PDF p. 144 |
7006609 | SHCS, 1 1/4" X 3 3/4" (NOT SHOWN) | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
80734016 | STUD | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
2408047 | STUD | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
2408027 | STUD | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
80708020 | STUD | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
6300320 | NUT | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
6300200 | NUT | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
6300240 | NUT | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
80600061 | GUARD, SPLASH | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
80600109S | ROD, HYDRALIGN | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
80501109 | BLAK-JAK, LINER RETENTION | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
80503109 | VALVE COVER, TORQUE PRO | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
6907339S | RING, OVAL JOINT BX-169-S | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
1295258 | SEAL, DISCHARGE SPACER | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
1295262 | SPACER, STUDDED DISCHARGE | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
700030711 | SCREW | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
7619050 | WASHER, LOCK | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
1295175 | RING, BACKUP | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
2410031438 | SEAL | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
2410031440 | SEAL | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
1295252 | CONNECTOR, DISCHARGE | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
1295253 | ADAPTER, DISCHARGE | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
1295266 | PLATE, WEAR | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
1295257 | SEAL, W/P AND SUC/DIS | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
6511416 | PIN, DOWEL | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
1540021 | SEAL, SUCTION MANIFOLD | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
700048511 | SCREW | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
1295317ABS | MANIFOLD, SUCTION | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; source cell lists multiple configuration-specific identifiers, not interchangeable by default; Source catalogue reference | S2, PDF p. 157 |
1295317 | MANIFOLD, SUCTION | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; source cell lists multiple configuration-specific identifiers, not interchangeable by default; Source catalogue reference | S2, PDF p. 157 |
07207113 | SEAL, VALVE COVER | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
9702751 | SEAT, VALVE | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
9700382 | VALVE | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
055413256 | SPRING, VALVE | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
105-058114-290 | SCREW | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
80734017 | INSERT, VALVE GUIDE | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
80734012 | GUIDE, VALVE | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
80734011 | COVER, VALVE | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; Source catalogue reference | S2, PDF p. 157 |
80734003DNV | MODULE, STUDDED SUCTION | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; source cell lists multiple configuration-specific identifiers, not interchangeable by default; Source catalogue reference | S2, PDF p. 157 |
80734003ABS | MODULE, STUDDED SUCTION | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; source cell lists multiple configuration-specific identifiers, not interchangeable by default; Source catalogue reference | S2, PDF p. 157 |
80734003 | MODULE, STUDDED SUCTION | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; source cell lists multiple configuration-specific identifiers, not interchangeable by default; Source catalogue reference | S2, PDF p. 157 |
80734002DNV | MODULE, STUDDED DISCHARGE | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; source cell lists multiple configuration-specific identifiers, not interchangeable by default; Source catalogue reference | S2, PDF p. 157 |
80734002ABS | MODULE, STUDDED DISCHARGE | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; source cell lists multiple configuration-specific identifiers, not interchangeable by default; Source catalogue reference | S2, PDF p. 157 |
80734002 | MODULE, STUDDED DISCHARGE | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 5; source cell lists multiple configuration-specific identifiers, not interchangeable by default; Source catalogue reference | S2, PDF p. 157 |
80734030LV | ASSEMBLY PART NUMBER | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 2; Source catalogue reference | S2, PDF p. 157 |
80734030ABS | ASSEMBLY PART NUMBER | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 3; Source catalogue reference | S2, PDF p. 157 |
80734030DNV | ASSEMBLY PART NUMBER | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 4; Source catalogue reference | S2, PDF p. 157 |
M1060 | VALVE SEAT PULLER LESS HEAD (CONSISTS OF THE FOLLOWING) | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 3; archive part number; Source archive part number | S2, PDF p. 191 |
10070659-001 | VALVE SEAT PULLER LESS HEAD (CONSISTS OF THE FOLLOWING) | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 4; current source part number; Source current source part number | S2, PDF p. 191 |
M1061 | JACK, HYDRAULIC | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 3; archive part number; Source archive part number | S2, PDF p. 191 |
10070660-001 | JACK, HYDRAULIC | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 4; current source part number; Source current source part number | S2, PDF p. 191 |
M1102 | STEM, 36” CENTER | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 3; archive part number; Source archive part number | S2, PDF p. 191 |
10090588-001 | STEM, 36” CENTER | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 4; current source part number; Source current source part number | S2, PDF p. 191 |
M1063 | NUT, STEM | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 3; archive part number; Source archive part number | S2, PDF p. 191 |
10070662-001 | NUT, STEM | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 4; current source part number; Source current source part number | S2, PDF p. 191 |
M1064 | PLATE, BASE | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 3; archive part number; Source archive part number | S2, PDF p. 191 |
10090585-001 | PLATE, BASE | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 4; current source part number; Source current source part number | S2, PDF p. 191 |
M1065 | BUSHING, CENTER | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 3; archive part number; Source archive part number | S2, PDF p. 191 |
10070663-001 | BUSHING, CENTER | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 4; current source part number; Source current source part number | S2, PDF p. 191 |
M1067 | HOSE ASSEMBLY, 10 FT. HYDRAULIC | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 3; archive part number; Source archive part number | S2, PDF p. 191 |
10070664-001 | HOSE ASSEMBLY, 10 FT. HYDRAULIC | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 4; current source part number; Source current source part number | S2, PDF p. 191 |
M1068 | PUMP, HYDRAULIC HAND | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 3; archive part number; Source archive part number | S2, PDF p. 191 |
10070665-001 | PUMP, HYDRAULIC HAND | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 4; current source part number; Source current source part number | S2, PDF p. 191 |
M1069 | ADAPTER, GAUGE | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 3; archive part number; Source archive part number | S2, PDF p. 191 |
10070674-001 | ADAPTER, GAUGE | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 4; current source part number; Source current source part number | S2, PDF p. 191 |
M1071 | COUPLER, 3/8” | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 3; archive part number; Source archive part number | S2, PDF p. 191 |
10070676-001 | COUPLER, 3/8” | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 4; current source part number; Source current source part number | S2, PDF p. 191 |
M1072 | GAUGE, 170 TON | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 3; archive part number; Source archive part number | S2, PDF p. 191 |
10090586-001 | GAUGE, 170 TON | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 4; current source part number; Source current source part number | S2, PDF p. 191 |
M1075 | CASE, CARRYING | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 3; archive part number; Source archive part number | S2, PDF p. 191 |
10090587-001 | CASE, CARRYING | 14-P-220; project-specific D2G1009318-FDD-001 reference manual; configuration must be checked; source table 1, column 4; current source part number; Source current source part number | S2, PDF p. 191 |
10090180-001 | Seal NDE | 14-P-220 project-specific D2G1009318-FDD-001 manual; DM27 Series motor HN branch; match actual motor nameplate; Source catalogue reference | S2, PDF p. 247 |
6550-25-0029 | RTD, Bearing Probe, 100 Ω | 14-P-220 project-specific D2G1009318-FDD-001 manual; DM27 Series motor HN branch; match actual motor nameplate; Motor accessory spare reference within project manual | S2, PDF p. 247 |
1030-20-0076 | Bearing, DE 6330M Type | 14-P-220 project-specific D2G1009318-FDD-001 manual; DM27 Series motor HN branch; match actual motor nameplate; Motor accessory spare reference within project manual | S2, PDF p. 247 |
10090160-001 | Bearing, NDE 6320 Type | 14-P-220 project-specific D2G1009318-FDD-001 manual; DM27 Series motor HN branch; match actual motor nameplate; Motor accessory spare reference within project manual | S2, PDF p. 247 |
6550-10-0069 | Heater | 14-P-220 project-specific D2G1009318-FDD-001 manual; DM27 Series motor HN branch; match actual motor nameplate; Motor accessory spare reference within project manual | S2, PDF p. 247 |
10511454-001 | Seals, DE | 14-P-220 project-specific D2G1009318-FDD-001 manual; DM27 Series motor HN branch; match actual motor nameplate; Motor accessory spare reference within project manual | S2, PDF p. 247 |
10509096-001 | Seals, Sleeve DE | 14-P-220 project-specific D2G1009318-FDD-001 manual; DM27 Series motor HN branch; match actual motor nameplate; Motor accessory spare reference within project manual | S2, PDF p. 247 |
6550-25-0029 | RTD, Bearing Probe, 100 Ω | 14-P-220 project-specific D2G1009318-FDD-001 manual; DM27 Series motor HL branch; match actual motor nameplate; Motor accessory spare reference within project manual | S2, PDF p. 247 |
1030-14-0004 | Bearing, DE BCI 1330 Type | 14-P-220 project-specific D2G1009318-FDD-001 manual; DM27 Series motor HL branch; match actual motor nameplate; Motor accessory spare reference within project manual | S2, PDF p. 247 |
10090160-001 | Bearing, NDE 6320 Type | 14-P-220 project-specific D2G1009318-FDD-001 manual; DM27 Series motor HL branch; match actual motor nameplate; Motor accessory spare reference within project manual | S2, PDF p. 247 |
10090180-001 | Seals, NDE | 14-P-220 project-specific D2G1009318-FDD-001 manual; DM27 Series motor HL branch; match actual motor nameplate; Motor accessory spare reference within project manual | S2, PDF p. 247 |
6550-10-0069 | Heater | 14-P-220 project-specific D2G1009318-FDD-001 manual; DM27 Series motor HL branch; match actual motor nameplate; Motor accessory spare reference within project manual | S2, PDF p. 247 |
10511454-001 | Seals, DE | 14-P-220 project-specific D2G1009318-FDD-001 manual; DM27 Series motor HL branch; match actual motor nameplate; Motor accessory spare reference within project manual | S2, PDF p. 247 |
10509096-001 | Seals, Sleeve DE | 14-P-220 project-specific D2G1009318-FDD-001 manual; DM27 Series motor HL branch; match actual motor nameplate; Motor accessory spare reference within project manual | S2, PDF p. 247 |
A5810 | Pulsation dampener assembly; 10 Gallon 5000 PSI | 14-P-220 project manual; separate pulsation-control catalogue; model M10-5000; source suffix variant only, no Pratt certification claim; Source dampener assembly reference | S2, PDF p. 395 |
A5810-ASME | Pulsation dampener assembly; 10 Gallon 5000 PSI; source ASME suffix variant | 14-P-220 project manual; separate pulsation-control catalogue; model M10-5000; source suffix variant only, no Pratt certification claim; Source dampener assembly reference | S2, PDF p. 395 |
A5810-DNV | Pulsation dampener assembly; 10 Gallon 5000 PSI; source DNV suffix variant | 14-P-220 project manual; separate pulsation-control catalogue; model M10-5000; source suffix variant only, no Pratt certification claim; Source dampener assembly reference | S2, PDF p. 395 |
A5810-ABS | Pulsation dampener assembly; 10 Gallon 5000 PSI; source ABS suffix variant | 14-P-220 project manual; separate pulsation-control catalogue; model M10-5000; source suffix variant only, no Pratt certification claim; Source dampener assembly reference | S2, PDF p. 395 |
A5520 | Pulsation dampener assembly; 20 Gallon 5000 PSI | 14-P-220 project manual; separate pulsation-control catalogue; model M20-5000; source suffix variant only, no Pratt certification claim; Source dampener assembly reference | S2, PDF p. 395 |
A5520-ASME | Pulsation dampener assembly; 20 Gallon 5000 PSI; source ASME suffix variant | 14-P-220 project manual; separate pulsation-control catalogue; model M20-5000; source suffix variant only, no Pratt certification claim; Source dampener assembly reference | S2, PDF p. 395 |
A5520-DNV | Pulsation dampener assembly; 20 Gallon 5000 PSI; source DNV suffix variant | 14-P-220 project manual; separate pulsation-control catalogue; model M20-5000; source suffix variant only, no Pratt certification claim; Source dampener assembly reference | S2, PDF p. 395 |
A5520-ABS | Pulsation dampener assembly; 20 Gallon 5000 PSI; source ABS suffix variant | 14-P-220 project manual; separate pulsation-control catalogue; model M20-5000; source suffix variant only, no Pratt certification claim; Source dampener assembly reference | S2, PDF p. 395 |
A7520 | Pulsation dampener assembly; 20 Gallon 7500 PSI | 14-P-220 project manual; separate pulsation-control catalogue; model M20-7500; source suffix variant only, no Pratt certification claim; Source dampener assembly reference | S2, PDF p. 395 |
A7520-ASME | Pulsation dampener assembly; 20 Gallon 7500 PSI; source ASME suffix variant | 14-P-220 project manual; separate pulsation-control catalogue; model M20-7500; source suffix variant only, no Pratt certification claim; Source dampener assembly reference | S2, PDF p. 395 |
A7520-DNV | Pulsation dampener assembly; 20 Gallon 7500 PSI; source DNV suffix variant | 14-P-220 project manual; separate pulsation-control catalogue; model M20-7500; source suffix variant only, no Pratt certification claim; Source dampener assembly reference | S2, PDF p. 395 |
A7520-ABS | Pulsation dampener assembly; 20 Gallon 7500 PSI; source ABS suffix variant | 14-P-220 project manual; separate pulsation-control catalogue; model M20-7500; source suffix variant only, no Pratt certification claim; Source dampener assembly reference | S2, PDF p. 395 |
5773 | Pulsation dampener diaphragm; 10 Gallon Nitrile Buna-N | 14-P-220 project manual; separate pulsation-control catalogue; stated diaphragm material and volume; Source dampener diaphragm reference | S2, PDF p. 395 |
5373 | Pulsation dampener diaphragm; 20 Gallon Nitrile Buna - N | 14-P-220 project manual; separate pulsation-control catalogue; stated diaphragm material and volume; Source dampener diaphragm reference | S2, PDF p. 395 |
6590 | Pulsation dampener diaphragm; 20 Gallon Hydrogenated Nitrile | 14-P-220 project manual; separate pulsation-control catalogue; stated diaphragm material and volume; Source dampener diaphragm reference | S2, PDF p. 395 |
80734030 | Fluid-end assembly; source assembly heading | 14-P-220 project-specific D2G1009318-FDD-001 manual; 80734030 base branch, distinct from LV/ABS/DNV source branches; Source assembly-number reference | S2, PDF p. 157 |
1295240 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1295601 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1295241 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1295600 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
2408049 | Lock | National 14-P-220; source table column1, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
2408047 | Lock | National 14-P-220; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
2408027 | Lock | National 14-P-220; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
2408048 | Lock | National 14-P-220; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
6300200 | Nut | National 14-P-220; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
6300240 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
6300320 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1295243 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1295604 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1295244 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1295603 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1295176 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1295172 | Cover | National 14-P-220; source table column1, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1295353 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1295174 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row21; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1295317 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row22; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1540021 | Seat | National 14-P-220; source table column1, row23; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
7000485-11 | Capscrew | National 14-P-220; source table column1, row24; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
6511416 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row25; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1295257 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row26; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1540163 | Seal | National 14-P-220; source table column1, row27; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1292140 | Valve | National 14-P-220; source table column1, row28; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1292141 | Insert | National 14-P-220; source table column1, row29; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1560702 | Valve | National 14-P-220; source table column1, row30; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1560965 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row31; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1560964 | Disc | National 14-P-220; source table column1, row32; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1560567 | Valve | National 14-P-220; source table column1, row33; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1560568 | Valve | National 14-P-220; source table column1, row34; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1560963 | Valve | National 14-P-220; source table column1, row35; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1560706 | Lock | National 14-P-220; source table column1, row36; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1560705 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row37; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
1561410 | Seat | National 14-P-220; source table column1, row38; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
7500065 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row39; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 3 |
5913390 | Flange | National 14-P-220; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 4 |
5913391 | Flange | National 14-P-220; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 4 |
2408014 | Lock | National 14-P-220; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 4 |
6907339-S | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 4 |
1295262 | Spacer | National 14-P-220; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 4 |
1295246 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 4 |
7006609 | Capscrew | National 14-P-220; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 4 |
1295258 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 4 |
1295253 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 4 |
1295252 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 4 |
2410031-440 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 4 |
2410031-438 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 4 |
1295175 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 4 |
7000307-11 | Capscrew | National 14-P-220; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 4 |
7619050 | Washer | National 14-P-220; source table column1, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 4 |
6300180 | Nut | National 14-P-220; source table column1, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 4 |
1295266 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1295165 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1295213 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
G-2407274 | Plate | National 14-P-220; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1295122 | Guard | National 14-P-220; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1295211 | Guard | National 14-P-220; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
05-545-500 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
05-545-550 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
05-545-600 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
05-545-650 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
05-545-700 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
05-545-750 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
05-545-800 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
05-546-900 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1540121 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1540122 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1540124 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1540151 | Packing | National 14-P-220; source table column2, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1540153 | Packing | National 14-P-220; source table column2, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1540165 | Packing | National 14-P-220; source table column2, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1540157 | Liner | National 14-P-220; source table column2, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1540159 | Packing | National 14-P-220; source table column2, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
20-021-517 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
20-021-519 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
20-021-521 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
20-021-523 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
20-021-525 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
20-021-527 | Piston | National 14-P-220; source table column2, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
012-180-725 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
20-120-828 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
20-140-521 | Piston | National 14-P-220; source table column2, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
20-140-544 | Piston | National 14-P-220; source table column2, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
20-140-524 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
20-140-535 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
20-140-537 | Piston | National 14-P-220; source table column2, row21; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
20-140-539 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row22; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
20-405-254 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row23; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
20-140-913 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row24; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1295147 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row25; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
005402052 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row26; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
7804307 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row27; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1295146 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row28; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1295085 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row29; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
129086 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row30; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
G-1292087 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row31; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1292169 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row40; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
6571014 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row33; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
6309100 | Nut | National 14-P-220; source table column2, row34; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
7000405-11 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row35; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1295166 | Clamp | National 14-P-220; source table column2, row36; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1295167 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row37; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1295212 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row38; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
G-1292168 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row39; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
6571620 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row41; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
6309140 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row42; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
7000491-10 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row43; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
7178025 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row44; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
6800083 | Pipe | National 14-P-220; source table column2, row45; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
6829004 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row46; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
7815094 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row47; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
7818282 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row48; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
2400091 | Hose | National 14-P-220; source table column2, row49; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1292194 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row50; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
6300041 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row51; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
7000124-11 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row52; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
7621016 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row53; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1285130 | Rod | National 14-P-220; source table column2, row54; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1295131 | Cover | National 14-P-220; source table column2, row55; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1290406 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row56; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
7041102 | Screw | National 14-P-220; source table column2, row57; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
6310040 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row58; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
7000114-11 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row59; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 5 |
1282036 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295017 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295103 | Crosshead | National 14-P-220; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
2404018 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
2405114 | Capscrew | National 14-P-220; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
6829008 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7618026 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
6839008 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1283190 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1283191 | Plate | National 14-P-220; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1290251 | Screw | National 14-P-220; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1291074 | Hook | National 14-P-220; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1292064 | Gasket | National 14-P-220; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1292077 | Cover | National 14-P-220; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1292089 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1292110 | Cover | National 14-P-220; source table column1, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295009 | Retainer | National 14-P-220; source table column1, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295016 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295023 | Wiper | National 14-P-220; source table column1, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295070 | Pinion | National 14-P-220; source table column1, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295071 | Trough | National 14-P-220; source table column2, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295072 | Gear | National 14-P-220; source table column2, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295073 | Gear | National 14-P-220; source table column2, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295079 | Gasket | National 14-P-220; source table column2, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295082 | Gear | National 14-P-220; source table column2, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295083 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295092 | Gear | National 14-P-220; source table column2, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295095 | Frame | National 14-P-220; source table column2, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295114 | Gauge | National 14-P-220; source table column2, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295139 | Plate | National 14-P-220; source table column2, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
6803160 | Pipe | National 14-P-220; source table column2, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295007 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295182 | Wiper | National 14-P-220; source table column2, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295227 | Rod | National 14-P-220; source table column2, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295269 | Spacer | National 14-P-220; source table column2, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295282 | Sump | National 14-P-220; source table column2, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295407 | Gear | National 14-P-220; source table column2, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1285408 | Cover | National 14-P-220; source table column2, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295069 | Pinion | National 14-P-220; source table column2, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295413 | Plate | National 14-P-220; source table column2, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
2400029 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row21; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
2400040 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row22; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
2405033 | Screw | National 14-P-220; source table column2, row23; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
2407100 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row24; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
6310040 | Nut | National 14-P-220; source table column2, row25; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
6310060 | Nut | National 14-P-220; source table column2, row26; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
6320062 | Nut | National 14-P-220; source table column2, row27; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
6511012 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row28; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
6541612 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row29; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
6700961 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row30; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
6817079 | Pipe | National 14-P-220; source table column2, row31; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
6843008 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row32; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7000114-11 | Capscrew | National 14-P-220; source table column2, row33; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7000208-11 | Capscrew | National 14-P-220; source table column2, row34; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7000210-11 | Capscrew | National 14-P-220; source table column2, row35; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7000213-11 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row36; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7000303-11 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row37; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7000304-11 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row38; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7000309-11 | Capscrew | National 14-P-220; source table column2, row39; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7000387-11 | Capscrew | National 14-P-220; source table column2, row40; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7027393 | Setscrew | National 14-P-220; source table column2, row41; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
G-7061091-17 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row42; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7178025 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row43; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7400842 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row44; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7600024 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row45; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7618018 | Washer | National 14-P-220; source table column2, row46; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7619025 | Spring | National 14-P-220; source table column2, row47; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7621016 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row48; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7621032 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row49; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7802020 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row50; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7805052 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row51; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7805062 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row52; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7815057 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row53; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7817170 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row54; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7621040 | Washer | National 14-P-220; source table column2, row55; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
7619058 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row56; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
6874016 | Head | National 14-P-220; source table column2, row57; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
6874012 | Head | National 14-P-220; source table column2, row58; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 6 |
1295007 | Rod | National 14-P-220; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
7400842 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
7600024 | Washer | National 14-P-220; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295011 | Bearing | National 14-P-220; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295012 | Cap | National 14-P-220; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295021 | Bearing | National 14-P-220; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295022 | Plate | National 14-P-220; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295081 | Retainer | National 14-P-220; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295096 | Bearing | National 14-P-220; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295104 | Shim | National 14-P-220; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295105 | Ring | National 14-P-220; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295106 | Bearing | National 14-P-220; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295107 | Shim | National 14-P-220; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295152 | Shim | National 14-P-220; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295153 | Shim | National 14-P-220; source table column1, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295154 | Shim | National 14-P-220; source table column1, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295005 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295008 | Crankshaft | National 14-P-220; source table column1, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295006 | Crankshaft | National 14-P-220; source table column1, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
6310201 | Nut | National 14-P-220; source table column1, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
ZB-32000 | Rod | National 14-P-220; source table column1, row21; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295403 | Retainer | National 14-P-220; source table column1, row22; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295402 | Rod | National 14-P-220; source table column1, row23; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295412 | Rod | National 14-P-220; source table column1, row24; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295411 | Rod | National 14-P-220; source table column1, row25; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295410 | Rod | National 14-P-220; source table column1, row26; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295026 | Plate | National 14-P-220; source table column1, row27; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295100 | Rod | National 14-P-220; source table column1, row28; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295101 | Rod | National 14-P-220; source table column1, row29; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295102 | Rod | National 14-P-220; source table column1, row30; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
2402580 | Screw | National 14-P-220; source table column1, row31; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
2405069 | Screw | National 14-P-220; source table column1, row32; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
6310140 | Nut | National 14-P-220; source table column1, row33; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
7000514-10 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row34; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295014 | Spacer | National 14-P-220; source table column1, row35; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295024 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row36; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295416 | Shim | National 14-P-220; source table column1, row37; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295417 | Crankshaft | National 14-P-220; source table column1, row38; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
ZT-16125 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row39; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
2400690 | Screw | National 14-P-220; source table column1, row40; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
2405010 | Screw | National 14-P-220; source table column1, row41; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
2405026 | Screw | National 14-P-220; source table column1, row42; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
5506202 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row43; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
6310400 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row44; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
7084146 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row45; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
G-7804202 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row46; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295339 | Bearing | National 14-P-220; source table column1, row47; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 7 |
1295103 | Crosshead | National 14-P-220; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
2405018 | Capscrew | National 14-P-220; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
2405114 | Capscrew | National 14-P-220; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
7618026 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
7000397-11 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
1290089 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
1295015 | Crosshead | National 14-P-220; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
1295090 | Crosshead | National 14-P-220; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
6873008 | Head | National 14-P-220; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
1295013 | Cover | National 14-P-220; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
1295020 | Retainer | National 14-P-220; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
1295097 | Bearing | National 14-P-220; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
1295010 | Shaft | National 14-P-220; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
1295018 | Cage | National 14-P-220; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
1295019 | Pinion | National 14-P-220; source table column1, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
11028 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
1295027 | Pinion | National 14-P-220; source table column1, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
2402680 | Capscrew | National 14-P-220; source table column1, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
7600040 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
ZB-9005 | Crosshead | National 14-P-220; source table column1, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
1295401 | Ring | National 14-P-220; source table column1, row21; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
1290114 | Pin | National 14-P-220; source table column1, row22; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
1295028 | Crosshead | National 14-P-220; source table column1, row23; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
1295112 | Pin | National 14-P-220; source table column1, row24; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
5506718 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row25; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
6875003 | Plug | National 14-P-220; source table column1, row26; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
6912035 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row27; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
2405005 | Capscrew | National 14-P-220; source table column1, row28; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
7619068 | Washer | National 14-P-220; source table column1, row29; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
2404106 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row30; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
YS-10750 | Seal | National 14-P-220; source table column1, row31; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
2405019 | Screw | National 14-P-220; source table column1, row32; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
7618022 | Washer | National 14-P-220; source table column1, row33; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
7621048 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row34; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
7817170 | Rubber | National 14-P-220; source table column1, row36; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
1295098 | Pinion | National 14-P-220; source table column1, row37; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 8 |
1295229 | Spray system | National 14-P-220; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
7812008 | Motor | National 14-P-220; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
7812009 | Motor | National 14-P-220; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
7815147 | Pump | National 14-P-220; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1295303 | Motor | National 14-P-220; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1295298 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
10-304-044 | Guard | National 14-P-220; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
2401860 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
7802327 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
5902091 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
5902172 | Flange | National 14-P-220; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
6010036 | Flange | National 14-P-220; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
6010037 | Flange | National 14-P-220; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
6300061 | Nut | National 14-P-220; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
6300081 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
75-634-415 | Capscrew | National 14-P-220; source table column1, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
7000211-11 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
7000307-11 | Capscrew | National 14-P-220; source table column1, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
7000309-11 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
7000396-11 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
75-770-474 | Lockwasher | National 14-P-220; source table column1, row21; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
75-634-313 | Capscrew | National 14-P-220; source table column1, row22; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1292293 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row23; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
7619041 | Washer | National 14-P-220; source table column1, row24; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
7619050 | Washer | National 14-P-220; source table column1, row25; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
75-510-408 | Nut | National 14-P-220; source table column1, row26; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
75-770-205 | Washer | National 14-P-220; source table column1, row27; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
75-770-475 | Lockwasher | National 14-P-220; source table column1, row28; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
29-001-153 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row29; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
10-300-300 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row30; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
75-770-472 | Lockwasher | National 14-P-220; source table column1, row31; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1283036 | Hose | National 14-P-220; source table column1, row32; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1295327 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row33; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1292294 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row34; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
6800081 | Pipe | National 14-P-220; source table column1, row35; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
6817077 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row36; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
6829008 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row48; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
6839008 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row46; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
6859008 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row39; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
6873008 | Head | National 14-P-220; source table column1, row40; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
7000454-11 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row41; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
7619066 | Washer | National 14-P-220; source table column1, row42; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
7800070 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row43; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
7806002 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row44; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1282036 | Hose | National 14-P-220; source table column1, row45; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1295282 | Sump | National 14-P-220; source table column1, row47; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 9 |
1295326 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
64-271-226 | Coupling | National 14-P-220; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
64-270-016 | Hose | National 14-P-220; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
64-271-012 | Coupling | National 14-P-220; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
64-270-012 | Hose | National 14-P-220; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
6829006 | Elbow | National 14-P-220; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
1295324 | Pump | National 14-P-220; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
7802163 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
G-7802466 | Clamp | National 14-P-220; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
6800084 | Bushing | National 14-P-220; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
10-300-037 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
86-132-008 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
7000452-11 | Capscrew | National 14-P-220; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
75-777-405 | Washer | National 14-P-220; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
7619066 | Lock | National 14-P-220; source table column1, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
7802353 | Pipe | National 14-P-220; source table column1, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
1295322 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
6829008 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
6817074 | Pipe | National 14-P-220; source table column1, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
6806008 | Coupling | National 14-P-220; source table column1, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 10 |
1295324 | Motor | National 14-P-220; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
1295325 | Pump | National 14-P-220; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
74-450-830 | Motor | National 14-P-220; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
06-510-607 | Guard | National 14-P-220; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
68-103-991 | Coupling | National 14-P-220; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
64-182-010 | Pump | National 14-P-220; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
45-194-207 | Shim | National 14-P-220; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
45-194-208 | Shim | National 14-P-220; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
06-015-462 | Shim | National 14-P-220; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
75-634-300 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
75-634-340 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
75-770-472 | Washer | National 14-P-220; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
75-510-404 | Nut | National 14-P-220; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
45-804-150 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
64-212-832 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
78-256-532 | Gauge | National 14-P-220; source table column1, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
78-684-250 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
86-061-008 | Bushing | National 14-P-220; source table column1, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
86-061-010 | Bushing | National 14-P-220; source table column1, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
86-061-014 | Bushing | National 14-P-220; source table column1, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
86-061-015 | Bushing | National 14-P-220; source table column1, row21; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
86-339-106 | Elbow | National 14-P-220; source table column1, row22; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
78-176-002 | Elbow | National 14-P-220; source table column1, row23; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
86-336-106 | Elbow | National 14-P-220; source table column1, row24; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
86-641-108 | Pipe | National 14-P-220; source table column1, row25; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
86-485-508 | Pipe | National 14-P-220; source table column1, row26; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
86-543-106 | Tee | National 14-P-220; source table column1, row27; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
6859008 | Cross | National 14-P-220; source table column1, row28; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
86-600-008 | Coupling | National 14-P-220; source table column1, row29; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
86-600-014 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row30; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
78-420-001 | Nipple | National 14-P-220; source table column1, row31; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
86-425-001 | Nipple | National 14-P-220; source table column1, row32; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
86-424-007 | Nipple | National 14-P-220; source table column1, row33; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
6817067 | Nipple | National 14-P-220; source table column1, row34; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
86-425-013 | Pipe | National 14-P-220; source table column1, row35; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
86-425-017 | Pipe | National 14-P-220; source table column1, row36; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
86-426-013 | Nipple | National 14-P-220; source table column1, row37; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
64-289-324 | Adapter | National 14-P-220; source table column1, row38; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
45-804-717 | Assembly | National 14-P-220; source table column1, row39; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
6817079 | Elbow | National 14-P-220; source table column1, row40; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
86-342-108 | Elbow | National 14-P-220; source table column1, row41; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
75-770-470 | Washer | National 14-P-220; source table column1, row42; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
64-212-848 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row43; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 11 |
1295308 | Lube system | National 14-P-220; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
6874008 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
6817078 | Pipe | National 14-P-220; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
7804563 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
7400842 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
7401642 | Tubing | National 14-P-220; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
7902380 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
G7804202 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
7401240 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
6888004 | Tee | National 14-P-220; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
1295306 | Plug | National 14-P-220; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
6817044 | Pipe | National 14-P-220; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
7802946 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
6800083 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
6817082 | Pipe | National 14-P-220; source table column1, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
6888008 | Pipe | National 14-P-220; source table column1, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
7804146 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
6800030 | Bushing | National 14-P-220; source table column1, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
6829001 | Elbow | National 14-P-220; source table column1, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
6800082 | Bushing | National 14-P-220; source table column1, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 12 |
1290195 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
1290196 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
1290197 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
1290198 | Pipe | National 14-P-220; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
1290199 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
1290228 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
2407136 | Capscrew | National 14-P-220; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
2410031-24 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
7000361-11 | Dampener | National 14-P-220; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
7178025 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
7500021 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
7621036 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
7500396 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
7815106 | Head | National 14-P-220; source table column1, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
1292230 | Dampener | National 14-P-220; source table column1, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
1292231 | Dampener | National 14-P-220; source table column1, row16; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
6010023 | Ring | National 14-P-220; source table column1, row25; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
6300121 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row26; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
6874016 | Plug | National 14-P-220; source table column1, row27; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
6908046 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row28; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
7000445-11 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row29; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
7000486-10 | Nut | National 14-P-220; source table column1, row30; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
1292206 | Dampener | National 14-P-220; source table column1, row23; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
1292205 | Ring | National 14-P-220; source table column1, row24; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 13 |
1295225 | Flange | National 14-P-220; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
1295226 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
1292219 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column3, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
2408014 | Lock | National 14-P-220; source table column3, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
6300180 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column3, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
102842-1 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column3, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
102842-2 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column3, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
102842-3 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column3, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
1290221 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column3, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
1295218 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column3, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
7000439-11 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column3, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
7000440-11 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column3, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
7619066 | Spring | National 14-P-220; source table column3, row13; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
G-2407004 | Strainer | National 14-P-220; source table column3, row14; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
7178088 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column3, row15; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
6907339-S | Catalogue component reference; confirm description against source page | National 14-P-220; source table column3, row22; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
1295209 | Cross | National 14-P-220; source table column3, row17; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
2403070 | Lock | National 14-P-220; source table column2, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
6300240 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
1292229 | Flange | National 14-P-220; source table column1, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
1292222 | Strainer | National 14-P-220; source table column2, row23; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
5912391 | Ring | National 14-P-220; source table column1, row22; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
6508033 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row25; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
6908040 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row26; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
1295215 | Cross | National 14-P-220; source table column2, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
1295216 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
2408000 | Lock | National 14-P-220; source table column2, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
6300220 | Nut | National 14-P-220; source table column2, row21; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
1292223 | Flange | National 14-P-220; source table column2, row22; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
5912400 | Ring | National 14-P-220; source table column2, row24; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
6908044 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column2, row27; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
1295220 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column3, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
1295221 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column3, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
1295223 | Flange | National 14-P-220; source table column3, row18; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
1295222 | Strainer | National 14-P-220; source table column3, row19; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
5913390 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column3, row20; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
6907325-S | Catalogue component reference; confirm description against source page | National 14-P-220; source table column3, row21; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 14 |
1295127 | Valve | National 14-P-220; source table column1, row1; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
1290206 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row2; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
1290207 | Bolt | National 14-P-220; source table column1, row3; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
M-1060 | Puller | National 14-P-220; source table column1, row4; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
M-1087 | Head | National 14-P-220; source table column1, row5; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
2402290 | Pinion | National 14-P-220; source table column1, row6; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
1290140 | Pinion | National 14-P-220; source table column1, row7; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
1295164 | Plate | National 14-P-220; source table column1, row8; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
1295197 | Catalogue component reference; confirm description against source page | National 14-P-220; source table column1, row9; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
1295196 | Boom | National 14-P-220; source table column1, row10; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
7805052 | Fitting | National 14-P-220; source table column1, row11; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
7819040 | Trolley | National 14-P-220; source table column1, row12; source revision/arrangement remains separate; Source parts-catalogue component number | S1, PDF p. 15 |
7621016 | Washer | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 163 |
2404106 | Key | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 163 |
1295146 | Piston sub-rod | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 163 |
7618022 | Washer | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
7608018 | Washer | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
7400842 | Tubing | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
7000304-11 | Screw | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
7000303-11 | Screw | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
6300401 | Nut | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
6541612 | Pin | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
6310040 | Nut | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
5506202 | Bolt | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
2405093 | Screw | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
1295417 | Crankshaft bearing-support shim | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
1295413 | Oil-gauge plate gasket | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
1295408 | Gear inspection cover | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
1295386 | Main-bearing retainer shim | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
1295388 | Main-bearing retainer shim | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
1295083 | Intermediate rod | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
1295073 | Right-hand gear oil wiper | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
1295072 | Left-hand gear oil wiper | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
1295070 | Left-hand pinion-bearing oil trough | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
1295028 | Crosshead pin | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
1282036 | Hose assembly | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 167 |
7619058 | Washer | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 169 |
1295337 | Nut-retainer plate | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 169 |
1295339 | Main and pinion bearing-support assembly | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 169 |
2402680 | Cap screw | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 170 |
7600040 | Washer | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 170 |
1295420 | Lapped pinion | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 170 |
ZB-11028 | Pinion bearing | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 170 |
1290089 | Oil conductor | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 171 |
1295410 | Connecting-rod outer-retainer shim | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 171 |
1295411 | Connecting-rod outer-retainer shim | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 171 |
1295423 | Crankshaft balancing weight | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 172 |
1295425 | Crankshaft-gear bolt | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 172 |
6874008 | Plug | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 173 |
6817078 | Nipple | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 173 |
7804563 | Elbow | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 173 |
7400842 | Tubing | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 173 |
7401642 | Tubing | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 173 |
G7804202 | Elbow | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 173 |
7401240 | Tubing | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 173 |
6888004 | Tee | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 173 |
1295306 | Orifice plug | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 173 |
6817044 | Nipple | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 173 |
6800083 | Bushing | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 173 |
6817082 | Nipple | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 173 |
6888008 | Tee | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 173 |
6800030 | Bushing | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 173 |
6800082 | Bushing | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 173 |
10855114-001 | External lube-pump coupling guard | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 176 |
8000198-06-06 | Cap screw | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 176 |
6800171 | Bushing | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 176 |
6817066 | Nipple | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 176 |
6859006 | Cross | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 176 |
6888006 | Tee | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 176 |
10766128-001 | Bushing | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 176 |
7800077 | Adapter | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 176 |
7804358 | Elbow | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 176 |
6100050-16 | Hose | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 176 |
6100079-04 | Hose | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 176 |
7800623 | Adapter | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 176 |
6875006 | Plug | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 176 |
10758652-001 | Lube-oil pump shim set | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 176 |
6300062 | Nut | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 176 |
5902487 | Flange | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 183 |
1295318 | Suction-stabilizer assembly | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 183 |
5902485 | Blind ring-joint flange | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 184 |
6908046 | Oval-joint steel ring | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 184 |
7621044 | Washer | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 185 |
7619066 | Washer | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 185 |
700069514 | Screw | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 192 |
700068821 | Screw | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 192 |
700052611 | Screw | 14-P-220; project-specific D2G1009318-FDD-001 reference drawing; check drawing revision and equipment configuration; Project drawing BOM reference | S2, PDF p. 192 |
80503106 | Valve-cover assembly without studs and nuts (original-equipment version); factory new-build reference only, not for replacement or Torque Pro retrofit | 14-P-220 project-document reference; original-equipment version. The source drawing restricts this assembly without studs and nuts to new fluid-end builds at the factory. It must not be used as a replacement part or for customers switching to the Torque Pro system. Check the original drawing revision and equipment configuration.; Factory assembly reference — not a replacement / retrofit part | S2, PDF p. 428 |
80503104 | Valve-cover assembly without studs and nuts (Mission L version); factory new-build reference only, not for replacement or Torque Pro retrofit | 14-P-220 project-document reference; Mission L version. The source drawing restricts this assembly without studs and nuts to new fluid-end builds at the factory. It must not be used as a replacement part or for customers switching to the Torque Pro system. Check the original drawing revision and equipment configuration.; Factory assembly reference — not a replacement / retrofit part | S2, PDF p. 428 |
10035633-001 | Blind flange | 14-P-220; project-specific D2G1009318-FDD-001 assembly drawing; source revision required; Project drawing BOM reference | S2, PDF p. 154 |
10921592-003 | Ship-loose kit | 14-P-220; project-specific D2G1009318-FDD-001 assembly drawing; source revision required; Project drawing BOM reference | S2, PDF p. 154 |
10018299-001 | Rod chamber cover retainer | 14-P-220; project-specific D2G1009318-FDD-001 assembly drawing; source revision required; Project drawing BOM reference | S2, PDF p. 154 |
10753615-001 | 20 micron filter element | 14-P-220; project-specific D2G1009318-FDD-001 assembly drawing; source revision required; Project drawing BOM reference | S2, PDF p. 154 |
10092215-001 | Earth boss kit | 14-P-220; project-specific D2G1009318-FDD-001 assembly drawing; source revision required; Project drawing BOM reference | S2, PDF p. 154 |
10531685-001 | SPM sensor installation | 14-P-220; project-specific D2G1009318-FDD-001 assembly drawing; source revision required; Project drawing BOM reference | S2, PDF p. 154 |
10779201-001 | External lubrication piping installation | 14-P-220; project-specific D2G1009318-FDD-001 assembly drawing; source revision required; Project drawing BOM reference | S2, PDF p. 154 |
10779200-001 | Liner spray piping installation | 14-P-220; project-specific D2G1009318-FDD-001 assembly drawing; source revision required; Project drawing BOM reference | S2, PDF p. 154 |
10758654-001 | External lube oil pump assembly | 14-P-220; project-specific D2G1009318-FDD-001 assembly drawing; source revision required; Project drawing BOM reference | S2, PDF p. 154 |
10779198-001 | Liner spray pump assembly | 14-P-220; project-specific D2G1009318-FDD-001 assembly drawing; source revision required; Project drawing BOM reference | S2, PDF p. 154 |
10057585-001 | Hoist | 14-P-220; project-specific D2G1009318-FDD-001 assembly drawing; source revision required; Project drawing BOM reference | S2, PDF p. 154 |
10018226-001 | Extended-height hoist assembly | 14-P-220; project-specific D2G1009318-FDD-001 assembly drawing; source revision required; Project drawing BOM reference | S2, PDF p. 154 |
10039911-001 | BX-169-S ring joint | 14-P-220; project-specific D2G1009318-FDD-001 assembly drawing; source revision required; Project drawing BOM reference | S2, PDF p. 154 |
10061001-001 | Strainer block valve cover assembly | 14-P-220; project-specific D2G1009318-FDD-001 assembly drawing; source revision required; Project drawing BOM reference | S2, PDF p. 154 |
10035631-001 | Weld-neck ring-joint flange | 14-P-220; project-specific D2G1009318-FDD-001 assembly drawing; source revision required; Project drawing BOM reference | S2, PDF p. 154 |
10035635-001 | Ring-joint flange | 14-P-220; project-specific D2G1009318-FDD-001 assembly drawing; source revision required; Project drawing BOM reference | S2, PDF p. 154 |
10018176-002 | Strainer cross assembly | 14-P-220; project-specific D2G1009318-FDD-001 assembly drawing; source revision required; Project drawing BOM reference | S2, PDF p. 154 |
10896047-002 | Fluid end assembly with tapered gasket | 14-P-220; project-specific D2G1009318-FDD-001 assembly drawing; source revision required; Project drawing BOM reference | S2, PDF p. 154 |
10071273-001 | Drive assembly | 14-P-220; project-specific D2G1009318-FDD-001 assembly drawing; source revision required; Project drawing BOM reference | S2, PDF p. 154 |
10819253-002 | General assembly excluding fluid end | 14-P-220; project-specific D2G1009318-FDD-001 assembly drawing; source revision required; Project drawing BOM reference | S2, PDF p. 154 |
Reference documents and scope
- S1 — National 14-P-220 parts catalogue / manual. Reference file: NOV 14P-220.PDF.
- S2 — National 14-P-220 parts catalogue / manual. Reference file: 14P220新件号.pdf.
PDF page numbers count from the first page of each reference file. Brand names identify the equipment or catalogue source. A listed number does not establish interchangeability, original-manufacturer authorisation, stock or a delivery commitment. Send the nameplate, complete reference, quantity and drawing revision for a parts review.
Send a National 14-P-220 parts request
Include the full part number, quantity, nameplate photograph and drawing revision. Matching and availability require review of your actual equipment.
