Honghua 3NB-1000F Mud Pump Parts and Drawing References

Parts List

Search drawing number or nameDownload parts list (CSV)

605 parts

P/P	Part / Drawing No.	Name	Part / Drawing No.	Name

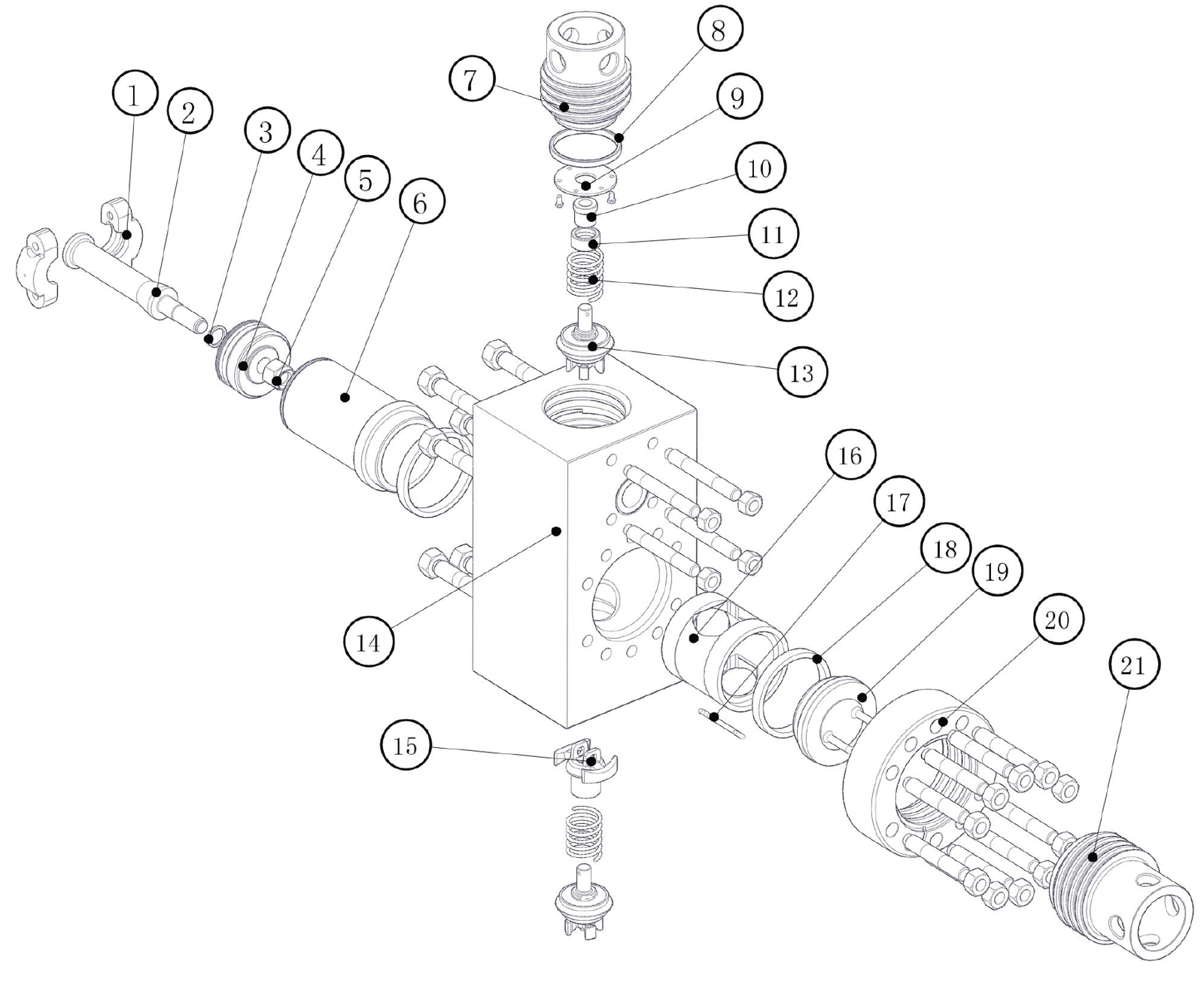

Honghua multi-model material-code catalogue, 3NB-500F / 800F / 1000F / 1300F / 1600F / 2200F
1	`1200010149`	Nut	`1200008638`	Bolt
2	`1200010148`	Stud	`1200008628`	Upper guide
3	`1200008649`	Discharge manifold	`1200008627`	Crosshead
4	`1300000286`	O-ring	`1200008645`	Crosshead bearing
5	`1200010143`	Fluid-cylinder assembly	`1200008637`	Crosshead pin
6	`1200010241`	Liner end cover	`1200008644`	Crosshead-pin retainer plate
7	`1200008652`	Liner-spray pipe assembly	`1200008640`	Lower guide
8	`1300006771`	Bolt	`1200008629`	Bolt
9	`1200010253`	Threaded plug	`1300001141`	Washer (spring washer)
10	`1200008665`	Suction flange (Ⅰ)	`1300006415`	Bolt
11	`1300000267`	O-ring	`1200008625`	Turning flange
12	`1200008666`	Suction flange (Ⅱ)	`1200008613`	Pinion shaft
13	`1300005876`	Nut	`1200008612`	Key
14	`1200008657`	Suction manifold	`1300006217`	Bolt
15	`1200008662`	Suction-dampener diaphragm (bladder)	`1300001130`	Washer (spring washer)
16	`1200008663`	Suction-dampener end cover (end cover)	`1200008616`	Sealing washer
17	`1200008655`	Clamp assembly	`1200008614`	Wear sleeve
18	`1200008651`	Piston rod	`1200008615`	End cover
19	`1200010225`	Piston seal ring	`1300006660`	Bolt
20	`1200008650`	Piston	`1300001150`	Washer (spring washer)
21	`1200010178`	Piston nut	`1200008617`	Sealing washer
22	`1200010163`	Valve cover	`1200008618`	Bearing housing
23	`1200010162`	Valve-cover seal ring	`1200008624`	Bearing
24	`1200010167`	Retainer plate	`1200008619`	Retaining ring
25	`1200010164`	Valve-stem guide	`1200008620`	Sealing washer
26	`1200010165`	Spring guide	`1200008621`	Oil-collecting box
27	`1200010169`	Valve spring	`1300001130`	Washer (spring washer)
28	`1200010170`	Valve assembly	`1300006219`	Bolt
29	`1200010143`	Fluid-cylinder assembly	`1200010467`	Pressure-gauge guard
30	`1200010244`	Valve-stem guide (lower)	`1300008203`	Dual-scale vibration-resistant pressure gauge
31	`1200010158`	Liner extraction tool	`1200010474`	Plug
32	`1200010243`	Retaining clamp	`1200010475`	Retaining cap
33	`1200010154`	Liner seal ring	`1200010473`	Connector
34	`1200010155`	Cylinder-cover plug	`1200010471`	Tee
35	`1200010152`	Cylinder-cover flange	`1200008763`	Connector
36	`1200010153`	Cylinder cover	`1300004241`	Angle stop valve (also labelled fuse in the source)
37	`1200016222`	Bi-metal liner; source size ￠120	`1200008760`	Nut
38	`1200010154`	Liner seal ring; source size ￠120	`1200008759`	Stud
39	`1200016223`	Bi-metal liner; source size ￠130	`1200008762`	Cover
40	`1200010154`	Liner seal ring; source size ￠130	`1200008756`	Bladder
41	`1200016224`	Bi-metal liner; source size ￠140	`1200008758`	Housing
42	`1200010154`	Liner seal ring; source size ￠140	`1200010459`	Bottom plug
43	`1200016225`	Bi-metal liner; source size ￠150	`1200010458`	Sealing ring
44	`1200010154`	Liner seal ring; source size ￠150	`1200010374`	Filter-screen cover
45	`1200016226`	Bi-metal liner; source size ￠160	`1300000224`	O-ring
46	`1200010154`	Liner seal ring; source size ￠160	`1200010375`	Filter screen
47	`1200010162`	Valve-cover seal ring	`1200010376`	Housing
48	`1200010193`	Piston; source size ￠120	`1200010379`	Sealing washer (sealing ring)
49	`1200010225`	Piston seal ring; source size ￠120	`1200010456`	Flange
50	`1200010198`	Piston; source size ￠130	`1200010377`	Stud
51	`1200010225`	Piston seal ring; source size ￠130	`1200010378`	Nut
52	`1200010204`	Piston; source size ￠140	`1200010398`	Heavy nut
53	`1200010225`	Piston seal ring; source size ￠140	`1200010396`	Stud
54	`1200010209`	Piston; source size ￠150	`1200010388`	Pressure-gauge adapter
55	`1200010225`	Piston seal ring; source size ￠150	`1200010382`	Pressure-gauge seat
56	`1200010214`	Piston; source size ￠160	`1200010400`	Sealing ring
57	`1200010225`	Piston seal ring; source size ￠160	`1200010392`	Discharge cross
58	`1200010220`	Piston; source size ￠170	`1200008741`	Safety-valve seat
59	`1200010225`	Piston seal ring; source size ￠170	`1200010401`	Nut
60	`1200010194`	Piston hub; source size ￠120	`1200010399`	Stud
61	`1200010199`	Piston hub; source size ￠130	`1200010383`	Safety-valve seat
62	`1200010205`	Piston hub; source size ￠140	`1200010397`	Sealing ring
63	`1200010210`	Piston hub; source size ￠150	`1200010391`	Discharge five-way cross
64	`1200010215`	Piston hub; source size ￠160	`1200010393`	Pressure-gauge seat
65	`1200010221`	Piston hub; source size ￠170	`1200008742`	Support frame
66	`1200010195`	Piston rubber; source size ￠120	`1300006664`	Bolt
67	`1200010200`	Piston rubber; source size ￠130	`1200010407`	Shim
68	`1200010206`	Piston rubber; source size ￠140	`1300006668`	Bolt
69	`1200010211`	Piston rubber; source size ￠150	`1200008744`	Connecting plate
70	`1200010216`	Piston rubber; source size ￠160	`1200008745`	Bracket
71	`1200010222`	Piston rubber; source size ￠170	`1300001150`	Spring washer
72	`1200010197`	Piston retainer plate; source size ￠120	`1300005860`	Nut
73	`1200010202`	Piston retainer plate; source size ￠130	`1200010404`	Sealing ring
74	`1200010208`	Piston retainer plate; source size ￠140	`1200010402`	Stud
75	`1200010213`	Piston retainer plate; source size ￠150	`1200010403`	Nut
76	`1200010218`	Piston retainer plate; source size ￠160	`1200008606`	Main-bearing bolt
77	`1200010224`	Piston retainer plate; source size ￠170	`1200008581`	Main-bearing cover
78	`1200010187`	Piston snap ring; source size ￠120	`1200008582`	Shim
79	`1200010203`	Piston snap ring; source size ￠130, ￠140,￠150	`1200008584`	Threaded plug
80	`1200010219`	Piston snap ring; source size ￠160, ￠170,	`1200008576`	Threaded plug
81	`1200010173`	Snap ring	`1200008513`	Frame
82	`1200010174`	Retainer cover	`1200008722`	Guard
83	`1300002340`	Steel ball	`1300007443`	Female-thread ball valve
84	`1200010172`	Valve nut	`1300005293`	Centrifugal liner-spray pump
85	`1200010175`	Valve insert	`1300004215`	Hose assembly
86	`1200010171`	Valve body	`1200010319`	Support assembly
87	`1200010176`	Valve seat	`1200008730`	Water tank
88	`1200010177`	Valve guide cage	`1300004215`	Hose assembly
89	`1200008597`	Bull gear	`1200008730`	Hose assembly
90	`1200008605`	Retainer plate	`1300007647`	V-belt
91	`1200008603`	Retaining ring	`1200008730`	Belt pulley
92	`1200008610`	Main bearing	`1200008727`	Belt pulley
93	`1200008588`	Main-bearing sleeve (right)	`1300005953`	Nut
94	`1200008601`	Spacer ring	`1200008702`	Left cover plate
95	`1200008594`	Hollow crankshaft	`1200008703`	Body shell
96	`1200008591`	Outer retaining ring	`1800000510`	Filter screen
97	`1200008602`	Main-bearing sleeve (left)	`1300001263`	Equal-length stud
98	`1200008609`	Eccentric-strap bearing	`1200008704`	Right cover plate
99	`1200008592`	Connecting rod	`1200008705`	Straight connector
100	`1200008593`	Positioning ring (Ⅰ)	`1200008700`	Nut
101	`1200008596`	Positioning ring (Ⅱ)	`1600000976`	Copper tube
102	`1200008590`	Inner retaining ring	`1200008713`	Oil-pump gear
103	`1200008635`	Mud baffle	`1300000012`	2S gear oil pump
104	`1300006126`	Bolt	`1300001126`	Spring washer
105	`1200008615`	End cover	`1200008714`	Shaft sleeve
106	`1300002207`	Dust seal	`1200008715`	Bolt
107	`1200008570`	Sealing washer	`1300008214`	Dual-scale pressure gauge
108	`1200008631`	Stuffing box	`1200008681`	Sealing washer
109	`1200028721`	Retaining ring	`1200008680`	Female-thread pipe connector
110	`1200008646`	Double-lip oil seal	`1200008682`	90-degree pipe connector
111	`1200008633`	Oil-seal ring	`1200008701`	Oil-filter assembly
112	`1300000194`	O-ring	`1300009209`	Relief valve
113	`1200008636`	Crosshead extension rod	`1200008712`	Oil-pump gear assembly
Honghua 3NB-1000F parts catalogue, NB1000G-TC, November 2011, Chinese/Russian

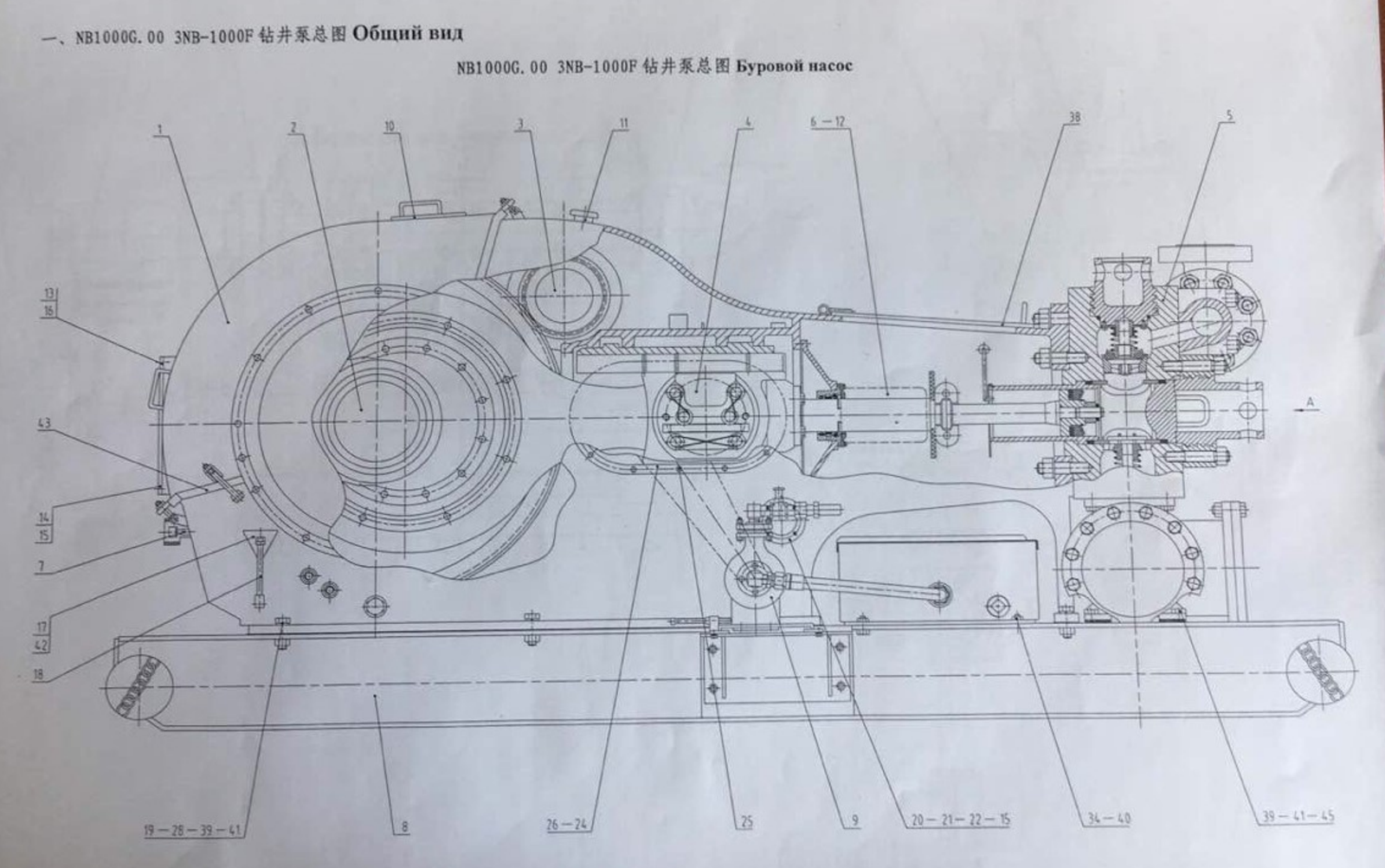

114	`NB1000G.00`	General assembly drawing (3NB-1000F)	`NB800G.05.17.00`	Valve-assembly drawing (API 6# notation in source)
115	`NB1000G.01.00`	Frame assembly	`NB800G.05.17.01`	Valve body
116	`NB1000G.02.00`	Crankshaft assembly	`NB800G.05.17.02`	Valve nut
117	`NB1000G.03.00`	Pinion-shaft assembly	`NB800G.05.17.03`	Retaining spring
118	`NB1000G.04.00`	Crosshead assembly	`GB/T308-2002`	Steel ball (size requires confirmation)
119	`NB1000G.05.00`	Fluid-end assembly	`NB800G.05.17.04`	Pressure cover
120	`GB/T67-2000`	Screw M4×12	`NB800G.05.17.05`	Valve rubber insert
121	`NB1000G.06.00`	Power-end lubrication assembly	`NB800G.05.17.06`	Valve seat
122	`NB1000G.07.00`	Skid	`NB800G.05.17.07`	Valve-guide support
123	`NB1000G.08.00`	Liner-spray pump assembly	`243`	Anaerobic thread-locking sealant, grade 243
124	`NB800G.09`	Sealing washer	`NB1000G.06.00`	Power-end-lubrication assembly drawing
125	`NB800G.10.00`	Breather cap	`NB1000G.06.01.00`	Tube clamp — φ12
126	`NB1000G.09`	Nameplate	`GB/T1527-1997`	Copper tube — φ12×1270
127	`NB1000G.10.00`	Cover plate	`NB1000G.06.02`	Straight connector — M18×1.5-6g
128	`GB/T5781-2000`	Bolt M12×30	`NB1000G.06.03.00`	Double tube clamp
129	`GB/T95-2002`	Washer12	`GB/T1527-1997`	Copper tube — φ8×2007
130	`NB1000G.11`	Gasket	`GB/T1527-1997`	Copper tube — φ8×1651
131	`NB800G.14`	Identification plate	`NB1000G.06.04`	Nut — M12×1.25-6H
132	`NB800G.15.00`	Oil-level gauge assembly	`GB/T1527-1997`	Copper tube — φ12×1651
133	`NB1000G.12`	Adjusting shim	`NB1000G.06.05`	Nut — M18×1.5-6H
134	`NB800G.19.00`	Drain-access cover	`NB1000G.06.06.00`	Support
135	`GB/T5780-2000`	Bolt M12×35	`NB1000G.06.07.00`	Shim pack
136	`NB800G.20`	Sealing washer	`NB1000G.06.08`	Female-thread connector — NPT1/4-M14×1.5-6H
137	`NB800G.21`	Threaded plug R1 1/2	`NB1000G.06.09`	Sealing washer
138	`NB1000G.13`	Crosshead-access cover	`Y-60Z`	Dual-scale pressure gauge — M14×1.5; 0～1.6MPa (0～230psi)
139	`GB/T5780-2000`	Bolt M16×40	`NB1000G.06.10`	90° pipe connector — M12×1.25-6g-NPT1/4
140	`NB1000G.14`	Gasket	`GB/T1527-1997`	Copper tube — φ8×1016
141	`NB800G.22.00`	Discharge filter-screen assembly	`GB/T1527-1997`	Copper tube — φ8×1372
142	`GB/T5782-2000`	Bolt M27×90	`NB1000G.06.11`	Straight connector — M12×1.25-6g
143	`NB800G.23`	Sealing ring R44	`NB1000G.06.12`	90° pipe connector — M18×1.5-6g-NPT1/4
144	`NB1000G.15.00`	Discharge-elbow assembly	`GB/T1527-1997`	Copper tube — φ12×610
145	`NB1000G.15.00A`	Discharge five-way-cross assembly	`GB/T1527-1997`	Copper tube — φ8×966
146	`NB1000G.16.00`	Supplied tool set	`NB1000G.06.13.00`	Tube clamp — φ8
147	`NB800G.26`	Flange5 1/8×35	`GB/T1527-1997`	Copper tube — φ12×230
148	`GB/T5781-2000`	Bolt M16×45	`NB1000G.06.14`	Oil nozzle
149	`NB1000G.17.00`	KB-75 pulsation dampener	`GB/T5781-2000`	Bolt — M6×20
150	`NB800G.28.00`	JA-3 shear-pin relief valve	`GB/T93-1987`	Washer — 6
151	`NB1000G.18.00`	Supplied spare-parts set	`NB1000G.06.15`	90° pipe connector — M18×1.5-6g-NPT3/8
152	`NB1000G.19.00`	Cover-plate assembly	`NB1000G.06.16`	Straight connector — M16×1.5-6g-NPT1/4
153	`GB/T6170-2000`	Nut M27	`NB1000G.06.17`	Nut — M16×1.5-6H
154	`GB/T41-2000`	Nut M16	`GB/T1527-1997`	Copper tube — φ10×305
155	`GB/T93-1987`	Washer 27	`GB/T1527-1997`	Copper tube — φ10×838
156	`GB/T827-1986`	Rivet 3×10	`GB/T1527-1997`	Copper tube — φ10×584
157	`YK-150`	Dual-scale vibration-resistant pressure gauge 0–40 MPa (0–5800 psi)	`NB1000G.06.18`	90° pipe connector — M16×1.5-6g-NPT1/4
158	`GB/T5783-2000`	Bolt M27×65	`GB/T1527-1997`	Copper tube — φ10×940
159	`NB800G.31`	Blind flange 5 1/8×35	`GB/T1527-1997`	Copper tube — φ10×1016
160	`NB1000G.01.00`	Frame-assembly drawing	`NB1000G.06.19`	Threaded plug — NPT3/8
161	`NB1000G.01.01.00`	Frame	`NB1000G.06.20`	Connector block (I)
162	`NB1000G.01.02`	Main-bearing cover	`GB/T1527-1997`	Copper tube — φ10×737
163	`NB1000G.01.03`	Shim	`GB/T1527-1997`	Copper tube — φ10×153
164	`NB1000G.01.04`	Connector NPT3/4–NPT3/4	`GB/T1527-1997`	Copper tube — φ10×661
165	`NB1000G.01.05`	Threaded plug NPT3/4	`NB1000G.06.21.00`	Tube clamp — φ10
166	`NB1000G.02.00`	Crankshaft-assembly drawing	`NB1000G.06.22`	Straight connector — M18×1.5-6g-NPT3/8
167	`NB1000G.02.01.00`	Main-bearing end cover	`NB1000G.06.23`	90° pipe connector — M24×1.5-6g-NPT1/2
168	`NB1000G.02.02`	Main-bearing sleeve (right)	`NB1000G.06.24`	Nut — M24×1.5-6H
169	`NB1000G.02.03`	Sealing washer	`GB/T1527-1997`	Copper tube — φ16×331
170	`NB1000G.02.04`	Inner retaining ring	`NB1000G.06.25.00`	Oil filter assembly
171	`NB1000G.02.05.00`	Outer retaining ring	`NB1000G.06.26`	Straight connector — M24×1.5-6g-NPT1/2
172	`NB1000G.02.06`	Connecting rod	`GB/T1527-1997`	Copper tube — φ16×686
173	`NB1000G.02.07`	Positioning ring (I)	`NB1000G.06.27.00`	Triple tube clamp
174	`NB1000G.02.08.00`	Hollow crankshaft	`NB1000G.06.28`	Straight connector — M12×1.25-6g-NPT1/4
175	`NB1000G.02.09`	Positioning ring (II)	`NB1000G.06.29`	Connector block (II)
176	`NB1000G.02.10B`	Bull gear (widened)	`NB1000G.06.30`	Bottom plate
177	`NB1000G.02.11`	Bolt M33×3–6g×115	`GB/T70.1-2000`	Screw — M8×40
178	`NB1000G.02.12.00`	Locknut M33×3–6H	`YYFJ-L20`	Pressure relief valve
179	`NB1000G.02.13`	Spacer ring	`GB/T93-1987`	Washer — 8
180	`NB1000G.02.14`	Main-bearing sleeve (left)	`NB1000G.06.31.00`	Lubrication pump gear assembly, including square key
181	`NB1000G.02.15`	Retaining ring	`GB/T1527-1997`	Copper tube — φ8×267
182	`NB1000G.02.16`	Bolt M16×40	`TS1609`	Anaerobic retaining compound for cylindrical components
183	`NB1000G.02.17`	Baffle plate	`TS1680`	Anaerobic retaining compound for cylindrical components
184	`NB1000G.02.18`	Main-bearing bolt 2 1/2–8UN–3A	`NB1000G.08.00`	Liner-wash pump assembly
185	`NB1000G.02.19.00`	Shim pack	`NB1000G.08.01.00`	Guard
186	`NB1000G.02.20`	Screw M16×100	`NB1000G.08.01.00A`	Guard
187	`NB1000G.02.21`	Eccentric bearing 929/558.8QU	`NB1000G.08.02`	Belt pulley
188	`NB1000G.02.22`	Main bearing 3G4053156H	`GB/T1171-1996`	V-belt — A3150
189	`GB/T343-1994`	Locking wire SZ-1.50	`NB800G.08.03.00`	Support assembly
190	`GB/T343-1994`	Locking wire SZ-3.00	`NB800G.08.03.00A`	Support assembly
191	`242`	Anaerobic thread-locking adhesive, grade 242	`NB1000G.08.03`	Pipe nipple — NPT1-NPT1
192	`GB/T97.2-2002`	Washer 16	`NB800G.08.04`	Connector — NPT1-M45×2-6g
193	`GB/T5783-2000`	Bolt M16×45–6g	`NB1000G.08.04`	Connector — NPT1-M36×2-6g
194	`NB1000G.02.01.00B`	Main-bearing end cover	`GB9065.1-88`	Hose assembly — C31.5 I-850
195	`NB1000G.03.00`	Pinion-shaft-assembly drawing	`NB800G.08.07`	Connector — NPT2 1/2-M45×2-6g
196	`NB1000G.03.01`	Key 50.8×50.8×203	`GB9065.1-88`	Hose assembly — C22 I-1500
197	`NB1000G.03.02B`	Pinion shaft (widened)	`NB800G.08.08.00`	Bracket
198	`NB1000G.03.03`	Wear sleeve	`NB800G.08.08.00A`	Bracket
199	`NB1000G.03.04`	End cover	`NB1000G.08.05.00`	Water tank
200	`NB1000G.03.05`	Sealing washer	`NB1000G.08.06.00`	Tank cover
201	`NB1000G.03.06`	Sealing washer	`GB/T73-1985`	Set screw — M8×25
202	`NB1000G.03.07`	Bearing sleeve	`NB800G.08.11`	Flange — NPT1
203	`NB1000G.03.08`	Retaining ring	`NB800G.08.12`	Gasket
204	`NB1000G.03.09`	Sealing washer	`32SB180J（32PL）`	Centrifugal liner-wash pump
205	`NB1000G.03.10.00`	Oil collector	`Q11F-16`	Female-thread ball valve — NPT1
206	`GB/T5782-2000`	Bolt M12×35	`NB800G.08.13`	Connecting plate
207	`GB/T5782-2000`	Bolt M22×50	`NB800G.08.14`	90° elbow — NPT1
208	`NB1000G.03.11`	Oil seal 8.5 in ×10.5 in ×0.625 in	`GB/T5783-2000`	Bolt — M16×50
209	`NB1000G.03.12`	Bearing 4G32840H	`GB/T93-1987`	Washer — 16
210	`GB/T93-1987`	Washer 22	`GB/T41-2000`	Nut — M16
211	`GB/T93-1987`	Washer 12	`GB/T5783-2000`	Bolt — M12×60
212	`NB1000G.03.13`	Pump-turning flange	`GB/T6170-2000`	Nut — M12
213	`GB/T5782-2000`	Bolt M16×50	`GB/T5781-2000`	Bolt — M16×30
214	`GB/T93-1987`	Washer 16	`GB/T95-2002`	Washer — 16
215	`NB1000G.04.00`	Crosshead-assembly drawing	`NB800G.10.00`	Breather cap assembly
216	`NB1000G.04.01`	Crosshead	`NB800G.10.01`	Baffle plate
217	`NB1000G.04.02`	Upper guide	`NB800G.10.02`	Connecting plate (I)
218	`NB1000G.04.03`	Bolt M24×55	`NB800G.10.03`	Gasket
219	`NB1000G.04.04`	End cover	`NB800G.10.04`	Connecting plate (II)
220	`GB/T3452.1-2005`	O-ring 175×3.55G	`GB/T5781-2000`	Bolt — M10×25
221	`NB1000G.04.05`	Stuffing box	`NB800G.10.05`	Connector
222	`NB1000G.04.06`	Sealing washer	`NB800G.10.06`	Strainer retaining plate
223	`NB1000G.04.07`	Oil-seal ring	`NB800G.10.07`	Copper wire mesh
224	`NB1000G.04.08`	Pipe connector NPT3/8×50.8	`NB800G.10.08`	Upper breather cover
225	`NB1000G.04.09`	Mud deflector	`GB/T67-2000`	Screw — M5×10
226	`NB1000G.04.10`	Intermediate rod	`NB1000G.15.00A`	Five-way discharge connector assembly
227	`NB1000G.04.11`	Crosshead pin	`NB800G.24.01.00A`	Relief-valve mount
228	`NB1000G.04.12`	Bolt M24×65	`NB800G.24.02A`	Five-way discharge connector
229	`NB1000G.04.13`	Adjusting shim	`NB800G.24.03.00A`	Pressure gauge mount
230	`NB1000G.04.14`	Lower guide	`NB800G.24.04A`	Sealing ring — R35
231	`NB1000G.04.15`	Retaining plate	`NB800G.24.05A`	Stud — M30×2-6h-M30×3-6g×90
232	`GB/T3452.1-2005`	O-ring 140×7.0G	`NB800G.24.06A`	Nut — M30×3-6H (SPL)
233	`GB/T5780-2000`	Bolt M10×35	`NB800G.24.07A`	Stud — M39×2-6h-M39×3-6g×130
234	`GB/T93-1987`	Washer 10	`NB800G.24.08A`	Nut — M39×3-6H (SPL)
235	`NB1000G.04.16`	Locking spring	`NB800G.24.09A`	Sealing ring — R44
236	`GB/T70.1-2000`	Screw M20×55	`NB1000G.15.01.00A`	Support frame
237	`NB1000G.04.17`	Seal	`GB/T5782-2000`	Bolt — M22×60
238	`NB1000G.04.18`	Crosshead-pin retaining plate	`GB/T93-1987`	Washer — 22
239	`NB1000G.04.19`	Crosshead bearing 5G254936Q	`NB800G.24.11A`	Gasket
240	`NB1000G.04.20`	Double-lip oil seal 4.5 in ×5.5 in ×0.5 in	`GB/T5782-2000`	Bolt — M22×80
241	`GB/T4240-1993`	Stainless-steel wire Ø1.60 (L=300)	`GB/T6170-2000`	Nut — M22
242	`GB/T4240-1993`	Stainless-steel wire Ø1.60 (L=500)	`NB1000G.15.02A`	Connecting plate
243	`GB/T4240-1993`	Stainless-steel wire Ø1.60 (L=400)	`NB1000G.15.03.00A`	Bracket
244	`NB1000G.04.21.00`	Shim pack	`NB1000G.15.00`	Discharge elbow assembly
245	`242`	Anaerobic thread-locking sealant, grade 242	`NB800G.24.01.00`	Pressure gauge mount
246	`GB/T3452.1-2005`	O-ring 115×5.30G	`NB1000G.15.01.00`	Relief-valve mount
247	`NB1000G.05.00`	Fluid-end-assembly drawing	`NB800G.24.03.00`	Discharge cross
248	`NB800G.05.01.00`	Fluid-cylinder assembly	`NB800G.24.04`	Stud — M27-6g×180
249	`NB800G.05.02`	Cylinder-cover flange	`NB800G.24.05`	Heavy nut — M27-6H (SPL)
250	`NB800G.05.03`	Cylinder cover	`NB800G.24.06`	Sealing ring — R27
251	`NB800G.05.04`	Liner seal	`243`	Anaerobic threadlocking sealant
252	`NB800G.05.05.00`	Cylinder-cover plug	`NB1000G.17.00`	KB-75 pulsation dampener assembly — KB-75
253	`NB800G.05.06`	Cylinder jack	`NB800G.27.01`	Sealing ring — R39
254	`GB/T3452.1-2005`	O-ring 97.5×3.55-G-S	`NB800G.27.02`	Bottom plug
255	`NB800G.05.07`	Discharge-outlet blanking plate 5 1/8 in	`NB1000G.17.01.00`	Dampener bladder
256	`NB1000G.05.01`	Discharge piping	`NB1000G.17.02.00`	Housing assembly
257	`NB800G.05.10`	Valve-cover seal	`NB1000G.17.03`	Cover
258	`NB800G.05.09`	Stud M39×3–6g×262	`NB800G.27.09`	Tee — NPT1/4
259	`NB800G.05.01.03`	Nut M39×3–6H (SPL)	`NB1000G.17.04`	Connector — NPT1/4
260	`NB800G.05.11`	Valve cover	`NB800G.27.06.00`	Pressure gauge guard assembly
261	`NB800G.05.12`	Valve-stem guide	`NB800G.27.10.00`	Vent valve
262	`NB800G.05.13.00`	Spring guide	`Y-60`	Dual-scale vibration-resistant pressure gauge — 0～25MPa
263	`NB800G.05.14`	Baffle plate	`JZR3-L8`	Angle shut-off valve
264	`NB800G.05.15`	Bolt M10–6g×20	`NB800G.27.08`	Washer
265	`GB/T4240-1993`	Stainless-steel wire Ø1.60 (L=1830)	`NB800G.27.11.00`	Dampener charging hose assembly
266	`NB800G.05.16`	Valve spring	`NB800G.22.00`	Discharge strainer assembly
267	`NB800G.05.17.00`	Valve assembly (API 6#)	`NB800G.22.01.00`	Strainer assembly
268	`NB800G.05.18.00`	Piston nut	`NB800G.22.02`	Housing
269	`NB1000G.05.02.00`	Piston	`GB/T3452.1-2005`	O-ring — 165×7-G-S
270	`NB800G.05.20`	Piston seal	`NB800G.22.03`	Stud — M39×2-6h-M39×3-6g×130
271	`NB1000G.05.03`	Piston rod	`NB800G.22.04`	Nut — M39×3-6H (SPL)
272	`NB800G.05.22`	Bimetal liner	`NB800G.28.01`	Connector
273	`NB800G.05.22A`	Standard liner	`NB800G.28.02`	Retaining ring
274	`NB1000G.05.04.00`	Liner-spray piping assembly	`NB800G.28.03.00`	Piston assembly
275	`NB1000G.05.05.00`	Rod-clamp assembly	`NB800G.28.04`	Valve body
276	`NB800G.05.25`	Liner end cover	`NB800G.28.05`	Piston rod
277	`NB800G.05.27`	Retaining clamp	`NB800G.28.06`	Cushion pad
278	`NB800G.05.28.00`	Lower valve-stem guide	`NB800G.28.07`	Spring pin
279	`GB/T3452.1-2005`	O-ring 190×7.0-G-S	`NB800G.28.08`	Retaining spring
280	`GB/T5783-2000`	Bolt M22×55	`NB800G.28.09`	Safety guard
281	`NB1000G.05.06.00`	Suction piping	`NB800G.28.10`	Shear-pin plate
282	`NB1000G.05.07.00`	Suction air chamber	`NB800G.28.11`	Shear pin
283	`NB1000G.05.08.00`	Shim pack	`NB800G.28.12`	Instruction nameplate
284	`GB/T5782-2000`	Bolt M27×90	`NB800G.28.13`	Pin shaft
285	`GB/T6170-2000`	Nut M27	`NB800G.28.14`	Wire retaining ring
286	`GB/T3452.1-2005`	O-ring 345×7.0-G-S	`NB800G.28.15`	Nameplate
287	`NB1000G.05.09`	Suction flange (I)	`GB/T91-2000`	Pin — 4×25
288	`NB1000G.05.10`	Suction flange (II)	`GB/T67-2000`	Screw — M4×16
289	`NB800G.05.32`	Threaded plug NPT1 1/2	`GB/T6170-2000`	Nut — M4
290	`NB800G.05.26`	Washer 39	`GB/T5780-2000`	Bolt — M10×110
291	`NB1000G.05.11`	Suction-inlet blanking plate 12 in	`GB/T41-2000`	Nut — M10
292	`277`	Anaerobic sealant, grade 277	`GB/T67-2000`	Screw — M3×8
Honghua 3NB-1300F / 3NB-1600F shared parts manual, May 2003
293	`GH3161—05.33.00`	Suction dampener	`GH3161—27.08.00`	Pressure gauge guard assembly
294	`GH3161—05.33.01`	Dampener bladder	`PJC₁—L8`	Vent valve
295	`GH3161—05.33.02`	End cover	`Y—60`	Dual-scale vibration-resistant pressure gauge — 25MPa(3630PSi)
296	`GH3161—27.00`	Pulsation dampener assembly — KB—75	`JZR₃—L8`	Angle shut-off valve
297	`GH3161—27.01`	Sealing ring — R39	`GH3161—27.09`	Washer
298	`GH3161—27.02`	Bottom plug	`GH3161—27.10.00`	Dampener charging hose assembly
299	`GH3161—27.03.00`	Dampener bladder	`GH3161—27.04.02`	Stud — M39×2－M39×3×130
300	`GH3161—27.04.00`	Housing assembly	`GH3161—27.04.03`	Nut — M39×3
301	`GH3161—27.05`	Cover	`GH3161—27.04.04`	Stud — M33×2－M33×3×110
302	`GH3161—27.06`	Tee — NPT1/4	`GH3161—27.04.05`	Nut — M33×3
303	`GH3161—27.07`	Connector — NPT1/4

Technical details and source references

Confirm the installed model, drawing revision and dimensions before ordering. Catalogue quantities do not indicate current stock.

Reference documents and scope

S1 — Honghua multi-model material-code catalogue, 3NB-500F / 800F / 1000F / 1300F / 1600F / 2200F. Reference file: 宏华HHF500-2200HL新泥浆泵零件图册.pdf.
S2 — Honghua 3NB-1000F parts catalogue, NB1000G-TC, November 2011, Chinese/Russian. Reference file: 宏华3NB-1000F 泥浆泵.pdf.
S3 — Honghua 3NB-1300F / 3NB-1600F shared parts manual, May 2003. Reference file: 宏华3NB-1600F英制.pdf.

PDF page numbers count from the first page of each reference file. Brand names identify the equipment or catalogue source. A listed number does not establish interchangeability, original-manufacturer authorisation, stock or a delivery commitment. Send the nameplate, complete reference, quantity and drawing revision for a parts review.

Honghua 3NB-1000F replacement-part identification requires the source catalogue as well as the model. The bilingual material-code book uses ten-digit identifiers for assemblies, wear parts and bought-in components. Preserve those codes as printed; a similarly named component in another 1000F parts book may use a different drawing-number family.

Read the assembly and material-code scope together

The 1000F fluid-end assembly table lists 1200008649 for the discharge manifold. Its cylinder-detail table separately identifies 1200008655 for the clamp assembly and 1200008651 for the piston rod. This is a useful example of why a complete assembly line and an individual component line should remain separate in a request for quotation.

Configuration details to confirm

The piston charts include some 800F/1000F application groups alongside other model groups. Retain the exact component type, printed size and application cell when selecting a reference. A code listed for a piston hub is not a substitute for the rubber, plate or snap-ring code, even where a diameter is repeated.

Information for a replacement-parts enquiry

Provide a readable nameplate photograph, pump serial number, the catalogue cover or revision, the material code, source page, item number and required quantity. Add photographs of the removed component and its markings. For threaded parts, include the thread form and measured dimensions; for seals, include the actual sealing profile as well as the nominal size.

The reference list distinguishes a complete assembly from its individual components. State whether the request concerns one component, a matched set or a complete assembly, and identify any parts that must remain paired. Codes printed for standards, equipment models or consumable grades have a different role from a custom part identifier.

For related selection information, see our mud pump spare-parts supply guide. Send the model and component details through the Pratt Oil contact page for a quotation review. Supply and suitability require confirmation against the submitted details.

Identify the 2011 NB1000G-TC catalogue revision

The Honghua parts list marked 3NB-1000F, document NB1000G-TC, is dated November 2011. Its drawing-reference system includes NB1000G assemblies and NB800G components. A component carrying an NB800G prefix is therefore not automatically the wrong item for this manual: several such references are expressly listed in its 3NB-1000F fluid-end and general-assembly tables. Match the complete reference, component description and assembly position before ordering.

Power-end references that need their full suffix

The crankshaft table identifies NB1000G.02.10B as the widened bull gear. The pinion-shaft table likewise identifies NB1000G.03.02B as the widened pinion shaft. Retain the B suffix in an enquiry and provide the fitted gear dimensions or drawing. These entries do not establish that a different suffix or an unsuffixed gear is interchangeable. The same section distinguishes right and left main-bearing sleeves, bearing end covers and positioning rings.

Fluid-end and valve matching

The source lists NB800G.05.01.00 for the fluid-cylinder assembly and NB800G.05.17.00 for the valve assembly. Its API 6# notation describes that valve entry; it is not evidence of a supplier certification. The piston NB1000G.05.02.00, piston rod NB1000G.05.03, bimetal liner NB800G.05.22 and standard liner NB800G.05.22A remain separate references. Confirm liner bore, piston arrangement, seal profile and the removed component rather than selecting from the pump name alone.

The general table also distinguishes discharge-elbow assembly NB1000G.15.00 from discharge five-way-cross assembly NB1000G.15.00A. State which arrangement is fitted. Catalogue quantities describe the illustrated assembly, not stock availability or a recommended spare quantity.

Prepare a matching enquiry

Send a nameplate photograph, this catalogue revision, the full drawing reference, quantity required, clear photographs and measured mating dimensions. Keep the 2011 drawing references separate from ten-digit material codes in later catalogues until an explicit cross-reference is confirmed. Use our mud pump spare parts enquiry page to request a review of the supplied identification details.

Honghua 3NB-1000F general assembly drawing NB1000G.00 from the 2011 parts list — General assembly drawing NB1000G.00 in the Honghua 3NB-1000F parts list, NB1000G-TC, November 2011.

1200010149 — S1 , PDF p. 7 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010148 — S1 , PDF p. 7 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008649 — S1 , PDF p. 7 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300000286 — S1 , PDF p. 7 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010143 — S1 , PDF p. 7 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010241 — S1 , PDF p. 7 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008652 — S1 , PDF p. 7 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006771 — S1 , PDF p. 7 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010253 — S1 , PDF p. 7 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008665 — S1 , PDF p. 7 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300000267 — S1 , PDF p. 7 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008666 — S1 , PDF p. 7 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300005876 — S1 , PDF p. 7 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008657 — S1 , PDF p. 7 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008662 — S1 , PDF p. 7 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008663 — S1 , PDF p. 7 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008655 — S1 , PDF p. 14 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008651 — S1 , PDF p. 14 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010225 — S1 , PDF p. 14 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008650 — S1 , PDF p. 14 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010178 — S1 , PDF p. 14 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010163 — S1 , PDF p. 14 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010162 — S1 , PDF p. 14 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010167 — S1 , PDF p. 14 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010164 — S1 , PDF p. 14 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010165 — S1 , PDF p. 14 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010169 — S1 , PDF p. 14 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010170 — S1 , PDF p. 14 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010143 — S1 , PDF p. 15 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010244 — S1 , PDF p. 15 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010158 — S1 , PDF p. 15 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010243 — S1 , PDF p. 15 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010154 — S1 , PDF p. 15 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010155 — S1 , PDF p. 15 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010152 — S1 , PDF p. 15 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010153 — S1 , PDF p. 15 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200016222 — S1 , PDF p. 15 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠120.; Honghua material/catalogue code (10-digit code column)
1200010154 — S1 , PDF p. 15 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠120.; Honghua material/catalogue code (10-digit code column)
1200016223 — S1 , PDF p. 15 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠130.; Honghua material/catalogue code (10-digit code column)
1200010154 — S1 , PDF p. 15 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠130.; Honghua material/catalogue code (10-digit code column)
1200016224 — S1 , PDF p. 15 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠140.; Honghua material/catalogue code (10-digit code column)
1200010154 — S1 , PDF p. 15 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠140.; Honghua material/catalogue code (10-digit code column)
1200016225 — S1 , PDF p. 15 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠150.; Honghua material/catalogue code (10-digit code column)
1200010154 — S1 , PDF p. 15 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠150.; Honghua material/catalogue code (10-digit code column)
1200016226 — S1 , PDF p. 15 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠160.; Honghua material/catalogue code (10-digit code column)
1200010154 — S1 , PDF p. 15 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠160.; Honghua material/catalogue code (10-digit code column)
1200010162 — S1 , PDF p. 15 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010193 — S1 , PDF p. 16 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠120.; Honghua material/catalogue code (10-digit code column)
1200010225 — S1 , PDF p. 16 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠120.; Honghua material/catalogue code (10-digit code column)
1200010198 — S1 , PDF p. 16 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠130.; Honghua material/catalogue code (10-digit code column)
1200010225 — S1 , PDF p. 16 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠130.; Honghua material/catalogue code (10-digit code column)
1200010204 — S1 , PDF p. 16 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠140.; Honghua material/catalogue code (10-digit code column)
1200010225 — S1 , PDF p. 16 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠140.; Honghua material/catalogue code (10-digit code column)
1200010209 — S1 , PDF p. 16 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠150.; Honghua material/catalogue code (10-digit code column)
1200010225 — S1 , PDF p. 16 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠150.; Honghua material/catalogue code (10-digit code column)
1200010214 — S1 , PDF p. 16 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠160.; Honghua material/catalogue code (10-digit code column)
1200010225 — S1 , PDF p. 16 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠160.; Honghua material/catalogue code (10-digit code column)
1200010220 — S1 , PDF p. 16 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠170.; Honghua material/catalogue code (10-digit code column)
1200010225 — S1 , PDF p. 16 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠170.; Honghua material/catalogue code (10-digit code column)
1200010194 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-800F, 3NB-1000F; Piston hub; size as printed ￠120. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010199 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-800F, 3NB-1000F; Piston hub; size as printed ￠130. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010205 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-800F, 3NB-1000F; Piston hub; size as printed ￠140. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010210 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-800F, 3NB-1000F; Piston hub; size as printed ￠150. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010215 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-800F, 3NB-1000F; Piston hub; size as printed ￠160. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010221 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-800F, 3NB-1000F; Piston hub; size as printed ￠170. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010195 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston rubber; size as printed ￠120. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010200 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston rubber; size as printed ￠130. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010206 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston rubber; size as printed ￠140. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010211 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston rubber; size as printed ￠150. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010216 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston rubber; size as printed ￠160. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010222 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston rubber; size as printed ￠170. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010197 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston retainer plate; size as printed ￠120. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010202 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston retainer plate; size as printed ￠130. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010208 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston retainer plate; size as printed ￠140. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010213 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston retainer plate; size as printed ￠150. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010218 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston retainer plate; size as printed ￠160. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010224 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston retainer plate; size as printed ￠170. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010187 — S1 , PDF p. 27 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston snap ring; size as printed ￠120. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010203 — S1 , PDF p. 27 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston snap ring; size as printed ￠130, ￠140,￠150. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010219 — S1 , PDF p. 27 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston snap ring; size as printed ￠160, ￠170,. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010173 — S1 , PDF p. 29 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010174 — S1 , PDF p. 29 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300002340 — S1 , PDF p. 29 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010172 — S1 , PDF p. 29 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010175 — S1 , PDF p. 29 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010171 — S1 , PDF p. 29 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010176 — S1 , PDF p. 29 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010177 — S1 , PDF p. 29 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008597 — S1 , PDF p. 34 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008605 — S1 , PDF p. 35 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008603 — S1 , PDF p. 35 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008610 — S1 , PDF p. 35 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008588 — S1 , PDF p. 35 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008601 — S1 , PDF p. 35 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008594 — S1 , PDF p. 35 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008591 — S1 , PDF p. 35 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008602 — S1 , PDF p. 35 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008609 — S1 , PDF p. 35 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008592 — S1 , PDF p. 35 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008593 — S1 , PDF p. 35 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008596 — S1 , PDF p. 35 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008590 — S1 , PDF p. 35 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008635 — S1 , PDF p. 41 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006126 — S1 , PDF p. 41 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008615 — S1 , PDF p. 41 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300002207 — S1 , PDF p. 41 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008570 — S1 , PDF p. 41 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008631 — S1 , PDF p. 41 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200028721 — S1 , PDF p. 41 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008646 — S1 , PDF p. 41 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008633 — S1 , PDF p. 41 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300000194 — S1 , PDF p. 41 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008636 — S1 , PDF p. 41 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008638 — S1 , PDF p. 41 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008628 — S1 , PDF p. 41 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008627 — S1 , PDF p. 41 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008645 — S1 , PDF p. 41 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008637 — S1 , PDF p. 41 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008644 — S1 , PDF p. 41 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008640 — S1 , PDF p. 41 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008629 — S1 , PDF p. 41 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300001141 — S1 , PDF p. 46 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006415 — S1 , PDF p. 47 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008625 — S1 , PDF p. 47 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008613 — S1 , PDF p. 47 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008612 — S1 , PDF p. 47 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006217 — S1 , PDF p. 47 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300001130 — S1 , PDF p. 47 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008616 — S1 , PDF p. 47 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008614 — S1 , PDF p. 47 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008615 — S1 , PDF p. 47 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006660 — S1 , PDF p. 47 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300001150 — S1 , PDF p. 47 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008617 — S1 , PDF p. 47 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008618 — S1 , PDF p. 47 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008624 — S1 , PDF p. 47 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008619 — S1 , PDF p. 47 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008620 — S1 , PDF p. 47 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008621 — S1 , PDF p. 47 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300001130 — S1 , PDF p. 50 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006219 — S1 , PDF p. 50 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010467 — S1 , PDF p. 50 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300008203 — S1 , PDF p. 50 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010474 — S1 , PDF p. 50 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010475 — S1 , PDF p. 50 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010473 — S1 , PDF p. 50 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010471 — S1 , PDF p. 50 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008763 — S1 , PDF p. 50 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300004241 — S1 , PDF p. 50 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008760 — S1 , PDF p. 50 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008759 — S1 , PDF p. 50 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008762 — S1 , PDF p. 50 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008756 — S1 , PDF p. 50 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008758 — S1 , PDF p. 50 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010459 — S1 , PDF p. 50 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010458 — S1 , PDF p. 50 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010374 — S1 , PDF p. 53 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300000224 — S1 , PDF p. 53 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010375 — S1 , PDF p. 53 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010376 — S1 , PDF p. 53 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010379 — S1 , PDF p. 53 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010456 — S1 , PDF p. 53 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010377 — S1 , PDF p. 53 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010378 — S1 , PDF p. 53 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010398 — S1 , PDF p. 55 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010396 — S1 , PDF p. 55 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010388 — S1 , PDF p. 55 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010382 — S1 , PDF p. 55 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010400 — S1 , PDF p. 55 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010392 — S1 , PDF p. 55 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008741 — S1 , PDF p. 55 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010401 — S1 , PDF p. 58 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010399 — S1 , PDF p. 58 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010383 — S1 , PDF p. 58 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010397 — S1 , PDF p. 58 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010391 — S1 , PDF p. 58 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010393 — S1 , PDF p. 58 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008742 — S1 , PDF p. 58 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006664 — S1 , PDF p. 58 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010407 — S1 , PDF p. 58 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006668 — S1 , PDF p. 58 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008744 — S1 , PDF p. 58 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008745 — S1 , PDF p. 58 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300001150 — S1 , PDF p. 58 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300005860 — S1 , PDF p. 58 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010404 — S1 , PDF p. 58 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010402 — S1 , PDF p. 58 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010403 — S1 , PDF p. 58 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008606 — S1 , PDF p. 62 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008581 — S1 , PDF p. 62 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008582 — S1 , PDF p. 62 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008584 — S1 , PDF p. 62 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008576 — S1 , PDF p. 62 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008513 — S1 , PDF p. 62 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008722 — S1 , PDF p. 64 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300007443 — S1 , PDF p. 64 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300005293 — S1 , PDF p. 64 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300004215 — S1 , PDF p. 64 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010319 — S1 , PDF p. 64 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008730 — S1 , PDF p. 64 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300004215 — S1 , PDF p. 64 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Other codes printed in this source row: 1300004215, 1200008730. No supersession direction is inferred.; Honghua material/catalogue code (10-digit code column)
1200008730 — S1 , PDF p. 64 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Other codes printed in this source row: 1300004215, 1200008730. No supersession direction is inferred.; Honghua material/catalogue code (10-digit code column)
1300007647 — S1 , PDF p. 64 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008730 — S1 , PDF p. 64 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Other codes printed in this source row: 1200008730, 1200008727. No supersession direction is inferred.; Honghua material/catalogue code (10-digit code column)
1200008727 — S1 , PDF p. 64 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Other codes printed in this source row: 1200008730, 1200008727. No supersession direction is inferred.; Honghua material/catalogue code (10-digit code column)
1300005953 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008702 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008703 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1800000510 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300001263 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008704 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008705 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008700 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1600000976 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008713 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300000012 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300001126 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008714 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008715 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300008214 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008681 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008680 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008682 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008701 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300009209 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200008712 — S1 , PDF p. 69 — Source table heading: 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
NB1000G.00 — S2 , PDF p. 4 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; drawing title, not a pump-model interchangeability claim.; Assembly drawing reference
NB1000G.01.00 — S2 , PDF p. 5 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.00 — S2 , PDF p. 5 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.03.00 — S2 , PDF p. 5 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.04.00 — S2 , PDF p. 5 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.05.00 — S2 , PDF p. 5 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
GB/T67-2000 — S2 , PDF p. 5 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB1000G.06.00 — S2 , PDF p. 5 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.07.00 — S2 , PDF p. 5 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.08.00 — S2 , PDF p. 5 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.09 — S2 , PDF p. 5 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.10.00 — S2 , PDF p. 5 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.09 — S2 , PDF p. 5 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.10.00 — S2 , PDF p. 5 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
GB/T5781-2000 — S2 , PDF p. 5 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
GB/T95-2002 — S2 , PDF p. 5 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB1000G.11 — S2 , PDF p. 5 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.14 — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.15.00 — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.12 — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.19.00 — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
GB/T5780-2000 — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB800G.20 — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.21 — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.13 — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
GB/T5780-2000 — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB1000G.14 — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.22.00 — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
GB/T5782-2000 — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB800G.23 — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.15.00 — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.15.00A — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.16.00 — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.26 — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
GB/T5781-2000 — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB1000G.17.00 — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.28.00 — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.18.00 — S2 , PDF p. 6 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.19.00 — S2 , PDF p. 7 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
GB/T6170-2000 — S2 , PDF p. 7 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
GB/T41-2000 — S2 , PDF p. 7 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
GB/T93-1987 — S2 , PDF p. 7 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
GB/T827-1986 — S2 , PDF p. 7 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
YK-150 — S2 , PDF p. 7 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Instrument-model reference
GB/T5783-2000 — S2 , PDF p. 7 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB800G.31 — S2 , PDF p. 7 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; General assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.01.00 — S2 , PDF p. 8 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; drawing title, not a pump-model interchangeability claim.; Assembly drawing reference
NB1000G.01.01.00 — S2 , PDF p. 9 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Frame assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.01.02 — S2 , PDF p. 9 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Frame assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.01.03 — S2 , PDF p. 9 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Frame assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.01.04 — S2 , PDF p. 9 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Frame assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.01.05 — S2 , PDF p. 9 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Frame assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.00 — S2 , PDF p. 10 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; drawing title, not a pump-model interchangeability claim.; Assembly drawing reference
NB1000G.02.01.00 — S2 , PDF p. 11 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.02 — S2 , PDF p. 11 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.03 — S2 , PDF p. 11 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.04 — S2 , PDF p. 11 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.05.00 — S2 , PDF p. 11 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.06 — S2 , PDF p. 11 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.07 — S2 , PDF p. 11 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.08.00 — S2 , PDF p. 11 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.09 — S2 , PDF p. 11 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.10B — S2 , PDF p. 11 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.11 — S2 , PDF p. 11 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.12.00 — S2 , PDF p. 11 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.13 — S2 , PDF p. 11 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.14 — S2 , PDF p. 11 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.15 — S2 , PDF p. 11 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.16 — S2 , PDF p. 12 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.17 — S2 , PDF p. 12 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.18 — S2 , PDF p. 12 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.19.00 — S2 , PDF p. 12 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.20 — S2 , PDF p. 12 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.21 — S2 , PDF p. 12 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.02.22 — S2 , PDF p. 12 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
GB/T343-1994 — S2 , PDF p. 12 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
GB/T343-1994 — S2 , PDF p. 12 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
242 — S2 , PDF p. 12 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Sealant/adhesive grade reference
GB/T97.2-2002 — S2 , PDF p. 12 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
GB/T5783-2000 — S2 , PDF p. 12 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB1000G.02.01.00B — S2 , PDF p. 12 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crankshaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.03.00 — S2 , PDF p. 13 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; drawing title, not a pump-model interchangeability claim.; Assembly drawing reference
NB1000G.03.01 — S2 , PDF p. 14 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Pinion-shaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.03.02B — S2 , PDF p. 14 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Pinion-shaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.03.03 — S2 , PDF p. 14 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Pinion-shaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.03.04 — S2 , PDF p. 14 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Pinion-shaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.03.05 — S2 , PDF p. 14 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Pinion-shaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.03.06 — S2 , PDF p. 14 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Pinion-shaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.03.07 — S2 , PDF p. 14 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Pinion-shaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.03.08 — S2 , PDF p. 14 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Pinion-shaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.03.09 — S2 , PDF p. 14 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Pinion-shaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.03.10.00 — S2 , PDF p. 14 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Pinion-shaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
GB/T5782-2000 — S2 , PDF p. 14 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Pinion-shaft assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
GB/T5782-2000 — S2 , PDF p. 14 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Pinion-shaft assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB1000G.03.11 — S2 , PDF p. 14 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Pinion-shaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.03.12 — S2 , PDF p. 14 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Pinion-shaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
GB/T93-1987 — S2 , PDF p. 14 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Pinion-shaft assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
GB/T93-1987 — S2 , PDF p. 14 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Pinion-shaft assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB1000G.03.13 — S2 , PDF p. 14 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Pinion-shaft assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
GB/T5782-2000 — S2 , PDF p. 14 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Pinion-shaft assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
GB/T93-1987 — S2 , PDF p. 14 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Pinion-shaft assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB1000G.04.00 — S2 , PDF p. 15 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; drawing title, not a pump-model interchangeability claim.; Assembly drawing reference
NB1000G.04.01 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.04.02 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.04.03 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.04.04 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
GB/T3452.1-2005 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB1000G.04.05 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.04.06 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.04.07 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.04.08 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.04.09 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.04.10 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.04.11 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.04.12 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.04.13 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.04.14 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.04.15 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
GB/T3452.1-2005 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
GB/T5780-2000 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
GB/T93-1987 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB1000G.04.16 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
GB/T70.1-2000 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB1000G.04.17 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.04.18 — S2 , PDF p. 16 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.04.19 — S2 , PDF p. 17 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.04.20 — S2 , PDF p. 17 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
GB/T4240-1993 — S2 , PDF p. 17 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
GB/T4240-1993 — S2 , PDF p. 17 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
GB/T4240-1993 — S2 , PDF p. 17 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB1000G.04.21.00 — S2 , PDF p. 17 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
242 — S2 , PDF p. 17 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Sealant/adhesive grade reference
GB/T3452.1-2005 — S2 , PDF p. 17 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Crosshead assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB1000G.05.00 — S2 , PDF p. 18 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; drawing title, not a pump-model interchangeability claim.; Assembly drawing reference
NB800G.05.01.00 — S2 , PDF p. 19 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.02 — S2 , PDF p. 19 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.03 — S2 , PDF p. 19 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.04 — S2 , PDF p. 19 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.05.00 — S2 , PDF p. 19 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.06 — S2 , PDF p. 19 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
GB/T3452.1-2005 — S2 , PDF p. 19 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB800G.05.07 — S2 , PDF p. 19 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.05.01 — S2 , PDF p. 19 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.10 — S2 , PDF p. 19 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.09 — S2 , PDF p. 19 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.01.03 — S2 , PDF p. 19 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.11 — S2 , PDF p. 19 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.12 — S2 , PDF p. 19 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.13.00 — S2 , PDF p. 19 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.14 — S2 , PDF p. 19 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.15 — S2 , PDF p. 19 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
GB/T4240-1993 — S2 , PDF p. 20 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB800G.05.16 — S2 , PDF p. 20 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.17.00 — S2 , PDF p. 20 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.18.00 — S2 , PDF p. 20 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.05.02.00 — S2 , PDF p. 20 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.20 — S2 , PDF p. 20 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.05.03 — S2 , PDF p. 20 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.22 — S2 , PDF p. 20 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.22A — S2 , PDF p. 20 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.05.04.00 — S2 , PDF p. 20 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.05.05.00 — S2 , PDF p. 20 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.25 — S2 , PDF p. 20 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.27 — S2 , PDF p. 20 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.28.00 — S2 , PDF p. 20 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
GB/T3452.1-2005 — S2 , PDF p. 20 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
GB/T5783-2000 — S2 , PDF p. 20 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB1000G.05.06.00 — S2 , PDF p. 20 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.05.07.00 — S2 , PDF p. 20 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.05.08.00 — S2 , PDF p. 20 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
GB/T5782-2000 — S2 , PDF p. 20 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
GB/T6170-2000 — S2 , PDF p. 21 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
GB/T3452.1-2005 — S2 , PDF p. 21 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB1000G.05.09 — S2 , PDF p. 21 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.05.10 — S2 , PDF p. 21 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.32 — S2 , PDF p. 21 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.26 — S2 , PDF p. 21 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB1000G.05.11 — S2 , PDF p. 21 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
277 — S2 , PDF p. 21 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Fluid-end assembly. Quantities are the source assembly quantities, not stock quantities.; Sealant/adhesive grade reference
NB800G.05.17.00 — S2 , PDF p. 22 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; drawing title, not a pump-model interchangeability claim.; Assembly drawing reference
NB800G.05.17.01 — S2 , PDF p. 22 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Valve assembly (API 6# reference in source). Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.17.02 — S2 , PDF p. 22 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Valve assembly (API 6# reference in source). Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.17.03 — S2 , PDF p. 22 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Valve assembly (API 6# reference in source). Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
GB/T308-2002 — S2 , PDF p. 22 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Valve assembly (API 6# reference in source). Quantities are the source assembly quantities, not stock quantities.; Standard/specification reference
NB800G.05.17.04 — S2 , PDF p. 22 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Valve assembly (API 6# reference in source). Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.17.05 — S2 , PDF p. 22 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Valve assembly (API 6# reference in source). Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.17.06 — S2 , PDF p. 22 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Valve assembly (API 6# reference in source). Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
NB800G.05.17.07 — S2 , PDF p. 23 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Valve assembly (API 6# reference in source). Quantities are the source assembly quantities, not stock quantities.; Component drawing/part reference
243 — S2 , PDF p. 23 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; Valve assembly (API 6# reference in source). Quantities are the source assembly quantities, not stock quantities.; Sealant/adhesive grade reference
NB1000G.06.00 — S2 , PDF p. 24 — Honghua 3NB-1000F parts list, NB1000G-TC, November 2011; drawing title, not a pump-model interchangeability claim.; Assembly drawing reference
NB1000G.06.01.00 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T1527-1997 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB1000G.06.02 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.06.03.00 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T1527-1997 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T1527-1997 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB1000G.06.04 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T1527-1997 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB1000G.06.05 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.06.06.00 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.06.07.00 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.06.08 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.06.09 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
Y-60Z — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; catalogued component designation
NB1000G.06.10 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T1527-1997 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T1527-1997 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB1000G.06.11 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.06.12 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T1527-1997 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T1527-1997 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB1000G.06.13.00 — S2 , PDF p. 25 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T1527-1997 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB1000G.06.14 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T5781-2000 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T93-1987 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB1000G.06.15 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.06.16 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.06.17 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T1527-1997 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T1527-1997 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T1527-1997 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB1000G.06.18 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T1527-1997 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T1527-1997 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB1000G.06.19 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.06.20 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T1527-1997 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T1527-1997 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T1527-1997 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB1000G.06.21.00 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.06.22 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.06.23 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.06.24 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T1527-1997 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB1000G.06.25.00 — S2 , PDF p. 26 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.06.26 — S2 , PDF p. 27 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T1527-1997 — S2 , PDF p. 27 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB1000G.06.27.00 — S2 , PDF p. 27 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.06.28 — S2 , PDF p. 27 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.06.29 — S2 , PDF p. 27 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.06.30 — S2 , PDF p. 27 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T70.1-2000 — S2 , PDF p. 27 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
YYFJ-L20 — S2 , PDF p. 27 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; catalogued component designation
GB/T93-1987 — S2 , PDF p. 27 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB1000G.06.31.00 — S2 , PDF p. 27 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T1527-1997 — S2 , PDF p. 27 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
TS1609 — S2 , PDF p. 27 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Source lists TS1609 OR TS1680; they are alternatives, not a combined identifier or a selection recommendation.; consumable designation
TS1680 — S2 , PDF p. 27 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Power-end lubrication parts table, continuation of source NB1000G.06.00 assembly. References apply only to this source configuration; NB800G entries are retained literally. Source lists TS1609 OR TS1680; they are alternatives, not a combined identifier or a selection recommendation.; consumable designation
NB1000G.08.00 — S2 , PDF p. 28 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally.; assembly drawing reference
NB1000G.08.01.00 — S2 , PDF p. 29 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.08.01.00A — S2 , PDF p. 29 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.08.02 — S2 , PDF p. 29 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T1171-1996 — S2 , PDF p. 29 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB800G.08.03.00 — S2 , PDF p. 29 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.08.03.00A — S2 , PDF p. 29 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.08.03 — S2 , PDF p. 29 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.08.04 — S2 , PDF p. 29 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.08.04 — S2 , PDF p. 29 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB9065.1-88 — S2 , PDF p. 29 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB800G.08.07 — S2 , PDF p. 29 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB9065.1-88 — S2 , PDF p. 29 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB800G.08.08.00 — S2 , PDF p. 29 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.08.08.00A — S2 , PDF p. 29 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.08.05.00 — S2 , PDF p. 29 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.08.06.00 — S2 , PDF p. 29 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T73-1985 — S2 , PDF p. 29 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB800G.08.11 — S2 , PDF p. 29 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.08.12 — S2 , PDF p. 29 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
32SB180J（32PL） — S2 , PDF p. 30 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally.; catalogued component equipment model
Q11F-16 — S2 , PDF p. 30 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally.; catalogued component designation
NB800G.08.13 — S2 , PDF p. 30 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.08.14 — S2 , PDF p. 30 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T5783-2000 — S2 , PDF p. 30 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T93-1987 — S2 , PDF p. 30 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T41-2000 — S2 , PDF p. 30 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T5783-2000 — S2 , PDF p. 30 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T6170-2000 — S2 , PDF p. 30 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T5781-2000 — S2 , PDF p. 30 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T95-2002 — S2 , PDF p. 30 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.08.00 liner-wash pump assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB800G.10.00 — S2 , PDF p. 31 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB800G.10.00 breather assembly as printed in the 3NB-1000F source. References apply only to this source configuration; NB800G entries are retained literally.; assembly drawing reference
NB800G.10.01 — S2 , PDF p. 31 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB800G.10.00 breather assembly as printed in the 3NB-1000F source. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.10.02 — S2 , PDF p. 31 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB800G.10.00 breather assembly as printed in the 3NB-1000F source. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.10.03 — S2 , PDF p. 31 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB800G.10.00 breather assembly as printed in the 3NB-1000F source. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.10.04 — S2 , PDF p. 31 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB800G.10.00 breather assembly as printed in the 3NB-1000F source. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T5781-2000 — S2 , PDF p. 31 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB800G.10.00 breather assembly as printed in the 3NB-1000F source. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB800G.10.05 — S2 , PDF p. 31 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB800G.10.00 breather assembly as printed in the 3NB-1000F source. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.10.06 — S2 , PDF p. 31 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB800G.10.00 breather assembly as printed in the 3NB-1000F source. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.10.07 — S2 , PDF p. 31 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB800G.10.00 breather assembly as printed in the 3NB-1000F source. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.10.08 — S2 , PDF p. 31 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB800G.10.00 breather assembly as printed in the 3NB-1000F source. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T67-2000 — S2 , PDF p. 32 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB800G.10.00 breather assembly as printed in the 3NB-1000F source. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB1000G.15.00A — S2 , PDF p. 33 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00A five-way discharge connector assembly. References apply only to this source configuration; NB800G entries are retained literally.; assembly drawing reference
NB800G.24.01.00A — S2 , PDF p. 34 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00A five-way discharge connector assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.24.02A — S2 , PDF p. 34 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00A five-way discharge connector assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.24.03.00A — S2 , PDF p. 34 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00A five-way discharge connector assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.24.04A — S2 , PDF p. 34 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00A five-way discharge connector assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.24.05A — S2 , PDF p. 34 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00A five-way discharge connector assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.24.06A — S2 , PDF p. 34 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00A five-way discharge connector assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.24.07A — S2 , PDF p. 34 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00A five-way discharge connector assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.24.08A — S2 , PDF p. 34 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00A five-way discharge connector assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.24.09A — S2 , PDF p. 34 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00A five-way discharge connector assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.15.01.00A — S2 , PDF p. 34 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00A five-way discharge connector assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T5782-2000 — S2 , PDF p. 34 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00A five-way discharge connector assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T93-1987 — S2 , PDF p. 34 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00A five-way discharge connector assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB800G.24.11A — S2 , PDF p. 34 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00A five-way discharge connector assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T5782-2000 — S2 , PDF p. 34 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00A five-way discharge connector assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T6170-2000 — S2 , PDF p. 34 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00A five-way discharge connector assembly. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB1000G.15.02A — S2 , PDF p. 34 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00A five-way discharge connector assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.15.03.00A — S2 , PDF p. 34 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00A five-way discharge connector assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.15.00 — S2 , PDF p. 35 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00 discharge elbow assembly. References apply only to this source configuration; NB800G entries are retained literally.; assembly drawing reference
NB800G.24.01.00 — S2 , PDF p. 35 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00 discharge elbow assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.15.01.00 — S2 , PDF p. 35 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00 discharge elbow assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.24.03.00 — S2 , PDF p. 35 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00 discharge elbow assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.24.04 — S2 , PDF p. 36 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00 discharge elbow assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.24.05 — S2 , PDF p. 36 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00 discharge elbow assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.24.06 — S2 , PDF p. 36 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00 discharge elbow assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
243 — S2 , PDF p. 36 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.15.00 discharge elbow assembly. References apply only to this source configuration; NB800G entries are retained literally.; consumable designation
NB1000G.17.00 — S2 , PDF p. 37 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.17.00 KB-75 dampener assembly. References apply only to this source configuration; NB800G entries are retained literally.; assembly drawing reference
NB800G.27.01 — S2 , PDF p. 38 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.17.00 KB-75 dampener assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.27.02 — S2 , PDF p. 38 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.17.00 KB-75 dampener assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.17.01.00 — S2 , PDF p. 38 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.17.00 KB-75 dampener assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.17.02.00 — S2 , PDF p. 38 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.17.00 KB-75 dampener assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.17.03 — S2 , PDF p. 38 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.17.00 KB-75 dampener assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.27.09 — S2 , PDF p. 38 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.17.00 KB-75 dampener assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB1000G.17.04 — S2 , PDF p. 38 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.17.00 KB-75 dampener assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.27.06.00 — S2 , PDF p. 38 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.17.00 KB-75 dampener assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.27.10.00 — S2 , PDF p. 38 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.17.00 KB-75 dampener assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
Y-60 — S2 , PDF p. 38 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.17.00 KB-75 dampener assembly. References apply only to this source configuration; NB800G entries are retained literally.; catalogued component designation
JZR3-L8 — S2 , PDF p. 38 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.17.00 KB-75 dampener assembly. References apply only to this source configuration; NB800G entries are retained literally.; catalogued component designation
NB800G.27.08 — S2 , PDF p. 38 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.17.00 KB-75 dampener assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.27.11.00 — S2 , PDF p. 38 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB1000G.17.00 KB-75 dampener assembly. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.22.00 — S2 , PDF p. 39 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB800G.22.00 discharge strainer assembly as printed in the 3NB-1000F source. References apply only to this source configuration; NB800G entries are retained literally.; assembly drawing reference
NB800G.22.01.00 — S2 , PDF p. 39 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB800G.22.00 discharge strainer assembly as printed in the 3NB-1000F source. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.22.02 — S2 , PDF p. 39 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB800G.22.00 discharge strainer assembly as printed in the 3NB-1000F source. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T3452.1-2005 — S2 , PDF p. 39 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB800G.22.00 discharge strainer assembly as printed in the 3NB-1000F source. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
NB800G.22.03 — S2 , PDF p. 39 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB800G.22.00 discharge strainer assembly as printed in the 3NB-1000F source. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.22.04 — S2 , PDF p. 40 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; NB800G.22.00 discharge strainer assembly as printed in the 3NB-1000F source. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.28.01 — S2 , PDF p. 41 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.28.02 — S2 , PDF p. 41 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.28.03.00 — S2 , PDF p. 41 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.28.04 — S2 , PDF p. 41 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.28.05 — S2 , PDF p. 41 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.28.06 — S2 , PDF p. 41 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.28.07 — S2 , PDF p. 41 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.28.08 — S2 , PDF p. 41 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.28.09 — S2 , PDF p. 41 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.28.10 — S2 , PDF p. 41 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.28.11 — S2 , PDF p. 41 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.28.12 — S2 , PDF p. 41 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.28.13 — S2 , PDF p. 41 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.28.14 — S2 , PDF p. 41 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
NB800G.28.15 — S2 , PDF p. 41 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally.; drawing part reference
GB/T91-2000 — S2 , PDF p. 41 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T67-2000 — S2 , PDF p. 41 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T6170-2000 — S2 , PDF p. 41 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T5780-2000 — S2 , PDF p. 42 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T41-2000 — S2 , PDF p. 42 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GB/T67-2000 — S2 , PDF p. 42 — Honghua 3NB-1000F source, NB1000G-TC, November 2011; Final valve-component BOM in the 3NB-1000F source; assembly title not visible in assigned PDF25–43 range. References apply only to this source configuration; NB800G entries are retained literally. Standard reference is not a unique Honghua MPN; retain the source dimension and assembly item.; standard reference with source specification
GH3161—05.33.00 — S3 , PDF p. 39 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference
GH3161—05.33.01 — S3 , PDF p. 39 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference
GH3161—05.33.02 — S3 , PDF p. 39 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference
GH3161—27.00 — S3 , PDF p. 50 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference
GH3161—27.01 — S3 , PDF p. 50 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference
GH3161—27.02 — S3 , PDF p. 50 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference
GH3161—27.03.00 — S3 , PDF p. 50 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference
GH3161—27.04.00 — S3 , PDF p. 50 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference
GH3161—27.05 — S3 , PDF p. 50 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference
GH3161—27.06 — S3 , PDF p. 50 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference
GH3161—27.07 — S3 , PDF p. 50 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference
GH3161—27.08.00 — S3 , PDF p. 50 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference
PJC₁—L8 — S3 , PDF p. 50 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference
Y—60 — S3 , PDF p. 50 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference
JZR₃—L8 — S3 , PDF p. 50 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference
GH3161—27.09 — S3 , PDF p. 50 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference
GH3161—27.10.00 — S3 , PDF p. 50 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference
GH3161—27.04.02 — S3 , PDF p. 50 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference
GH3161—27.04.03 — S3 , PDF p. 50 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference
GH3161—27.04.04 — S3 , PDF p. 50 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference
GH3161—27.04.05 — S3 , PDF p. 50 — 3NB-1000F / 3NB-1300F / 3NB-1600F explicitly printed in source table heading; this record applies only within the pictured suction dampener or KB-75 dampener assembly; drawing part reference

Request a Quotation

Send the part number, quantity and pump model for a quotation.

WhatsApp parts inquiry Email parts list

Honghua 3NB-1000F Mud Pump Spare Parts

Parts List

Reference documents and scope

Read the assembly and material-code scope together

Configuration details to confirm

Information for a replacement-parts enquiry

Identify the 2011 NB1000G-TC catalogue revision

Power-end references that need their full suffix

Fluid-end and valve matching

Prepare a matching enquiry

Request a Quotation

Phone:

WhatsApp:

Email:

Honghua 3NB-1000F Mud Pump Spare Parts

Parts List

Reference documents and scope

Read the assembly and material-code scope together

Configuration details to confirm

Information for a replacement-parts enquiry

Identify the 2011 NB1000G-TC catalogue revision

Power-end references that need their full suffix

Fluid-end and valve matching

Prepare a matching enquiry

Request a Quotation

Related model guides
