Honghua 3NB-1300F Mud Pump Parts and Drawing References

Parts List

Search drawing number or nameDownload parts list (CSV)

608 parts

P/P	Part / Drawing No.	Name	Part / Drawing No.	Name
Honghua multi-model material-code catalogue, 3NB-500F / 800F / 1000F / 1300F / 1600F / 2200F
1	`1200004131`	Nut	`1200003985`	Positioning ring (Ⅰ)
2	`1200004129`	Stud	`1200003991`	Positioning ring (Ⅱ)
3	`1200004155`	Discharge manifold	`1200003978`	Inner retaining ring
4	`1300000282`	O-ring	`1200004090`	Mud baffle
5	`1200004114`	Fluid-cylinder assembly	`1300006132`	Bolt
6	`1200004218`	Liner end cover	`1200004085`	End cover
7	`1200004189`	Liner-spray pipe assembly	`1300002208`	Dust seal CCK1250
8	`1300006771`	Bolt	`1200004083`	Sealing washer
9	`1200004319`	Threaded plug	`1200004076`	Stuffing box
10	`1200004315`	Suction flange (Ⅰ)	`1200004088`	Retaining/spacer ring
11	`1200004317`	Suction flange (Ⅱ)	`1200004081`	Double-lip oil seal
12	`1300005876`	Nut	`1200004079`	Oil-seal ring
13	`1200004282`	Suction manifold	`1300000201`	O-ring
14	`1200004310`	Suction-dampener diaphragm	`1200004092`	Crosshead extension rod
15	`1200004313`	Suction-dampener end cover	`1200004108`	Bolt
16	`1300006675`	Bolt	`1200004070`	Upper guide
17	`1300001154`	Washer (spring washer)	`1200004068`	Crosshead
18	`1200004213`	Clamp assembly	`1200004102`	Crosshead bearing
19	`1200004187`	Piston rod	`1200004094`	Crosshead pin
20	`1200004220`	Piston	`1200004100`	Crosshead-pin retainer plate
21	`1200004302`	Piston nut	`1200004098`	Lower guide
22	`1300000249`	O-ring	`1200004106`	Bolt
23	`1200004209`	Liner locking ring	`1300001141`	Washer (spring washer)
24	`1200004185`	Liner retainer	`1300006407`	Bolt
25	`1200004300`	Piston seal ring	`1200004064`	Turning flange
26	`1200004121`	Nut	`1200003804`	Pinion shaft
27	`1200004119`	Stud	`1200004035`	Key
28	`1200004183`	Liner flange	`1300006217`	Bolt
29	`1200004181`	Wear plate	`1300001130`	Washer (spring washer)
30	`1200004179`	Liner seal ring	`1200004044`	Sealing washer
31	`1200026776`	Fluid cylinder (not nickel-plated)	`1200004040`	Wear sleeve
32	`1200004177`	Valve cover	`1200004042`	End cover
33	`1200004175`	Valve-cover seal ring	`1300006661`	Bolt
34	`1200004292`	Valve-stem guide (upper)	`1300001150`	Washer (spring washer)
35	`1200004296`	Retainer plate	`1200004046`	Sealing washer
36	`1200004329`	Spring guide	`1200004048`	Bearing housing
37	`1200004157`	Valve spring	`1200004062`	Bearing
38	`1200004159`	Valve assembly	`1200004050`	Retaining ring
39	`1200004143`	Valve-stem guide (lower)	`1200004052`	Sealing washer
40	`1200004129`	Stud	`1200004054`	Oil-collecting box
41	`1200004131`	Nut	`1300001130`	Washer (spring washer)
42	`1300005689`	Screw	`1300006219`	Bolt
43	`1200004141`	Brass block	`1200004800`	Pressure-gauge guard
44	`1200004137`	Retaining-plate assembly	`1300008203`	Dual-scale vibration-resistant pressure gauge
45	`1200004151`	Positioning plate	`1200004808`	Plug
46	`1200004153`	Cylinder-cover seal ring	`1200004810`	Retaining cap
47	`1200004149`	Cylinder-cover plug	`1200004806`	Connector
48	`1200004133`	Cylinder-cover flange	`1200004794`	Tee
49	`1200004123`	Stud	`1200004796`	Connector
50	`1200004127`	Nut	`1300004241`	Angle stop valve (also labelled fuse in the source)
51	`1200004135`	Cylinder cover	`1200004786`	Nut
52	`1200016192`	Bi-metal liner; source size ￠130	`1200004784`	Stud
53	`1200004179`	Liner seal ring; source size ￠130	`1200004792`	Cover
54	`1200016191`	Bi-metal liner; source size ￠140	`1200004778`	Bladder
55	`1200004179`	Liner seal ring; source size ￠140	`1200004782`	Housing
56	`1200016195`	Bi-metal liner; source size ￠150	`1200004776`	Bottom plug
57	`1200004179`	Liner seal ring; source size ￠150	`1200004774`	Sealing ring
58	`1200016194`	Bi-metal liner; source size ￠160	`1200004662`	Filter-screen cover
59	`1200004179`	Liner seal ring; source size ￠160	`1300000223`	O-ring
60	`1200016196`	Bi-metal liner; source size ￠170	`1200004663`	Filter screen
61	`1200004179`	Liner seal ring; source size ￠170	`1200004656`	Housing
62	`1200004175`	Valve-cover seal ring	`1200004653`	Sealing washer (sealing ring)
63	`1200004222`	Piston; source size ￠140	`1200004669`	Flange
64	`1200004300`	Piston seal ring; source size ￠140	`1200004665`	Stud
65	`1200004234`	Piston; source size ￠150	`1200004667`	Nut
66	`1200004300`	Piston seal ring; source size ￠150	`1200004645`	Heavy nut
67	`1200004244`	Piston; source size ￠160	`1200004642`	Stud
68	`1200004300`	Piston seal ring; source size ￠160	`1200004627`	Pressure-gauge adapter
69	`1200004256`	Piston; source size ￠170	`1200004620`	Pressure-gauge seat
70	`1200004300`	Piston seal ring; source size ￠170	`1200004648`	Sealing ring
71	`1200004267`	Piston; source size ￠180	`1200004637`	Discharge cross
72	`1200004300`	Piston seal ring; source size ￠180	`1200004629`	Safety-valve pipe
73	`1200004224`	Piston hub; source size ￠140	`1200004014`	Main-bearing bolt
74	`1200004236`	Piston hub; source size ￠150	`1200003957`	Main-bearing cover
75	`1200004246`	Piston hub; source size ￠160	`1200003960`	Shim
76	`1200004258`	Piston hub; source size ￠170	`1200003964`	Threaded plug
77	`1200004269`	Piston hub; source size ￠180	`1200003941`	Threaded plug
78	`1200004226`	Piston rubber; source size ￠140	`1200003815`	Frame
79	`1200004238`	Piston rubber; source size ￠150	`1200004459`	Guard
80	`1200004248`	Piston rubber; source size ￠160	`1300007438`	Female-thread ball valve
81	`1200004260`	Piston rubber; source size ￠170	`1300005291`	Centrifugal liner-spray pump
82	`1200004271`	Piston rubber; source size ￠180	`1300007831`	Hose
83	`1200004230`	Piston retainer plate; source size ￠140	`1200004471`	Support assembly
84	`1200004242`	Piston retainer plate; source size ￠150	`1200004501`	Water tank
85	`1200004252`	Piston retainer plate; source size ￠160	`1300007830`	Hose
86	`1200004264`	Piston retainer plate; source size ￠170	`1300007874`	V-belt
87	`1200004275`	Piston retainer plate; source size ￠180	`1200004469`	Belt pulley
88	`1200004232`	Piston snap ring; source size ￠140, ￠150	`1300005949`	Nut
89	`1200004254`	Piston snap ring; source size ￠160, ￠170,￠180	`1200004430`	Left cover plate
90	`1200004165`	Snap ring	`1200004432`	Body shell
91	`1200004167`	Retainer cover	`1800000512`	Filter screen
92	`1300002340`	Steel ball 5	`1200004434`	Equal-length stud (stud)
93	`1200004163`	Valve nut	`1200004436`	Right cover plate
94	`1200004169`	Valve insert	`1200004363`	Straight connector
95	`1200004161`	Valve body	`1200004440`	Nut
96	`1200004171`	Valve seat	`1600000976`	Copper tube
97	`1200004173`	Valve guide cage	`1200004339`	Oil-pump gear
98	`1200003790`	Bull gear	`1300000012`	2S gear oil pump
99	`1200004012`	Retainer plate	`1300001126`	Spring washer
100	`1200003796`	Retaining ring	`1200004341`	Shaft sleeve
101	`1200003800`	Main bearing	`1200004343`	Bolt
102	`1200003783`	Main-bearing sleeve (right)	`1300008210`	Dual-scale pressure gauge
103	`1200004005`	Spacer ring	`1200004413`	Sealing washer
104	`1200003987`	Hollow crankshaft	`1200004411`	Pipe connector
105	`1200003786`	Outer retaining ring	`1200004353`	90-degree pipe connector
106	`1200003794`	Main-bearing sleeve (left)	`1200004428`	Oil-filter assembly
107	`1200003798`	Eccentric-strap bearing	`1300009209`	Relief valve
108	`1200003788`	Connecting rod	`1200004337`	Gear oil-pump assembly
Honghua 3NB-1300F / 3NB-1600F shared parts manual, May 2003
109	`GH3161—26.00`	Service tool kit listed in historical source	`GH3161—04.13`	Lower crosshead guide
110	`GH3161—26.01.00`	Cylinder-cover bar	`GH3161—04.19`	Retaining plate
111	`GH3161—26.02.00`	Liner lifting tool	`GB/T3452.1—1992`	O-ring — O190×3.55G
112	`GH3161—26.03`	Socket — 2 3/8″	`GB/T5780—1986`	Bolt — M10×25
113	`GH3161—26.04`	Socket — 2″	`GH3161—04.08`	Locking spring
114	`GH3161—26.05`	Socket — 3 5/8″	`GB/T3452.1—1992`	O-ring — O125×7G
115	`GH3161—26.06`	Socket — 1 1/2″	`GB/T70—1985`	Bolt — M20×65
116	`GH3161—26.07`	Adapter	`GH3161—04.03.00`	Shim pack
117	`GH3161—26.08`	Extension bar — 19 5/8″	`GH3161—04.12`	Gasket
118	`GH3161—26.09`	Extension bar — 8″	`GH3161—04.14`	Crosshead pin retaining plate
119	`GH3161—26.10`	Connector — 1″	`GH3161—04.15`	Crosshead bearing
120	`GH3161—26.11`	Extension bar — 24″	`GH3161—04.16`	Pipe connector — NPT 3/8×50.8
121	`JB/T7334—94`	Manual chain hoist — SH1/2	`GH3161—04.07`	Double-lip oil seal — 5″×6.25″×0.625″
122	`SYB—2`	Manual hydraulic pump — （63MPa）	`GH3161—04.20`	Screw — M24×65
123	`GH3161—26.12.00`	Hydraulic valve-seat puller	`GB/T4240—1993`	Lockwire — φ1.6
124	`GH3161—26.13`	Taper adapter sleeve	`GH3161—04.04`	Adjusting shim
125	`GH3161—26.14`	Press sleeve	`GB/T93—1987`	Washer — 10
126	`GH3161—26.15.00`	Long socket	`乐泰242`	Anaerobic threadlocker
127	`GH3161—26.16`	Bolt — M24×160	`GH3161—03.01`	Key
128	`GH3161—26.17.00`	Retaining-plate removal tool	`GH3131—03.02`	Pinion shaft
129	`GH3161—26.18`	Short threaded rod	`GH3161—03.03`	Wear sleeve
130	`GH3161—27.10.00`	Dampener charging hose assembly	`GH3161—03.04`	End cover
131	`GH3161—29.00`	Spare-parts kit listed in historical source	`GH3161—03.05`	Sealing washer
132	`GH3161—03.11`	Oil seal — 9.125″×10.375″×0.625″	`GH3161—03.06`	Sealing washer
133	`GH3161—04.06`	Oil seal ring	`GH3161—03.07`	Bearing housing
134	`GH3161—04.07`	Double-lip oil seal — 5″×6.25″×0.625″	`GH3161—03.08`	Retaining ring
135	`GH3161—05.08`	Cylinder cover sealing ring	`GH3161—03.09`	Sealing washer
136	`GH3161—05.11.03`	Valve insert	`GH3161—03.10.00`	Oil collector
137	`GH3161—05.12`	Valve cover sealing ring	`GB/T5782－1986`	Bolt — M12×35
138	`GH3161—05.14`	Liner sealing ring	`GB/T5782－1986`	Bolt — M22×50
139	`GH3161—05.24.04.02.00`	Piston rubber — φ170	`GH3161—03.11`	Oil seal — 9.125″×10.375″×0.625″
140	`GH3161—05.31`	Piston sealing ring	`GH3161—03.12`	Bearing
141	`GH3161—05.33.01`	Suction dampener bladder	`GB/T93－1987`	Washer — 22
142	`GH3161—09`	Sealing washer	`GB/T93－1987`	Washer — 12
143	`GH3161—23`	Sealing ring — R44	`GH3161—03.13`	Pump barring flange
144	`GH3161—27.01`	Sealing ring — R39	`GB/T5782－1986`	Bolt — M16×45
145	`GH3161—27.03.00`	Discharge dampener bladder	`GB/T93－1987`	Washer — 16
146	`GH3161—28.03.00`	Relief-valve piston assembly	`GH3161-02.01.00`	Main bearing end cover
147	`GH3161—28.06`	Cushion pad	`GH3131-02.02`	Main bearing housing, right
148	`GH3161—28.11`	Shear pin	`GH3161-02.03`	Sealing washer
149	`GB/T3452.1—1992`	O-ring — O190×3.55G	`GH3161-02.04`	Inner retaining ring
150	`GB/T3452.1—1992`	O-ring — O160×7G	`GH3131-02.05.00`	Outer retaining ring
151	`GB/T3452.1—1992`	O-ring — O95×5.3G	`GH3131-02.06`	Connecting rod
152	`GB/T3452.1—1992`	O-ring — O200×7G	`GH3161-02.07`	Locating ring — （I）
153	`GB/T3452.1—1992`	O-ring — O185×7G	`GH3161-02.08.00`	Hollow crankshaft
154	`GB/T3452.1—1992`	O-ring — O345×7G	`GH3161-02.09`	Locating ring — （II）
155	`GB/T3452.1—1992`	O-ring — O125×7G	`GH3131-02.10.00`	Bull gear / large gear ring
156	`GB/T3452.1—1992`	O-ring — O165×7G	`GH3161-02.11`	Bolt — M39×3×180
157	`GH3161—04.07`	Double-lip oil seal — 5″×6.25″×0.625″	`GH3161-02.12`	Spacer ring
158	`GH3161—04.10`	Extension rod	`GH3131-02.13`	Main bearing housing, left
159	`GH3161—05.08`	Cylinder cover sealing ring	`GH3131-02.14`	Retaining ring
160	`GH3161—05.11.00`	Valve assembly — API 7#	`GH3161-02.15`	Retaining plate
161	`GH3161—05.11.03`	Valve insert — API 7#	`GH3161-02.16`	Main bearing bolt
162	`GH3161—05.12`	Valve cover sealing ring	`GH3161-02.17`	Shim pack
163	`GH3161—05.14`	Liner sealing ring	`GH3161-02.18`	Screw — M16×120
164	`GH3161—05.18`	Piston rod	`GH3161-02.19.00`	Locknut — M39×3-6H
165	`GH3161—05.21`	Bimetal liner — φ140	`GH3161-02.20`	Bolt — M16×40
166	`GH3161—05.21`	Bimetal liner — φ150	`GB/T5783-1986`	Bolt — M16×45
167	`GH3161—05.21`	Bimetal liner — φ160	`GH3131-02.21`	Eccentric bearing
168	`GH3161—05.21`	Bimetal liner — φ170	`GH3131-02.22`	Main bearing
169	`GH3161—05.21A`	Standard liner — φ180	`GB/T848-1985`	Washer — 16
170	`GH3161—05.24.01.00`	Piston and piston rubber — φ140	`GB/T343-1994`	Lockwire — φ1.5
171	`GH3161—05.24.02.00`	Piston and piston rubber — φ150	`GB/T343-1994`	Lockwire — φ3
172	`GH3161—05.24.03.00`	Piston and piston rubber — φ160	`乐泰242`	Anaerobic threadlocker
173	`GH3161—05.24.04.00`	Piston and piston rubber — φ170	`GH3161-02.23`	Screw — M16×100
174	`GH3161—05.24.05.00`	Piston and piston rubber — φ180	`GH3161—06.01`	Square key — 4.76×4.76×25.4
175	`GH3161—05.31`	Piston sealing ring	`GH3161—06.02.00`	Lubrication pump gear assembly
176	`GH3161—05.32.00`	Piston nut	`GH3161—06.03`	Elbow — 90°NPT1/4-NPT3/8
177	`GH3161—27.03.00`	Discharge dampener bladder	`GB/T5650—1985`	Hollow bolt — A12
178	`GH3161—28.03.00`	Relief-valve piston	`GB/T70—1985`	Screw — M8×40
179	`GH3161—28.06`	Relief-valve cushion pad	`JB/ZQ 4410—86`	Pipe connector — A16
180	`GH3161—28.11`	Shear pin	`JB/ZQ 4410—86`	Pipe connector — A8
181	`GH3161—01.00`	Frame assembly	`GH3161—06.04`	Elbow — 90°NPT1/4-NPT1/4
182	`GH3131—02.00`	Crankshaft assembly	`GB/T1527—1997`	Copper tube — φ8×305
183	`GH3131—03.00`	Pinion shaft assembly	`GH3161—06.05`	Connector block — （II）
184	`GH3161—04.00`	Crosshead assembly	`GB/T1527—1997`	Copper tube — φ16×686
185	`GH3161—05.00`	Fluid-end assembly	`GB/T1527—1997`	Copper tube — φ16×331
186	`GH3161—06.00`	Power-end lubrication assembly	`GH3161—06.06.00`	Tube clamp — （Ⅳ）
187	`GH3161—07.00`	Base skid	`GH3161—06.07`	Pipe connector — 45°
188	`GH3161—08.00`	Liner-wash pump assembly	`GB/T1527—1997`	Copper tube — φ10×838
189	`GH3131—11`	Nameplate	`GB/T1527—1997`	Copper tube — φ12×305
190	`GH3161—09`	Sealing washer	`GH3161—06.08.00`	Tube clamp — φ8
191	`GH3161—10.00`	Breather cover	`GB/T1527—1997`	Copper tube — φ8×762
192	`GH3161—12.00`	Service crane	`GB/T1527—1997`	Copper tube — φ8×508
193	`GH3161—13.00`	Lifting frame	`GB/T1527—1997`	Copper tube — φ8×229
194	`GH3161—14.00`	Cover plate	`GH3161—06.09`	Threaded plug — NPT 1/4
195	`GH3161—15`	Gasket	`GB/T1527—1997`	Copper tube — φ8×915
196	`GH3161—16`	Indicator plate	`GB/T1527—1997`	Copper tube — φ8×1194
197	`GH3161—17.00`	Oil-level indicator assembly	`GB/T1527—1997`	Copper tube — φ8×1016
198	`GB/T93—1987`	Washer — 24	`GH3161—06.10`	Connector block — （I）
199	`GH3161—18.00`	Drain cover — 〈Ⅲ〉	`JB/ZQ 4410—86`	Pipe connector — A10
200	`GH3161—19`	Sealing washer	`GH3161—06.11.00`	Tube clamp — （I）
201	`GH3131—20`	Crosshead opening cover	`GB/T5651—1985`	Sealing washer — A12
202	`GH3161—21`	Gasket	`GB/T5781—1986`	Bolt — M6×20
203	`GH3161—30.00`	Cover plate assembly	`GH3161—06.12`	Oil nozzle
204	`GB/T5780—1986`	Bolt — M12×25	`GB/T1527—1997`	Copper tube — φ12×610
205	`GB/T5780—1986`	Bolt — M12×35	`GB/T1527—1997`	Copper tube — φ8×813
206	`GB/T5780—1986`	Bolt — M16×40	`GB/T5628.1—1985`	Pipe connector — A8
207	`GB/T5780—1986`	Bolt — M27×90	`GH3161—06.13.00`	Double tube clamp — φ8
208	`GB/T41—1986`	Nut — M27	`GB/T1527—1997`	Copper tube — φ10×1956
209	`GB/T5780—1986`	Bolt — M16×60	`GB/T1527—1997`	Copper tube — φ8×1956
210	`GB/T41—1986`	Nut — M16	`GB/T1527—1997`	Copper tube — φ8×2311
211	`GB/T827—1986`	Nameplate rivet — 3×10	`GB/T1527—1997`	Copper tube — φ8×1600
212	`GB/T93—1987`	Washer — 27	`GB/T1527—1997`	Copper tube — φ8×1245
213	`GB/T848—1985`	Washer — 12	`GH3161—06.14`	Pipe connector — NPT1/4-M14×1.5
214	`GB/T848—1985`	Washer — 16	`GH3161—06.15`	Copper washer — 14
215	`GB/T93—1987`	Washer — 16	`GH3161—06.16.00`	Shim pack
216	`GB/T818—1985`	Cross-recessed pan-head screw — M4×16	`GH3161—06.17.00`	Support
217	`GB/T5780—1986`	Bolt — M24×110	`GB/T5628.1—1985`	Pipe connector — A10
218	`GB/T41—1986`	Nut — M24	`GB/T93—1987`	Washer — 8
219	`GH3161—05.02`	Cylinder-cover flange	`YYFJ—L20`	Pressure relief valve
220	`GH3161—05.03`	Cylinder cover	`GB/T93—1987`	Washer — 6
221	`GH3161—05.04.00`	Retaining-plate assembly	`Y—60Z`	Dual-scale pressure gauge — 1.6MPa(230PSi)
222	`GH3161—05.05.00`	Lower valve-stem guide	`JB/ZQ 4410—86`	Pipe connector — A12
223	`GH3161—05.06.00`	Cylinder cover plug	`GH3161—06.18.00`	Oil filter assembly
224	`GH3161—05.07`	Locating plate	`609`	Cylindrical-component retaining compound
225	`GH3161—05.08`	Cylinder cover sealing ring	`680`	Cylindrical-component retaining compound
226	`GH3161—05.09`	Discharge manifold	`GH3161—08.01.00`	Guard
227	`GH3161—05.10`	Valve spring	`GH3161—08.01.00A`	Guard
228	`GB/T3452.1—1992`	O-ring — O95×5.3G	`GH3161—08.02`	Belt pulley
229	`GH3161—05.11.00`	Valve assembly	`GH3161—08.03.00`	Support assembly
230	`GH3161—05.12`	Valve cover sealing ring	`GH3161—08.04`	Pipe nipple — NPT 1—G1
231	`GH3161—05.13`	Valve cover	`GH3161—08.05`	Connector — NPT 1
232	`GH3161—05.14`	Liner sealing ring	`GH3161—08.06`	Connector — G1—M33×2
233	`GH3161—05.15`	Wear plate	`GH3161—08.07`	Connector — R2 1/2
234	`GH3161—05.16`	Liner flange	`GH3161—08.08`	Pipe nipple — R2 1/2－NPT2 1/2
235	`GH3161—05.17.00`	Liner retaining cover	`L =1500`	Fabric-reinforced pressure hose — φ22×φ37()
236	`GH3161—05.18`	Piston rod	`GH3161—08.09.00`	Hose connector — φ22×φ37
237	`GH3161—05.19.00`	Liner-wash spray pipe assembly	`GH3161—08.10`	Elbow — 90°NPT1
238	`GB/T3452.1—1992`	O-ring — O200×7G	`GH3161—08.11`	Connecting plate
239	`GH3161—05.20`	Liner retaining ring	`GH3161—08.12.00`	Water tank
240	`GH3161—05.21`	Liner	`GH3161—08.13.00`	Tank cover
241	`GH3161—05.22.00`	Rod clamp assembly	`GH3161—08.14`	Connector — NPT2 1/2
242	`GH3161—05.23`	Liner end cover	`GH3161—08.15`	Gasket / shim, source application
243	`GH3161—05.24.00`	Piston	`GH3161—08.16`	Flange — NPT1
244	`GB/T5782—1986`	Bolt — M22×65	`GB/T73—1985`	Set screw — M8×25
245	`GH3161—05.25.00`	Suction manifold	`GB/T1171—1996`	V-belt — A3708
246	`GH3161—05.26.00`	Shim pack	`L =750`	Fabric-reinforced pressure hose — φ38×φ53()
247	`GH3161—05.40`	Washer — 39	`GB/T5780—1986`	Bolt — M20×30
248	`GH3161—05.27`	Upper valve-stem guide	`GB/T93—1987`	Washer — 20
249	`GH3161—05.28`	Stud — M39×3×270	`GB/T95—1985`	Washer — 20
250	`GH3161—05.01.06`	Nut — M39×3	`GB/T5780—1986`	Bolt — M12×40
251	`GH3161—05.29`	Retaining plate	`GB/T93—1987`	Washer — 12
252	`GH3161—05.30`	Bolt — M10×20	`GB/T95—1985`	Washer — 12
253	`GH3161—05.31`	Piston sealing ring	`GB/T5780—1986`	Bolt — M12×60
254	`GH3161—05.32.00`	Piston nut	`GB/T41—1986`	Nut — M12
255	`GB/T3452.1—1992`	O-ring — O185×7G	`GH3161—08.17.00`	Centrifugal liner-wash pump
256	`GH3161—05.33.00`	Suction dampener	`Q11F—16`	Female-thread ball valve — G1
257	`GB/T3452.1—1992`	O-ring — O345×7G	`GH3161—08.18.00`	Bracket
258	`GH3161—05.34`	Suction flange — （I）	`GH3161—27.00`	Pulsation dampener assembly — KB—75
259	`GH3161—05.35`	Suction flange — （II）	`GH3161—27.01`	Sealing ring — R39
260	`GB/T41—1986`	Nut — M27	`GH3161—27.02`	Bottom plug
261	`GB/T5780—1986`	Bolt — M27×90	`GH3161—27.03.00`	Dampener bladder
262	`GB/T4240—1993`	Steel wire — φ1.6×1830	`GH3161—27.04.00`	Housing assembly
263	`GH3161—05.36`	Threaded plug — NPT 1 1/2	`GH3161—27.05`	Cover
264	`GH3161—05.37`	Stud — M39×3×563	`GH3161—27.06`	Tee — NPT1/4
265	`乐泰277`	Anaerobic threadlocker	`GH3161—27.07`	Connector — NPT1/4
266	`GH3161—05.01.07`	Stud — M33×2－M33×3×200	`GH3161—27.08.00`	Pressure gauge guard assembly
267	`GH3161—05.01.08`	Nut — M33×3	`PJC₁—L8`	Vent valve
268	`GH3161—05.01.04`	Stud — M39×2－M39×3×180	`Y—60`	Dual-scale vibration-resistant pressure gauge — 25MPa(3630PSi)
269	`GH3161—05.01.06`	Nut — M39×3	`JZR₃—L8`	Angle shut-off valve
270	`GH3161—05.01.05`	Stud — M39×2－M39×3×130	`GH3161—27.09`	Washer
271	`GH3161—05.01.02`	Stud — M27×2－M27×195	`GH3161—27.10.00`	Dampener charging hose assembly
272	`GH3161—05.01.03`	Nut — M27	`GH3161—27.04.02`	Stud — M39×2－M39×3×130
273	`GH3161—24.02.01`	Strainer cover	`GH3161—27.04.03`	Nut — M39×3
274	`GB/T3452.1—1992`	O-ring — O165×7G	`GH3161—27.04.04`	Stud — M33×2－M33×3×110
275	`GH3161—24.02.02`	Strainer screen	`GH3161—27.04.05`	Nut — M33×3
276	`GH3161—24.01`	Housing	`GH3161—27.10.00`	Dampener charging hose assembly
277	`YK-150`	Dual-scale vibration-resistant pressure gauge — 60MPa(8700PSi)	`GH3161—27.10.01`	Nut — G 5/8
278	`GH3161—22.01.01A`	Adapter — NPT2×Rc1 1/2	`GH3161—27.10.02`	Sealing connector
279	`GH3161—22.01.01`	Pressure gauge mount elbow — NPT2（90°）	`JB1887—77`	Hose connector — 6I-2000
280	`GH3161—25`	Flange	`GH3161—27.10.03`	Connector
281	`GH3161—22.03.00`	Discharge cross	`GH3161—27.10.04`	Sealing washer
282	`GH3161—22.01.02`	Nonstandard weld-neck flange — 2 9/ -φ65 16	`GH3161—27.10.05`	Threaded plug
283	`GH3161—23`	Sealing ring — R44	`GH3161—28.00`	Shear-pin relief valve — JA—3
284	`乐泰277`	Anaerobic threadlocker	`GH3161—28.01`	Connector
285	`GH3161—24.03`	Stud — M39×2－M39×3×135	`GH3161—28.02`	Retaining ring
286	`GH3161—24.04`	Nut — M39×3	`GH3161—28.03.00`	Piston assembly
287	`GH3161—22.02.00`	Relief-valve connection pipe	`GH3161—28.04`	Valve body
288	`GH3161—22.04`	Stud — M27×170	`GH3161—28.05`	Piston rod
289	`GH3161—22.05`	Heavy hex nut — M27	`GH3161—28.06`	Cushion pad
290	`GH3161—28.00`	Shear-pin relief valve — JA－3	`GH3161—28.07`	Spring pin
291	`GH3161—27.00`	Pulsation dampener — KB－75	`GH3161—28.08`	Retaining spring
292	`GH3161—05.33.00`	Suction dampener	`GH3161—28.09`	Safety guard
293	`GH3161—05.33.01`	Dampener bladder	`GH3161—28.10`	Shear-pin plate
294	`GH3161—05.33.02`	End cover	`GH3161—28.11`	Shear pin
295	`GH3161—04.01`	Crosshead	`GH3161—28.12`	Warning nameplate
296	`GH3161—04.02`	Upper crosshead guide	`GH3161—28.13`	Pin shaft
297	`GH3161—04.17`	Bolt — M24×60	`GH3161—28.14`	Wire retaining ring
298	`GH3161—04.05`	Stuffing box	`GH3161—28.15`	Nameplate
299	`GB/T3452.1—1992`	O-ring — O160×7G	`GB/T91—1986`	Pin — 4×26
300	`GH3161—04.06`	Oil seal ring	`GB/T6170—1986`	Nut — M4
301	`GH3161—04.09`	Mud slinger	`GB/T67—1985`	Screw — M4×16
302	`GH3161—04.10`	Extension rod	`GB/T5780—1986`	Bolt — M10×110
303	`GH3161—04.11`	Crosshead pin	`GB/T41—1986`	Nut — M10
304	`GH3161—04.18`	Bolt — M24×70	`GB/T67—1985`	Screw — M3×8

Technical details and source references

Confirm the installed model, drawing revision and dimensions before ordering. Catalogue quantities do not indicate current stock.

Reference documents and scope

S1 — Honghua multi-model material-code catalogue, 3NB-500F / 800F / 1000F / 1300F / 1600F / 2200F. Reference file: 宏华HHF500-2200HL新泥浆泵零件图册.pdf.
S2 — Honghua 3NB-1300F / 3NB-1600F shared parts manual, May 2003. Reference file: 宏华3NB-1600F英制.pdf.

PDF page numbers count from the first page of each reference file. Brand names identify the equipment or catalogue source. A listed number does not establish interchangeability, original-manufacturer authorisation, stock or a delivery commitment. Send the nameplate, complete reference, quantity and drawing revision for a parts review.

A Honghua 3NB-1300F parts list contains both shared 1300F/1600F fluid-end items and model-specific power-end references. Keep these two scopes separate when preparing an enquiry. The material code, assembly location and pump identification are all needed to review whether a proposed replacement matches the installed configuration.

Read the assembly and material-code scope together

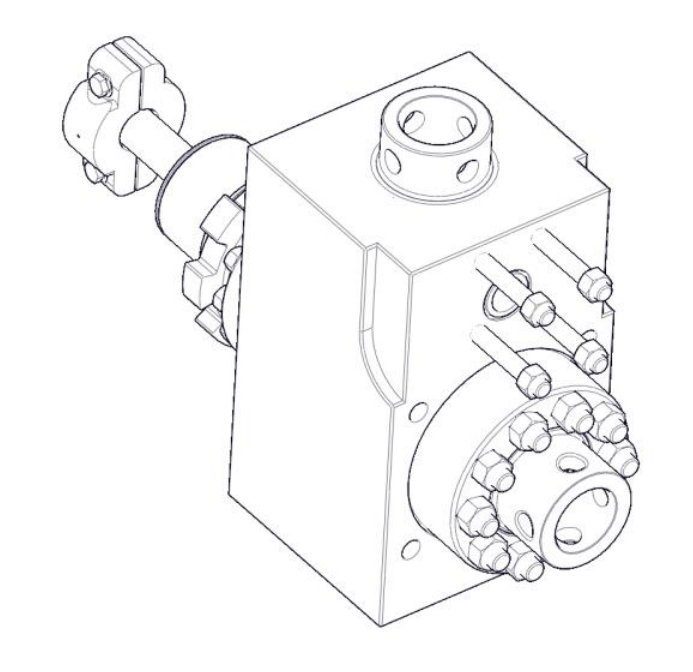

The shared fluid-cylinder detail identifies 1200004213 for the clamp assembly,1200004187 for the piston rod and 1200004179 for the liner seal ring. The crankshaft section then gives a dedicated 1300F table, including 1200003790 for its bull gear. A shared cylinder illustration therefore does not establish that the rotating components are shared too.

Configuration details to confirm

For gears, connecting rods and bearings, send the assembly drawing, markings and the mating-part details. For fluid-end wear parts, add the installed liner or piston size and sealing arrangement. Keep the 1300F designation in the enquiry rather than shortening it to 1300 or using an HHF model label from another catalogue.

Information for a replacement-parts enquiry

Provide a readable nameplate photograph, pump serial number, the catalogue cover or revision, the material code, source page, item number and required quantity. Add photographs of the removed component and its markings. For threaded parts, include the thread form and measured dimensions; for seals, include the actual sealing profile as well as the nominal size.

The reference list distinguishes a complete assembly from its individual components. State whether the request concerns one component, a matched set or a complete assembly, and identify any parts that must remain paired. Codes printed for standards, equipment models or consumable grades have a different role from a custom part identifier.

For related selection information, see our mud pump spare-parts supply guide. Send the model and component details through the Pratt Oil contact page for a quotation review. Supply and suitability require confirmation against the submitted details.

1200004131 — S1 , PDF p. 7 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004129 — S1 , PDF p. 7 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004155 — S1 , PDF p. 7 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300000282 — S1 , PDF p. 7 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004114 — S1 , PDF p. 7 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004218 — S1 , PDF p. 7 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004189 — S1 , PDF p. 7 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006771 — S1 , PDF p. 7 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004319 — S1 , PDF p. 7 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004315 — S1 , PDF p. 7 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004317 — S1 , PDF p. 7 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300005876 — S1 , PDF p. 7 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004282 — S1 , PDF p. 8 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004310 — S1 , PDF p. 8 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004313 — S1 , PDF p. 8 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006675 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300001154 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004213 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004187 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004220 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004302 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300000249 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004209 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004185 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004300 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004121 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004119 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004183 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004181 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004179 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200026776 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004177 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004175 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004292 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004296 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004329 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004157 — S1 , PDF p. 17 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004159 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004143 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004129 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004131 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300005689 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004141 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004137 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004151 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004153 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004149 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004133 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004123 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004127 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004135 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200016192 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠130.; Honghua material/catalogue code (10-digit code column)
1200004179 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠130.; Honghua material/catalogue code (10-digit code column)
1200016191 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠140.; Honghua material/catalogue code (10-digit code column)
1200004179 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠140.; Honghua material/catalogue code (10-digit code column)
1200016195 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠150.; Honghua material/catalogue code (10-digit code column)
1200004179 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠150.; Honghua material/catalogue code (10-digit code column)
1200016194 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠160.; Honghua material/catalogue code (10-digit code column)
1200004179 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠160.; Honghua material/catalogue code (10-digit code column)
1200016196 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠170.; Honghua material/catalogue code (10-digit code column)
1200004179 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠170.; Honghua material/catalogue code (10-digit code column)
1200004175 — S1 , PDF p. 18 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004222 — S1 , PDF p. 19 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠140.; Honghua material/catalogue code (10-digit code column)
1200004300 — S1 , PDF p. 19 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠140.; Honghua material/catalogue code (10-digit code column)
1200004234 — S1 , PDF p. 19 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠150.; Honghua material/catalogue code (10-digit code column)
1200004300 — S1 , PDF p. 19 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠150.; Honghua material/catalogue code (10-digit code column)
1200004244 — S1 , PDF p. 19 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠160.; Honghua material/catalogue code (10-digit code column)
1200004300 — S1 , PDF p. 19 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠160.; Honghua material/catalogue code (10-digit code column)
1200004256 — S1 , PDF p. 19 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠170.; Honghua material/catalogue code (10-digit code column)
1200004300 — S1 , PDF p. 19 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠170.; Honghua material/catalogue code (10-digit code column)
1200004267 — S1 , PDF p. 19 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠180.; Honghua material/catalogue code (10-digit code column)
1200004300 — S1 , PDF p. 19 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠180.; Honghua material/catalogue code (10-digit code column)
1200004224 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-1300F, 3NB-1600F; Piston hub; size as printed ￠140. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200004236 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-1300F, 3NB-1600F; Piston hub; size as printed ￠150. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200004246 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-1300F, 3NB-1600F; Piston hub; size as printed ￠160. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200004258 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-1300F, 3NB-1600F; Piston hub; size as printed ￠170. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200004269 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-1300F, 3NB-1600F; Piston hub; size as printed ￠180. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200004226 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-1300F, 3NB-1600F; Piston rubber; size as printed ￠140. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200004238 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-1300F, 3NB-1600F; Piston rubber; size as printed ￠150. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200004248 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-1300F, 3NB-1600F; Piston rubber; size as printed ￠160. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200004260 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-1300F, 3NB-1600F; Piston rubber; size as printed ￠170. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200004271 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-1300F, 3NB-1600F; Piston rubber; size as printed ￠180. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200004230 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-1300F, 3NB-1600F; Piston retainer plate; size as printed ￠140. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200004242 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-1300F, 3NB-1600F; Piston retainer plate; size as printed ￠150. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200004252 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-1300F, 3NB-1600F; Piston retainer plate; size as printed ￠160. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200004264 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-1300F, 3NB-1600F; Piston retainer plate; size as printed ￠170. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200004275 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-1300F, 3NB-1600F; Piston retainer plate; size as printed ￠180. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200004232 — S1 , PDF p. 27 — Source application chart explicitly lists 3NB-1300F, 3NB-1600F; Piston snap ring; size as printed ￠140, ￠150. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200004254 — S1 , PDF p. 27 — Source application chart explicitly lists 3NB-1300F, 3NB-1600F; Piston snap ring; size as printed ￠160, ￠170,￠180. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200004165 — S1 , PDF p. 30 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004167 — S1 , PDF p. 30 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300002340 — S1 , PDF p. 30 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004163 — S1 , PDF p. 30 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004169 — S1 , PDF p. 30 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004161 — S1 , PDF p. 30 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004171 — S1 , PDF p. 30 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004173 — S1 , PDF p. 30 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200003790 — S1 , PDF p. 35 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004012 — S1 , PDF p. 35 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200003796 — S1 , PDF p. 35 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200003800 — S1 , PDF p. 35 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200003783 — S1 , PDF p. 35 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004005 — S1 , PDF p. 35 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200003987 — S1 , PDF p. 35 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200003786 — S1 , PDF p. 35 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200003794 — S1 , PDF p. 35 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200003798 — S1 , PDF p. 35 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200003788 — S1 , PDF p. 35 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200003985 — S1 , PDF p. 35 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200003991 — S1 , PDF p. 35 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200003978 — S1 , PDF p. 35 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004090 — S1 , PDF p. 42 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006132 — S1 , PDF p. 42 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004085 — S1 , PDF p. 42 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300002208 — S1 , PDF p. 42 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004083 — S1 , PDF p. 42 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004076 — S1 , PDF p. 42 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004088 — S1 , PDF p. 42 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004081 — S1 , PDF p. 42 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004079 — S1 , PDF p. 42 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300000201 — S1 , PDF p. 42 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004092 — S1 , PDF p. 42 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004108 — S1 , PDF p. 42 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004070 — S1 , PDF p. 42 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004068 — S1 , PDF p. 42 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004102 — S1 , PDF p. 42 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004094 — S1 , PDF p. 42 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004100 — S1 , PDF p. 42 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004098 — S1 , PDF p. 42 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004106 — S1 , PDF p. 42 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300001141 — S1 , PDF p. 47 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006407 — S1 , PDF p. 47 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004064 — S1 , PDF p. 47 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200003804 — S1 , PDF p. 47 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004035 — S1 , PDF p. 47 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006217 — S1 , PDF p. 47 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300001130 — S1 , PDF p. 47 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004044 — S1 , PDF p. 47 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004040 — S1 , PDF p. 47 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004042 — S1 , PDF p. 47 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006661 — S1 , PDF p. 47 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300001150 — S1 , PDF p. 47 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004046 — S1 , PDF p. 47 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004048 — S1 , PDF p. 47 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004062 — S1 , PDF p. 47 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004050 — S1 , PDF p. 47 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004052 — S1 , PDF p. 47 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004054 — S1 , PDF p. 47 — Source table heading: 3NB-1300F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300001130 — S1 , PDF p. 50 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006219 — S1 , PDF p. 50 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004800 — S1 , PDF p. 50 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300008203 — S1 , PDF p. 50 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004808 — S1 , PDF p. 51 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004810 — S1 , PDF p. 51 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004806 — S1 , PDF p. 51 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004794 — S1 , PDF p. 51 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004796 — S1 , PDF p. 51 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300004241 — S1 , PDF p. 51 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004786 — S1 , PDF p. 51 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004784 — S1 , PDF p. 51 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004792 — S1 , PDF p. 51 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004778 — S1 , PDF p. 51 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004782 — S1 , PDF p. 51 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004776 — S1 , PDF p. 51 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004774 — S1 , PDF p. 51 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004662 — S1 , PDF p. 53 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300000223 — S1 , PDF p. 53 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004663 — S1 , PDF p. 53 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004656 — S1 , PDF p. 53 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004653 — S1 , PDF p. 53 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004669 — S1 , PDF p. 53 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004665 — S1 , PDF p. 53 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004667 — S1 , PDF p. 53 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004645 — S1 , PDF p. 56 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004642 — S1 , PDF p. 56 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004627 — S1 , PDF p. 56 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004620 — S1 , PDF p. 56 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004648 — S1 , PDF p. 56 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004637 — S1 , PDF p. 56 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004629 — S1 , PDF p. 56 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004014 — S1 , PDF p. 62 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200003957 — S1 , PDF p. 62 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200003960 — S1 , PDF p. 62 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200003964 — S1 , PDF p. 62 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200003941 — S1 , PDF p. 62 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200003815 — S1 , PDF p. 62 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004459 — S1 , PDF p. 64 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300007438 — S1 , PDF p. 64 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300005291 — S1 , PDF p. 64 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300007831 — S1 , PDF p. 64 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004471 — S1 , PDF p. 64 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004501 — S1 , PDF p. 64 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300007830 — S1 , PDF p. 64 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300007874 — S1 , PDF p. 64 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004469 — S1 , PDF p. 65 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300005949 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004430 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004432 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1800000512 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004434 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004436 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004363 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004440 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1600000976 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004339 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300000012 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300001126 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004341 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004343 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300008210 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004413 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004411 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004353 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004428 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300009209 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200004337 — S1 , PDF p. 70 — Source table heading: 3NB-1300F, 3NB-1600F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
GH3161—26.00 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—26.01.00 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—26.02.00 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—26.03 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—26.04 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—26.05 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—26.06 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—26.07 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—26.08 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—26.09 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—26.10 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—26.11 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
JB/T7334—94 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
SYB—2 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—26.12.00 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—26.13 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—26.14 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—26.15.00 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—26.16 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—26.17.00 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—26.18 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.10.00 — S2 , PDF p. 29 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—29.00 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—03.11 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—04.06 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—04.07 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.08 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.11.03 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.12 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.14 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.24.04.02.00 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.31 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.33.01 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—09 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—23 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.01 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.03.00 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.03.00 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.06 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.11 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T3452.1—1992 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T3452.1—1992 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T3452.1—1992 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T3452.1—1992 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T3452.1—1992 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T3452.1—1992 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T3452.1—1992 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T3452.1—1992 — S2 , PDF p. 30 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—04.07 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—04.10 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.08 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.11.00 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.11.03 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.12 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.14 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.18 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.21 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.21 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.21 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.21 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.21A — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.24.01.00 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.24.02.00 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.24.03.00 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.24.04.00 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.24.05.00 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.31 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.32.00 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.03.00 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.03.00 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.06 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.11 — S2 , PDF p. 31 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—01.00 — S2 , PDF p. 33 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3131—02.00 — S2 , PDF p. 33 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3131—03.00 — S2 , PDF p. 33 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161—04.00 — S2 , PDF p. 33 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161—05.00 — S2 , PDF p. 33 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161—06.00 — S2 , PDF p. 33 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161—07.00 — S2 , PDF p. 33 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161—08.00 — S2 , PDF p. 33 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3131—11 — S2 , PDF p. 33 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161—09 — S2 , PDF p. 33 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161—10.00 — S2 , PDF p. 33 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161—12.00 — S2 , PDF p. 33 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161—13.00 — S2 , PDF p. 33 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161—14.00 — S2 , PDF p. 33 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161—15 — S2 , PDF p. 33 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161—16 — S2 , PDF p. 33 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161—17.00 — S2 , PDF p. 33 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GB/T93—1987 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; standard reference with source specification
GH3161—18.00 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161—19 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3131—20 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161—21 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161—30.00 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GB/T5780—1986 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; standard reference with source specification
GB/T5780—1986 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; standard reference with source specification
GB/T5780—1986 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; standard reference with source specification
GB/T5780—1986 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; standard reference with source specification
GB/T41—1986 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; standard reference with source specification
GB/T5780—1986 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; standard reference with source specification
GB/T41—1986 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; standard reference with source specification
GB/T827—1986 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; standard reference with source specification
GB/T93—1987 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; standard reference with source specification
GB/T848—1985 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; standard reference with source specification
GB/T848—1985 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; standard reference with source specification
GB/T93—1987 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; standard reference with source specification
GB/T818—1985 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; standard reference with source specification
GB/T5780—1986 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; standard reference with source specification
GB/T41—1986 — S2 , PDF p. 34 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; standard reference with source specification
GH3161—05.02 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.03 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.04.00 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.05.00 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.06.00 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.07 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.08 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.09 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.10 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T3452.1—1992 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—05.11.00 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.12 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.13 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.14 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.15 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.16 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.17.00 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.18 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.19.00 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T3452.1—1992 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—05.20 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.21 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.22.00 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.23 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.24.00 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T5782—1986 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—05.25.00 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.26.00 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.40 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.27 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.28 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.01.06 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.29 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.30 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.31 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.32.00 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T3452.1—1992 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—05.33.00 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T3452.1—1992 — S2 , PDF p. 36 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—05.34 — S2 , PDF p. 37 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.35 — S2 , PDF p. 37 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T41—1986 — S2 , PDF p. 37 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T5780—1986 — S2 , PDF p. 37 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T4240—1993 — S2 , PDF p. 37 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—05.36 — S2 , PDF p. 37 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.37 — S2 , PDF p. 37 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
乐泰277 — S2 , PDF p. 37 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; consumable designation
GH3161—05.01.07 — S2 , PDF p. 37 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.01.08 — S2 , PDF p. 37 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.01.04 — S2 , PDF p. 37 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.01.06 — S2 , PDF p. 37 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.01.05 — S2 , PDF p. 37 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.01.02 — S2 , PDF p. 37 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.01.03 — S2 , PDF p. 37 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—24.02.01 — S2 , PDF p. 38 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T3452.1—1992 — S2 , PDF p. 38 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—24.02.02 — S2 , PDF p. 38 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—24.01 — S2 , PDF p. 38 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
YK-150 — S2 , PDF p. 38 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—22.01.01A — S2 , PDF p. 38 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—22.01.01 — S2 , PDF p. 38 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—25 — S2 , PDF p. 38 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—22.03.00 — S2 , PDF p. 38 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—22.01.02 — S2 , PDF p. 38 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—23 — S2 , PDF p. 38 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
乐泰277 — S2 , PDF p. 38 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; consumable designation
GH3161—24.03 — S2 , PDF p. 38 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—24.04 — S2 , PDF p. 38 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—22.02.00 — S2 , PDF p. 38 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—22.04 — S2 , PDF p. 38 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—22.05 — S2 , PDF p. 38 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.00 — S2 , PDF p. 38 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.00 — S2 , PDF p. 38 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.33.00 — S2 , PDF p. 39 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.33.01 — S2 , PDF p. 39 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—05.33.02 — S2 , PDF p. 39 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—04.01 — S2 , PDF p. 40 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—04.02 — S2 , PDF p. 40 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—04.17 — S2 , PDF p. 40 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—04.05 — S2 , PDF p. 40 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T3452.1—1992 — S2 , PDF p. 40 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—04.06 — S2 , PDF p. 40 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—04.09 — S2 , PDF p. 40 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—04.10 — S2 , PDF p. 40 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—04.11 — S2 , PDF p. 40 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—04.18 — S2 , PDF p. 40 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—04.13 — S2 , PDF p. 40 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—04.19 — S2 , PDF p. 40 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T3452.1—1992 — S2 , PDF p. 40 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T5780—1986 — S2 , PDF p. 40 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—04.08 — S2 , PDF p. 40 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T3452.1—1992 — S2 , PDF p. 40 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T70—1985 — S2 , PDF p. 41 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—04.03.00 — S2 , PDF p. 41 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—04.12 — S2 , PDF p. 41 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—04.14 — S2 , PDF p. 41 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—04.15 — S2 , PDF p. 41 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—04.16 — S2 , PDF p. 41 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—04.07 — S2 , PDF p. 41 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—04.20 — S2 , PDF p. 41 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T4240—1993 — S2 , PDF p. 41 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—04.04 — S2 , PDF p. 41 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T93—1987 — S2 , PDF p. 41 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
乐泰242 — S2 , PDF p. 41 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; consumable designation
GH3161—03.01 — S2 , PDF p. 42 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3131—03.02 — S2 , PDF p. 42 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161—03.03 — S2 , PDF p. 42 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—03.04 — S2 , PDF p. 42 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—03.05 — S2 , PDF p. 42 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—03.06 — S2 , PDF p. 42 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—03.07 — S2 , PDF p. 42 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—03.08 — S2 , PDF p. 42 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—03.09 — S2 , PDF p. 42 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—03.10.00 — S2 , PDF p. 42 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T5782－1986 — S2 , PDF p. 42 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T5782－1986 — S2 , PDF p. 42 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—03.11 — S2 , PDF p. 42 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—03.12 — S2 , PDF p. 42 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T93－1987 — S2 , PDF p. 42 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T93－1987 — S2 , PDF p. 42 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—03.13 — S2 , PDF p. 42 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T5782－1986 — S2 , PDF p. 42 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T93－1987 — S2 , PDF p. 42 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161-02.01.00 — S2 , PDF p. 43 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3131-02.02 — S2 , PDF p. 43 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161-02.03 — S2 , PDF p. 43 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161-02.04 — S2 , PDF p. 43 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3131-02.05.00 — S2 , PDF p. 43 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3131-02.06 — S2 , PDF p. 43 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161-02.07 — S2 , PDF p. 43 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161-02.08.00 — S2 , PDF p. 43 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161-02.09 — S2 , PDF p. 43 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3131-02.10.00 — S2 , PDF p. 44 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161-02.11 — S2 , PDF p. 44 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161-02.12 — S2 , PDF p. 44 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3131-02.13 — S2 , PDF p. 44 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3131-02.14 — S2 , PDF p. 44 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161-02.15 — S2 , PDF p. 44 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161-02.16 — S2 , PDF p. 44 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161-02.17 — S2 , PDF p. 44 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161-02.18 — S2 , PDF p. 44 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161-02.19.00 — S2 , PDF p. 44 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161-02.20 — S2 , PDF p. 44 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GB/T5783-1986 — S2 , PDF p. 44 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; standard reference with source specification
GH3131-02.21 — S2 , PDF p. 44 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3131-02.22 — S2 , PDF p. 44 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GB/T848-1985 — S2 , PDF p. 44 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; standard reference with source specification
GB/T343-1994 — S2 , PDF p. 44 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; standard reference with source specification
GB/T343-1994 — S2 , PDF p. 44 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; standard reference with source specification
乐泰242 — S2 , PDF p. 44 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; consumable designation
GH3161-02.23 — S2 , PDF p. 44 — 3NB-1300F explicit source model column; May 2003 1300F/1600F shared manual supplied under an imperial filename; drawing part reference
GH3161—06.01 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—06.02.00 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—06.03 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T5650—1985 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T70—1985 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
JB/ZQ 4410—86 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
JB/ZQ 4410—86 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—06.04 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T1527—1997 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—06.05 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T1527—1997 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T1527—1997 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—06.06.00 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—06.07 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T1527—1997 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T1527—1997 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—06.08.00 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T1527—1997 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T1527—1997 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T1527—1997 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—06.09 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T1527—1997 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T1527—1997 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T1527—1997 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—06.10 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
JB/ZQ 4410—86 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—06.11.00 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T5651—1985 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T5781—1986 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—06.12 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T1527—1997 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T1527—1997 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T5628.1—1985 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—06.13.00 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T1527—1997 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T1527—1997 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T1527—1997 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T1527—1997 — S2 , PDF p. 46 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T1527—1997 — S2 , PDF p. 47 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—06.14 — S2 , PDF p. 47 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—06.15 — S2 , PDF p. 47 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—06.16.00 — S2 , PDF p. 47 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—06.17.00 — S2 , PDF p. 47 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T5628.1—1985 — S2 , PDF p. 47 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T93—1987 — S2 , PDF p. 47 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
YYFJ—L20 — S2 , PDF p. 47 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T93—1987 — S2 , PDF p. 47 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
Y—60Z — S2 , PDF p. 47 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
JB/ZQ 4410—86 — S2 , PDF p. 47 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—06.18.00 — S2 , PDF p. 47 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
609 — S2 , PDF p. 47 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; source lists 609 OR 680, selection must be confirmed; consumable designation
680 — S2 , PDF p. 47 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; source lists 609 OR 680, selection must be confirmed; consumable designation
GH3161—08.01.00 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; two source guard alternatives are listed together, selection must be confirmed; drawing part reference
GH3161—08.01.00A — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; two source guard alternatives are listed together, selection must be confirmed; drawing part reference
GH3161—08.02 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—08.03.00 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—08.04 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—08.05 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—08.06 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—08.07 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—08.08 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
L =1500 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; dimension reference not unique part number
GH3161—08.09.00 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—08.10 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—08.11 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—08.12.00 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—08.13.00 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—08.14 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—08.15 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—08.16 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T73—1985 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T1171—1996 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
L =750 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; dimension reference not unique part number
GB/T5780—1986 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T93—1987 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T95—1985 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T5780—1986 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T93—1987 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T95—1985 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T5780—1986 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T41—1986 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—08.17.00 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
Q11F—16 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—08.18.00 — S2 , PDF p. 49 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.00 — S2 , PDF p. 50 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.01 — S2 , PDF p. 50 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.02 — S2 , PDF p. 50 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.03.00 — S2 , PDF p. 50 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.04.00 — S2 , PDF p. 50 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.05 — S2 , PDF p. 50 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.06 — S2 , PDF p. 50 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.07 — S2 , PDF p. 50 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.08.00 — S2 , PDF p. 50 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
PJC₁—L8 — S2 , PDF p. 50 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; preserve the small source suffix digit, verify full valve designation; drawing part reference
Y—60 — S2 , PDF p. 50 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
JZR₃—L8 — S2 , PDF p. 50 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; preserve the small source suffix digit, verify full valve designation; drawing part reference
GH3161—27.09 — S2 , PDF p. 50 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.10.00 — S2 , PDF p. 50 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.04.02 — S2 , PDF p. 50 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.04.03 — S2 , PDF p. 50 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.04.04 — S2 , PDF p. 50 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.04.05 — S2 , PDF p. 50 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.10.00 — S2 , PDF p. 51 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.10.01 — S2 , PDF p. 51 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.10.02 — S2 , PDF p. 51 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
JB1887—77 — S2 , PDF p. 51 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GH3161—27.10.03 — S2 , PDF p. 51 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.10.04 — S2 , PDF p. 51 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—27.10.05 — S2 , PDF p. 51 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.00 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.01 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.02 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.03.00 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.04 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.05 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.06 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.07 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.08 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.09 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.10 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.11 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.12 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.13 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.14 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GH3161—28.15 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; drawing part reference
GB/T91—1986 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T6170—1986 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T67—1985 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T5780—1986 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T41—1986 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification
GB/T67—1985 — S2 , PDF p. 52 — 3NB-1300F, from explicitly shared 1300F/1600F source table in May 2003 shared manual; application still requires configuration confirmation; standard number is not a unique pump part number: match the source size and item; standard reference with source specification

Request a Quotation

Send the part number, quantity and pump model for a quotation.

WhatsApp parts inquiry Email parts list

Honghua 3NB-1300F Mud Pump Spare Parts

Parts List

Reference documents and scope

Read the assembly and material-code scope together

Configuration details to confirm

Information for a replacement-parts enquiry

Request a Quotation

Phone:

WhatsApp:

Email:

Honghua 3NB-1300F Mud Pump Spare Parts

Parts List

Reference documents and scope

Read the assembly and material-code scope together

Configuration details to confirm

Information for a replacement-parts enquiry

Request a Quotation

Related model guides
