Honghua 3NB-800F Mud Pump Parts and Drawing References

Parts List

Search drawing number or nameDownload parts list (CSV)

549 parts

P/P	Part / Drawing No.	Name	Part / Drawing No.	Name
Honghua multi-model material-code catalogue, 3NB-500F / 800F / 1000F / 1300F / 1600F / 2200F
1	`1200010149`	Nut	`1200010126`	Stuffing box
2	`1200010148`	Stud	`1200010131`	Retaining/spacer ring
3	`1200010160`	Discharge manifold	`1200010124`	Oil seal (double-lip oil seal)
4	`1300000286`	O-ring	`1200010125`	Oil-seal ring
5	`1200010143`	Fluid-cylinder assembly	`1300000192`	O-ring
6	`1200010241`	Liner end cover	`1200010129`	Crosshead extension rod
7	`1200010229`	Liner-spray pipe assembly	`1200010134`	Bolt
8	`1300006669`	Bolt	`1200010122`	Upper guide
9	`1200010253`	Threaded plug	`1200010121`	Crosshead
10	`1200010252`	Suction flange (Ⅰ)	`1200010137`	Crosshead bearing
11	`1300000259`	O-ring	`1200010138`	Crosshead pin
12	`1200010255`	Suction flange (Ⅱ)	`1200010135`	Crosshead-pin retainer
13	`1300005860`	Nut	`1200010133`	Lower guide
14	`1200010247`	Suction manifold	`1200010123`	Bolt
15	`1200010257`	Suction-dampener diaphragm (bladder)	`1300001141`	Washer (spring washer)
16	`1200010258`	Suction-dampener end cover (end cover)	`1300006407`	Bolt
17	`1200010239`	Clamp assembly	`1200010117`	Turning flange
18	`1200010226`	Piston rod	`1200010105`	Pinion shaft
19	`1200010225`	Piston seal ring	`1200010104`	Key
20	`1200010181`	Piston	`1300006219`	Bolt
21	`1200010178`	Piston nut	`1300001130`	Washer (spring washer)
22	`1200010163`	Valve cover	`1200010110`	Sealing washer
23	`1200010162`	Valve-cover seal ring	`1200010108`	Wear sleeve
24	`1200010167`	Retainer plate	`1200010109`	End cover
25	`1200010164`	Valve-stem guide	`1300006577`	Bolt
26	`1200010165`	Spring guide	`1300001148`	Washer (spring washer)
27	`1200010169`	Valve spring	`1200010116`	Sealing washer
28	`1200010170`	Valve assembly	`1200010115`	Bearing housing
29	`1200010143`	Fluid-cylinder assembly	`1200010119`	Cylindrical roller bearing
30	`1200010244`	Valve-stem guide (lower)	`1200010114`	Retaining ring
31	`1200010158`	Liner extraction tool	`1200010113`	Sealing washer
32	`1200010243`	Retaining clamp	`1200010111`	Oil-collecting box
33	`1200010154`	Liner seal ring	`1300001130`	Washer (spring washer)
34	`1200010155`	Cylinder-cover plug	`1300006219`	Bolt
35	`1200010152`	Cylinder-cover flange	`1200010467`	Pressure-gauge guard
36	`1200010153`	Cylinder cover	`1300008203`	Dual-scale vibration-resistant pressure gauge
37	`1200016222`	Bi-metal liner; source size ￠120	`1200010474`	Plug
38	`1200010154`	Liner seal ring; source size ￠120	`1200010475`	Retaining cap
39	`1200016223`	Bi-metal liner; source size ￠130	`1200010473`	Connector
40	`1200010154`	Liner seal ring; source size ￠130	`1200010471`	Tee
41	`1200016224`	Bi-metal liner; source size ￠140	`1200010469`	Connector
42	`1200010154`	Liner seal ring; source size ￠140	`1300004241`	Angle stop valve (also labelled fuse in the source)
43	`1200016225`	Bi-metal liner; source size ￠150	`1200010464`	Nut
44	`1200010154`	Liner seal ring; source size ￠150	`1200010463`	Stud
45	`1200016226`	Bi-metal liner; source size ￠160	`1200010465`	Cover
46	`1200010154`	Liner seal ring; source size ￠160	`1200010460`	Bladder
47	`1200010162`	Valve-cover seal ring	`1200010462`	Housing
48	`1200010182`	Piston; source size ￠100	`1200010459`	Bottom plug
49	`1200010225`	Piston seal ring; source size ￠100	`1200010458`	Sealing ring
50	`1200010188`	Piston; source size ￠110	`1200010374`	Filter-screen cover
51	`1200010225`	Piston seal ring; source size ￠110	`1300000224`	O-ring
52	`1200010193`	Piston; source size ￠120	`1200010375`	Filter screen
53	`1200010225`	Piston seal ring; source size ￠120	`1200010376`	Housing
54	`1200010198`	Piston; source size ￠130	`1200010379`	Sealing washer (sealing ring)
55	`1200010225`	Piston seal ring; source size ￠130	`1200010456`	Flange
56	`1200010204`	Piston; source size ￠140	`1200010377`	Stud
57	`1200010225`	Piston seal ring; source size ￠140	`1200010378`	Nut
58	`1200010209`	Piston; source size ￠150	`1200010398`	Heavy nut
59	`1200010225`	Piston seal ring; source size ￠150	`1200010396`	Stud
60	`1200010214`	Piston; source size ￠160	`1200010388`	Pressure-gauge adapter
61	`1200010225`	Piston seal ring; source size ￠160	`1200010382`	Pressure-gauge seat
62	`1200010220`	Piston; source size ￠170	`1200010400`	Sealing ring
63	`1200010225`	Piston seal ring; source size ￠170	`1200010392`	Discharge cross
64	`1200010183`	Piston hub; source size ￠100	`1200010389`	Safety-valve seat
65	`1200010189`	Piston hub; source size ￠110	`1200010401`	Nut
66	`1200010194`	Piston hub; source size ￠120	`1200010399`	Stud
67	`1200010199`	Piston hub; source size ￠130	`1200010383`	Safety-valve seat
68	`1200010205`	Piston hub; source size ￠140	`1200010397`	Sealing ring
69	`1200010210`	Piston hub; source size ￠150	`1200010391`	Discharge five-way cross
70	`1200010215`	Piston hub; source size ￠160	`1200010393`	Pressure-gauge seat
71	`1200010221`	Piston hub; source size ￠170	`1200010405`	Support frame
72	`1200010184`	Piston rubber; source size ￠100	`1300006664`	Bolt
73	`1200010190`	Piston rubber; source size ￠110	`1200010407`	Shim
74	`1200010195`	Piston rubber; source size ￠120	`1300006668`	Bolt
75	`1200010200`	Piston rubber; source size ￠130	`1200010408`	Connecting plate
76	`1200010206`	Piston rubber; source size ￠140	`1200010409`	Bracket
77	`1200010211`	Piston rubber; source size ￠150	`1300001150`	Spring washer
78	`1200010216`	Piston rubber; source size ￠160	`1300005860`	Nut
79	`1200010222`	Piston rubber; source size ￠170	`1200010404`	Sealing ring
80	`1200010186`	Piston retainer plate; source size ￠100	`1200010402`	Stud
81	`1200010192`	Piston retainer plate; source size ￠110	`1200010403`	Nut
82	`1200010197`	Piston retainer plate; source size ￠120	`1200010093`	Main-bearing bolt
83	`1200010202`	Piston retainer plate; source size ￠130	`1200010064`	Main-bearing cover
84	`1200010208`	Piston retainer plate; source size ￠140	`1200010065`	Shim
85	`1200010213`	Piston retainer plate; source size ￠150	`1200010067`	Threaded plug
86	`1200010218`	Piston retainer plate; source size ￠160	`1200010031`	Threaded plug
87	`1200010224`	Piston retainer plate; source size ￠170	`1200010005`	Frame
88	`1200010187`	Piston snap ring; source size ￠100, ￠110,	`1200010313`	Guard
89	`1200010187`	Piston snap ring; source size ￠120	`1300007441`	Female-thread ball valve
90	`1200010203`	Piston snap ring; source size ￠130, ￠140,￠150	`1300005293`	Centrifugal liner-spray pump
91	`1200010219`	Piston snap ring; source size ￠160, ￠170,	`1300004217`	Hose assembly
92	`1200010173`	Snap ring	`1200010319`	Support assembly
93	`1200010174`	Retainer cover	`1200010331`	Water tank
94	`1300002340`	Steel ball	`1300004210`	Hose assembly
95	`1200010172`	Valve nut	`1300007646`	V-belt
96	`1200010175`	Valve insert	`1200010318`	Belt pulley
97	`1200010171`	Valve body	`1300005953`	Nut
98	`1200010176`	Valve seat	`1200010291`	Left cover plate
99	`1200010177`	Valve guide cage	`1200010292`	Body shell
100	`1200010080`	Bull gear	`1800000511`	Filter screen
101	`1200010097`	Retainer plate	`1300001265`	Equal-length stud
102	`1200010096`	Retaining ring	`1200010293`	Right cover plate
103	`1200010102`	Main bearing	`1200010294`	Straight connector
104	`1200010071`	Main-bearing sleeve (right)	`1200010295`	Nut
105	`1200010092`	Spacer ring	`1600000976`	Copper tube
106	`1200010077`	Hollow crankshaft	`1200010304`	Oil-pump gear
107	`1200010074`	Outer retaining ring	`1300000856`	Gear oil pump (including square key)
108	`1200010095`	Main-bearing sleeve (left)	`1300001126`	Spring washer
109	`1200010101`	Eccentric-strap bearing	`1200010305`	Shaft sleeve
110	`1200010075`	Connecting rod	`1200010306`	Bolt
111	`1200010076`	Positioning ring (Ⅰ)	`1300008214`	Pressure gauge
112	`1200010079`	Positioning ring (Ⅱ)	`1200010263`	Sealing washer
113	`1200010073`	Inner retaining ring	`1200010262`	Female-thread connector
114	`1200010130`	Mud baffle	`1200010264`	90-degree pipe connector
115	`1300006138`	Bolt	`1200010290`	Oil-filter assembly
116	`1200010128`	End cover	`1300009209`	Relief valve
117	`1300002205`	Dust seal	`1200010303`	Oil-pump gear assembly
118	`1200010127`	Sealing washer

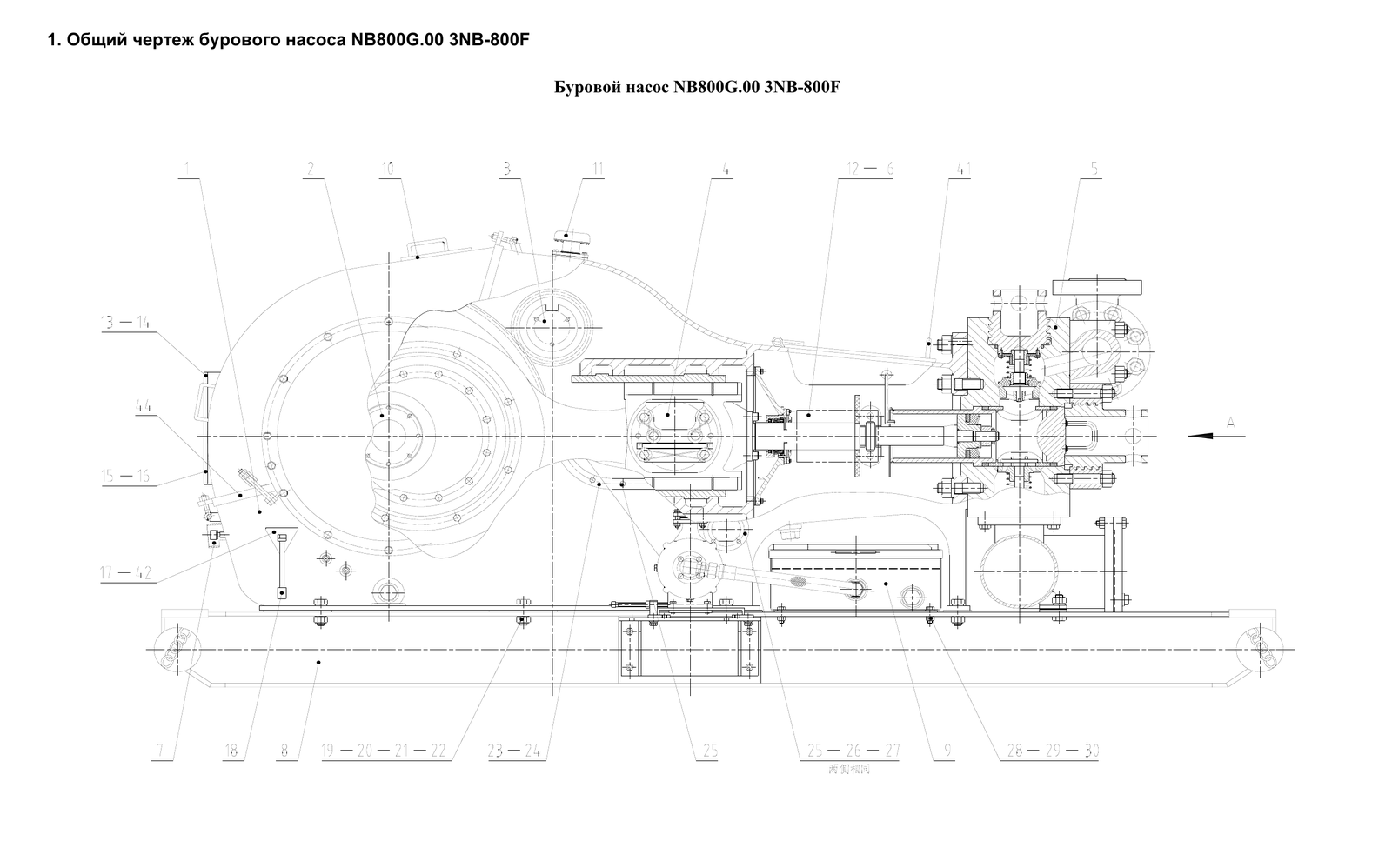

Honghua 3NB-800F parts catalogue, NB800G-TC, November 2012, Russian
119	`NB800G.01.00`	Frame assembly	`NB800G.05.24.00`	Clamp assembly
120	`NB800G.02.00`	Crankshaft assembly	`NB800G.05.25`	Liner end cover
121	`NB800G.03.00`	Pinion-shaft assembly	`NB800G.05.26`	Washer; source specification: 39
122	`NB800G.04.00`	Crosshead assembly	`NB800G.05.27`	Locking retainer
123	`NB800G.05.00`	Fluid-end assembly	`NB800G.05.28.00`	Lower valve-stem guide
124	`GB/T67-2000`	Screw; source specification: M4×12	`GB/T3452.1-2005`	O-ring; source specification: 190×7-G-S
125	`NB800G.06.00`	Power-end lubrication assembly	`GB/T5783-2000`	Bolt; source specification: M22×45
126	`NB800G.07.00`	Base	`NB800G.05.29.00`	Suction pipe
127	`NB800G.08.00`	Liner-spray pump assembly	`NB800G.05.30.00`	Shim pack
128	`NB800G.09`	Gasket	`GB/T5782-2000`	Bolt; source specification: M22×90
129	`NB800G.10.00`	Breather cap	`GB/T6170-2000`	Nut; source specification: M22
130	`NB800G.11`	Identification plate	`GB/T3452.1-2005`	O-ring; source specification: 290×7-G-S
131	`NB800G.12.00`	Cover	`NB800G.05.31`	Suction flange No. 1
132	`GB/T5781-2000`	Bolt; source specification: M12×30	`NB800G.05.32`	Threaded plug; source specification: NPT1 1/2
133	`GB/T95-2002`	Washer; source specification: 12	`NB800G.05.33`	Suction-inlet plug; source specification: 10"
134	`NB800G.13`	Gasket	`NB800G.05.34`	Suction flange No. 2
135	`NB800G.14`	Indicator plate	`NB800G.05.35.00`	Suction diaphragm
136	`NB800G.15.00`	Oil-level gauge assembly	`243`	Sealing adhesive
137	`NB800G.16`	Adjusting shim	`NB800G.05.17.01`	Valve body
138	`GB/T5782-2000`	Bolt; source specification: M27×80	`GB/T308`	Standard reference — source size φ5; component name not stated
139	`GB/T93-1987`	Washer; source specification: 27	`NB800G.05.17.05`	Valve rubber insert
140	`GB/T6170-2000`	Nut; source specification: M27	`NB800G.05.17.06`	Valve seat
141	`NB800G.17`	Crosshead-access cover	`243`	Anaerobic threadlocking sealant
142	`NB800G.18`	Gasket	`NB800G.06.01.00`	Support
143	`GB/T5781-2000`	Bolt; source specification: M12×35	`NB800G.06.02.00`	Shim pack
144	`NB800G.19.00`	Drain cover	`Y60－Z`	Pressure gauge; source specification: （M14×1.5）（0～1.6MPa/0～230psi）
145	`NB800G.20`	Sealing washer	`NB800G.06.03`	Nipple; source specification: NPT1/4-M14×1.5-6H
146	`GB/T5781-2000`	Bolt; source specification: M16×50	`NB800G.06.04`	Sealing washer
147	`GB/T95-2002`	Washer; source specification: 16	`NB800G.06.05`	Fitting; source specification: M12×1.25-6g-NPT1/4
148	`GB/T41-2000`	Nut; source specification: M16	`GB/T1527-1997`	Copper tubing; source specification: φ8×965
149	`NB800G.21`	Threaded plug; source specification: Rz1 1/2	`GB/T1527-1997`	Copper tubing; source specification: φ8×1448
150	`NB800G.22.00`	Discharge-filter assembly	`NB800G.06.06.00`	Tube clamp
151	`NB800G.23`	Sealing ring; source specification: R44	`GB/T1527-1997`	Copper tubing; source specification: φ8×1700
152	`NB800G.24.00`	Discharge-branch assembly	`GB/T1527-1997`	Copper tubing; source specification: φ8×2057
153	`NB800G.24.00A`	Discharge five-way manifold assembly	`NB800G.06.07`	Nut; source specification: M12×1.25-6H
154	`NB800G.25.00`	Tool kit	`GB/T1527-1997`	Copper tubing; source specification: φ12×1700
155	`NB800G.26`	Flange; source specification: 5 1/8×35	`NB800G.06.08`	90-degree fitting; source specification: M18×1.5-6g-NPT1/4
156	`NB800G.27.00`	Pulsation dampener; source specification: KB-45	`NB800G.06.09`	Nut; source specification: M18×1.5-6H
157	`NB800G.29.00`	Spare-parts kit	`NB800G.06.10`	Fitting; source specification: M12×1.25-6g
158	`NB800G.30.00`	Cover-plate assembly	`GB/T1527-1997`	Copper tubing; source specification: φ8×698
159	`GB/T827-1986`	Rivet; source specification: 3×10	`NB800G.06.11.00`	Tube clamp; source specification: φ12
160	`YK-150`	Vibration-resistant pressure gauge; source specification: 0～40MPa（0～5800psi）	`NB800G.06.12.00`	Tube clamp; source specification: φ8
161	`NB800G.31`	Blind flange; source specification: 5 1/8×35	`NB800G.06.13`	Fitting; source specification: M18×1.5-6g
162	`NB800G.01.01.00`	Frame	`GB/T1527-1997`	Copper tubing; source specification: φ12×927
163	`NB800G.01.02`	Main-bearing cap	`GB/T1527-1997`	Copper tubing; source specification: φ12×650
164	`NB800G.01.03`	Gasket	`NB800G.06.14`	Lubrication nipple
165	`NB800G.01.04`	Fitting; source specification: NPT3/4-NPT3/4	`GB/T5781-2000`	Bolt; source specification: M6×20
166	`NB800G.01.05`	Threaded plug; source specification: NPT3/4	`GB/T93-1987`	Washer; source specification: 6
167	`NB800G.02.01.00`	Main-bearing end cover	`NB800G.06.15`	90-degree fitting; source specification: M18×1.5-6g-NPT3/8
168	`NB800G.02.01A.00`	Main-bearing end cover	`GB/T1527-1997`	Copper tubing; source specification: φ12×780
169	`NB800G.02.02`	Main-bearing sleeve (right)	`NB800G.06.16`	Fitting; source specification: M16×1.5-6g-NPT1/4
170	`NB800G.02.03`	Sealing washer	`NB800G.06.17`	Nut; source specification: M16×1.5-6H
171	`NB800G.02.04`	Inner labyrinth seal	`GB/T1527-1997`	Copper tubing; source specification: φ10×318
172	`NB800G.02.05.00`	Outer labyrinth seal	`GB/T1527-1997`	Copper tubing; source specification: φ10×152
173	`NB800G.02.06`	Rod	`NB800G.06.18.00`	Tube clamp; source specification: φ10
174	`NB800G.02.07`	Locating ring No. 1	`NB800G.06.19`	90-degree fitting; source specification: M16×1.5-6g-NPT1/4
175	`NB800G.02.08.00`	Hollow crankshaft	`GB/T1527-1997`	Copper tubing; source specification: φ10×700
176	`NB800G.02.09`	Locating ring No. 2	`GB/T1527-1997`	Copper tubing; source specification: φ10×890
177	`NB800G.02.10.00`	Bull gear	`GB/T1527-1997`	Copper tubing; source specification: φ10×755
178	`NB800G.02.10A`	Bull gear (hobbed version)	`NB800G.06.20`	Fitting support (I)
179	`NB800G.02.10B`	Bull gear (ground-tooth version)	`NB800G.06.21`	Threaded plug; source specification: NPT3/8
180	`NB800G.02.11`	Bolt; source specification: M30-6g×125	`GB/T1527-1997`	Copper tubing; source specification: φ10×184
181	`NB800G.02.11A`	Bolt; source specification: M30-6g×100	`GB/T1527-1997`	Copper tubing; source specification: φ10×508
182	`NB800G.02.12.00`	Locknut; source specification: M30-6H	`GB/T1527-1997`	Copper tubing; source specification: φ10×610
183	`NB800G.02.13`	Spacer ring	`GB/T1527-1997`	Copper tubing; source specification: φ10×365
184	`NB800G.02.14`	Main-bearing bolt; source specification: 2 1/4-8UN-3A	`GB/T1527-1997`	Copper tubing; source specification: φ10×630
185	`NB800G.02.15.00`	Shim pack	`NB800G.06.22`	Threaded plug; source specification: NPT1/4
186	`NB800G.02.16`	Main-bearing sleeve (left)	`NB800G.06.23.00`	Oil-filter assembly
187	`NB800G.02.17`	Labyrinth seal	`NB800G.06.24`	Fitting; source specification: M24×1.5-6g-NPT1/2
188	`NB800G.02.18`	Deflector disc	`NB800G.06.25`	Nut; source specification: M24×1.5-6H
189	`NB800G.02.19`	Bolt; source specification: M16×40	`GB/T1527-1997`	Copper tubing; source specification: φ16×330
190	`GB/T5783-1986`	Bolt; source specification: M16×45	`GB/T1527-1997`	Copper tubing; source specification: φ16×640
191	`GB/T97.2-1985`	Washer; source specification: 16	`NB800G.06.26`	Fitting support (II)
192	`GB/T343-1994`	Locking steel wire; source specification: SZ-1.50	`NB800G.06.27`	Oil tray
193	`NB800G.02.20`	Screw; source specification: M16×120	`NB800G.06.28`	Fitting; source specification: M12×1.25-6g-NPT1/4
194	`NB800G.02.21`	Screw; source specification: M16×100	`GB/T1527-1997`	Copper tubing; source specification: φ8×340
195	`GB/T343-1994`	Locking steel wire; source specification: SZ-3.00	`YYFJ-L20`	Pressure-relief valve
196	`NB800G.02.23`	Main bearing; source specification: 23148/C3W33	`NB800G.06.29`	90-degree fitting; source specification: M24×1.5-6g-NPT1/2
197	`242`	Sealing adhesive	`GB/T70.1-2000`	Screw; source specification: M8×40
198	`NB800G.03.01`	Key; source specification: 44.45×44.45×203	`GB/T93-1987`	Washer; source specification: 8
199	`NB800G.03.02`	Pinion shaft	`NB800G.06.30.00`	Tube clamp; source specification: φ8
200	`NB800G.03.02A`	Pinion shaft (hobbed version)	`NB800G.06.31.00`	Oil-pump gear assembly
201	`NB800G.03.02B`	Pinion shaft (ground-tooth version)	`NB800G.06.32`	Fitting; source specification: M18×1.5-6g-NPT3/8
202	`NB800G.03.03`	Wear sleeve	`NB800G.08.01.00`	Guard
203	`NB800G.03.04`	End cover	`NB800G.08.01.00A`	Guard
204	`NB800G.03.05`	Sealing washer	`NB800G.08.02`	Pulley
205	`NB800G.03.06.00`	Oil collector	`GB/T1171-1996`	V-belt; source specification: A2800
206	`NB800G.03.07`	Sealing washer	`NB800G.08.03.00`	Support assembly
207	`NB800G.03.08`	Labyrinth seal	`NB800G.08.03.00A`	Support assembly
208	`NB800G.03.09`	Bearing sleeve	`NB800G.08.04`	Fitting; source specification: NPT1-M45×2-6g
209	`NB800G.03.10`	Sealing washer	`NB800G.08.05`	Short fitting; source specification: NPT1-G1B
210	`GB/T93-1987`	Washer; source specification: 16	`NB800G.08.06`	Fitting; source specification: G1B-M36×2-6g
211	`GB/T5783-2000`	Bolt; source specification: M16×45	`GB9065.1-88`	Hose assembly; source specification: C31.5Ⅰ-950
212	`NB800G.03.11`	Flange	`GB9065.1-88`	Hose assembly; source specification: C22Ⅰ-1500
213	`GB/T5783-2000`	Bolt; source specification: M12×35	`NB800G.08.07`	Fitting; source specification: NPT2 1/2-M45×2-6g
214	`GB/T93-1987`	Washer; source specification: 12	`NB800G.08.08.00`	Support
215	`GB/T5783-2000`	Bolt; source specification: M20×50	`NB800G.08.08.00A`	Support
216	`GB/T93-1987`	Washer; source specification: 20	`NB800G.08.09.00`	Water tank
217	`NB800G.03.12`	Oil seal; source specification: 7.625"×9.125"×0.625"	`NB800G.08.10.00`	Tank cover
218	`NB800G.03.13`	Roller bearing; source specification: NU3036X2M/C4	`32SB180J（32PL）`	Centrifugal liner-spray pump
219	`NB800G.04.01`	Crosshead	`Q11F-16`	Ball valve; source specification: G1"
220	`NB800G.04.02`	Upper guide	`NB800G.08.11`	Flange; source specification: NPT1
221	`GB/T4240-1993`	Stainless-steel wire; source specification: φ1.60（L＝300）	`NB800G.08.12`	Gasket
222	`NB800G.04.03`	Bolt; source specification: M20×40	`GB/T73-1985`	Screw; source specification: M8×25
223	`NB800G.04.04`	Double-lip seal; source specification: 4"×5"×0.5"	`GB/T5781-2000`	Bolt; source specification: M16×50
224	`NB800G.04.05`	Oil-seal ring	`GB/T93-1987`	Washer; source specification: 16
225	`NB800G.04.06`	Stuffing box	`GB/T41-2000`	Nut; source specification: M16
226	`GB/T3452.1-2005`	O-ring; source specification: 160×3.55-G-S	`GB/T5781-2000`	Bolt; source specification: M16×30
227	`NB800G.04.07`	Sealing washer	`GB/T95-2002`	Washer; source specification: 16
228	`NB800G.04.08`	End cover	`NB800G.08.13`	Connecting plate
229	`NB800G.04.09`	Intermediate rod	`GB/T5781-2000`	Bolt; source specification: M12×38
230	`NB800G.04.10`	Mud guard	`GB/T93-1987`	Washer; source specification: 12
231	`NB800G.04.11`	Retaining spring	`NB800G.08.14`	90-degree elbow; source specification: ：NPT1
232	`GB/T5780-2000`	Bolt; source specification: M10×45	`GB/T5780-2000`	Bolt; source specification: M12×60
233	`GB/T93-1987`	Washer; source specification: 10	`GB/T41-2000`	Nut; source specification: M12
234	`GB/T3452.1-2005`	O-ring; source specification: 128×7-G-S	`NB800G.22.01.00`	Filter assembly
235	`GB/T3452.1-2005`	O-ring; source specification: 103×5.3-G-S	`NB800G.22.02`	Body
236	`NB800G.04.12`	Fastening plate	`GB/T3452.1-2005`	O-ring; source specification: 165×7-G-S
237	`NB800G.04.13`	Lower guide	`NB800G.22.03`	Stud; source specification: M39×2-6h-M39×3-6g×128
238	`GB/T4240-1993`	Stainless-steel wire; source specification: φ1.60（L＝500）	`NB800G.22.04`	Nut; source specification: M39×3-6H（SPL）
239	`NB800G.04.14`	Bolt; source specification: M20×50	`NB800G.24.01.00`	Pressure-gauge seat
240	`NB800G.04.15`	Crosshead-pin retaining plate	`NB800G.24.02.00`	Safety-valve seat
241	`NB800G.04.16`	Gasket	`NB800G.24.03.00`	Discharge cross
242	`NB800G.04.17`	Crosshead bearing; source specification: NNAL 6/177.8-1 Q4/W33XYA2	`NB800G.24.04`	Stud; source specification: M27-6g×180
243	`NB800G.04.18`	Crosshead pin	`NB800G.24.05`	Heavy nut; source specification: M27-6H（SPL）
244	`NB800G.04.19.00`	Shim pack	`NB800G.24.06`	Gasket; source specification: R27
245	`NB800G.04.20`	Fitting; source specification: NPT3/8×50.8	`243`	Sealing adhesive
246	`NB800G.04.21`	Adjusting shim	`NB800G.24.01.00A`	Safety-valve seat
247	`GB/T4240-1993`	Stainless-steel wire; source specification: φ1.60（L＝400）	`NB800G.24.02A`	Discharge five-way adapter
248	`GB/T70.1-2000`	Screw; source specification: M16×50	`NB800G.24.03.00A`	Pressure-gauge seat
249	`242`	Sealing adhesive	`NB800G.24.04A`	Gasket; source specification: R35
250	`NB800G.05.01.00`	Fluid-end cylinder assembly	`NB800G.24.05A`	Stud; source specification: M30×2-6h-M30×3-6g×90
251	`NB800G.05.02`	Cylinder-cover flange	`NB800G.24.06A`	Nut; source specification: M30×3-6H（SPL）
252	`NB800G.05.03`	Cylinder cover	`NB800G.24.07A`	Stud; source specification: M39×2-6h-M39×3-6g×130
253	`NB800G.05.04`	Cylinder-cover seal	`NB800G.24.08A`	Nut; source specification: M39×3-6H（SPL）
254	`NB800G.05.06`	Liner withdrawal device	`NB800G.24.09A`	Gasket; source specification: R44
255	`GB/T3452.1-2005`	O-ring; source specification: 97.5×3.55-G-S	`NB800G.24.10.00A`	Support
256	`NB800G.05.07`	Discharge-outlet plug; source specification: 5 1/8"	`GB/T5782-2000`	Bolt; source specification: M22×60
257	`NB800G.05.08`	Discharge branch	`GB/T93-1987`	Washer; source specification: 22
258	`NB800G.05.01.03`	Nut; source specification: M39×3-6H（SPL）	`NB800G.24.11A`	Gasket
259	`NB800G.05.09`	Stud; source specification: M39×3-6g×262	`GB/T5782-2000`	Bolt; source specification: M22×80
260	`NB800G.05.10`	Valve-cover seal	`GB/T6170-2000`	Nut; source specification: M22
261	`NB800G.05.11`	Valve cover	`NB800G.24.12A`	Connecting plate
262	`NB800G.05.12`	Valve-stem guide	`NB800G.24.13.00A`	Support
263	`NB800G.05.13.00`	Spring guide	`NB800G.27.01`	Gasket; source specification: R39
264	`NB800G.05.14`	Deflector disc	`NB800G.27.02`	Bottom plug
265	`NB800G.05.15`	Bolt; source specification: M10×20	`NB800G.27.03.00`	Diaphragm
266	`GB/T4240-1993`	Steel wire; source specification: φ1.60（L=1830）	`NB800G.27.04.00`	Body
267	`NB800G.05.16`	Valve spring	`NB800G.27.05`	Cover
268	`NB800G.05.17.00`	Valve assembly	`JZR3-L8`	Shut-off valve
269	`NB800G.05.18.00`	Piston nut	`NB800G.27.06.00`	Pressure-gauge housing assembly
270	`NB800G.05.19.00`	Piston; source specification: φ140	`NB800G.27.07`	Fitting; source specification: NPT1/4
271	`NB800G.05.20`	Piston seal	`Y-60`	Vibration-resistant pressure gauge; source specification: 0～25MPa（0～3630psi）
272	`NB800G.05.21`	Piston rod	`NB800G.27.08`	Washer
273	`NB800G.05.22`	Bimetallic liner	`NB800G.27.09`	Tee; source specification: NPT1/4
274	`NB800G.05.22A`	Standard liner	`NB800G.27.10.00`	Vent valve
275	`NB800G.05.23.00`	Liner-spray pipe assembly	`NB800G.27.11.00`	Charging-hose assembly

Technical details and source references

Confirm the installed model, drawing revision and dimensions before ordering. Catalogue quantities do not indicate current stock.

Reference documents and scope

S1 — Honghua multi-model material-code catalogue, 3NB-500F / 800F / 1000F / 1300F / 1600F / 2200F. Reference file: 宏华HHF500-2200HL新泥浆泵零件图册.pdf.
S2 — Honghua 3NB-800F parts catalogue, NB800G-TC, November 2012, Russian. Reference file: 宏华3NB-800F公制泥浆泵.pdf.

PDF page numbers count from the first page of each reference file. Brand names identify the equipment or catalogue source. A listed number does not establish interchangeability, original-manufacturer authorisation, stock or a delivery commitment. Send the nameplate, complete reference, quantity and drawing revision for a parts review.

For a Honghua 3NB-800F parts request, keep the model, material code and assembly description together. The bilingual catalogue provides a dedicated 800F fluid-end list and separate pages for piston sizes, crankshaft components, the crosshead, pinion shaft and auxiliary systems. These sections support a more precise enquiry than a model name followed by a general request for spare parts.

Read the assembly and material-code scope together

The 800F fluid-end list shows 1200010143 for the fluid-cylinder assembly and 1200010241 for the liner end cover. The cylinder detail separates 1200010239 for the clamp assembly from 1200010226 for the piston rod. Related liner and piston charts use their own size rows, so the complete cylinder reference should not replace the required wear-part reference.

Configuration details to confirm

Several application-chart cells cover both 800F and 1000F, but other rows cover 800F alone. The merged application cell is part of the identification evidence. Keep its size range and component family with the code instead of assuming that every 800F item is shared with 1000F.

Information for a replacement-parts enquiry

Provide a readable nameplate photograph, pump serial number, the catalogue cover or revision, the material code, source page, item number and required quantity. Add photographs of the removed component and its markings. For threaded parts, include the thread form and measured dimensions; for seals, include the actual sealing profile as well as the nominal size.

The reference list distinguishes a complete assembly from its individual components. State whether the request concerns one component, a matched set or a complete assembly, and identify any parts that must remain paired. Codes printed for standards, equipment models or consumable grades have a different role from a custom part identifier.

For related selection information, see our mud pump spare-parts supply guide. Send the model and component details through the Pratt Oil contact page for a quotation review. Supply and suitability require confirmation against the submitted details.

Honghua 3NB-800F mud pump parts should be matched to the installed pump and its catalogue revision. The supplied Russian-language catalogue identifies the model as 3NB-800F and the book as NB800G-TC, November 2012. Its individual references use the NB800G drawing family. Keep that source identity with a parts enquiry rather than treating all 800-class mud pumps as one interchangeable specification.

Start with the relevant assembly

The catalogue separates the frame, crankshaft, pinion shaft, crosshead, fluid end, power-end lubrication and liner-wash systems. It also has dedicated discharge-strainer, discharge-connection and KB-45 dampener sections. Match the assembly drawing and its numbered item before choosing an individual component. A number found in a different pump family is not a substitute for the number printed on the installed pump's drawing.

Keep the A and B drawing suffixes

The pinion-shaft table separately lists NB800G.03.02, NB800G.03.02A and NB800G.03.02B. The crankshaft section likewise distinguishes NB800G.02.10.00, NB800G.02.10A and NB800G.02.10B gear references. The source describes different tooth-processing variants. These are separate catalogue entries, so deleting the final letter can remove a useful selection distinction. Confirm the installed gear and pinion combination from the relevant component drawings; this reference list does not establish that the variants are interchangeable.

Liners and sealing parts need more than a family number

The fluid-end table lists bimetal liner family NB800G.05.22 separately from standard liner family NB800G.05.22A. It also gives distinct references for the piston, piston rod, seals and valve assembly. Include the actual liner bore, piston construction, seal arrangement and photographs with the drawing number. Do not extend a source-listed reference to an unlisted size.

Standard fasteners, tubing and O-rings appear alongside custom drawing numbers. A GB/T designation identifies a standard family; the source dimension or thread information and the assembly item identify the particular requirement. Preserve both thread ends and overall length when requesting studs, and the complete source size for sealing rings.

Prepare a clear 3NB-800F parts request

Provide the nameplate, serial number, catalogue cover, assembly page, full drawing number, item number, quantity and installed-part photographs. Add measurements and material or seal requirements where applicable. Some descriptions in the supplied translated catalogue are incomplete; those entries require clarification before a component identity can be confirmed. Source quantities describe the historical assembly and do not indicate available stock.

See our mud pump spare-parts supply information and include the NB800G source revision, destination and required documentation with your enquiry. Suitability and availability must be confirmed against the submitted information.

Honghua 3NB-800F NB800G.00 assembly section from the 2012 source catalogue — NB800G.00 3NB-800F assembly illustration from the supplied November 2012 catalogue; a source reference drawing, not a current equipment photograph or an interchangeability guarantee.

1200010149 — S1 , PDF p. 6 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010148 — S1 , PDF p. 6 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010160 — S1 , PDF p. 6 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300000286 — S1 , PDF p. 6 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010143 — S1 , PDF p. 6 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010241 — S1 , PDF p. 6 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010229 — S1 , PDF p. 6 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006669 — S1 , PDF p. 6 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010253 — S1 , PDF p. 6 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010252 — S1 , PDF p. 6 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300000259 — S1 , PDF p. 6 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010255 — S1 , PDF p. 6 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300005860 — S1 , PDF p. 6 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010247 — S1 , PDF p. 6 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010257 — S1 , PDF p. 6 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010258 — S1 , PDF p. 6 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010239 — S1 , PDF p. 12 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010226 — S1 , PDF p. 12 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010225 — S1 , PDF p. 12 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010181 — S1 , PDF p. 12 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010178 — S1 , PDF p. 12 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010163 — S1 , PDF p. 12 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010162 — S1 , PDF p. 12 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010167 — S1 , PDF p. 12 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010164 — S1 , PDF p. 12 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010165 — S1 , PDF p. 12 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010169 — S1 , PDF p. 12 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010170 — S1 , PDF p. 12 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010143 — S1 , PDF p. 12 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010244 — S1 , PDF p. 12 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010158 — S1 , PDF p. 13 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010243 — S1 , PDF p. 13 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010154 — S1 , PDF p. 13 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010155 — S1 , PDF p. 13 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010152 — S1 , PDF p. 13 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010153 — S1 , PDF p. 13 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200016222 — S1 , PDF p. 13 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠120.; Honghua material/catalogue code (10-digit code column)
1200010154 — S1 , PDF p. 13 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠120.; Honghua material/catalogue code (10-digit code column)
1200016223 — S1 , PDF p. 13 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠130.; Honghua material/catalogue code (10-digit code column)
1200010154 — S1 , PDF p. 13 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠130.; Honghua material/catalogue code (10-digit code column)
1200016224 — S1 , PDF p. 13 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠140.; Honghua material/catalogue code (10-digit code column)
1200010154 — S1 , PDF p. 13 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠140.; Honghua material/catalogue code (10-digit code column)
1200016225 — S1 , PDF p. 13 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠150.; Honghua material/catalogue code (10-digit code column)
1200010154 — S1 , PDF p. 13 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠150.; Honghua material/catalogue code (10-digit code column)
1200016226 — S1 , PDF p. 13 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠160.; Honghua material/catalogue code (10-digit code column)
1200010154 — S1 , PDF p. 13 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠160.; Honghua material/catalogue code (10-digit code column)
1200010162 — S1 , PDF p. 13 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010182 — S1 , PDF p. 14 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠100.; Honghua material/catalogue code (10-digit code column)
1200010225 — S1 , PDF p. 14 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠100.; Honghua material/catalogue code (10-digit code column)
1200010188 — S1 , PDF p. 14 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠110.; Honghua material/catalogue code (10-digit code column)
1200010225 — S1 , PDF p. 14 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠110.; Honghua material/catalogue code (10-digit code column)
1200010193 — S1 , PDF p. 14 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠120.; Honghua material/catalogue code (10-digit code column)
1200010225 — S1 , PDF p. 14 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠120.; Honghua material/catalogue code (10-digit code column)
1200010198 — S1 , PDF p. 14 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠130.; Honghua material/catalogue code (10-digit code column)
1200010225 — S1 , PDF p. 14 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠130.; Honghua material/catalogue code (10-digit code column)
1200010204 — S1 , PDF p. 14 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠140.; Honghua material/catalogue code (10-digit code column)
1200010225 — S1 , PDF p. 14 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠140.; Honghua material/catalogue code (10-digit code column)
1200010209 — S1 , PDF p. 14 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠150.; Honghua material/catalogue code (10-digit code column)
1200010225 — S1 , PDF p. 14 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠150.; Honghua material/catalogue code (10-digit code column)
1200010214 — S1 , PDF p. 14 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠160.; Honghua material/catalogue code (10-digit code column)
1200010225 — S1 , PDF p. 14 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠160.; Honghua material/catalogue code (10-digit code column)
1200010220 — S1 , PDF p. 14 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠170.; Honghua material/catalogue code (10-digit code column)
1200010225 — S1 , PDF p. 14 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠170.; Honghua material/catalogue code (10-digit code column)
1200010183 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-800F; Piston hub; size as printed ￠100. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010189 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-800F; Piston hub; size as printed ￠110. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010194 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-800F, 3NB-1000F; Piston hub; size as printed ￠120. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010199 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-800F, 3NB-1000F; Piston hub; size as printed ￠130. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010205 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-800F, 3NB-1000F; Piston hub; size as printed ￠140. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010210 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-800F, 3NB-1000F; Piston hub; size as printed ￠150. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010215 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-800F, 3NB-1000F; Piston hub; size as printed ￠160. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010221 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-800F, 3NB-1000F; Piston hub; size as printed ￠170. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010184 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F; Piston rubber; size as printed ￠100. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010190 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F; Piston rubber; size as printed ￠110. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010195 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston rubber; size as printed ￠120. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010200 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston rubber; size as printed ￠130. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010206 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston rubber; size as printed ￠140. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010211 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston rubber; size as printed ￠150. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010216 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston rubber; size as printed ￠160. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010222 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston rubber; size as printed ￠170. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010186 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F; Piston retainer plate; size as printed ￠100. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010192 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F; Piston retainer plate; size as printed ￠110. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010197 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston retainer plate; size as printed ￠120. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010202 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston retainer plate; size as printed ￠130. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010208 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston retainer plate; size as printed ￠140. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010213 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston retainer plate; size as printed ￠150. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010218 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston retainer plate; size as printed ￠160. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010224 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston retainer plate; size as printed ￠170. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010187 — S1 , PDF p. 27 — Source application chart explicitly lists 3NB-500F, 3NB-800F; Piston snap ring; size as printed ￠100, ￠110,. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010187 — S1 , PDF p. 27 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston snap ring; size as printed ￠120. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010203 — S1 , PDF p. 27 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston snap ring; size as printed ￠130, ￠140,￠150. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010219 — S1 , PDF p. 27 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston snap ring; size as printed ￠160, ￠170,. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
1200010173 — S1 , PDF p. 29 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010174 — S1 , PDF p. 29 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300002340 — S1 , PDF p. 29 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010172 — S1 , PDF p. 29 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010175 — S1 , PDF p. 29 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010171 — S1 , PDF p. 29 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010176 — S1 , PDF p. 29 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010177 — S1 , PDF p. 29 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010080 — S1 , PDF p. 34 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010097 — S1 , PDF p. 34 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010096 — S1 , PDF p. 34 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010102 — S1 , PDF p. 34 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010071 — S1 , PDF p. 34 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010092 — S1 , PDF p. 34 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010077 — S1 , PDF p. 34 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010074 — S1 , PDF p. 34 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010095 — S1 , PDF p. 34 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010101 — S1 , PDF p. 34 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010075 — S1 , PDF p. 34 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010076 — S1 , PDF p. 34 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010079 — S1 , PDF p. 34 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010073 — S1 , PDF p. 34 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010130 — S1 , PDF p. 40 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006138 — S1 , PDF p. 40 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010128 — S1 , PDF p. 40 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300002205 — S1 , PDF p. 40 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010127 — S1 , PDF p. 40 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010126 — S1 , PDF p. 40 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010131 — S1 , PDF p. 40 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010124 — S1 , PDF p. 40 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010125 — S1 , PDF p. 40 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300000192 — S1 , PDF p. 40 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010129 — S1 , PDF p. 40 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010134 — S1 , PDF p. 40 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010122 — S1 , PDF p. 40 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010121 — S1 , PDF p. 40 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010137 — S1 , PDF p. 40 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010138 — S1 , PDF p. 40 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010135 — S1 , PDF p. 40 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010133 — S1 , PDF p. 40 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010123 — S1 , PDF p. 40 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300001141 — S1 , PDF p. 46 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006407 — S1 , PDF p. 46 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010117 — S1 , PDF p. 46 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010105 — S1 , PDF p. 46 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010104 — S1 , PDF p. 46 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006219 — S1 , PDF p. 46 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300001130 — S1 , PDF p. 46 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010110 — S1 , PDF p. 46 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010108 — S1 , PDF p. 46 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010109 — S1 , PDF p. 46 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006577 — S1 , PDF p. 46 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300001148 — S1 , PDF p. 46 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010116 — S1 , PDF p. 46 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010115 — S1 , PDF p. 46 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010119 — S1 , PDF p. 46 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010114 — S1 , PDF p. 46 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010113 — S1 , PDF p. 46 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010111 — S1 , PDF p. 46 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300001130 — S1 , PDF p. 49 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006219 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010467 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300008203 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010474 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010475 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010473 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010471 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010469 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300004241 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010464 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010463 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010465 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010460 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010462 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010459 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010458 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010374 — S1 , PDF p. 53 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300000224 — S1 , PDF p. 53 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010375 — S1 , PDF p. 53 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010376 — S1 , PDF p. 53 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010379 — S1 , PDF p. 53 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010456 — S1 , PDF p. 53 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010377 — S1 , PDF p. 53 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010378 — S1 , PDF p. 53 — Source table heading: 3NB-800F, 3NB-1000F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010398 — S1 , PDF p. 55 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010396 — S1 , PDF p. 55 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010388 — S1 , PDF p. 55 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010382 — S1 , PDF p. 55 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010400 — S1 , PDF p. 55 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010392 — S1 , PDF p. 55 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010389 — S1 , PDF p. 55 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010401 — S1 , PDF p. 58 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010399 — S1 , PDF p. 58 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010383 — S1 , PDF p. 58 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010397 — S1 , PDF p. 58 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010391 — S1 , PDF p. 58 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010393 — S1 , PDF p. 58 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010405 — S1 , PDF p. 58 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006664 — S1 , PDF p. 58 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010407 — S1 , PDF p. 58 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300006668 — S1 , PDF p. 58 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010408 — S1 , PDF p. 58 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010409 — S1 , PDF p. 58 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300001150 — S1 , PDF p. 58 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300005860 — S1 , PDF p. 58 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010404 — S1 , PDF p. 58 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010402 — S1 , PDF p. 58 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010403 — S1 , PDF p. 58 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010093 — S1 , PDF p. 62 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010064 — S1 , PDF p. 62 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010065 — S1 , PDF p. 62 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010067 — S1 , PDF p. 62 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010031 — S1 , PDF p. 62 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010005 — S1 , PDF p. 62 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010313 — S1 , PDF p. 64 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300007441 — S1 , PDF p. 64 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300005293 — S1 , PDF p. 64 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300004217 — S1 , PDF p. 64 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010319 — S1 , PDF p. 64 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010331 — S1 , PDF p. 64 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300004210 — S1 , PDF p. 64 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300007646 — S1 , PDF p. 64 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010318 — S1 , PDF p. 64 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300005953 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010291 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010292 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1800000511 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300001265 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010293 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010294 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010295 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1600000976 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010304 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300000856 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300001126 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010305 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010306 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300008214 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010263 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010262 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010264 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010290 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1300009209 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
1200010303 — S1 , PDF p. 68 — Source table heading: 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
NB800G.01.00 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.00 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.03.00 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.04.00 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.00 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T67-2000 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.06.00 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.07.00 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.08.00 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.09 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.10.00 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.11 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.12.00 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T5781-2000 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T95-2002 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.13 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.14 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.15.00 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.16 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T5782-2000 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T93-1987 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T6170-2000 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.17 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.18 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T5781-2000 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.19.00 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.20 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T5781-2000 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T95-2002 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T41-2000 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.21 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.22.00 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.23 — S2 , PDF p. 5 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.24.00 — S2 , PDF p. 6 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.24.00A — S2 , PDF p. 6 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.25.00 — S2 , PDF p. 6 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.26 — S2 , PDF p. 6 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.27.00 — S2 , PDF p. 6 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.29.00 — S2 , PDF p. 6 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.30.00 — S2 , PDF p. 6 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T827-1986 — S2 , PDF p. 6 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
YK-150 — S2 , PDF p. 6 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; catalogued component designation
NB800G.31 — S2 , PDF p. 6 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.01.01.00 — S2 , PDF p. 7 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.01.02 — S2 , PDF p. 7 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.01.03 — S2 , PDF p. 7 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.01.04 — S2 , PDF p. 7 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.01.05 — S2 , PDF p. 7 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.01.00 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.01A.00 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.02 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.03 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.04 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.05.00 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.06 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.07 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.08.00 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.09 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.10.00 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.10A — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.10B — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.11 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.11A — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.12.00 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.13 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.14 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.15.00 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.16 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.17 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.18 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.19 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T5783-1986 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T97.2-1985 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T343-1994 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.02.20 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.02.21 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T343-1994 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.02.23 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
242 — S2 , PDF p. 9 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; consumable designation
NB800G.03.01 — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.03.02 — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.03.02A — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.03.02B — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.03.03 — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.03.04 — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.03.05 — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.03.06.00 — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.03.07 — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.03.08 — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.03.09 — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.03.10 — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T93-1987 — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T5783-2000 — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.03.11 — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T5783-2000 — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T93-1987 — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T5783-2000 — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T93-1987 — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.03.12 — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.03.13 — S2 , PDF p. 11 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.04.01 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.04.02 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T4240-1993 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.04.03 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.04.04 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.04.05 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.04.06 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T3452.1-2005 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.04.07 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.04.08 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.04.09 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.04.10 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.04.11 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T5780-2000 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T93-1987 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T3452.1-2005 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T3452.1-2005 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.04.12 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.04.13 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T4240-1993 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.04.14 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.04.15 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.04.16 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.04.17 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.04.18 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.04.19.00 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.04.20 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.04.21 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T4240-1993 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T70.1-2000 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
242 — S2 , PDF p. 13 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; consumable designation
NB800G.05.01.00 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.02 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.03 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.04 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.06 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T3452.1-2005 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.05.07 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.08 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.01.03 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.09 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.10 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.11 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.12 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.13.00 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.14 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.15 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T4240-1993 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.05.16 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.17.00 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.18.00 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.19.00 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.20 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.21 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.22 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.22A — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.23.00 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.24.00 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.25 — S2 , PDF p. 15 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.26 — S2 , PDF p. 16 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.27 — S2 , PDF p. 16 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.28.00 — S2 , PDF p. 16 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T3452.1-2005 — S2 , PDF p. 16 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T5783-2000 — S2 , PDF p. 16 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.05.29.00 — S2 , PDF p. 16 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.30.00 — S2 , PDF p. 16 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T5782-2000 — S2 , PDF p. 16 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T6170-2000 — S2 , PDF p. 16 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T3452.1-2005 — S2 , PDF p. 16 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.05.31 — S2 , PDF p. 16 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.32 — S2 , PDF p. 16 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.33 — S2 , PDF p. 16 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.34 — S2 , PDF p. 16 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.35.00 — S2 , PDF p. 16 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
243 — S2 , PDF p. 16 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; consumable designation
NB800G.05.17.01 — S2 , PDF p. 17 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T308 — S2 , PDF p. 17 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.05.17.05 — S2 , PDF p. 17 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.05.17.06 — S2 , PDF p. 17 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
243 — S2 , PDF p. 17 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; consumable designation
NB800G.06.01.00 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.06.02.00 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
Y60－Z — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; catalogued component designation
NB800G.06.03 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.06.04 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.06.05 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T1527-1997 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T1527-1997 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.06.06.00 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T1527-1997 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T1527-1997 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.06.07 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T1527-1997 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.06.08 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.06.09 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.06.10 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T1527-1997 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.06.11.00 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.06.12.00 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.06.13 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T1527-1997 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T1527-1997 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.06.14 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T5781-2000 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T93-1987 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.06.15 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T1527-1997 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.06.16 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.06.17 — S2 , PDF p. 19 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T1527-1997 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T1527-1997 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.06.18.00 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.06.19 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T1527-1997 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T1527-1997 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T1527-1997 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.06.20 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.06.21 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T1527-1997 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T1527-1997 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T1527-1997 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T1527-1997 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T1527-1997 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.06.22 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.06.23.00 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.06.24 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.06.25 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T1527-1997 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T1527-1997 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.06.26 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.06.27 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.06.28 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T1527-1997 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
YYFJ-L20 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; catalogued component designation
NB800G.06.29 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T70.1-2000 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T93-1987 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.06.30.00 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.06.31.00 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.06.32 — S2 , PDF p. 20 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.08.01.00 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.08.01.00A — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.08.02 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T1171-1996 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.08.03.00 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.08.03.00A — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.08.04 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.08.05 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.08.06 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB9065.1-88 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB9065.1-88 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.08.07 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.08.08.00 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.08.08.00A — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.08.09.00 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.08.10.00 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
32SB180J（32PL） — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; catalogued component designation
Q11F-16 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; catalogued component designation
NB800G.08.11 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.08.12 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T73-1985 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T5781-2000 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T93-1987 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T41-2000 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T5781-2000 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T95-2002 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.08.13 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T5781-2000 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T93-1987 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.08.14 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T5780-2000 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T41-2000 — S2 , PDF p. 22 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.22.01.00 — S2 , PDF p. 23 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.22.02 — S2 , PDF p. 23 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T3452.1-2005 — S2 , PDF p. 23 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.22.03 — S2 , PDF p. 23 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.22.04 — S2 , PDF p. 23 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.24.01.00 — S2 , PDF p. 24 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.24.02.00 — S2 , PDF p. 24 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.24.03.00 — S2 , PDF p. 24 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.24.04 — S2 , PDF p. 24 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.24.05 — S2 , PDF p. 24 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.24.06 — S2 , PDF p. 24 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
243 — S2 , PDF p. 24 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; consumable designation
NB800G.24.01.00A — S2 , PDF p. 26 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.24.02A — S2 , PDF p. 26 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.24.03.00A — S2 , PDF p. 26 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.24.04A — S2 , PDF p. 26 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.24.05A — S2 , PDF p. 26 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.24.06A — S2 , PDF p. 26 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.24.07A — S2 , PDF p. 26 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.24.08A — S2 , PDF p. 26 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.24.09A — S2 , PDF p. 26 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.24.10.00A — S2 , PDF p. 26 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T5782-2000 — S2 , PDF p. 26 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T93-1987 — S2 , PDF p. 26 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.24.11A — S2 , PDF p. 26 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
GB/T5782-2000 — S2 , PDF p. 26 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
GB/T6170-2000 — S2 , PDF p. 26 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; standard code is not a unique pump part: retain source size; standard reference with source specification
NB800G.24.12A — S2 , PDF p. 26 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.24.13.00A — S2 , PDF p. 26 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.27.01 — S2 , PDF p. 28 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.27.02 — S2 , PDF p. 28 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.27.03.00 — S2 , PDF p. 28 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.27.04.00 — S2 , PDF p. 28 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.27.05 — S2 , PDF p. 28 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
JZR3-L8 — S2 , PDF p. 28 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; catalogued component designation
NB800G.27.06.00 — S2 , PDF p. 28 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.27.07 — S2 , PDF p. 28 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
Y-60 — S2 , PDF p. 28 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; catalogued component designation
NB800G.27.08 — S2 , PDF p. 28 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.27.09 — S2 , PDF p. 28 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.27.10.00 — S2 , PDF p. 28 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference
NB800G.27.11.00 — S2 , PDF p. 28 — Honghua 3NB-800F, NB800G-TC Russian-language catalogue, November 2012; confirm installed version; drawing part reference

Request a Quotation

Send the part number, quantity and pump model for a quotation.

WhatsApp parts inquiry Email parts list

Honghua 3NB-800F Mud Pump Spare Parts

Parts List

Reference documents and scope

Read the assembly and material-code scope together

Configuration details to confirm

Information for a replacement-parts enquiry

Start with the relevant assembly

Keep the A and B drawing suffixes

Liners and sealing parts need more than a family number

Prepare a clear 3NB-800F parts request

Request a Quotation

Phone:

WhatsApp:

Email:

Honghua 3NB-800F Mud Pump Spare Parts

Parts List

Reference documents and scope

Read the assembly and material-code scope together

Configuration details to confirm

Information for a replacement-parts enquiry

Start with the relevant assembly

Keep the A and B drawing suffixes

Liners and sealing parts need more than a family number

Prepare a clear 3NB-800F parts request

Request a Quotation

Related model guides
