Honghua 3NB-500F Mud Pump Spare Parts

Published by Pratt Oil ·

Pratt OilParts identification

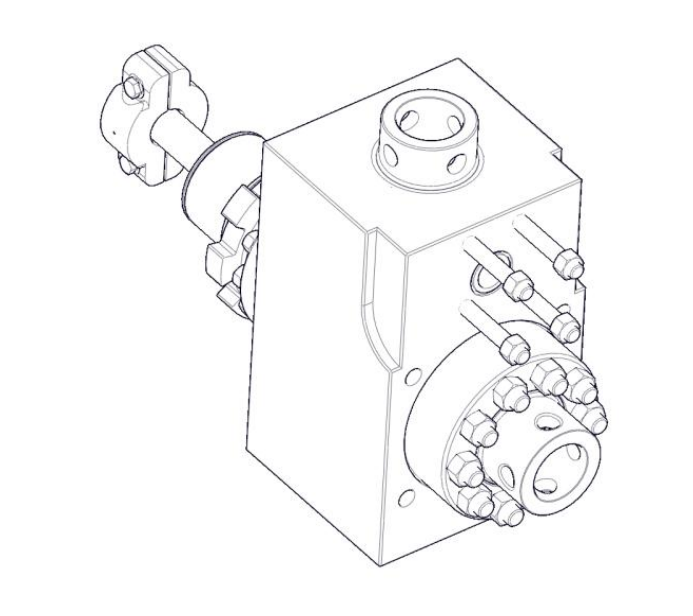

3NB-500F fluid-cylinder reference illustration from the bilingual Honghua material-code catalogue, PDF page 10.

Honghua 3NB-500F fluid-cylinder assembly 1200009392 is listed separately from individual piston, liner and valve components. Identify whether the request concerns the complete cylinder assembly or a particular wear part. For a quotation, send the part or drawing number, quantity, pump model and nameplate photo.

Parts List

Download parts list (CSV)

217 parts

P/PPart / Drawing No.NamePart / Drawing No.Name
11200009397Nut1200009327Connecting rod
21200009396Stud1200009328Positioning ring (Ⅰ)
31200009406Discharge manifold1200009331Positioning ring (Ⅱ)
41300000279O-ring1200009326Inner retaining ring
51200009392Fluid-cylinder assembly1200009381Mud baffle
61200009462Liner end cover1200009382Retaining ring
71200009449Liner-spray pipe assembly1200009377Stuffing box
81300006670Bolt1200009376Elbow
91200009479Threaded plug1200009383Locking spring
101200009477Blind flange1200009385Double-lip oil seal
111300000254O-ring1300000283O-ring
121200009478Suction flange1300000272O-ring
131300005859Nut1200009384Oil-seal ring
141200009468Suction manifold1200009390O-ring
151200009473Suction-dampener diaphragm1200009386Crosshead extension rod
161200009474Suction dampener (end cover )1200009374Bolt
171200009460Clamp assembly1200009372Crosshead
181200009445Piston rod1200009378Crosshead bearing
191300000258Piston seal ring (O-ring)1200009379Crosshead pin
201200009428Piston1200009389Adjusting shim
211200009425Locknut1200009380Crosshead-pin retainer plate
221200009410Valve cover1200009373Guide sleeve
231200009407Valve-cover seal ring1300001141Washer (spring washer)
241200009414Retainer plate1300006407Bolt
251200009411Valve-stem guide (upper)1200009370Turning flange
261200009412Spring guide1200009357Pinion shaft
271200009416Valve spring1200009356Key
281200009417Valve assembly1300006219Bolt
291200009392Fluid-cylinder assembly1300001130Washer (spring washer)
301200009465Valve-stem guide (lower)1200009361Sealing washer
311200009404Liner extraction tool1200009359Wear sleeve
321200009463Retaining clamp1200009360End cover
331200009401Liner seal ring1300006577Bolt
341200009403Cylinder-cover plug1300001148Washer (spring washer)
351200009399Cylinder-cover flange1200009362Sealing washer
361200009400Cylinder cover1200009363Bearing housing
371200016197Bi-metal liner; source size ￠1101200009369Cylindrical roller bearing
381200009401Liner seal ring; source size ￠1101200009364Retaining ring
391200016198Bi-metal liner; source size ￠1201200009365Sealing washer
401200009401Liner seal ring; source size ￠1201200009366Oil-collecting box
411200016199Bi-metal liner; source size ￠1301300001130Washer (spring washer)
421200009401Liner seal ring; source size ￠1301300006219Bolt
431200016200Bi-metal liner; source size ￠1401200010467Pressure-gauge guard
441200009401Liner seal ring; source size ￠1401300008203Dual-scale vibration-resistant pressure gauge
451200016201Bi-metal liner; source size ￠1501200010474Plug
461200009401Liner seal ring; source size ￠1501200010475Retaining cap
471200009407Valve-cover seal ring1200010473Connector
481200009429Piston; source size ￠1001200010471Tee
491300000258Piston seal ring; source size ￠1001200010469Connector
501200009431Piston; source size ￠1101300004241Angle stop valve (also labelled fuse in the source)
511300000258Piston seal ring; source size ￠1101200010464Nut
521200009433Piston; source size ￠1201200010463Stud
531300000258Piston seal ring; source size ￠1201200010465Cover
541200009435Piston; source size ￠1301200010460Bladder
551300000258Piston seal ring; source size ￠1301200010462Housing
561200009437Piston; source size ￠1401200010459Bottom plug
571300000258Piston seal ring; source size ￠1401200010458Sealing ring
581200009439Piston; source size ￠1501200009529Filter-screen cover
591300000258Piston seal ring; source size ￠1501300000224O-ring
601200009441Piston; source size ￠1601200009530Filter screen
611300000258Piston seal ring; source size ￠1601200009531Housing
621200009443Piston; source size ￠1701200009534Sealing washer
631300000258Piston seal ring; source size ￠1701200009573Discharge flange
641200009430Piston hub; source size ￠1001200009532Stud
651200009432Piston hub; source size ￠1101200009533Nut
661200009434Piston hub; source size ￠1201200009545Heavy nut
671200009436Piston hub; source size ￠1301200009544Stud
681200009438Piston hub; source size ￠1401200009539Pressure-gauge adapter
691200009440Piston hub; source size ￠1501200009536Pressure-gauge seat
701200009442Piston hub; source size ￠1601200009546Sealing ring
711200009444Piston hub; source size ￠1701200009542Discharge cross
721200010184Piston rubber; source size ￠1001200009540Safety-valve seat
731200010190Piston rubber; source size ￠1101200009348Main-bearing bolt
741200010195Piston rubber; source size ￠1201200037598Main-bearing cover (main-bearing cover plate)
751200010200Piston rubber; source size ￠1301200009317Shim
761200010206Piston rubber; source size ￠1401200009318Threaded plug
771200010211Piston rubber; source size ￠1501200009316Threaded plug
781200010216Piston rubber; source size ￠1601200037549Frame
791200010222Piston rubber; source size ￠1701200009494Guard
801200010186Piston retainer plate; source size ￠1001300007441Female-thread ball valve
811200010192Piston retainer plate; source size ￠1101300005293Centrifugal liner-spray pump
821200010197Piston retainer plate; source size ￠1201300004216Hose assembly
831200010202Piston retainer plate; source size ￠1301200010319Support assembly
841200010208Piston retainer plate; source size ￠1401200009497Water tank
851200010213Piston retainer plate; source size ￠1501300004209Hose assembly (hose)
861200010218Piston retainer plate; source size ￠1601300007645V-belt
871200010224Piston retainer plate; source size ￠1701200009496Belt pulley
881200010187Piston snap ring; source size ￠100, ￠110,1300005953Nut
891200010187Piston snap ring; source size ￠1201200010291Left cover plate
901200010203Piston snap ring; source size ￠130, ￠140,￠1501200010292Body shell
911200010219Piston snap ring; source size ￠160, ￠170,1800000511Filter screen
921200009420Snap ring1300001265Equal-length stud
931200009421Retainer cover1200010293Right cover plate
941300002340Steel ball1200010294Straight connector
951200009419Valve nut1200010295Nut
961200009422Valve insert1600000976Copper tube
971200009418Valve body1200009488Oil-pump gear
981200009423Valve seat13000000122S gear oil pump
991200009424Valve guide cage1300001126Spring washer
1001200009332Bull gear1200010305Shaft sleeve
1011200009347Retainer plate1200010306Bolt
1021200009345Retaining ring1300008214Dual-scale pressure gauge
1031200009353Main bearing1200010263Sealing washer
1041200009322Main-bearing sleeve (right)1200010262Female-thread connector
1051200009343Spacer ring120001026490-degree pipe connector
1061200009329Hollow crankshaft1200010290Oil-filter assembly
1071200009325Outer retaining ring1300009209Relief valve
1081200009344Main-bearing sleeve (left)1200009487Oil-pump gear assembly
1091200009352Eccentric-strap bearing
Technical details and source references

Confirm the installed model, drawing revision and dimensions before ordering. Catalogue quantities do not indicate current stock.

Reference documents and scope

  • S1 — Honghua multi-model material-code catalogue, 3NB-500F / 800F / 1000F / 1300F / 1600F / 2200F. Reference file: 宏华HHF500-2200HL新泥浆泵零件图册.pdf.

PDF page numbers count from the first page of each reference file. Brand names identify the equipment or catalogue source. A listed number does not establish interchangeability, original-manufacturer authorisation, stock or a delivery commitment. Send the nameplate, complete reference, quantity and drawing revision for a parts review.

The Honghua 3NB-500F material-code catalogue separates the complete fluid cylinder, the valve components and the size-dependent liner and piston entries. A description such as 500F repair kit leaves several of these choices unresolved. Use the actual component code and the relevant table item when preparing a maintenance purchase list.

Read the assembly and material-code scope together

The fluid-end assembly list identifies 1200009392 as a fluid-cylinder assembly, while the cylinder detail lists 1200009460 for the clamp assembly and 1200009445 for the piston rod. The liner row on the detail page has no code of its own; the following size chart supplies separate bi-metal-liner codes. This distinction matters when the requirement is a sized wear part rather than the complete cylinder assembly.

Configuration details to confirm

The piston-component charts also distinguish the piston hub, rubber, retainer plate and snap ring. A shared diameter does not make these four components the same purchasing item. Send the installed piston construction and photographs of the removed parts with any request for a replacement set.

Information for a replacement-parts enquiry

Provide a readable nameplate photograph, pump serial number, the catalogue cover or revision, the material code, source page, item number and required quantity. Add photographs of the removed component and its markings. For threaded parts, include the thread form and measured dimensions; for seals, include the actual sealing profile as well as the nominal size.

The reference list distinguishes a complete assembly from its individual components. State whether the request concerns one component, a matched set or a complete assembly, and identify any parts that must remain paired. Codes printed for standards, equipment models or consumable grades have a different role from a custom part identifier.

For related selection information, see our mud pump spare-parts supply guide. Send the model and component details through the Pratt Oil contact page for a quotation review. Supply and suitability require confirmation against the submitted details.

  1. 1200009397 — S1 , PDF p. 6 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  2. 1200009396 — S1 , PDF p. 6 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  3. 1200009406 — S1 , PDF p. 6 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  4. 1300000279 — S1 , PDF p. 6 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  5. 1200009392 — S1 , PDF p. 6 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  6. 1200009462 — S1 , PDF p. 6 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  7. 1200009449 — S1 , PDF p. 6 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  8. 1300006670 — S1 , PDF p. 6 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  9. 1200009479 — S1 , PDF p. 6 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  10. 1200009477 — S1 , PDF p. 6 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  11. 1300000254 — S1 , PDF p. 6 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  12. 1200009478 — S1 , PDF p. 6 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  13. 1300005859 — S1 , PDF p. 6 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  14. 1200009468 — S1 , PDF p. 6 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  15. 1200009473 — S1 , PDF p. 6 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  16. 1200009474 — S1 , PDF p. 6 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  17. 1200009460 — S1 , PDF p. 10 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  18. 1200009445 — S1 , PDF p. 10 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  19. 1300000258 — S1 , PDF p. 10 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  20. 1200009428 — S1 , PDF p. 10 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  21. 1200009425 — S1 , PDF p. 10 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  22. 1200009410 — S1 , PDF p. 10 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  23. 1200009407 — S1 , PDF p. 10 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  24. 1200009414 — S1 , PDF p. 10 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  25. 1200009411 — S1 , PDF p. 10 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  26. 1200009412 — S1 , PDF p. 10 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  27. 1200009416 — S1 , PDF p. 10 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  28. 1200009417 — S1 , PDF p. 10 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  29. 1200009392 — S1 , PDF p. 10 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  30. 1200009465 — S1 , PDF p. 10 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  31. 1200009404 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  32. 1200009463 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  33. 1200009401 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  34. 1200009403 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  35. 1200009399 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  36. 1200009400 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  37. 1200016197 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠110.; Honghua material/catalogue code (10-digit code column)
  38. 1200009401 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠110.; Honghua material/catalogue code (10-digit code column)
  39. 1200016198 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠120.; Honghua material/catalogue code (10-digit code column)
  40. 1200009401 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠120.; Honghua material/catalogue code (10-digit code column)
  41. 1200016199 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠130.; Honghua material/catalogue code (10-digit code column)
  42. 1200009401 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠130.; Honghua material/catalogue code (10-digit code column)
  43. 1200016200 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠140.; Honghua material/catalogue code (10-digit code column)
  44. 1200009401 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠140.; Honghua material/catalogue code (10-digit code column)
  45. 1200016201 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠150.; Honghua material/catalogue code (10-digit code column)
  46. 1200009401 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠150.; Honghua material/catalogue code (10-digit code column)
  47. 1200009407 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  48. 1200009429 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠100.; Honghua material/catalogue code (10-digit code column)
  49. 1300000258 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠100.; Honghua material/catalogue code (10-digit code column)
  50. 1200009431 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠110.; Honghua material/catalogue code (10-digit code column)
  51. 1300000258 — S1 , PDF p. 11 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠110.; Honghua material/catalogue code (10-digit code column)
  52. 1200009433 — S1 , PDF p. 12 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠120.; Honghua material/catalogue code (10-digit code column)
  53. 1300000258 — S1 , PDF p. 12 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠120.; Honghua material/catalogue code (10-digit code column)
  54. 1200009435 — S1 , PDF p. 12 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠130.; Honghua material/catalogue code (10-digit code column)
  55. 1300000258 — S1 , PDF p. 12 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠130.; Honghua material/catalogue code (10-digit code column)
  56. 1200009437 — S1 , PDF p. 12 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠140.; Honghua material/catalogue code (10-digit code column)
  57. 1300000258 — S1 , PDF p. 12 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠140.; Honghua material/catalogue code (10-digit code column)
  58. 1200009439 — S1 , PDF p. 12 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠150.; Honghua material/catalogue code (10-digit code column)
  59. 1300000258 — S1 , PDF p. 12 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠150.; Honghua material/catalogue code (10-digit code column)
  60. 1200009441 — S1 , PDF p. 12 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠160.; Honghua material/catalogue code (10-digit code column)
  61. 1300000258 — S1 , PDF p. 12 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠160.; Honghua material/catalogue code (10-digit code column)
  62. 1200009443 — S1 , PDF p. 12 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠170.; Honghua material/catalogue code (10-digit code column)
  63. 1300000258 — S1 , PDF p. 12 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠170.; Honghua material/catalogue code (10-digit code column)
  64. 1200009430 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-500F; Piston hub; size as printed ￠100. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  65. 1200009432 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-500F; Piston hub; size as printed ￠110. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  66. 1200009434 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-500F; Piston hub; size as printed ￠120. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  67. 1200009436 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-500F; Piston hub; size as printed ￠130. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  68. 1200009438 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-500F; Piston hub; size as printed ￠140. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  69. 1200009440 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-500F; Piston hub; size as printed ￠150. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  70. 1200009442 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-500F; Piston hub; size as printed ￠160. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  71. 1200009444 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-500F; Piston hub; size as printed ￠170. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  72. 1200010184 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F; Piston rubber; size as printed ￠100. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  73. 1200010190 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F; Piston rubber; size as printed ￠110. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  74. 1200010195 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston rubber; size as printed ￠120. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  75. 1200010200 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston rubber; size as printed ￠130. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  76. 1200010206 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston rubber; size as printed ￠140. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  77. 1200010211 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston rubber; size as printed ￠150. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  78. 1200010216 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston rubber; size as printed ￠160. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  79. 1200010222 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston rubber; size as printed ￠170. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  80. 1200010186 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F; Piston retainer plate; size as printed ￠100. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  81. 1200010192 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F; Piston retainer plate; size as printed ￠110. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  82. 1200010197 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston retainer plate; size as printed ￠120. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  83. 1200010202 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston retainer plate; size as printed ￠130. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  84. 1200010208 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston retainer plate; size as printed ￠140. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  85. 1200010213 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston retainer plate; size as printed ￠150. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  86. 1200010218 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston retainer plate; size as printed ￠160. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  87. 1200010224 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston retainer plate; size as printed ￠170. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  88. 1200010187 — S1 , PDF p. 27 — Source application chart explicitly lists 3NB-500F, 3NB-800F; Piston snap ring; size as printed ￠100, ￠110,. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  89. 1200010187 — S1 , PDF p. 27 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston snap ring; size as printed ￠120. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  90. 1200010203 — S1 , PDF p. 27 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston snap ring; size as printed ￠130, ￠140,￠150. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  91. 1200010219 — S1 , PDF p. 27 — Source application chart explicitly lists 3NB-500F, 3NB-800F, 3NB-1000F; Piston snap ring; size as printed ￠160, ￠170,. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  92. 1200009420 — S1 , PDF p. 29 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  93. 1200009421 — S1 , PDF p. 29 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  94. 1300002340 — S1 , PDF p. 29 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  95. 1200009419 — S1 , PDF p. 29 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  96. 1200009422 — S1 , PDF p. 29 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  97. 1200009418 — S1 , PDF p. 29 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  98. 1200009423 — S1 , PDF p. 29 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  99. 1200009424 — S1 , PDF p. 29 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  100. 1200009332 — S1 , PDF p. 34 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  101. 1200009347 — S1 , PDF p. 34 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  102. 1200009345 — S1 , PDF p. 34 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  103. 1200009353 — S1 , PDF p. 34 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  104. 1200009322 — S1 , PDF p. 34 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  105. 1200009343 — S1 , PDF p. 34 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  106. 1200009329 — S1 , PDF p. 34 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  107. 1200009325 — S1 , PDF p. 34 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  108. 1200009344 — S1 , PDF p. 34 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  109. 1200009352 — S1 , PDF p. 34 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  110. 1200009327 — S1 , PDF p. 34 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  111. 1200009328 — S1 , PDF p. 34 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  112. 1200009331 — S1 , PDF p. 34 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  113. 1200009326 — S1 , PDF p. 34 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  114. 1200009381 — S1 , PDF p. 38 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  115. 1200009382 — S1 , PDF p. 38 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  116. 1200009377 — S1 , PDF p. 38 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  117. 1200009376 — S1 , PDF p. 38 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  118. 1200009383 — S1 , PDF p. 38 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  119. 1200009385 — S1 , PDF p. 38 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  120. 1300000283 — S1 , PDF p. 38 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  121. 1300000272 — S1 , PDF p. 38 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  122. 1200009384 — S1 , PDF p. 38 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  123. 1200009390 — S1 , PDF p. 38 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  124. 1200009386 — S1 , PDF p. 38 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  125. 1200009374 — S1 , PDF p. 38 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  126. 1200009372 — S1 , PDF p. 38 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  127. 1200009378 — S1 , PDF p. 38 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  128. 1200009379 — S1 , PDF p. 38 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  129. 1200009389 — S1 , PDF p. 38 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  130. 1200009380 — S1 , PDF p. 38 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  131. 1200009373 — S1 , PDF p. 38 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  132. 1300001141 — S1 , PDF p. 46 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  133. 1300006407 — S1 , PDF p. 46 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  134. 1200009370 — S1 , PDF p. 46 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  135. 1200009357 — S1 , PDF p. 46 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  136. 1200009356 — S1 , PDF p. 46 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  137. 1300006219 — S1 , PDF p. 46 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  138. 1300001130 — S1 , PDF p. 46 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  139. 1200009361 — S1 , PDF p. 46 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  140. 1200009359 — S1 , PDF p. 46 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  141. 1200009360 — S1 , PDF p. 46 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  142. 1300006577 — S1 , PDF p. 46 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  143. 1300001148 — S1 , PDF p. 46 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  144. 1200009362 — S1 , PDF p. 46 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  145. 1200009363 — S1 , PDF p. 46 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  146. 1200009369 — S1 , PDF p. 46 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  147. 1200009364 — S1 , PDF p. 46 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  148. 1200009365 — S1 , PDF p. 46 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  149. 1200009366 — S1 , PDF p. 46 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  150. 1300001130 — S1 , PDF p. 49 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  151. 1300006219 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  152. 1200010467 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  153. 1300008203 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  154. 1200010474 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  155. 1200010475 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  156. 1200010473 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  157. 1200010471 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  158. 1200010469 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  159. 1300004241 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  160. 1200010464 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  161. 1200010463 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  162. 1200010465 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  163. 1200010460 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  164. 1200010462 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  165. 1200010459 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  166. 1200010458 — S1 , PDF p. 50 — Source table heading: 3NB-500F, 3NB-800F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  167. 1200009529 — S1 , PDF p. 52 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  168. 1300000224 — S1 , PDF p. 52 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  169. 1200009530 — S1 , PDF p. 53 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  170. 1200009531 — S1 , PDF p. 53 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  171. 1200009534 — S1 , PDF p. 53 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  172. 1200009573 — S1 , PDF p. 53 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  173. 1200009532 — S1 , PDF p. 53 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  174. 1200009533 — S1 , PDF p. 53 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  175. 1200009545 — S1 , PDF p. 54 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  176. 1200009544 — S1 , PDF p. 54 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  177. 1200009539 — S1 , PDF p. 54 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  178. 1200009536 — S1 , PDF p. 54 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  179. 1200009546 — S1 , PDF p. 54 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  180. 1200009542 — S1 , PDF p. 54 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  181. 1200009540 — S1 , PDF p. 54 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  182. 1200009348 — S1 , PDF p. 61 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  183. 1200037598 — S1 , PDF p. 61 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  184. 1200009317 — S1 , PDF p. 61 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  185. 1200009318 — S1 , PDF p. 61 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  186. 1200009316 — S1 , PDF p. 61 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  187. 1200037549 — S1 , PDF p. 61 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  188. 1200009494 — S1 , PDF p. 63 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  189. 1300007441 — S1 , PDF p. 63 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  190. 1300005293 — S1 , PDF p. 63 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  191. 1300004216 — S1 , PDF p. 63 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  192. 1200010319 — S1 , PDF p. 63 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  193. 1200009497 — S1 , PDF p. 63 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  194. 1300004209 — S1 , PDF p. 63 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  195. 1300007645 — S1 , PDF p. 63 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  196. 1200009496 — S1 , PDF p. 63 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  197. 1300005953 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  198. 1200010291 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  199. 1200010292 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  200. 1800000511 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  201. 1300001265 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  202. 1200010293 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  203. 1200010294 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  204. 1200010295 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  205. 1600000976 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  206. 1200009488 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  207. 1300000012 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  208. 1300001126 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  209. 1200010305 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  210. 1200010306 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  211. 1300008214 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  212. 1200010263 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  213. 1200010262 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  214. 1200010264 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  215. 1200010290 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  216. 1300009209 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  217. 1200009487 — S1 , PDF p. 67 — Source table heading: 3NB-500F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)

Request a Quotation

Send the part number, quantity and pump model for a quotation.

WhatsApp parts inquiryEmail parts list

Related model guides

Browse all Company News and model guides

WhatsApp
