Honghua 3NB-2200F Mud Pump Spare Parts

Published by Pratt Oil ·

Pratt OilParts identification

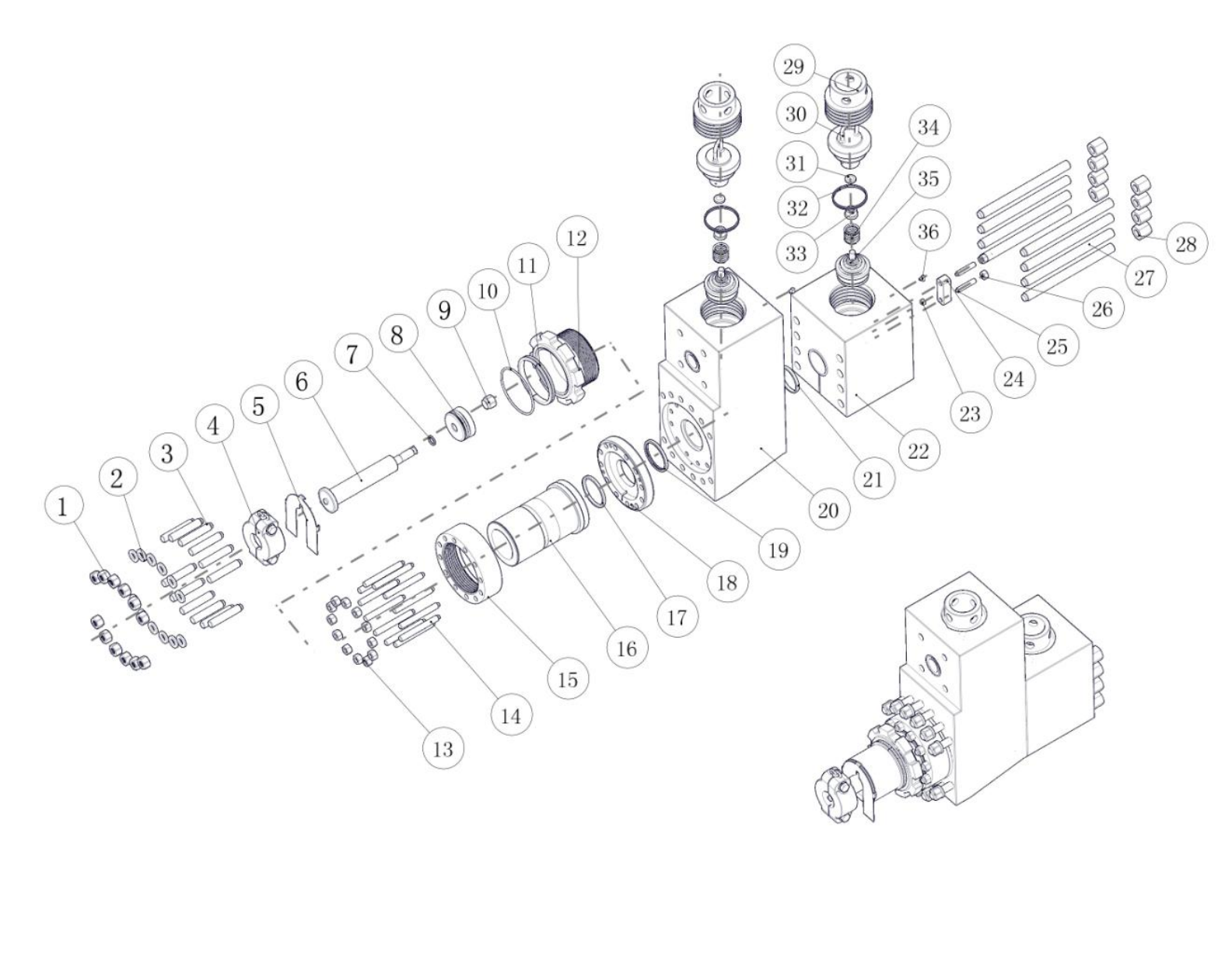

3NB-2200F split fluid-cylinder exploded illustration, bilingual material-code catalogue, PDF page 20. The source section is labelled 2200F, without an HL suffix.

The Honghua 3NB-2200F list separates suction and discharge-cylinder components; piston rod 1200009101 is one listed item. Identify whether the requirement concerns the rod, a cylinder assembly or individual sealing parts. For a quotation, send the part or drawing number, quantity, pump model and nameplate photo.

Parts List

Download parts list (CSV)

239 parts

P/PPart / Drawing No.NamePart / Drawing No.Name
11200008998Nut1200010224Piston retainer plate; source size ￠170
21200008999Stud1200009014Piston retainer plate; source size ￠180
31200009003Discharge manifold1200009019Piston retainer plate; source size ￠190
41200009041Liner-spray pipe assembly1200009025Piston retainer plate; source size ￠200
51200009002Discharge-pipe seal1200009030Piston retainer plate; source size ￠210
61300000256O-ring1200009035Piston retainer plate; source size ￠220
71300006663Bolt1200009040Piston retainer plate; source size ￠230
81300006771Bolt1200010203Piston snap ring; source size ￠130，￠140，￠150
91200009162End cover1200010219Piston snap ring; source size ￠160，￠170，￠180
101200009161Bladder1200009020Piston snap ring; source size ￠190，￠200，￠210 ￠220，￠230
111300005876Nut1200009119Valve body
121200009155Suction manifold1200009122Valve nut
131300000266O-ring1200009123Snap ring
141200009159Suction flange (Ⅰ)1200009124Retainer cover
151200009114Threaded plug1300002340Steel ball
161200009154Suction flange (Ⅱ)1200009125Valve insert
171200008995Nut1200009126Valve seat
181200009004Washer1300000218O-ring
191200008994Stud1200009127Valve guide cage
201200009099Clamp assembly1200009136Valve body
211200009058Liner end cover1200009138Valve nut
221200009101Piston rod1200009139Valve insert
231200009104Piston seal ring1200009140Valve seat
241200009007Piston1300000218O-ring
251200009105Piston nut1200008934Bull gear
261300000255O-ring1200008943Retainer plate
271200009102Liner locking ring1200008941Retaining ring
281200009103Liner retainer1200008949Main bearing
291200010401Nut1200008925Main-bearing sleeve (right)
301200008996Stud1200008939Spacer ring
311200009006Liner flange1200008931Hollow crankshaft
321200009005Wear plate1200008928Outer retaining ring
331200009111Wear-plate seal ring1200008940Main-bearing sleeve (left)
341200008993Discharge fluid cylinder1200008948Eccentric-strap bearing
351200009112Fluid-cylinder seal ring1200008929Connecting rod
361200009149Suction fluid cylinder1200008930Positioning ring (Ⅰ)
371200009150Suction fluid-cylinder seal ring1200008933Positioning ring (Ⅱ)
381200009151Pressure plate1200008927Inner retaining ring
391200009152Stud1200008973Mud baffle
401200009153Nut1300006138Bolt
411200008999Stud1200008971End cover
421200008998Nut1300000233O-ring
431200009001Valve cover1200008970Sealing washer
441200008989Valve retainer cover1200008969Stuffing box
451200009146Cushion pad1200008974Spacer ring (locking spring)
461200009147Valve-cover seal ring1300009314Oil seal
471200009142Valve-stem guide1200008968Oil-seal ring
481200009141Valve spring1300000209O-ring
491200009118High-pressure valve assembly (ribbed valve assembly)1200008972Crosshead extension rod
50120000914590-degree elbow1200008975Bolt
511200016247Bi-metal liner; source size ￠1301200008966Upper guide
521200009108Liner seal ring; source size ￠1301200008965Crosshead
531200016248Bi-metal liner; source size ￠1401200008981Crosshead bearing
541200009108Liner seal ring; source size ￠1401200008982Crosshead pin
551200016249Bi-metal liner; source size ￠1501200008986Crosshead-pin retainer plate
561200009108Liner seal ring; source size ￠1501200008976Lower guide
571200016250Bi-metal liner; source size ￠1601200008967Bolt
581200009108Liner seal ring; source size ￠1601300001148Washer (spring washer)
591200016251Bi-metal liner; source size ￠1701300006577Bolt
601200009109Liner seal ring; source size ￠1701200008958Turning flange
611200016252Bi-metal liner; source size ￠1801200008952Pinion shaft
621200009109Liner seal ring; source size ￠1801200008951Key
631200016253Bi-metal liner; source size ￠1901300006407Bolt
641200009109Liner seal ring; source size ￠1901300001141Washer (spring washer)
651200016254Bi-metal liner; source size ￠2001200008955Sealing washer
661200009110Liner seal ring; source size ￠2001200008953Wear sleeve
671200016255Bi-metal liner; source size ￠2101200008954End cover
681200009110Liner seal ring; source size ￠2101300006727Bolt
691200016256Bi-metal liner; source size ￠2201300001154Washer (spring washer)
701200009110Liner seal ring; source size ￠2201200008960Sealing washer
711200009147Valve-cover seal ring1200008956Bearing housing
721200009112Fluid-cylinder seal ring1200008963Cylindrical roller bearing
731200010198Piston; source size ￠1301200008959Retaining ring
741200009104Piston seal ring; source size ￠1301200008957Sealing washer
751200010204Piston; source size ￠1401200008961Oil-collecting box
761200009104Piston seal ring; source size ￠1401300001141Washer (spring washer)
771200010209Piston; source size ￠1501300006393Bolt
781200009104Piston seal ring; source size ￠1501200009242Pressure-gauge guard
791200010214Piston; source size ￠1601300008203Dual-scale vibration-resistant pressure gauge
801200009104Piston seal ring; source size ￠1601200010474Plug
811200009008Piston; source size ￠1701200010475Retaining cap
821200009104Piston seal ring; source size ￠1701200010473Connector
831200009010Piston; source size ￠1801200010471Tee
841200009104Piston seal ring; source size ￠1801200009244Connector
851200009015Piston; source size ￠1901300009681Angle stop valve
861200009104Piston seal ring; source size ￠1901200008995Nut
871200009021Piston; source size ￠2001200009238Stud
881200009104Piston seal ring; source size ￠2001200009240Cover
891200009026Piston; source size ￠2101200009235Bladder
901200009104Piston seal ring; source size ￠2101200009237Housing
911200009031Piston; source size ￠2201200010471Bottom plug (tee)
921200009104Piston seal ring; source size ￠2201300007198Sealing ring
931200009036Piston; source size ￠2301300005848Nut
941200009104Piston seal ring; source size ￠2301200009248Stud
951200010199Piston hub; source size ￠1301300007495Dual-scale pressure gauge
961200010205Piston hub; source size ￠1401300007197Sealing ring
971200010210Piston hub; source size ￠1501200009247Pressure-gauge seat
981200010215Piston hub; source size ￠1601300007199Sealing ring
991200009009Piston hub; source size ￠1701200009258Five-way cross
1001200009011Piston hub; source size ￠1801200009257Weld-neck flange
1011200009016Piston hub; source size ￠1901300001154Spring washer
1021200009022Piston hub; source size ￠2001300006725Bolt
1031200009027Piston hub; source size ￠2101200009250Support frame
1041200009032Piston hub; source size ￠2201200009254Filter screen
1051200009037Piston hub; source size ￠2301200009256Blind flange
1061200010200Piston rubber; source size ￠1301200009249Stud
1071200010206Piston rubber; source size ￠1401200009227Nut
1081200010211Piston rubber; source size ￠1501200008944Main-bearing bolt
1091200010216Piston rubber; source size ￠1601200008921Main-bearing cover
1101200010222Piston rubber; source size ￠1701200008922Shim
1111200009012Piston rubber; source size ￠1801200010067Threaded plug
1121200009017Piston rubber; source size ￠1901200010031Threaded plug
1131200009023Piston rubber; source size ￠2001200008862Frame
1141200009028Piston rubber; source size ￠2101300000099Hose
1151200009033Piston rubber; source size ￠2201300007439Female-thread ball valve
1161200009038Piston rubber; source size ￠2301300005298Vertical in-line centrifugal pump
1171200010202Piston retainer plate; source size ￠1301200009185Mounting bracket
1181200010208Piston retainer plate; source size ￠1401300000106Hose
1191200010213Piston retainer plate; source size ￠1501200009186Water tank
1201200010218Piston retainer plate; source size ￠160
Technical details and source references

Confirm the installed model, drawing revision and dimensions before ordering. Catalogue quantities do not indicate current stock.

Reference documents and scope

  • S1 — Honghua multi-model material-code catalogue, 3NB-500F / 800F / 1000F / 1300F / 1600F / 2200F. Reference file: 宏华HHF500-2200HL新泥浆泵零件图册.pdf.

PDF page numbers count from the first page of each reference file. Brand names identify the equipment or catalogue source. A listed number does not establish interchangeability, original-manufacturer authorisation, stock or a delivery commitment. Send the nameplate, complete reference, quantity and drawing revision for a parts review.

The Honghua 3NB-2200F section uses a separate fluid-end arrangement from the smaller F-series models in the reference bilingual catalogue. It distinguishes the suction and discharge cylinders, their seals and the associated valve components. Start a 2200F enquiry with that arrangement rather than extending a smaller-model reference by horsepower alone.

Read the assembly and material-code scope together

The cylinder-detail page lists 1200009099 for the clamp assembly, while the fluid-end assembly list identifies 1200009003 for the discharge manifold. Separate pages describe a high-pressure valve assembly and a ribbed-valve assembly. These are source configuration groups and should not be combined into a generic valve kit without identifying the installed type.

Configuration details to confirm

The source model is 2200F. This guide follows the 3NB-2200F designation printed in the source section. Confirm any HL configuration using its own nameplate and parts catalogue. Keep the source model wording, liner size and valve arrangement with the material code. Pressure suitability must be checked against the actual pump and component rating; a catalogue-wide maximum is not a rating for every liner or assembly.

Information for a replacement-parts enquiry

Provide a readable nameplate photograph, pump serial number, the catalogue cover or revision, the material code, source page, item number and required quantity. Add photographs of the removed component and its markings. For threaded parts, include the thread form and measured dimensions; for seals, include the actual sealing profile as well as the nominal size.

The reference list distinguishes a complete assembly from its individual components. State whether the request concerns one component, a matched set or a complete assembly, and identify any parts that must remain paired. Codes printed for standards, equipment models or consumable grades have a different role from a custom part identifier.

For related selection information, see our mud pump spare-parts supply guide. Send the model and component details through the Pratt Oil contact page for a quotation review. Supply and suitability require confirmation against the submitted details.

  1. 1200008998 — S1 , PDF p. 8 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  2. 1200008999 — S1 , PDF p. 8 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  3. 1200009003 — S1 , PDF p. 8 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  4. 1200009041 — S1 , PDF p. 8 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  5. 1200009002 — S1 , PDF p. 8 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  6. 1300000256 — S1 , PDF p. 8 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  7. 1300006663 — S1 , PDF p. 8 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  8. 1300006771 — S1 , PDF p. 8 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  9. 1200009162 — S1 , PDF p. 8 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  10. 1200009161 — S1 , PDF p. 8 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  11. 1300005876 — S1 , PDF p. 8 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  12. 1200009155 — S1 , PDF p. 8 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  13. 1300000266 — S1 , PDF p. 9 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  14. 1200009159 — S1 , PDF p. 9 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  15. 1200009114 — S1 , PDF p. 9 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  16. 1200009154 — S1 , PDF p. 9 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  17. 1200008995 — S1 , PDF p. 20 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  18. 1200009004 — S1 , PDF p. 20 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  19. 1200008994 — S1 , PDF p. 20 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  20. 1200009099 — S1 , PDF p. 20 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  21. 1200009058 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  22. 1200009101 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  23. 1200009104 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  24. 1200009007 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  25. 1200009105 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  26. 1300000255 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  27. 1200009102 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  28. 1200009103 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  29. 1200010401 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  30. 1200008996 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  31. 1200009006 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  32. 1200009005 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  33. 1200009111 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  34. 1200008993 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  35. 1200009112 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  36. 1200009149 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  37. 1200009150 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  38. 1200009151 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  39. 1200009152 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  40. 1200009153 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  41. 1200008999 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  42. 1200008998 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  43. 1200009001 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  44. 1200008989 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  45. 1200009146 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  46. 1200009147 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  47. 1200009142 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  48. 1200009141 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  49. 1200009118 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  50. 1200009145 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  51. 1200016247 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠130.; Honghua material/catalogue code (10-digit code column)
  52. 1200009108 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠130.; Honghua material/catalogue code (10-digit code column)
  53. 1200016248 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠140.; Honghua material/catalogue code (10-digit code column)
  54. 1200009108 — S1 , PDF p. 21 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠140.; Honghua material/catalogue code (10-digit code column)
  55. 1200016249 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠150.; Honghua material/catalogue code (10-digit code column)
  56. 1200009108 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠150.; Honghua material/catalogue code (10-digit code column)
  57. 1200016250 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠160.; Honghua material/catalogue code (10-digit code column)
  58. 1200009108 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠160.; Honghua material/catalogue code (10-digit code column)
  59. 1200016251 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠170.; Honghua material/catalogue code (10-digit code column)
  60. 1200009109 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠170.; Honghua material/catalogue code (10-digit code column)
  61. 1200016252 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠180.; Honghua material/catalogue code (10-digit code column)
  62. 1200009109 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠180.; Honghua material/catalogue code (10-digit code column)
  63. 1200016253 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠190.; Honghua material/catalogue code (10-digit code column)
  64. 1200009109 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠190.; Honghua material/catalogue code (10-digit code column)
  65. 1200016254 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠200.; Honghua material/catalogue code (10-digit code column)
  66. 1200009110 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠200.; Honghua material/catalogue code (10-digit code column)
  67. 1200016255 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠210.; Honghua material/catalogue code (10-digit code column)
  68. 1200009110 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠210.; Honghua material/catalogue code (10-digit code column)
  69. 1200016256 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠220.; Honghua material/catalogue code (10-digit code column)
  70. 1200009110 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠220.; Honghua material/catalogue code (10-digit code column)
  71. 1200009147 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  72. 1200009112 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  73. 1200010198 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠130.; Honghua material/catalogue code (10-digit code column)
  74. 1200009104 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠130.; Honghua material/catalogue code (10-digit code column)
  75. 1200010204 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠140.; Honghua material/catalogue code (10-digit code column)
  76. 1200009104 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠140.; Honghua material/catalogue code (10-digit code column)
  77. 1200010209 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠150.; Honghua material/catalogue code (10-digit code column)
  78. 1200009104 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠150.; Honghua material/catalogue code (10-digit code column)
  79. 1200010214 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠160.; Honghua material/catalogue code (10-digit code column)
  80. 1200009104 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠160.; Honghua material/catalogue code (10-digit code column)
  81. 1200009008 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠170.; Honghua material/catalogue code (10-digit code column)
  82. 1200009104 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠170.; Honghua material/catalogue code (10-digit code column)
  83. 1200009010 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠180.; Honghua material/catalogue code (10-digit code column)
  84. 1200009104 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠180.; Honghua material/catalogue code (10-digit code column)
  85. 1200009015 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠190.; Honghua material/catalogue code (10-digit code column)
  86. 1200009104 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠190.; Honghua material/catalogue code (10-digit code column)
  87. 1200009021 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠200.; Honghua material/catalogue code (10-digit code column)
  88. 1200009104 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠200.; Honghua material/catalogue code (10-digit code column)
  89. 1200009026 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠210.; Honghua material/catalogue code (10-digit code column)
  90. 1200009104 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠210.; Honghua material/catalogue code (10-digit code column)
  91. 1200009031 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠220.; Honghua material/catalogue code (10-digit code column)
  92. 1200009104 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠220.; Honghua material/catalogue code (10-digit code column)
  93. 1200009036 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠230.; Honghua material/catalogue code (10-digit code column)
  94. 1200009104 — S1 , PDF p. 22 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision. Source size ￠230.; Honghua material/catalogue code (10-digit code column)
  95. 1200010199 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-2200F; Piston hub; size as printed ￠130. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  96. 1200010205 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-2200F; Piston hub; size as printed ￠140. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  97. 1200010210 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-2200F; Piston hub; size as printed ￠150. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  98. 1200010215 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-2200F; Piston hub; size as printed ￠160. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  99. 1200009009 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-2200F; Piston hub; size as printed ￠170. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  100. 1200009011 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-2200F; Piston hub; size as printed ￠180. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  101. 1200009016 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-2200F; Piston hub; size as printed ￠190. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  102. 1200009022 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-2200F; Piston hub; size as printed ￠200. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  103. 1200009027 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-2200F; Piston hub; size as printed ￠210. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  104. 1200009032 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-2200F; Piston hub; size as printed ￠220. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  105. 1200009037 — S1 , PDF p. 24 — Source application chart explicitly lists 3NB-2200F; Piston hub; size as printed ￠230. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  106. 1200010200 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-2200F; Piston rubber; size as printed ￠130. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  107. 1200010206 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-2200F; Piston rubber; size as printed ￠140. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  108. 1200010211 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-2200F; Piston rubber; size as printed ￠150. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  109. 1200010216 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-2200F; Piston rubber; size as printed ￠160. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  110. 1200010222 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-2200F; Piston rubber; size as printed ￠170. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  111. 1200009012 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-2200F; Piston rubber; size as printed ￠180. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  112. 1200009017 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-2200F; Piston rubber; size as printed ￠190. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  113. 1200009023 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-2200F; Piston rubber; size as printed ￠200. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  114. 1200009028 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-2200F; Piston rubber; size as printed ￠210. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  115. 1200009033 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-2200F; Piston rubber; size as printed ￠220. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  116. 1200009038 — S1 , PDF p. 25 — Source application chart explicitly lists 3NB-2200F; Piston rubber; size as printed ￠230. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  117. 1200010202 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-2200F; Piston retainer plate; size as printed ￠130. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  118. 1200010208 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-2200F; Piston retainer plate; size as printed ￠140. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  119. 1200010213 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-2200F; Piston retainer plate; size as printed ￠150. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  120. 1200010218 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-2200F; Piston retainer plate; size as printed ￠160. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  121. 1200010224 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-2200F; Piston retainer plate; size as printed ￠170. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  122. 1200009014 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-2200F; Piston retainer plate; size as printed ￠180. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  123. 1200009019 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-2200F; Piston retainer plate; size as printed ￠190. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  124. 1200009025 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-2200F; Piston retainer plate; size as printed ￠200. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  125. 1200009030 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-2200F; Piston retainer plate; size as printed ￠210. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  126. 1200009035 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-2200F; Piston retainer plate; size as printed ￠220. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  127. 1200009040 — S1 , PDF p. 26 — Source application chart explicitly lists 3NB-2200F; Piston retainer plate; size as printed ￠230. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  128. 1200010203 — S1 , PDF p. 27 — Source application chart explicitly lists 3NB-2200F; Piston snap ring; size as printed ￠130，￠140，￠150. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  129. 1200010219 — S1 , PDF p. 27 — Source application chart explicitly lists 3NB-2200F; Piston snap ring; size as printed ￠160，￠170，￠180. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  130. 1200009020 — S1 , PDF p. 27 — Source application chart explicitly lists 3NB-2200F; Piston snap ring; size as printed ￠190，￠200，￠210 ￠220，￠230. Do not generalize to other piston families.; Honghua material/catalogue code (10-digit code column)
  131. 1200009119 — S1 , PDF p. 31 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  132. 1200009122 — S1 , PDF p. 31 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  133. 1200009123 — S1 , PDF p. 31 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  134. 1200009124 — S1 , PDF p. 31 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  135. 1300002340 — S1 , PDF p. 31 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  136. 1200009125 — S1 , PDF p. 31 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  137. 1200009126 — S1 , PDF p. 31 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  138. 1300000218 — S1 , PDF p. 31 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  139. 1200009127 — S1 , PDF p. 31 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  140. 1200009136 — S1 , PDF p. 32 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  141. 1200009138 — S1 , PDF p. 32 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  142. 1200009139 — S1 , PDF p. 32 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  143. 1200009140 — S1 , PDF p. 32 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  144. 1300000218 — S1 , PDF p. 32 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  145. 1200008934 — S1 , PDF p. 36 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  146. 1200008943 — S1 , PDF p. 36 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  147. 1200008941 — S1 , PDF p. 36 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  148. 1200008949 — S1 , PDF p. 36 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  149. 1200008925 — S1 , PDF p. 36 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  150. 1200008939 — S1 , PDF p. 36 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  151. 1200008931 — S1 , PDF p. 36 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  152. 1200008928 — S1 , PDF p. 36 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  153. 1200008940 — S1 , PDF p. 36 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  154. 1200008948 — S1 , PDF p. 36 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  155. 1200008929 — S1 , PDF p. 36 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  156. 1200008930 — S1 , PDF p. 36 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  157. 1200008933 — S1 , PDF p. 36 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  158. 1200008927 — S1 , PDF p. 36 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  159. 1200008973 — S1 , PDF p. 44 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  160. 1300006138 — S1 , PDF p. 44 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  161. 1200008971 — S1 , PDF p. 44 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  162. 1300000233 — S1 , PDF p. 44 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  163. 1200008970 — S1 , PDF p. 44 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  164. 1200008969 — S1 , PDF p. 44 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  165. 1200008974 — S1 , PDF p. 44 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  166. 1300009314 — S1 , PDF p. 44 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  167. 1200008968 — S1 , PDF p. 44 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  168. 1300000209 — S1 , PDF p. 44 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  169. 1200008972 — S1 , PDF p. 44 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  170. 1200008975 — S1 , PDF p. 44 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  171. 1200008966 — S1 , PDF p. 44 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  172. 1200008965 — S1 , PDF p. 44 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  173. 1200008981 — S1 , PDF p. 44 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  174. 1200008982 — S1 , PDF p. 44 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  175. 1200008986 — S1 , PDF p. 44 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  176. 1200008976 — S1 , PDF p. 44 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  177. 1200008967 — S1 , PDF p. 44 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  178. 1300001148 — S1 , PDF p. 48 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  179. 1300006577 — S1 , PDF p. 48 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  180. 1200008958 — S1 , PDF p. 48 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  181. 1200008952 — S1 , PDF p. 48 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  182. 1200008951 — S1 , PDF p. 48 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  183. 1300006407 — S1 , PDF p. 48 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  184. 1300001141 — S1 , PDF p. 48 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  185. 1200008955 — S1 , PDF p. 48 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  186. 1200008953 — S1 , PDF p. 48 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  187. 1200008954 — S1 , PDF p. 48 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  188. 1300006727 — S1 , PDF p. 48 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  189. 1300001154 — S1 , PDF p. 48 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  190. 1200008960 — S1 , PDF p. 48 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  191. 1200008956 — S1 , PDF p. 48 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  192. 1200008963 — S1 , PDF p. 48 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  193. 1200008959 — S1 , PDF p. 48 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  194. 1200008957 — S1 , PDF p. 48 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  195. 1200008961 — S1 , PDF p. 48 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  196. 1300001141 — S1 , PDF p. 51 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  197. 1300006393 — S1 , PDF p. 51 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  198. 1200009242 — S1 , PDF p. 51 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  199. 1300008203 — S1 , PDF p. 51 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  200. 1200010474 — S1 , PDF p. 51 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  201. 1200010475 — S1 , PDF p. 51 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  202. 1200010473 — S1 , PDF p. 51 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  203. 1200010471 — S1 , PDF p. 51 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  204. 1200009244 — S1 , PDF p. 51 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  205. 1300009681 — S1 , PDF p. 51 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  206. 1200008995 — S1 , PDF p. 51 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  207. 1200009238 — S1 , PDF p. 51 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  208. 1200009240 — S1 , PDF p. 51 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  209. 1200009235 — S1 , PDF p. 51 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  210. 1200009237 — S1 , PDF p. 51 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  211. 1200010471 — S1 , PDF p. 51 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  212. 1300007198 — S1 , PDF p. 51 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  213. 1300005848 — S1 , PDF p. 60 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  214. 1200009248 — S1 , PDF p. 60 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  215. 1300007495 — S1 , PDF p. 60 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  216. 1300007197 — S1 , PDF p. 60 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  217. 1200009247 — S1 , PDF p. 60 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  218. 1300007199 — S1 , PDF p. 60 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  219. 1200009258 — S1 , PDF p. 60 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  220. 1200009257 — S1 , PDF p. 60 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  221. 1300001154 — S1 , PDF p. 60 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  222. 1300006725 — S1 , PDF p. 60 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  223. 1200009250 — S1 , PDF p. 60 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  224. 1200009254 — S1 , PDF p. 60 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  225. 1200009256 — S1 , PDF p. 60 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  226. 1200009249 — S1 , PDF p. 60 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  227. 1200009227 — S1 , PDF p. 60 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  228. 1200008944 — S1 , PDF p. 62 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  229. 1200008921 — S1 , PDF p. 62 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  230. 1200008922 — S1 , PDF p. 62 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  231. 1200010067 — S1 , PDF p. 62 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  232. 1200010031 — S1 , PDF p. 62 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  233. 1200008862 — S1 , PDF p. 62 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  234. 1300000099 — S1 , PDF p. 65 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  235. 1300007439 — S1 , PDF p. 65 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  236. 1300005298 — S1 , PDF p. 65 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  237. 1200009185 — S1 , PDF p. 65 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  238. 1300000106 — S1 , PDF p. 65 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)
  239. 1200009186 — S1 , PDF p. 65 — Source table heading: 3NB-2200F; Honghua bilingual3NB500F–2200F material-code catalogue; preserve this source revision.; Honghua material/catalogue code (10-digit code column)

Request a Quotation

Send the part number, quantity and pump model for a quotation.

WhatsApp parts inquiryEmail parts list

Related model guides

Browse all Company News and model guides

WhatsApp
