Honghua HH2400 Mud Pump Spare Parts

Published by Pratt Oil ·

Pratt OilParts identification

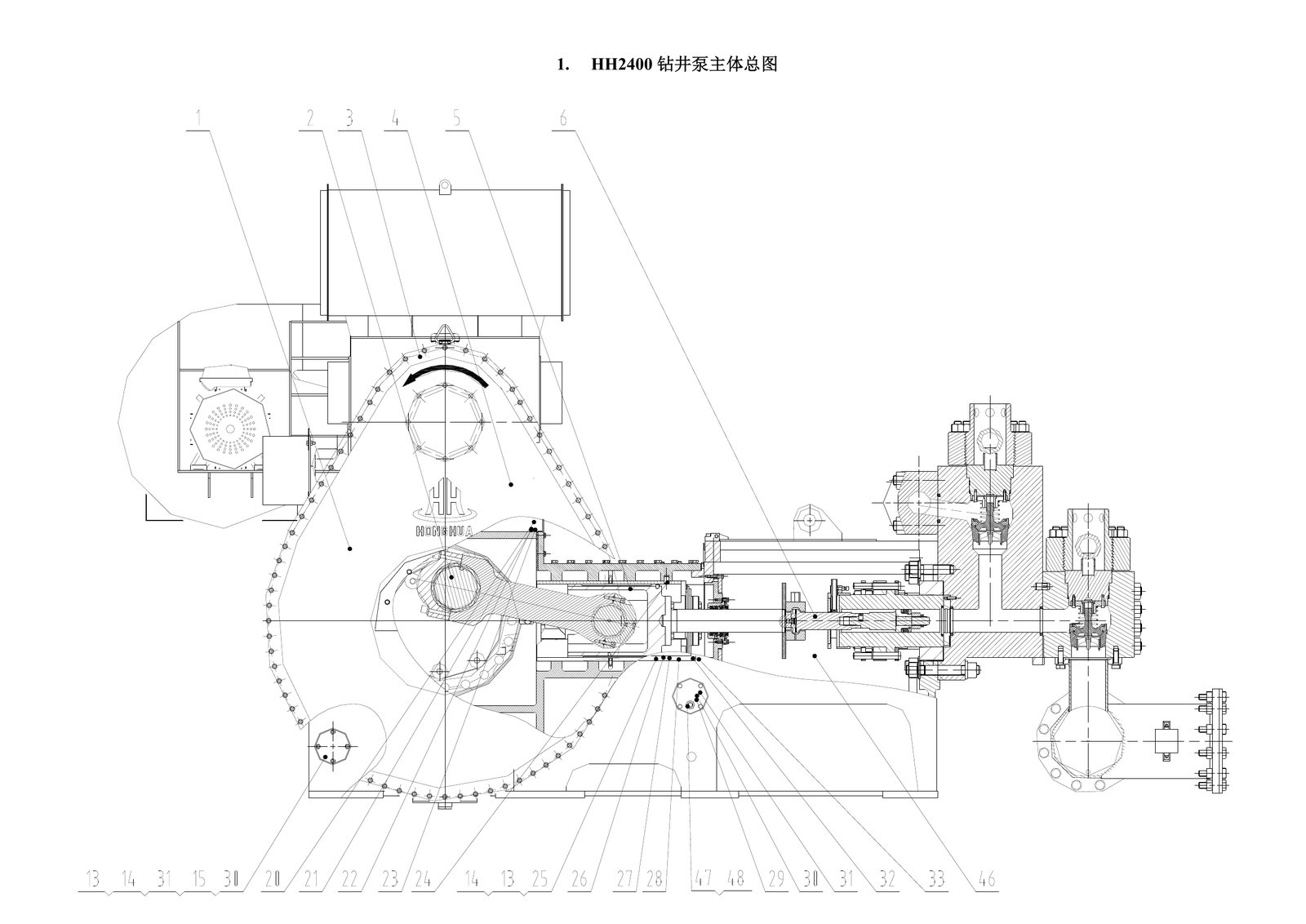

HH2400 pump main-body sectional drawing from the NB033-TC reference catalogue

Honghua HH2400 material code 1200726797 identifies the frame assembly. The list also covers crosshead, suction-module and piston-rod components; distinguish complete assemblies from individual components when preparing the parts request. For a quotation, send the part or drawing number, quantity, pump model and nameplate photo.

Parts List

Download parts list (CSV)

233 parts

P/PPart / Drawing No.NamePart / Drawing No.Name
11200726797Frame assembly1300016810Internally threaded cylindrical pin; specification: B type 12×40
21200726796Crankshaft assembly1200725903Discharge pipeline
31200726803Pinion assembly1200596998Stud, 1 5/8-12UN/8UN*266; specification: 1 5/8-8UNC(12UN)-2A×266
41200726854Left guard assembly1200596869Nut, 1 5/8-8UN-2B (DTF); specification: 1 5/8-8UN-2B(DTF)
51200726810Crosshead component assembly1200596999Module locating diamond pin
61200725917Fluid-end assembly1200725914Discharge-module assembly
71300014382Bolt; specification: M48×1001200436309Bolt; specification: 3/8-16UNC-2Ax1 1/2
81200597349Gasket1800000497Stainless steel wire; specification: φ1.6（L=1830）
91200716294Breather cap1200520190Valve cover
101200726863Rear-cover plate1200435740Valve-stem guide
111200726864Rear-cover gasket1200520189Valve-cover flange
121300006207Bolt; specification: M12×301200725897Valve retainer
131300001132Spring washer; specification: 121200725916Suction-module assembly
141300001418Flat washer; specification: 121200520184Valve-cover seal
151200726865Seal cover1200435739Spring guide
161300096795Flat washer; specification: 361300001155Spring washer; specification: 24
171200603698Bolt, M36; specification: M36*1001300045644Bolt; specification: 7/8-9UNC×2.5
181800000497Stainless steel wire; specification: φ1.6,L10001300045964O-ring; specification: 190×7-G-S
191200726862Right guard assembly1200725899Suction pipeline
201300001142Spring washer; specification: 161200520182No. 7 valve assembly
211200726866Bent plate1200597025Module seal, diameter 125
221300001444Flat washer; specification: 161200596878Wear plate
231300006367Bolt; specification: M16×301200463948Locknut, M39*3
241200597137Locating pin, 201200597032Liner withdrawal-plate assembly
251300006207Bolt; specification: M12×301200597033Liner retainer
261200597292Side-cover plate 1, left1200597034Retainer locking plate
271200597297Side-cover gasket 11200682886Piston-rod assembly
281200597294Side-cover plate 1, right1200596892Clamp assembly
291200763201Drain cover1200725918Mud guard
301200358901Sealing washer1300160002Water deflector sleeve; specification: ZX5NB05-01
311300006231Bolt; specification: M12×401300091737Hexagon nut; specification: 1 1/8"-7
321200597296Bolt, M30X1.5-25; specification: M30×1.5-6g×251200714591Washer, 1 1/8
331200597295Thread-sealing washer1200357871Suction-inlet blind plate; specification: 12"
341200726867Liner-chamber cover assembly1200357868Suction flange II
351200597354Clamp block 21200357867Suction flange I
361300016325Socket set screw; specification: M12×351200597050Suction-flange assembly
371300016328Nut; specification: SPL 6177.1 M12 F31300045645Hexagon-head bolt; specification: 1"-8×4"
381200597353Clamp block 11300017799Hexagon nut; specification: 1"-8
391300006393Bolt; specification: M16×401200464534Piston seal
401300120869Bolt; specification: M12×601200520183Valve spring
411300095892Bolt; specification: M16×601200597026Liner flange
421200353097Nut, 1 1/8-8UN-2B (SPL)1200357869Pipe plug
431200597368Stud1200597024Clamp plate
441800000534Sealing compound; specification: 2431300148166Socket-head cap screw; specification: 5/8"-11×1 1/4“
451300006407Bolt; specification: M16×451200725915Suction module
461200763133Nameplate, metric1800000534Sealing compound; specification: 243
471300096419Compression fitting; specification: 1N9-08-121200520178Stud; specification: 1 1/4-8UNx256
481300027572Ball valve; specification: 2PC-Q11F-16P-NPT1/21200357773Nut; specification: 1 1/4-8UN-2B（SpiralockDTF）
491200764636Gasket1200725904Discharge module
501200764650Gasket1200596874Stud; specification: 1 5/8-12UNF/8UN-2Ax213
511200764623Gasket1200596869Nut; specification: 1 5/8-8UN-2B（DTF）
521200726802Frame1200596871Washer; specification: 1 5/8
531300110521Internally threaded taper pin; specification: 16×801200758046Stud; specification: 1 1/2-12UNF/8UN-2A×523
541300006107Bolt; specification: M10×201200357771Nut; specification: 1 1/2-8UN-2B(DTF)
551200603176Oil-pressure gauge holder1200520178Stud; specification: 1 1/4-8UNx256
561200603173Motor-mounting base cover1200357773Nut; specification: 1 1/4-8UN-2B（SpiralockDTF）
571200726850Gasket1200596873Stud; specification: 1 5/8-8UN*320
581200726851Gasket1200596893Piston-rod rear section
591200726853Crosshead-cover assembly 11200682885Piston-rod front section
601200726857Crosshead-cover assembly 21200596896Set screw
611200596737Female-thread connector; specification: NPT1/21300001128Spring washer; specification: 10
621200726858Crosshead-cover assembly 31300001411Flat washer; specification: 10
631200726860Crosshead-cover assembly 41300006107Bolt; specification: M10×20
641300099416Internally threaded taper pin; specification: 16×601300001128Spring washer; specification: 10
651300016347Locking assembly; specification: Z5-215.9×2811200597015Guard
661200726795Right-hand bull-gear assembly1300134157Ball valve; specification: 2PC-Q11F-16P-G1 1/2"
671200596826Cylindrical roller bearing; specification: NFP1096，φ480×φ700×1001200597018Suction flange I
681200596822Cylindrical roller bearing; specification: N39/550X2P5，φ550×φ670×1201200634401Barbed hose fitting
691200596755Shaft retaining ring1300029673Threaded plug; specification: M20×1.5
701200596787Connecting-rod assembly1200597023Pressure-sensor gasket
711200726792Left-hand bull-gear assembly1300091490Compression fitting; specification: 1N-24
721300013653Bolt; specification: M10×401300006231Bolt; specification: M12×40
731800000497Stainless steel wire; specification: φ1.6×10001300001132Spring washer; specification: 12
741200596792Clamp plate1300005790Nut; specification: M12
751200726789Crankshaft1300001418Flat washer; specification: 12
761300148686Bolt; specification: M20×1801200726844Left guard
771300105745Washer; specification: HLB-20;Haikuo1200603643Gasket
781300106723Bolt; specification: M20×401200603645Gasket
791200596823Stop block1200726825Guard gasket
801300016328Nut; specification: M12;SPL1200726852Guard cover
811300045500Socket set screw; specification: M12×251300028462O-ring; specification: 60×5.3
821300123396Socket set screw; specification: M16×251200712886Guard oil-seal assembly
831200726801Left-hand pinion1200712880Rotary-union assembly, left
841200726798Right-hand pinion1200718578Gasket 2
851200712445Crosshead assembly1200718579Inspection window
861200596859Crosshead pin1200718580Clamp plate
871200596837Upper crosshead guide1300006207Bolt; specification: M12×30
881300006606Bolt; specification: M20×601200726834Protective guard, left
891200732160Rubber bushing1300006231Bolt; specification: M12×40
901300151433O-ring; specification: 320×5.31300001132Spring washer; specification: 12
911300001132Spring washer; specification: 121300005790Nut; specification: M12
921300006268Bolt; specification: M12×601300001418Flat washer; specification: 12
931200596860Mud-deflector clamp plate1200726856Right guard
941200726806Mud deflector1200603643Gasket
951200464383Packing box1200603645Gasket
961200356415Double-lip oil seal; specification: 5"×6.25"×0.625"1200726825Guard gasket
971300099429O-ring; specification: 190×3.551200726852Guard cover
981200356417Sealing washer1300028462O-ring; specification: 60×5.3
991200356414Oil-seal ring1200712886Guard oil-seal assembly
1001200356418End cover1200712893Rotary-union assembly, right
1011300018406Dust seal; specification: 127×159.54×161200718578Gasket 2
1021200356419Spacer ring1200718579Inspection window
1031300006136Bolt; specification: M10×401200718580Clamp plate
1041300001128Spring washer; specification: 101300006207Bolt; specification: M12×30
1051300113586O-ring; specification: 160×71200726861Protective guard, right
1061300000200O-ring; specification: 125×71200358903Connector; specification: NPT3/4
1071200596838Tapered shim1300096419Compression fitting; specification: 1N9-08-12
1081200596839Taper-head fastening screw; specification: GB/T5786 M20X2X1201300027572Ball valve; specification: 2PC-Q11F-16P-NPT1/2
1091200596845Cylindrical-head fastening screw; specification: GB/T5786 M20X2X1201200358907Cover plate
1101300044720Nut; specification: M20;DTF1200726868Liner-chamber cover plate 1
1111200596847Lower crosshead guide1200726871Liner-chamber cover plate 2
1121200725919Intermediate rod1200726873Liner-chamber cover plate 3
1131300029002Socket-head cap screw; specification: M12×601300022251Nut; specification: M12
1141200596848Bushing1300140544Socket-head cap screw; specification: M12×75
1151300122182Compression fitting; specification: 4N-061300005646Socket-head cap screw; specification: M12×40
1161300048001Washer; specification: HLS-20;Haikuo1200597345Liner-chamber cover mounting plate
1171200596879Stud, 1 1/8-7UNC×438; specification: 1 1/8-7UNC-2A
Technical details and source references

Confirm the installed model, drawing revision and dimensions before ordering. Catalogue quantities do not indicate current stock.

Reference documents and scope

  • S1 — Honghua HH2400 main-body parts catalogue, NB033-TC, December 2021. Reference file: HH2400钻井泵主体产品图册2代（中文版）(1).pdf.

PDF page numbers count from the first page of each reference file. Brand names identify the equipment or catalogue source. A listed number does not establish interchangeability, original-manufacturer authorisation, stock or a delivery commitment. Send the nameplate, complete reference, quantity and drawing revision for a parts review.

For a Honghua HH2400 pump parts enquiry, identify the component using the material code and assembly shown in the NB033-TC catalogue. The December 2021 parts book separates the frame, crankshaft, pinion, crosshead, fluid end, suction and discharge modules, piston rod and guard assemblies. The model name by itself is not enough to select a replacement.

Material codes and drawing callouts serve different purposes

The HH2400 tables have separate columns for item number, code, component name, specification and quantity. The ten-digit values in the code column are presented here as material codes. A numbered arrow on the sectional illustration is an item callout; it is not the ten-digit purchasing code. Keep the two fields together when marking an assembly drawing.

For example, the main-body list on PDF page 7 associates 1200726797 with the frame assembly, 1200726796 with the crankshaft assembly and 1200726803 with the pinion assembly. The same page lists five crosshead component assemblies under 1200726810. These are identifiers from the NB033 configuration, rather than a universal code list for every Honghua pump.

Identify the fluid-end assembly and its individual modules

The main list identifies the fluid-end assembly as 1200725917. The detailed suction-module table on PDF page 21 gives 1200725915 for the suction module; the discharge-module table on page 22 gives 1200725904 for the discharge module. A request for the complete fluid end should therefore be distinguished from a request for one module, stud, seal or flange.

Send a marked drawing or a clear photograph of the component and its connections. For studs and nuts, include both thread forms and the required length. For seal and valve components, identify the installed assembly and the specification on the relevant drawing. Do not select a component solely because a photograph looks similar.

Metric piston-rod references need their complete assembly context

PDF page 23 is explicitly headed as the metric piston-rod assembly. It lists rear section 1200596893, front section 1200682885 and set screw 1200596896. State whether the request is for a complete rod or an individual section, and include the pump serial number and measured connection details. A metric label on one assembly does not establish the thread form of every other component in the pump.

Prepare an HH2400 spare-parts request

  • Identify the pump as HH2400 and provide its nameplate and serial number.
  • Include the NB033-TC catalogue revision, assembly page and item number.
  • Copy the full material code as printed, with the component name and quantity.
  • Attach photographs and the relevant drawing, including any site modification.
  • State the delivery destination and any inspection or documentation requirements for review.

The table below makes the checked source references available as text and a downloadable CSV. The catalogue quantity records the quantity shown in that assembly; it is not a stock level or an order quantity recommendation. Contact Pratt Oil about mud pump spare parts with your actual component information so that matching and supply can be reviewed.

Wear-part references outside this catalogue

The note on PDF page 20 directs the reader to the user manual for individual liner, piston and liner-seal details. Those missing identifiers have not been inferred from the main assembly code. Include the applicable user-manual page or the installed component drawing for a wear-part request.

  1. 1200726797 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 1; quantity as printed 1; Honghua material code (not a drawing number)
  2. 1200726796 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 2; quantity as printed 1; Honghua material code (not a drawing number)
  3. 1200726803 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 3; quantity as printed 1; Honghua material code (not a drawing number)
  4. 1200726854 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 4; quantity as printed 1; Honghua material code (not a drawing number)
  5. 1200726810 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 5; quantity as printed 5; Honghua material code (not a drawing number)
  6. 1200725917 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 6; quantity as printed 1; Honghua material code (not a drawing number)
  7. 1300014382 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 7; quantity as printed 2; Honghua material code (not a drawing number)
  8. 1200597349 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 8; quantity as printed 2; Honghua material code (not a drawing number)
  9. 1200716294 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 9; quantity as printed 5; Honghua material code (not a drawing number)
  10. 1200726863 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 10; quantity as printed 5; Honghua material code (not a drawing number)
  11. 1200726864 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 11; quantity as printed 5; Honghua material code (not a drawing number)
  12. 1300006207 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 12; quantity as printed 90; Honghua material code (not a drawing number)
  13. 1300001132 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 13; quantity as printed 173; Honghua material code (not a drawing number)
  14. 1300001418 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 14; quantity as printed 173; Honghua material code (not a drawing number)
  15. 1200726865 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 15; quantity as printed 2; Honghua material code (not a drawing number)
  16. 1300096795 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 16; quantity as printed 8; Honghua material code (not a drawing number)
  17. 1200603698 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 17; quantity as printed 8; Honghua material code (not a drawing number)
  18. 1800000497 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 18; quantity as printed 2; Honghua material code (not a drawing number)
  19. 1200726862 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 19; quantity as printed 1; Honghua material code (not a drawing number)
  20. 1300001142 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 20; quantity as printed 56; Honghua material code (not a drawing number)
  21. 1200726866 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 21; quantity as printed 1; Honghua material code (not a drawing number)
  22. 1300001444 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 22; quantity as printed 10; Honghua material code (not a drawing number)
  23. 1300006367 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 23; quantity as printed 10; Honghua material code (not a drawing number)
  24. 1200597137 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 24; quantity as printed 10; Honghua material code (not a drawing number)
  25. 1300006207 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 25; quantity as printed 32; Honghua material code (not a drawing number)
  26. 1200597292 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 26; quantity as printed 1; Honghua material code (not a drawing number)
  27. 1200597297 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 27; quantity as printed 2; Honghua material code (not a drawing number)
  28. 1200597294 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 28; quantity as printed 1; Honghua material code (not a drawing number)
  29. 1200763201 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 29; quantity as printed 2; Honghua material code (not a drawing number)
  30. 1200358901 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 30; quantity as printed 4; Honghua material code (not a drawing number)
  31. 1300006231 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 31; quantity as printed 16; Honghua material code (not a drawing number)
  32. 1200597296 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 32; quantity as printed 4; Honghua material code (not a drawing number)
  33. 1200597295 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 33; quantity as printed 4; Honghua material code (not a drawing number)
  34. 1200726867 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 34; quantity as printed 1; Honghua material code (not a drawing number)
  35. 1200597354 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 35; quantity as printed 15; Honghua material code (not a drawing number)
  36. 1300016325 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 36; quantity as printed 39; Honghua material code (not a drawing number)
  37. 1300016328 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 37; quantity as printed 39; Honghua material code (not a drawing number)
  38. 1200597353 — S1 , PDF p. 7 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 38; quantity as printed 24; Honghua material code (not a drawing number)
  39. 1300006393 — S1 , PDF p. 8 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 39; quantity as printed 15; Honghua material code (not a drawing number)
  40. 1300120869 — S1 , PDF p. 8 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 40; quantity as printed 25; Honghua material code (not a drawing number)
  41. 1300095892 — S1 , PDF p. 8 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 41; quantity as printed 46; Honghua material code (not a drawing number)
  42. 1200353097 — S1 , PDF p. 8 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 42; quantity as printed 16; Honghua material code (not a drawing number)
  43. 1200597368 — S1 , PDF p. 8 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 43; quantity as printed 16; Honghua material code (not a drawing number)
  44. 1800000534 — S1 , PDF p. 8 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 44; quantity as printed 2; Honghua material code (not a drawing number)
  45. 1300006407 — S1 , PDF p. 8 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 45; quantity as printed 24; Honghua material code (not a drawing number)
  46. 1200763133 — S1 , PDF p. 8 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 46; quantity as printed 1; Honghua material code (not a drawing number)
  47. 1300096419 — S1 , PDF p. 8 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 47; quantity as printed 2; Honghua material code (not a drawing number)
  48. 1300027572 — S1 , PDF p. 8 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 48; quantity as printed 2; Honghua material code (not a drawing number)
  49. 1200764636 — S1 , PDF p. 8 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 49; quantity as printed 4; Honghua material code (not a drawing number)
  50. 1200764650 — S1 , PDF p. 8 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 50; quantity as printed 4; Honghua material code (not a drawing number)
  51. 1200764623 — S1 , PDF p. 8 — HH2400; NB033-TC, December 2021; HH2400 main assembly; BOM item 51; quantity as printed 2; Honghua material code (not a drawing number)
  52. 1200726802 — S1 , PDF p. 10 — HH2400; NB033-TC, December 2021; Frame assembly; BOM item 1; quantity as printed 1; Honghua material code (not a drawing number)
  53. 1300110521 — S1 , PDF p. 10 — HH2400; NB033-TC, December 2021; Frame assembly; BOM item 2; quantity as printed 4; Honghua material code (not a drawing number)
  54. 1300006107 — S1 , PDF p. 10 — HH2400; NB033-TC, December 2021; Frame assembly; BOM item 3; quantity as printed 5; Honghua material code (not a drawing number)
  55. 1200603176 — S1 , PDF p. 10 — HH2400; NB033-TC, December 2021; Frame assembly; BOM item 4; quantity as printed 1; Honghua material code (not a drawing number)
  56. 1200603173 — S1 , PDF p. 10 — HH2400; NB033-TC, December 2021; Frame assembly; BOM item 5; quantity as printed 2; Honghua material code (not a drawing number)
  57. 1200726850 — S1 , PDF p. 10 — HH2400; NB033-TC, December 2021; Frame assembly; BOM item 6; quantity as printed 3; Honghua material code (not a drawing number)
  58. 1200726851 — S1 , PDF p. 10 — HH2400; NB033-TC, December 2021; Frame assembly; BOM item 7; quantity as printed 2; Honghua material code (not a drawing number)
  59. 1200726853 — S1 , PDF p. 10 — HH2400; NB033-TC, December 2021; Frame assembly; BOM item 8; quantity as printed 2; Honghua material code (not a drawing number)
  60. 1200726857 — S1 , PDF p. 10 — HH2400; NB033-TC, December 2021; Frame assembly; BOM item 9; quantity as printed 1; Honghua material code (not a drawing number)
  61. 1200596737 — S1 , PDF p. 10 — HH2400; NB033-TC, December 2021; Frame assembly; BOM item 10; quantity as printed 5; Honghua material code (not a drawing number)
  62. 1200726858 — S1 , PDF p. 10 — HH2400; NB033-TC, December 2021; Frame assembly; BOM item 11; quantity as printed 1; Honghua material code (not a drawing number)
  63. 1200726860 — S1 , PDF p. 10 — HH2400; NB033-TC, December 2021; Frame assembly; BOM item 12; quantity as printed 1; Honghua material code (not a drawing number)
  64. 1300099416 — S1 , PDF p. 10 — HH2400; NB033-TC, December 2021; Frame assembly; BOM item 13; quantity as printed 10; Honghua material code (not a drawing number)
  65. 1300016347 — S1 , PDF p. 12 — HH2400; NB033-TC, December 2021; Crankshaft assembly; BOM item 1; quantity as printed 2; Honghua material code (not a drawing number)
  66. 1200726795 — S1 , PDF p. 12 — HH2400; NB033-TC, December 2021; Crankshaft assembly; BOM item 2; quantity as printed 1; Honghua material code (not a drawing number)
  67. 1200596826 — S1 , PDF p. 12 — HH2400; NB033-TC, December 2021; Crankshaft assembly; BOM item 3; quantity as printed 1; Honghua material code (not a drawing number)
  68. 1200596822 — S1 , PDF p. 12 — HH2400; NB033-TC, December 2021; Crankshaft assembly; BOM item 4; quantity as printed 5; Honghua material code (not a drawing number)
  69. 1200596755 — S1 , PDF p. 12 — HH2400; NB033-TC, December 2021; Crankshaft assembly; BOM item 5; quantity as printed 8; Honghua material code (not a drawing number)
  70. 1200596787 — S1 , PDF p. 12 — HH2400; NB033-TC, December 2021; Crankshaft assembly; BOM item 6; quantity as printed 5; Honghua material code (not a drawing number)
  71. 1200726792 — S1 , PDF p. 12 — HH2400; NB033-TC, December 2021; Crankshaft assembly; BOM item 7; quantity as printed 1; Honghua material code (not a drawing number)
  72. 1300013653 — S1 , PDF p. 12 — HH2400; NB033-TC, December 2021; Crankshaft assembly; BOM item 8; quantity as printed 16; Honghua material code (not a drawing number)
  73. 1800000497 — S1 , PDF p. 12 — HH2400; NB033-TC, December 2021; Crankshaft assembly; BOM item 9; quantity as printed 1; Honghua material code (not a drawing number)
  74. 1200596792 — S1 , PDF p. 12 — HH2400; NB033-TC, December 2021; Crankshaft assembly; BOM item 10; quantity as printed 2; Honghua material code (not a drawing number)
  75. 1200726789 — S1 , PDF p. 12 — HH2400; NB033-TC, December 2021; Crankshaft assembly; BOM item 11; quantity as printed 1; Honghua material code (not a drawing number)
  76. 1300148686 — S1 , PDF p. 12 — HH2400; NB033-TC, December 2021; Crankshaft assembly; BOM item 12; quantity as printed 12; Honghua material code (not a drawing number)
  77. 1300105745 — S1 , PDF p. 12 — HH2400; NB033-TC, December 2021; Crankshaft assembly; BOM item 13; quantity as printed 12; Honghua material code (not a drawing number)
  78. 1300106723 — S1 , PDF p. 12 — HH2400; NB033-TC, December 2021; Crankshaft assembly; BOM item 14; quantity as printed 3; Honghua material code (not a drawing number)
  79. 1200596823 — S1 , PDF p. 12 — HH2400; NB033-TC, December 2021; Crankshaft assembly; BOM item 15; quantity as printed 3; Honghua material code (not a drawing number)
  80. 1300016328 — S1 , PDF p. 12 — HH2400; NB033-TC, December 2021; Crankshaft assembly; BOM item 16; quantity as printed 3; Honghua material code (not a drawing number)
  81. 1300045500 — S1 , PDF p. 12 — HH2400; NB033-TC, December 2021; Crankshaft assembly; BOM item 17; quantity as printed 3; Honghua material code (not a drawing number)
  82. 1300123396 — S1 , PDF p. 12 — HH2400; NB033-TC, December 2021; Crankshaft assembly; BOM item 18; quantity as printed 6; Honghua material code (not a drawing number)
  83. 1200726801 — S1 , PDF p. 14 — HH2400; NB033-TC, December 2021; Pinion assembly; BOM item 1; quantity as printed 1; Honghua material code (not a drawing number)
  84. 1200726798 — S1 , PDF p. 14 — HH2400; NB033-TC, December 2021; Pinion assembly; BOM item 2; quantity as printed 1; Honghua material code (not a drawing number)
  85. 1200712445 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 1; quantity as printed 1; Honghua material code (not a drawing number)
  86. 1200596859 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 2; quantity as printed 1; Honghua material code (not a drawing number)
  87. 1200596837 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 3; quantity as printed 1; Honghua material code (not a drawing number)
  88. 1300006606 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 4; quantity as printed 4; Honghua material code (not a drawing number)
  89. 1200732160 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 5; quantity as printed 6; Honghua material code (not a drawing number)
  90. 1300151433 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 6; quantity as printed 1; Honghua material code (not a drawing number)
  91. 1300001132 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 7; quantity as printed 6; Honghua material code (not a drawing number)
  92. 1300006268 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 8; quantity as printed 6; Honghua material code (not a drawing number)
  93. 1200596860 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 9; quantity as printed 1; Honghua material code (not a drawing number)
  94. 1200726806 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 10; quantity as printed 1; Honghua material code (not a drawing number)
  95. 1200464383 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 11; quantity as printed 1; Honghua material code (not a drawing number)
  96. 1200356415 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 12; quantity as printed 2; Honghua material code (not a drawing number)
  97. 1300099429 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 13; quantity as printed 1; Honghua material code (not a drawing number)
  98. 1200356417 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 14; quantity as printed 1; Honghua material code (not a drawing number)
  99. 1200356414 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 15; quantity as printed 1; Honghua material code (not a drawing number)
  100. 1200356418 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 16; quantity as printed 1; Honghua material code (not a drawing number)
  101. 1300018406 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 17; quantity as printed 1; Honghua material code (not a drawing number)
  102. 1200356419 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 18; quantity as printed 1; Honghua material code (not a drawing number)
  103. 1300006136 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 19; quantity as printed 4; Honghua material code (not a drawing number)
  104. 1300001128 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 20; quantity as printed 10; Honghua material code (not a drawing number)
  105. 1300113586 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 21; quantity as printed 1; Honghua material code (not a drawing number)
  106. 1300000200 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 22; quantity as printed 1; Honghua material code (not a drawing number)
  107. 1200596838 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 23; quantity as printed 16; Honghua material code (not a drawing number)
  108. 1200596839 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 24; quantity as printed 1; Honghua material code (not a drawing number)
  109. 1200596845 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 25; quantity as printed 1; Honghua material code (not a drawing number)
  110. 1300044720 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 26; quantity as printed 2; Honghua material code (not a drawing number)
  111. 1200596847 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 27; quantity as printed 1; Honghua material code (not a drawing number)
  112. 1200725919 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 28; quantity as printed 1; Honghua material code (not a drawing number)
  113. 1300029002 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 29; quantity as printed 16; Honghua material code (not a drawing number)
  114. 1200596848 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 30; quantity as printed 16; Honghua material code (not a drawing number)
  115. 1300122182 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 31; quantity as printed 2; Honghua material code (not a drawing number)
  116. 1300048001 — S1 , PDF p. 16 — HH2400; NB033-TC, December 2021; Crosshead assembly; BOM item 32; quantity as printed 4; Honghua material code (not a drawing number)
  117. 1200596879 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 1; quantity as printed 20; Honghua material code (not a drawing number)
  118. 1300016810 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 2; quantity as printed 5; Honghua material code (not a drawing number)
  119. 1200725903 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 3; quantity as printed 1; Honghua material code (not a drawing number)
  120. 1200596998 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 4; quantity as printed 20; Honghua material code (not a drawing number)
  121. 1200596869 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 5; quantity as printed 20; Honghua material code (not a drawing number)
  122. 1200596999 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 6; quantity as printed 5; Honghua material code (not a drawing number)
  123. 1200725914 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 7; quantity as printed 5; Honghua material code (not a drawing number)
  124. 1200436309 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 8; quantity as printed 40; Honghua material code (not a drawing number)
  125. 1800000497 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 9; quantity as printed 40; Honghua material code (not a drawing number)
  126. 1200520190 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 10; quantity as printed 10; Honghua material code (not a drawing number)
  127. 1200435740 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 11; quantity as printed 10; Honghua material code (not a drawing number)
  128. 1200520189 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 12; quantity as printed 10; Honghua material code (not a drawing number)
  129. 1200725897 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 13; quantity as printed 10; Honghua material code (not a drawing number)
  130. 1200725916 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 14; quantity as printed 5; Honghua material code (not a drawing number)
  131. 1200520184 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 15; quantity as printed 10; Honghua material code (not a drawing number)
  132. 1200435739 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 16; quantity as printed 10; Honghua material code (not a drawing number)
  133. 1300001155 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 17; quantity as printed 30; Honghua material code (not a drawing number)
  134. 1300045644 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 18; quantity as printed 30; Honghua material code (not a drawing number)
  135. 1300045964 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 19; quantity as printed 5; Honghua material code (not a drawing number)
  136. 1200725899 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 20; quantity as printed 1; Honghua material code (not a drawing number)
  137. 1200520182 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 21; quantity as printed 10; Honghua material code (not a drawing number)
  138. 1200597025 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 22; quantity as printed 15; Honghua material code (not a drawing number)
  139. 1200596878 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 23; quantity as printed 5; Honghua material code (not a drawing number)
  140. 1200463948 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 24; quantity as printed 5; Honghua material code (not a drawing number)
  141. 1200597032 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 25; quantity as printed 5; Honghua material code (not a drawing number)
  142. 1200597033 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 26; quantity as printed 5; Honghua material code (not a drawing number)
  143. 1200597034 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 27; quantity as printed 5; Honghua material code (not a drawing number)
  144. 1200682886 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 28; quantity as printed 5; Honghua material code (not a drawing number)
  145. 1200596892 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 29; quantity as printed 5; Honghua material code (not a drawing number)
  146. 1200725918 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 30; quantity as printed 5; Honghua material code (not a drawing number)
  147. 1300160002 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 31; quantity as printed 5; Honghua material code (not a drawing number)
  148. 1300091737 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 32; quantity as printed 60; Honghua material code (not a drawing number)
  149. 1200714591 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 33; quantity as printed 20; Honghua material code (not a drawing number)
  150. 1200357871 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 34; quantity as printed 1; Honghua material code (not a drawing number)
  151. 1200357868 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 35; quantity as printed 1; Honghua material code (not a drawing number)
  152. 1200357867 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 36; quantity as printed 1; Honghua material code (not a drawing number)
  153. 1200597050 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 37; quantity as printed 1; Honghua material code (not a drawing number)
  154. 1300045645 — S1 , PDF p. 19 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 38; quantity as printed 36; Honghua material code (not a drawing number)
  155. 1300017799 — S1 , PDF p. 20 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 40; quantity as printed 36; Honghua material code (not a drawing number)
  156. 1200464534 — S1 , PDF p. 20 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 41; quantity as printed 5; Honghua material code (not a drawing number)
  157. 1200520183 — S1 , PDF p. 20 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 42; quantity as printed 10; Honghua material code (not a drawing number)
  158. 1200597026 — S1 , PDF p. 20 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 43; quantity as printed 5; Honghua material code (not a drawing number)
  159. 1200357869 — S1 , PDF p. 20 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 44; quantity as printed 1; Honghua material code (not a drawing number)
  160. 1200597024 — S1 , PDF p. 20 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 45; quantity as printed 5; Honghua material code (not a drawing number)
  161. 1300148166 — S1 , PDF p. 20 — HH2400; NB033-TC, December 2021; Fluid-end assembly; BOM item 46; quantity as printed 20; Honghua material code (not a drawing number)
  162. 1200725915 — S1 , PDF p. 21 — HH2400; NB033-TC, December 2021; Suction-module assembly; BOM item 1; quantity as printed 1; Honghua material code (not a drawing number)
  163. 1800000534 — S1 , PDF p. 21 — HH2400; NB033-TC, December 2021; Suction-module assembly; BOM item 2; quantity as printed 1; Honghua material code (not a drawing number)
  164. 1200520178 — S1 , PDF p. 21 — HH2400; NB033-TC, December 2021; Suction-module assembly; BOM item 3; quantity as printed 12; Honghua material code (not a drawing number)
  165. 1200357773 — S1 , PDF p. 21 — HH2400; NB033-TC, December 2021; Suction-module assembly; BOM item 4; quantity as printed 18; Honghua material code (not a drawing number)
  166. 1200725904 — S1 , PDF p. 22 — HH2400; NB033-TC, December 2021; Discharge-module assembly; BOM item 1; quantity as printed 1; Honghua material code (not a drawing number)
  167. 1200596874 — S1 , PDF p. 22 — HH2400; NB033-TC, December 2021; Discharge-module assembly; BOM item 2; quantity as printed 5; Honghua material code (not a drawing number)
  168. 1200596869 — S1 , PDF p. 22 — HH2400; NB033-TC, December 2021; Discharge-module assembly; BOM item 3; quantity as printed 7; Honghua material code (not a drawing number)
  169. 1200596871 — S1 , PDF p. 22 — HH2400; NB033-TC, December 2021; Discharge-module assembly; BOM item 4; quantity as printed 7; Honghua material code (not a drawing number)
  170. 1200758046 — S1 , PDF p. 22 — HH2400; NB033-TC, December 2021; Discharge-module assembly; BOM item 5; quantity as printed 8; Honghua material code (not a drawing number)
  171. 1200357771 — S1 , PDF p. 22 — HH2400; NB033-TC, December 2021; Discharge-module assembly; BOM item 6; quantity as printed 8; Honghua material code (not a drawing number)
  172. 1200520178 — S1 , PDF p. 22 — HH2400; NB033-TC, December 2021; Discharge-module assembly; BOM item 7; quantity as printed 12; Honghua material code (not a drawing number)
  173. 1200357773 — S1 , PDF p. 22 — HH2400; NB033-TC, December 2021; Discharge-module assembly; BOM item 8; quantity as printed 12; Honghua material code (not a drawing number)
  174. 1200596873 — S1 , PDF p. 22 — HH2400; NB033-TC, December 2021; Discharge-module assembly; BOM item 9; quantity as printed 1; Honghua material code (not a drawing number)
  175. 1200596893 — S1 , PDF p. 23 — HH2400; NB033-TC, December 2021; Piston-rod assembly, metric; BOM item 1; quantity as printed 1; Honghua material code (not a drawing number)
  176. 1200682885 — S1 , PDF p. 23 — HH2400; NB033-TC, December 2021; Piston-rod assembly, metric; BOM item 2; quantity as printed 1; Honghua material code (not a drawing number)
  177. 1200596896 — S1 , PDF p. 23 — HH2400; NB033-TC, December 2021; Piston-rod assembly, metric; BOM item 3; quantity as printed 1; Honghua material code (not a drawing number)
  178. 1300001128 — S1 , PDF p. 23 — HH2400; NB033-TC, December 2021; Piston-rod assembly, metric; BOM item 4; quantity as printed 1; Honghua material code (not a drawing number)
  179. 1300001411 — S1 , PDF p. 24 — HH2400; NB033-TC, December 2021; Suction-flange assembly; BOM item 1; quantity as printed 3; Honghua material code (not a drawing number)
  180. 1300006107 — S1 , PDF p. 24 — HH2400; NB033-TC, December 2021; Suction-flange assembly; BOM item 2; quantity as printed 3; Honghua material code (not a drawing number)
  181. 1300001128 — S1 , PDF p. 24 — HH2400; NB033-TC, December 2021; Suction-flange assembly; BOM item 3; quantity as printed 3; Honghua material code (not a drawing number)
  182. 1200597015 — S1 , PDF p. 24 — HH2400; NB033-TC, December 2021; Suction-flange assembly; BOM item 4; quantity as printed 1; Honghua material code (not a drawing number)
  183. 1300134157 — S1 , PDF p. 24 — HH2400; NB033-TC, December 2021; Suction-flange assembly; BOM item 5; quantity as printed 1; Honghua material code (not a drawing number)
  184. 1200597018 — S1 , PDF p. 24 — HH2400; NB033-TC, December 2021; Suction-flange assembly; BOM item 6; quantity as printed 1; Honghua material code (not a drawing number)
  185. 1200634401 — S1 , PDF p. 24 — HH2400; NB033-TC, December 2021; Suction-flange assembly; BOM item 7; quantity as printed 1; Honghua material code (not a drawing number)
  186. 1300029673 — S1 , PDF p. 24 — HH2400; NB033-TC, December 2021; Suction-flange assembly; BOM item 8; quantity as printed 1; Honghua material code (not a drawing number)
  187. 1200597023 — S1 , PDF p. 24 — HH2400; NB033-TC, December 2021; Suction-flange assembly; BOM item 9; quantity as printed 1; Honghua material code (not a drawing number)
  188. 1300091490 — S1 , PDF p. 24 — HH2400; NB033-TC, December 2021; Suction-flange assembly; BOM item 10; quantity as printed 1; Honghua material code (not a drawing number)
  189. 1300006231 — S1 , PDF p. 26 — HH2400; NB033-TC, December 2021; Left guard assembly; BOM item 1; quantity as printed 128; Honghua material code (not a drawing number)
  190. 1300001132 — S1 , PDF p. 26 — HH2400; NB033-TC, December 2021; Left guard assembly; BOM item 2; quantity as printed 119; Honghua material code (not a drawing number)
  191. 1300005790 — S1 , PDF p. 26 — HH2400; NB033-TC, December 2021; Left guard assembly; BOM item 3; quantity as printed 74; Honghua material code (not a drawing number)
  192. 1300001418 — S1 , PDF p. 26 — HH2400; NB033-TC, December 2021; Left guard assembly; BOM item 4; quantity as printed 197; Honghua material code (not a drawing number)
  193. 1200726844 — S1 , PDF p. 26 — HH2400; NB033-TC, December 2021; Left guard assembly; BOM item 5; quantity as printed 1; Honghua material code (not a drawing number)
  194. 1200603643 — S1 , PDF p. 26 — HH2400; NB033-TC, December 2021; Left guard assembly; BOM item 6; quantity as printed 1; Honghua material code (not a drawing number)
  195. 1200603645 — S1 , PDF p. 26 — HH2400; NB033-TC, December 2021; Left guard assembly; BOM item 7; quantity as printed 1; Honghua material code (not a drawing number)
  196. 1200726825 — S1 , PDF p. 26 — HH2400; NB033-TC, December 2021; Left guard assembly; BOM item 8; quantity as printed 1; Honghua material code (not a drawing number)
  197. 1200726852 — S1 , PDF p. 26 — HH2400; NB033-TC, December 2021; Left guard assembly; BOM item 9; quantity as printed 1; Honghua material code (not a drawing number)
  198. 1300028462 — S1 , PDF p. 26 — HH2400; NB033-TC, December 2021; Left guard assembly; BOM item 10; quantity as printed 1; Honghua material code (not a drawing number)
  199. 1200712886 — S1 , PDF p. 26 — HH2400; NB033-TC, December 2021; Left guard assembly; BOM item 11; quantity as printed 1; Honghua material code (not a drawing number)
  200. 1200712880 — S1 , PDF p. 26 — HH2400; NB033-TC, December 2021; Left guard assembly; BOM item 12; quantity as printed 1; Honghua material code (not a drawing number)
  201. 1200718578 — S1 , PDF p. 26 — HH2400; NB033-TC, December 2021; Left guard assembly; BOM item 13; quantity as printed 1; Honghua material code (not a drawing number)
  202. 1200718579 — S1 , PDF p. 26 — HH2400; NB033-TC, December 2021; Left guard assembly; BOM item 14; quantity as printed 1; Honghua material code (not a drawing number)
  203. 1200718580 — S1 , PDF p. 26 — HH2400; NB033-TC, December 2021; Left guard assembly; BOM item 15; quantity as printed 1; Honghua material code (not a drawing number)
  204. 1300006207 — S1 , PDF p. 26 — HH2400; NB033-TC, December 2021; Left guard assembly; BOM item 16; quantity as printed 6; Honghua material code (not a drawing number)
  205. 1200726834 — S1 , PDF p. 26 — HH2400; NB033-TC, December 2021; Left guard assembly; BOM item 17; quantity as printed 1; Honghua material code (not a drawing number)
  206. 1300006231 — S1 , PDF p. 28 — HH2400; NB033-TC, December 2021; Right guard assembly; BOM item 1; quantity as printed 128; Honghua material code (not a drawing number)
  207. 1300001132 — S1 , PDF p. 28 — HH2400; NB033-TC, December 2021; Right guard assembly; BOM item 2; quantity as printed 119; Honghua material code (not a drawing number)
  208. 1300005790 — S1 , PDF p. 28 — HH2400; NB033-TC, December 2021; Right guard assembly; BOM item 3; quantity as printed 74; Honghua material code (not a drawing number)
  209. 1300001418 — S1 , PDF p. 28 — HH2400; NB033-TC, December 2021; Right guard assembly; BOM item 4; quantity as printed 197; Honghua material code (not a drawing number)
  210. 1200726856 — S1 , PDF p. 28 — HH2400; NB033-TC, December 2021; Right guard assembly; BOM item 5; quantity as printed 1; Honghua material code (not a drawing number)
  211. 1200603643 — S1 , PDF p. 28 — HH2400; NB033-TC, December 2021; Right guard assembly; BOM item 6; quantity as printed 1; Honghua material code (not a drawing number)
  212. 1200603645 — S1 , PDF p. 28 — HH2400; NB033-TC, December 2021; Right guard assembly; BOM item 7; quantity as printed 1; Honghua material code (not a drawing number)
  213. 1200726825 — S1 , PDF p. 28 — HH2400; NB033-TC, December 2021; Right guard assembly; BOM item 8; quantity as printed 1; Honghua material code (not a drawing number)
  214. 1200726852 — S1 , PDF p. 28 — HH2400; NB033-TC, December 2021; Right guard assembly; BOM item 9; quantity as printed 1; Honghua material code (not a drawing number)
  215. 1300028462 — S1 , PDF p. 28 — HH2400; NB033-TC, December 2021; Right guard assembly; BOM item 10; quantity as printed 1; Honghua material code (not a drawing number)
  216. 1200712886 — S1 , PDF p. 28 — HH2400; NB033-TC, December 2021; Right guard assembly; BOM item 11; quantity as printed 1; Honghua material code (not a drawing number)
  217. 1200712893 — S1 , PDF p. 28 — HH2400; NB033-TC, December 2021; Right guard assembly; BOM item 12; quantity as printed 1; Honghua material code (not a drawing number)
  218. 1200718578 — S1 , PDF p. 28 — HH2400; NB033-TC, December 2021; Right guard assembly; BOM item 13; quantity as printed 1; Honghua material code (not a drawing number)
  219. 1200718579 — S1 , PDF p. 28 — HH2400; NB033-TC, December 2021; Right guard assembly; BOM item 14; quantity as printed 1; Honghua material code (not a drawing number)
  220. 1200718580 — S1 , PDF p. 28 — HH2400; NB033-TC, December 2021; Right guard assembly; BOM item 15; quantity as printed 1; Honghua material code (not a drawing number)
  221. 1300006207 — S1 , PDF p. 28 — HH2400; NB033-TC, December 2021; Right guard assembly; BOM item 16; quantity as printed 6; Honghua material code (not a drawing number)
  222. 1200726861 — S1 , PDF p. 28 — HH2400; NB033-TC, December 2021; Right guard assembly; BOM item 17; quantity as printed 1; Honghua material code (not a drawing number)
  223. 1200358903 — S1 , PDF p. 29 — HH2400; NB033-TC, December 2021; Drain cover; BOM item 1; quantity as printed 1; Honghua material code (not a drawing number)
  224. 1300096419 — S1 , PDF p. 29 — HH2400; NB033-TC, December 2021; Drain cover; BOM item 2; quantity as printed 1; Honghua material code (not a drawing number)
  225. 1300027572 — S1 , PDF p. 29 — HH2400; NB033-TC, December 2021; Drain cover; BOM item 3; quantity as printed 1; Honghua material code (not a drawing number)
  226. 1200358907 — S1 , PDF p. 29 — HH2400; NB033-TC, December 2021; Drain cover; BOM item 4; quantity as printed 1; Honghua material code (not a drawing number)
  227. 1200726868 — S1 , PDF p. 31 — HH2400; NB033-TC, December 2021; Liner-chamber cover assembly; BOM item 1; quantity as printed 1; Honghua material code (not a drawing number)
  228. 1200726871 — S1 , PDF p. 31 — HH2400; NB033-TC, December 2021; Liner-chamber cover assembly; BOM item 2; quantity as printed 3; Honghua material code (not a drawing number)
  229. 1200726873 — S1 , PDF p. 31 — HH2400; NB033-TC, December 2021; Liner-chamber cover assembly; BOM item 3; quantity as printed 1; Honghua material code (not a drawing number)
  230. 1300022251 — S1 , PDF p. 31 — HH2400; NB033-TC, December 2021; Liner-chamber cover assembly; BOM item 4; quantity as printed 20; Honghua material code (not a drawing number)
  231. 1300140544 — S1 , PDF p. 31 — HH2400; NB033-TC, December 2021; Liner-chamber cover assembly; BOM item 5; quantity as printed 10; Honghua material code (not a drawing number)
  232. 1300005646 — S1 , PDF p. 31 — HH2400; NB033-TC, December 2021; Liner-chamber cover assembly; BOM item 6; quantity as printed 20; Honghua material code (not a drawing number)
  233. 1200597345 — S1 , PDF p. 31 — HH2400; NB033-TC, December 2021; Liner-chamber cover assembly; BOM item 7; quantity as printed 10; Honghua material code (not a drawing number)

Request a Quotation

Send the part number, quantity and pump model for a quotation.

WhatsApp parts inquiryEmail parts list

Related model guides

Browse all Company News and model guides

WhatsApp
