Honghua HHF-1000 Mud Pump Spare Parts

Published by Pratt Oil ·

Pratt OilParts identification

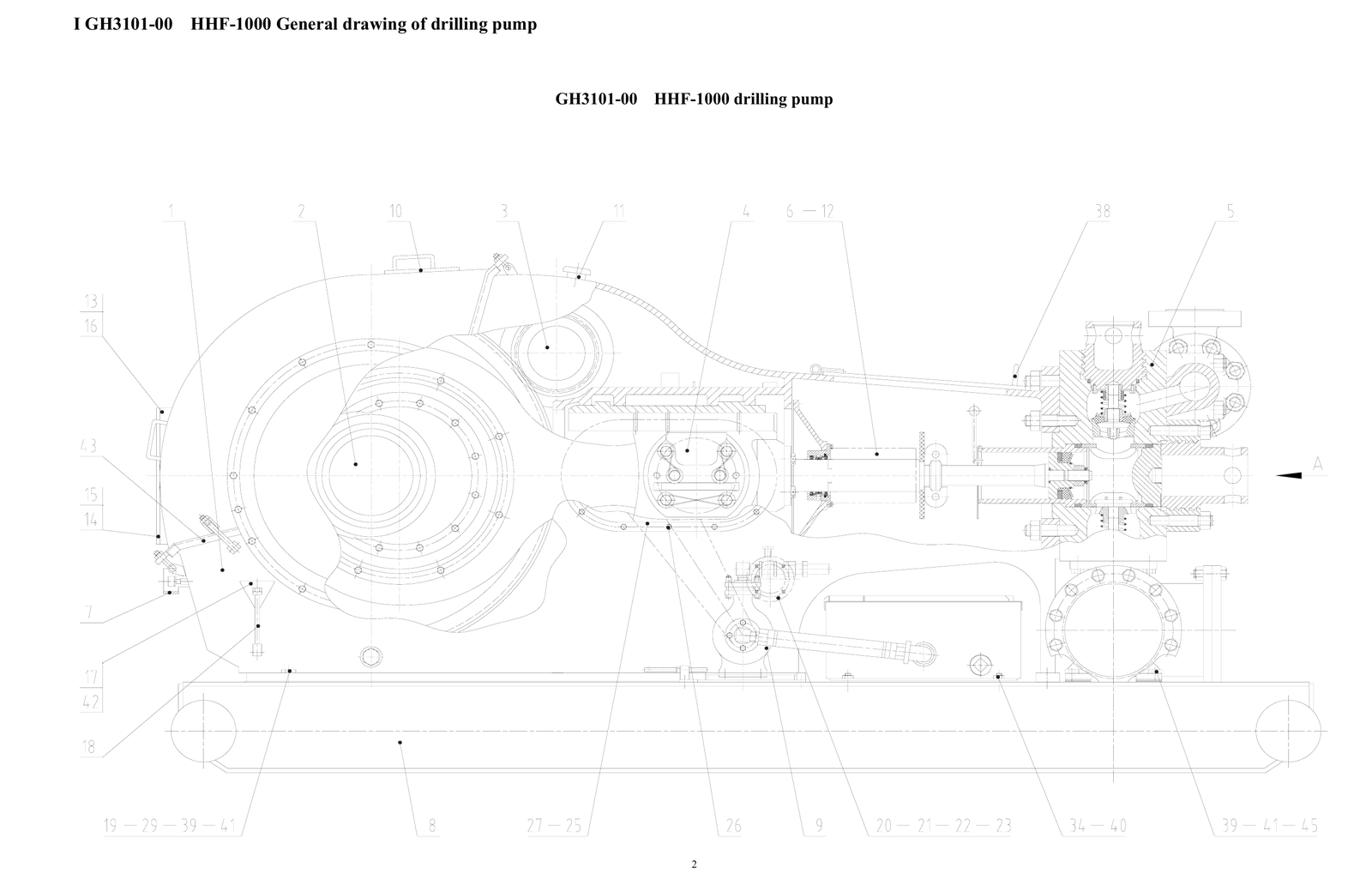

HHF-1000 general assembly drawing from the GH3101 parts list

Honghua HHF-1000 reference GH3101-03.02B identifies a widened pinion shaft. Keep the terminal B when comparing this power-end component, and identify the fitted shaft and mating gear arrangement before selection. For a quotation, send the part or drawing number, quantity, pump model and nameplate photo.

Parts List

Download parts list (CSV)

306 parts

P/PPart / Drawing No.NamePart / Drawing No.Name
1GH3101-01.00Frame assemblyGB/T1527-1997Copper tube：φ10×1270
2GH3101-02.00Crankshaft assemblyGH3101-06.02Pipe joint
3GH3101-03.00Pinion shaft assemblyGH3101-06.03.00Dual pipe clamp：φ8
4GH3101-04.00Crosshead assemblyGH3101-06.04.00Support seat
5GH3101-05.00Fluid end assemblyGH3101-06.05.00Shim set
6GH3101-06.00Power end lube assemblyGH3101-06.06.00Gear oil pump
7GH3101-07.00substructureGH3101-06.07Pipe joint：NPT1/4-9/16-16UN-2B
8GH3101-08.00spraying pump assemblyY60-ZPressure, gauge ：（9/16-16UN-2B） 0～1.6MPa（0～230psi）
9GH3101-09Seal gasketGH3101-06.0890°pipe joint：1/2-20UNF-2A-NPT1/4
10GH3101-10.00Breather capGH3101-06.09Pipe joint：1/2-20UNF-2A
11GH3101-11ANameplateGH3101-06.1090 ° Pipe joint ： 11/16-16UN-2A-NPT1/4
12GH3101-12.00Cover plate assemblyGB/T1527-1997Copper tube：φ12×610
13GB/T97.1-1985Washer ：14GB/T1527-1997Copper tube：φ8×966
14GH3101-13Seal padGH3101-06.11.00clamp：φ8
15GH3101-14Indication plateGB/T1527-1997Copper tube：φ12×230
16GH3101-15.00Oil level gaugeGH3101-06.12Nozzle
17GH3101-16Adjusting gasketGB/T93-1987Washer ：6（d1min=6.4）
18GH3101-17.00Clean out coverGB/T1527-1997Copper tube：φ8×305
19GB/T97.1-1985Washer ：16GB/T1527-1997Copper tube：φ8×838
20GH3101-18Seal gasketGB/T1527-1997Copper tube：φ8×584
21GH3101-19Screw plug：R1 1/2GB/T1527-1997Copper tube：φ8×940
22GH3101-20Cover, crosshead holeGB/T1527-1997Copper tube：φ8×1016
23GH3101-21Seal padGB/T1527-1997Copper tube：φ8×584
24GH3101-22.00Draining filter assemblyGH3101-06.13Screw plug：NPT1/4
25GH3101-23Ring gasket R44GH3101-06.14Joint seat （Ⅰ）
26GH3161-22.00BElbow assemblyGB/T1527-1997Copper tube：φ8×153
27GH3101-25.00Special toolsGB/T1527-1997Copper tube：φ8×737
28GH3101-26Flange：5 1/8×35GB/T1527-1997Copper tube：φ8×661
29GH3101-27.00KB-75Surge damperGH3101-06.1545°Pipe joint
30GH3101-28.00AJA-3Relieve valveGH3101-06.1690 ° Pipe joint ： 11/16-16UN-2A-NPT3/8
31GH3101-29.00Spare parts delivered withGH3101-06.1790 ° Pipe joint ：
32GH3101-30.00Cover plates assemblyGB/T1527-1997Copper tube：φ16×331
33GH3101-31Nut：1-8UNC-2B（SPL）GB/T1527-1997Copper tube：φ16×686
34GH3101-32Nut：5/8-8UNC-2B（SPL）GH3101-06.18.00clamp（Ⅰ）
35GB/T93-1987Washer ：27GH3101-06.19.00Oil filter
36GB/T827-1986rivet：3×10GH3101-06.20Straight joint ： 15/16-16UN-2A-NPT1/2
37YK-150Pressure gauge： 0～40MPa（0～5800psi）GH3101-06.0890°Pipe joint：1/2-20UNF-2A-NPT1/4
38GH3101-01.01.00frameGH3101-06.21Straight joint：1/2-20UNF-2A-NPT1/4
39GH3101-01.02Main bearing coverGH3101-06.22Joint seat （Ⅱ）
40GH3101-01.03Shim setL20Relief valve
41GH3101-01.04Connector ：NPT3/4-NPT3/4GB/T93-1987Washer ：8
42GH3101-01.05Screw plug：NPT3/4GH3101-06.23Key ：3/16×3/16×25.4
43GH3101-02.01.00Cover, main bearingGB/T1527-1997Copper tube：φ8×1016
44GH3101-02.02Sleeve, main bearing (right)GB/T1527-1997Copper tube：φ8×267
45GH3101-02.03Seal gasketGB/T1527-1997Copper tube：φ8×1372
46GH3101-02.04Inner retaining ringGB/T1527-1997Copper tube：φ8×2007
47GH3101-02.05.00Outside retainerGH3101-06.2490°Pipe joint：5/8-16UN-2A-NPT1/4
48GH3101-02.06Connecting rodGB/T1527-1997Copper tube：φ10×1651
49GH3101-02.07Locating ring（Ⅰ）GB/T1527-1997Copper tube：φ8×1651
50GH3101-02.08.00CrankshaftGH3101-06.25Seal gasket
51GH3101-02.09Locating ring（Ⅱ）GH3101-06.26Gasket
52GH3101-02.10BBull gear（widened）609 or 680Sealant
53GH3101-02.11Bolt：1 1/4-8UN-2A×108GH3101-06.27Nut：1/2-20UNF-2B
54GH3101-02.12.00Nut：1 1/4-8UN-2BGH3101-06.28Nut：5/8-16UN-2B
55GH3101-02.13retainer ringGH3101-06.29Nut：11/16-16UN-2B
56GH3101-02.14Sleeve, main bearing (left)GH3101-06.30Bolt, hollow
57GH3101-02.15PlugGH3101-06.31Nut：15/16-16UN-2B
58GH3101-02.16Bolt：5/8-11UNC-2A×45GH3101-08.01.00Ashield
59GH3101-02.17BaffleGH3101-08.01.00shield
60GH3101-02.18Bolt, main bearing：2 1/2-8UN-3AGH3101-08.02Belt pulley
61GH3101-02.19.00Shim setGH3101-08.03.00Seat assembly
62GH3101-02.20Screw ：5/8-11UNC-2A×100GH3101-08.04Short connector：NPT1-1-11 1/2NPSC
63GH3101-02.21Eccentric wheel Bearing：929/558.8QUGH3101-08.05Connector ：NPT1
64GH3101-02.22Main bearing：3G4053156HGH3101-08.06Connector ： 1-11 1/2NPSC （ 1 1/4-12UNF-2A）
65GB/T343-1994Locking wire：SZ-1.50GH3101-08.07Connector ：NPT2 1/2
66GB/T343-1994Locking wire：SZ-3.00GH3101-08.08Short connector：NPT2 1/2
67242Threaded SealantGH3101-08.09.00Hose joint：φ22×φ37
68GB/T848-1985Washer ：16GH3101-08.1090°elbow NPT1
69GH3101-03.01key：2"×2"×203GH3101-08.11Connection plate
70GH3101-03.02BPinion Shaft（widened）GH3101-08.12.00Water case
71GH3101-03.03SleeveGH3101-08.13.00Case cover
72GH3101-03.04End coverGH3101-08.03.04Nut：5/8-11UNC-2B（SPL）
73GH3101-03.05Seal gasketGH3101-08.14Shim set
74GH3101-03.06Seal gasketGH3101-08.15Flange NPT1
75GH3101-03.07Bearing HousingGB117-74V belt：A3150
76GH3101-03.08Retainer ringGB/T93-1987Washer ：16
77GH3101-03.09Seal gasketGB/T848-1985Flat Washer ：16
78GH3101-03.10.00Oil troughGB/T93-1987Washer ：14
79GH3101-03.11Oil seal：8.5"×10.5"×0.625"GB/T96-1985Flat Washer ：14
80GH3101-03.12Bearing：4G32840H32PLSpraying pump
81GB/T93-1987Washer ：22Q11F-16Internal thread ball valve ： 1-11 1/2NPSC
82GB/T93-1987Washer ：14GH3101-08.16.00Support
83GH3101-03.13FlangeGH3101-10.01Baffle
84GB/T93-1987Washer ：16GH3101-10.02Connector
85GH3101.04.01CrossheadGH3101-10.03Press plate for filter screen
86GH3101.04.02Slide, UpperGH3101-10.04Brass wire screen
87GH3101-04.03End coverGH3101-10.05Upper cover
88GB/T3452.1-1992O ring：175×3.55GGH3101-15.01.00dipstick
89GH3101-04.04Stuffing boxGH3101-15.02Short connector：NPT 1/2
90GH3101-04.05Seal gasketGH3101-15.03elbow：NPT 1/2
91GH3101-04.06Oil SealGH3101-17.01Connector ：NPT3/4
92GH3101-04.07Pipe joint：NPT3/8×50.8GH3101-17.02Screw plug：NPT3/4
93GH3101-04.08MudguardGH3101-22.01.00Filter screen assembly
94GH3101-04.09intermediate extension rodGH3101-22.02shell
95GH3101-04.10Crosshead PinGB/T3452.1-1992O ring：165×7G
96GH3101-04.11Adjusting gasketGH3101-22.03bolt：1 1/2-8UN （12UNF）-2A×128
97GH3101-04.12Slide, LowerGH3101-22.04Nut：1 1/2-8UN-2B（SPL）
98GH3101-04.13Fixing plateGH3101-27.01gasket：R39
99GB/T3452.1-1992O ring：140×7.0GGH3101-27.03.00Air bag
100GB/T93-1987Washer ：10GH3101-27.04.00Shell assembly
101GH3101-04.14Locking SpringGH3101-27.05Cover
102GH3101-04.15Seal padGH3101-27.06T-joint：NPT1/4
103GH3101-04.16Crosshead Pin CapGH3101-27.07Connector ：NPT1/4
104GH3101-04.17Crosshead Bearing：5G254936QGH3101-27.08.00Guard, pressure gauge
105GH3101-04.18Oil Seal：4.5"×5.5"×0.5"GH3101-27.09.00Bleeder valve
106GB/T4240-1993Stainless steel Wire ： φ 1.60 （L=300）Y-60Pressure gauge： 0～25MPa（0～3630psi）
107GB/T4240-1993Stainless steel Wire ： φ 1.60 （L=500）JZR3-L8Check valve
108GB/T4240-1993Stainless steel Wire ： φ 1.60 （L=400）GH3101-27.10Washer
109GH3101-04.19.00Shim setGH3101-27.11.00Charging Hose of Damper
110242Seal glueGH3101-28.01Connector
111GB/T3452.1-1992O ring：115×5.30GGH3101-28.02Retainer ring
112GH3101-05.01.00Cylinder assemblyGH3101-28.03.00Piston assembly
113GH3101-05.02Stick, liner cover flangeGH3101-28.04Valve Body
114GH3101-05.03Stick, liner coverGH3101-28.05Piston rod
115GH3101-05.04Liner locking RingGH3101-28.06Buffer pad
116GH3101-05.05Cylinder cover plugGH3101-28.07Elastic straight pin
117GH3101-05.06Puller & pusherGH3101-28.08Lock spring
118GB/T3452.1-1992O ring：97.5×3.55GGH3101-28.09Safety guard
119GH3101-05.07Closure plate, discharge let：5 1/8"GH3101-28.10Plate, shear pin
120GH3101-05.08Discharge manifoldGH3101-28.11Shear pin
121GH3101-05.09Seal ring for valve coverGH3101-28.12AWarning plate
122GH3101-05.10bolt：1 1/2-8UN-2A×262GH3101-28.13Pin
123GH3101-05.01.03Nut：1 1/2-8UN-2B（SPL）GH3101-28.14Spacer ring
124GH3101-05.11Valve coverGH3101-28.15ANameplate
125GH3101-05.12Valve rod guide deviceGB/T91-1986pin：4×26
126GH3101-05.13.00Spring guideGH3161-22.01.00ASeat, pressure gauge
127GH3101-05.14BaffleGH3161-22.02.00BSafety valve seat
128GH3101-05.15Bolt：3/8-16UNC-2A×20GH3161-22.03.00ADischarging cross
129GB/T4240-1993Stainless steel Wire ： φ 1.60 （L=1830）GH3161-22.04bolt：1 1/16-8UN-2A×170
130GH3101-05.16Short connectorGH3161-22.05Nut：1 1/16-8UN-2B（SPL）
131GH3101-05.17.00Valve assembly（API 6#）GH3161-22.06Ring gasket：R27
132GH3101-05.18.00Piston nut277Sealant：277
133GH3101-05.19.00APistonGH3101.00HHF-1000 general assembly drawing
134GH3101-05.20Seal ring, pistonGH3101-00HHF-1000 General drawing of drilling pump
135GH3101-05.21Piston rodGH3101-00HHF-1000 drilling pump
136GH3101-05.22AOrdinary liner Double metal linerGH3101-01.00Frame assembly
137GH3101-05.22Ordinary liner Double metal linerGH3101-02.00Crankshaft assembly
138GH3101-05.23.00Spraying pipe assemblyGH3101-03.00Pinion shaft assembly
139GH3101-05.24.00Clamp assemblyGH3101-04.00Crosshead assembly
140GH3101-05.25Liner end coverGH3101-05.00Fluid end assembly
141GH3101-05.26Fixing clampGH3101-06.00End cover
142GH3101-05.27.00Valve rod guideGH3101-08.00Liner spraying assembly
143GB/T3452.1-1992O ring：190×7.0GGH3101-08.16.00Support 1
144GH3101-05.28.00Suction manifoldGH3101-10.00Breather cap
145GH3101-05.30.00Shim setGH3101-15.00Oil level gauge
146GB/T3452.1-1992O ring：345×7.0GGH3101-15.01.00dipstick 1
147GH3101-05.31Suction flange（Ⅰ）GH3101-15.02Short connector：NPT 1/2 1
148GH3101-05.32Suction flange（Ⅱ）GH3101-15.03elbow：NPT 1/2 1
149GN3101-05Screw plug：NPT1 1/2GH3101-17.00Clean out cover
150GH3101-05.34Washer ：39GH3101-22.00Draining filter assembly
151GH3101-05.35Plug, suction let：12"GH3101-27.01Ring gasket：R39 1
152277SealantGH3101-28.00AJA-3 Relieve valve
153GH3101-06.01.00clamp：φ12GH3161-22.00BElbow assembly
Technical details and source references

Confirm the installed model, drawing revision and dimensions before ordering. Catalogue quantities do not indicate current stock.

Reference documents and scope

  • S1 — Honghua HHF-1000 parts list, GH3101, July 2007, English. Reference file: 宏华HHF-1000F（英文）.pdf.

PDF page numbers count from the first page of each reference file. Brand names identify the equipment or catalogue source. A listed number does not establish interchangeability, original-manufacturer authorisation, stock or a delivery commitment. Send the nameplate, complete reference, quantity and drawing revision for a parts review.

Honghua HHF-1000 spare-part identification can begin with the GH 3101 drawing family in the July 2007 parts list. The book separates the frame, crankshaft, pinion shaft, crosshead, fluid end, lubrication, spraying and discharge equipment. Preserve the exact code printed for the required component instead of selecting a part from the 1000 designation alone.

Use the drawing family without losing its suffix

The general assembly list names GH 3101-03.00 as the pinion-shaft assembly. Its component table identifies GH 3101-03.02B as the widened pinion shaft. The final B and the assembly context are therefore useful identification details; a shortened reference that omits the suffix does not reproduce the source entry.

The crosshead table also prints references such as GH 3101.04.01 with dots. These original forms remain in the reference list. Keep the source page with the code where punctuation differs between the cover, assembly title and component table, rather than silently assuming a revised identifier.

Separate custom parts from standard hardware

Some rows use a GH drawing number, while others cite a GB/T standard, a pressure-gauge model or a sealant grade. The book also specifies American-standard fasteners by dimensions without giving a unique Honghua code. For these rows, the thread, length and applicable item description are essential; a standard designation by itself is not a unique pump spare-part number.

For liners, pistons, valve components and seals, include the installed size and construction. For a widened pinion or bearing-related enquiry, add the mating-part information and clear photographs of the actual markings. Distinguish a complete assembly from a bare component so that the quotation scope is clear.

Prepare a source-specific request

Send the nameplate and serial number, catalogue date, complete drawing reference, item number and quantity. Include the relevant source page and photographs of the removed component. The book identifies the pump as HHF-1000. Confirm its nameplate and GH3101 drawing family before selecting a replacement.

Browse the mud pump spare-parts guide and contact Pratt Oil with the component information for review. A catalogue entry supports identification; supply availability and final suitability require confirmation.

  1. GH3101-01.00 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 1.; Catalogue component part/drawing number
  2. GH3101-02.00 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 2.; Catalogue component part/drawing number
  3. GH3101-03.00 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 3.; Catalogue component part/drawing number
  4. GH3101-04.00 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 4.; Catalogue component part/drawing number
  5. GH3101-05.00 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 5.; Catalogue component part/drawing number
  6. GH3101-06.00 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 7.; Catalogue component part/drawing number
  7. GH3101-07.00 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 8.; Catalogue component part/drawing number
  8. GH3101-08.00 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 9.; Catalogue component part/drawing number
  9. GH3101-09 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 10.; Catalogue component part/drawing number
  10. GH3101-10.00 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 11.; Catalogue component part/drawing number
  11. GH3101-11A — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 12.; Catalogue component part/drawing number
  12. GH3101-12.00 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 13.; Catalogue component part/drawing number
  13. GB/T97.1-1985 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 15.; Standard/specification reference in source drawing-number field
  14. GH3101-13 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 16.; Catalogue component part/drawing number
  15. GH3101-14 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 17.; Catalogue component part/drawing number
  16. GH3101-15.00 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 18.; Catalogue component part/drawing number
  17. GH3101-16 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 19.; Catalogue component part/drawing number
  18. GH3101-17.00 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 20.; Catalogue component part/drawing number
  19. GB/T97.1-1985 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 21.; Standard/specification reference in source drawing-number field
  20. GH3101-18 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 23.; Catalogue component part/drawing number
  21. GH3101-19 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 24.; Catalogue component part/drawing number
  22. GH3101-20 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 25.; Catalogue component part/drawing number
  23. GH3101-21 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 27.; Catalogue component part/drawing number
  24. GH3101-22.00 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 28.; Catalogue component part/drawing number
  25. GH3101-23 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 30.; Catalogue component part/drawing number
  26. GH3161-22.00B — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 31.; Catalogue component part/drawing number
  27. GH3101-25.00 — S1 , PDF p. 6 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page6; item 32.; Catalogue component part/drawing number
  28. GH3101-26 — S1 , PDF p. 7 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page7; item 33.; Catalogue component part/drawing number
  29. GH3101-27.00 — S1 , PDF p. 7 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page7; item 35.; Catalogue component part/drawing number
  30. GH3101-28.00A — S1 , PDF p. 7 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page7; item 36.; Catalogue component part/drawing number
  31. GH3101-29.00 — S1 , PDF p. 7 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page7; item 37.; Catalogue component part/drawing number
  32. GH3101-30.00 — S1 , PDF p. 7 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page7; item 38.; Catalogue component part/drawing number
  33. GH3101-31 — S1 , PDF p. 7 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page7; item 39.; Catalogue component part/drawing number
  34. GH3101-32 — S1 , PDF p. 7 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page7; item 40.; Catalogue component part/drawing number
  35. GB/T93-1987 — S1 , PDF p. 7 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page7; item 41.; Standard/specification reference in source drawing-number field
  36. GB/T827-1986 — S1 , PDF p. 7 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page7; item 42.; Standard/specification reference in source drawing-number field
  37. YK-150 — S1 , PDF p. 7 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page7; item 44.; Equipment model reference in source drawing-number field
  38. GH3101-01.01.00 — S1 , PDF p. 9 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page9; item 1.; Catalogue component part/drawing number
  39. GH3101-01.02 — S1 , PDF p. 9 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page9; item 2.; Catalogue component part/drawing number
  40. GH3101-01.03 — S1 , PDF p. 9 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page9; item 3.; Catalogue component part/drawing number
  41. GH3101-01.04 — S1 , PDF p. 9 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page9; item 4.; Catalogue component part/drawing number
  42. GH3101-01.05 — S1 , PDF p. 9 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page9; item 5.; Catalogue component part/drawing number
  43. GH3101-02.01.00 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 1.; Catalogue component part/drawing number
  44. GH3101-02.02 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 2.; Catalogue component part/drawing number
  45. GH3101-02.03 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 3.; Catalogue component part/drawing number
  46. GH3101-02.04 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 4.; Catalogue component part/drawing number
  47. GH3101-02.05.00 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 5.; Catalogue component part/drawing number
  48. GH3101-02.06 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 6.; Catalogue component part/drawing number
  49. GH3101-02.07 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 7.; Catalogue component part/drawing number
  50. GH3101-02.08.00 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 8.; Catalogue component part/drawing number
  51. GH3101-02.09 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 9.; Catalogue component part/drawing number
  52. GH3101-02.10B — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 10.; Catalogue component part/drawing number
  53. GH3101-02.11 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 11.; Catalogue component part/drawing number
  54. GH3101-02.12.00 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 12.; Catalogue component part/drawing number
  55. GH3101-02.13 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 13.; Catalogue component part/drawing number
  56. GH3101-02.14 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 14.; Catalogue component part/drawing number
  57. GH3101-02.15 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 15.; Catalogue component part/drawing number
  58. GH3101-02.16 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 16.; Catalogue component part/drawing number
  59. GH3101-02.17 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 17.; Catalogue component part/drawing number
  60. GH3101-02.18 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 18.; Catalogue component part/drawing number
  61. GH3101-02.19.00 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 19.; Catalogue component part/drawing number
  62. GH3101-02.20 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 20.; Catalogue component part/drawing number
  63. GH3101-02.21 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 21.; Catalogue component part/drawing number
  64. GH3101-02.22 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 22.; Catalogue component part/drawing number
  65. GB/T343-1994 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 23.; Standard/specification reference in source drawing-number field
  66. GB/T343-1994 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 24.; Standard/specification reference in source drawing-number field
  67. 242 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 25.; Consumable grade reference in source part-number field
  68. GB/T848-1985 — S1 , PDF p. 12 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page12; item 26.; Standard/specification reference in source drawing-number field
  69. GH3101-03.01 — S1 , PDF p. 14 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page14; item 1.; Catalogue component part/drawing number
  70. GH3101-03.02B — S1 , PDF p. 14 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page14; item 2.; Catalogue component part/drawing number
  71. GH3101-03.03 — S1 , PDF p. 14 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page14; item 3.; Catalogue component part/drawing number
  72. GH3101-03.04 — S1 , PDF p. 14 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page14; item 4.; Catalogue component part/drawing number
  73. GH3101-03.05 — S1 , PDF p. 14 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page14; item 5.; Catalogue component part/drawing number
  74. GH3101-03.06 — S1 , PDF p. 14 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page14; item 6.; Catalogue component part/drawing number
  75. GH3101-03.07 — S1 , PDF p. 14 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page14; item 7.; Catalogue component part/drawing number
  76. GH3101-03.08 — S1 , PDF p. 14 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page14; item 8.; Catalogue component part/drawing number
  77. GH3101-03.09 — S1 , PDF p. 14 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page14; item 9.; Catalogue component part/drawing number
  78. GH3101-03.10.00 — S1 , PDF p. 14 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page14; item 10.; Catalogue component part/drawing number
  79. GH3101-03.11 — S1 , PDF p. 14 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page14; item 13.; Catalogue component part/drawing number
  80. GH3101-03.12 — S1 , PDF p. 14 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page14; item 14.; Catalogue component part/drawing number
  81. GB/T93-1987 — S1 , PDF p. 14 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page14; item 15.; Standard/specification reference in source drawing-number field
  82. GB/T93-1987 — S1 , PDF p. 14 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page14; item 16.; Standard/specification reference in source drawing-number field
  83. GH3101-03.13 — S1 , PDF p. 14 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page14; item 17.; Catalogue component part/drawing number
  84. GB/T93-1987 — S1 , PDF p. 14 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page14; item 19.; Standard/specification reference in source drawing-number field
  85. GH3101.04.01 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 1.; Catalogue component part/drawing number
  86. GH3101.04.02 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 2.; Catalogue component part/drawing number
  87. GH3101-04.03 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 4.; Catalogue component part/drawing number
  88. GB/T3452.1-1992 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 5.; Standard/specification reference in source drawing-number field
  89. GH3101-04.04 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 6.; Catalogue component part/drawing number
  90. GH3101-04.05 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 7.; Catalogue component part/drawing number
  91. GH3101-04.06 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 8.; Catalogue component part/drawing number
  92. GH3101-04.07 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 9.; Catalogue component part/drawing number
  93. GH3101-04.08 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 10.; Catalogue component part/drawing number
  94. GH3101-04.09 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 11.; Catalogue component part/drawing number
  95. GH3101-04.10 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 12.; Catalogue component part/drawing number
  96. GH3101-04.11 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 14.; Catalogue component part/drawing number
  97. GH3101-04.12 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 15.; Catalogue component part/drawing number
  98. GH3101-04.13 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 16.; Catalogue component part/drawing number
  99. GB/T3452.1-1992 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 17.; Standard/specification reference in source drawing-number field
  100. GB/T93-1987 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 19.; Standard/specification reference in source drawing-number field
  101. GH3101-04.14 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 20.; Catalogue component part/drawing number
  102. GH3101-04.15 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 22.; Catalogue component part/drawing number
  103. GH3101-04.16 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 23.; Catalogue component part/drawing number
  104. GH3101-04.17 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 24.; Catalogue component part/drawing number
  105. GH3101-04.18 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 25.; Catalogue component part/drawing number
  106. GB/T4240-1993 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 26.; Standard/specification reference in source drawing-number field
  107. GB/T4240-1993 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 27.; Standard/specification reference in source drawing-number field
  108. GB/T4240-1993 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 28.; Standard/specification reference in source drawing-number field
  109. GH3101-04.19.00 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 29.; Catalogue component part/drawing number
  110. 242 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 30.; Consumable grade reference in source part-number field
  111. GB/T3452.1-1992 — S1 , PDF p. 16 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page16; item 31.; Standard/specification reference in source drawing-number field
  112. GH3101-05.01.00 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 1.; Catalogue component part/drawing number
  113. GH3101-05.02 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 2.; Catalogue component part/drawing number
  114. GH3101-05.03 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 3.; Catalogue component part/drawing number
  115. GH3101-05.04 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 4.; Catalogue component part/drawing number
  116. GH3101-05.05 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 5.; Catalogue component part/drawing number
  117. GH3101-05.06 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 6.; Catalogue component part/drawing number
  118. GB/T3452.1-1992 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 7.; Standard/specification reference in source drawing-number field
  119. GH3101-05.07 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 8.; Catalogue component part/drawing number
  120. GH3101-05.08 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 9.; Catalogue component part/drawing number
  121. GH3101-05.09 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 10.; Catalogue component part/drawing number
  122. GH3101-05.10 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 11.; Catalogue component part/drawing number
  123. GH3101-05.01.03 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 12.; Catalogue component part/drawing number
  124. GH3101-05.11 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 13.; Catalogue component part/drawing number
  125. GH3101-05.12 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 14.; Catalogue component part/drawing number
  126. GH3101-05.13.00 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 15.; Catalogue component part/drawing number
  127. GH3101-05.14 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 16.; Catalogue component part/drawing number
  128. GH3101-05.15 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 17.; Catalogue component part/drawing number
  129. GB/T4240-1993 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 18.; Standard/specification reference in source drawing-number field
  130. GH3101-05.16 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 19.; Catalogue component part/drawing number
  131. GH3101-05.17.00 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 20.; Catalogue component part/drawing number
  132. GH3101-05.18.00 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 21.; Catalogue component part/drawing number
  133. GH3101-05.19.00A — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 22.; Catalogue component part/drawing number
  134. GH3101-05.20 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 23.; Catalogue component part/drawing number
  135. GH3101-05.21 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 24.; Catalogue component part/drawing number
  136. GH3101-05.22A — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 25. Multiple codes are printed in the same source item; do not treat them as an automatic supersession.; Catalogue component part/drawing number
  137. GH3101-05.22 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 25. Multiple codes are printed in the same source item; do not treat them as an automatic supersession.; Catalogue component part/drawing number
  138. GH3101-05.23.00 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 26.; Catalogue component part/drawing number
  139. GH3101-05.24.00 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 27.; Catalogue component part/drawing number
  140. GH3101-05.25 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 28.; Catalogue component part/drawing number
  141. GH3101-05.26 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 29.; Catalogue component part/drawing number
  142. GH3101-05.27.00 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 30.; Catalogue component part/drawing number
  143. GB/T3452.1-1992 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 31.; Standard/specification reference in source drawing-number field
  144. GH3101-05.28.00 — S1 , PDF p. 18 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page18; item 33.; Catalogue component part/drawing number
  145. GH3101-05.30.00 — S1 , PDF p. 19 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page19; item 35.; Catalogue component part/drawing number
  146. GB/T3452.1-1992 — S1 , PDF p. 19 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page19; item 38.; Standard/specification reference in source drawing-number field
  147. GH3101-05.31 — S1 , PDF p. 19 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page19; item 39.; Catalogue component part/drawing number
  148. GH3101-05.32 — S1 , PDF p. 19 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page19; item 40.; Catalogue component part/drawing number
  149. GN3101-05 — S1 , PDF p. 19 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page19; item 41.; Catalogue component part/drawing number
  150. GH3101-05.34 — S1 , PDF p. 19 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page19; item 42.; Catalogue component part/drawing number
  151. GH3101-05.35 — S1 , PDF p. 19 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page19; item 43.; Catalogue component part/drawing number
  152. 277 — S1 , PDF p. 19 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page19; item 44.; Consumable grade reference in source part-number field
  153. GH3101-06.01.00 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 1.; Catalogue component part/drawing number
  154. GB/T1527-1997 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 2.; Standard/specification reference in source drawing-number field
  155. GH3101-06.02 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 3.; Catalogue component part/drawing number
  156. GH3101-06.03.00 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 4.; Catalogue component part/drawing number
  157. GH3101-06.04.00 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 5.; Catalogue component part/drawing number
  158. GH3101-06.05.00 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 6.; Catalogue component part/drawing number
  159. GH3101-06.06.00 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 7.; Catalogue component part/drawing number
  160. GH3101-06.07 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 8.; Catalogue component part/drawing number
  161. Y60-Z — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 9.; Catalogue component part/drawing number
  162. GH3101-06.08 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 10.; Catalogue component part/drawing number
  163. GH3101-06.09 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 11.; Catalogue component part/drawing number
  164. GH3101-06.10 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 12.; Catalogue component part/drawing number
  165. GB/T1527-1997 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 13.; Standard/specification reference in source drawing-number field
  166. GB/T1527-1997 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 14.; Standard/specification reference in source drawing-number field
  167. GH3101-06.11.00 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 15.; Catalogue component part/drawing number
  168. GB/T1527-1997 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 16.; Standard/specification reference in source drawing-number field
  169. GH3101-06.12 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 17.; Catalogue component part/drawing number
  170. GB/T93-1987 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 19.; Standard/specification reference in source drawing-number field
  171. GB/T1527-1997 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 20.; Standard/specification reference in source drawing-number field
  172. GB/T1527-1997 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 21.; Standard/specification reference in source drawing-number field
  173. GB/T1527-1997 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 22.; Standard/specification reference in source drawing-number field
  174. GB/T1527-1997 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 23.; Standard/specification reference in source drawing-number field
  175. GB/T1527-1997 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 24.; Standard/specification reference in source drawing-number field
  176. GB/T1527-1997 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 25.; Standard/specification reference in source drawing-number field
  177. GH3101-06.13 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 26.; Catalogue component part/drawing number
  178. GH3101-06.14 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 27.; Catalogue component part/drawing number
  179. GB/T1527-1997 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 28.; Standard/specification reference in source drawing-number field
  180. GB/T1527-1997 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 29.; Standard/specification reference in source drawing-number field
  181. GB/T1527-1997 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 30.; Standard/specification reference in source drawing-number field
  182. GH3101-06.15 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 31.; Catalogue component part/drawing number
  183. GH3101-06.16 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 32.; Catalogue component part/drawing number
  184. GH3101-06.17 — S1 , PDF p. 21 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page21; item 33.; Catalogue component part/drawing number
  185. GB/T1527-1997 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 34.; Standard/specification reference in source drawing-number field
  186. GB/T1527-1997 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 35.; Standard/specification reference in source drawing-number field
  187. GH3101-06.18.00 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 36.; Catalogue component part/drawing number
  188. GH3101-06.19.00 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 37.; Catalogue component part/drawing number
  189. GH3101-06.20 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 38.; Catalogue component part/drawing number
  190. GH3101-06.08 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 39.; Catalogue component part/drawing number
  191. GH3101-06.21 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 40.; Catalogue component part/drawing number
  192. GH3101-06.22 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 41.; Catalogue component part/drawing number
  193. L20 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 42.; Catalogue component part/drawing number
  194. GB/T93-1987 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 44.; Standard/specification reference in source drawing-number field
  195. GH3101-06.23 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 46.; Catalogue component part/drawing number
  196. GB/T1527-1997 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 47.; Standard/specification reference in source drawing-number field
  197. GB/T1527-1997 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 48.; Standard/specification reference in source drawing-number field
  198. GB/T1527-1997 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 49.; Standard/specification reference in source drawing-number field
  199. GB/T1527-1997 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 50.; Standard/specification reference in source drawing-number field
  200. GH3101-06.24 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 51.; Catalogue component part/drawing number
  201. GB/T1527-1997 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 52.; Standard/specification reference in source drawing-number field
  202. GB/T1527-1997 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 53.; Standard/specification reference in source drawing-number field
  203. GH3101-06.25 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 54.; Catalogue component part/drawing number
  204. GH3101-06.26 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 55.; Catalogue component part/drawing number
  205. 609 or 680 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 56.; Consumable grade reference in source part-number field
  206. GH3101-06.27 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 57.; Catalogue component part/drawing number
  207. GH3101-06.28 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 58.; Catalogue component part/drawing number
  208. GH3101-06.29 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 59.; Catalogue component part/drawing number
  209. GH3101-06.30 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 60.; Catalogue component part/drawing number
  210. GH3101-06.31 — S1 , PDF p. 22 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page22; item 61.; Catalogue component part/drawing number
  211. GH3101-08.01.00A — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 1. Multiple codes are printed in the same source item; do not treat them as an automatic supersession.; Catalogue component part/drawing number
  212. GH3101-08.01.00 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 1. Multiple codes are printed in the same source item; do not treat them as an automatic supersession.; Catalogue component part/drawing number
  213. GH3101-08.02 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 2.; Catalogue component part/drawing number
  214. GH3101-08.03.00 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 3.; Catalogue component part/drawing number
  215. GH3101-08.04 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 4.; Catalogue component part/drawing number
  216. GH3101-08.05 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 5.; Catalogue component part/drawing number
  217. GH3101-08.06 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 6.; Catalogue component part/drawing number
  218. GH3101-08.07 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 7.; Catalogue component part/drawing number
  219. GH3101-08.08 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 8.; Catalogue component part/drawing number
  220. GH3101-08.09.00 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 10.; Catalogue component part/drawing number
  221. GH3101-08.10 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 11.; Catalogue component part/drawing number
  222. GH3101-08.11 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 12.; Catalogue component part/drawing number
  223. GH3101-08.12.00 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 13.; Catalogue component part/drawing number
  224. GH3101-08.13.00 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 14.; Catalogue component part/drawing number
  225. GH3101-08.03.04 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 15.; Catalogue component part/drawing number
  226. GH3101-08.14 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 16.; Catalogue component part/drawing number
  227. GH3101-08.15 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 17.; Catalogue component part/drawing number
  228. GB117-74 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 19.; Catalogue component part/drawing number
  229. GB/T93-1987 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 24.; Standard/specification reference in source drawing-number field
  230. GB/T848-1985 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 25.; Standard/specification reference in source drawing-number field
  231. GB/T93-1987 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 27.; Standard/specification reference in source drawing-number field
  232. GB/T96-1985 — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 28.; Standard/specification reference in source drawing-number field
  233. 32PL — S1 , PDF p. 24 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page24; item 31.; Equipment model reference in source drawing-number field
  234. Q11F-16 — S1 , PDF p. 25 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page25; item 32.; Catalogue component part/drawing number
  235. GH3101-08.16.00 — S1 , PDF p. 25 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page25; item 33.; Catalogue component part/drawing number
  236. GH3101-10.01 — S1 , PDF p. 25 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page25; item 1.; Catalogue component part/drawing number
  237. GH3101-10.02 — S1 , PDF p. 25 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page25; item 2.; Catalogue component part/drawing number
  238. GH3101-10.03 — S1 , PDF p. 25 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page25; item 3.; Catalogue component part/drawing number
  239. GH3101-10.04 — S1 , PDF p. 25 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page25; item 4.; Catalogue component part/drawing number
  240. GH3101-10.05 — S1 , PDF p. 25 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page25; item 5.; Catalogue component part/drawing number
  241. GH3101-15.01.00 — S1 , PDF p. 27 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page27; item 1.; Catalogue component part/drawing number
  242. GH3101-15.02 — S1 , PDF p. 27 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page27; item 2.; Catalogue component part/drawing number
  243. GH3101-15.03 — S1 , PDF p. 27 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page27; item 3.; Catalogue component part/drawing number
  244. GH3101-17.01 — S1 , PDF p. 28 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page28; item 2.; Catalogue component part/drawing number
  245. GH3101-17.02 — S1 , PDF p. 28 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page28; item 3.; Catalogue component part/drawing number
  246. GH3101-22.01.00 — S1 , PDF p. 30 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page30; item 1.; Catalogue component part/drawing number
  247. GH3101-22.02 — S1 , PDF p. 30 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page30; item 2.; Catalogue component part/drawing number
  248. GB/T3452.1-1992 — S1 , PDF p. 30 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page30; item 3.; Standard/specification reference in source drawing-number field
  249. GH3101-22.03 — S1 , PDF p. 30 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page30; item 4.; Catalogue component part/drawing number
  250. GH3101-22.04 — S1 , PDF p. 30 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page30; item 5.; Catalogue component part/drawing number
  251. GH3101-27.01 — S1 , PDF p. 31 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page31; item 1.; Catalogue component part/drawing number
  252. GH3101-27.03.00 — S1 , PDF p. 32 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page32; item 3.; Catalogue component part/drawing number
  253. GH3101-27.04.00 — S1 , PDF p. 32 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page32; item 4.; Catalogue component part/drawing number
  254. GH3101-27.05 — S1 , PDF p. 32 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page32; item 5.; Catalogue component part/drawing number
  255. GH3101-27.06 — S1 , PDF p. 32 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page32; item 6.; Catalogue component part/drawing number
  256. GH3101-27.07 — S1 , PDF p. 32 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page32; item 7.; Catalogue component part/drawing number
  257. GH3101-27.08.00 — S1 , PDF p. 32 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page32; item 8.; Catalogue component part/drawing number
  258. GH3101-27.09.00 — S1 , PDF p. 32 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page32; item 9.; Catalogue component part/drawing number
  259. Y-60 — S1 , PDF p. 32 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page32; item 10.; Equipment model reference in source drawing-number field
  260. JZR3-L8 — S1 , PDF p. 32 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page32; item 11.; Catalogue component part/drawing number
  261. GH3101-27.10 — S1 , PDF p. 32 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page32; item 12.; Catalogue component part/drawing number
  262. GH3101-27.11.00 — S1 , PDF p. 32 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page32; item 13.; Catalogue component part/drawing number
  263. GH3101-28.01 — S1 , PDF p. 35 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page35; item 1.; Catalogue component part/drawing number
  264. GH3101-28.02 — S1 , PDF p. 35 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page35; item 2.; Catalogue component part/drawing number
  265. GH3101-28.03.00 — S1 , PDF p. 35 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page35; item 3.; Catalogue component part/drawing number
  266. GH3101-28.04 — S1 , PDF p. 35 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page35; item 4.; Catalogue component part/drawing number
  267. GH3101-28.05 — S1 , PDF p. 35 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page35; item 5.; Catalogue component part/drawing number
  268. GH3101-28.06 — S1 , PDF p. 35 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page35; item 6.; Catalogue component part/drawing number
  269. GH3101-28.07 — S1 , PDF p. 35 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page35; item 7.; Catalogue component part/drawing number
  270. GH3101-28.08 — S1 , PDF p. 35 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page35; item 8.; Catalogue component part/drawing number
  271. GH3101-28.09 — S1 , PDF p. 35 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page35; item 9.; Catalogue component part/drawing number
  272. GH3101-28.10 — S1 , PDF p. 35 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page35; item 10.; Catalogue component part/drawing number
  273. GH3101-28.11 — S1 , PDF p. 35 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page35; item 11.; Catalogue component part/drawing number
  274. GH3101-28.12A — S1 , PDF p. 35 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page35; item 12.; Catalogue component part/drawing number
  275. GH3101-28.13 — S1 , PDF p. 35 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page35; item 13.; Catalogue component part/drawing number
  276. GH3101-28.14 — S1 , PDF p. 35 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page35; item 14.; Catalogue component part/drawing number
  277. GH3101-28.15A — S1 , PDF p. 35 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page35; item 15.; Catalogue component part/drawing number
  278. GB/T91-1986 — S1 , PDF p. 35 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page35; item 16.; Standard/specification reference in source drawing-number field
  279. GH3161-22.01.00A — S1 , PDF p. 37 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page37; item 1.; Catalogue component part/drawing number
  280. GH3161-22.02.00B — S1 , PDF p. 37 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page37; item 2.; Catalogue component part/drawing number
  281. GH3161-22.03.00A — S1 , PDF p. 37 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page37; item 3.; Catalogue component part/drawing number
  282. GH3161-22.04 — S1 , PDF p. 37 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page37; item 4.; Catalogue component part/drawing number
  283. GH3161-22.05 — S1 , PDF p. 37 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page37; item 5.; Catalogue component part/drawing number
  284. GH3161-22.06 — S1 , PDF p. 37 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page37; item 6.; Catalogue component part/drawing number
  285. 277 — S1 , PDF p. 37 — Source HHF-1000 parts list GH3101.00 dated July2007; PDF page37; item 7.; Consumable grade reference in source part-number field
  286. GH3101.00 — S1 , PDF p. 1 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference
  287. GH3101-00 — S1 , PDF p. 3 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference
  288. GH3101-00 — S1 , PDF p. 3 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference
  289. GH3101-01.00 — S1 , PDF p. 8 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference
  290. GH3101-02.00 — S1 , PDF p. 10 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference
  291. GH3101-03.00 — S1 , PDF p. 13 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference
  292. GH3101-04.00 — S1 , PDF p. 15 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference
  293. GH3101-05.00 — S1 , PDF p. 17 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference
  294. GH3101-06.00 — S1 , PDF p. 20 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference
  295. GH3101-08.00 — S1 , PDF p. 23 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference
  296. GH3101-08.16.00 — S1 , PDF p. 25 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference
  297. GH3101-10.00 — S1 , PDF p. 25 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference
  298. GH3101-15.00 — S1 , PDF p. 26 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference
  299. GH3101-15.01.00 — S1 , PDF p. 27 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference
  300. GH3101-15.02 — S1 , PDF p. 27 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference
  301. GH3101-15.03 — S1 , PDF p. 27 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference
  302. GH3101-17.00 — S1 , PDF p. 27 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference
  303. GH3101-22.00 — S1 , PDF p. 29 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference
  304. GH3101-27.01 — S1 , PDF p. 31 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference
  305. GH3101-28.00A — S1 , PDF p. 33 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference
  306. GH3161-22.00B — S1 , PDF p. 36 — HHF-1000 catalogue assembly drawing heading; preserve exact printed GH code and source page.; Assembly engineering drawing reference

Request a Quotation

Send the part number, quantity and pump model for a quotation.

WhatsApp parts inquiryEmail parts list

Related model guides

Browse all Company News and model guides

WhatsApp
