Honghua HHF-1300 Parts: Connecting Rod and Bearing References

Parts List

Search drawing number or nameDownload parts list (CSV)

980 parts

P/P	Part / Drawing No.	Name	Part / Drawing No.	Name

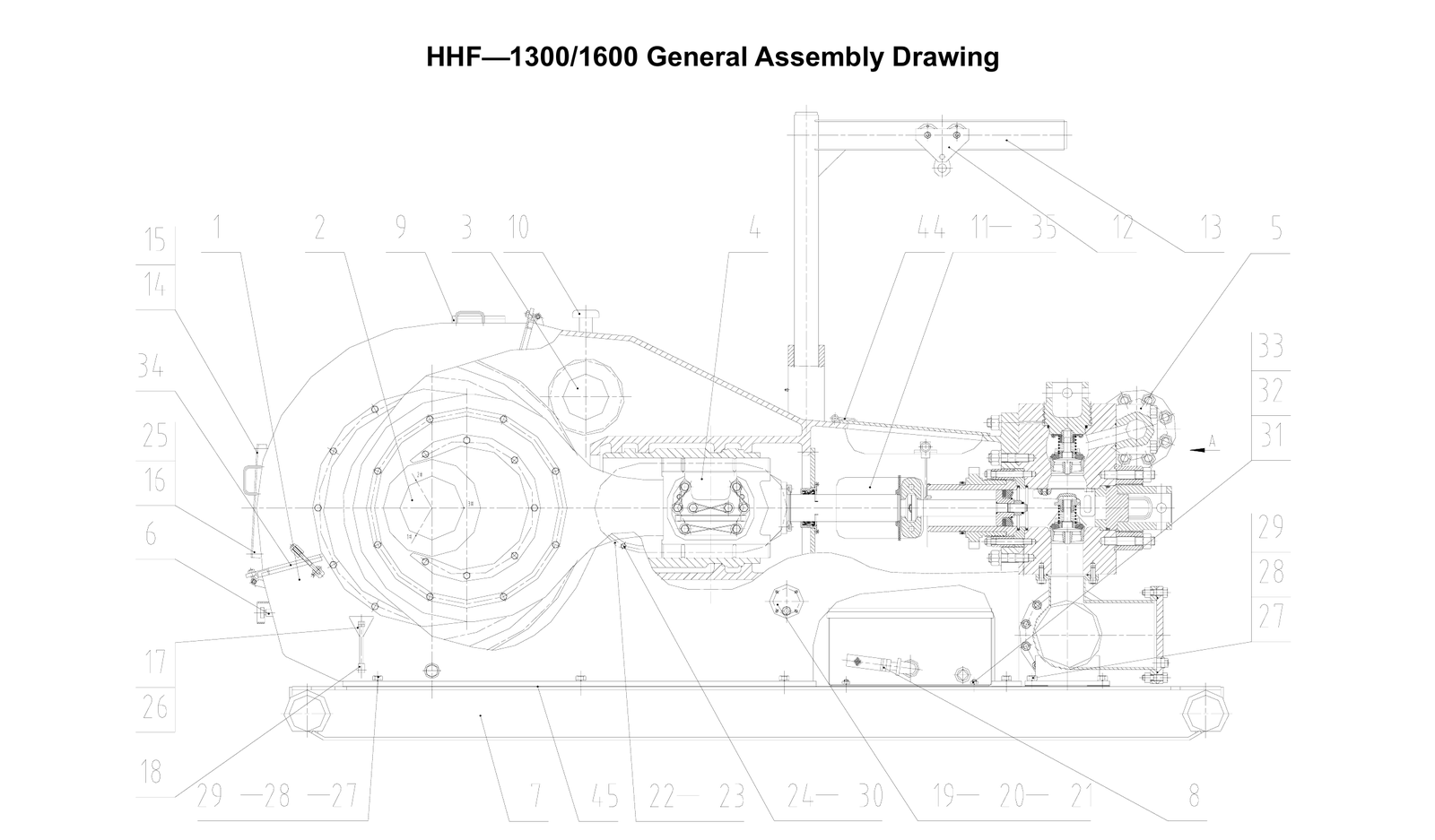

Honghua HHF-1300 / HHF-1600 combined parts catalogue, Chinese
1	`11-3161-0100`	Frame assembly	`11-3161-2204`	Stud 11/16-8UN-2A×170
2	`11-3161-0200`	Crankshaft assembly	`11-3161-2205`	Heavy nut 11/16-8UN-2B(SPL)
3	`11-3161-0300`	Pinion-shaft assembly	`11-3161-2202-00`	Safety-valve pipe
4	`11-3161-0400`	Crosshead assembly	`11-3161-2800`	JA-3 shear-pin relief valve
5	`11-3161-0500`	Fluid-end assembly	`11-3161-2700`	KB-75 pulsation dampener
6	`11-3161-0600`	Power-end lubrication assembly	`11-3161-2401-00`	Filter-screen assembly
7	`11-3161-0700`	Skid	`B34521-165-700-69`	O-ring 165×7.0G
8	`11-3161-0800`	Liner-spray pump assembly	`11-3161-2402`	Housing
9	`11-3161-09`	Sealing washer	`11-3161-25`	Flange 51/8×35
10	`11-3161-1000`	Breather cap	`11-3161-23`	Sealing ring R44
11	`11-3161-11`	Nameplate	`11-3161-2403`	Stud 11/2-8UN(12UNF)-2A×128
12	`11-3161-1200`	Trolley	`11-3161-2404`	Nut 11/2-8UN-2B(SPL)
13	`11-3161-1300`	Hoist frame	`11-3161-2501`	Union-type vibration-resistant pressure gauge 0～6000PSi
14	`11-3161-1400`	Cover plate	`11-3161-2202-1`	Pressure-gauge seat
15	`11-3161-15`	Gasket	`11-3161-2204-1`	Sealing ring R35
16	`11-3161-1501`	Bolt 1/2-13UNC-2A×30	`11-3161-2203-1`	Discharge five-way cross
17	`11-3161-16`	Identification plate	`11-3161-2502`	Loctite anaerobic sealant
18	`11-3161-1700`	Oil-level gauge assembly	`11-3161-2205-1`	Stud 11/8-8UN(12UNF)-2A×90
19	`11-3161-1800`	Drain-access cover	`11-3161-2206-1`	Nut 11/8-8UN-2B(SPL)
20	`11-3161-19`	Sealing washer	`11-3161-32-1`	Blind flange 51/8×35
21	`11-3161-1502`	Bolt 1/2-13UNC-2A×35	`11-3161-2700`	KB-75 pulsation dampener
22	`11-3161-20`	Crosshead-access cover	`11-3161-0601`	Square key 3/16×3/16×25.4
23	`11-3161-21`	Gasket	`11-3161-0602-00`	Gear oil-pump assembly
24	`11-3161-1503`	Bolt 5/8-11UNC-2A×45	`11-3161-0603`	90-degree pipe connector 11/16-16UN-2A-NPT1/4
25	`B0848-14-32`	Washer 14	`11-3161-0604`	Hollow bolt
26	`B0827-003-10-73`	Nameplate rivet 3×10	`11-3161-0632`	Screw 5/16-18UNC-2A×40
27	`11-3161-1504`	Bolt 1-8UNC-2A×90	`11-3161-0605`	90-degree pipe connector 15/16-16UN-2A-NPT1/2
28	`11-3161-1505`	Nut 1-8UNC-2B(SPL)	`11-3161-0606`	90-degree pipe connector 1/2-20UNF-2A-NPT1/4
29	`B0093-27-59`	Washer 27	`11-3161-0607`	90-degree pipe connector 5/8-16UN-2A-NPT1/4
30	`B0848-16-32`	Washer 16	`B1527-08-00-0305`	Copper tube Φ8×305
31	`11-3161-1506`	Bolt 5/8-11UNC-2A×60	`11-3161-0608`	Nut 1/2-20UNF-2B
32	`11-3161-1507`	Nut 5/8-11UNC-2B(SPL)	`11-3161-0609`	Connector seat (II)
33	`B0093-16-59`	Washer 16	`11-3161-0610`	Straight connector 15/16-16UN-2A-NPT1/2
34	`11-3161-1508`	Rubber strip 40×10×5800	`B1527-16-00-0686`	Copper tube Φ16×686
35	`11-3161-1509`	Screw 8(0.164)-32UNC-2A×16	`B1527-16-00-0331`	Copper tube Φ16×331
36	`11-3161-1510`	Dual-scale vibration-resistant pressure gauge 0～60MPa(0～8700PSi)	`11-3161-0611-00`	Tube clamp (Ⅰ)
37	`11-3161-2200`	Discharge-elbow assembly	`11-3161-0612`	45-degree pipe connector
38	`11-3161-1511`	Threaded plug R1 1/2	`B1527-10-00-0838`	Copper tube Φ10×838
39	`11-3161-23`	Sealing ring R44	`B1527-12-00-0305`	Copper tube Φ12×305
40	`11-3161-2400`	Discharge filter-screen assembly	`11-3161-0613-00`	Tube clamp Φ8
41	`11-3161-25`	Flange 51/8×35	`B1527-08-00-0762`	Copper tube Φ8×762
42	`11-3161-2700`	KB-75 pulsation dampener	`B1527-08-00-0508`	Copper tube Φ8×508
43	`11-3161-2800`	JA-3 shear-pin relief valve	`B1527-08-00-0762`	Copper tube Φ8×229
44	`11-3161-3000`	Cover-plate assembly	`11-3161-0614`	Threaded plug NPT1/4
45	`11-3161-31`	Adjusting shim	`B1527-08-00-0915`	Copper tube Φ8×915
46	`11-3161-0201-00`	Main-bearing end cover	`B1527-08-00-1194`	Copper tube Φ8×1194
47	`11-3161-0202`	Main-bearing sleeve (right)	`B1527-08-00-1016`	Copper tube Φ8×1016
48	`11-3161-0203`	Sealing washer	`11-3161-0615`	Connector seat (I)
49	`11-3161-0204`	Inner retaining ring	`11-3161-0616`	Nut 5/8-16UN-2B
50	`11-3161-0205-00`	Outer retaining ring	`11-3161-0617-00`	Tube clamp Φ12
51	`11-3161-0206`	Connecting rod	`11-3161-0618`	Gasket
52	`11-3161-0207`	Positioning ring (I)	`11-3161-0633`	Bolt 1/4-20UNC-2A×20
53	`11-3161-0208-00`	Hollow crankshaft	`11-3161-0619`	Oil nozzle
54	`11-3161-0209`	Positioning ring (II)	`B1527-12-00-0610`	Copper tube Φ12×610
55	`11-3161-0210`	Bull gear	`B1527-08-00-0813`	Copper tube Φ8×813
56	`11-3131-0211-1`	Bolt 11/2-8UN-2A×130	`11-3161-0620`	Straight connector 1/2-20UNF-2A
57	`11-3161-0211-2`	Bolt 11/2-8UN-2A×170	`11-3161-0621-00`	Double tube clamp Φ8
58	`11-3161-0212`	Spacer ring	`B1527-10-00-1956`	Copper tube Φ10×1956
59	`11-3161-0213`	Main-bearing sleeve (left)	`B1527-08-00-1956`	Copper tube Φ8×1956
60	`11-3161-0214`	Retaining ring	`B1527-08-00-2311`	Copper tube Φ8×2311
61	`11-3161-0215`	Retainer plate	`B1527-08-00-1600`	Copper tube Φ8×1600
62	`11-3161-0216`	Main-bearing bolt 3-8UN-3A	`B1527-08-00-1245`	Copper tube Φ8×1245
63	`11-3161-0217`	Shim set	`11-3161-0622`	Pipe connector NPT1/4-9/16-16UN-2B
64	`11-3161-0218`	Screw 5/8-11UNC-2A×120	`11-3161-0623`	Sealing washer
65	`11-3161-0219-00`	Locknut 11/2-8UN-2B	`11-3161-0624-00`	Shim set
66	`11-3161-0220`	Bolt 5/8-11UNC-2A×40	`11-3161-0625-00`	Support
67	`11-3161-0227`	Bolt 5/8-11UNC-2A×50	`11-3161-0626`	Straight connector 5/8-16UN-2A
68	`11-3131-0221-1`	Eccentric-strap bearing 928/660.4QU	`B0093-08-59`	Washer 8
69	`11-3161-0221-2`	Eccentric-strap bearing 929/660.4QU	`11-3161-0634`	Relief valve
70	`11-3131-0222-1`	Main bearing 3G4053160H	`B0093-06-59`	Washer 6
71	`11-3161-0222-2`	Main bearing 3G3003760HY	`11-3161-0635`	2S gear oil pump
72	`B0848-16-32`	Washer 16	`11-3161-0636`	Dual-scale pressure gauge 0～1.6MPa(0～230PSi)
73	`11-3161-0224`	Locking wire SZ-1.50	`11-3161-0627`	Straight connector 11/16-16UN-2A-NPT3/8
74	`11-3161-0225`	Locking wire SZ-3.00	`11-3161-0628-00`	Oil-filter assembly
75	`11-3161-0226`	Loctite anaerobic sealant	`11-3161-0637`	Anaerobic locking compound
76	`11-3161-0223`	Screw 5/8-11UNC-2A×100	`11-3161-0629`	Nut 11/16-16UN-2B
77	`11-3161-0301`	Key 2″×2″×241.3	`11-3161-0630`	Nut 15/16-16UN-2B
78	`11-3131-0302`	Pinion shaft	`11-3161-0631`	Straight connector 1/2-20UNF-2A-NPT1/4
79	`11-3161-0302`	Pinion shaft	`11-3161-0801-00-1`	Guard
80	`11-3161-0303`	Wear sleeve	`11-3161-0801-00-2`	Guard
81	`11-3161-0304`	End cover	`11-3161-0802`	Belt pulley
82	`11-3161-0305`	Sealing washer	`11-3161-0803-00`	Support assembly
83	`11-3161-0306`	Sealing washer	`11-3161-0804`	Short connector NPT1-1-111/2NPSC
84	`11-3161-0307`	Bearing housing	`11-3161-0805`	Connector NPT1
85	`11-3161-0308`	Retaining ring	`11-3161-0806`	Connector 1-111/2NPSC-1 1/4-12UNF-2A
86	`11-3161-0309`	Sealing washer	`11-3161-0807`	Connector NPT21/2
87	`11-3161-0310-00`	Oil-collecting box	`11-3161-0808`	Short connector NPT21/2
88	`11-3161-0314`	Bolt 1/2-13UNC-2A×35	`11-3161-0818`	Hose L=1500(Φ22×Φ37)
89	`11-3161-0315`	Bolt 7/8-9UNC-2A×52	`11-3161-0809-00`	Hose connector Φ22×Φ37
90	`11-3161-0311`	Oil seal 9.125″×10.375″×0.625″	`11-3161-0810`	90-degree elbow NPT1
91	`11-3161-0312`	Bearing 4G32844H	`11-3161-0811`	Connecting plate
92	`B0093-22-59`	Washer 22	`11-3161-0812-00`	Water tank
93	`B0093-14-59`	Washer 14	`11-3161-0813-00`	Tank cover
94	`11-3161-0313`	Turning flange	`11-3161-0814`	Hollow threaded plug NPT21/2
95	`11-3161-0316`	Bolt 5/8-11UNC-2A×50	`11-3161-0815`	Shim
96	`B0093-16-59`	Washer 16	`11-3161-0816`	Flange NPT1
97	`11-3161-0401`	Crosshead	`11-3161-0819`	Set screw 5/16-18UNC-2A×25
98	`11-3161-0402`	Upper guide	`B1171-A3708`	V-belt A3708
99	`11-3161-0403-00`	Shim set	`11-3161-0820`	Pipe clamp NO：3
100	`11-3161-0404`	Adjusting shim	`11-3161-0821`	Hose L=750(Φ38×Φ53)
101	`11-3161-0405`	Stuffing box	`11-3161-0822`	90-degree elbow NPT21/2
102	`11-3161-0406`	Oil-seal ring	`11-3161-0823`	Bolt 5/8-11UNC-2A×50
103	`B34521-190-355-69`	O-ring 190×3.55G	`B0848-16-32`	Washer 16
104	`11-3161-0407`	Double-lip oil seal 5″×6.25″×0.625″	`B0093-16-59`	Washer 16
105	`11-3161-0408`	Sealing washer	`11-3161-0824`	Bolt 1/2-13UNC-2A×40
106	`11-3161-0409`	End cover	`B0093-14-59`	Washer 14
107	`11-3161-0410`	Locking spring	`B0096-14-59`	Washer 14
108	`11-3161-0411`	Mud baffle	`11-3161-0825`	Bolt 1/2-13UNC-2A×55
109	`11-3161-0412`	Crosshead extension rod	`11-3161-0826`	Nut 1/2-13UNC-2B
110	`11-3161-0413`	Crosshead pin	`11-3161-0827`	Centrifugal liner-spray pump
111	`B34521-125-700-69`	O-ring 125×7.0G	`11-3161-0828`	Female-thread ball valve 1-111/2NPSC
112	`11-3161-0420`	Screw 3/4-10UNC-2A×65	`11-3161-0817-00`	Bracket
113	`11-3161-0414`	Gasket	`11-3161-2701`	Sealing ring R39
114	`B34521-160-700-69`	O-ring 160×7.0G	`11-3161-2702`	Bottom plug
115	`11-3161-0415`	Lower guide	`11-3161-2703-00`	Bladder
116	`11-3161-0416`	Crosshead-pin retainer plate	`11-3161-2704-00`	Housing assembly
117	`11-3161-0417`	Crosshead bearing 254941QU	`11-3161-2705`	Cover
118	`11-3161-0418`	Pipe connector NPT3/8×50.8	`11-3161-2706`	Tee NPT1/4
119	`11-3161-0421`	Bolt 1-8UNC-2A×60	`11-3161-2707`	Connector NPT1/4
120	`11-3161-0422`	Bolt 1-8UNC-2A×70	`11-3161-2708-00`	Pressure-gauge guard assembly
121	`11-3161-0419`	Securing plate	`11-3161-2709-00`	Vent valve
122	`11-3161-0423`	Bolt 3/8-16UNC-2A×40	`11-3161-2710-01`	Dual-scale vibration-resistant pressure gauge 0～25MPa(0～3630PSi)
123	`B0093-10-59`	Washer 10	`11-3161-2710-02`	Angle stop valve
124	`11-3161-0424`	Stainless-steel wire Φ1.6	`11-3161-2710`	Washer
125	`11-3161-0425`	Loctite anaerobic sealant	`11-3161-2704-02`	Stud 11/2-8UN(12UNF)-2A×120
126	`11-3161-0501-00`	Fluid-cylinder assembly	`11-3161-2704-03`	Nut 11/2-8UN-2B(SPL)
127	`11-3161-0502`	Cylinder-cover flange	`11-3161-2704-04`	Stud 11/4-8UN(12UNF)-2A×100
128	`11-3161-0503`	Cylinder cover	`11-3161-2704-05`	Nut 11/4-8UN-2B(SPL)
129	`11-3161-0504-00`	Retaining-plate assembly	`11-3161-2711-00`	Pulsation-dampener charging-hose assembly
130	`11-3161-0505-00`	Valve-stem guide (lower)	`11-3161-2711-01`	Nut 3/4-16UNF-2B
131	`11-3161-0506-00`	Cylinder-cover plug	`11-3161-2711-02`	Sealing connector
132	`11-3161-0507`	Positioning plate	`11-3161-2711-03`	Connector
133	`11-3161-0508`	Cylinder-cover seal ring	`11-3161-2711-04`	Gasket
134	`11-3161-0509`	Discharge manifold	`11-3161-2711-05`	Threaded plug
135	`11-3161-0510`	Valve spring	`11-3161-2711-06`	Hose connector 6I-2500
136	`B34521-095-530-69`	O-ring 95×5.3G	`11-3161-2801`	Connector
137	`11-3161-0511-00`	Valve assembly	`11-3161-2802`	Retaining ring
138	`11-3161-0512`	Valve-cover seal ring	`11-3161-2803-00`	Piston assembly
139	`11-3161-0513`	Valve cover	`11-3161-2804`	Valve body
140	`11-3161-0514`	Liner seal ring	`11-3161-2805`	Piston rod
141	`11-3161-0515`	Wear plate	`11-3161-2806`	Cushion pad
142	`11-3161-0516`	Liner flange	`11-3161-2807`	Spring pin
143	`11-3161-0517-00`	Liner retainer	`11-3161-2808`	Lock spring
144	`11-3161-0518`	Piston rod	`11-3161-2809`	Safety cover
145	`11-3161-0519-00`	Liner-spray pipe assembly	`11-3161-2810`	Shear-pin plate
146	`B34521-200-700-69`	O-ring 200×7.0G	`11-3161-2811`	Shear pin
147	`11-3161-0520`	Liner locking ring	`11-3161-2812`	Warning nameplate
148	`11-3161-0521-21`	Bi-metal liner 5	`11-3161-2813`	Pin
149	`11-3161-0521-22`	Bi-metal liner 51/2	`11-3161-2814`	Wire retaining ring
150	`11-3161-0521-23`	Bi-metal liner 6	`11-3161-2815`	Nameplate
151	`11-3161-0521-24`	Bi-metal liner 61/4	`11-3161-2816`	Pin 4×26
152	`11-3161-0521-25`	Bi-metal liner 61/2	`11-3161-2817`	Screw 8(0.164)-32UNC-2A×16
153	`11-3161-0521-26`	Bi-metal liner 63/4	`11-3161-2818`	Nut 8(0.164)-32UNC-2B
154	`11-3161-0521-11`	Standard liner 5	`11-3161-2819`	Bolt 3/8-16UNC-2A×105
155	`11-3161-0521-12`	Standard liner 51/2	`11-3161-2820`	Nut 3/8-16UNC-2B(SPL)
156	`11-3161-0521-13`	Standard liner 6	`11-3161-2821`	Screw 5(0.125)-40UNC-2A×8
157	`11-3161-0521-14`	Standard liner 61/4	`11-3161-0511-01`	Valve body
158	`11-3161-0521-15`	Standard liner 61/2	`11-3161-0511-02`	Valve nut
159	`11-3161-0521-16`	Standard liner 63/4	`11-3161-0511-03`	Snap ring
160	`11-3161-0521-17`	Standard liner 7	`262`	Loctite anaerobic sealant ：262
161	`11-3161-0522-00`	Clamp assembly	`11-3161-0511-04`	Retainer cover
162	`11-3161-0523`	Liner end cover	`B0308-005`	Steel ball ：φ5
163	`11-3161-0524-00`	Piston	`11-3161-0511-05`	Valve insert
164	`11-3161-0542`	Bolt 7/8-9UNC-2A×60	`11-3161-0511-07`	Valve guide cage
165	`11-3161-0525-00`	Suction manifold	`11-3161-0511-06`	Valve seat
166	`11-3161-0526-00`	Shim set	`11-3161-0511-01-00`	Valve-body assembly (includes source items1–8)
167	`11-3161-0527`	Valve-stem guide (upper)	`11-3161-0524-0100`	Piston ：51/2
168	`11-3161-0528`	Stud 11/2-8UN-2A×265	`11-3161-0524-0200`	Piston ：6
169	`11-3161-0501-06`	Nut 11/2-8UN-2B(SPL)	`11-3161-0524-0300`	Piston ：61/4
170	`11-3161-0529`	Retainer plate	`11-3161-0524-0400`	Piston 61/2
171	`11-3161-0530`	Bolt 3/8-16UNC-2A×20	`11-3161-0524-0500`	Piston ：63/4
172	`11-3161-0531`	Piston seal ring	`11-3161-0524-0600`	Piston ：7
173	`11-3161-0532-00`	Piston nut	`11－3161-0524－0102－00`	Piston rubber ：51/2
174	`B34521-190-700-69`	O-ring 190×7.0G	`11－3161-0524－0202－00`	Piston rubber ：6
175	`11-3161-0533-00`	Suction dampener	`11－3161-0524－0302－00`	Piston rubber ：61/4
176	`B34521-345-700-69`	O-ring 345×7.0G	`11－3161-0524－0402－00`	Piston rubber 61/2
177	`11-3161-0534`	Suction flange (I)	`11－3161-0524－0502－00`	Piston rubber ：63/4
178	`11-3161-0535`	Suction flange (II)	`11－3161-0524－0602－00`	Piston rubber ：7
179	`11-3161-0543`	Nut 11/16-8UN-2B(SPL)	`11-3161-05-01-01`	Fluid cylinder (not nickel-plated)
180	`11-3161-0544`	Bolt 11/16-8UN-2A×90	`11-3161-05-01-02`	Stud ：1-8UNC(14UNS)-2A*185
181	`11-3161-0545`	Stainless-steel wire Φ1.60(L=1830)	`11-3161-05-01-03`	Nut ：1-8UNC-2B(SPL)
182	`11-3161-0536`	Threaded plug NPT11/2	`11-3161-05-01-04`	Stud ：11/2-8UN(12UNF)-2A*170
183	`11-3161-0537`	Stud 11/2	`11-3161-05-01-05`	Stud ：11/2-8UN(12UNF)-2A*120
184	`11-3161-0546`	Loctite anaerobic sealant	`11-3161-05-01-06`	Nut ：11/2-8UN-2B(SPL)
185	`11-3161-0538`	Suction-port closure plate 12″	`11-3161-05-01-07`	Stud ：11/4-8UN(12UNF)-2A*195
186	`11-3161-0539`	Discharge-port closure plate 51/8″	`11-3161-05-01-08`	Nut ：11/4-8UN-2B(SPL)
187	`11-3161-0540`	Washer 39	`11-3161-05-01-09`	Loctite anaerobic sealant 277
188	`11-3161-0541-00`	Spring guide	`11-3161-2600`	Supplied tool set
189	`11-3161-0501-02`	Stud 1-8UNC(14UNS) -2A×185	`11-3161-2601-00`	Cylinder-cover bar
190	`11-3161-0501-03`	Nut 1-8UNC-2B(SPL)	`11-3161-2602-00`	Liner lifting tool
191	`11-3161-0501-04`	Stud 1 1/2-8UN(12UNF) -2A×170	`11-3161-2603`	Socket 23/8″
192	`11-3161-0501-06`	Nut 11/2-8UN-2B(SPL)	`11-3161-2604`	Socket 2″
193	`11-3161-0501-05`	Stud 1 1/2-8UN(12UNF) -2A×120	`11-3161-2605`	Socket 35/8″
194	`11-3161-0501-07`	Stud 1 1/4-8UN(12UNF) -2A×195	`11-3161-2606`	Socket 11/2″
195	`11-3161-0501-08`	Nut 11/4-8UN-2B(SPL)	`11-3161-2607`	Socket 15/8″
196	`11-3161-0533-01`	Bladder	`11-3161-2608`	Extension rod 19 5/8″
197	`11-3161-0533-02`	End cover	`11-3161-2609`	Extension rod ,8″
198	`11-3161-2401-00`	Filter-screen assembly	`11-3161-2610`	Connector ,1″
199	`B34521-165-700-69`	O-ring 165×7.0G	`11-3161-2611`	Extension rod ,24″
200	`11-3161-2402`	Housing	`11-3161-2611-01`	Manual chain hoist ,SH1/2
201	`11-3161-25`	Flange 51/8×35	`11-3161-2611-02`	Hand-operated oil pump ,0～63 MPa(0～9150psi)
202	`11-3161-23`	Sealing ring R44	`11-3161-2612-00`	Hydraulic valve-seat puller
203	`11-3161-2403`	Stud 11/2-8UN(12UNF)-2A×128	`11-3161-2613`	Taper adapter sleeve
204	`11-3161-2404`	Nut 11/2-8UN-2B(SPL)	`11-3161-2614`	Pressing sleeve
205	`11-3161-1510`	Dual-scale vibration-resistant pressure gauge 0～60MPa(0～8700PSi)	`11-3161-2615-00`	Long socket
206	`11-3161-2201-03`	Pressure-gauge adapter	`11-3161-2616`	Bolt ,1-8UNC-2A×160
207	`11-3161-2201-00`	Pressure-gauge seat	`11-3161-2611-03`	Hex-key wrench 5/8″
208	`11-3161-2206`	Sealing ring R27	`11-3161-2617-00`	Retaining-plate removal tool
209	`11-3161-2203-00`	Discharge cross	`11-3161-2618`	Socket 111/16″
210	`11-3161-0546`	Loctite anaerobic sealant	`11-3161-2711-00`	Pulsation-dampener charging-hose assembly
Honghua HHF-1300 / HHF-1600 parts catalogue with FB comparison tables, English
211	`11-3161-0100`	Frame assembly	`11-3161-0623`	Washer
212	`11-3161-0200`	Crankshaft assembly	`11-3161-0624-00`	Shim set
213	`11-3161-0300`	Pinion shaft assembly	`11-3161-0625-00`	Seat
214	`11-3161-0400`	Crosshead assembly	`11-3161-0626`	Straight joint 5/8-16UN-2A
215	`11-3161-0500`	Fluid end assembly	`B0093-08-59`	Washer 8
216	`11-3161-0600`	Power end lubrication assembly	`11-3161-0634`	Overflow valve
217	`11-3161-0700`	Skid	`B0093-06-59`	Washer 6
218	`11-3161-0800`	Liner spraying assembly	`11-3161-0635`	Gear oil pump, 2S
219	`11-3161-09`	Inspection cover	`11-3161-0636`	Pressure, gauge 0～1.6MPa(0～230PSi)
220	`11-3161-1000`	Breather cap	`11-3161-0627`	Straight joint, 11/16-16UN-2A-NPT3/8
221	`11-3161-11`	Nameplate	`11-3161-0628-00`	Oil filter
222	`11-3161-1200`	Trolley	`11-3161-0637`	Sealant
223	`11-3161-1300`	Crane frame	`11-3161-0629`	Nut, 11/16-16UN-2B
224	`11-3161-1400`	Cover plate	`11-3161-0630`	Nut, 15/16-16UN-2B
225	`11-3161-15`	Gasket	`11-3161-0631`	Straight joint, 1/2-20UNF-2A-NPT1/4
226	`11-3161-1501`	Bolt, 1/2-13UNC-2A*30	`11-3161-0801-00-1`	Guard
227	`11-3161-16`	Plate	`11-3161-0801-00-2`	Guard
228	`11-3161-1700`	Oil level gauge	`11-3161-0802`	Belt pulley
229	`11-3161-1800`	Clean out cover	`11-3161-0803-00`	Seat assembly
230	`11-3161-19`	Gasket	`11-3161-0804`	Joint, short, NPT1-1-11 1/2NPSC
231	`11-3161-1502`	Bolt, 1/2-13UNC-2A*35	`11-3161-0805`	Joint, NPT1
232	`11-3161-20`	Cover, crosshead hole	`11-3161-0806`	Joint, 1-11 1/2NPSC -1 1/4-12UNF-2A
233	`11-3161-21`	Gasket	`11-3161-0807`	Joint, NPT2 1/2
234	`11-3161-1503`	Bolt, 5/8-11UNC-2A*45	`11-3161-0808`	Joint, short, NPT2 1/2
235	`B0848-14-32`	Flat washer 14	`11-3161-0818`	Hose, L=1500
236	`B0827-003-10-73`	Rivet, 3*10	`11-3161-0809-00`	Hose joint, Φ22*Φ37
237	`11-3161-1504`	Bolt, 1-8UNC-2A*90	`11-3161-0810`	Elbow, 90°, NPT1
238	`11-3161-1505`	Nut, 1-8UNC-2B（SPL）	`11-3161-0811`	Connecting board
239	`B0093-27-59`	Spring washer, 27	`11-3161-0812-00`	Water case
240	`B0848-16-32`	Flat washer 16	`11-3161-0813-00`	Case cover
241	`11-3161-1506`	Bolt, 5/8-11UNC-2A*60	`11-3161-0814`	Pipe plug, NPT2 1/2
242	`11-3161-1507`	Nut , 5/8-11UNC-2B（SPL）	`11-3161-0815`	Shim
243	`B0093-16-59`	Spring washer, 16	`11-3161-0816`	Flange, NPT1
244	`11-3161-1508`	Rubber, 40105800	`11-3161-0819`	Screw, 5/16-18UNC-2A*25
245	`11-3161-1509`	Screw, 8（0.164）-32UNC-2A*16	`B1171-A3708`	V belt, A3708
246	`11-3161-1510`	Pressure gauge, 0～60MPa（0～8700psi）	`11-3161-0820`	Pipe clamp, No:3
247	`11-3161-2200`	Elbow assembly	`11-3161-0821`	Hose, L=750
248	`11-3161-1511`	Pipe plug, R1 1/2	`11-3161-0822`	Elbow 90°, NPT2 1/2
249	`11-3161-23`	Gasket, R44	`11-3161-0823`	Bolt, 5/8-11UNC-2A*50
250	`11-3161-2400`	Draining filter assembly	`B0848-16-32`	Flat washer, 16
251	`11-3161-25`	Flange 5 1/8*35	`B0093-16-59`	Spring washer, 16
252	`11-3161-2700`	Surge damper KB-75	`11-3161-0824`	Bolt 1/2-13UNC-2A*40
253	`11-3161-2800`	Relief valve JA-3	`B0093-14-59`	Spring washer, 14
254	`11-3161-3000`	Cover plate assembly	`B0096-14-59`	Washer, 14
255	`11-3161-31`	Shim	`11-3161-0825`	Bolt, 1/2-13UNC-2A*60
256	`11-3131-0201-00`	Cover, main bearing	`11-3161-0826`	Nut, 1/2-13UNC-2B
257	`11-3161-0201-00`	Cover, main bearing	`11-3161-0827`	Spraying pump
258	`11-3131-0202`	Sleeve, main bearing (right)	`11-3161-0828`	Ball valve, 1-11 1/2NPSC
259	`11-3161-0202`	Sleeve, main bearing (right)	`11-3161-0817-00`	Support
260	`11-3161-0203`	Gasket	`11-3161-2701`	Ring gasket, R39
261	`11-3161-0204`	Inner retaining ring	`11-3161-2702`	Plug
262	`11-3131-0205-00`	Outside retainer	`11-3161-2703-00`	Diaphragm (bladder)
263	`11-3161-0205-00`	Outside retainer	`11-3161-2704-00`	Dampener body
264	`11-3131-0206`	Eccentric strap	`11-3161-2705`	Cover
265	`11-3161-0206`	Eccentric strap	`11-3161-2706`	Tee, NPT1/4
266	`11-3161-0207`	Positioning ring (I)	`11-3161-2707`	Joint, NPT1/4
267	`11-3161-0208-00`	Crankshaft	`11-3161-2708-00`	Guard, pressure gauge
268	`11-3161-0209`	Positioning ring (II)	`11-3161-2709-00`	Bleeder valve
269	`11-3131-0210`	Bull gear	`11-3161-2710-01`	Pressure, gauge,0～25MPa(0～3630PSi)
270	`11-3161-0210`	Bull gear	`11-3161-2710-02`	Check valve
271	`11-3131-0211-1`	Bolt, 1 1/2-8UN-2A*130	`11-3161-2710`	Washer
272	`11-3161-0211-2`	Bolt, 1 1/2-8UN-2A*170	`11-3161-2704-02`	Stud bolt, 1 1/2-8UN(12UNF)-2A*120
273	`11-3161-0212`	Spacer ring	`11-3161-2704-03`	Nut,1 1/2-8UN-2B（SPL）
274	`11-3131-0213`	Sleeve, main bearing (left)	`11-3161-2704-04`	Stud bolt, 1 1/4-8UN(12UNF)-2A*100
275	`11-3161-0213`	Sleeve, main bearing (left)	`11-3161-2704-05`	Nut, 1 1/4-8UN-2B（SPL）
276	`11-3131-0214`	Retainer ring	`11-3161-2711-00`	Charging hose of damper
277	`11-3161-0214`	Retainer ring	`11-3161-2711-01`	Nut, 3/4-16UNF-2B
278	`11-3161-0215`	Baffle	`11-3161-2711-02`	Inlet adapter
279	`11-3161-0216`	Bolt, main bearing, 3-8UN-3A	`11-3161-2711-03`	Adapter fitting
280	`11-3161-0217`	Shims	`11-3161-2711-04`	Seal washer
281	`11-3161-0218`	Screw, 5/8-11UNC-2A*120	`11-3161-2711-05`	Pipe collar
282	`11-3161-0219-00`	Locking nut, 1 1/2-8UN-2B	`11-3161-2711-06`	Rubber pipe, 6I-2500
283	`11-3161-0220`	Bolt, 5/8-11UNC-2A*40	`11-3161-2801`	Joint
284	`11-3161-0227`	Bolt, 5/8-11UNC-2A*50	`11-3161-2802`	Retainer ring
285	`11-3131-0221-1`	Bearing, eccentric strap, 928/660.4QU	`11-3161-2803-00`	Piston assembly
286	`11-3161-0221-2`	Bearing, eccentric strap, 929/660.4QU	`11-3161-2804`	Valve
287	`11-3131-0222-1`	Main bearing, 3G4053160H	`11-3161-2805`	Piston rod
288	`11-3161-0222-2`	Main bearing, 3G3003760HY	`11-3161-2806`	Cushion
289	`B0848-16-32`	Flat washer, 16	`11-3161-2807`	Elastic straight pin
290	`11-3161-0224`	Locking wire, SZ-1.50	`11-3161-2808`	Locking spring
291	`11-3161-0225`	Locking wire, SZ-3.00	`11-3161-2809`	Safety guard
292	`11-3161-0226`	Sealant	`11-3161-2810`	Plate, shear pin
293	`11-3161-0223`	Screw, 5/8-11UNC-2A*100	`11-3161-2811`	Shear pin
294	`11-3161-0301`	Key, 2"2"241.3	`11-3161-2812`	Warning plate
295	`11-3131-0302`	Pinion Shaft	`11-3161-2813`	Pin
296	`11-3161-0302`	Pinion Shaft	`11-3161-2814`	Retainer ring, steel wire
297	`11-3161-0303`	Sleeve, Seal	`11-3161-2815`	Nameplate
298	`11-3161-0304`	End Cover	`11-3161-2816`	Pin, 4*26
299	`11-3161-0305`	Gasket, End cover	`11-3161-2817`	Screw, 8（0.164）-32UNC-2A*16
300	`11-3161-0306`	Gasket, Bearing housing	`11-3161-2818`	Nut, 8（0.164）-32UNC-2B
301	`11-3161-0307`	Bearing Housing	`11-3161-2819`	Bolt, 3/8-16UNC-2A*105
302	`11-3161-0308`	Retainer Ring	`11-3161-2820`	Nut, 3/8-16UNC-2B（SPL）
303	`11-3161-0309`	Gasket, Oil trough	`11-3161-2821`	Screw, 5（0.125）-40UNC-2A*8
304	`11-3161-0310-00`	Oil trough	`11-3161-0511-01`	Valve Body
305	`11-3161-0314`	Bolt, 1/2-13UNC-2A*35	`11-3161-0511-02`	Valve Nut
306	`11-3161-0315`	Bolt, 7/8-9UNC-2A*52	`11-3161-0511-03`	Circlip
307	`11-3161-0311`	Oil Seal, 9.125"10.375"0.625"	`262`	Sealant：262
308	`11-3161-0312`	Bearing, 4G32844H	`11-3161-0511-04`	Gland
309	`B0093-22-59`	Spring Washer, 22	`B0308-005`	Steel Ball：φ5
310	`B0093-14-59`	Spring Washer, 14	`11-3161-0511-05`	Valve Rubber
311	`11-3161-0313`	Flange	`11-3161-0511-07`	Valve Guide
312	`11-3161-0316`	Bolt, 5/8-11UNC-2A*50	`11-3161-0511-06`	Valve Cup
313	`B0093-16-59`	Spring Washer, 16	`11-3161-0511-01-00`	Valve Body Complete（Remark：this item includes the part from item1～8）
314	`11-3161-0401`	Crosshead	`11-3161-0524-0100`	Piston：5 1/2
315	`11-3161-0402`	Slide, Upper	`11-3161-0524-0200`	Piston：6
316	`11-3161-0403-00`	Shim	`11-3161-0524-0300`	Piston：6 1/4
317	`11-3161-0404`	Shim	`11-3161-0524-0400`	Piston 6 1/2
318	`11-3161-0405`	Stuffing Box	`11-3161-0524-0500`	Piston：6 3/4
319	`11-3161-0406`	Oil Seal	`11-3161-0524-0600`	Piston：7
320	`B34521-190-355-69`	O Ring, 190*3.55G	`11－3161-0524－0102－00`	ubber ：5 1/2
321	`11-3161-0407`	Oil Seal, 5"6.25"0.625"	`11－3161-0524－0202－00`	ubber ：6
322	`11-3161-0408`	Gasket	`11－3161-0524－0302－00`	ubber ：6 1/4
323	`11-3161-0409`	End Cover	`11－3161-0524－0402－00`	ubber 6 1/2
324	`11-3161-0410`	Locking Spring	`11－3161-0524－0502－00`	ubber ：6 3/4
325	`11-3161-0411`	Baffle	`11－3161-0524－0602－00`	ubber ：7
326	`11-3161-0412`	Crosshead extension rod	`11-3161-0501-01`	Fluid end（not nickel plating）
327	`11-3161-0413`	Crosshead Pin	`11-3161-0501-02`	Stud bolt：1-8UNC（14UNS）-2A*185
328	`B34521-125-700-69`	O Ring, 125*7.0G	`11-3161-0501-03`	Nut：1-8UNC-2B（SPL）
329	`11-3161-0420`	Screw, 3/4-10UNC-2A*65	`11-3161-0501-04`	Stud bolt：1 1/2-8UN（12UNF）-2A*170
330	`11-3161-0414`	Gasket	`11-3161-0501-05`	Stud bolt：1 1/2-8UN（12UNF）-2A*120
331	`B34521-160-700-69`	O Ring,160*7.0G	`11-3161-0501-06`	Nut：1 1/2-8UN-2B（SPL）
332	`11-3161-0415`	Slide, Lower	`11-3161-0501-07`	Stud bolt：1 1/4-8UN（12UNF）-2A*195
333	`11-3161-0416`	Crosshead Pin Cap	`11-3161-0501-08`	Nut：1 1/4-8UN-2B（SPL）
334	`11-3161-0417`	Crosshead Bearing, 254941QU	`11-3161-0501-09`	Anaerobic fluid sealant 277
335	`11-3161-0418`	Pipe Joint, NPT3/8*50.8	`11-3161-2600`	Special tools
336	`11-3161-0421`	Bolt, 1-8UNC-2A*60	`11-3161-2601-00`	Stick, liner cover
337	`11-3161-0422`	Bolt, 1-8UNC-2A*70	`11-3161-2602-00`	Hosting tool for liner
338	`11-3161-0419`	Slide retainer plate	`11-3161-2603`	Socket spanner, 2 3/8″
339	`11-3161-0423`	Bolt, 3/8-16UNC-2A×40	`11-3161-2604`	Socket spanner, 2″
340	`B0093-10-59`	Spring Washer, 10	`11-3161-2605`	Socket spanner, 3 5/8″
341	`11-3161-0424`	Steel Wire Φ1.6	`11-3161-2606`	Socket spanner, 1 1/2″
342	`11-3161-0425`	Lock-fife	`11-3161-2607`	Socket spanner, 1 5/8″
343	`11-3161-0501-00`	ylinder assembly	`11-3161-2608`	Extension rod, 19 5/8″
344	`11-3161-0502`	ylinder Cover, Threaded ring	`11-3161-2609`	Extension rod, 8″
345	`11-3161-0503`	ylinder Cover, Threaded ring	`11-3161-2610`	connector, 1″
346	`11-3161-0504-00`	pacer assembly	`11-3161-2611`	Extension rod, 24″
347	`11-3161-0505-00`	uide, valve lower	`11-3161-2611-01`	Chain block, SH1/2
348	`11-3161-0506-00`	lug, cylinder cover	`11-3161-2611-02`	Manual oil pump, 0～63 MPa（0～ 9150psi）
349	`11-3161-0507`	ositioning panel	`11-3161-2612-00`	Hydraulic puller
350	`11-3161-0508`	eal ring, cylinder cover	`11-3161-2613`	Intermediate taper sleeve
351	`11-3161-0509`	ischarge manifold	`11-3161-2614`	Pressing sleeve
352	`11-3161-0510`	alve spring	`11-3161-2615-00`	Socket spanner, long
353	`B34521-095-530-69`	ring, 95*5.3 G	`11-3161-2616`	Bolt, 1-8UNC-2A×160
354	`11-3161-0511-00`	alve assembly	`11-3161-2611-03`	Allen wrench, 5/8″
355	`11-3161-0512`	Seal ring, valve cover	`11-3161-2617-00`	Insert plate puller
356	`11-3161-0513`	Valve cover	`11-3161-2618`	Socket spanner, 1 11/16″
357	`11-3161-0514`	Seal ring, liner	`11-3161-2711-00`	Charging hose of dampener
358	`11-3161-0515`	Liner wear ring	`GH3131-02.00`	HHF-1300 Crankshaft assembly
359	`11-3161-0516`	Liner retainer ring	`11-3131-0206`	Connecting rod
360	`11-3161-0517-00`	Liner retainer screw	`GH3131-02.06`	Connecting rod
361	`11-3161-0518`	Piston rod	`11-3131-0221-1`	Bearing , eccentric strap 928/660.4QU
362	`11-3161-0519-00`	Spraying pipe assembly	`GH3131-02.21`	Bearing , eccentric strap 928/660.4QU
363	`B34521-200-700-69`	O ring, 200*7.0 G	`11-3131-0222-1`	Main bearing, 3G4053160H
364	`11-3161-0520`	Locking Ring, Liner Retainer screw	`GH3131-02.22`	Main bearing, 3G4053160H
365	`11-3161-0521-21`	Bi-metal liner 5	`11-3161-0208-00`	Crankshaft, hollow
366	`11-3161-0521-22`	Bi-metal liner 5 1/2	`GH3161-02.08.00`	Crankshaft, hollow
367	`11-3161-0521-23`	Bi-metal liner 6	`GH3161-04.00`	Crosshead Assembly
368	`11-3161-0521-24`	Bi-metal liner 6 1/4	`11-3161-0401`	crosshead
369	`11-3161-0521-25`	Bi-metal liner 6 1/2	`GH3161-04.01`	crosshead
370	`11-3161-0521-26`	Bi-metal liner 6 3/4	`11-3161-0402`	Slide(guide), upper
371	`11-3161-0521-11`	Ordinary liner 5	`GH3161-04.02`	Slide(guide), upper
372	`11-3161-0521-12`	Ordinary liner 5 1/2	`11-3161-0405`	Stuffing box
373	`11-3161-0521-13`	Ordinary liner 6	`GH3161-04.05`	Stuffing box
374	`11-3161-0521-14`	Ordinary liner 6 1/4	`B34521-190-355-69`	O-ring190×3.55G
375	`11-3161-0521-15`	Ordinary liner 6 1/2	`GB/T3452.1-1992`	O-ring190×3.55G
376	`11-3161-0521-16`	Ordinary liner 6 3/4	`11-3161-0407`	Oil seal, double-lip, 5″×6.25″×0.625″
377	`11-3161-0521-17`	Ordinary liner 7	`GH3161-04.07`	Oil seal, double-lip, 5″×6.25″×0.625″
378	`11-3161-0522-00`	Clamp assembly, piston rod	`11-3161-0410`	Locking spring
379	`11-3161-0523`	Splash Shield, liner	`GH3161-04.10`	Locking spring
380	`11-3161-0524-00`	Piston	`11-3161-0411`	Baffle
381	`11-3161-0542`	Bolt, 7/8-9UNC-2A*60	`GH3161-04.11`	Baffle
382	`11-3161-0525-00`	Suction manifold	`11-3161-0412`	Crosshead extension rod
383	`11-3161-0526-00`	Shim	`GH3161-04.12`	Crosshead extension rod
384	`11-3161-0527`	Guide, valve (upper)	`11-3161-0413`	Pin, crosshead
385	`11-3161-0528`	Stud, 1 1/2-8UN-2A*265	`GH3161-04.13`	Pin, crosshead
386	`11-3161-0501-06`	Nut, 1 1/2-8UN-2B（SPL）	`B34521-160-700-69`	O-ring, 160×7.0G
387	`11-3161-0529`	Baffle	`GB/T3452.1-1992`	O-ring, 160×7.0G
388	`11-3161-0530`	Bolt, 3/8-16UNC-2A*20	`11-3161-0415`	Slide (guide), lower
389	`11-3161-0531`	Seal ring, piston	`GH3161-04.15`	Slide (guide), lower
390	`11-3161-0532-00`	Nut, piston	`11-3161-0417`	Crosshead bearing, 254941QU
391	`B34521-190-700-69`	O ring, 190*7.0 G	`GH3161-04.17`	Crosshead bearing, 254941QU
392	`11-3161-0533-00`	Suction damper	`11-3161-0312`	Bearing, 4G32844H
393	`B34521-345-700-69`	O ring, 345*7.0 G	`GH3161-03.12`	Bearing, 4G32844H
394	`11-3161-0534`	Suction flange（Ⅰ）	`GH3161-05.00`	Fluid end assembly
395	`11-3161-0535`	Suction flange（Ⅱ）	`11-3161-0501-00`	Cylinder (block) assembly
396	`11-3161-0543`	Nut, 1 1/16-8UN-2B（SPL）	`GH3161-05.01.00`	Cylinder (block) assembly
397	`11-3161-0544`	Bolt 1 1/16-8UN-2A*90	`11-3161-0501-01`	Fluid end
398	`11-3161-0545`	Steel wire, Φ1.60 （L=1830）	`GH3161-05.01.01`	Fluid end
399	`11-3161-0536`	Screw plug, NPT1 1/2	`11-3161-0502`	Cylinder cover
400	`11-3161-0537`	Bolt, 1 1/2	`GH3161-05.02`	Cylinder cover
401	`11-3161-0546`	Sealant:	`11-3161-0503`	Cylinder Cover, Threaded ring
402	`11-3161-0538`	Plug, suction let, 12"	`GH3161-05.03`	Cylinder Cover, Threaded ring
403	`11-3161-0539`	Closure plate, discharge let, 5 1/8"	`11-3161-0508`	Seal ring, cylinder cover
404	`11-3161-0540`	Washer, 39	`GH3161-05.08`	Seal ring, cylinder cover
405	`11-3161-0541-00`	Spring guide	`11-3161-0509`	Discharge manifold
406	`11-3161-0501-02`	Stud, 1-8UNC（14UNS）-2A*185	`GH3161-05.09`	Discharge manifold
407	`11-3161-0501-03`	Nut, 1-8UNC-2B（SPL）	`11-3161-0510`	Valve spring
408	`11-3161-0501-04`	Stud, 1 1/2-8UN（12UNF）-2A*170	`GH3161-05.10`	Valve spring
409	`11-3161-0501-06`	Nut, 1 1/2-8UN-2B（SPL）	`B34521-095-530-69`	O-ring95×5.3G
410	`11-3161-0501-05`	Stud, 1 1/2-8UN（12UNF）-2A*120	`GB/T3452.1-1992`	O-ring95×5.3G
411	`11-3161-0501-07`	Stud, 1 1/4-8UN（12UNF）-2A*195	`11-3161-0511-00`	Valve assembly
412	`11-3161-0501-08`	Nut, 1 1/4-8UN-2B（SPL）	`GH3161-05.11.00`	Valve assembly
413	`11-3161-0533-01`	Diaphragm	`11-3161-0512`	Seal ring, valve cover
414	`11-3161-0533-02`	End cover	`GH3161-05.12`	Seal ring, valve cover
415	`11-3161-2401-00`	Filter screen assembly	`11-3161-0513`	Valve cover
416	`B34521-165-700-69`	O ring, 165*7.0G	`GH3161-05.13`	Valve cover
417	`11-3161-2402`	Discharge Elbow	`11-3161-0514`	Seal ring, liner
418	`11-3161-25`	Flange 5 1/8*35	`GH3161-05.14`	Seal ring, liner
419	`11-3161-23`	Gasket, R44	`11-3161-0515`	Liner wear ring
420	`11-3161-2403`	Stud Bolt, 1 1/2-8UN(12UNF)-2A*128	`GH3161-05.15`	Liner wear ring
421	`11-3161-2404`	Nut, 1 1/2-8UN-2B（SPL）	`11-3161-0520`	Locking Ring, Liner Retainer screw
422	`11-3161-1510`	Pressure gauge, 0～60MPa(0～8700PSi)	`GH3161-05.20`	Locking Ring, Liner Retainer screw
423	`11-3161-2201-03`	Bushing	`11-3161-0521-21`	Bi-metal liner 5
424	`11-3161-2201-00`	Seat, pressure gauge	`GH3161-05.21`	Bi-metal liner 5
425	`11-3161-2206`	Gasket, R27	`11-3161-0521-22`	Bi-metal liner 5 1/2
426	`11-3161-2203-00`	Discharging cross	`11-3161-0521-23`	Bi-metal liner 6
427	`11-3161-0546`	Sealant	`11-3161-0521-24`	Bi-metal liner 6 1/4
428	`11-3161-2204`	Stud Bolt, 1 1/16-8UN-2A*170	`11-3161-0521-25`	Bi-metal liner 6 1/2
429	`11-3161-2205`	Nut, 1 1/16-8UN-2B（SPL）	`11-3161-0521-26`	Bi-metal liner 6 3/4
430	`11-3161-2202-00`	Pipe, relief valve	`11-3161-0517-00`	Liner retainer screw
431	`11-3161-2800`	Relief valve JA-3	`GH3161-05.17.00`	Liner retainer screw
432	`11-3161-2700`	KB-75 damper	`11-3161-0516`	Liner retainer ring
433	`11-3161-2401-00`	Filter screen assembly	`GH3161-05.16`	Liner retainer ring
434	`B34521-165-700-69`	O ring 165*7.0G	`11-3161-0518`	Piston rod
435	`11-3161-2402`	Discharge elbow	`GH3161-05.18`	Piston rod
436	`11-3161-25`	Flange, 5 1/8*35	`B34521-200-700-69`	O-ring200×7.0G
437	`11-3161-23`	Gasket R44	`GB/T3452.1-1992`	O-ring200×7.0G
438	`11-3161-2403`	Stud Bolt, 1 1/2-8UN(12UNF)-2A*128	`11-3161-0522-00`	Clamp assembly, piston rod
439	`11-3161-2404`	Nut, 1 1/2-8UN-2B（SPL）	`GH3161-05.22.00`	Clamp assembly, piston rod
440	`11-3161-2501`	Pressure gauge, union type, 0～6000PSi	`11-3161-0524-00`	Piston
441	`11-3161-2202-1`	Seat, pressure gauge	`GH3161-05.24.00`	Piston
442	`11-3161-2204-1`	Gasket, R35	`11-3161-0527`	Guide, valve (upper)
443	`11-3161-2203-1`	Discharge cross	`GH3161-05.27`	Guide, valve (upper)
444	`11-3161-2502`	Sealant	`11-3161-0531`	Seal ring, piston
445	`11-3161-2205-1`	Stud Bolt, 1 1/8-8UN(12UNF)-2A*90	`GH3161-05.31`	Seal ring, piston
446	`11-3161-2206-1`	Nut, 1 1/8-8UN-2B（SPL）	`11-3161-0532-00`	Nut, piston
447	`11-3161-32-1`	Flange, blind, 5 1/8*35	`GH3161-05.32.00`	Nut, piston
448	`11-3161-2700`	KB-75 damper	`B34521-190-700-69`	O-ring, 190×7.0G
449	`11-3161-0601`	Key, 3/163/1625.4	`GB/T3452.1-1992`	O-ring, 190×7.0G
450	`11-3161-0602-00`	Gear oil pump	`B34521-345-700-69`	O-ring, 345×7.0G
451	`11-3161-0603`	Pipe joint, 90°11/16-16UN-2A-NPT1/4	`GB/T3452.1-1992`	O-ring, 345×7.0G
452	`11-3161-0604`	Bolt, hollow	`6317-0026-00`	Connecting rod
453	`11-3161-0632`	Screw, 5/16-18UNC-2A*40	`7602-0212-69`	Bearing , eccentric strap 928/660.4QU
454	`11-3161-0605`	Pipe joint, 90°15/16-16UN-2A-NPT1/2	`7602-0201-38`	Main bearing, 3G4053160H
455	`11-3161-0606`	Pipe joint, 90°1/2-20UNF-2A-NPT1/4	`6316-0021-00`	Crankshaft, hollow
456	`11-3161-0607`	Pipe joint, 90°5/8-16UN-2A-NPT1/4	`6316-0022-00`	crosshead
457	`B1527-08-00-0305`	Pipe, copper Φ8*305	`6316-0687-00`	Slide(guide), upper
458	`11-3161-0608`	Nut, 1/2-20UNF-2B	`6397-0544-00`	Stuffing box
459	`11-3161-0609`	Seat (II)	`7601-1610-22`	O-ring190×3.55G
460	`11-3161-0610`	Straight pipe 15/16-16UN-2A-NPT1/2	`7602-2132-76`	Oil seal, double-lip, 5″×6.25″×0.625″
461	`B1527-16-00-0686`	Pipe, copperΦ16*686	`6397-0546-00`	Locking spring
462	`B1527-16-00-0331`	Pipe, copperΦ16*331	`6317-0093-00`	Baffle
463	`11-3161-0611-00`	Pipe clamp (I)	`6316-0028-00`	Crosshead extension rod
464	`11-3161-0612`	Pipe joint, 45°	`6316-0087-00`	Pin, crosshead
465	`B1527-10-00-0838`	Pipe, copperΦ10*838	`7602-1600-39`	O-ring, 160×7.0G
466	`B1527-12-00-0305`	Pipe, copperΦ12*305	`6316-0688-00`	Slide (guide), lower
467	`11-3161-0613-00`	Pipe clamp Φ8	`6301-0038-00`	Crosshead bearing, 254941QU
468	`B1527-08-00-0762`	Pipe, copperΦ8*762	`7602-0212-67`	Bearing, 4G32844H
469	`B1527-08-00-0508`	Pipe, copperΦ8*508	`6316-0357-00`	Cylinder (block) assembly
470	`B1527-08-00-0762`	Pipe, copperΦ8*229	`6316-0356-00`	Fluid end
471	`11-3161-0614`	Pipe plug, NPT 1/4	`6316-0361-00`	Cylinder cover
472	`B1527-08-00-0915`	Pipe, copperΦ8*915	`6316-0362-00`	Cylinder Cover, Threaded ring
473	`B1527-08-00-1194`	Pipe, copperΦ8*1194	`6316-0369-00`	Seal ring, cylinder cover
474	`B1527-08-00-1016`	Pipe, copperΦ8*1016	`6316-0043-00`	Discharge manifold
475	`11-3161-0615`	Seat (I)	`7602-1600-25`	O-ring95×5.3G
476	`11-3161-0616`	Nut, 5/8-16UN-2B	`6316-0092-00`	Seal ring, valve cover
477	`11-3161-0617-00`	Pipe clampΦ12	`6316-0039-00`	Valve cover
478	`11-3161-0618`	Gasket	`6316-0373-00`	Seal ring, liner
479	`11-3161-0633`	Bolt, 1/4-20UNC-2A*20	`6316-0365-00`	Liner wear ring
480	`11-3161-0619`	Nozzle	`6316-0333-00`	Locking Ring, Liner Retainer screw
481	`B1527-12-00-0610`	Pipe, copperΦ12*610	`6316-0368-00`	Bi-metal liner 5
482	`B1527-08-00-0813`	Pipe, copperΦ8*813	`6316-0367-00`	Liner retainer screw
483	`11-3161-0620`	Straight pipe 1/2-20UNF-2A	`6316-0366-00`	Liner retainer ring
484	`11-3161-0621-00`	Double pipe clamp Φ8	`6316-0359-00`	Piston rod
485	`B1527-10-00-1956`	Pipe, copperΦ10*1956	`7602-1600-44`	O-ring200×7.0G
486	`B1527-08-00-1956`	Pipe, copperΦ8*1956	`6316-0107-11`	Clamp assembly, piston rod
487	`B1527-08-00-2311`	Pipe, copperΦ8*2311	`6397-0575-00`	Guide, valve (upper)
488	`B1527-08-00-1600`	Pipe, copperΦ8*1600	`7601-0720-58`	Nut, piston
489	`B1527-08-00-1245`	Pipe, copperΦ8*1245	`7602-1600-61`	O-ring, 190×7.0G
490	`11-3161-0622`	Pipe joint NPT1/4-9/16-16UN-2B	`7602-1600-52`	O-ring, 345×7.0G

Technical details and source references

Confirm the installed model, drawing revision and dimensions before ordering. Catalogue quantities do not indicate current stock.

Reference documents and scope

S1 — Honghua HHF-1300 / HHF-1600 combined parts catalogue, Chinese. Reference file: 宏华HHF-1300-1600 (中文）.pdf.
S2 — Honghua HHF-1300 / HHF-1600 parts catalogue with FB comparison tables, English. Reference file: 宏华HHF-1300-1600(FB1300-1600).pdf.

PDF page numbers count from the first page of each reference file. Brand names identify the equipment or catalogue source. A listed number does not establish interchangeability, original-manufacturer authorisation, stock or a delivery commitment. Send the nameplate, complete reference, quantity and drawing revision for a parts review.

An HHF-1300 mud pump parts request should identify the power-end component, the catalogue edition and the complete reference. The Honghua legacy books cover HHF-1300 and HHF-1600 together, while their comparison pages distinguish several rotating components. Use the HHF-1300 column when selecting a connecting rod or bearing; a shared catalogue cover does not make the alternatives identical.

Identify the HHF-1300 connecting rod

The English comparison table on PDF page 40 lists connecting rod 11-3131-0206 with drawing reference GH3131-02.06. It places 6317-0026-00 in the FB counterpart column. These are three fields in a specific historical comparison, rather than three universally interchangeable order numbers.

Include a photograph of the installed rod and the relevant assembly drawing. State whether the requirement is for the rod, a bearing, associated fasteners or an assembly. Describe any modifications visible on the removed component. If an enquiry begins with a counterpart number, send the full comparison row instead of dropping the HHF and drawing identifiers.

Keep the bearing suffixes and specifications

The same HHF-1300 page gives 11-3131-0221-1 for the eccentric-strap bearing, with designation 928/660.4QU, and 11-3131-0222-1 for the main bearing, with designation 3G4053160H. The terminal -1 is part of each catalogue reference. The HHF-1600 comparison uses different entries, so do not remove the suffix when copying a parts list.

For a bearing enquiry, provide the markings on the actual bearing, its position in the assembly and the required quantity. Where available, attach the dimensional drawing and the existing bearing identification. The source specification helps identify the request; it does not confirm the suitability of an unreviewed replacement.

A different drawing prefix can still occur in this source

The HHF-1300 comparison also lists hollow crankshaft 11-3161-0208-00, drawing GH3161-02.08.00. Preserve that printed prefix. Do not automatically change every 3161 or GH3161 reference into 3131 simply because the pump model is HHF-1300. The source page and component description determine the documented association.

Review comparison notes with the component

The English catalogue notes that its compared gear components are used as a matched pair. It also identifies fluid-end screw-hole and piston-rod-clamp differences. Those qualifications belong to that catalogue configuration. They do not establish compatibility for all production revisions, and they are not a statement of original-manufacturer authorisation.

The reference table below preserves the Chinese and English catalogue forms separately, including their punctuation and suffixes. Standard references, material codes, bought-in models and FB counterpart entries are labelled by type. Shared components remain associated with the stated source model and page.

Send a complete HHF-1300 enquiry

Provide the pump nameplate and serial number, parts-book edition, assembly page, item number, exact reference and quantity. Attach component photographs and any drawing revision. For fluid-end wear parts, include the liner or piston size and sealing arrangement rather than relying on the pump model alone. Read our mud pump spare-parts supply guide or send the list through the Pratt Oil contact page for matching and availability review.

11-3161-0100 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0200 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0300 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0400 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0500 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0600 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0700 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0800 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-09 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1000 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-11 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1200 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1300 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1400 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-15 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1501 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 16. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-16 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 17. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1700 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 18. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1800 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 19. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-19 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 20. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1502 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 21. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-20 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 22. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-21 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 23. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1503 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 24. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0848-14-32 — S1 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 25. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0827-003-10-73 — S1 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 26. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1504 — S1 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 27. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1505 — S1 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 28. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0093-27-59 — S1 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 29. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0848-16-32 — S1 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 30. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1506 — S1 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 31. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1507 — S1 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 32. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0093-16-59 — S1 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 33. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1508 — S1 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 34. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1509 — S1 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 35. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1510 — S1 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 36. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2200 — S1 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 37. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1511 — S1 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 38. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-23 — S1 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 39. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2400 — S1 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 40. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-25 — S1 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 41. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2700 — S1 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 42. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2800 — S1 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 43. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-3000 — S1 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 44. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-31 — S1 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 45. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0201-00 — S1 , PDF p. 6 — Source HHF-1300/1600 combined parts catalogue; PDF page6; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0202 — S1 , PDF p. 6 — Source HHF-1300/1600 combined parts catalogue; PDF page6; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0203 — S1 , PDF p. 6 — Source HHF-1300/1600 combined parts catalogue; PDF page6; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0204 — S1 , PDF p. 6 — Source HHF-1300/1600 combined parts catalogue; PDF page6; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0205-00 — S1 , PDF p. 6 — Source HHF-1300/1600 combined parts catalogue; PDF page6; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0206 — S1 , PDF p. 6 — Source HHF-1300/1600 combined parts catalogue; PDF page6; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0207 — S1 , PDF p. 6 — Source HHF-1300/1600 combined parts catalogue; PDF page6; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0208-00 — S1 , PDF p. 6 — Source HHF-1300/1600 combined parts catalogue; PDF page6; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0209 — S1 , PDF p. 6 — Source HHF-1300/1600 combined parts catalogue; PDF page6; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0210 — S1 , PDF p. 6 — Source HHF-1300/1600 combined parts catalogue; PDF page6; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3131-0211-1 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0211-2 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0212 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0213 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0214 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0215 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0216 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 16. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0217 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 17. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0218 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 18. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0219-00 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 19. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0220 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 20. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0227 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 21. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3131-0221-1 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 22. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0221-2 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3131-0222-1 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 23. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0222-2 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0848-16-32 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 24. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0224 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 25. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0225 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 26. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0226 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 27. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0223 — S1 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 28. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0301 — S1 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3131-0302 — S1 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 2. Multiple codes are printed in the same source item; do not treat them as an automatic supersession. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0302 — S1 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 2. Multiple codes are printed in the same source item; do not treat them as an automatic supersession. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0303 — S1 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0304 — S1 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0305 — S1 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0306 — S1 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0307 — S1 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0308 — S1 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0309 — S1 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0310-00 — S1 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0314 — S1 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0315 — S1 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0311 — S1 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0312 — S1 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0093-22-59 — S1 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0093-14-59 — S1 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 16. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0313 — S1 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 17. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0316 — S1 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 18. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0093-16-59 — S1 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 19. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0401 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0402 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0403-00 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0404 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0405 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0406 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B34521-190-355-69 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0407 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0408 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0409 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0410 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0411 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0412 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0413 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B34521-125-700-69 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0420 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 16. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0414 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 17. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B34521-160-700-69 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 18. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0415 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 19. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0416 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 20. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0417 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 21. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0418 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 22. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0421 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 23. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0422 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 24. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0419 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 25. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0423 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 26. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0093-10-59 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 27. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0424 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 28. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0425 — S1 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 29. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-00 — S1 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0502 — S1 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0503 — S1 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0504-00 — S1 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0505-00 — S1 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0506-00 — S1 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0507 — S1 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0508 — S1 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0509 — S1 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0510 — S1 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B34521-095-530-69 — S1 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0511-00 — S1 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0512 — S1 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0513 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0514 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0515 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 16. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0516 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 17. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0517-00 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 18. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0518 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 19. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0519-00 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 20. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B34521-200-700-69 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 21. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0520 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 22. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-21 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 23. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-22 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-23 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-24 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-25 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-26 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-11 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-12 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-13 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-14 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-15 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-16 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-17 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0522-00 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 24. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0523 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 25. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0524-00 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 26. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0542 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 27. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0525-00 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 28. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0526-00 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 29. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0527 — S1 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 30. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0528 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 31. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-06 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 32. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0529 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 33. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0530 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 34. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0531 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 35. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0532-00 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 36. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B34521-190-700-69 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 37. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0533-00 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 38. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B34521-345-700-69 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 39. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0534 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 40. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0535 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 41. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0543 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 42. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0544 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 43. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0545 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 44. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0536 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 45. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0537 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 46. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0546 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 47. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0538 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 48. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0539 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 49. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0540 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 50. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0541-00 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 51. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-02 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item R1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-03 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item R2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-04 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item R3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-06 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item R4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-05 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item R5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-07 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item R6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-08 — S1 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item R7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0533-01 — S1 , PDF p. 17 — Source HHF-1300/1600 combined parts catalogue; PDF page17; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0533-02 — S1 , PDF p. 17 — Source HHF-1300/1600 combined parts catalogue; PDF page17; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2401-00 — S1 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B34521-165-700-69 — S1 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2402 — S1 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-25 — S1 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-23 — S1 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2403 — S1 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2404 — S1 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1510 — S1 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2201-03 — S1 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2201-00 — S1 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2206 — S1 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2203-00 — S1 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0546 — S1 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2204 — S1 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2205 — S1 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2202-00 — S1 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 16. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2800 — S1 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item R1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2700 — S1 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item R2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2401-00 — S1 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B34521-165-700-69 — S1 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2402 — S1 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-25 — S1 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-23 — S1 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2403 — S1 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2404 — S1 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2501 — S1 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2202-1 — S1 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2204-1 — S1 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2203-1 — S1 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2502 — S1 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2205-1 — S1 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2206-1 — S1 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-32-1 — S1 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2700 — S1 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item R2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0601 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0602-00 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0603 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0604 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0632 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0605 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0606 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0607 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-0305 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0608 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0609 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0610 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-16-00-0686 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-16-00-0331 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0611-00 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0612 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 16. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-10-00-0838 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 17. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-12-00-0305 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 18. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0613-00 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 19. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-0762 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 20. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-0508 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 21. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-0762 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 22. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0614 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 23. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-0915 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 24. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-1194 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 25. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-1016 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 26. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0615 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 27. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0616 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 28. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0617-00 — S1 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 29. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0618 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 30. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0633 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 31. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0619 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 32. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-12-00-0610 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 33. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-0813 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 34. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0620 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 35. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0621-00 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 36. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-10-00-1956 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 37. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-1956 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 38. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-2311 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 39. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-1600 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 40. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-1245 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 41. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0622 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 42. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0623 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 43. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0624-00 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 44. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0625-00 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 45. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0626 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 46. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0093-08-59 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 47. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0634 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 48. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0093-06-59 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 49. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0635 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 50. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0636 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 51. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0627 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 52. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0628-00 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 53. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0637 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 54. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0629 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 55. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0630 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 56. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0631 — S1 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 57. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0801-00-1 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0801-00-2 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0802 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0803-00 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0804 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0805 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0806 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0807 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0808 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0818 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0809-00 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0810 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0811 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0812-00 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0813-00 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0814 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0815 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 16. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0816 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 17. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0819 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 18. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1171-A3708 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 19. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0820 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 20. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0821 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 21. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0822 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 22. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0823 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 23. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0848-16-32 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 24. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0093-16-59 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 25. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0824 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 26. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0093-14-59 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 27. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0096-14-59 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 28. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0825 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 29. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0826 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 30. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0827 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 31. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0828 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 32. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0817-00 — S1 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 33. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2701 — S1 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2702 — S1 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2703-00 — S1 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2704-00 — S1 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2705 — S1 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2706 — S1 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2707 — S1 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2708-00 — S1 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2709-00 — S1 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2710-01 — S1 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2710-02 — S1 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2710 — S1 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2704-02 — S1 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item R1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2704-03 — S1 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item R2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2704-04 — S1 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item R3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2704-05 — S1 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item R4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2711-00 — S1 , PDF p. 32 — Source HHF-1300/1600 combined parts catalogue; PDF page32; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2711-01 — S1 , PDF p. 32 — Source HHF-1300/1600 combined parts catalogue; PDF page32; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2711-02 — S1 , PDF p. 32 — Source HHF-1300/1600 combined parts catalogue; PDF page32; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2711-03 — S1 , PDF p. 32 — Source HHF-1300/1600 combined parts catalogue; PDF page32; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2711-04 — S1 , PDF p. 32 — Source HHF-1300/1600 combined parts catalogue; PDF page32; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2711-05 — S1 , PDF p. 32 — Source HHF-1300/1600 combined parts catalogue; PDF page32; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2711-06 — S1 , PDF p. 32 — Source HHF-1300/1600 combined parts catalogue; PDF page32; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2801 — S1 , PDF p. 33 — Source HHF-1300/1600 combined parts catalogue; PDF page33; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2802 — S1 , PDF p. 33 — Source HHF-1300/1600 combined parts catalogue; PDF page33; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2803-00 — S1 , PDF p. 33 — Source HHF-1300/1600 combined parts catalogue; PDF page33; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2804 — S1 , PDF p. 33 — Source HHF-1300/1600 combined parts catalogue; PDF page33; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2805 — S1 , PDF p. 33 — Source HHF-1300/1600 combined parts catalogue; PDF page33; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2806 — S1 , PDF p. 33 — Source HHF-1300/1600 combined parts catalogue; PDF page33; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2807 — S1 , PDF p. 33 — Source HHF-1300/1600 combined parts catalogue; PDF page33; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2808 — S1 , PDF p. 33 — Source HHF-1300/1600 combined parts catalogue; PDF page33; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2809 — S1 , PDF p. 33 — Source HHF-1300/1600 combined parts catalogue; PDF page33; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2810 — S1 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2811 — S1 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2812 — S1 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2813 — S1 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2814 — S1 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2815 — S1 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2816 — S1 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 16. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2817 — S1 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 17. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2818 — S1 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 18. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2819 — S1 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 19. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2820 — S1 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 20. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2821 — S1 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 21. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0511-01 — S1 , PDF p. 35 — Source HHF-1300/1600 combined parts catalogue; PDF page35; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0511-02 — S1 , PDF p. 35 — Source HHF-1300/1600 combined parts catalogue; PDF page35; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0511-03 — S1 , PDF p. 35 — Source HHF-1300/1600 combined parts catalogue; PDF page35; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
262 — S1 , PDF p. 35 — Source HHF-1300/1600 combined parts catalogue; PDF page35; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Consumable grade reference in source part-number field
11-3161-0511-04 — S1 , PDF p. 35 — Source HHF-1300/1600 combined parts catalogue; PDF page35; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0308-005 — S1 , PDF p. 35 — Source HHF-1300/1600 combined parts catalogue; PDF page35; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0511-05 — S1 , PDF p. 35 — Source HHF-1300/1600 combined parts catalogue; PDF page35; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0511-07 — S1 , PDF p. 35 — Source HHF-1300/1600 combined parts catalogue; PDF page35; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0511-06 — S1 , PDF p. 35 — Source HHF-1300/1600 combined parts catalogue; PDF page35; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0511-01-00 — S1 , PDF p. 35 — Source HHF-1300/1600 combined parts catalogue; PDF page35; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0524-0100 — S1 , PDF p. 36 — Source HHF-1300/1600 combined parts catalogue; PDF page36; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0524-0200 — S1 , PDF p. 36 — Source HHF-1300/1600 combined parts catalogue; PDF page36; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0524-0300 — S1 , PDF p. 36 — Source HHF-1300/1600 combined parts catalogue; PDF page36; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0524-0400 — S1 , PDF p. 36 — Source HHF-1300/1600 combined parts catalogue; PDF page36; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0524-0500 — S1 , PDF p. 36 — Source HHF-1300/1600 combined parts catalogue; PDF page36; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0524-0600 — S1 , PDF p. 36 — Source HHF-1300/1600 combined parts catalogue; PDF page36; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11－3161-0524－0102－00 — S1 , PDF p. 37 — Source HHF-1300/1600 combined parts catalogue; PDF page37; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11－3161-0524－0202－00 — S1 , PDF p. 37 — Source HHF-1300/1600 combined parts catalogue; PDF page37; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11－3161-0524－0302－00 — S1 , PDF p. 37 — Source HHF-1300/1600 combined parts catalogue; PDF page37; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11－3161-0524－0402－00 — S1 , PDF p. 37 — Source HHF-1300/1600 combined parts catalogue; PDF page37; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11－3161-0524－0502－00 — S1 , PDF p. 37 — Source HHF-1300/1600 combined parts catalogue; PDF page37; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11－3161-0524－0602－00 — S1 , PDF p. 37 — Source HHF-1300/1600 combined parts catalogue; PDF page37; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-05-01-01 — S1 , PDF p. 38 — Source HHF-1300/1600 combined parts catalogue; PDF page38; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-05-01-02 — S1 , PDF p. 38 — Source HHF-1300/1600 combined parts catalogue; PDF page38; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-05-01-03 — S1 , PDF p. 38 — Source HHF-1300/1600 combined parts catalogue; PDF page38; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-05-01-04 — S1 , PDF p. 38 — Source HHF-1300/1600 combined parts catalogue; PDF page38; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-05-01-05 — S1 , PDF p. 38 — Source HHF-1300/1600 combined parts catalogue; PDF page38; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-05-01-06 — S1 , PDF p. 38 — Source HHF-1300/1600 combined parts catalogue; PDF page38; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-05-01-07 — S1 , PDF p. 38 — Source HHF-1300/1600 combined parts catalogue; PDF page38; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-05-01-08 — S1 , PDF p. 38 — Source HHF-1300/1600 combined parts catalogue; PDF page38; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-05-01-09 — S1 , PDF p. 38 — Source HHF-1300/1600 combined parts catalogue; PDF page38; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2600 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2601-00 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2602-00 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2603 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2604 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2605 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2606 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2607 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2608 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2609 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2610 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2611 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2611-01 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2611-02 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2612-00 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2613 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2614 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 16. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2615-00 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 17. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2616 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 18. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2611-03 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 19. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2617-00 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 20. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2618 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 21. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2711-00 — S1 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 22. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0100 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0200 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0300 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0400 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0500 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0600 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0700 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0800 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-09 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1000 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-11 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1200 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1300 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1400 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-15 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1501 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 16. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-16 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 17. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1700 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 18. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1800 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 19. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-19 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 20. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1502 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 21. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-20 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 22. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-21 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 23. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1503 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 24. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0848-14-32 — S2 , PDF p. 4 — Source HHF-1300/1600 combined parts catalogue; PDF page4; item 25. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0827-003-10-73 — S2 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 26. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1504 — S2 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 27. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1505 — S2 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 28. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0093-27-59 — S2 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 29. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0848-16-32 — S2 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 30. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1506 — S2 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 31. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1507 — S2 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 32. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0093-16-59 — S2 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 33. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1508 — S2 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 34. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1509 — S2 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 35. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1510 — S2 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 36. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2200 — S2 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 37. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1511 — S2 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 38. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-23 — S2 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 39. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2400 — S2 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 40. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-25 — S2 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 41. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2700 — S2 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 42. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2800 — S2 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 43. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-3000 — S2 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 44. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-31 — S2 , PDF p. 5 — Source HHF-1300/1600 combined parts catalogue; PDF page5; item 45. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3131-0201-00 — S2 , PDF p. 6 — Source HHF-1300/1600 combined parts catalogue; PDF page6; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0201-00 — S2 , PDF p. 6 — Source HHF-1300/1600 combined parts catalogue; PDF page6; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3131-0202 — S2 , PDF p. 6 — Source HHF-1300/1600 combined parts catalogue; PDF page6; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0202 — S2 , PDF p. 6 — Source HHF-1300/1600 combined parts catalogue; PDF page6; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0203 — S2 , PDF p. 6 — Source HHF-1300/1600 combined parts catalogue; PDF page6; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0204 — S2 , PDF p. 6 — Source HHF-1300/1600 combined parts catalogue; PDF page6; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3131-0205-00 — S2 , PDF p. 6 — Source HHF-1300/1600 combined parts catalogue; PDF page6; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0205-00 — S2 , PDF p. 6 — Source HHF-1300/1600 combined parts catalogue; PDF page6; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3131-0206 — S2 , PDF p. 6 — Source HHF-1300/1600 combined parts catalogue; PDF page6; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0206 — S2 , PDF p. 6 — Source HHF-1300/1600 combined parts catalogue; PDF page6; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0207 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0208-00 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0209 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3131-0210 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0210 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3131-0211-1 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0211-2 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0212 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3131-0213 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0213 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3131-0214 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0214 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0215 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0216 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 16. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0217 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 17. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0218 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 18. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0219-00 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 19. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0220 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 20. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0227 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 21. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3131-0221-1 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 22. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0221-2 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3131-0222-1 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 23. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0222-2 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0848-16-32 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 24. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0224 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 25. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0225 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 26. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0226 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 27. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0223 — S2 , PDF p. 7 — Source HHF-1300/1600 combined parts catalogue; PDF page7; item 28. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0301 — S2 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3131-0302 — S2 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 2. Multiple codes are printed in the same source item; do not treat them as an automatic supersession. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0302 — S2 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 2. Multiple codes are printed in the same source item; do not treat them as an automatic supersession. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0303 — S2 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0304 — S2 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0305 — S2 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0306 — S2 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0307 — S2 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0308 — S2 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0309 — S2 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0310-00 — S2 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0314 — S2 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0315 — S2 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0311 — S2 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0312 — S2 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0093-22-59 — S2 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0093-14-59 — S2 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 16. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0313 — S2 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 17. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0316 — S2 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 18. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0093-16-59 — S2 , PDF p. 9 — Source HHF-1300/1600 combined parts catalogue; PDF page9; item 19. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0401 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0402 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0403-00 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0404 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0405 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0406 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B34521-190-355-69 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0407 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0408 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0409 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0410 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0411 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0412 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0413 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B34521-125-700-69 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0420 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 16. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0414 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 17. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B34521-160-700-69 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 18. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0415 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 19. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0416 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 20. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0417 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 21. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0418 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 22. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0421 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 23. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0422 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 24. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0419 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 25. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0423 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 26. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0093-10-59 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 27. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0424 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 28. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0425 — S2 , PDF p. 12 — Source HHF-1300/1600 combined parts catalogue; PDF page12; item 29. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-00 — S2 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0502 — S2 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0503 — S2 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0504-00 — S2 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0505-00 — S2 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0506-00 — S2 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0507 — S2 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0508 — S2 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0509 — S2 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0510 — S2 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B34521-095-530-69 — S2 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0511-00 — S2 , PDF p. 14 — Source HHF-1300/1600 combined parts catalogue; PDF page14; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0512 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0513 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0514 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0515 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 16. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0516 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 17. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0517-00 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 18. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0518 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 19. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0519-00 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 20. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B34521-200-700-69 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 21. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0520 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 22. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-21 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 23. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-22 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-23 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-24 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-25 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-26 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-11 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-12 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-13 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-14 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-15 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-16 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0521-17 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0522-00 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 24. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0523 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 25. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0524-00 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 26. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0542 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 27. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0525-00 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 28. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0526-00 — S2 , PDF p. 15 — Source HHF-1300/1600 combined parts catalogue; PDF page15; item 29. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0527 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 30. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0528 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 31. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-06 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 32. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0529 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 33. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0530 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 34. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0531 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 35. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0532-00 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 36. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B34521-190-700-69 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 37. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0533-00 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 38. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B34521-345-700-69 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 39. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0534 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 40. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0535 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 41. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0543 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 42. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0544 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 43. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0545 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 44. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0536 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 45. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0537 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 46. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0546 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 47. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0538 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 48. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0539 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 49. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0540 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 50. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0541-00 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item 51. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-02 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item R1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-03 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item R2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-04 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item R3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-06 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item R4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-05 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item R5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-07 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item R6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-08 — S2 , PDF p. 16 — Source HHF-1300/1600 combined parts catalogue; PDF page16; item R7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0533-01 — S2 , PDF p. 17 — Source HHF-1300/1600 combined parts catalogue; PDF page17; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0533-02 — S2 , PDF p. 17 — Source HHF-1300/1600 combined parts catalogue; PDF page17; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2401-00 — S2 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B34521-165-700-69 — S2 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2402 — S2 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-25 — S2 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-23 — S2 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2403 — S2 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2404 — S2 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-1510 — S2 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2201-03 — S2 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2201-00 — S2 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2206 — S2 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2203-00 — S2 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0546 — S2 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2204 — S2 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2205 — S2 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2202-00 — S2 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item 16. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2800 — S2 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item R1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2700 — S2 , PDF p. 19 — Source HHF-1300/1600 combined parts catalogue; PDF page19; item R2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2401-00 — S2 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B34521-165-700-69 — S2 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2402 — S2 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-25 — S2 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-23 — S2 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2403 — S2 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2404 — S2 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2501 — S2 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2202-1 — S2 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2204-1 — S2 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2203-1 — S2 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2502 — S2 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2205-1 — S2 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2206-1 — S2 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-32-1 — S2 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2700 — S2 , PDF p. 21 — Source HHF-1300/1600 combined parts catalogue; PDF page21; item R2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0601 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0602-00 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0603 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0604 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0632 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0605 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0606 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0607 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-0305 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0608 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0609 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0610 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-16-00-0686 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-16-00-0331 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0611-00 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0612 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 16. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-10-00-0838 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 17. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-12-00-0305 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 18. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0613-00 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 19. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-0762 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 20. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-0508 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 21. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-0762 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 22. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0614 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 23. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-0915 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 24. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-1194 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 25. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-1016 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 26. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0615 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 27. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0616 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 28. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0617-00 — S2 , PDF p. 25 — Source HHF-1300/1600 combined parts catalogue; PDF page25; item 29. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0618 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 30. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0633 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 31. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0619 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 32. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-12-00-0610 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 33. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-0813 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 34. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0620 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 35. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0621-00 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 36. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-10-00-1956 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 37. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-1956 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 38. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-2311 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 39. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-1600 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 40. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1527-08-00-1245 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 41. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0622 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 42. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0623 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 43. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0624-00 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 44. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0625-00 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 45. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0626 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 46. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0093-08-59 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 47. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0634 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 48. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0093-06-59 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 49. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0635 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 50. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0636 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 51. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0627 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 52. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0628-00 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 53. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0637 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 54. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0629 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 55. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0630 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 56. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0631 — S2 , PDF p. 26 — Source HHF-1300/1600 combined parts catalogue; PDF page26; item 57. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0801-00-1 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0801-00-2 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0802 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0803-00 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0804 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0805 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0806 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0807 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0808 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0818 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0809-00 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0810 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0811 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0812-00 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0813-00 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0814 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0815 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 16. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0816 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 17. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0819 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 18. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B1171-A3708 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 19. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0820 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 20. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0821 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 21. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0822 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 22. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0823 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 23. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0848-16-32 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 24. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0093-16-59 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 25. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0824 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 26. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0093-14-59 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 27. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0096-14-59 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 28. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0825 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 29. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0826 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 30. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0827 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 31. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0828 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 32. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0817-00 — S2 , PDF p. 29 — Source HHF-1300/1600 combined parts catalogue; PDF page29; item 33. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2701 — S2 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2702 — S2 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2703-00 — S2 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2704-00 — S2 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2705 — S2 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2706 — S2 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2707 — S2 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2708-00 — S2 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2709-00 — S2 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2710-01 — S2 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2710-02 — S2 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2710 — S2 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2704-02 — S2 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item R1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2704-03 — S2 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item R2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2704-04 — S2 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item R3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2704-05 — S2 , PDF p. 31 — Source HHF-1300/1600 combined parts catalogue; PDF page31; item R4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2711-00 — S2 , PDF p. 32 — Source HHF-1300/1600 combined parts catalogue; PDF page32; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2711-01 — S2 , PDF p. 32 — Source HHF-1300/1600 combined parts catalogue; PDF page32; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2711-02 — S2 , PDF p. 32 — Source HHF-1300/1600 combined parts catalogue; PDF page32; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2711-03 — S2 , PDF p. 32 — Source HHF-1300/1600 combined parts catalogue; PDF page32; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2711-04 — S2 , PDF p. 32 — Source HHF-1300/1600 combined parts catalogue; PDF page32; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2711-05 — S2 , PDF p. 32 — Source HHF-1300/1600 combined parts catalogue; PDF page32; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2711-06 — S2 , PDF p. 32 — Source HHF-1300/1600 combined parts catalogue; PDF page32; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2801 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2802 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2803-00 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2804 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2805 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2806 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2807 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2808 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2809 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2810 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2811 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2812 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2813 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2814 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2815 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2816 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 16. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2817 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 17. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2818 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 18. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2819 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 19. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2820 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 20. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2821 — S2 , PDF p. 34 — Source HHF-1300/1600 combined parts catalogue; PDF page34; item 21. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0511-01 — S2 , PDF p. 35 — Source HHF-1300/1600 combined parts catalogue; PDF page35; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0511-02 — S2 , PDF p. 35 — Source HHF-1300/1600 combined parts catalogue; PDF page35; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0511-03 — S2 , PDF p. 35 — Source HHF-1300/1600 combined parts catalogue; PDF page35; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
262 — S2 , PDF p. 35 — Source HHF-1300/1600 combined parts catalogue; PDF page35; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Consumable grade reference in source part-number field
11-3161-0511-04 — S2 , PDF p. 35 — Source HHF-1300/1600 combined parts catalogue; PDF page35; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
B0308-005 — S2 , PDF p. 35 — Source HHF-1300/1600 combined parts catalogue; PDF page35; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0511-05 — S2 , PDF p. 35 — Source HHF-1300/1600 combined parts catalogue; PDF page35; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0511-07 — S2 , PDF p. 35 — Source HHF-1300/1600 combined parts catalogue; PDF page35; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0511-06 — S2 , PDF p. 35 — Source HHF-1300/1600 combined parts catalogue; PDF page35; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0511-01-00 — S2 , PDF p. 35 — Source HHF-1300/1600 combined parts catalogue; PDF page35; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0524-0100 — S2 , PDF p. 36 — Source HHF-1300/1600 combined parts catalogue; PDF page36; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0524-0200 — S2 , PDF p. 36 — Source HHF-1300/1600 combined parts catalogue; PDF page36; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0524-0300 — S2 , PDF p. 36 — Source HHF-1300/1600 combined parts catalogue; PDF page36; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0524-0400 — S2 , PDF p. 36 — Source HHF-1300/1600 combined parts catalogue; PDF page36; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0524-0500 — S2 , PDF p. 36 — Source HHF-1300/1600 combined parts catalogue; PDF page36; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0524-0600 — S2 , PDF p. 36 — Source HHF-1300/1600 combined parts catalogue; PDF page36; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11－3161-0524－0102－00 — S2 , PDF p. 37 — Source HHF-1300/1600 combined parts catalogue; PDF page37; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11－3161-0524－0202－00 — S2 , PDF p. 37 — Source HHF-1300/1600 combined parts catalogue; PDF page37; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11－3161-0524－0302－00 — S2 , PDF p. 37 — Source HHF-1300/1600 combined parts catalogue; PDF page37; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11－3161-0524－0402－00 — S2 , PDF p. 37 — Source HHF-1300/1600 combined parts catalogue; PDF page37; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11－3161-0524－0502－00 — S2 , PDF p. 37 — Source HHF-1300/1600 combined parts catalogue; PDF page37; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11－3161-0524－0602－00 — S2 , PDF p. 37 — Source HHF-1300/1600 combined parts catalogue; PDF page37; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-01 — S2 , PDF p. 38 — Source HHF-1300/1600 combined parts catalogue; PDF page38; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-02 — S2 , PDF p. 38 — Source HHF-1300/1600 combined parts catalogue; PDF page38; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-03 — S2 , PDF p. 38 — Source HHF-1300/1600 combined parts catalogue; PDF page38; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-04 — S2 , PDF p. 38 — Source HHF-1300/1600 combined parts catalogue; PDF page38; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-05 — S2 , PDF p. 38 — Source HHF-1300/1600 combined parts catalogue; PDF page38; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-06 — S2 , PDF p. 38 — Source HHF-1300/1600 combined parts catalogue; PDF page38; item 6. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-07 — S2 , PDF p. 38 — Source HHF-1300/1600 combined parts catalogue; PDF page38; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-08 — S2 , PDF p. 38 — Source HHF-1300/1600 combined parts catalogue; PDF page38; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-0501-09 — S2 , PDF p. 38 — Source HHF-1300/1600 combined parts catalogue; PDF page38; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2600 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item . The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2601-00 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 1. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2602-00 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 2. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2603 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 3. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2604 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 4. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2605 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2606 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 5. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2607 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 7. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2608 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 8. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2609 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 9. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2610 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 10. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2611 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 11. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2611-01 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 12. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2611-02 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 13. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2612-00 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 14. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2613 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 15. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2614 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 16. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2615-00 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 17. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2616 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 18. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2611-03 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 19. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2617-00 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 20. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2618 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 21. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
11-3161-2711-00 — S2 , PDF p. 39 — Source HHF-1300/1600 combined parts catalogue; PDF page39; item 22. The combined source heading covers both models; model-specific alternatives require assembly/serial confirmation.; Catalogue component part/drawing number
GH3131-02.00 — S2 , PDF p. 40 — Source explicit counterpart table; HHF-1300; item . Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3131-0206 — S2 , PDF p. 40 — Source explicit counterpart table; HHF-1300; item 1. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3131-02.06 — S2 , PDF p. 40 — Source explicit counterpart table; HHF-1300; item 1. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3131-0221-1 — S2 , PDF p. 40 — Source explicit counterpart table; HHF-1300; item 2. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3131-02.21 — S2 , PDF p. 40 — Source explicit counterpart table; HHF-1300; item 2. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3131-0222-1 — S2 , PDF p. 40 — Source explicit counterpart table; HHF-1300; item 3. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3131-02.22 — S2 , PDF p. 40 — Source explicit counterpart table; HHF-1300; item 3. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0208-00 — S2 , PDF p. 40 — Source explicit counterpart table; HHF-1300; item 4. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-02.08.00 — S2 , PDF p. 40 — Source explicit counterpart table; HHF-1300; item 4. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
GH3161-04.00 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item . Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0401 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 1. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-04.01 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 1. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0402 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 2. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-04.02 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 2. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0405 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 3. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-04.05 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 3. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
B34521-190-355-69 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 4. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GB/T3452.1-1992 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 4. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0407 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 5. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-04.07 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 5. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0410 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 6. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-04.10 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 6. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0411 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 7. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-04.11 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 7. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0412 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 8. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-04.12 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 8. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0413 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 9. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-04.13 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 9. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
B34521-160-700-69 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 10. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GB/T3452.1-1992 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 10. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0415 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 11. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-04.15 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 11. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0417 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 12. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-04.17 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 12. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0312 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 1. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-03.12 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 1. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
GH3161-05.00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item . Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0501-00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 1. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.01.00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 1. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0501-01 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 2. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.01.01 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 2. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0502 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 3. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.02 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 3. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0503 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 4. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.03 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 4. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0508 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 5. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.08 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 5. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0509 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 6. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.09 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 6. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0510 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 7. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.10 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 7. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
B34521-095-530-69 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 8. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GB/T3452.1-1992 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 8. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0511-00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 9. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.11.00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 9. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0512 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 10. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.12 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 10. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0513 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 11. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.13 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 11. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0514 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 12. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.14 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 12. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0515 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 13. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.15 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 13. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0520 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 14. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.20 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 14. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0521-21 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 15. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.21 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 15. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0521-22 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item . Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
11-3161-0521-23 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item . Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
11-3161-0521-24 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item . Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
11-3161-0521-25 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item . Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
11-3161-0521-26 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item . Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
11-3161-0517-00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 16. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.17.00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 16. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0516 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 17. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.16 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 17. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0518 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 18. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.18 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 18. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
B34521-200-700-69 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 19. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GB/T3452.1-1992 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 19. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0522-00 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 20. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.22.00 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 20. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0524-00 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 21. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.24.00 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 21. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0527 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 22. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.27 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 22. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0531 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 23. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.31 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 23. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
11-3161-0532-00 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 24. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GH3161-05.32.00 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 24. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
B34521-190-700-69 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 25. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GB/T3452.1-1992 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 25. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
B34521-345-700-69 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 26. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source HHF part number
GB/T3452.1-1992 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 26. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Source engineering drawing code
6317-0026-00 — S2 , PDF p. 40 — Source explicit counterpart table; HHF-1300; item 1. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3131-0206; paired drawing references: GH3131-02.06; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
7602-0212-69 — S2 , PDF p. 40 — Source explicit counterpart table; HHF-1300; item 2. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3131-0221-1; paired drawing references: GH3131-02.21; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
7602-0201-38 — S2 , PDF p. 40 — Source explicit counterpart table; HHF-1300; item 3. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3131-0222-1; paired drawing references: GH3131-02.22; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0021-00 — S2 , PDF p. 40 — Source explicit counterpart table; HHF-1300; item 4. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0208-00; paired drawing references: GH3161-02.08.00; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0022-00 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 1. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0401; paired drawing references: GH3161-04.01; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0687-00 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 2. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0402; paired drawing references: GH3161-04.02; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6397-0544-00 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 3. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0405; paired drawing references: GH3161-04.05; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
7601-1610-22 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 4. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: B34521-190-355-69; paired drawing references: GB/T3452.1-1992; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
7602-2132-76 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 5. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0407; paired drawing references: GH3161-04.07; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6397-0546-00 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 6. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0410; paired drawing references: GH3161-04.10; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6317-0093-00 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 7. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0411; paired drawing references: GH3161-04.11; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0028-00 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 8. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0412; paired drawing references: GH3161-04.12; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0087-00 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 9. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0413; paired drawing references: GH3161-04.13; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
7602-1600-39 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 10. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: B34521-160-700-69; paired drawing references: GB/T3452.1-1992; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0688-00 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 11. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0415; paired drawing references: GH3161-04.15; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6301-0038-00 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 12. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0417; paired drawing references: GH3161-04.17; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
7602-0212-67 — S2 , PDF p. 42 — Source explicit counterpart table; HHF-1300, HHF-1600; item 1. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0312; paired drawing references: GH3161-03.12; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0357-00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 1. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0501-00; paired drawing references: GH3161-05.01.00; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0356-00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 2. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0501-01; paired drawing references: GH3161-05.01.01; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0361-00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 3. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0502; paired drawing references: GH3161-05.02; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0362-00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 4. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0503; paired drawing references: GH3161-05.03; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0369-00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 5. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0508; paired drawing references: GH3161-05.08; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0043-00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 6. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0509; paired drawing references: GH3161-05.09; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
7602-1600-25 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 8. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: B34521-095-530-69; paired drawing references: GB/T3452.1-1992; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0092-00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 10. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0512; paired drawing references: GH3161-05.12; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0039-00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 11. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0513; paired drawing references: GH3161-05.13; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0373-00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 12. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0514; paired drawing references: GH3161-05.14; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0365-00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 13. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0515; paired drawing references: GH3161-05.15; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0333-00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 14. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0520; paired drawing references: GH3161-05.20; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0368-00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 15. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0521-21; paired drawing references: GH3161-05.21; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0367-00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 16. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0517-00; paired drawing references: GH3161-05.17.00; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0366-00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 17. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0516; paired drawing references: GH3161-05.16; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0359-00 — S2 , PDF p. 43 — Source explicit counterpart table; HHF-1300, HHF-1600; item 18. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0518; paired drawing references: GH3161-05.18; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
7602-1600-44 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 19. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: B34521-200-700-69; paired drawing references: GB/T3452.1-1992; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6316-0107-11 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 20. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0522-00; paired drawing references: GH3161-05.22.00; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
6397-0575-00 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 22. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0527; paired drawing references: GH3161-05.27; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
7601-0720-58 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 24. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: 11-3161-0532-00; paired drawing references: GH3161-05.32.00; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
7602-1600-61 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 25. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: B34521-190-700-69; paired drawing references: GB/T3452.1-1992; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number
7602-1600-52 — S2 , PDF p. 44 — Source explicit counterpart table; HHF-1300, HHF-1600; item 26. Source note: gear pairs are interchangeable as a pair. The fluid-end block screw-hole start position differs. The source states the FB piston-rod clamp can be used on HHF, but the HHF clamp cannot be used on FB because it lacks the spray-line connection thread. This is a catalogue statement, not blanket present-day compatibility.; Paired source HHF references: B34521-345-700-69; paired drawing references: GB/T3452.1-1992; FB counterpart reference printed in HHF comparison catalogue; not a Honghua part number

Request a Quotation

Send the part number, quantity and pump model for a quotation.

WhatsApp parts inquiry Email parts list

Honghua HHF-1300 Mud Pump Spare Parts

Parts List

Reference documents and scope

Identify the HHF-1300 connecting rod

Keep the bearing suffixes and specifications

A different drawing prefix can still occur in this source

Review comparison notes with the component

Send a complete HHF-1300 enquiry

Request a Quotation

Phone:

WhatsApp:

Email:

Honghua HHF-1300 Mud Pump Spare Parts

Parts List

Reference documents and scope

Identify the HHF-1300 connecting rod

Keep the bearing suffixes and specifications

A different drawing prefix can still occur in this source

Review comparison notes with the component

Send a complete HHF-1300 enquiry

Request a Quotation

Related model guides
