Honghua HHF-1600HL Mud Pump Spare Parts

Published by Pratt Oil ·

Pratt OilParts identification

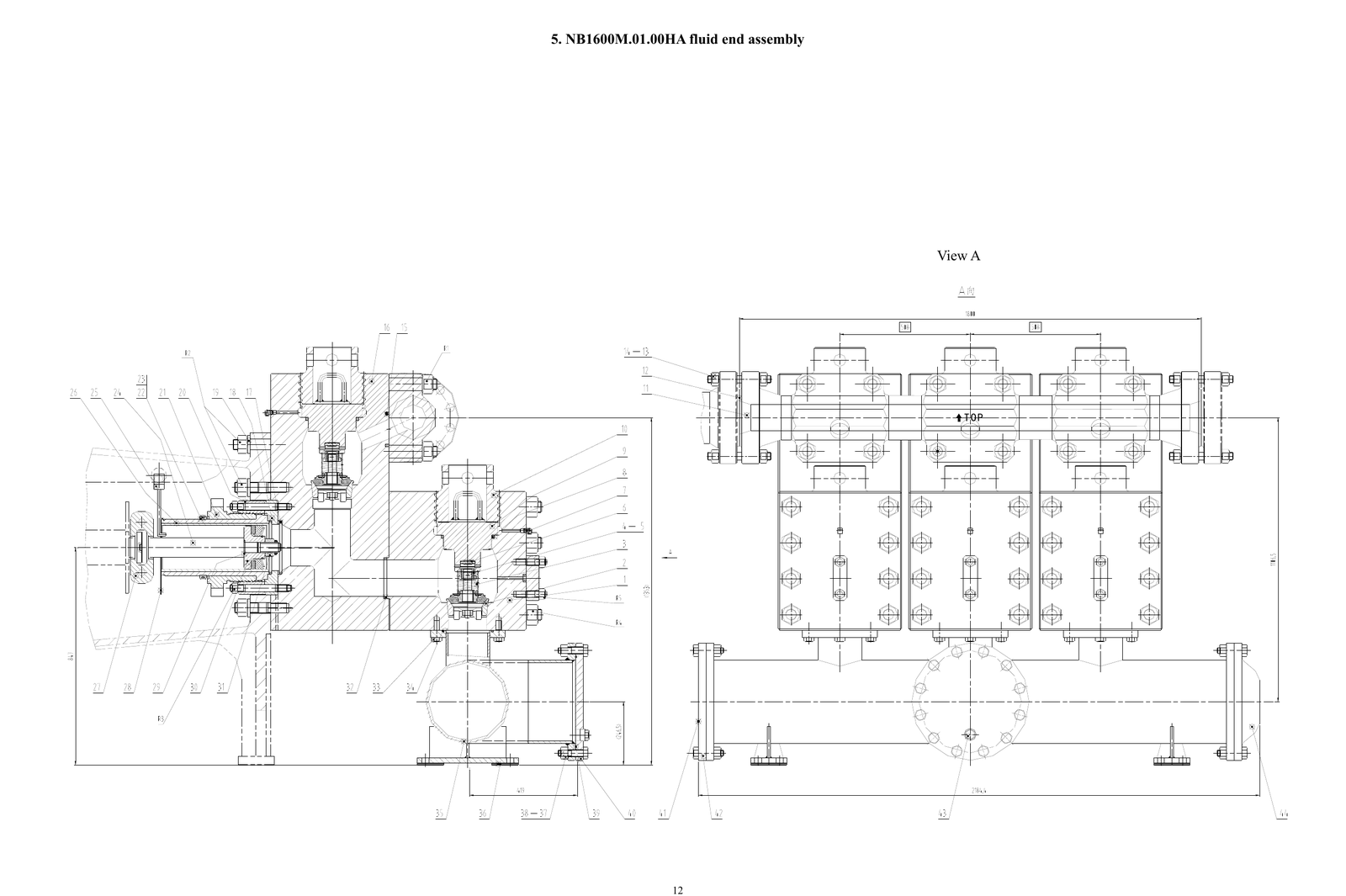

Honghua HHF-1600HL NB1600M.01.00HA fluid-end assembly drawing

Honghua HHF-1600HL reference NB1600M.01.01.00HA identifies a suction-cylinder assembly in the NB1600M.00H configuration. Keep its full HA suffix and distinguish the complete assembly from an individual cylinder or valve component. For a quotation, send the part or drawing number, quantity, pump model and nameplate photo.

Parts List

Download parts list (CSV)

428 parts

P/PPart / Drawing No.NamePart / Drawing No.Name
1NB100.01.00Frame assembly1800000530Anaerobic threadlocking sealant
21200358656Frame assemblyNB2200G.05.36Buffer pad
3NB100.02.00Crankshaft assembly1200009146Buffer pad
41200358917Crankshaft assemblyNB2200G.05.3590° Elbow
5NB100.03.00Pinion shaft assembly120000914590° Elbow
61200356208Pinion shaft assemblyNB2200G.05.37Valve cap sealing ring
7NB100.04.00Crosshead assembly1200009147Valve cap sealing ring
81200358918Crosshead assemblyNB2200G.05.01.00Valve gland
9NB1600M.01.00HAFluid end assembly1200008989Valve gland
101200079511Fluid end assemblyNB2200G.05.03Valve cap
11NB100.06.00Power end lubrication assembly1200009001Valve cap
121200357705Power end lubrication assemblyNB1600M.01.02.00HDischarge pipeline
13NB100.07.00Water tank assembly1200008774Discharge pipeline
141200357169Water tank assemblyNB1600M.01.03HDischarge opening closure plate: 51/8"
15NB100.08Sealing washer1200008777Discharge opening closure plate: 51/8"
161200358896Sealing washerNB1600M.01.04HStud
171300037739Crane1200008778Stud
18NB100.09.00Lifting frameNB1600M.01.05HNut
191200358897Lifting frame1200008779Nut
20GB/T97Flat washerNB2200G.05.04Discharge pipe sealing ring
211300007597Flat washer1200009002Discharge pipe sealing ring
22ASME B18.2.1BoltNB1600M.01.06.00HADischarge-cylinder assembly (7# as listed)
231300007131Bolt1200079514Discharge-cylinder assembly (7# as listed)
24NB100.10Sealing washerNB100.05.14Liner sealing ring
251200358901Sealing washer1200357797Liner sealing ring
26NB100.11.00Drain coverNB100.05.15.00Wear plate
271200358902Drain cover1200449823Wear plate
281300009094Liquid level gaugeNB100.05.39Washer
29GB/T827Nameplate rivet1200357873Washer
301300000626Nameplate rivetNB100.05.16Liner flange
31NB100.12Indicator plate1200357799Liner flange
321200358914Indicator plateNB100.05.17.00Liner gland
33ASME B18.2.1Hexagon-headed bolt1200357877Liner gland
341300005988Hexagon-headed boltNB100.05.20Liner locking ring
351300007562Foam rubber sheet1200357812Liner locking ring
361300018372Check valveGB/T3452.1O-ring
37NB100.01.01.00Frame1300045965O-ring
381200358657FrameNB100.05.18Piston rod
39NB100.01.02Main bearing cover1200357802Piston rod
401200358886Main bearing coverNB100.05.19.00Spray pipe assembly
41NB100.01.03Gasket1200360294Spray pipe assembly
421200358887GasketNB1600M.01.08.00HBimetallic liner
43NB100.01.04Joint1200008787Bimetallic liner
441200358888JointNB100.05.22.00Clamp assembly
45NB100.01.05Threaded plug1200357885Clamp assembly
461200358889Threaded plugNB100.05.23Liner end cover
471700030487Round plate1200357826Liner end cover
48NB100.01.06.00Cover plateNB100.05.31Piston sealing ring
491200358890Cover plate1200357864Piston sealing ring
50NB100.01.07Sealing gasket (Ⅲ)NB1600M.01.09.00HPiston
511200358892Sealing gasket (Ⅲ)1200008788Piston
52GB/T97Flat washerNB100.02.19.00Locking nut
531300007597Flat washer1200356502Locking nut
54ASME B18.2.1Hexagon-headed boltNB2200G.05.28Hydraulic cylinder sealing ring
551300005988Hexagon-headed bolt1200009112Hydraulic cylinder sealing ring
56NB100.02.01.00End cover of main bearingASME B18.2.1Hexagon-headed bolt
571200356484End cover of main bearing1300006081Hexagon-headed bolt
58NB100.02.02Main bearing sleeve (right)NB1600M.01.10.00HSuction pipeline
591200356485Main bearing sleeve (right)1200008799Suction pipeline
60NB100.02.03Sealing washerNB100.05.26.00Gasket unit
611200356486Sealing washer1200357901Gasket unit
62NB100.02.04Internal retaining ringASME B18.2.2Hexagonal nut
631200356487Internal retaining ring1300005722Hexagonal nut
64NB100.02.05.00External retaining ringASME B18.2.1Hexagon-headed bolt
651200356488External retaining ring1300005978Hexagon-headed bolt
66NB100.02.06Connecting rodGB/T3452.1O-ring
671200356489Connecting rod1300000262O-ring
68NB100.02.07Positioning ring (Ⅰ)NB100.05.33Suction flange (Ⅰ)
691200356490Positioning ring (Ⅰ)1200357867Suction flange (Ⅰ)
70NB100.02.08.00Hollow crankshaftNB100.05.37Suction inlet closure plate
711200356491Hollow crankshaft1200357871Suction inlet closure plate
72NB100.02.09Positioning ring (Ⅱ)NB100.05.34Suction flange (Ⅱ)
731200356492Positioning ring (Ⅱ)1200357868Suction flange (Ⅱ)
74NB100.02.10Bull gearNB100.05.35Threaded plug
751200356493Bull gear1200357869Threaded plug
76NB100.02.11BoltNB100.05.32.00Suction pulsation dampener
771200356494Bolt1200357902Suction pulsation dampener
78NB100.02.12Distance ringNB1600M.01.01.01HASuction cylinder (7# as listed)
791200356495Distance ring1200079513Suction cylinder (7# as listed)
80NB100.02.13Main bearing sleeve (left)NB2200G.05.38.03Clamping plate
811200356496Main bearing sleeve (left)1200009151Clamping plate
82NB100.02.14Retainer ringNB2200G.05.38.02Suction-cylinder seal
831200356497Retainer ring1200009150Suction-cylinder seal
84NB100.02.15Baffle277Thread locking anaerobic sealant
851200356498BaffleNB1600M.01.01.02HStud bolt
86NB100.02.16Main bearing bolt1200008772Stud bolt
871200356499Main bearing boltNB1600M.01.01.03HNut 1-8UNC-2B(SPL)
88NB100.02.17.00Gasket unit1200008773Nut 1-8UNC-2B(SPL)
891200356500Gasket unitNB1600M.01.06.01HADischarge cylinder (7# as listed)
90NB100.02.18Screw1200079444Discharge cylinder (7# as listed)
911200356501ScrewGH3161-05.01.02Stud bolt (1"×185)
92NB100.02.19.00Locking nut1200004118Stud bolt (1"×185)
931200356502Locking nutGH3161-05.01.03Nut (1")
94NB100.02.20Bolt1200004120Nut (1")
951200356503BoltGH3161-05.01.05Stud bolt (1 1/2"×120)
96ANSI B18.2.1Hexagon-headed bolt1200004124Stud bolt (1 1/2"×120)
971300006071Hexagon-headed boltGH3161-05.01.06Nut; source thread notation 11/2-8UN-2B(SPL), confirm nominal diameter
98NB100.02.21Eccentric wheel bearing1200004126Nut; source thread notation 11/2-8UN-2B(SPL), confirm nominal diameter
991200356504Eccentric wheel bearing277Thread locking anaerobic sealant
100NB100.02.22Main bearingNB1600M.01.06.02HStud bolt
1011200356505Main bearing1200008782Stud bolt
102GB/T97Flat washerNB1600M.01.06.03HNut; source thread notation 15/8-8UN-2B(SPL), confirm nominal diameter
1031300001444Flat washer1200008783Nut; source thread notation 15/8-8UN-2B(SPL), confirm nominal diameter
104YB/T 5294Steel wireNB1600M.01.06.04HStud bolt
1051800000504Steel wire1200008784Stud bolt
106YB/T 5294Steel wireNB1600M.01.06.05HNut
1071800000505Steel wire1200008785Nut

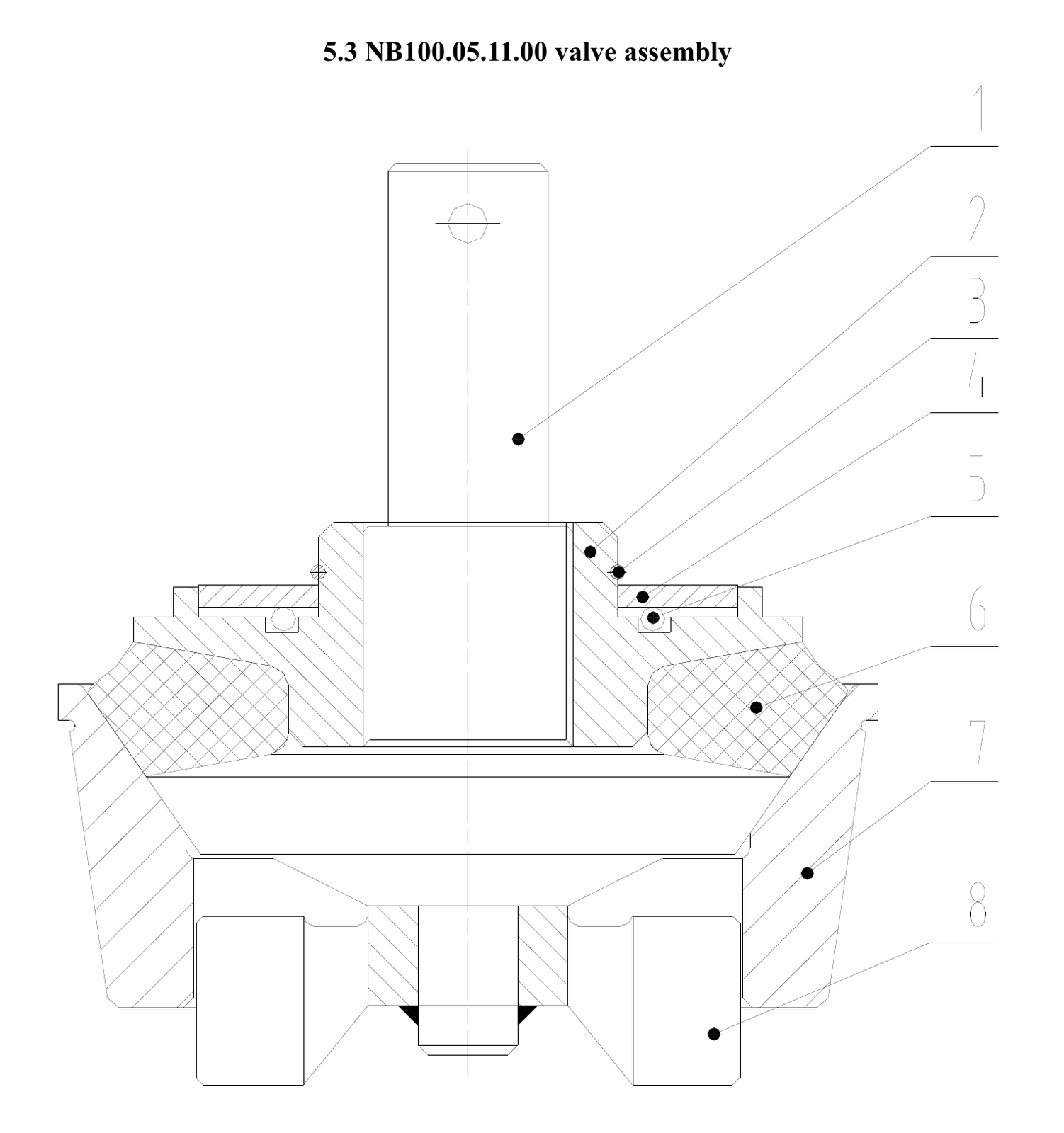

108NB100.02.23ScrewNB100.05.11.01Valve body
1091200356506Screw1200357788Valve body
110NB100.03.01KeyNB100.05.11.02Valve nut
1111200355903Key1200357789Valve nut
112NB100.03.02Pinion shaftNB100.05.11.03Retaining spring
1131200355913Pinion shaft1200357790Retaining spring
114NB100.03.03Wear sleeveNB100.05.11.04Gland
1151200355914Wear sleeve1200357791Gland
116NB100.03.04End coverGB/T308Steel ball
1171200355915End cover1300002340Steel ball
118NB100.03.05Sealing washerNB100.05.11.05Valve rubber insert
1191200355916Sealing washer1200357792Valve rubber insert
120NB100.03.06Sealing washerNB100.05.11.06Valve seat
1211200355917Sealing washer1200357793Valve seat
122NB100.03.07Bearing sleeveNB100.06.01.00Gear oil pump assembly
1231200355922Bearing sleeve1200357706Gear oil pump assembly
124NB100.03.08Retainer ringNB100.06.0290°pipe joint; source specification: 11/16-16UN-2A-NPT1/4
1251200355923Retainer ring120035770990°pipe joint; source specification: 11/16-16UN-2A-NPT1/4
126NB100.03.09Sealing washerASME B18.3Screw; source specification: 5/16"-18×1 9/16"
1271200355924Sealing washer1300005603Screw; source specification: 5/16"-18×1 9/16"
128NB100.03.10.00Oil-collection boxNB100.06.0390°pipe joint; source specification: 15/16-16UN-2A-NPT1/2
1291200356148Oil-collection box120035771090°pipe joint; source specification: 15/16-16UN-2A-NPT1/2
130ANSI B18.2.1Hexagon-headed boltNB100.06.0490°pipe joint; source specification: 1/2-20UNF-2A-NPT1/4
1311300017809Hexagon-headed bolt120035771190°pipe joint; source specification: 1/2-20UNF-2A-NPT1/4
132ANSI B18.2.1Hexagon-headed boltNB100.06.0590°joint; source specification: 11/16-16UN-2A-NPT3/8
1331300017824Hexagon-headed bolt120035771290°joint; source specification: 11/16-16UN-2A-NPT3/8
134NB100.03.11Oil seal1700027019Copper pipe; source specification: φ8×1, L305
1351200355939Oil sealNB100.06.06Nut; source specification: 1/2-20UNF-2B
136NB100.03.12Cylindrical roller bearing1200357713Nut; source specification: 1/2-20UNF-2B
1371200355940Cylindrical roller bearingNB100.06.07Connector seat (Ⅱ)
138GB/T93Spring washer1200357714Connector seat (Ⅱ)
1391300001151Spring washerNB100.06.08Straight joint; source specification: 15/16-16UN-2A-NPT1/2
140GB/T93Spring washer1200357715Straight joint; source specification: 15/16-16UN-2A-NPT1/2
1411300001135Spring washer1700027010Copper pipe; source specification: φ16×1.5, L686
142NB100.03.13Pump flange1700027009Copper pipe; source specification: φ16×1.5, L331
1431200355941Pump flange1700026999Copper pipe; source specification: φ12×1, L838
144ANSI B18.2.1Hexagon-headed bolt1700026997Copper pipe; source specification: φ12×1, L305
1451300006071Hexagon-headed bolt1700026990Copper pipe; source specification: φ10×1, L762
146GB/T93Spring washer1700026985Copper pipe; source specification: φ10×1, L508
1471300001142Spring washer1700026975Copper pipe; source specification: φ10×1, L229
148NB100.04.01CrossheadNB100.06.09Threaded plug; source specification: NPT3/8
1491200356410Crosshead1200357716Threaded plug; source specification: NPT3/8
150NB100.04.02Upper guide plate1700026992Copper pipe; source specification: φ10×1, L915
1511200356411Upper guide plate1700026967Copper pipe; source specification: φ10×1, L1194
152NB100.04.03.00Gasket unit1700026966Copper pipe; source specification: φ10×1, L1016
1531200356436Gasket unitNB100.06.10Connector seat (Ⅰ)
154NB100.04.05Stuffing box1200357717Connector seat (Ⅰ)
1551200356413Stuffing boxNB100.06.11Nut; source specification: 11/16-16UN-2B
156NB100.04.06Oil sealing ring1200357718Nut; source specification: 11/16-16UN-2B
1571200356414Oil sealing ringASME B18.2.1Hexagon-headed bolt; source specification: 1/4"-20×3/4"
158GB/T3452.1O-ring1300007139Hexagon-headed bolt; source specification: 1/4"-20×3/4"
1591300000363O-ringNB100.06.12Grease nipple
160NB100.04.07Double lip seal1200357719Grease nipple
1611200356415Double lip seal1700026998Copper pipe; source specification: φ12×1, L610
162NB100.04.08Sealing washer1700027020Copper pipe; source specification: φ8×1, L813
1631200356417Sealing washerNB100.06.13Straight joint; source specification: 1/2-20UNF-2A
164NB100.04.09End cover1200357720Straight joint; source specification: 1/2-20UNF-2A
1651200356418End cover1700026996Copper pipe; source specification: φ12×1, L1956
166NB100.04.10Distance ring1700027017Copper pipe; source specification: φ8×1, L1956
1671200356419Distance ring1700027018Copper pipe; source specification: φ8×1, L2311
168NB100.04.11Mudguard1700027016Copper pipe; source specification: φ8×1, L1600
1691200356420Mudguard1700027015Copper pipe; source specification: φ8×1, L1245
170NB100.04.12Intermediate rodNB100.06.14Pipe joint; source specification: NPT1/4-9/16-16UN-2B
1711200356421Intermediate rod1200357721Pipe joint; source specification: NPT1/4-9/16-16UN-2B
172NB100.04.13Crosshead pinNB100.06.15Sealing washer
1731200356422Crosshead pin1200357722Sealing washer
174GB/T3452.1O-ringNB100.06.16.00Gasket unit
1751300000200O-ring1200357723Gasket unit
176ANSI B18.3ScrewNB100.06.18Straight joint; source specification: 11/16-16UN-2A
1771300005595Screw1200357734Straight joint; source specification: 11/16-16UN-2A
178NB100.04.14Sealing gasketGB/T93Spring washer; source specification: 8
1791200356424Sealing gasket1300001180Spring washer; source specification: 8
180CCK-1250Oil sealGB/T93Spring washer; source specification: 6
1811300018406Oil seal1300001178Spring washer; source specification: 6
182NB100.04.15Lower guide plate1300000858Gear pump; source specification: 2S
1831200356425Lower guide plate1300007486Pressure gauge; source specification: Y-60-Ⅰ;0-1.6Mpa; UN9/16"-16
184NB100.04.16Crosshead-pin retaining plateNB100.06.19Straight joint; source specification: 11/16-16UN-2A-NPT3/8
1851200356426Crosshead-pin retaining plate1200357735Straight joint; source specification: 11/16-16UN-2A-NPT3/8
186NB100.04.17Crosshead bearingNB100.06.20.00Oil filter assembly
1871200356427Crosshead bearing1200357736Oil filter assembly
188NB100.04.04Adjusting shimNB100.06.21Nut; source specification: 15/16-16UN-2B
1891200356412Adjusting shim1200357740Nut; source specification: 15/16-16UN-2B
190NB100.04.18Pipe jointNB100.06.22Straight joint; source specification: 1/2-20UNF-2A-NPT1/4
1911200356428Pipe joint1200357741Straight joint; source specification: 1/2-20UNF-2A-NPT1/4
192NB100.04.19Fixing plateNB100.06.23Threaded plug; source specification: NPT1/4
1931200356429Fixing plate1200357742Threaded plug; source specification: NPT1/4
194NB100.04.21Bolt1300019540Straight joint; source specification: M27×2-NPT1/2"
1951200356431Bolt1300025915Straight joint; source specification: NPT3/4"-NPT3/4"
196NB100.04.20Bolt1300092665Double-ended nipple; source specification: NPT3/4"-40
1971200356430Bolt1600000976Copper pipe; source specification: φ16×1.5
198ANSI B18.2.1Hexagon-headed bolt1JH-16-27Straight joint; source specification: 15/16-16UN-2A-M27×2
1991300006047Hexagon-headed bolt1300025930Straight joint; source specification: 15/16-16UN-2A-M27×2
200GB/T93Spring washer1300001032Check valve; source specification: S15A1/2
2011300001128Spring washerNB100.01.05Threaded plug; source specification: NPT3/4
202GB/T4240Stainless steel wire1200358889Threaded plug; source specification: NPT3/4
2031800000497Stainless steel wire1300009209Relief valve; source specification: YYFJ-L20
204GB/T3452.1O-ringNB100.06.24Joint
2051300000346O-ring1200357743Joint
206NB1600M.01.01.00HASuction-cylinder assembly (7# as listed)NB100.06.25Three-way block; source specification: NPT1/2
2071200079512Suction-cylinder assembly (7# as listed)1200357744Three-way block; source specification: NPT1/2
208NB100.05.11.00Valve assemblyGB/T3452.1O-ring
2091200357876Valve assembly1300045964O-ring
210NB100.05.10Valve springNB100.05.11.07Valve guide frame
2111200357787Valve spring1200357794Valve guide frame
212NB2200G.05.34.00Valve-stem guideNB100.06.17.00Support
2131200009142Valve-stem guide1200357729Support
214243Anaerobic threadlocking sealantNB1600M.00HGeneral pump assembly
Technical details and source references

Confirm the installed model, drawing revision and dimensions before ordering. Catalogue quantities do not indicate current stock.

Reference documents and scope

  • S1 — Honghua HHF-1600HL parts catalogue, NB1600M.00H, December 2015, English. Reference file: 宏华NB1600M 00H HHF-1600HL图册 E.PDF.

PDF page numbers count from the first page of each reference file. Brand names identify the equipment or catalogue source. A listed number does not establish interchangeability, original-manufacturer authorisation, stock or a delivery commitment. Send the nameplate, complete reference, quantity and drawing revision for a parts review.

For an HHF-1600HL spare-parts enquiry, start with the catalogue designation NB1600M.00H when it matches your equipment documentation. The December 2015 English parts book uses this assembly designation and combines NB100 power-end references with NB1600M fluid-end references.

This is a configuration-identification guide. It does not establish that another parts book labelled 3NB-1600HL, NB1602 or HTNB161 describes the same installed components.

Recognise the main assembly references

AssemblyDrawing numberMaterial code in the 2015 book
Frame assemblyNB100.01.001200358656
Crankshaft assemblyNB100.02.001200358917
Pinion-shaft assemblyNB100.03.001200356208
Crosshead assemblyNB100.04.001200358918
Fluid-end assemblyNB1600M.01.00HA1200079511
Power-end lubrication assemblyNB100.06.001200357705

The material code and drawing number serve different identification roles. Quote both when they are available, and retain the final letters: H, HA and other suffixes are part of the printed reference.

Suction and discharge cylinders need their own references

The top-level fluid-end table identifies suction-cylinder assembly NB1600M.01.01.00HA with material code 1200079512. Its detailed table lists suction cylinder NB1600M.01.01.01HA, code 1200079513. The discharge-cylinder assembly is NB1600M.01.06.00HA, code 1200079514; its cylinder is NB1600M.01.06.01HA, code 1200079444.

A cylinder body and a cylinder assembly are different enquiry items. State whether you need the body, an assembled unit, or a specific stud, nut or seal, then attach the corresponding exploded-view item number.

Valve components and material codes

The valve assembly is identified as NB100.05.11.00. Its component list associates valve body NB100.05.11.01 with code 1200357788, valve seat NB100.05.11.06 with code 1200357793, and valve guide frame NB100.05.11.07 with code 1200357794.

Keep a valve body, rubber insert, seat and guide cage separate in the enquiry. A valve-family reference does not establish the size, material or installation arrangement of every component in a different fluid-end version.

Check threads and units rather than converting the catalogue number

The source contains both metric standard designations and inch-thread component descriptions. For example, the suction-cylinder table lists nut NB1600M.01.01.03H as 1-8UNC-2B(SPL). Send the complete printed thread form, together with the matching stud reference, rather than replacing it with a metric approximation.

Where a description mixes a thread designation with an unlabelled length, verify the dimensions from the drawing or the removed part. Do not derive the working pressure, flow rate or component interchangeability from the model name alone.

Prepare an enquiry that identifies the installed configuration

  • Photograph the pump nameplate and the parts-book cover.
  • Quote NB1600M.00H only when it is supported by your equipment documents.
  • Provide the drawing number, material code, item number and required quantity.
  • Attach photographs and dimensions for the actual liner, piston, valve, cylinder or fastening item.
  • Identify the assembly required and any differences between the installed part and the drawing.

See our mud pump spare-parts information when preparing a quotation request. Matching remains subject to the complete equipment and component details.

NB100.05.11.00 valve assembly drawing for the HHF-1600HL catalogue
NB100.05.11.00 valve assembly illustration.
  1. NB100.01.00 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 1. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358656, Drawing/designation NB100.01.00.; Catalogue drawing reference
  2. 1200358656 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 1. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358656, Drawing/designation NB100.01.00.; Catalogue material code
  3. NB100.02.00 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 2. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358917, Drawing/designation NB100.02.00.; Catalogue drawing reference
  4. 1200358917 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 2. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358917, Drawing/designation NB100.02.00.; Catalogue material code
  5. NB100.03.00 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 3. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356208, Drawing/designation NB100.03.00.; Catalogue drawing reference
  6. 1200356208 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 3. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356208, Drawing/designation NB100.03.00.; Catalogue material code
  7. NB100.04.00 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 4. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358918, Drawing/designation NB100.04.00.; Catalogue drawing reference
  8. 1200358918 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 4. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358918, Drawing/designation NB100.04.00.; Catalogue material code
  9. NB1600M.01.00HA — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 5. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200079511, Drawing/designation NB1600M.01.00HA.; Catalogue drawing reference
  10. 1200079511 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 5. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200079511, Drawing/designation NB1600M.01.00HA.; Catalogue material code
  11. NB100.06.00 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 6. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357705, Drawing/designation NB100.06.00.; Catalogue drawing reference
  12. 1200357705 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 6. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357705, Drawing/designation NB100.06.00.; Catalogue material code
  13. NB100.07.00 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 7. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357169, Drawing/designation NB100.07.00.; Catalogue drawing reference
  14. 1200357169 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 7. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357169, Drawing/designation NB100.07.00.; Catalogue material code
  15. NB100.08 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 8. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358896, Drawing/designation NB100.08.; Catalogue drawing reference
  16. 1200358896 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 8. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358896, Drawing/designation NB100.08.; Catalogue material code
  17. 1300037739 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 9. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300037739.; Catalogue material code
  18. NB100.09.00 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 10. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358897, Drawing/designation NB100.09.00.; Catalogue drawing reference
  19. 1200358897 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 10. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358897, Drawing/designation NB100.09.00.; Catalogue material code
  20. GB/T97 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 11. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300007597, Drawing/designation GB/T97.; Standard designation
  21. 1300007597 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 11. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300007597, Drawing/designation GB/T97.; Catalogue material code
  22. ASME B18.2.1 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 12. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300007131, Drawing/designation ASME B18.2.1.; Standard designation
  23. 1300007131 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 12. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300007131, Drawing/designation ASME B18.2.1.; Catalogue material code
  24. NB100.10 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 13. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358901, Drawing/designation NB100.10.; Catalogue drawing reference
  25. 1200358901 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 13. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358901, Drawing/designation NB100.10.; Catalogue material code
  26. NB100.11.00 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 14. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358902, Drawing/designation NB100.11.00.; Catalogue drawing reference
  27. 1200358902 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 14. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358902, Drawing/designation NB100.11.00.; Catalogue material code
  28. 1300009094 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 15. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300009094.; Catalogue material code
  29. GB/T827 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 16. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300000626, Drawing/designation GB/T827.; Standard designation
  30. 1300000626 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 16. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300000626, Drawing/designation GB/T827.; Catalogue material code
  31. NB100.12 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 17. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358914, Drawing/designation NB100.12.; Catalogue drawing reference
  32. 1200358914 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 17. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358914, Drawing/designation NB100.12.; Catalogue material code
  33. ASME B18.2.1 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 18. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300005988, Drawing/designation ASME B18.2.1.; Standard designation
  34. 1300005988 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 18. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300005988, Drawing/designation ASME B18.2.1.; Catalogue material code
  35. 1300007562 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 19. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300007562.; Catalogue material code
  36. 1300018372 — S1 , PDF p. 5 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 5, item 20. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300018372.; Catalogue material code
  37. NB100.01.01.00 — S1 , PDF p. 7 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 7, item 1. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358657, Drawing/designation NB100.01.01.00.; Catalogue drawing reference
  38. 1200358657 — S1 , PDF p. 7 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 7, item 1. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358657, Drawing/designation NB100.01.01.00.; Catalogue material code
  39. NB100.01.02 — S1 , PDF p. 7 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 7, item 2. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358886, Drawing/designation NB100.01.02.; Catalogue drawing reference
  40. 1200358886 — S1 , PDF p. 7 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 7, item 2. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358886, Drawing/designation NB100.01.02.; Catalogue material code
  41. NB100.01.03 — S1 , PDF p. 7 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 7, item 3. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358887, Drawing/designation NB100.01.03.; Catalogue drawing reference
  42. 1200358887 — S1 , PDF p. 7 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 7, item 3. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358887, Drawing/designation NB100.01.03.; Catalogue material code
  43. NB100.01.04 — S1 , PDF p. 7 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 7, item 4. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358888, Drawing/designation NB100.01.04.; Catalogue drawing reference
  44. 1200358888 — S1 , PDF p. 7 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 7, item 4. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358888, Drawing/designation NB100.01.04.; Catalogue material code
  45. NB100.01.05 — S1 , PDF p. 7 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 7, item 5. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358889, Drawing/designation NB100.01.05.; Catalogue drawing reference
  46. 1200358889 — S1 , PDF p. 7 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 7, item 5. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358889, Drawing/designation NB100.01.05.; Catalogue material code
  47. 1700030487 — S1 , PDF p. 7 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 7, item 6. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1700030487.; Catalogue material code
  48. NB100.01.06.00 — S1 , PDF p. 7 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 7, item 7. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358890, Drawing/designation NB100.01.06.00.; Catalogue drawing reference
  49. 1200358890 — S1 , PDF p. 7 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 7, item 7. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358890, Drawing/designation NB100.01.06.00.; Catalogue material code
  50. NB100.01.07 — S1 , PDF p. 7 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 7, item 8. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358892, Drawing/designation NB100.01.07.; Catalogue drawing reference
  51. 1200358892 — S1 , PDF p. 7 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 7, item 8. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358892, Drawing/designation NB100.01.07.; Catalogue material code
  52. GB/T97 — S1 , PDF p. 7 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 7, item 9. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300007597, Drawing/designation GB/T97.; Standard designation
  53. 1300007597 — S1 , PDF p. 7 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 7, item 9. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300007597, Drawing/designation GB/T97.; Catalogue material code
  54. ASME B18.2.1 — S1 , PDF p. 7 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 7, item 10. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300005988, Drawing/designation ASME B18.2.1.; Standard designation
  55. 1300005988 — S1 , PDF p. 7 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 7, item 10. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300005988, Drawing/designation ASME B18.2.1.; Catalogue material code
  56. NB100.02.01.00 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 1. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356484, Drawing/designation NB100.02.01.00.; Catalogue drawing reference
  57. 1200356484 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 1. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356484, Drawing/designation NB100.02.01.00.; Catalogue material code
  58. NB100.02.02 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 2. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356485, Drawing/designation NB100.02.02.; Catalogue drawing reference
  59. 1200356485 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 2. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356485, Drawing/designation NB100.02.02.; Catalogue material code
  60. NB100.02.03 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 3. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356486, Drawing/designation NB100.02.03.; Catalogue drawing reference
  61. 1200356486 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 3. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356486, Drawing/designation NB100.02.03.; Catalogue material code
  62. NB100.02.04 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 4. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356487, Drawing/designation NB100.02.04.; Catalogue drawing reference
  63. 1200356487 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 4. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356487, Drawing/designation NB100.02.04.; Catalogue material code
  64. NB100.02.05.00 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 5. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356488, Drawing/designation NB100.02.05.00.; Catalogue drawing reference
  65. 1200356488 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 5. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356488, Drawing/designation NB100.02.05.00.; Catalogue material code
  66. NB100.02.06 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 6. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356489, Drawing/designation NB100.02.06.; Catalogue drawing reference
  67. 1200356489 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 6. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356489, Drawing/designation NB100.02.06.; Catalogue material code
  68. NB100.02.07 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 7. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356490, Drawing/designation NB100.02.07.; Catalogue drawing reference
  69. 1200356490 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 7. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356490, Drawing/designation NB100.02.07.; Catalogue material code
  70. NB100.02.08.00 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 8. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356491, Drawing/designation NB100.02.08.00.; Catalogue drawing reference
  71. 1200356491 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 8. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356491, Drawing/designation NB100.02.08.00.; Catalogue material code
  72. NB100.02.09 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 9. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356492, Drawing/designation NB100.02.09.; Catalogue drawing reference
  73. 1200356492 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 9. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356492, Drawing/designation NB100.02.09.; Catalogue material code
  74. NB100.02.10 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 10. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356493, Drawing/designation NB100.02.10.; Catalogue drawing reference
  75. 1200356493 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 10. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356493, Drawing/designation NB100.02.10.; Catalogue material code
  76. NB100.02.11 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 11. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356494, Drawing/designation NB100.02.11.; Catalogue drawing reference
  77. 1200356494 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 11. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356494, Drawing/designation NB100.02.11.; Catalogue material code
  78. NB100.02.12 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 12. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356495, Drawing/designation NB100.02.12.; Catalogue drawing reference
  79. 1200356495 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 12. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356495, Drawing/designation NB100.02.12.; Catalogue material code
  80. NB100.02.13 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 13. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356496, Drawing/designation NB100.02.13.; Catalogue drawing reference
  81. 1200356496 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 13. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356496, Drawing/designation NB100.02.13.; Catalogue material code
  82. NB100.02.14 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 14. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356497, Drawing/designation NB100.02.14.; Catalogue drawing reference
  83. 1200356497 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 14. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356497, Drawing/designation NB100.02.14.; Catalogue material code
  84. NB100.02.15 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 15. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356498, Drawing/designation NB100.02.15.; Catalogue drawing reference
  85. 1200356498 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 15. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356498, Drawing/designation NB100.02.15.; Catalogue material code
  86. NB100.02.16 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 16. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356499, Drawing/designation NB100.02.16.; Catalogue drawing reference
  87. 1200356499 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 16. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356499, Drawing/designation NB100.02.16.; Catalogue material code
  88. NB100.02.17.00 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 17. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356500, Drawing/designation NB100.02.17.00.; Catalogue drawing reference
  89. 1200356500 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 17. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356500, Drawing/designation NB100.02.17.00.; Catalogue material code
  90. NB100.02.18 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 18. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356501, Drawing/designation NB100.02.18.; Catalogue drawing reference
  91. 1200356501 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 18. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356501, Drawing/designation NB100.02.18.; Catalogue material code
  92. NB100.02.19.00 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 19. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356502, Drawing/designation NB100.02.19.00.; Catalogue drawing reference
  93. 1200356502 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 19. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356502, Drawing/designation NB100.02.19.00.; Catalogue material code
  94. NB100.02.20 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 20. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356503, Drawing/designation NB100.02.20.; Catalogue drawing reference
  95. 1200356503 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 20. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356503, Drawing/designation NB100.02.20.; Catalogue material code
  96. ANSI B18.2.1 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 21. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300006071, Drawing/designation ANSI B18.2.1.; Standard designation
  97. 1300006071 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 21. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300006071, Drawing/designation ANSI B18.2.1.; Catalogue material code
  98. NB100.02.21 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 22. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356504, Drawing/designation NB100.02.21.; Catalogue drawing reference
  99. 1200356504 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 22. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356504, Drawing/designation NB100.02.21.; Catalogue material code
  100. NB100.02.22 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 23. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356505, Drawing/designation NB100.02.22.; Catalogue drawing reference
  101. 1200356505 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 23. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356505, Drawing/designation NB100.02.22.; Catalogue material code
  102. GB/T97 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 24. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300001444, Drawing/designation GB/T97.; Standard designation
  103. 1300001444 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 24. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300001444, Drawing/designation GB/T97.; Catalogue material code
  104. YB/T 5294 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 25. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1800000504, Drawing/designation YB/T 5294.; Standard designation
  105. 1800000504 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 25. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1800000504, Drawing/designation YB/T 5294.; Catalogue material code
  106. YB/T 5294 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 26. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1800000505, Drawing/designation YB/T 5294.; Standard designation
  107. 1800000505 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 26. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1800000505, Drawing/designation YB/T 5294.; Catalogue material code
  108. NB100.02.23 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 27. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356506, Drawing/designation NB100.02.23.; Catalogue drawing reference
  109. 1200356506 — S1 , PDF p. 9 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 9, item 27. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356506, Drawing/designation NB100.02.23.; Catalogue material code
  110. NB100.03.01 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 1. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355903, Drawing/designation NB100.03.01.; Catalogue drawing reference
  111. 1200355903 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 1. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355903, Drawing/designation NB100.03.01.; Catalogue material code
  112. NB100.03.02 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 2. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355913, Drawing/designation NB100.03.02.; Catalogue drawing reference
  113. 1200355913 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 2. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355913, Drawing/designation NB100.03.02.; Catalogue material code
  114. NB100.03.03 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 3. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355914, Drawing/designation NB100.03.03.; Catalogue drawing reference
  115. 1200355914 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 3. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355914, Drawing/designation NB100.03.03.; Catalogue material code
  116. NB100.03.04 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 4. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355915, Drawing/designation NB100.03.04.; Catalogue drawing reference
  117. 1200355915 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 4. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355915, Drawing/designation NB100.03.04.; Catalogue material code
  118. NB100.03.05 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 5. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355916, Drawing/designation NB100.03.05.; Catalogue drawing reference
  119. 1200355916 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 5. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355916, Drawing/designation NB100.03.05.; Catalogue material code
  120. NB100.03.06 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 6. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355917, Drawing/designation NB100.03.06.; Catalogue drawing reference
  121. 1200355917 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 6. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355917, Drawing/designation NB100.03.06.; Catalogue material code
  122. NB100.03.07 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 7. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355922, Drawing/designation NB100.03.07.; Catalogue drawing reference
  123. 1200355922 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 7. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355922, Drawing/designation NB100.03.07.; Catalogue material code
  124. NB100.03.08 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 8. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355923, Drawing/designation NB100.03.08.; Catalogue drawing reference
  125. 1200355923 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 8. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355923, Drawing/designation NB100.03.08.; Catalogue material code
  126. NB100.03.09 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 9. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355924, Drawing/designation NB100.03.09.; Catalogue drawing reference
  127. 1200355924 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 9. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355924, Drawing/designation NB100.03.09.; Catalogue material code
  128. NB100.03.10.00 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 10. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356148, Drawing/designation NB100.03.10.00.; Catalogue drawing reference
  129. 1200356148 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 10. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356148, Drawing/designation NB100.03.10.00.; Catalogue material code
  130. ANSI B18.2.1 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 11. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300017809, Drawing/designation ANSI B18.2.1.; Standard designation
  131. 1300017809 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 11. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300017809, Drawing/designation ANSI B18.2.1.; Catalogue material code
  132. ANSI B18.2.1 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 12. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300017824, Drawing/designation ANSI B18.2.1.; Standard designation
  133. 1300017824 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 12. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300017824, Drawing/designation ANSI B18.2.1.; Catalogue material code
  134. NB100.03.11 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 13. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355939, Drawing/designation NB100.03.11.; Catalogue drawing reference
  135. 1200355939 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 13. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355939, Drawing/designation NB100.03.11.; Catalogue material code
  136. NB100.03.12 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 14. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355940, Drawing/designation NB100.03.12.; Catalogue drawing reference
  137. 1200355940 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 14. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355940, Drawing/designation NB100.03.12.; Catalogue material code
  138. GB/T93 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 15. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300001151, Drawing/designation GB/T93.; Standard designation
  139. 1300001151 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 15. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300001151, Drawing/designation GB/T93.; Catalogue material code
  140. GB/T93 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 16. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300001135, Drawing/designation GB/T93.; Standard designation
  141. 1300001135 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 16. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300001135, Drawing/designation GB/T93.; Catalogue material code
  142. NB100.03.13 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 17. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355941, Drawing/designation NB100.03.13.; Catalogue drawing reference
  143. 1200355941 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 17. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200355941, Drawing/designation NB100.03.13.; Catalogue material code
  144. ANSI B18.2.1 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 18. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300006071, Drawing/designation ANSI B18.2.1.; Standard designation
  145. 1300006071 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 18. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300006071, Drawing/designation ANSI B18.2.1.; Catalogue material code
  146. GB/T93 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 19. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300001142, Drawing/designation GB/T93.; Standard designation
  147. 1300001142 — S1 , PDF p. 11 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 11, item 19. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300001142, Drawing/designation GB/T93.; Catalogue material code
  148. NB100.04.01 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 1. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356410, Drawing/designation NB100.04.01.; Catalogue drawing reference
  149. 1200356410 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 1. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356410, Drawing/designation NB100.04.01.; Catalogue material code
  150. NB100.04.02 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 2. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356411, Drawing/designation NB100.04.02.; Catalogue drawing reference
  151. 1200356411 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 2. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356411, Drawing/designation NB100.04.02.; Catalogue material code
  152. NB100.04.03.00 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 3. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356436, Drawing/designation NB100.04.03.00.; Catalogue drawing reference
  153. 1200356436 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 3. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356436, Drawing/designation NB100.04.03.00.; Catalogue material code
  154. NB100.04.05 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 4. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356413, Drawing/designation NB100.04.05.; Catalogue drawing reference
  155. 1200356413 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 4. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356413, Drawing/designation NB100.04.05.; Catalogue material code
  156. NB100.04.06 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 5. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356414, Drawing/designation NB100.04.06.; Catalogue drawing reference
  157. 1200356414 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 5. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356414, Drawing/designation NB100.04.06.; Catalogue material code
  158. GB/T3452.1 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 6. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300000363, Drawing/designation GB/T3452.1.; Standard designation
  159. 1300000363 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 6. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300000363, Drawing/designation GB/T3452.1.; Catalogue material code
  160. NB100.04.07 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 7. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356415, Drawing/designation NB100.04.07.; Catalogue drawing reference
  161. 1200356415 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 7. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356415, Drawing/designation NB100.04.07.; Catalogue material code
  162. NB100.04.08 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 8. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356417, Drawing/designation NB100.04.08.; Catalogue drawing reference
  163. 1200356417 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 8. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356417, Drawing/designation NB100.04.08.; Catalogue material code
  164. NB100.04.09 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 9. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356418, Drawing/designation NB100.04.09.; Catalogue drawing reference
  165. 1200356418 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 9. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356418, Drawing/designation NB100.04.09.; Catalogue material code
  166. NB100.04.10 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 10. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356419, Drawing/designation NB100.04.10.; Catalogue drawing reference
  167. 1200356419 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 10. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356419, Drawing/designation NB100.04.10.; Catalogue material code
  168. NB100.04.11 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 11. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356420, Drawing/designation NB100.04.11.; Catalogue drawing reference
  169. 1200356420 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 11. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356420, Drawing/designation NB100.04.11.; Catalogue material code
  170. NB100.04.12 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 12. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356421, Drawing/designation NB100.04.12.; Catalogue drawing reference
  171. 1200356421 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 12. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356421, Drawing/designation NB100.04.12.; Catalogue material code
  172. NB100.04.13 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 13. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356422, Drawing/designation NB100.04.13.; Catalogue drawing reference
  173. 1200356422 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 13. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356422, Drawing/designation NB100.04.13.; Catalogue material code
  174. GB/T3452.1 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 14. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300000200, Drawing/designation GB/T3452.1.; Standard designation
  175. 1300000200 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 14. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300000200, Drawing/designation GB/T3452.1.; Catalogue material code
  176. ANSI B18.3 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 15. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300005595, Drawing/designation ANSI B18.3.; Standard designation
  177. 1300005595 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 15. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300005595, Drawing/designation ANSI B18.3.; Catalogue material code
  178. NB100.04.14 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 16. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356424, Drawing/designation NB100.04.14.; Catalogue drawing reference
  179. 1200356424 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 16. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356424, Drawing/designation NB100.04.14.; Catalogue material code
  180. CCK-1250 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 17. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300018406, Drawing/designation CCK-1250.; Purchased-component designation, not a custom pump drawing
  181. 1300018406 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 17. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300018406, Drawing/designation CCK-1250.; Catalogue material code
  182. NB100.04.15 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 18. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356425, Drawing/designation NB100.04.15.; Catalogue drawing reference
  183. 1200356425 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 18. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356425, Drawing/designation NB100.04.15.; Catalogue material code
  184. NB100.04.16 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 19. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356426, Drawing/designation NB100.04.16.; Catalogue drawing reference
  185. 1200356426 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 19. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356426, Drawing/designation NB100.04.16.; Catalogue material code
  186. NB100.04.17 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 20. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356427, Drawing/designation NB100.04.17.; Catalogue drawing reference
  187. 1200356427 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 20. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356427, Drawing/designation NB100.04.17.; Catalogue material code
  188. NB100.04.04 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 21. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356412, Drawing/designation NB100.04.04.; Catalogue drawing reference
  189. 1200356412 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 21. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356412, Drawing/designation NB100.04.04.; Catalogue material code
  190. NB100.04.18 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 22. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356428, Drawing/designation NB100.04.18.; Catalogue drawing reference
  191. 1200356428 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 22. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356428, Drawing/designation NB100.04.18.; Catalogue material code
  192. NB100.04.19 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 23. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356429, Drawing/designation NB100.04.19.; Catalogue drawing reference
  193. 1200356429 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 23. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356429, Drawing/designation NB100.04.19.; Catalogue material code
  194. NB100.04.21 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 24. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356431, Drawing/designation NB100.04.21.; Catalogue drawing reference
  195. 1200356431 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 24. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356431, Drawing/designation NB100.04.21.; Catalogue material code
  196. NB100.04.20 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 25. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356430, Drawing/designation NB100.04.20.; Catalogue drawing reference
  197. 1200356430 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 25. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356430, Drawing/designation NB100.04.20.; Catalogue material code
  198. ANSI B18.2.1 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 26. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300006047, Drawing/designation ANSI B18.2.1.; Standard designation
  199. 1300006047 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 26. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300006047, Drawing/designation ANSI B18.2.1.; Catalogue material code
  200. GB/T93 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 27. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300001128, Drawing/designation GB/T93.; Standard designation
  201. 1300001128 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 27. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300001128, Drawing/designation GB/T93.; Catalogue material code
  202. GB/T4240 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 28. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1800000497, Drawing/designation GB/T4240.; Standard designation
  203. 1800000497 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 28. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1800000497, Drawing/designation GB/T4240.; Catalogue material code
  204. GB/T3452.1 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 29. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300000346, Drawing/designation GB/T3452.1.; Standard designation
  205. 1300000346 — S1 , PDF p. 13 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 13, item 29. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300000346, Drawing/designation GB/T3452.1.; Catalogue material code
  206. NB1600M.01.01.00HA — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 1. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200079512, Drawing/designation NB1600M.01.01.00HA.; Catalogue drawing reference
  207. 1200079512 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 1. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200079512, Drawing/designation NB1600M.01.01.00HA.; Catalogue material code
  208. NB100.05.11.00 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 2. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357876, Drawing/designation NB100.05.11.00.; Catalogue drawing reference
  209. 1200357876 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 2. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357876, Drawing/designation NB100.05.11.00.; Catalogue material code
  210. NB100.05.10 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 3. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357787, Drawing/designation NB100.05.10.; Catalogue drawing reference
  211. 1200357787 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 3. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357787, Drawing/designation NB100.05.10.; Catalogue material code
  212. NB2200G.05.34.00 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 4. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200009142, Drawing/designation NB2200G.05.34.00.; Catalogue drawing reference
  213. 1200009142 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 4. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200009142, Drawing/designation NB2200G.05.34.00.; Catalogue material code
  214. 243 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 5. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1800000530, Drawing/designation 243.; Consumable adhesive grade, not a pump drawing number
  215. 1800000530 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 5. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1800000530, Drawing/designation 243.; Catalogue material code
  216. NB2200G.05.36 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 6. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200009146, Drawing/designation NB2200G.05.36.; Catalogue drawing reference
  217. 1200009146 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 6. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200009146, Drawing/designation NB2200G.05.36.; Catalogue material code
  218. NB2200G.05.35 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 7. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200009145, Drawing/designation NB2200G.05.35.; Catalogue drawing reference
  219. 1200009145 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 7. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200009145, Drawing/designation NB2200G.05.35.; Catalogue material code
  220. NB2200G.05.37 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 8. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200009147, Drawing/designation NB2200G.05.37.; Catalogue drawing reference
  221. 1200009147 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 8. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200009147, Drawing/designation NB2200G.05.37.; Catalogue material code
  222. NB2200G.05.01.00 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 9. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008989, Drawing/designation NB2200G.05.01.00.; Catalogue drawing reference
  223. 1200008989 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 9. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008989, Drawing/designation NB2200G.05.01.00.; Catalogue material code
  224. NB2200G.05.03 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 10. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200009001, Drawing/designation NB2200G.05.03.; Catalogue drawing reference
  225. 1200009001 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 10. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200009001, Drawing/designation NB2200G.05.03.; Catalogue material code
  226. NB1600M.01.02.00H — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 11. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008774, Drawing/designation NB1600M.01.02.00H.; Catalogue drawing reference
  227. 1200008774 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 11. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008774, Drawing/designation NB1600M.01.02.00H.; Catalogue material code
  228. NB1600M.01.03H — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 12. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008777, Drawing/designation NB1600M.01.03H.; Catalogue drawing reference
  229. 1200008777 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 12. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008777, Drawing/designation NB1600M.01.03H.; Catalogue material code
  230. NB1600M.01.04H — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 13. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008778, Drawing/designation NB1600M.01.04H.; Catalogue drawing reference
  231. 1200008778 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 13. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008778, Drawing/designation NB1600M.01.04H.; Catalogue material code
  232. NB1600M.01.05H — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 14. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008779, Drawing/designation NB1600M.01.05H.; Catalogue drawing reference
  233. 1200008779 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 14. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008779, Drawing/designation NB1600M.01.05H.; Catalogue material code
  234. NB2200G.05.04 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 15. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200009002, Drawing/designation NB2200G.05.04.; Catalogue drawing reference
  235. 1200009002 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 15. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200009002, Drawing/designation NB2200G.05.04.; Catalogue material code
  236. NB1600M.01.06.00HA — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 16. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200079514, Drawing/designation NB1600M.01.06.00HA.; Catalogue drawing reference
  237. 1200079514 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 16. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200079514, Drawing/designation NB1600M.01.06.00HA.; Catalogue material code
  238. NB100.05.14 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 17. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357797, Drawing/designation NB100.05.14.; Catalogue drawing reference
  239. 1200357797 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 17. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357797, Drawing/designation NB100.05.14.; Catalogue material code
  240. NB100.05.15.00 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 18. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200449823, Drawing/designation NB100.05.15.00.; Catalogue drawing reference
  241. 1200449823 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 18. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200449823, Drawing/designation NB100.05.15.00.; Catalogue material code
  242. NB100.05.39 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 19. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357873, Drawing/designation NB100.05.39.; Catalogue drawing reference
  243. 1200357873 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 19. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357873, Drawing/designation NB100.05.39.; Catalogue material code
  244. NB100.05.16 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 20. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357799, Drawing/designation NB100.05.16.; Catalogue drawing reference
  245. 1200357799 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 20. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357799, Drawing/designation NB100.05.16.; Catalogue material code
  246. NB100.05.17.00 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 21. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357877, Drawing/designation NB100.05.17.00.; Catalogue drawing reference
  247. 1200357877 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 21. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357877, Drawing/designation NB100.05.17.00.; Catalogue material code
  248. NB100.05.20 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 22. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357812, Drawing/designation NB100.05.20.; Catalogue drawing reference
  249. 1200357812 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 22. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357812, Drawing/designation NB100.05.20.; Catalogue material code
  250. GB/T3452.1 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 23. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300045965, Drawing/designation GB/T3452.1.; Standard designation
  251. 1300045965 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 23. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300045965, Drawing/designation GB/T3452.1.; Catalogue material code
  252. NB100.05.18 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 24. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357802, Drawing/designation NB100.05.18.; Catalogue drawing reference
  253. 1200357802 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 24. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357802, Drawing/designation NB100.05.18.; Catalogue material code
  254. NB100.05.19.00 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 25. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200360294, Drawing/designation NB100.05.19.00.; Catalogue drawing reference
  255. 1200360294 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 25. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200360294, Drawing/designation NB100.05.19.00.; Catalogue material code
  256. NB1600M.01.08.00H — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 26. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008787, Drawing/designation NB1600M.01.08.00H.; Catalogue drawing reference
  257. 1200008787 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 26. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008787, Drawing/designation NB1600M.01.08.00H.; Catalogue material code
  258. NB100.05.22.00 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 27. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357885, Drawing/designation NB100.05.22.00.; Catalogue drawing reference
  259. 1200357885 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 27. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357885, Drawing/designation NB100.05.22.00.; Catalogue material code
  260. NB100.05.23 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 28. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357826, Drawing/designation NB100.05.23.; Catalogue drawing reference
  261. 1200357826 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 28. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357826, Drawing/designation NB100.05.23.; Catalogue material code
  262. NB100.05.31 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 29. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357864, Drawing/designation NB100.05.31.; Catalogue drawing reference
  263. 1200357864 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 29. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357864, Drawing/designation NB100.05.31.; Catalogue material code
  264. NB1600M.01.09.00H — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 30. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008788, Drawing/designation NB1600M.01.09.00H.; Catalogue drawing reference
  265. 1200008788 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 30. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008788, Drawing/designation NB1600M.01.09.00H.; Catalogue material code
  266. NB100.02.19.00 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 31. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356502, Drawing/designation NB100.02.19.00.; Catalogue drawing reference
  267. 1200356502 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 31. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200356502, Drawing/designation NB100.02.19.00.; Catalogue material code
  268. NB2200G.05.28 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 32. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200009112, Drawing/designation NB2200G.05.28.; Catalogue drawing reference
  269. 1200009112 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 32. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200009112, Drawing/designation NB2200G.05.28.; Catalogue material code
  270. ASME B18.2.1 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 33. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300006081, Drawing/designation ASME B18.2.1.; Standard designation
  271. 1300006081 — S1 , PDF p. 15 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 15, item 33. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300006081, Drawing/designation ASME B18.2.1.; Catalogue material code
  272. NB1600M.01.10.00H — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 35. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008799, Drawing/designation NB1600M.01.10.00H.; Catalogue drawing reference
  273. 1200008799 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 35. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008799, Drawing/designation NB1600M.01.10.00H.; Catalogue material code
  274. NB100.05.26.00 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 36. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357901, Drawing/designation NB100.05.26.00.; Catalogue drawing reference
  275. 1200357901 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 36. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357901, Drawing/designation NB100.05.26.00.; Catalogue material code
  276. ASME B18.2.2 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 37. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300005722, Drawing/designation ASME B18.2.2.; Standard designation
  277. 1300005722 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 37. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300005722, Drawing/designation ASME B18.2.2.; Catalogue material code
  278. ASME B18.2.1 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 38. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300005978, Drawing/designation ASME B18.2.1.; Standard designation
  279. 1300005978 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 38. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300005978, Drawing/designation ASME B18.2.1.; Catalogue material code
  280. GB/T3452.1 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 39. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300000262, Drawing/designation GB/T3452.1.; Standard designation
  281. 1300000262 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 39. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300000262, Drawing/designation GB/T3452.1.; Catalogue material code
  282. NB100.05.33 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 40. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357867, Drawing/designation NB100.05.33.; Catalogue drawing reference
  283. 1200357867 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 40. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357867, Drawing/designation NB100.05.33.; Catalogue material code
  284. NB100.05.37 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 41. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357871, Drawing/designation NB100.05.37.; Catalogue drawing reference
  285. 1200357871 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 41. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357871, Drawing/designation NB100.05.37.; Catalogue material code
  286. NB100.05.34 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 42. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357868, Drawing/designation NB100.05.34.; Catalogue drawing reference
  287. 1200357868 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 42. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357868, Drawing/designation NB100.05.34.; Catalogue material code
  288. NB100.05.35 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 43. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357869, Drawing/designation NB100.05.35.; Catalogue drawing reference
  289. 1200357869 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 43. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357869, Drawing/designation NB100.05.35.; Catalogue material code
  290. NB100.05.32.00 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 44. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357902, Drawing/designation NB100.05.32.00.; Catalogue drawing reference
  291. 1200357902 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 44. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357902, Drawing/designation NB100.05.32.00.; Catalogue material code
  292. NB1600M.01.01.01HA — S1 , PDF p. 17 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 17, item 1. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200079513, Drawing/designation NB1600M.01.01.01HA.; Catalogue drawing reference
  293. 1200079513 — S1 , PDF p. 17 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 17, item 1. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200079513, Drawing/designation NB1600M.01.01.01HA.; Catalogue material code
  294. NB2200G.05.38.03 — S1 , PDF p. 17 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 17, item 2. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200009151, Drawing/designation NB2200G.05.38.03.; Catalogue drawing reference
  295. 1200009151 — S1 , PDF p. 17 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 17, item 2. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200009151, Drawing/designation NB2200G.05.38.03.; Catalogue material code
  296. NB2200G.05.38.02 — S1 , PDF p. 17 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 17, item 3. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200009150, Drawing/designation NB2200G.05.38.02.; Catalogue drawing reference
  297. 1200009150 — S1 , PDF p. 17 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 17, item 3. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200009150, Drawing/designation NB2200G.05.38.02.; Catalogue material code
  298. 277 — S1 , PDF p. 17 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 17, item 4. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Drawing/designation 277.; Consumable adhesive grade, not a pump drawing number
  299. NB1600M.01.01.02H — S1 , PDF p. 17 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 17, item 5. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008772, Drawing/designation NB1600M.01.01.02H.; Catalogue drawing reference
  300. 1200008772 — S1 , PDF p. 17 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 17, item 5. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008772, Drawing/designation NB1600M.01.01.02H.; Catalogue material code
  301. NB1600M.01.01.03H — S1 , PDF p. 17 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 17, item 6. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008773, Drawing/designation NB1600M.01.01.03H.; Catalogue drawing reference
  302. 1200008773 — S1 , PDF p. 17 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 17, item 6. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008773, Drawing/designation NB1600M.01.01.03H.; Catalogue material code
  303. NB1600M.01.06.01HA — S1 , PDF p. 18 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 18, item 1. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200079444, Drawing/designation NB1600M.01.06.01HA.; Catalogue drawing reference
  304. 1200079444 — S1 , PDF p. 18 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 18, item 1. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200079444, Drawing/designation NB1600M.01.06.01HA.; Catalogue material code
  305. GH3161-05.01.02 — S1 , PDF p. 18 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 18, item 2. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200004118, Drawing/designation GH3161-05.01.02.; Catalogue drawing reference
  306. 1200004118 — S1 , PDF p. 18 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 18, item 2. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200004118, Drawing/designation GH3161-05.01.02.; Catalogue material code
  307. GH3161-05.01.03 — S1 , PDF p. 18 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 18, item 3. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200004120, Drawing/designation GH3161-05.01.03.; Catalogue drawing reference
  308. 1200004120 — S1 , PDF p. 18 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 18, item 3. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200004120, Drawing/designation GH3161-05.01.03.; Catalogue material code
  309. GH3161-05.01.05 — S1 , PDF p. 18 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 18, item 4. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200004124, Drawing/designation GH3161-05.01.05.; Catalogue drawing reference
  310. 1200004124 — S1 , PDF p. 18 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 18, item 4. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200004124, Drawing/designation GH3161-05.01.05.; Catalogue material code
  311. GH3161-05.01.06 — S1 , PDF p. 18 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 18, item 5. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200004126, Drawing/designation GH3161-05.01.06.; Catalogue drawing reference
  312. 1200004126 — S1 , PDF p. 18 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 18, item 5. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200004126, Drawing/designation GH3161-05.01.06.; Catalogue material code
  313. 277 — S1 , PDF p. 18 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 18, item 6. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Drawing/designation 277.; Consumable adhesive grade, not a pump drawing number
  314. NB1600M.01.06.02H — S1 , PDF p. 18 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 18, item 7. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008782, Drawing/designation NB1600M.01.06.02H.; Catalogue drawing reference
  315. 1200008782 — S1 , PDF p. 18 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 18, item 7. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008782, Drawing/designation NB1600M.01.06.02H.; Catalogue material code
  316. NB1600M.01.06.03H — S1 , PDF p. 18 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 18, item 8. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008783, Drawing/designation NB1600M.01.06.03H.; Catalogue drawing reference
  317. 1200008783 — S1 , PDF p. 18 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 18, item 8. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008783, Drawing/designation NB1600M.01.06.03H.; Catalogue material code
  318. NB1600M.01.06.04H — S1 , PDF p. 18 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 18, item 9. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008784, Drawing/designation NB1600M.01.06.04H.; Catalogue drawing reference
  319. 1200008784 — S1 , PDF p. 18 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 18, item 9. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008784, Drawing/designation NB1600M.01.06.04H.; Catalogue material code
  320. NB1600M.01.06.05H — S1 , PDF p. 18 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 18, item 10. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008785, Drawing/designation NB1600M.01.06.05H.; Catalogue drawing reference
  321. 1200008785 — S1 , PDF p. 18 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 18, item 10. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200008785, Drawing/designation NB1600M.01.06.05H.; Catalogue material code
  322. NB100.05.11.01 — S1 , PDF p. 19 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 19, item 1. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357788, Drawing/designation NB100.05.11.01.; Catalogue drawing reference
  323. 1200357788 — S1 , PDF p. 19 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 19, item 1. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357788, Drawing/designation NB100.05.11.01.; Catalogue material code
  324. NB100.05.11.02 — S1 , PDF p. 19 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 19, item 2. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357789, Drawing/designation NB100.05.11.02.; Catalogue drawing reference
  325. 1200357789 — S1 , PDF p. 19 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 19, item 2. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357789, Drawing/designation NB100.05.11.02.; Catalogue material code
  326. NB100.05.11.03 — S1 , PDF p. 19 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 19, item 3. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357790, Drawing/designation NB100.05.11.03.; Catalogue drawing reference
  327. 1200357790 — S1 , PDF p. 19 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 19, item 3. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357790, Drawing/designation NB100.05.11.03.; Catalogue material code
  328. NB100.05.11.04 — S1 , PDF p. 19 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 19, item 4. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357791, Drawing/designation NB100.05.11.04.; Catalogue drawing reference
  329. 1200357791 — S1 , PDF p. 19 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 19, item 4. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357791, Drawing/designation NB100.05.11.04.; Catalogue material code
  330. GB/T308 — S1 , PDF p. 19 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 19, item 5. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300002340, Drawing/designation GB/T308.; Standard designation
  331. 1300002340 — S1 , PDF p. 19 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 19, item 5. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300002340, Drawing/designation GB/T308.; Catalogue material code
  332. NB100.05.11.05 — S1 , PDF p. 19 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 19, item 6. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357792, Drawing/designation NB100.05.11.05.; Catalogue drawing reference
  333. 1200357792 — S1 , PDF p. 19 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 19, item 6. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357792, Drawing/designation NB100.05.11.05.; Catalogue material code
  334. NB100.05.11.06 — S1 , PDF p. 19 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 19, item 7. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357793, Drawing/designation NB100.05.11.06.; Catalogue drawing reference
  335. 1200357793 — S1 , PDF p. 19 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 19, item 7. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357793, Drawing/designation NB100.05.11.06.; Catalogue material code
  336. NB100.06.01.00 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 1. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357706, Drawing/designation NB100.06.01.00.; Catalogue drawing reference
  337. 1200357706 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 1. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357706, Drawing/designation NB100.06.01.00.; Catalogue material code
  338. NB100.06.02 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 2. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357709, Drawing/designation NB100.06.02.; Catalogue drawing reference
  339. 1200357709 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 2. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357709, Drawing/designation NB100.06.02.; Catalogue material code
  340. ASME B18.3 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 3. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300005603, Drawing/designation ASME B18.3.; Standard designation
  341. 1300005603 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 3. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300005603, Drawing/designation ASME B18.3.; Catalogue material code
  342. NB100.06.03 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 4. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357710, Drawing/designation NB100.06.03.; Catalogue drawing reference
  343. 1200357710 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 4. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357710, Drawing/designation NB100.06.03.; Catalogue material code
  344. NB100.06.04 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 5. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357711, Drawing/designation NB100.06.04.; Catalogue drawing reference
  345. 1200357711 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 5. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357711, Drawing/designation NB100.06.04.; Catalogue material code
  346. NB100.06.05 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 6. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357712, Drawing/designation NB100.06.05.; Catalogue drawing reference
  347. 1200357712 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 6. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357712, Drawing/designation NB100.06.05.; Catalogue material code
  348. 1700027019 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 7. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1700027019.; Catalogue material code
  349. NB100.06.06 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 8. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357713, Drawing/designation NB100.06.06.; Catalogue drawing reference
  350. 1200357713 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 8. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357713, Drawing/designation NB100.06.06.; Catalogue material code
  351. NB100.06.07 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 9. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357714, Drawing/designation NB100.06.07.; Catalogue drawing reference
  352. 1200357714 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 9. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357714, Drawing/designation NB100.06.07.; Catalogue material code
  353. NB100.06.08 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 10. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357715, Drawing/designation NB100.06.08.; Catalogue drawing reference
  354. 1200357715 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 10. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357715, Drawing/designation NB100.06.08.; Catalogue material code
  355. 1700027010 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 11. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1700027010.; Catalogue material code
  356. 1700027009 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 12. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1700027009.; Catalogue material code
  357. 1700026999 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 13. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1700026999.; Catalogue material code
  358. 1700026997 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 14. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1700026997.; Catalogue material code
  359. 1700026990 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 15. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1700026990.; Catalogue material code
  360. 1700026985 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 16. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1700026985.; Catalogue material code
  361. 1700026975 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 17. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1700026975.; Catalogue material code
  362. NB100.06.09 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 18. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357716, Drawing/designation NB100.06.09.; Catalogue drawing reference
  363. 1200357716 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 18. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357716, Drawing/designation NB100.06.09.; Catalogue material code
  364. 1700026992 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 19. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1700026992.; Catalogue material code
  365. 1700026967 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 20. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1700026967.; Catalogue material code
  366. 1700026966 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 21. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1700026966.; Catalogue material code
  367. NB100.06.10 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 22. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357717, Drawing/designation NB100.06.10.; Catalogue drawing reference
  368. 1200357717 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 22. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357717, Drawing/designation NB100.06.10.; Catalogue material code
  369. NB100.06.11 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 23. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357718, Drawing/designation NB100.06.11.; Catalogue drawing reference
  370. 1200357718 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 23. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357718, Drawing/designation NB100.06.11.; Catalogue material code
  371. ASME B18.2.1 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 24. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300007139, Drawing/designation ASME B18.2.1.; Standard designation
  372. 1300007139 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 24. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300007139, Drawing/designation ASME B18.2.1.; Catalogue material code
  373. NB100.06.12 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 25. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357719, Drawing/designation NB100.06.12.; Catalogue drawing reference
  374. 1200357719 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 25. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357719, Drawing/designation NB100.06.12.; Catalogue material code
  375. 1700026998 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 26. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1700026998.; Catalogue material code
  376. 1700027020 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 27. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1700027020.; Catalogue material code
  377. NB100.06.13 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 28. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357720, Drawing/designation NB100.06.13.; Catalogue drawing reference
  378. 1200357720 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 28. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357720, Drawing/designation NB100.06.13.; Catalogue material code
  379. 1700026996 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 29. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1700026996.; Catalogue material code
  380. 1700027017 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 30. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1700027017.; Catalogue material code
  381. 1700027018 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 31. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1700027018.; Catalogue material code
  382. 1700027016 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 32. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1700027016.; Catalogue material code
  383. 1700027015 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 33. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1700027015.; Catalogue material code
  384. NB100.06.14 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 34. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357721, Drawing/designation NB100.06.14.; Catalogue drawing reference
  385. 1200357721 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 34. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357721, Drawing/designation NB100.06.14.; Catalogue material code
  386. NB100.06.15 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 35. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357722, Drawing/designation NB100.06.15.; Catalogue drawing reference
  387. 1200357722 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 35. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357722, Drawing/designation NB100.06.15.; Catalogue material code
  388. NB100.06.16.00 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 36. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357723, Drawing/designation NB100.06.16.00.; Catalogue drawing reference
  389. 1200357723 — S1 , PDF p. 22 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 22, item 36. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357723, Drawing/designation NB100.06.16.00.; Catalogue material code
  390. NB100.06.18 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 38. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357734, Drawing/designation NB100.06.18.; Catalogue drawing reference
  391. 1200357734 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 38. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357734, Drawing/designation NB100.06.18.; Catalogue material code
  392. GB/T93 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 39. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300001180, Drawing/designation GB/T93.; Standard designation
  393. 1300001180 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 39. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300001180, Drawing/designation GB/T93.; Catalogue material code
  394. GB/T93 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 40. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300001178, Drawing/designation GB/T93.; Standard designation
  395. 1300001178 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 40. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300001178, Drawing/designation GB/T93.; Catalogue material code
  396. 1300000858 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 41. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300000858.; Catalogue material code
  397. 1300007486 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 42. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300007486.; Catalogue material code
  398. NB100.06.19 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 43. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357735, Drawing/designation NB100.06.19.; Catalogue drawing reference
  399. 1200357735 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 43. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357735, Drawing/designation NB100.06.19.; Catalogue material code
  400. NB100.06.20.00 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 44. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357736, Drawing/designation NB100.06.20.00.; Catalogue drawing reference
  401. 1200357736 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 44. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357736, Drawing/designation NB100.06.20.00.; Catalogue material code
  402. NB100.06.21 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 45. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357740, Drawing/designation NB100.06.21.; Catalogue drawing reference
  403. 1200357740 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 45. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357740, Drawing/designation NB100.06.21.; Catalogue material code
  404. NB100.06.22 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 46. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357741, Drawing/designation NB100.06.22.; Catalogue drawing reference
  405. 1200357741 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 46. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357741, Drawing/designation NB100.06.22.; Catalogue material code
  406. NB100.06.23 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 47. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357742, Drawing/designation NB100.06.23.; Catalogue drawing reference
  407. 1200357742 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 47. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357742, Drawing/designation NB100.06.23.; Catalogue material code
  408. 1300019540 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 48. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300019540.; Catalogue material code
  409. 1300025915 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 49. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300025915.; Catalogue material code
  410. 1300092665 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 50. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300092665.; Catalogue material code
  411. 1600000976 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 51. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1600000976.; Catalogue material code
  412. 1JH-16-27 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 52. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300025930, Drawing/designation 1JH-16-27.; Purchased-component designation, not a custom pump drawing
  413. 1300025930 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 52. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300025930, Drawing/designation 1JH-16-27.; Catalogue material code
  414. 1300001032 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 53. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300001032.; Catalogue material code
  415. NB100.01.05 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 54. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358889, Drawing/designation NB100.01.05.; Catalogue drawing reference
  416. 1200358889 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 54. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200358889, Drawing/designation NB100.01.05.; Catalogue material code
  417. 1300009209 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 55. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300009209.; Catalogue material code
  418. NB100.06.24 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 56. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357743, Drawing/designation NB100.06.24.; Catalogue drawing reference
  419. 1200357743 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 56. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357743, Drawing/designation NB100.06.24.; Catalogue material code
  420. NB100.06.25 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 57. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357744, Drawing/designation NB100.06.25.; Catalogue drawing reference
  421. 1200357744 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 57. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357744, Drawing/designation NB100.06.25.; Catalogue material code
  422. GB/T3452.1 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 34. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300045964, Drawing/designation GB/T3452.1.; Standard designation
  423. 1300045964 — S1 , PDF p. 16 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 16, item 34. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1300045964, Drawing/designation GB/T3452.1.; Catalogue material code
  424. NB100.05.11.07 — S1 , PDF p. 20 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 20, item 8. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357794, Drawing/designation NB100.05.11.07.; Catalogue drawing reference
  425. 1200357794 — S1 , PDF p. 20 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 20, item 8. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357794, Drawing/designation NB100.05.11.07.; Catalogue material code
  426. NB100.06.17.00 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 37. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357729, Drawing/designation NB100.06.17.00.; Catalogue drawing reference
  427. 1200357729 — S1 , PDF p. 23 — HHF-1600HL; NB1600M-TC; NB1600M.00H; December 2015 English catalogue; source PDF page 23, item 37. Match this exact configuration and drawing revision; shared model naming is not interchangeability evidence. Source-row association: Material code 1200357729, Drawing/designation NB100.06.17.00.; Catalogue material code
  428. NB1600M.00H — S1 , PDF p. 3 — HHF-1600HL; NB1600M-TC, December 2015 English catalogue. The assembly drawing heading is a document reference, not evidence that different catalogue versions interchange.; Catalogue general-assembly drawing heading

Request a Quotation

Send the part number, quantity and pump model for a quotation.

WhatsApp parts inquiryEmail parts list

Related model guides

Browse all Company News and model guides

WhatsApp
