Honghua NB005 Quintuple Pump Spare Parts

Published by Pratt Oil ·

Pratt OilParts identification

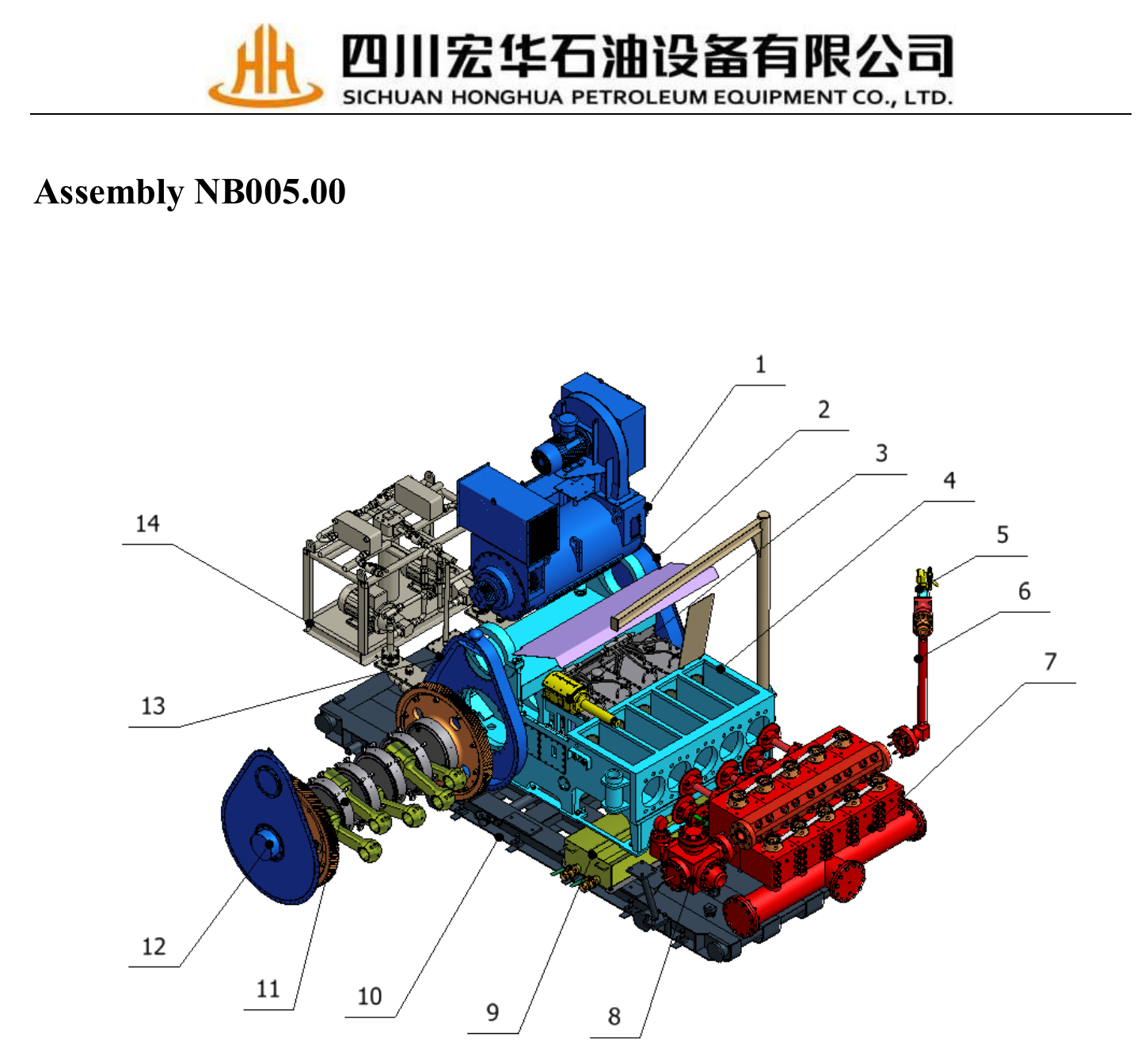

Honghua NB005 quintuple pump exploded assembly illustration with numbered component callouts

The Honghua NB005 Quintuple Pump list identifies NB005.06.00 as a fluid-end assembly. Keep that assembly reference separate from individual piston, liner and crosshead components when describing the items required. For a quotation, send the part or drawing number, quantity, pump model and nameplate photo.

Parts List

Download parts list (CSV)

416 parts

P/PPart / Drawing No.NamePart / Drawing No.Name
1NB001.03.00Pinion shaft assemblyANSI B18.3Screw
2NB005.28.00Right guardNB005.06.39Clamp plate
3NB001.04.00Crosshead componentNB005.06.02.04Stud
4NB005.01.00Frame assemblyNB005.06.01Suction hydraulic cylinder
5HSV51-52-F-00-001ASpring safety valveNB005.06.02.04Nut
6NB004.11.00Safety valve seatNB005.06.15Lengthened nut
7NB005.06.00Fluid end assemblyNb005.06.18Gasket
8NB004.09.00Discharge five-way block assemblyNB004.06.15Liner locking ring
9NB005.08.00Spray system assemblyNb005.06.06Liner flange
10NB005.07.00Skid assemblyNB005.06.04Stud
11NB004.02.00Crankshaft assemblyNB005.06.16Liner sealing ring Φ133 (4")
12NB004.12.00Guard coverNB005.06.42Liner sealing ring Φ146 (4 ½")
13NB005.29.00Left guardNB004.06.16Liner sealing ring Φ160 (5")
14NB005.05.00Lubrication system assemblyNB005.06.24Liner sealing ring φ183 (6")
15HBZ013.32Rear cover plateNB005.06.05Wearable disc
16HBZ013.33GasketNb005.06.02.03Nut
17GB/T118Cylindrical pin with internal thread: 16×80NB004.06.02.05Gasket
18NB001.37Bolt M36*100NB005.06.02.07Stud
19NB001.01.07Cover, motor mounting baseGB/T 120.2Cylindrical pin with internal thread
20NB001.01.08GasketNB2200G.06.1690° elbow
21NB001.01.09GasketNB800M.05.17.00Valve assembly 6#
22GB/T5783Bolt M12×50NB800M.05.16Valve spring
23GB/T 118-2000Cylindrical pin with internal thread: φ16x60NB100.05.30Bolt
24GB/T5783Bolt M16×60NB800G.05.14Baffle
25GB/T848-2002Flat washer φ16NB100.05.27Valve rod guider
26HBZ013.20Side cover plate 2NB800M.05.13.00Spring guide
27HBZ013.48.00Side cover plate 1 (right)NB800G.05.10Valve cap sealing ring
28GB/T5783Bolt M12×35NB005.06.03Valve cap 6#
29NB800G.19.00Drainage coverGB/T3452.1O-ring 25×3.55-G-S (4")
30NB800G.20Sealing washerGB/T 3452.1O-ring 38.7×3.55 (4 ½"/5"/6")
31NB005.01.06.00Crosshead cover plate assembly 4NB005.06.19.01.0Piston (4")
32NB005.01.03.00Crosshead cover plate assembly 1NB005.06.19.02.00Piston (4 ½")
33NB005.01.04.00Crosshead cover plate assembly 2NB005.06.19.03.00Piston (5")
34NB005.01.05.00Crosshead cover plate assembly 3NB005.06.19.04.00Piston (6")
35NB005.36.01.00Liner chamber cover plateNB500M.05.19.00Piston nut 4"
36HBZ013.17Side cover gasket 1NB800M.05.18.00Piston nut 4 ½"/5"/6"
37HBZ013.19Side cover gasket 2ASME B18.2.1Hexagon bolt 1"-8×4
38HBZ013.52.00Side cover plate 1 (left)NB100.05.37Suction inlet blind plate12''
39NB005.20Side cover plate 2 (left)NB100.05.34Suction flange (II)
40GB/T5783Bolt M12×25GB/T3452.1O-ring 345×7
41GB/T848-2002Flat washer φ12ASME B18.2.2Hexagon nut: 1"-8
42GB/T5783Bolt M12×25NB004.06.18.00Suction pipeline
43GB/T848-2002Flat washer φ12NB004.06.17Suction flange (I)
44NB001.02.02Circlip for shaftNB100.05.35Pipe plug: NPT1 1/2
45NB001.02.09.00Cylindrical roller bearingNB002.09.03Gasket, pressure sensor
46NB001.02.01.00Right-hand bull gear assemblyJB/T 1000Plug screw M20×1.5
47NB001.02.06Clamp plateNB005.12.00Floating supporting assembly, suction pipe
48GB/T32Bolt M10×40NB100.05.32.00Suction pulsation dampener
49GB/T4240-1993Stainless steel wire φ1.6×1000ASME B18.2.1Hexagon bolt: 3/8’’
50NB001.02.05CrankshaftNB001.06.26.02.00Mud guard assembly
51NB004.02.01.00Connecting rod componentGB/T549Chainlet
52GB/T5782Bolt M20×40NB004.06.11.01Clamp
53GB/T77Hexagon socket set screw M12×25ASME B18.2.1Hexagon bolt 1’’
54DTF6177.1Hexagon flange check nut Spiralock M12GB/T93Spring washer 27
55NB001.02.08WasherASME B18.2.1Hexagon bolt: 1/4’’-20×1/2’’
56NB004.02.02Rotary crossover subGB/T93Spring washer 8
57GB/T5783Bolt M12×30NB004.06.12.04Felt
58GB/T3452.1O-ring 30×3.55ASME B18.3Screw 5/16’’-18×1 5/8’’
59GB/T5782Bolt M20×170NB004.06.12.02Positioning screw
60GB/T97Washer 20NB004.06.12.01.00Liner water retaining barrel assembly
61NB001.02.04.00Left-hand bull gear assemblyNB004.06.12.03.00Liner water receiving barrel assembly
62JB/T7934-1999Expansion sleeve Z5-215.9×281GB/T93Spring washer 10
63NB001.02.10.00Cylindrical roller bearingASME B18.2.1Hexagon bolt: 5/16’’-18×5/8’’
64NB001.02.03.02Connecting rod boltASME B18.2.1Hexagon bolt: 1/4’’-20×1/2’’
65GB/T4240-1993Stainless steel wire φ1.6GB/T93Spring washer 8
66NB001.02.03.04Positioning pin, connecting rod bodyNB004.06.13.02Felt
67NB001.02.03.05Connecting rod bodyASME B18.3Screw 5/16’’-18×1 5/8’’
68GB/T70.1Socket cap screw M12×60NB004.06.12.02Positioning screw
69GB/T93Spring washer 12NB004.06.13.01.00Liner water retaining barrel assembly
70HBZ013.02.03.08Positioning screw, connecting rod copper sleeveNB004.06.13.03.00Liner water receiving barrel assembly
71HBZ013.02.03.06Connecting rod copper sleeveGB/T93Spring washer 10
72NB004.02.01.01Connecting rod bearing shellASME B18.2.1Hexagon bolt: 5/16’’-18×5/8’’
73NB001.02.03.01Positioning pin, connecting rod bearing shellGB/T97Flat washer φ8
74NB001.02.01.01Right-hand bull gearGB/T93Spring washer φ8
75NB001.02.01.02Right hubGB/T5782Bolt M8
76GB/T879.1-2000Elastic cylindrical pin 20×55NB005.08.01.00Water cooler bracket assembly
77NB800G.02.11ABolt M30×10020491-36-14T/20411-36-14T×1S-14×2500Hose assembly
78NB800G.02.12.00Locking nut M30-6HGLC3-8Water cooler
79NB001.02.04.01Left-hand bull gearGB/T6170Nut
80NB001.02.04.02Left hubGB/T93Spring washer
81GB/T879.1-2000Elastic cylindrical pin 20×55GB/T97Flat washer
82NB800G.02.11ABolt M30×1005B-32-16HSSnap on joint
83NB800G.02.12.00Locking nut M30-6H1DG9-36-16OGSnap on elbow
84NB001.03.01Left-hand pinionGB/T5782Bolt M14×60
85HTB34Motor20411-45-20T/20411-45-20TX1S-20X1500Hose assembly
86NB001.03.02Right-hand pinionNB004.08.03Gasket
87GB/T70.1-2000Screw M12×60BZ212.09.01Inlet flange
88NB001.04.10LinerGB/T97Flat washer φ16
89NB001.04.05Taper linerGB/T93Spring washer φ16
90NB001.04.04Upper slideway, crossheadGB/T5782Bolt M16×35
91335×3.55O-ring1CN9-45-20Snap on joint
92NB005.04.13Mud guard5N-24-20Snap on joint
93NB005.04.12Clamp plate, mud guardNB004.08.05Gasket
94M12×55BoltGB/T93Spring washer
95NB001.04.08Intermediate tie rodGB/T5783Bolt
96GB/T3452.1-2005O-ring 160×3.55-G-SGB/T97Flat washer
97NB800M.04.22Two-lip sealGB/T6170Nut
98GB/T3452.1-2005O-ring 103×5.3-G-SNB2200G.08.01Right-angle joint
99NB800G.04.07Sealing washerNPT1"-1.6Mpa; one piece typeBall valve
100GB/T5780-1986Bolt M10×451CN-36-16Joint
101GB/T93-1987Washer 1020491-36-14T/20411-36-14T×1S-14×2500Hose assembly
102NB800G.04.08End coverGB/T5783Bolt M16×50
103CCK-1000Dust sealNB005.08.02.00Spray pump supporting plate assembly
104NB800G.04.11Baffle ringGB/6170-2000Nut M16
105NB800G.04.05Oil seal ringHBZ013.08.01.00Water tank assembly
106NB800G.04.06Packing boxNB005.08.04.00Spray pipe assembly
107GB/T32.1-1988Bolt M20×605N-24-20Hose assembly
108GB/T4240-1993Stainless steel wire φ1.6Q11F-16-NPT3"Ball valve
109NB001.04.01(03)Crosshead assembly9C-36Plug with internal thread: M36×2
110NB005.04.15Rubber linerGB/T14976-2002Finely-drawn stainless steel tube φ25×2-L319
111NB001.04.09Lower slideway, crossheadAD-36-26-36RNSnap on joint
112ZT085.23.05Plug NPT3/8GB/T14976-2002Finely-drawn stainless steel tube φ25×2-L220
113NB001.04.07Fastening screw1D9-36RN90° elbow joint M36×2
114DTF6177Sprialock nut M20×2NB005.07.01.00Skid welding assembly
115NB001.04.06Conical head fastening screwNB005.07.06Rubber gasket 3
116NB001.04.02Crosshead pinNB005.07.05Cover plate
117GB/T5783Bolt M12×25M12×25Socket cap screw
118GB/T97.1Washer 12NB005.07.09.00Oil return rectangular pipe assembly
119GB/T93Washer 12JGD-1/DN80Rubber joint
120WU-800×500G-JOil suction filterM16×50Bolt
121EF3-40Air filter16Spring washer
122RH11136-010000050Cover plate, oil suction pipe16Flat washer
123NB005.07.01.22Seat ring, oil suction portNB005.42.27.004 1/2", 5" and 6" pistons installation tool
124JB/T7339Flexible joint DN65NB005.07.03Rubber gasket 1
125GB/T 5781Bolt M16×30NB005.07.10Side cover plate
126R45/125-FL-Z-W-SAE2 1/2-R-SOGear pumpM12×25Bolt
127NEX284TC-6-15HP (600V/60Hz, NEMA certification)EXP motor12Flat washer
128RH11136-020000000Bracket12Flat washer
129HEX S522-70-00/G1 1/2Panel coolerGH3161-01.01.46(G)Pipe plug
130WUI-A1000×80FP (model of filter element for this filter: TZX2/1000x80W)Filter (with bypass)M8×35Bolt
131Q11F-16P-DN40Ball valve DN40HRY5-600V 60HZ/6KW,dIIBT4Heater
132AF-E40/1.2Safety valve DN40M6×25Bolt
133GB/T5780Bolt M16×65YWZ-160TLiquidometer
134GB/T6170Nut M16NB005.42.28.004" piston installation tool
135GB/T97.1Washer 16NB005.07.18Cushion block
136GB/T93Washer 16NB005.07.16Rubber gasket
13738I-1050 (M52×2 24° cone seal)Hose assemblyNB005.07.15Barbed flange joint
138EF5-65Air filterΦ63-Φ73Clamp
139140357-010000000Square cover plate assemblyID 2 1/2", L=150Steel wire hose
1407MC7511-1CA12-0CB1-Z T21 E01 Y44:250mmEXP temperature transmitterNB005.07.14.00Barbed elbow assembly
141JB/T6142.1Hose assembly 25Ⅰ-3200, thread M36×2NB005.07.17Rubber gasket
142JB/T6142.2Hose assembly 13Ⅰ-3200, thread M22×1.5M30x120Bolt
143JB/T6142.2Hose assembly 19Ⅰ-1500, thread M30×2M30Nut
144JB/T6142.3Hose assembly 13Ⅰ-1600, thread M22×1.5M24Nut
1451CT-30-12SP/RN-SSStraight snap on joint M30×2-R3/4×14M24x70Bolt
1461/4PZ5900B3B3 type nozzle R1/4NB005.61.02.00Supporting seat
147GB/T14976Finely-drawn steel tube φ14×2 L=150NB005.61.01Connecting plate
1486C-22-LN/RNSSStraight bulkhead joint M22×1.51”Nut
1496C-22-RNSSStraight pipe joint M22×1.51"-8×2 3/8"Bolt
1501CH-36-33SSStraight joint M36×2-M33×2NB005.61.04.00Spherical support
151JB/T982Combination washer 33NB005.61.03Steel plate
152HFH2-P1-3-P-3000Pressure test hoseHGHT04.07.01Welded female union 2”-1502-H
153HFH2-P1-3-P-2000Pressure test hoseNB004.09.05Welding neck flange Ⅱ5 1/8×69
154JB/T6142.1Hose assembly 10Ⅰ-240, thread M22×1.5ANSI/API Spec 6A-2010Gasket ring BX169
155JB/T6142.1Hose assembly 10Ⅰ-470, thread M22×1.5NB2200G.25.05.00Filter screen
1561CN-22-08LASSCrossover sub NPT1/2-M22×1.5NB004.09.03Holder of pressure gauge
1571CN-22-08SSSnap on jointANSI/API Spec 6A-2010Gasket ring BX152
1581CH-22SSStraight snap on joint M22×1.5-M22×1.5NB1600M.07.02HStud 3/4-12UN-2A×120
159JB/T982Combination washer 22NB1600M.07.03HNut 3/4-12UN-2B
160JB/T982Combination washer 42YK-150Shockproof pressure gauge YK-150F; 0-80MPA
1611CH-36-42SSStraight joint M36×2-M42×2NB004.09.02Blind flange
162JB/ZQ4444Plug screw G1/4AANSI/API Spec 6A-2010Gasket ring BX155
163YQFN-60ZShockproof pressure gauge 0-1.6MPaNB004.09.01Discharge five-way block
164JB/T982Combination washer 14NB1600M.07.04HStud 11/8-8UN(12UNF)×115
1655CB-14-14GDKSSPressure gauge joint M14×1.5NB800M.24.06ANut 1 1/8-8UN-2B (SPL)
1662C9-52SS90° elbow M52×2NB004.09.04Welding neck flange I
1671CH-52-42SSStraight snap on joint M52×2-M42×2GB/T5782Bolt M12×30
168MBS 4701 0-2.5MPaEXP pressure transmitterNB001.27.11Sight window
1691CH-30-22SSStraight snap on joint M30×2-M22×2NB004.12.02Guard cover plate
170GB/T70.1Screw M8×16NB001.27.02Guard cover frame
1711CH-16-14SSStraight snap on joint M16×1.5-M14×1.5NB004.12.01Guard cover connecting plate
172JB/T6142.1Hose assembly 13Ⅰ-600, thread M22×1.5NB004.12.08Connecting plate 2
173JB/T6142.1Hose assembly 8Ⅰ-370, thread M16×1.5GB/T5783Bolt M12×35
174JB/ZQ4444Plug screw M14×1.5NB004.12.07Washer
175JB/T6142.1Hose assembly 13Ⅰ-470, thread M22×1.5NB004.12.04Connecting plate 1
176JB/T6142.1Hose assembly 25Ⅰ-420, thread M36×2NB001.27.10Gasket 1
177JB/T6142.1Hose assembly 13Ⅰ-430, thread M22×1.5NB004.12.03Supporting plate
178JB/T6142.1Hose assembly 13Ⅰ-370, thread M22×1.5GB/T13871Skeleton oil seal FB40×55×8
179JB/T6142.1Hose assembly 13Ⅰ-450, thread M22×1.5NB004.12.06Seal box
180JB/T6142.1Hose assembly 8Ⅰ-560, thread M16×1.5NB004.12.05Gland
181JB/T6142.1Hose assembly 13Ⅰ-650, thread M22×1.5NB004.12.09.00Guard seal
182JB/T982Combination washer 20NB001.27.13Gasket 2
1831CH-22-20SSStraight snap on joint M22×1.5-M20×1.5NB001.27.12Clamp plate
184PT-3Pressure test jointNB004.12.09.03Connecting plate
185YQFN-60TShockproof pressure gauge 0-1.6MPaNB004.12.09.02Water retaining plate
186JB/T6142.1Hose assembly 13Ⅰ-1500, thread M52×12GB/T70.1Socket cap screw M8×20
187ASME B18.2.1Bolt 7/8 9UNC×2.5NB001.27.02Cover plate
188GB/T 3452.1O-ring 190×7-G-SNB004.12.01Side plate
189NB001.42.21.00Valve cap lockerGB/T5783Bolt M12×20
190NB1600M.01.06.02HStud 1 5/8-8UN(12UN)-2A×175HBZ013.27.15.03Clamp plate
191NB005.06.02.03Nut 1 5/8-8UN-2B (SPL)HBZ013.27.15.04Gasket 1
192NB004.06.12.00Liner water retaining device 1NB005.00Assembly
193NB004.06.11.00Mud guard clamp assemblyNB005.01.00Frame assembly
194NB005.06.07Piston rod 4"NB004.02.00Crankshaft assembly
195NB005.06.09Piston rod 4 ½"/5"/6"NB001.02.01.00Right-hand bull gear assembly
196ASME B18.2.1Hexagon boltNB001.02.04.00Left-hand bull gear assembly
197NB005.06.13Gland locking discNB001.03.00Pinion shaft assembly
198NB005.06.36Bi-metal liner 4"NB005.04.00Crosshead component
199NB005.06.41Bimetallic liner 4 ½"NB005.05.00Lubrication system assembly
200NB005.06.09Bi-metal liner 5"NB005.06.00Fluid end assembly
201NB005.06.38Bi-metal liner 6"NB004.06.11.00Mud guard clamp assembly
202GB/T 3452.1O-ring 195×7-G-SNB004.06.12.00Liner water retaining device 1
203NB005.06.14Liner glandNB004.06.13.00Liner water retaining device 2
204NB005.06.22Chamfered pinNB005.08.00Spray system assembly
205NB005.06.02.06Square nutNB005.07.00Skid assembly
206NB005.06.02.05StudNB004.09.00Discharge five-way block assembly
207NB005.06.17Hydraulic cylinder sealing ring φ125NB004.12.00Guard cover
208NB005.06.02.01Discharge hydraulic cylinderNB004.12.09.00Guard seal
Technical details and source references

Confirm the installed model, drawing revision and dimensions before ordering. Catalogue quantities do not indicate current stock.

Reference documents and scope

  • S1 — Sichuan Honghua Petroleum Equipment, 3D Parts List of Quintuple Pump NB005. Reference file: HHF 2400HP（老图号）Mud Pump Parts Book.pdf.

PDF page numbers count from the first page of each reference file. Brand names identify the equipment or catalogue source. A listed number does not establish interchangeability, original-manufacturer authorisation, stock or a delivery commitment. Send the nameplate, complete reference, quantity and drawing revision for a parts review.

The NB005 quintuple pump parts list identifies the complete assembly as NB005.00. It uses exploded illustrations to link numbered callouts with component descriptions, drawing references and assembly quantities. For replacement-part purchasing, include the assembly drawing as well as the individual reference; a shared prefix alone does not prove that two components are interchangeable.

Start with the relevant assembly drawing

The main table on PDF page 2 identifies frame assembly NB005.01.00, crankshaft assembly NB004.02.00, pinion shaft assembly NB001.03.00 and fluid-end assembly NB005.06.00. Different drawing prefixes appear in the same pump list. Preserve the prefix shown for the particular component rather than replacing it with NB005 throughout the request.

The five crosshead components and five connecting-rod components shown in the reference list are part of this quintuple-pump configuration. They should not be treated as a generic triplex-pump parts set. When ordering one replacement, specify its location and the required quantity rather than copying the full assembly quantity as an order.

Keep left-hand and right-hand gear references separate

The crankshaft section identifies right-hand bull-gear assembly NB001.02.01.00 and left-hand bull-gear assembly NB001.02.04.00. Their detailed pages give different gear and hub references. Send the gear drawing, rotation or position identification and the installed assembly information before requesting a quotation.

There is a source-reference difference to resolve for the crosshead: the main assembly table uses NB001.04.00, while the crosshead section heading on PDF page 8 uses NB005.04.00. Both are retained as printed. Confirm the actual component drawing and revision instead of assuming that one is a corrected spelling of the other.

Identify the fluid-end, liner and lubrication components

The hydraulic-cylinder and liner section includes liner flange Nb005.06.06, liner locking ring NB004.06.15 and related clamps, seals and studs. Letter case and the full suffix remain visible in the reference table. Include the liner bore, piston arrangement and a marked component drawing in a liner or seal enquiry; a reference in this list does not establish every size variant.

The lubrication-system pages also contain bought-in models, hose specifications and standards. A value such as a GB/T standard, a motor model or an O-ring dimension has a different role from a custom drawing number. The table labels these reference types separately. Where a source drawing-number cell is blank, no number has been invented.

Information needed for an NB005 parts review

  • Pump and component nameplates, including serial numbers where available.
  • The complete drawing reference, item number and relevant parts-book page.
  • Required quantity and a photograph of the installed component.
  • Thread, bore, connection and position details appropriate to the component.
  • The drawing revision, delivery destination and requested inspection documents.

This guide follows the model designation printed inside the NB005 parts list. It does not establish an equivalent commercial rating or an alias with another pump model. Use our part-number reference search to locate a listed identifier, then send the source context to Pratt Oil for a mud pump parts enquiry. Compatibility and availability require review of the actual request.

  1. NB001.03.00 — S1 , PDF p. 2 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 1; Drawing / catalogue reference
  2. NB005.28.00 — S1 , PDF p. 2 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 1; Drawing / catalogue reference
  3. NB001.04.00 — S1 , PDF p. 2 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 5; The main assembly and crosshead section use different assembly references; confirm the drawing revision.; Drawing / catalogue reference
  4. NB005.01.00 — S1 , PDF p. 2 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 1; Drawing / catalogue reference
  5. HSV51-52-F-00-001A — S1 , PDF p. 2 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 1; Drawing / catalogue reference
  6. NB004.11.00 — S1 , PDF p. 2 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 1; Drawing / catalogue reference
  7. NB005.06.00 — S1 , PDF p. 2 — NB005 quintuple pump legacy 3D parts list; BOM item 7; quantity as printed 1; Drawing / catalogue reference
  8. NB004.09.00 — S1 , PDF p. 2 — NB005 quintuple pump legacy 3D parts list; BOM item 8; quantity as printed 1; Drawing / catalogue reference
  9. NB005.08.00 — S1 , PDF p. 2 — NB005 quintuple pump legacy 3D parts list; BOM item 9; quantity as printed 1; Drawing / catalogue reference
  10. NB005.07.00 — S1 , PDF p. 2 — NB005 quintuple pump legacy 3D parts list; BOM item 10; quantity as printed 1; Drawing / catalogue reference
  11. NB004.02.00 — S1 , PDF p. 2 — NB005 quintuple pump legacy 3D parts list; BOM item 11; quantity as printed 1; Drawing / catalogue reference
  12. NB004.12.00 — S1 , PDF p. 2 — NB005 quintuple pump legacy 3D parts list; BOM item 12; quantity as printed 2; Drawing / catalogue reference
  13. NB005.29.00 — S1 , PDF p. 2 — NB005 quintuple pump legacy 3D parts list; BOM item 13; quantity as printed 1; Drawing / catalogue reference
  14. NB005.05.00 — S1 , PDF p. 2 — NB005 quintuple pump legacy 3D parts list; BOM item 14; quantity as printed 1; Drawing / catalogue reference
  15. HBZ013.32 — S1 , PDF p. 3 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 5; Drawing / catalogue reference
  16. HBZ013.33 — S1 , PDF p. 3 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 5; Drawing / catalogue reference
  17. GB/T118 — S1 , PDF p. 3 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 4; Standard / specification reference (not an individual part number)
  18. NB001.37 — S1 , PDF p. 3 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 8; Drawing / catalogue reference
  19. NB001.01.07 — S1 , PDF p. 3 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 2; Drawing / catalogue reference
  20. NB001.01.08 — S1 , PDF p. 3 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 3; Drawing / catalogue reference
  21. NB001.01.09 — S1 , PDF p. 3 — NB005 quintuple pump legacy 3D parts list; BOM item 7; quantity as printed 2; Drawing / catalogue reference
  22. GB/T5783 — S1 , PDF p. 3 — NB005 quintuple pump legacy 3D parts list; BOM item 8; quantity as printed 25; Standard / specification reference (not an individual part number)
  23. GB/T 118-2000 — S1 , PDF p. 3 — NB005 quintuple pump legacy 3D parts list; BOM item 9; quantity as printed 10; Standard / specification reference (not an individual part number)
  24. GB/T5783 — S1 , PDF p. 3 — NB005 quintuple pump legacy 3D parts list; BOM item 10; quantity as printed 46; Standard / specification reference (not an individual part number)
  25. GB/T848-2002 — S1 , PDF p. 3 — NB005 quintuple pump legacy 3D parts list; BOM item 11; quantity as printed 46; Standard / specification reference (not an individual part number)
  26. HBZ013.20 — S1 , PDF p. 3 — NB005 quintuple pump legacy 3D parts list; BOM item 12; quantity as printed 1; Drawing / catalogue reference
  27. HBZ013.48.00 — S1 , PDF p. 3 — NB005 quintuple pump legacy 3D parts list; BOM item 13; quantity as printed 1; Drawing / catalogue reference
  28. GB/T5783 — S1 , PDF p. 3 — NB005 quintuple pump legacy 3D parts list; BOM item 14; quantity as printed 8; Standard / specification reference (not an individual part number)
  29. NB800G.19.00 — S1 , PDF p. 3 — NB005 quintuple pump legacy 3D parts list; BOM item 15; quantity as printed 2; Drawing / catalogue reference
  30. NB800G.20 — S1 , PDF p. 3 — NB005 quintuple pump legacy 3D parts list; BOM item 16; quantity as printed 2; Drawing / catalogue reference
  31. NB005.01.06.00 — S1 , PDF p. 3 — NB005 quintuple pump legacy 3D parts list; BOM item 17; quantity as printed 1; Drawing / catalogue reference
  32. NB005.01.03.00 — S1 , PDF p. 4 — NB005 quintuple pump legacy 3D parts list; BOM item 18; quantity as printed 2; Drawing / catalogue reference
  33. NB005.01.04.00 — S1 , PDF p. 4 — NB005 quintuple pump legacy 3D parts list; BOM item 19; quantity as printed 1; Drawing / catalogue reference
  34. NB005.01.05.00 — S1 , PDF p. 4 — NB005 quintuple pump legacy 3D parts list; BOM item 20; quantity as printed 1; Drawing / catalogue reference
  35. NB005.36.01.00 — S1 , PDF p. 4 — NB005 quintuple pump legacy 3D parts list; BOM item 21; quantity as printed 5; Drawing / catalogue reference
  36. HBZ013.17 — S1 , PDF p. 4 — NB005 quintuple pump legacy 3D parts list; BOM item 22; quantity as printed 2; Drawing / catalogue reference
  37. HBZ013.19 — S1 , PDF p. 4 — NB005 quintuple pump legacy 3D parts list; BOM item 23; quantity as printed 2; Drawing / catalogue reference
  38. HBZ013.52.00 — S1 , PDF p. 4 — NB005 quintuple pump legacy 3D parts list; BOM item 24; quantity as printed 1; Drawing / catalogue reference
  39. NB005.20 — S1 , PDF p. 4 — NB005 quintuple pump legacy 3D parts list; BOM item 25; quantity as printed 1; Drawing / catalogue reference
  40. GB/T5783 — S1 , PDF p. 4 — NB005 quintuple pump legacy 3D parts list; BOM item 26; quantity as printed 60; Standard / specification reference (not an individual part number)
  41. GB/T848-2002 — S1 , PDF p. 4 — NB005 quintuple pump legacy 3D parts list; BOM item 27; quantity as printed 60; Standard / specification reference (not an individual part number)
  42. GB/T5783 — S1 , PDF p. 4 — NB005 quintuple pump legacy 3D parts list; BOM item 28; quantity as printed 90; Standard / specification reference (not an individual part number)
  43. GB/T848-2002 — S1 , PDF p. 4 — NB005 quintuple pump legacy 3D parts list; BOM item 29; quantity as printed 90; Standard / specification reference (not an individual part number)
  44. NB001.02.02 — S1 , PDF p. 4 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 8; Drawing / catalogue reference
  45. NB001.02.09.00 — S1 , PDF p. 4 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 1; Drawing / catalogue reference
  46. NB001.02.01.00 — S1 , PDF p. 4 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 1; Drawing / catalogue reference
  47. NB001.02.06 — S1 , PDF p. 4 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 2; Drawing / catalogue reference
  48. GB/T32 — S1 , PDF p. 4 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 16; Standard / specification reference (not an individual part number)
  49. GB/T4240-1993 — S1 , PDF p. 4 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 2; Standard / specification reference (not an individual part number)
  50. NB001.02.05 — S1 , PDF p. 4 — NB005 quintuple pump legacy 3D parts list; BOM item 7; quantity as printed 1; Drawing / catalogue reference
  51. NB004.02.01.00 — S1 , PDF p. 5 — NB005 quintuple pump legacy 3D parts list; BOM item 8; quantity as printed 5; Drawing / catalogue reference
  52. GB/T5782 — S1 , PDF p. 5 — NB005 quintuple pump legacy 3D parts list; BOM item 9; quantity as printed 3; Standard / specification reference (not an individual part number)
  53. GB/T77 — S1 , PDF p. 5 — NB005 quintuple pump legacy 3D parts list; BOM item 10; quantity as printed 3; Standard / specification reference (not an individual part number)
  54. DTF6177.1 — S1 , PDF p. 5 — NB005 quintuple pump legacy 3D parts list; BOM item 11; quantity as printed 3; Standard / specification reference (not an individual part number)
  55. NB001.02.08 — S1 , PDF p. 5 — NB005 quintuple pump legacy 3D parts list; BOM item 12; quantity as printed 3; Drawing / catalogue reference
  56. NB004.02.02 — S1 , PDF p. 5 — NB005 quintuple pump legacy 3D parts list; BOM item 13; quantity as printed 2; Drawing / catalogue reference
  57. GB/T5783 — S1 , PDF p. 5 — NB005 quintuple pump legacy 3D parts list; BOM item 14; quantity as printed 8; Standard / specification reference (not an individual part number)
  58. GB/T3452.1 — S1 , PDF p. 5 — NB005 quintuple pump legacy 3D parts list; BOM item 15; quantity as printed 2; Standard / specification reference (not an individual part number)
  59. GB/T5782 — S1 , PDF p. 5 — NB005 quintuple pump legacy 3D parts list; BOM item 16; quantity as printed 12; Standard / specification reference (not an individual part number)
  60. GB/T97 — S1 , PDF p. 5 — NB005 quintuple pump legacy 3D parts list; BOM item 17; quantity as printed 12; Standard / specification reference (not an individual part number)
  61. NB001.02.04.00 — S1 , PDF p. 5 — NB005 quintuple pump legacy 3D parts list; BOM item 18; quantity as printed 1; Drawing / catalogue reference
  62. JB/T7934-1999 — S1 , PDF p. 5 — NB005 quintuple pump legacy 3D parts list; BOM item 19; quantity as printed 2; Standard / specification reference (not an individual part number)
  63. NB001.02.10.00 — S1 , PDF p. 5 — NB005 quintuple pump legacy 3D parts list; BOM item 20; quantity as printed 5; Drawing / catalogue reference
  64. NB001.02.03.02 — S1 , PDF p. 5 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 4; Drawing / catalogue reference
  65. GB/T4240-1993 — S1 , PDF p. 5 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 1; Standard / specification reference (not an individual part number)
  66. NB001.02.03.04 — S1 , PDF p. 5 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 2; Drawing / catalogue reference
  67. NB001.02.03.05 — S1 , PDF p. 6 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 1; Drawing / catalogue reference
  68. GB/T70.1 — S1 , PDF p. 6 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 6; Standard / specification reference (not an individual part number)
  69. GB/T93 — S1 , PDF p. 6 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 6; Standard / specification reference (not an individual part number)
  70. HBZ013.02.03.08 — S1 , PDF p. 6 — NB005 quintuple pump legacy 3D parts list; BOM item 7; quantity as printed 1; Drawing / catalogue reference
  71. HBZ013.02.03.06 — S1 , PDF p. 6 — NB005 quintuple pump legacy 3D parts list; BOM item 8; quantity as printed 1; Drawing / catalogue reference
  72. NB004.02.01.01 — S1 , PDF p. 6 — NB005 quintuple pump legacy 3D parts list; BOM item 9; quantity as printed 1; Drawing / catalogue reference
  73. NB001.02.03.01 — S1 , PDF p. 6 — NB005 quintuple pump legacy 3D parts list; BOM item 10; quantity as printed 1; Drawing / catalogue reference
  74. NB001.02.01.01 — S1 , PDF p. 6 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 1; Drawing / catalogue reference
  75. NB001.02.01.02 — S1 , PDF p. 6 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 1; Drawing / catalogue reference
  76. GB/T879.1-2000 — S1 , PDF p. 6 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 1; Standard / specification reference (not an individual part number)
  77. NB800G.02.11A — S1 , PDF p. 6 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 10; Drawing / catalogue reference
  78. NB800G.02.12.00 — S1 , PDF p. 6 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 10; Drawing / catalogue reference
  79. NB001.02.04.01 — S1 , PDF p. 7 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 1; Drawing / catalogue reference
  80. NB001.02.04.02 — S1 , PDF p. 7 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 1; Drawing / catalogue reference
  81. GB/T879.1-2000 — S1 , PDF p. 7 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 1; Standard / specification reference (not an individual part number)
  82. NB800G.02.11A — S1 , PDF p. 7 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 10; Drawing / catalogue reference
  83. NB800G.02.12.00 — S1 , PDF p. 7 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 10; Drawing / catalogue reference
  84. NB001.03.01 — S1 , PDF p. 8 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 1; Drawing / catalogue reference
  85. HTB34 — S1 , PDF p. 8 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 1; Component model / specification as printed
  86. NB001.03.02 — S1 , PDF p. 8 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 1; Drawing / catalogue reference
  87. GB/T70.1-2000 — S1 , PDF p. 8 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 16; Standard / specification reference (not an individual part number)
  88. NB001.04.10 — S1 , PDF p. 8 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 16; Drawing / catalogue reference
  89. NB001.04.05 — S1 , PDF p. 8 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 16; Drawing / catalogue reference
  90. NB001.04.04 — S1 , PDF p. 8 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 1; Drawing / catalogue reference
  91. 335×3.55 — S1 , PDF p. 8 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 1; Component model / specification as printed
  92. NB005.04.13 — S1 , PDF p. 8 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 1; Drawing / catalogue reference
  93. NB005.04.12 — S1 , PDF p. 8 — NB005 quintuple pump legacy 3D parts list; BOM item 7; quantity as printed 1; Drawing / catalogue reference
  94. M12×55 — S1 , PDF p. 8 — NB005 quintuple pump legacy 3D parts list; BOM item 8; quantity as printed 1; Component model / specification as printed
  95. NB001.04.08 — S1 , PDF p. 8 — NB005 quintuple pump legacy 3D parts list; BOM item 9; quantity as printed 1; Drawing / catalogue reference
  96. GB/T3452.1-2005 — S1 , PDF p. 8 — NB005 quintuple pump legacy 3D parts list; BOM item 10; quantity as printed 6; Standard / specification reference (not an individual part number)
  97. NB800M.04.22 — S1 , PDF p. 8 — NB005 quintuple pump legacy 3D parts list; BOM item 11; quantity as printed 2; Drawing / catalogue reference
  98. GB/T3452.1-2005 — S1 , PDF p. 8 — NB005 quintuple pump legacy 3D parts list; BOM item 12; quantity as printed 1; Standard / specification reference (not an individual part number)
  99. NB800G.04.07 — S1 , PDF p. 8 — NB005 quintuple pump legacy 3D parts list; BOM item 13; quantity as printed 1; Drawing / catalogue reference
  100. GB/T5780-1986 — S1 , PDF p. 8 — NB005 quintuple pump legacy 3D parts list; BOM item 14; quantity as printed 4; Standard / specification reference (not an individual part number)
  101. GB/T93-1987 — S1 , PDF p. 8 — NB005 quintuple pump legacy 3D parts list; BOM item 15; quantity as printed 4; Standard / specification reference (not an individual part number)
  102. NB800G.04.08 — S1 , PDF p. 8 — NB005 quintuple pump legacy 3D parts list; BOM item 16; quantity as printed 1; Drawing / catalogue reference
  103. CCK-1000 — S1 , PDF p. 8 — NB005 quintuple pump legacy 3D parts list; BOM item 17; quantity as printed 1; Component model / specification as printed
  104. NB800G.04.11 — S1 , PDF p. 9 — NB005 quintuple pump legacy 3D parts list; BOM item 18; quantity as printed 1; Drawing / catalogue reference
  105. NB800G.04.05 — S1 , PDF p. 9 — NB005 quintuple pump legacy 3D parts list; BOM item 19; quantity as printed 1; Drawing / catalogue reference
  106. NB800G.04.06 — S1 , PDF p. 9 — NB005 quintuple pump legacy 3D parts list; BOM item 20; quantity as printed 1; Drawing / catalogue reference
  107. GB/T32.1-1988 — S1 , PDF p. 9 — NB005 quintuple pump legacy 3D parts list; BOM item 21; quantity as printed 4; Standard / specification reference (not an individual part number)
  108. GB/T4240-1993 — S1 , PDF p. 9 — NB005 quintuple pump legacy 3D parts list; BOM item 22; quantity as printed 1; Standard / specification reference (not an individual part number)
  109. NB001.04.01(03) — S1 , PDF p. 9 — NB005 quintuple pump legacy 3D parts list; BOM item 23; quantity as printed 1; Drawing / catalogue reference
  110. NB005.04.15 — S1 , PDF p. 9 — NB005 quintuple pump legacy 3D parts list; BOM item 24; quantity as printed 6; Drawing / catalogue reference
  111. NB001.04.09 — S1 , PDF p. 9 — NB005 quintuple pump legacy 3D parts list; BOM item 25; quantity as printed 1; Drawing / catalogue reference
  112. ZT085.23.05 — S1 , PDF p. 9 — NB005 quintuple pump legacy 3D parts list; BOM item 26; quantity as printed 2; Drawing / catalogue reference
  113. NB001.04.07 — S1 , PDF p. 9 — NB005 quintuple pump legacy 3D parts list; BOM item 27; quantity as printed 1; Drawing / catalogue reference
  114. DTF6177 — S1 , PDF p. 9 — NB005 quintuple pump legacy 3D parts list; BOM item 28; quantity as printed 2; Standard / specification reference (not an individual part number)
  115. NB001.04.06 — S1 , PDF p. 9 — NB005 quintuple pump legacy 3D parts list; BOM item 29; quantity as printed 1; Drawing / catalogue reference
  116. NB001.04.02 — S1 , PDF p. 9 — NB005 quintuple pump legacy 3D parts list; BOM item 30; quantity as printed 1; Drawing / catalogue reference
  117. GB/T5783 — S1 , PDF p. 9 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 52; Standard / specification reference (not an individual part number)
  118. GB/T97.1 — S1 , PDF p. 9 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 52; Standard / specification reference (not an individual part number)
  119. GB/T93 — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 52; Standard / specification reference (not an individual part number)
  120. WU-800×500G-J — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 2; Component model / specification as printed
  121. EF3-40 — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 2; Component model / specification as printed
  122. RH11136-010000050 — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 2; Drawing / catalogue reference
  123. NB005.07.01.22 — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 7; quantity as printed 2; Drawing / catalogue reference
  124. JB/T7339 — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 8; quantity as printed 2; Standard / specification reference (not an individual part number)
  125. GB/T 5781 — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 9; quantity as printed 4; Standard / specification reference (not an individual part number)
  126. R45/125-FL-Z-W-SAE2 1/2-R-SO — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 11; quantity as printed 2; Component model / specification as printed
  127. NEX284TC-6-15HP (600V/60Hz, NEMA certification) — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 12; quantity as printed 2; Motor model and source specification; certification not independently verified
  128. RH11136-020000000 — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 14; quantity as printed 1; Drawing / catalogue reference
  129. HEX S522-70-00/G1 1/2 — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 16; quantity as printed 2; Component model / specification as printed
  130. WUI-A1000×80FP (model of filter element for this filter: TZX2/1000x80W) — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 18; quantity as printed 1; Component model / specification as printed
  131. Q11F-16P-DN40 — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 19; quantity as printed 5; Component model / specification as printed
  132. AF-E40/1.2 — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 21; quantity as printed 3; Component model / specification as printed
  133. GB/T5780 — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 22; quantity as printed 16; Standard / specification reference (not an individual part number)
  134. GB/T6170 — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 23; quantity as printed 8; Standard / specification reference (not an individual part number)
  135. GB/T97.1 — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 24; quantity as printed 24; Standard / specification reference (not an individual part number)
  136. GB/T93 — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 25; quantity as printed 24; Standard / specification reference (not an individual part number)
  137. 38I-1050 (M52×2 24° cone seal) — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 26; quantity as printed 1; Component model / specification as printed
  138. EF5-65 — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 27; quantity as printed 1; Component model / specification as printed
  139. 140357-010000000 — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 28; quantity as printed 1; Drawing / catalogue reference
  140. 7MC7511-1CA12-0CB1-Z T21 E01 Y44:250mm — S1 , PDF p. 10 — NB005 quintuple pump legacy 3D parts list; BOM item 29; quantity as printed 1; Component model / specification as printed
  141. JB/T6142.1 — S1 , PDF p. 11 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 2; Standard / specification reference (not an individual part number)
  142. JB/T6142.2 — S1 , PDF p. 11 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 2; Standard / specification reference (not an individual part number)
  143. JB/T6142.2 — S1 , PDF p. 11 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 2; Standard / specification reference (not an individual part number)
  144. JB/T6142.3 — S1 , PDF p. 11 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 2; Standard / specification reference (not an individual part number)
  145. 1CT-30-12SP/RN-SS — S1 , PDF p. 11 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 2; Drawing / catalogue reference
  146. 1/4PZ5900B3 — S1 , PDF p. 11 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 2; Drawing / catalogue reference
  147. GB/T14976 — S1 , PDF p. 11 — NB005 quintuple pump legacy 3D parts list; BOM item 7; quantity as printed 2; Standard / specification reference (not an individual part number)
  148. 6C-22-LN/RNSS — S1 , PDF p. 11 — NB005 quintuple pump legacy 3D parts list; BOM item 9; quantity as printed 2; Drawing / catalogue reference
  149. 6C-22-RNSS — S1 , PDF p. 11 — NB005 quintuple pump legacy 3D parts list; BOM item 10; quantity as printed 2; Drawing / catalogue reference
  150. 1CH-36-33SS — S1 , PDF p. 11 — NB005 quintuple pump legacy 3D parts list; BOM item 11; quantity as printed 4; Drawing / catalogue reference
  151. JB/T982 — S1 , PDF p. 11 — NB005 quintuple pump legacy 3D parts list; BOM item 12; quantity as printed 6; Standard / specification reference (not an individual part number)
  152. HFH2-P1-3-P-3000 — S1 , PDF p. 11 — NB005 quintuple pump legacy 3D parts list; BOM item 13; quantity as printed 1; Drawing / catalogue reference
  153. HFH2-P1-3-P-2000 — S1 , PDF p. 11 — NB005 quintuple pump legacy 3D parts list; BOM item 14; quantity as printed 1; Drawing / catalogue reference
  154. JB/T6142.1 — S1 , PDF p. 11 — NB005 quintuple pump legacy 3D parts list; BOM item 15; quantity as printed 2; Standard / specification reference (not an individual part number)
  155. JB/T6142.1 — S1 , PDF p. 11 — NB005 quintuple pump legacy 3D parts list; BOM item 16; quantity as printed 4; Standard / specification reference (not an individual part number)
  156. 1CN-22-08LASS — S1 , PDF p. 11 — NB005 quintuple pump legacy 3D parts list; BOM item 17; quantity as printed 5; Drawing / catalogue reference
  157. 1CN-22-08SS — S1 , PDF p. 11 — NB005 quintuple pump legacy 3D parts list; BOM item 18; quantity as printed 5; Drawing / catalogue reference
  158. 1CH-22SS — S1 , PDF p. 11 — NB005 quintuple pump legacy 3D parts list; BOM item 19; quantity as printed 10; Drawing / catalogue reference
  159. JB/T982 — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 20; quantity as printed 15; Standard / specification reference (not an individual part number)
  160. JB/T982 — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 21; quantity as printed 8; Standard / specification reference (not an individual part number)
  161. 1CH-36-42SS — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 22; quantity as printed 2; Drawing / catalogue reference
  162. JB/ZQ4444 — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 24; quantity as printed 1; Drawing / catalogue reference
  163. YQFN-60Z — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 25; quantity as printed 2; Drawing / catalogue reference
  164. JB/T982 — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 26; quantity as printed 40; Standard / specification reference (not an individual part number)
  165. 5CB-14-14GDKSS — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 27; quantity as printed 3; Drawing / catalogue reference
  166. 2C9-52SS — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 28; quantity as printed 2; Drawing / catalogue reference
  167. 1CH-52-42SS — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 29; quantity as printed 2; Drawing / catalogue reference
  168. MBS 4701 0-2.5MPa — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 30; quantity as printed 1; Drawing / catalogue reference
  169. 1CH-30-22SS — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 31; quantity as printed 2; Drawing / catalogue reference
  170. GB/T70.1 — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 34; quantity as printed 8; Standard / specification reference (not an individual part number)
  171. 1CH-16-14SS — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 35; quantity as printed 5; Drawing / catalogue reference
  172. JB/T6142.1 — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 36; quantity as printed 1; Standard / specification reference (not an individual part number)
  173. JB/T6142.1 — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 37; quantity as printed 2; Standard / specification reference (not an individual part number)
  174. JB/ZQ4444 — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 38; quantity as printed 1; Drawing / catalogue reference
  175. JB/T6142.1 — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 39; quantity as printed 1; Standard / specification reference (not an individual part number)
  176. JB/T6142.1 — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 40; quantity as printed 1; Standard / specification reference (not an individual part number)
  177. JB/T6142.1 — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 41; quantity as printed 3; Standard / specification reference (not an individual part number)
  178. JB/T6142.1 — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 42; quantity as printed 3; Standard / specification reference (not an individual part number)
  179. JB/T6142.1 — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 44; quantity as printed 2; Standard / specification reference (not an individual part number)
  180. JB/T6142.1 — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 46; quantity as printed 3; Standard / specification reference (not an individual part number)
  181. JB/T6142.1 — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 47; quantity as printed 1; Standard / specification reference (not an individual part number)
  182. JB/T982 — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 48; quantity as printed 20; Standard / specification reference (not an individual part number)
  183. 1CH-22-20SS — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 49; quantity as printed 14; Drawing / catalogue reference
  184. PT-3 — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 50; quantity as printed 2; Drawing / catalogue reference
  185. YQFN-60T — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 52; quantity as printed 2; Drawing / catalogue reference
  186. JB/T6142.1 — S1 , PDF p. 12 — NB005 quintuple pump legacy 3D parts list; BOM item 53; quantity as printed 2; Standard / specification reference (not an individual part number)
  187. ASME B18.2.1 — S1 , PDF p. 13 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 30; Standard / specification reference (not an individual part number)
  188. GB/T 3452.1 — S1 , PDF p. 13 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 5; Standard / specification reference (not an individual part number)
  189. NB001.42.21.00 — S1 , PDF p. 13 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 6; Drawing / catalogue reference
  190. NB1600M.01.06.02H — S1 , PDF p. 13 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 20; Drawing / catalogue reference
  191. NB005.06.02.03 — S1 , PDF p. 13 — NB005 quintuple pump legacy 3D parts list; BOM item 7; quantity as printed 20; Drawing / catalogue reference
  192. NB004.06.12.00 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 1; Drawing / catalogue reference
  193. NB004.06.11.00 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 1; Drawing / catalogue reference
  194. NB005.06.07 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 1; Drawing / catalogue reference
  195. NB005.06.09 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 1/1/1; Conflicting source assignment: the same reference is printed for different components on PDF page 14. Confirm the original component drawing before selection.; Drawing / catalogue reference
  196. ASME B18.2.1 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 4; Standard / specification reference (not an individual part number)
  197. NB005.06.13 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 1; Drawing / catalogue reference
  198. NB005.06.36 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 1; Drawing / catalogue reference
  199. NB005.06.41 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 1; Drawing / catalogue reference
  200. NB005.06.09 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 1; Conflicting source assignment: the same reference is printed for different components on PDF page 14. Confirm the original component drawing before selection.; Drawing / catalogue reference
  201. NB005.06.38 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 1; Drawing / catalogue reference
  202. GB/T 3452.1 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 7; quantity as printed 1; Standard / specification reference (not an individual part number)
  203. NB005.06.14 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 8; quantity as printed 1; Drawing / catalogue reference
  204. NB005.06.22 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 9; quantity as printed 2; Drawing / catalogue reference
  205. NB005.06.02.06 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 10; quantity as printed 1; Drawing / catalogue reference
  206. NB005.06.02.05 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 11; quantity as printed 1; Drawing / catalogue reference
  207. NB005.06.17 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 12; quantity as printed 3; Drawing / catalogue reference
  208. NB005.06.02.01 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 13; quantity as printed 1; Drawing / catalogue reference
  209. ANSI B18.3 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 14; quantity as printed 4; Drawing / catalogue reference
  210. NB005.06.39 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 15; quantity as printed 1; Drawing / catalogue reference
  211. NB005.06.02.04 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 16; quantity as printed 8; Conflicting source assignment: the same reference is printed for different components on PDF page 14. Confirm the original component drawing before selection.; Drawing / catalogue reference
  212. NB005.06.01 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 17; quantity as printed 1; Drawing / catalogue reference
  213. NB005.06.02.04 — S1 , PDF p. 14 — NB005 quintuple pump legacy 3D parts list; BOM item 18; quantity as printed 8; Conflicting source assignment: the same reference is printed for different components on PDF page 14. Confirm the original component drawing before selection.; Drawing / catalogue reference
  214. NB005.06.15 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 19; quantity as printed 4; Drawing / catalogue reference
  215. Nb005.06.18 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 20; quantity as printed 4; Drawing / catalogue reference
  216. NB004.06.15 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 21; quantity as printed 2; Drawing / catalogue reference
  217. Nb005.06.06 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 22; quantity as printed 1; Drawing / catalogue reference
  218. NB005.06.04 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 23; quantity as printed 4; Drawing / catalogue reference
  219. NB005.06.16 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 24; quantity as printed 1; Drawing / catalogue reference
  220. NB005.06.42 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 24; quantity as printed 1; Drawing / catalogue reference
  221. NB004.06.16 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 24; quantity as printed 1; Drawing / catalogue reference
  222. NB005.06.24 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 24; quantity as printed 1; Drawing / catalogue reference
  223. NB005.06.05 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 25; quantity as printed 1; Drawing / catalogue reference
  224. Nb005.06.02.03 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 26; quantity as printed 6; Drawing / catalogue reference
  225. NB004.06.02.05 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 27; quantity as printed 6; Drawing / catalogue reference
  226. NB005.06.02.07 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 28; quantity as printed 5; Drawing / catalogue reference
  227. GB/T 120.2 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 29; quantity as printed 1; Standard / specification reference (not an individual part number)
  228. NB2200G.06.16 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 30; quantity as printed 2; Drawing / catalogue reference
  229. NB800M.05.17.00 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 31; quantity as printed 2; Drawing / catalogue reference
  230. NB800M.05.16 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 32; quantity as printed 2; Drawing / catalogue reference
  231. NB100.05.30 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 33; quantity as printed 8; Drawing / catalogue reference
  232. NB800G.05.14 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 34; quantity as printed 2; Drawing / catalogue reference
  233. NB100.05.27 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 35; quantity as printed 2; Drawing / catalogue reference
  234. NB800M.05.13.00 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 36; quantity as printed 2; Drawing / catalogue reference
  235. NB800G.05.10 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 37; quantity as printed 2; Drawing / catalogue reference
  236. NB005.06.03 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 38; quantity as printed 2; Drawing / catalogue reference
  237. GB/T3452.1 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 39; quantity as printed 1; Standard / specification reference (not an individual part number)
  238. GB/T 3452.1 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 39; quantity as printed 1/1/1; Standard / specification reference (not an individual part number)
  239. NB005.06.19.01.0 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 40; quantity as printed 1; The source prints this single trailing zero exactly. Confirm the complete drawing reference before selection; no extra zero has been inferred.; Drawing / catalogue reference
  240. NB005.06.19.02.00 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 40; quantity as printed 1; Drawing / catalogue reference
  241. NB005.06.19.03.00 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 40; quantity as printed 1; Drawing / catalogue reference
  242. NB005.06.19.04.00 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 40; quantity as printed 1; Drawing / catalogue reference
  243. NB500M.05.19.00 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 41; quantity as printed 1; Drawing / catalogue reference
  244. NB800M.05.18.00 — S1 , PDF p. 15 — NB005 quintuple pump legacy 3D parts list; BOM item 41; quantity as printed 1/1/1; Drawing / catalogue reference
  245. ASME B18.2.1 — S1 , PDF p. 16 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 36; Standard / specification reference (not an individual part number)
  246. NB100.05.37 — S1 , PDF p. 16 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 1; Drawing / catalogue reference
  247. NB100.05.34 — S1 , PDF p. 16 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 1; Drawing / catalogue reference
  248. GB/T3452.1 — S1 , PDF p. 16 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 2; Standard / specification reference (not an individual part number)
  249. ASME B18.2.2 — S1 , PDF p. 16 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 36; Standard / specification reference (not an individual part number)
  250. NB004.06.18.00 — S1 , PDF p. 16 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 1; Drawing / catalogue reference
  251. NB004.06.17 — S1 , PDF p. 16 — NB005 quintuple pump legacy 3D parts list; BOM item 7; quantity as printed 1; Drawing / catalogue reference
  252. NB100.05.35 — S1 , PDF p. 16 — NB005 quintuple pump legacy 3D parts list; BOM item 8; quantity as printed 1; Drawing / catalogue reference
  253. NB002.09.03 — S1 , PDF p. 16 — NB005 quintuple pump legacy 3D parts list; BOM item 9; quantity as printed 1; Drawing / catalogue reference
  254. JB/T 1000 — S1 , PDF p. 16 — NB005 quintuple pump legacy 3D parts list; BOM item 10; quantity as printed 1; Standard / specification reference (not an individual part number)
  255. NB005.12.00 — S1 , PDF p. 16 — NB005 quintuple pump legacy 3D parts list; BOM item 11; quantity as printed 2; Drawing / catalogue reference
  256. NB100.05.32.00 — S1 , PDF p. 16 — NB005 quintuple pump legacy 3D parts list; BOM item 12; quantity as printed 1; Drawing / catalogue reference
  257. ASME B18.2.1 — S1 , PDF p. 17 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 5; Standard / specification reference (not an individual part number)
  258. NB001.06.26.02.00 — S1 , PDF p. 17 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 1; Drawing / catalogue reference
  259. GB/T549 — S1 , PDF p. 17 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 3; Standard / specification reference (not an individual part number)
  260. NB004.06.11.01 — S1 , PDF p. 17 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 2; Drawing / catalogue reference
  261. ASME B18.2.1 — S1 , PDF p. 17 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 2; Standard / specification reference (not an individual part number)
  262. GB/T93 — S1 , PDF p. 17 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 2; Standard / specification reference (not an individual part number)
  263. ASME B18.2.1 — S1 , PDF p. 18 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 5; Standard / specification reference (not an individual part number)
  264. GB/T93 — S1 , PDF p. 18 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 5; Standard / specification reference (not an individual part number)
  265. NB004.06.12.04 — S1 , PDF p. 18 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 1; Drawing / catalogue reference
  266. ASME B18.3 — S1 , PDF p. 18 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 6; Standard / specification reference (not an individual part number)
  267. NB004.06.12.02 — S1 , PDF p. 18 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 3; Drawing / catalogue reference
  268. NB004.06.12.01.00 — S1 , PDF p. 18 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 1; Drawing / catalogue reference
  269. NB004.06.12.03.00 — S1 , PDF p. 18 — NB005 quintuple pump legacy 3D parts list; BOM item 7; quantity as printed 1; Drawing / catalogue reference
  270. GB/T93 — S1 , PDF p. 18 — NB005 quintuple pump legacy 3D parts list; BOM item 8; quantity as printed 3; Standard / specification reference (not an individual part number)
  271. ASME B18.2.1 — S1 , PDF p. 18 — NB005 quintuple pump legacy 3D parts list; BOM item 9; quantity as printed 3; Standard / specification reference (not an individual part number)
  272. ASME B18.2.1 — S1 , PDF p. 19 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 5; Standard / specification reference (not an individual part number)
  273. GB/T93 — S1 , PDF p. 19 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 5; Standard / specification reference (not an individual part number)
  274. NB004.06.13.02 — S1 , PDF p. 19 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 1; Drawing / catalogue reference
  275. ASME B18.3 — S1 , PDF p. 19 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 6; Standard / specification reference (not an individual part number)
  276. NB004.06.12.02 — S1 , PDF p. 19 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 3; Drawing / catalogue reference
  277. NB004.06.13.01.00 — S1 , PDF p. 19 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 1; Drawing / catalogue reference
  278. NB004.06.13.03.00 — S1 , PDF p. 19 — NB005 quintuple pump legacy 3D parts list; BOM item 7; quantity as printed 1; Drawing / catalogue reference
  279. GB/T93 — S1 , PDF p. 19 — NB005 quintuple pump legacy 3D parts list; BOM item 8; quantity as printed 3; Standard / specification reference (not an individual part number)
  280. ASME B18.2.1 — S1 , PDF p. 19 — NB005 quintuple pump legacy 3D parts list; BOM item 9; quantity as printed 3; Standard / specification reference (not an individual part number)
  281. GB/T97 — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 4; Standard / specification reference (not an individual part number)
  282. GB/T93 — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 4; Standard / specification reference (not an individual part number)
  283. GB/T5782 — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 4; Standard / specification reference (not an individual part number)
  284. NB005.08.01.00 — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 2; Drawing / catalogue reference
  285. 20491-36-14T/20411-36-14T×1S-14×2500 — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 1; Component model / specification as printed
  286. GLC3-8 — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 1; Drawing / catalogue reference
  287. GB/T6170 — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 7; quantity as printed 4; Standard / specification reference (not an individual part number)
  288. GB/T93 — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 8; quantity as printed 4; Standard / specification reference (not an individual part number)
  289. GB/T97 — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 9; quantity as printed 4; Standard / specification reference (not an individual part number)
  290. 5B-32-16HS — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 10; quantity as printed 2; Drawing / catalogue reference
  291. 1DG9-36-16OG — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 11; quantity as printed 2; Drawing / catalogue reference
  292. GB/T5782 — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 12; quantity as printed 4; Standard / specification reference (not an individual part number)
  293. 20411-45-20T/20411-45-20TX1S-20X1500 — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 13; quantity as printed 1; Drawing / catalogue reference
  294. NB004.08.03 — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 14; quantity as printed 1; Drawing / catalogue reference
  295. BZ212.09.01 — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 15; quantity as printed 1; Drawing / catalogue reference
  296. GB/T97 — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 16; quantity as printed 12; Standard / specification reference (not an individual part number)
  297. GB/T93 — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 17; quantity as printed 12; Standard / specification reference (not an individual part number)
  298. GB/T5782 — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 18; quantity as printed 4; Standard / specification reference (not an individual part number)
  299. 1CN9-45-20 — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 19; quantity as printed 1; Drawing / catalogue reference
  300. 5N-24-20 — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 20; quantity as printed 1; Drawing / catalogue reference
  301. NB004.08.05 — S1 , PDF p. 20 — NB005 quintuple pump legacy 3D parts list; BOM item 21; quantity as printed 1; Drawing / catalogue reference
  302. GB/T93 — S1 , PDF p. 21 — NB005 quintuple pump legacy 3D parts list; BOM item 23; quantity as printed 16; Standard / specification reference (not an individual part number)
  303. GB/T5783 — S1 , PDF p. 21 — NB005 quintuple pump legacy 3D parts list; BOM item 24; quantity as printed 8; Standard / specification reference (not an individual part number)
  304. GB/T97 — S1 , PDF p. 21 — NB005 quintuple pump legacy 3D parts list; BOM item 25; quantity as printed 16; Standard / specification reference (not an individual part number)
  305. GB/T6170 — S1 , PDF p. 21 — NB005 quintuple pump legacy 3D parts list; BOM item 26; quantity as printed 16; Standard / specification reference (not an individual part number)
  306. NB2200G.08.01 — S1 , PDF p. 21 — NB005 quintuple pump legacy 3D parts list; BOM item 27; quantity as printed 1; Drawing / catalogue reference
  307. NPT1"-1.6Mpa; one piece type — S1 , PDF p. 21 — NB005 quintuple pump legacy 3D parts list; BOM item 28; quantity as printed 1; Drawing / catalogue reference
  308. 1CN-36-16 — S1 , PDF p. 21 — NB005 quintuple pump legacy 3D parts list; BOM item 29; quantity as printed 1; Drawing / catalogue reference
  309. 20491-36-14T/20411-36-14T×1S-14×2500 — S1 , PDF p. 21 — NB005 quintuple pump legacy 3D parts list; BOM item 30; quantity as printed 1; Component model / specification as printed
  310. GB/T5783 — S1 , PDF p. 21 — NB005 quintuple pump legacy 3D parts list; BOM item 31; quantity as printed 8; Standard / specification reference (not an individual part number)
  311. NB005.08.02.00 — S1 , PDF p. 21 — NB005 quintuple pump legacy 3D parts list; BOM item 32; quantity as printed 2; Drawing / catalogue reference
  312. GB/6170-2000 — S1 , PDF p. 21 — NB005 quintuple pump legacy 3D parts list; BOM item 33; quantity as printed 8; Drawing / catalogue reference
  313. HBZ013.08.01.00 — S1 , PDF p. 21 — NB005 quintuple pump legacy 3D parts list; BOM item 34; quantity as printed 1; Drawing / catalogue reference
  314. NB005.08.04.00 — S1 , PDF p. 21 — NB005 quintuple pump legacy 3D parts list; BOM item 35; quantity as printed 1; Drawing / catalogue reference
  315. 5N-24-20 — S1 , PDF p. 21 — NB005 quintuple pump legacy 3D parts list; BOM item 36; quantity as printed 5; Drawing / catalogue reference
  316. Q11F-16-NPT3" — S1 , PDF p. 21 — NB005 quintuple pump legacy 3D parts list; BOM item 37; quantity as printed 2; Component model / specification as printed
  317. 9C-36 — S1 , PDF p. 21 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 1; Drawing / catalogue reference
  318. GB/T14976-2002 — S1 , PDF p. 21 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 4; Standard / specification reference (not an individual part number)
  319. AD-36-26-36RN — S1 , PDF p. 21 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 5; Drawing / catalogue reference
  320. GB/T14976-2002 — S1 , PDF p. 21 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 1; Standard / specification reference (not an individual part number)
  321. 1D9-36RN — S1 , PDF p. 21 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 1; Drawing / catalogue reference
  322. NB005.07.01.00 — S1 , PDF p. 22 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 1; Drawing / catalogue reference
  323. NB005.07.06 — S1 , PDF p. 22 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 5; Drawing / catalogue reference
  324. NB005.07.05 — S1 , PDF p. 22 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 2; Drawing / catalogue reference
  325. M12×25 — S1 , PDF p. 22 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 70; Component model / specification as printed
  326. NB005.07.09.00 — S1 , PDF p. 22 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 3; Drawing / catalogue reference
  327. JGD-1/DN80 — S1 , PDF p. 22 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 3; Drawing / catalogue reference
  328. M16×50 — S1 , PDF p. 22 — NB005 quintuple pump legacy 3D parts list; BOM item 7; quantity as printed 24; Component model / specification as printed
  329. 16 — S1 , PDF p. 22 — NB005 quintuple pump legacy 3D parts list; BOM item 8; quantity as printed 24; Drawing / catalogue reference
  330. 16 — S1 , PDF p. 22 — NB005 quintuple pump legacy 3D parts list; BOM item 9; quantity as printed 24; Drawing / catalogue reference
  331. NB005.42.27.00 — S1 , PDF p. 22 — NB005 quintuple pump legacy 3D parts list; BOM item 10; quantity as printed 1; Drawing / catalogue reference
  332. NB005.07.03 — S1 , PDF p. 22 — NB005 quintuple pump legacy 3D parts list; BOM item 11; quantity as printed 3; Drawing / catalogue reference
  333. NB005.07.10 — S1 , PDF p. 22 — NB005 quintuple pump legacy 3D parts list; BOM item 12; quantity as printed 3; Drawing / catalogue reference
  334. M12×25 — S1 , PDF p. 22 — NB005 quintuple pump legacy 3D parts list; BOM item 13; quantity as printed 66; Component model / specification as printed
  335. 12 — S1 , PDF p. 22 — NB005 quintuple pump legacy 3D parts list; BOM item 14; quantity as printed 126; Drawing / catalogue reference
  336. 12 — S1 , PDF p. 22 — NB005 quintuple pump legacy 3D parts list; BOM item 15; quantity as printed 126; Drawing / catalogue reference
  337. GH3161-01.01.46(G) — S1 , PDF p. 22 — NB005 quintuple pump legacy 3D parts list; BOM item 16; quantity as printed 2; Drawing / catalogue reference
  338. M8×35 — S1 , PDF p. 22 — NB005 quintuple pump legacy 3D parts list; BOM item 18; quantity as printed 12; Component model / specification as printed
  339. HRY5-600V 60HZ/6KW,dIIBT4 — S1 , PDF p. 22 — NB005 quintuple pump legacy 3D parts list; BOM item 19; quantity as printed 2; Drawing / catalogue reference
  340. M6×25 — S1 , PDF p. 22 — NB005 quintuple pump legacy 3D parts list; BOM item 20; quantity as printed 6; Component model / specification as printed
  341. YWZ-160T — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 21; quantity as printed 2; Drawing / catalogue reference
  342. NB005.42.28.00 — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 22; quantity as printed 1; Drawing / catalogue reference
  343. NB005.07.18 — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 23; quantity as printed 12; Drawing / catalogue reference
  344. NB005.07.16 — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 24; quantity as printed 2; Drawing / catalogue reference
  345. NB005.07.15 — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 25; quantity as printed 2; Drawing / catalogue reference
  346. Φ63-Φ73 — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 26; quantity as printed 4; Drawing / catalogue reference
  347. ID 2 1/2", L=150 — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 27; quantity as printed 2; Drawing / catalogue reference
  348. NB005.07.14.00 — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 28; quantity as printed 2; Drawing / catalogue reference
  349. NB005.07.17 — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 29; quantity as printed 2; Drawing / catalogue reference
  350. M30x120 — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 30; quantity as printed 12; Component model / specification as printed
  351. M30 — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 31; quantity as printed 12; Component model / specification as printed
  352. M24 — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 32; quantity as printed 4; Component model / specification as printed
  353. M24x70 — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 33; quantity as printed 4; Component model / specification as printed
  354. NB005.61.02.00 — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 34; quantity as printed 1; Drawing / catalogue reference
  355. NB005.61.01 — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 35; quantity as printed 1; Drawing / catalogue reference
  356. 1” — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 36; quantity as printed 4; Drawing / catalogue reference
  357. 1"-8×2 3/8" — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 37; quantity as printed 8; Component model / specification as printed
  358. NB005.61.04.00 — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 38; quantity as printed 1; Drawing / catalogue reference
  359. NB005.61.03 — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 39; quantity as printed 1; Drawing / catalogue reference
  360. HGHT04.07.01 — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 1; Drawing / catalogue reference
  361. NB004.09.05 — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 1; Drawing / catalogue reference
  362. ANSI/API Spec 6A-2010 — S1 , PDF p. 23 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 3; Standard / specification reference (not an individual part number)
  363. NB2200G.25.05.00 — S1 , PDF p. 24 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 1; Drawing / catalogue reference
  364. NB004.09.03 — S1 , PDF p. 24 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 1; Drawing / catalogue reference
  365. ANSI/API Spec 6A-2010 — S1 , PDF p. 24 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 1; Standard / specification reference (not an individual part number)
  366. NB1600M.07.02H — S1 , PDF p. 24 — NB005 quintuple pump legacy 3D parts list; BOM item 7; quantity as printed 8; Drawing / catalogue reference
  367. NB1600M.07.03H — S1 , PDF p. 24 — NB005 quintuple pump legacy 3D parts list; BOM item 8; quantity as printed 8; Drawing / catalogue reference
  368. YK-150 — S1 , PDF p. 24 — NB005 quintuple pump legacy 3D parts list; BOM item 9; quantity as printed 1; Drawing / catalogue reference
  369. NB004.09.02 — S1 , PDF p. 24 — NB005 quintuple pump legacy 3D parts list; BOM item 10; quantity as printed 1; Drawing / catalogue reference
  370. ANSI/API Spec 6A-2010 — S1 , PDF p. 24 — NB005 quintuple pump legacy 3D parts list; BOM item 11; quantity as printed 1; Standard / specification reference (not an individual part number)
  371. NB004.09.01 — S1 , PDF p. 24 — NB005 quintuple pump legacy 3D parts list; BOM item 12; quantity as printed 1; Drawing / catalogue reference
  372. NB1600M.07.04H — S1 , PDF p. 24 — NB005 quintuple pump legacy 3D parts list; BOM item 13; quantity as printed 44; Drawing / catalogue reference
  373. NB800M.24.06A — S1 , PDF p. 24 — NB005 quintuple pump legacy 3D parts list; BOM item 14; quantity as printed 44; Drawing / catalogue reference
  374. NB004.09.04 — S1 , PDF p. 24 — NB005 quintuple pump legacy 3D parts list; BOM item 15; quantity as printed 1; Drawing / catalogue reference
  375. GB/T5782 — S1 , PDF p. 24 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 8; Standard / specification reference (not an individual part number)
  376. NB001.27.11 — S1 , PDF p. 24 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 1; Drawing / catalogue reference
  377. NB004.12.02 — S1 , PDF p. 24 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 1; Drawing / catalogue reference
  378. NB001.27.02 — S1 , PDF p. 24 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 1; This reference has different guard/plate descriptions on other pages. Keep the exact assembly and page context; do not merge by number alone.; Drawing / catalogue reference
  379. NB004.12.01 — S1 , PDF p. 25 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 1; This reference has different guard/plate descriptions on other pages. Keep the exact assembly and page context; do not merge by number alone.; Drawing / catalogue reference
  380. NB004.12.08 — S1 , PDF p. 25 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 1; Drawing / catalogue reference
  381. GB/T5783 — S1 , PDF p. 25 — NB005 quintuple pump legacy 3D parts list; BOM item 7; quantity as printed 6; Standard / specification reference (not an individual part number)
  382. NB004.12.07 — S1 , PDF p. 25 — NB005 quintuple pump legacy 3D parts list; BOM item 8; quantity as printed 6; Drawing / catalogue reference
  383. NB004.12.04 — S1 , PDF p. 25 — NB005 quintuple pump legacy 3D parts list; BOM item 9; quantity as printed 1; Drawing / catalogue reference
  384. NB001.27.10 — S1 , PDF p. 25 — NB005 quintuple pump legacy 3D parts list; BOM item 10; quantity as printed 1; Drawing / catalogue reference
  385. NB004.12.03 — S1 , PDF p. 25 — NB005 quintuple pump legacy 3D parts list; BOM item 11; quantity as printed 1; Drawing / catalogue reference
  386. GB/T13871 — S1 , PDF p. 25 — NB005 quintuple pump legacy 3D parts list; BOM item 12; quantity as printed 1; Standard / specification reference (not an individual part number)
  387. NB004.12.06 — S1 , PDF p. 25 — NB005 quintuple pump legacy 3D parts list; BOM item 13; quantity as printed 1; Drawing / catalogue reference
  388. NB004.12.05 — S1 , PDF p. 25 — NB005 quintuple pump legacy 3D parts list; BOM item 14; quantity as printed 1; Drawing / catalogue reference
  389. NB004.12.09.00 — S1 , PDF p. 25 — NB005 quintuple pump legacy 3D parts list; BOM item 15; quantity as printed 1; Drawing / catalogue reference
  390. NB001.27.13 — S1 , PDF p. 25 — NB005 quintuple pump legacy 3D parts list; BOM item 16; quantity as printed 1; Drawing / catalogue reference
  391. NB001.27.12 — S1 , PDF p. 25 — NB005 quintuple pump legacy 3D parts list; BOM item 17; quantity as printed 1; Drawing / catalogue reference
  392. NB004.12.09.03 — S1 , PDF p. 26 — NB005 quintuple pump legacy 3D parts list; BOM item 1; quantity as printed 1; Drawing / catalogue reference
  393. NB004.12.09.02 — S1 , PDF p. 26 — NB005 quintuple pump legacy 3D parts list; BOM item 2; quantity as printed 2; Drawing / catalogue reference
  394. GB/T70.1 — S1 , PDF p. 26 — NB005 quintuple pump legacy 3D parts list; BOM item 3; quantity as printed 4; Standard / specification reference (not an individual part number)
  395. NB001.27.02 — S1 , PDF p. 26 — NB005 quintuple pump legacy 3D parts list; BOM item 4; quantity as printed 1; This reference has different guard/plate descriptions on other pages. Keep the exact assembly and page context; do not merge by number alone.; Drawing / catalogue reference
  396. NB004.12.01 — S1 , PDF p. 26 — NB005 quintuple pump legacy 3D parts list; BOM item 5; quantity as printed 1; This reference has different guard/plate descriptions on other pages. Keep the exact assembly and page context; do not merge by number alone.; Drawing / catalogue reference
  397. GB/T5783 — S1 , PDF p. 26 — NB005 quintuple pump legacy 3D parts list; BOM item 6; quantity as printed 10; Standard / specification reference (not an individual part number)
  398. HBZ013.27.15.03 — S1 , PDF p. 26 — NB005 quintuple pump legacy 3D parts list; BOM item 7; quantity as printed 1; Drawing / catalogue reference
  399. HBZ013.27.15.04 — S1 , PDF p. 26 — NB005 quintuple pump legacy 3D parts list; BOM item 8; quantity as printed 1; Drawing / catalogue reference
  400. NB005.00 — S1 , PDF p. 2 — NB005 quintuple pump; assembly heading in legacy 3D parts list; Assembly drawing reference
  401. NB005.01.00 — S1 , PDF p. 3 — NB005 quintuple pump; assembly heading in legacy 3D parts list; Assembly drawing reference
  402. NB004.02.00 — S1 , PDF p. 4 — NB005 quintuple pump; assembly heading in legacy 3D parts list; Assembly drawing reference
  403. NB001.02.01.00 — S1 , PDF p. 6 — NB005 quintuple pump; assembly heading in legacy 3D parts list; Assembly drawing reference
  404. NB001.02.04.00 — S1 , PDF p. 7 — NB005 quintuple pump; assembly heading in legacy 3D parts list; Assembly drawing reference
  405. NB001.03.00 — S1 , PDF p. 7 — NB005 quintuple pump; assembly heading in legacy 3D parts list; Assembly drawing reference
  406. NB005.04.00 — S1 , PDF p. 8 — NB005 quintuple pump; assembly heading in legacy 3D parts list; The main BOM uses NB001.04.00 for the crosshead component, while its section heading uses NB005.04.00; confirm the actual drawing revision.; Assembly drawing reference
  407. NB005.05.00 — S1 , PDF p. 9 — NB005 quintuple pump; assembly heading in legacy 3D parts list; Assembly drawing reference
  408. NB005.06.00 — S1 , PDF p. 13 — NB005 quintuple pump; assembly heading in legacy 3D parts list; Assembly drawing reference
  409. NB004.06.11.00 — S1 , PDF p. 17 — NB005 quintuple pump; assembly heading in legacy 3D parts list; Assembly drawing reference
  410. NB004.06.12.00 — S1 , PDF p. 18 — NB005 quintuple pump; assembly heading in legacy 3D parts list; Assembly drawing reference
  411. NB004.06.13.00 — S1 , PDF p. 19 — NB005 quintuple pump; assembly heading in legacy 3D parts list; Assembly drawing reference
  412. NB005.08.00 — S1 , PDF p. 20 — NB005 quintuple pump; assembly heading in legacy 3D parts list; Assembly drawing reference
  413. NB005.07.00 — S1 , PDF p. 22 — NB005 quintuple pump; assembly heading in legacy 3D parts list; Assembly drawing reference
  414. NB004.09.00 — S1 , PDF p. 23 — NB005 quintuple pump; assembly heading in legacy 3D parts list; Assembly drawing reference
  415. NB004.12.00 — S1 , PDF p. 24 — NB005 quintuple pump; assembly heading in legacy 3D parts list; Assembly drawing reference
  416. NB004.12.09.00 — S1 , PDF p. 26 — NB005 quintuple pump; assembly heading in legacy 3D parts list; Assembly drawing reference

Request a Quotation

Send the part number, quantity and pump model for a quotation.

WhatsApp parts inquiryEmail parts list

Related model guides

Browse all Company News and model guides

WhatsApp
